Eemax Tankless Commercial Water Heaters

Proudly made in the USA

Eemax is a leader in the electric tankless water heater industry. With dozens of models to choose from (both residential and commercial, single-point use or whole-house) there is something to fit any hot water heating need. Let PlumbingSupply.com® supply you with a tankless water heater from Eemax.

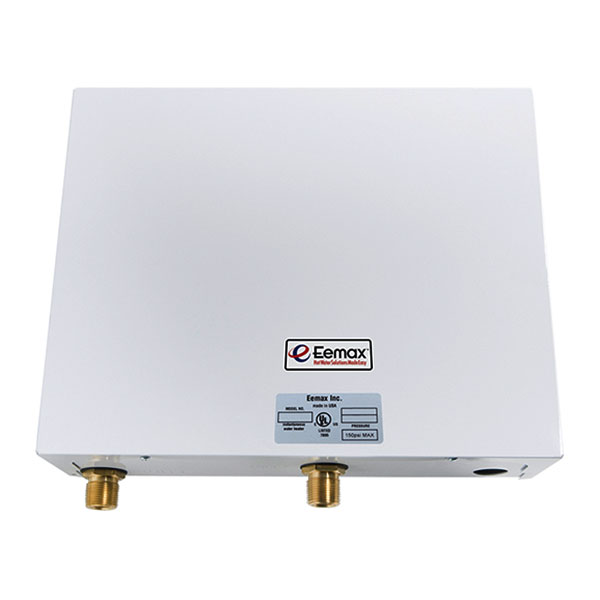

Thermostatic 3-Phase Tankless Water Heaters - Triple Module

Eemax three phase tankless water heaters
Features:
  • Made for use in commercial or industrial applications such as: eye/face wash stations, restaurants and other food service requirements, multiple lavatories, or anywhere tepid water is needed
  • Supplies you with ENDLESS hot water since there is no water storage container to deplete
  • Flow switch activates heater only on demand meaning no standby heat loss - 99% efficient
  • Helps to reduce calcification, liming and sedimentation while also helping to prevent Legionella bacteria growth
  • These units compact size allows for easy installation on a wall close to the point of use
  • Fitted with 1/2" brass compression fittings and electrical entry on the bottom of the units
  • All major components are field replaceable and readily available
  • Designed for hot or cold water feed
  • Three phase models
  • Dimensions: 18-1/4"H x 12-1/4"W x 4-1/2"D

  • Turn on options:
    T2T - staged turn on with minimum .7 GPM, and the max flow is 4 GPM
    T3 - parallel turn on with minimum 2.0 GPM, and the max flow is 5 GPM

Please note: You must fill out an acknowledgment form before the manufacturer will ship any "Three Phase" or larger models.
Why is this form required?

T2T Staged Models

Model # Volts kW Amps
Per Phase
Recommended
Wire Size
Temperature Rise °F Price & Quantity
2.0
gpm
2.5
gpm
3.0
gpm
4.0
gpm
EX180T2T 208V 18kW 50A/phase 6AWG 61° 49° 41° 32° $1,488.26 Enter a quantity and
EX240T2T 208V 24kW 67A/phase 6AWG 82° 66° 55° 41° $1,487.80 Enter a quantity and
ED032480T2T 480V 32kW 38A/phase 6AWG 109° 87° 73° 55° $1,522.19 Enter a quantity and

These Eemax tankless water heaters are custom built for your order and are are non-returnable and non-refundable.


T3 Parallel Models

Model # Volts kW Amps
Per Phase
Recommended
Wire Size
Temperature Rise °F Price & Quantity
2.0
gpm
2.5
gpm
3.0
gpm
4.0
gpm
5.0
gpm
EX180T3 208V 18kW 50A/phase 6AWG 61° 49° 41° 31° 25° $1,489.17 Enter a quantity and
EX240T3 208V 24kW 67A/phase 6AWG 82° 66° 55° 41° 33° $1,484.84 Enter a quantity and

These Eemax tankless water heaters are custom built for your order and are are non-returnable and non-refundable.

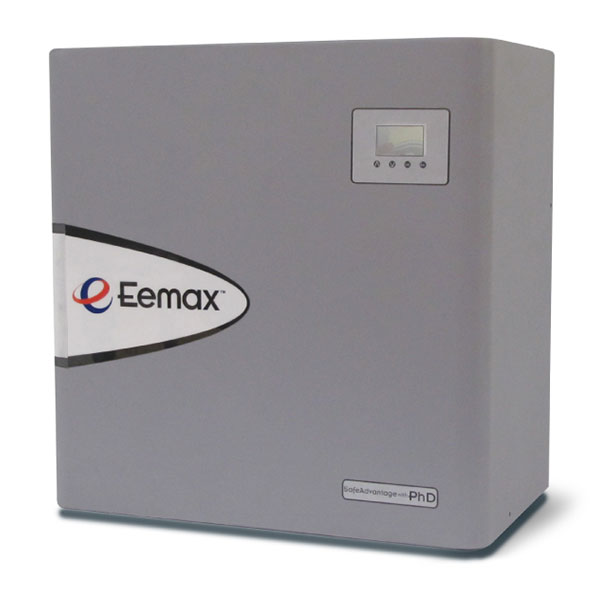

SpecAdvantage with PhD - Three Phase
(Six Heating Elements - old Series Six)

Eemax Series Six models
Features:
  • Made for use in commercial or industrial applications such as: commercial kitchens, emergency eye wash and safety showers, high volume domestic hot water, glycol heating, etc
  • Highly visible LCD display and control with built in diagnostics including error and fault code display
  • Heavy duty water heater provides huge amounts of hot water whenever you need it - and it turns off to conserve energy when you don't need it
  • Good for industrial/commercial applications
  • Micro processing thermostats accurately maintain outlet temperature (+/- 1°)
  • Elements - six replaceable cartridge elements plus two spares
  • Comes with thermal cut out
  • Standard temp setting 100°- 140°
  • Fitted with 1-1/4" NPT bottom pipe connections
  • Operating pressure min. 35 PSI, max 150 PSI
  • Optimum operating pressure: 60-90 PSI
  • Hot or cold water feed
  • Three phase models
  • Dimensions: 26-3/16"W x 17-5/8"H x 10-1/4"D

T6 Parallel & T24T Staged Models
Discontinued / Replacement models noted below

Discontinued Model Replacement Model
EX360 T6 AP032208
EX360 T24T AP032208
EX480 T6 AP041208
EX480 T24T AP041208
ED063480 T24T AP063480

SpecAdvantage with PhD
For Commercial and Industrial Applications

Model Voltage kW AMPS Per Phase Recommended
Wire Size
Activation
GPM
Temperature Rise (°F) at / GPM Price & Quantity
3.0 gpm 4.0 gpm 5.0 gpm 6.0 gpm 20.0 gpm 23.0 gpm 26.0 gpm 30.0 gpm
AP032208 208v 32kW 89A 1 AWG 1.0 73° 55° 44° 36° 11° 10° $3,846.61 Enter a quantity and
AP041208 208v 41kW 112A 1 AWG 1.0 93° 70° 56° 47° 14° 12° 11° $4,817.22 Enter a quantity and
AP063480 480v 63kW 76A 3 AWG 2.5 LFP 108° 86° 72° 22° 19° 17° 14° $5,941.76 Enter a quantity and


to replacement water heater elements

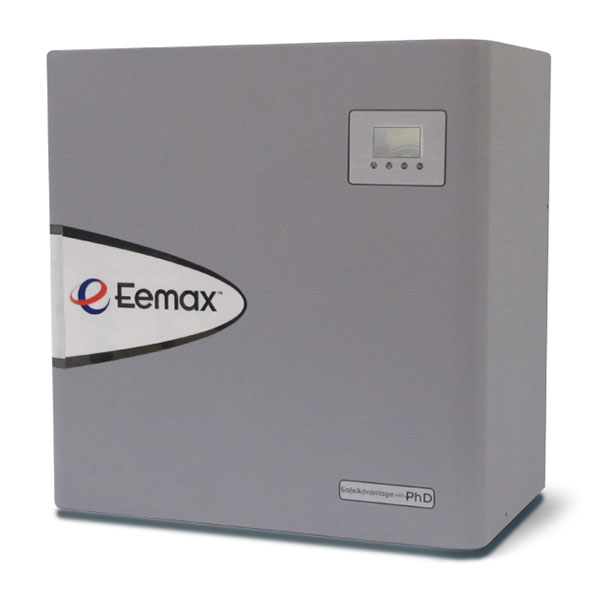

SpecAdvantage with PhD - Three Phase
(Twelve Heating Elements - old Series Twelve)


Eemax series twelve models
Features:
  • Specifically made for Emergency Eye, Face & Drench washing stations
  • Maximum outlet temperature 90°F. - Ships with display "Locked"
  • Conforms to ANSI Z3581.1 tepid water no additional mixing valve
  • Extremely productive water heater provides endless amounts of hot water whenever you need it - and turns off to conserve energy when you don't need it
  • Cut energy waste by utilizing a flow switch that activates the heater only when water is running so there is never any standby heat loss as with most storage tank water heaters
  • Simple 1-1/4" NPT fittings that require no soldering along with a unit that mounts directly to the wall with common hardware means an easy installation process
  • Fully modulating, utilizing a predictive control algorithm and diverse safety features to ensure precise temperature control
  • Thermostatic control capable of reacting to changing temperatures while providing stable output
  • Must not be plumbed to feed into a thermostatic mixing valve, if a thermostatic mixing valve is required, a different heater (non EFD) must be used.
  • Elements - twelve replaceable cartridge elements plus two spares
  • Fitted with 1-1/4" NPT bottom pipe connections
  • Inlet temperature must not exceed 90°F.
  • Three phase
  • Dimensions: 26-3/16"W x 17-5/8"H x 10-1/4"D

Series Twelve Models - Three Phase
Discontinued / Replacement models noted below

Discontinued Model Replacement Model
EX480T12 EFD-277 AP048480 EFD
EX480T12 EFD AP041208 EFD
EX720T12 EFD AP064208 EFD
EX720T12 DS AP064208 EFD
EX960T12 EFD No Replacement
EX960T12 DS No Replacement
ED108480T12 EFD AP108480 EFD
ED126480T12 EFD AP126480 EFD

SpecAdvantage with PhD
For Commercial and Industrial Applications

Model Voltage kW AMPS Per Phase Recommended
Wire Size
Activation
GPM
Temperature Rise (°F) at / GPM Price & Quantity
3.0 gpm 4.0 gpm 5.0 gpm 6.0 gpm 20.0 gpm 23.0 gpm 26.0 gpm 30.0 gpm
AP041208 EFD 208v 41kW 113A 1 AWG 1.0 LFP LFP 56° 47° 14° 12° 11° $4,832.44 Enter a quantity and
AP064208 EFD 208v 64kW 178A 3/0 AWG 2.5 LFP LFP LFP LFP 22° 19° 17° 15° $6,073.21 Enter a quantity and
AP048480 EFD 480v 48kW 58A 6 AWG 1.0 LFP LFP LFP 55° 16° 14° 13° 11° $5,481.17 Enter a quantity and
AP108480 EFD 480v 108kW 130A 1/0 AWG 2.5 LFP LFP LFP LFP 37° 32° 28° 25° $6,521.67 Enter a quantity and
AP126480 EFD 480v 126kW 151A 2/0 AWG 2.5 LFP LFP LFP LFP 43° 37° 33° 29° $6,671.32 Enter a quantity and


to replacement water heater elements

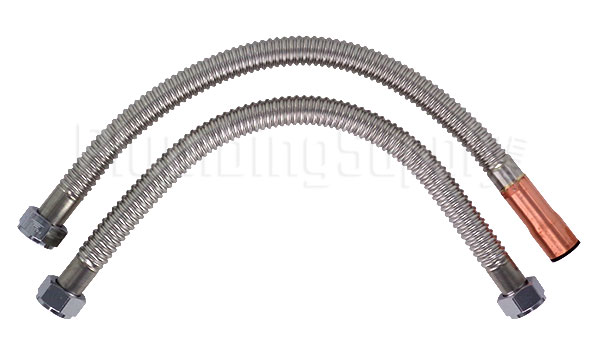

Flexible Corrugated Hot Water Heater Connectors

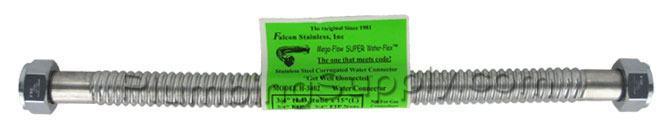

Ultraflow water connector
  • Specifically designed for use with 3/4" water heaters inlet/outlet
  • Stainless steel water ways inside makes it resistant to rust and corrosion
  • Corrugated design helps prevent against kinks and crimps and makes it extremely flexible
  • Maintains optimum flow with no restrictions and 100% tested against leaking
  • Great for tankless water heaters and more
  • Chrome plated solid brass nuts makes tightening a breeze
  • UPC and ASME A112.18.6 compliant
  • IAPMO listed
  • Click here for more flexible water supply line sizes & connections

Material Inlet/Outlet Length Price & Quantity
Stainless Steel 3/4" FIP x 3/4" FIP 18" $7.44 Enter a quantity and
Stainless Steel 3/4" FIP x 3/4" FIP 24" $8.26 Enter a quantity and
Stainless Steel 3/4" FIP x 3/4" FIP 36" $13.40 Enter a quantity and
Stainless Steel 3/4" FIP x 3/4" FIP 48" $15.82 Enter a quantity and

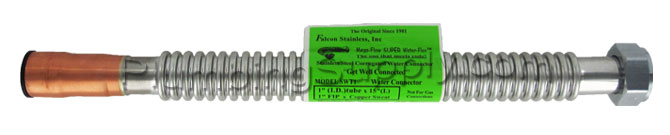

Copper / Stainless Steel 3/4" FIP x 3/4" Nom Sweat 18" $7.60 Enter a quantity and
Copper / Stainless Steel 3/4" FIP x 3/4" Nom Sweat 24" $8.33 Enter a quantity and
Stainless Steel 1" FIP x 1" FIP 18" $19.94 Enter a quantity and
Stainless Steel 1" FIP x 1" FIP 24" $22.41 Enter a quantity and
Stainless Steel 1" FIP x 1" FIP 36" $37.17 Enter a quantity and
Stainless Steel 1" FIP x 1" FIP 48" $45.35 Enter a quantity and
Stainless Steel 1-1/4" FIP x 1-1/4" FIP 18" $30.00 Enter a quantity and
Stainless Steel 1-1/4" FIP x 1-1/4" FIP 24" $32.18 Enter a quantity and

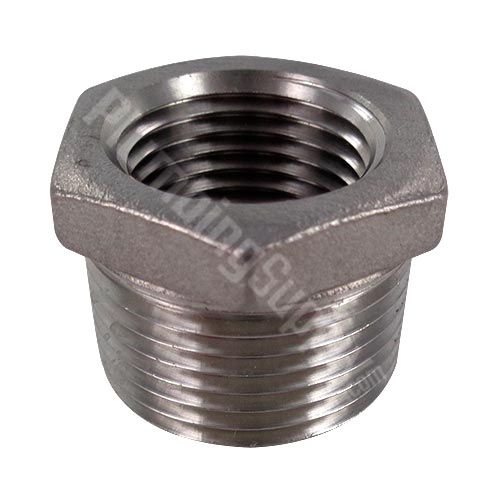

Stainless Steel Bushing 3/4" x 1/2" -- $4.30 Enter a quantity and
Order 10 or more of the same item for additional savings!
Pricing discounts will show up in your shopping cart.


Water Heater Scale Inhibitor System

image of complete scale inhibitor system
This scale inhibitor system features:
  • Highly effective in treating scale, corrosion and iron build-up for up to 6 months
  • Food-grade hexametaphosphate crystals dissolve slowly in water to prevent lime, scale and rust build-up
  • Forms a protective coating on all metal surfaces, safeguarding against acidity/alkalinity, hardness, chloride and other factors which effect the corrosion of water equipment and pipes
  • Maintains efficiently and extends life of system
  • Up to 5gpm
  • Recommended for use with water heaters, ice machines, vending machines, food service equipment, air conditioning and many other types of water processing applications
  • If using on a water heater, it needs to be installed on cold water line entering the water heater
  • Dimensions: 2 7/8" x 9 5/8"
  • Recommended time to change/replace this inhibitor cartridge is 4-6 months
  • It's a good idea to purchase a replacement cartridge to have on hand when needed!
  • For more information, go to our Scale Inhibitor Page

Description Price & Quantity
Scale Inhibitor System:
includes housing, cartridge and mounting bracket
$86.23 Enter a quantity and

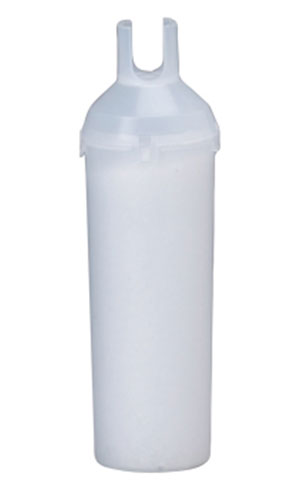

Replacement Inhibitor Cartridge
Save on shipping by ordering replacement cartridge now!
$57.23 Enter a quantity and

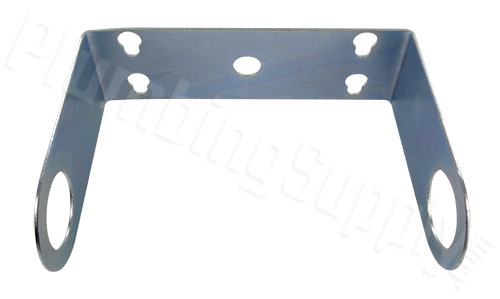

Mounting Bracket:
included with Scale Inhibitor System
$7.28 Enter a quantity and

Please note: These products are NOT made in the USA.

Drain Pan For Tankless Water Heaters

Wall Saver for Tankless Water Heaters
Features:
  • Designed to help protect areas around the mounted heater from water damage
  • Designed to fit underneath most whole house tankless water heaters
  • Injection moulded for ultimate strength and durability
  • Rust and crack resistant and can even be recyclyed when it's job is complete
  • Can be used with either gas or electric water heaters
  • Includes 1" PVC drain connector (replacements can be purchased below)

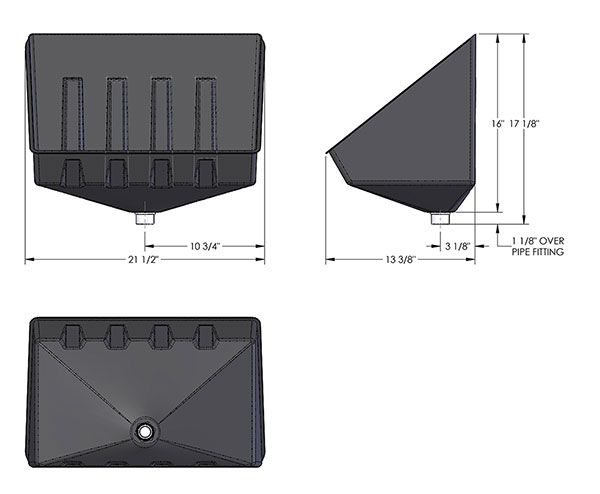

  • Dimensions: 21.5"W x 16"H x 13.4"D - View more detailed dimensions
  • View additional information

Description Price & Quantity
Drain Pan with PVC Adapter For Tankless Water Heaters $52.46
6-pack of Drain Pans - includes PVC drain adapter $283.32 Enter a quantity and

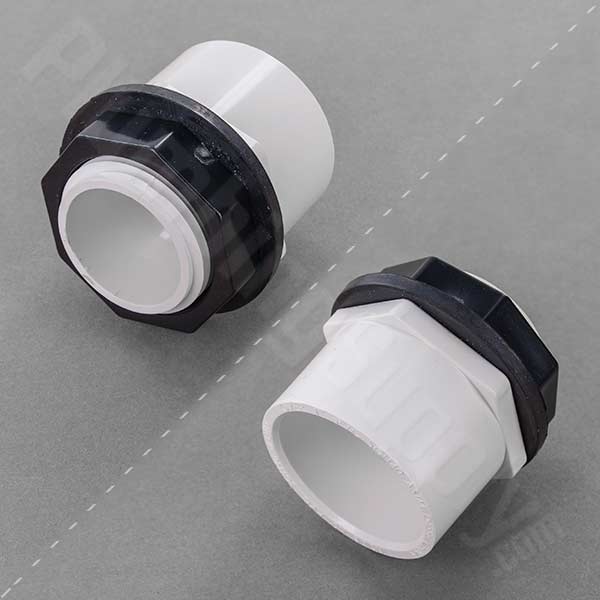

Replacement PVC Drain Connector
Includes 1 each: 1" PVC male adapter, gasket, and locknut
$5.57 Enter a quantity and

Order 6, 12, 24 or more drain pans for additional savings!
Order 2, 4 or more 6-Packs for additional savings!

Pricing discounts will show up in your shopping cart.


Please note: These products are NOT made in the USA.

FloodStop Systems for Water Heaters

floodstop for water heater
Features:
  • Easily prevent water damage from a leaking water heater with this unique device
  • The unit automatically shuts off water supply to the water heater and sounds an alarm leaving all other household fixtures and appliances operational
  • Provides additional protection by requiring AA batteries to be inserted to protect in case of a power outage (batteries not included)
  • Controller will operate normally without batetries installed but will continue to beep until they are inserted
  • Can easily be installed in fifteen muinutes
  • 3/4" Pipe Threaded - Full-Port Motorized Ball Valve (Brass) - for potable water
  • Works with any 3/4" MIPT supply line - rated 0-180 psi

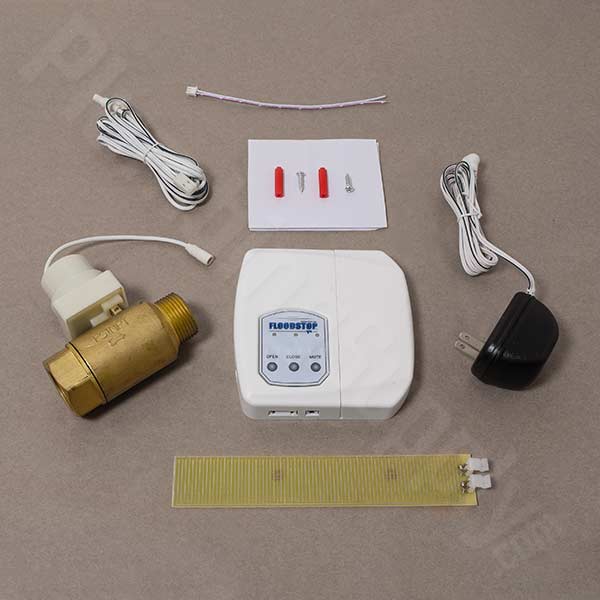

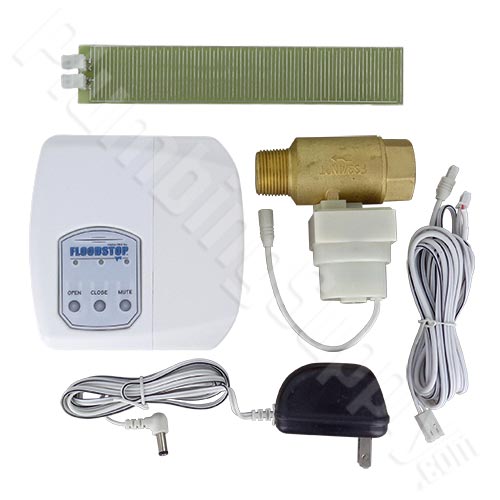

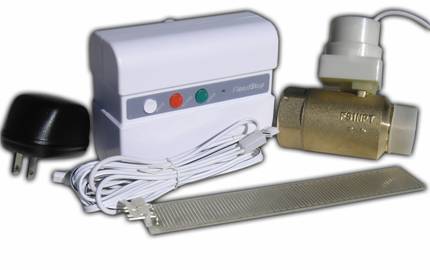

FloodStop (FS 3/4-NPT-V4) Components:
  • Motorized Full-Port Ball Valve (3/4 inch NPT pipe threaded)
  • New Style Control Unit (with Battery Backup 4 X AA Size)
  • Water/Leak Sensor (1-1/4" X 7-1/2")
  • AC Power Adaptor (or use 4 X AA Batteries as Primary Power Source)
  • Output Contact Wires (2)

Model # Description Price & Quantity
FS 3/4-NPT-V4 Water Heater FloodStop System
3/4" pipe threads - works with any 3/4" MIPT supply line
$149.97 Enter a quantity and
FS 3/4-C-V4 Water Heater FloodStop System
3/4" nominal compression (7/8" O.D.) - works with any 3/4" copper applications - no soldering required
$166.50 Enter a quantity and
FS 1-NPT-V4 Water Heater FloodStop System
1" Pipe Threaded - Works with any 1" MIPT supply line
$173.97 Enter a quantity and

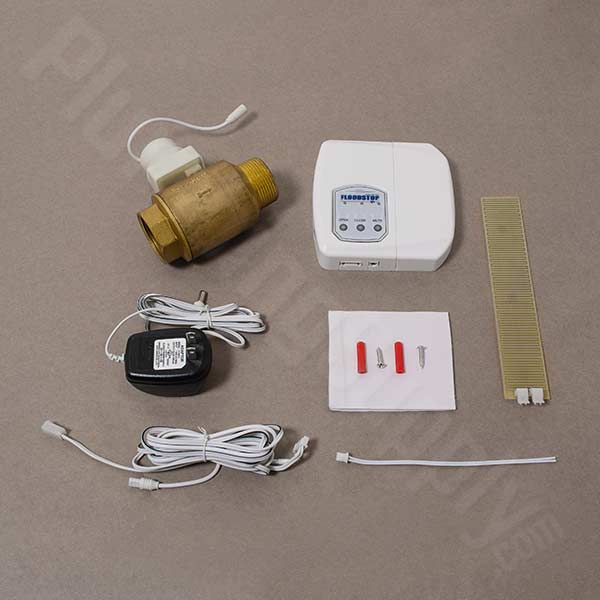

FS 125NPT-V4 Water Heater FloodStop System
1-1/4" NPT - Works with any 1-1/4" MIPT supply line
$194.00 Enter a quantity and

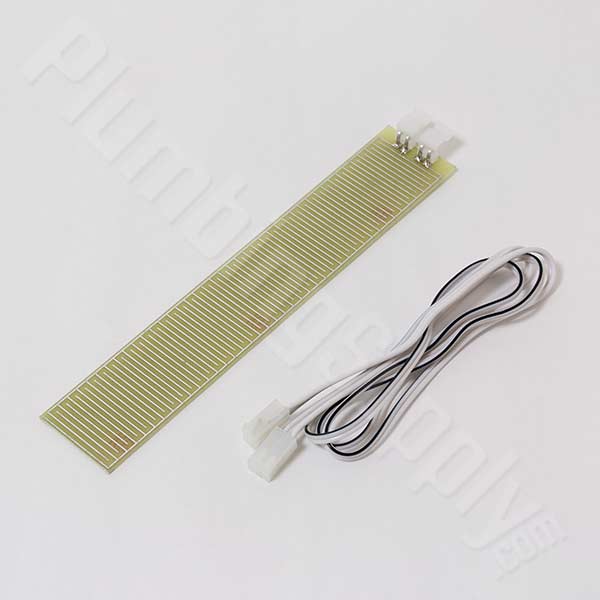

FSAS Additional Sensor for FloodStop Systems $16.45 Enter a quantity and
FSTEW Transformer Extension Wire (86" length) $14.16 Enter a quantity and

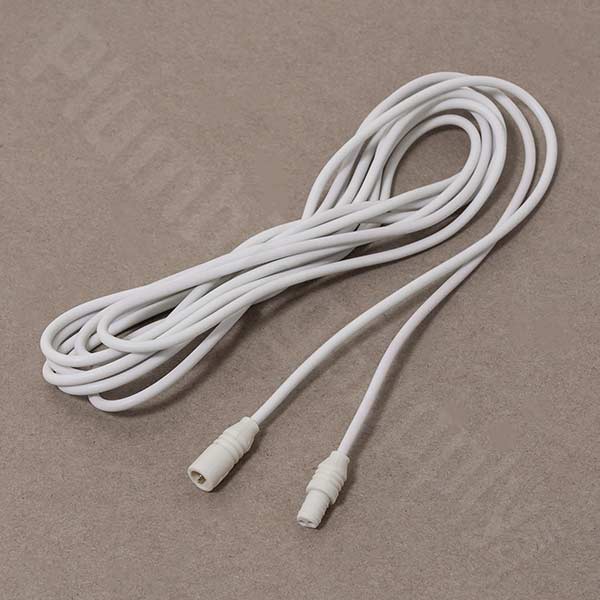

FSC2VEW Controller to valve extension wire - extends reach by 9 feet $14.15 Enter a quantity and

Make sure to follow all of the manufacturer's instructions and directions by performing the proper maintenance and inspections
to ensure that you are fully protected from flooding - this is ever-so-important with (man-made) safety devices as they will eventually fail.


Related Items & Accessories



Frequently Asked Questions

Q. "Why do I need to fill out an order acknowledgment form when purchasing one of these Eemax Three Phase tankless water heaters?"
A. The manufacturer requires us to include this form with our shipment request so that they will have verification ("proof") on-file that they manufactured and shipped the correct heater." If you are ordering a 3-phase Eemax heater, you will need to print and fill out the appropriate order acknowledgment form (you can find the correct form below the ordering table for the model you want), and then fax or mail it to us. Eemax manufactures the 3-phase units to order, therefore, these heaters are not returnable.

Q. "Why is the max flow lower for the staged turn on?"
A. The heating modules are set up differently to accommodate different flow rates.

Q. "What's the difference between the parallel turn on and the staged turn on?"
A. The parallel turn on will give you a higher maximum flow rate, and it needs a higher flow rate to turn on than the staged turn on. The staged turn on will turn on with a lower flow rate, and it handles a lower maximum flow rate than the parallel turn on.

Q. "How does the staged turn on work?"
A. Staged turn on models only use the heating modules needed to produce the desired output temperature.

Q. "Are all Eemax tankless water heaters designed to be hardwired?"
A. Yes, every tankless water heater by Eemax is supposed to be hardwired when it's installed.

Q. "Why does it say 480/277 (or 208/120) in the volts column?"
A. 480 volts is a phase-to-phase voltage requirement and 277 is the voltage to a LIVE NEUTRAL which is required for this configuration. With 208/120 voltage units the 208 voltage is phase-to-phase and 120 is the voltage to EARTH GROUND - no live neutral is required with this configuration. Please consult a licensed industrial electrician for more information.

Q. "Does the kW listed under each model represent the amount of energy they use if all the heating elements are on?"
A. Yes, the specification for kilowatt usage for all models show the maximum wattage with all heating elements on.

Q. "What does first and second stage mean?"
A. All of the staged models turn on their heating modules in stages depending on the water flow. Most of the time when the tankless water heater goes up a stage it turns on one or two heating elements. However, for the series 12 models, the first stage has six heating elements turned on and the second stage has all twelve heating elements on.

Q. "Eemax instant heaters specify the 'temp. rise' based on the GPM flow; what do you mean by this?"
A. Temperature rise is the amount the heater raises the temperature of the incoming water depending on the flow rate of the water.

Q. "Will an instantaneous water heater save me money on my utility bills?"
A. In many applications you can see a savings. There are some variables that could reduce the amount you save. One example is you will not run out of hot water, so longer showers could cut into your savings. Also, the cost of electricity, propane and natural gas in your area will affect the amount of money saved. The higher the cost for the energy type used to heat your water, the quicker you can recover the higher initial cost of installing a tankless versus tank style water heater.

Positives:
  • You will never run out of hot water. "You want an hour long shower? No problem!"
  • Electric units can be installed at the point of use.
  • You're not paying energy costs to heat water 24 hours a day.
  • Our electric units don't require a T&P valve (no tank!) - if code allows.
  • Installing a tankless water heater can indeed be a bonus to the environment. (Why choose wastefulness when we're talking about finite natural resources?)
Negatives:
  • They all need a minimum flow rate & pressure to turn on.
  • Electric units need heavy gauge wire, while gas units need a much larger, special flue pipe and larger gas supply than a conventional water heater.
  • At times they can produce very hot water. It's easier to get scalded - but this is easily mitigated with anti-scald valves.
  • With some brands, parts are hard to find (not a negative if you originally purchase from us, as we like to carry parts for the units that we sell).
Summary:
Tankless water heaters have their place. They're not "the answer" to every hot water need, but if they're used correctly they can be the solution to many of them.

Q. "Why is there a 'no return' policy on three phase units?"
A. Special 3-phase heaters are models made to-order and therefor these special three phase (most residences do not have that) are non returnable. If you order a 3-phase unit we will ask you to sign something saying that you are sure that you have 3-phase electrical and that you understand that they are not returnable.

Q. "Can I install these tankless water heaters in my attic?"
A. Without seeing all of your plumbing piping, etc. it is difficult for us to answer with a straight "yes" or "no." One must be sure that a possible water siphoning condition can not be created as these fantastic electric tankless water heaters can not have air in the lines. Water siphoning out of any brand of electric tankless water heater might damage the heater or element when the element is on and there is no water (or not enough water) in the lines. Air should not be touching the elements.

Q. "I'm hearing a lot about lead-free these days. What does that have to do with plumbing products and how does the new lead-free legislation affect me?"
A. Basically, the laws implemented Jan. 1st, 2014 require plumbing products that come in contact with drinking water to be "essentially lead free" (less than 0.25% weighted average). For further information about how the law determines what is "lead free", rules regarding which plumbing products must be "lead free", and who these laws will affect, please click here.


Please note: While we strive to ensure every product we label as "Made in the USA" really is 100% made in the USA, it is also important to understand that sometimes manufacturers make changes to their products, or for various reasons may receive components or materials that they would normally purchase domestically from an overseas supplier - and they don't necessarily let distributors (like us!) know that they've changed something about the product or where it is manufactured.

If you receive a product that PlumbingSupply.com® says is "Made in the USA" and the product states it was manufactured elsewhere, please contact us. We will happily replace or refund your purchase to your satisfaction.


return to top ↑

Copyright© 1995-2018 PlumbingSupply.com.
All Rights Reserved.
