Flushometers - Exposed or Concealed
By Delany

Delany flush valves are among the top commercial brands available today, providing dependable service whenever you need it. With readily available parts, you can maintain your Delany flush valve and keep it working properly for a lifetime. PlumbingSupply.com® is your source for Delany flush valves and repair parts. Looking for more Delany parts? Click here.

Delany Original Flushboy Exposed Flush Valves

Delany Flushboy Valve402
Delany Flushboy urinal valve451-1

These Original Flushboy flush valves feature:
  • Polished chrome plated valve body with chloramine-resistant diaphragm
  • Externally adjustable with vandal-resistant capped screwdriver angle stop
  • ADA compliant metal "Rubberflex" oscillating handle
  • Includes ground joint tailpiece, vacuum breaker, wall flange, spud nut, and spud flange (3/4" urinal - 1-1/2" WC)
  • Toilet flush valves come with T42 sweat adapter kit

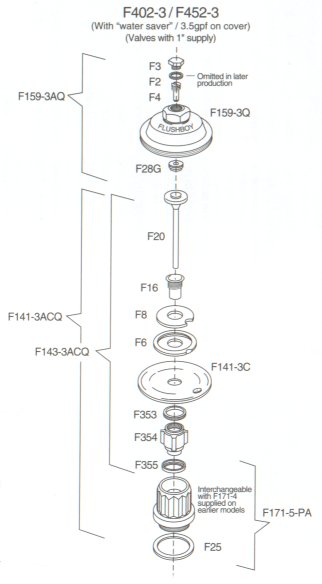

  • Click here for a parts diagram of 3.5 gallon WC flushboy

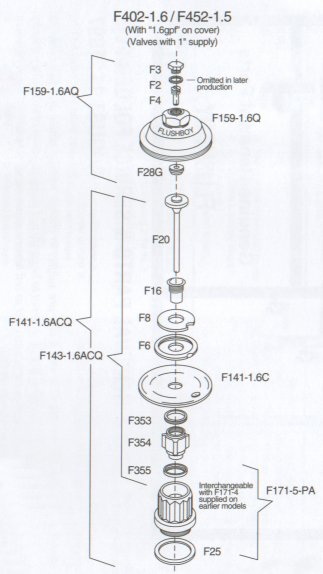

  • Click here for a parts diagram of 1.6 gallon WC flushboy

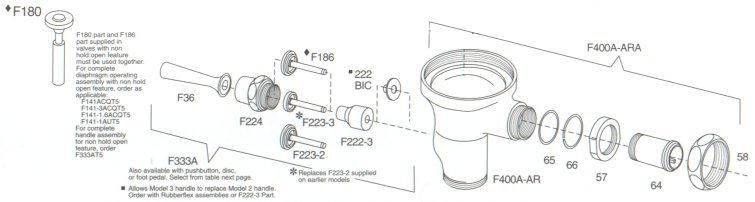

  • Click here for a parts diagram of the Delany handle assembly

Model # Description Price & Quantity
F402-GJ-T42 Flushboy Exposed Water Closet Valve - 4.5 gpf $226.61
F402-3-GJ-T42 Flushboy Exposed Water Closet Valve - 3.5 gpf $227.30
F402-1.6-GJ-T42 Flushboy Exposed Water Closet Valve - 1.6 gpf $226.45
F451-1-GJ Flushboy Exposed Urinal Valve - 1.0 gpf - 3/4" x 9 flush connection $226.55
F452-1.5-GJ Flushboy Exposed Urinal Valve - 1.5 gpf - 1-1/4" x 9 flush connection $236.97

Please note: All flush valves have a 2 week approximate lead time.

- OR - View Cart

Concealed Flush Valves For Security Fixtures

Ultra Plus Hydro-Flush Concealed Flush Valves
Wall mounted push button for 0 - 12" fixture wall thickness

These Delany Ultra Plus concealed water closet flush valves feature:
  • For 1-1/2" back entry security fixtures
  • Concealed rough brass construction
  • All exposed parts are chrome plated
  • Mashaerator self-cleaning bypass, chloramine resistant diaphragm
  • High efficiency flush rates to accommodate HET water closets
  • 1" angle stop with adjustable wheel handle and back-check
  • Regulating screw for 'true-in-the-field' water conservation
  • Push button Hydro-Flush actuator with finished face plate
  • Push button mounts to fixture wall location determined by installer
  • Hydraulically activated piston operated
  • For back spud wall or floor mounted toilets
  • Includes sweat adapter

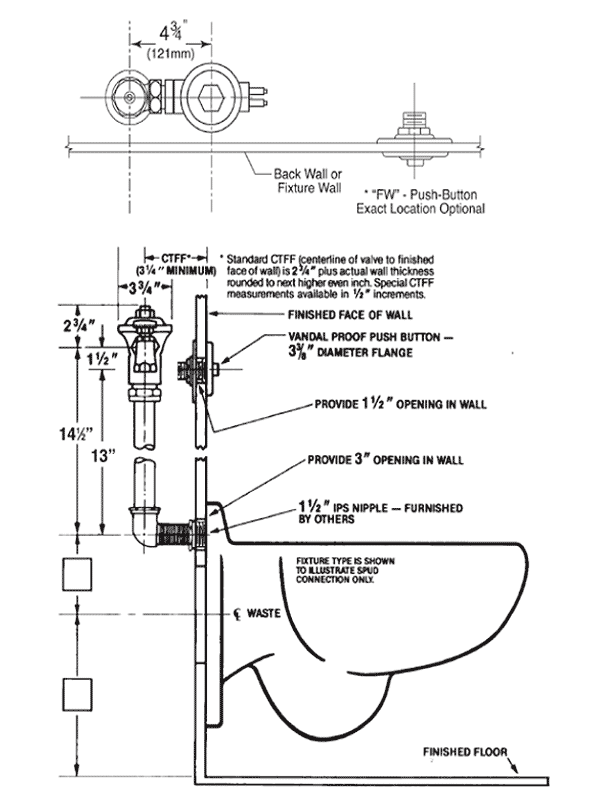

  • View UP1229 specifications

Model # Description GPF Wall Thickness Price & Quantity
UP1229-SC-T42-TS Ultra-Plus Hydro-Flush Concealed Security Valve 1.28 1" to 6" $471.80
UP1229-SC-T42-TS Ultra-Plus Hydro-Flush Concealed Security Valve 1.28 7" to 8" $491.34
UP1229-SC-T42-TS Ultra-Plus Hydro-Flush Concealed Security Valve 1.28 9" to 12" $513.71
UP1229-SC-T42-TS Ultra-Plus Hydro-Flush Concealed Security Valve 1.6 1" to 6" $471.78
UP1229-SC-T42-TS Ultra-Plus Hydro-Flush Concealed Security Valve 1.6 7" to 8" $492.56
UP1229-SC-T42-TS Ultra-Plus Hydro-Flush Concealed Security Valve 1.6 9" to 12" $514.81

Note: Ultra-Plus flush valves are not available for 3.5 gpf water closets. Use Flushboy Style

Please note: All flush valves have a 2 week approximate lead time.

- OR - View Cart

Concealed Flush Valves For Security Fixtures With Backsplash

For water closets with integrated lavatory combinations

Ultra-Plus Hydro-Flush Concealed Flush Valves
Wall mounted push button for 0 - 11" fixture wall thickness

These Delany water closet flush valves feature:
  • For 1-1/2" back entry security fixtures with backsplash
  • Concealed, behind-the-wall rough brass construction
  • All exposed parts are chrome plated
  • Replaceable main valve seat
  • Mashaerator self-cleaning bypass, chloramine resistant diaphragm
  • 1" angle stop with adjustable wheel handle and back-check
  • Regulating screw for 'true-in-the-field' water conservation
  • Hydraulically activated piston operated
  • For back spud wall or floor mounted toilets with built-in lavatory
  • ADA compliant Hydro-Flush actuator push button assembly with finished face plate
  • 1.28 gpf or 1.6 gpf flush rates to accommodate toilet flushing requirements
  • Includes sweat adapter

Model # Description GPF Wall Thickness Price & Quantity
UP1223-SC-T42-TS Ultra-Plus Hydro-Flush Concealed Security Valve 1.28 1" to 5" $458.92
UP1223-SC-T42-TS Ultra-Plus Hydro-Flush Concealed Security Valve 1.28 6" to 7" $477.24
UP1223-SC-T42-TS Ultra-Plus Hydro-Flush Concealed Security Valve 1.28 8" to 11" $498.79
UP1223-SC-T42-TS Ultra-Plus Hydro-Flush Concealed Security Valve 1.6 1" to 5" $465.82
UP1223-SC-T42-TS Ultra-Plus Hydro-Flush Concealed Security Valve 1.6 6" to 7" $482.97
UP1223-SC-T42-TS Ultra-Plus Hydro-Flush Concealed Security Valve 1.6 8" to 11" $498.80

Note: Ultra-Plus flush valves are not available for 3.5 gpf water closets. Use Flushboy Style

Please note: All flush valves have a 2 week approximate lead time.

- OR - View Cart

Flushboy Hydro-Flush Concealed Flush Valves
Wall mounted push button for 0 - 11" fixture wall thickness

These Delany water closet flush valves feature:
  • For 1-1/2" back entry security fixtures with backsplash
  • Concealed rough brass construction
  • Chloramine-resistant diaphragm
  • Various flush rates to accommodate your needs
  • Externally adjustable with 1" wheel handle angle stop and back-check
  • Push button Hydro-Flush actuator with finished face plate
  • For back spud wall or floor mounted toilets
  • Includes sweat adapter

Model # Description GPF Wall Thickness Price & Quantity
F1223,T42 Hydro-Flush Concealed Security Valve 3.5 1" to 5" $481.95
F1223,T42 Hydro-Flush Concealed Security Valve 3.5 6" to 7" $482.65
F1223,T42 Hydro-Flush Concealed Security Valve 3.5 8" to 11" $483.44

Please note: All flush valves have a 2 week approximate lead time.

- OR - View Cart
