Repair Parts for Delany Flush Valves

Tired of looking for replacement parts for your Delany flush valve? If you need Flushboy parts, cover assemblies, main valve seats, regulating screws, seat guides, or many other Delany flush valve parts, we have them! Just take a look at all the parts we have to offer, and you're sure to find just what you need to repair or update your Delany flush valves. Let PlumbingSupply.com® be your source for these and many other Delany products.

Flushboy Genuine Renewal Parts

Delany F402 Assembly

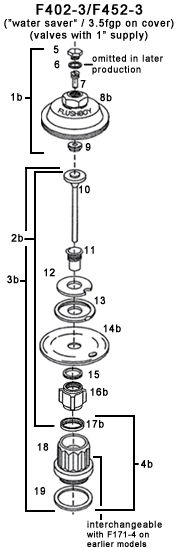

Delany F402-3 Assembly

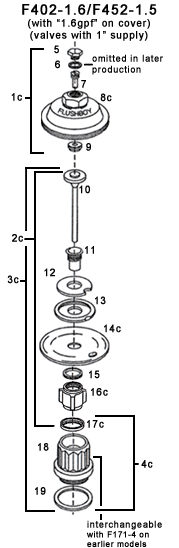

Delany F402-1.6 Assembly

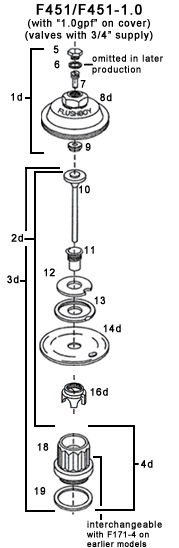

Delany F451 Assembly

Delany Base Assembly

Item # Image Part # Item Description Price & Quantity

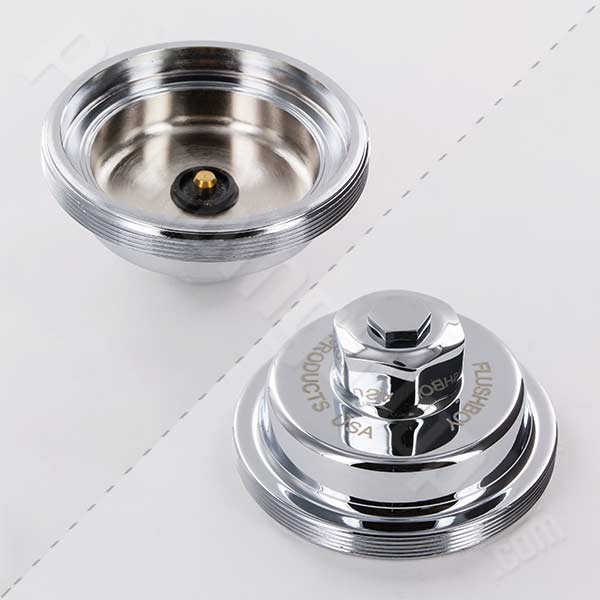

1a delany flush valve cover assembly F159AQ F159-A Cover assembly for ALL Flushboy Valves (all GPF's, WC or Urinal) - includes items 5 thru 9 $82.59 Enter a quantity and

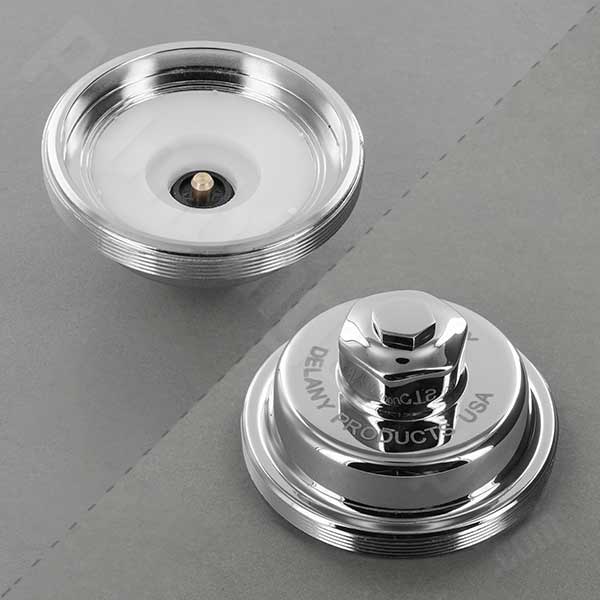

1b delany flush valve cover assembly F159-3AQ F159-3AQ Cover assembly for valve F402-3/F452-3 - includes items 5 thru 9 - Replaced by F159-A
1c --- F159-1.6AQ Cover assembly for valve F402-1.6/F452-1.5 - includes items 5 thru 9 - Replaced by F159-A
1d --- F159-1AQ Cover assembly for valve F451/F451-1.0 - includes items 5 thru 9 - Replaced by F159-A

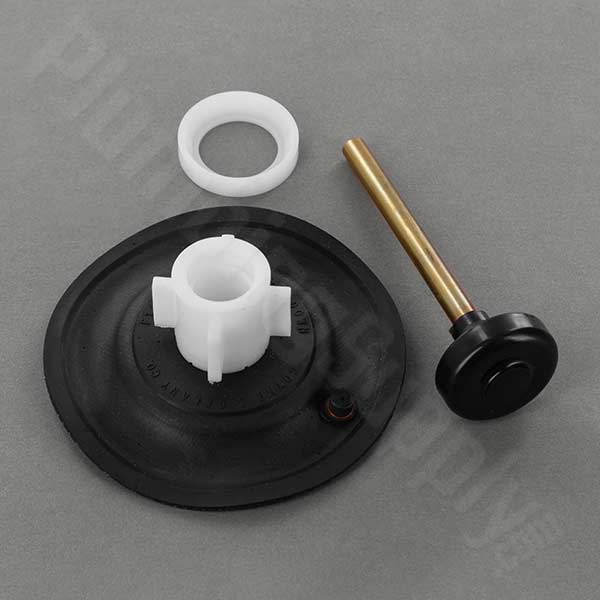

2a delany flush valve diaphragm operating assembly for valve 143-ACQ 143-ACQ (old #F143-ACQ) Diaphragm Drop-In Kit for valve F402/F452 - includes items 10 thru 17 - 4.5 GPF $74.83 Enter a quantity and
2b delany diaphragm operating assembly for valve F143-3ACQ 143-3-ACQ (old F143-3-ACQ) Diaphragm Drop-In Kit for valve F402-3/F452-3 - includes items 10 thru 17 - 3.5 GPF $73.54 Enter a quantity and

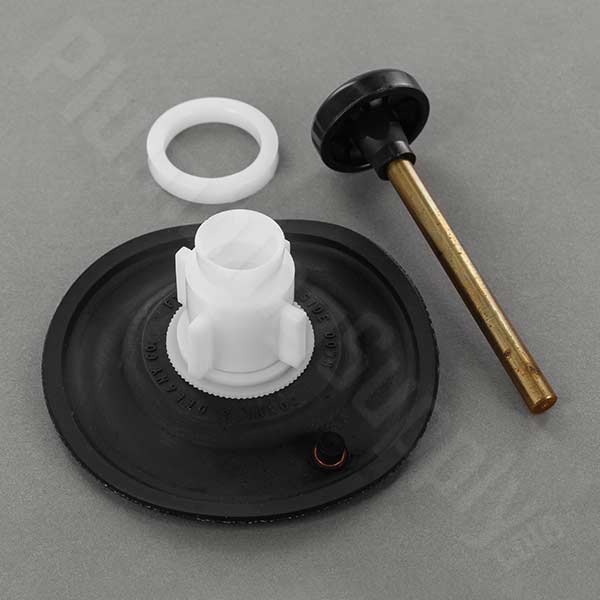

2c delany flush valve diaphragm operating assembly 143-1.6ACQ 143-1.6-ACQ (old #F143-1.6-ACQ) Diaphragm Drop-In Kit for valve F402-1.6/F452-1.5 - includes items 10 thru 17 - 1.6 GPF $36.74 Enter a quantity and
delany flush valve diaphragm operating assembly 143-1.28-ACQ 143-1.28-ACQ Diaphragm Drop-In Kit for valve F402-1.28 - includes items 10 thru 17 - 1.28 GPF $72.80 Enter a quantity and
2d --- 143-1-AU (old #F143-1-AU) Diaphragm Drop-In Kit for valve F451/F451-1.0 - includes items 10 thru 16 - 1.0 GPF $60.70 Enter a quantity and
--- 143-0.5-AU Diaphragm Drop-In Kit for High Effiecency Urinals - includes items 10 thru 16 - 0.5 GPF $59.95 Enter a quantity and
--- 143-0.125-AU Diaphragm Drop-In Kit for High Effiecency Urinals - includes items 10 thru 16 - 0.125 GPF $60.75 Enter a quantity and

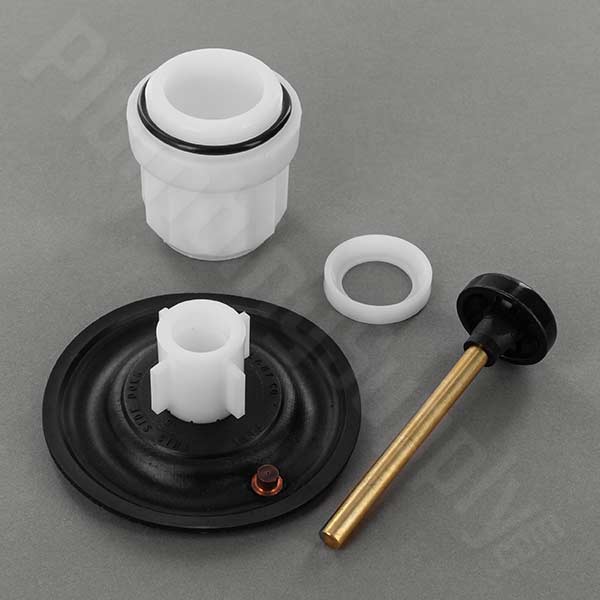

3a delany flush valve diaphragm operating assembly F141ACQ F141ACQ Diaphragm operating assembly for valve F402/F452 - includes items 10 thru 19 $41.72 Enter a quantity and

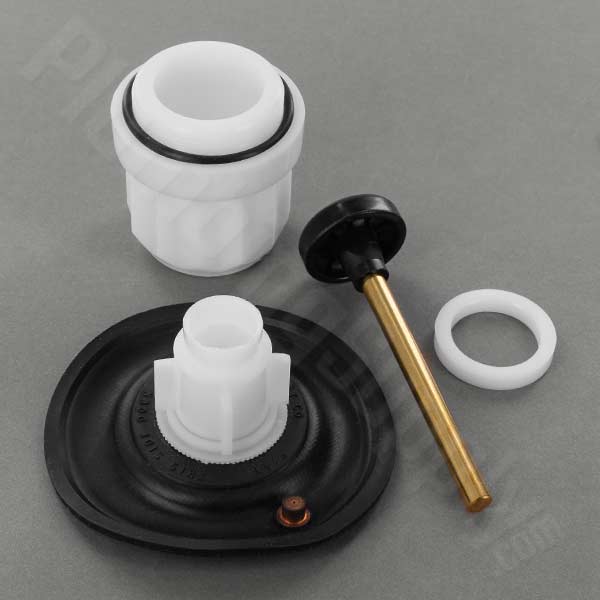

3b delany flush valve diaphragm operating assembly F141-3ACQ 141-3-ACQ (old #F141-3-ACQ) Diaphragm operating assembly for valve F402-3/F452-3 - includes items 10 thru 19 Discontinued replaced
by F143-3-ACQ

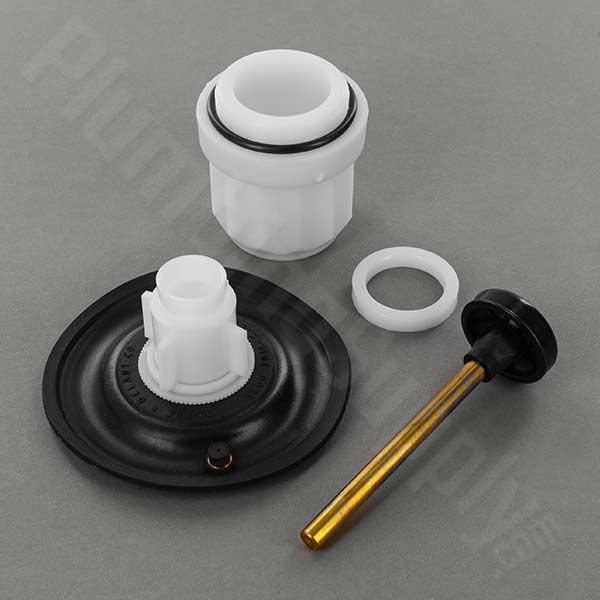

3c delany flush valve diaphragram operating assembly F141-1.6ACQ F141-1.6ACQ Diaphragm operating assembly for valve F402-1.6/F452-1.5 - includes items 10 thru 19 Discontinued replaced
by 143-1.6-ACQ
3d --- F141-AU Replaced by F141-1AU (see below) Discontinued
Use F141-1-AU

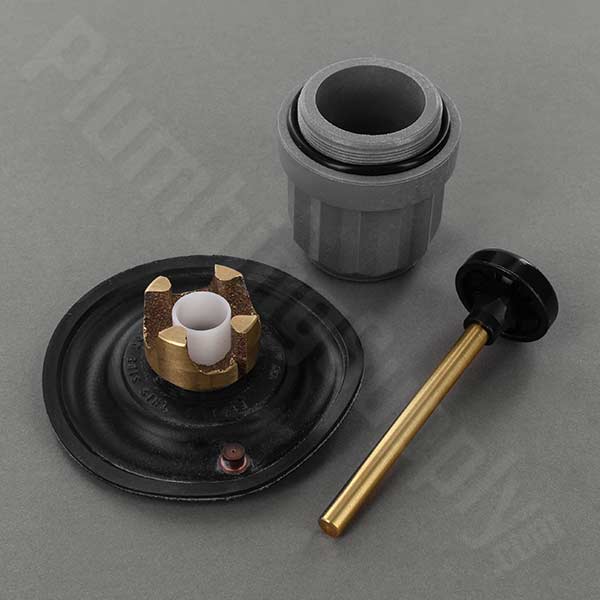

delany flush valve diaphragm operating assembly F141-1AU F141-1-AU Diaphragm operating assembly for valve F451/F451-1.0 - includes items 10 thru 19 $37.53 Enter a quantity and

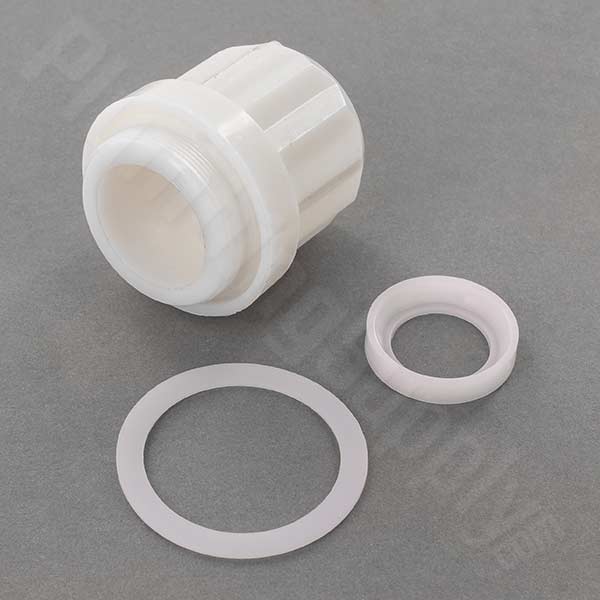

4a delany flush valve seat with washer F171-4-PA 171-4-PA (old #F171-4-PA) Main valve seat assembly for valve F402/F452 - includes items 17 thru 19 - Interchangeable with F171-4 supplied on earlier models $15.83 Enter a quantity and
4b delany flush valve seat with washer F171-5-PA 171-5-PA (old #F171-5-PA) Main valve seat assembly for valve F402-3/F452-3 - includes items 17 thru 19 - Interchangeable with F171-4 supplied on earlier models $28.97 Enter a quantity and
4c delany flush valve seat with washer F171-5-PA 171-5-PA (old #F171-5-PA) Main valve seat assembly for valve F402-1.6/F452-1.5 - includes items 17 thru 19 - Interchangeable with F171-4 supplied on earlier models $28.97 Enter a quantity and

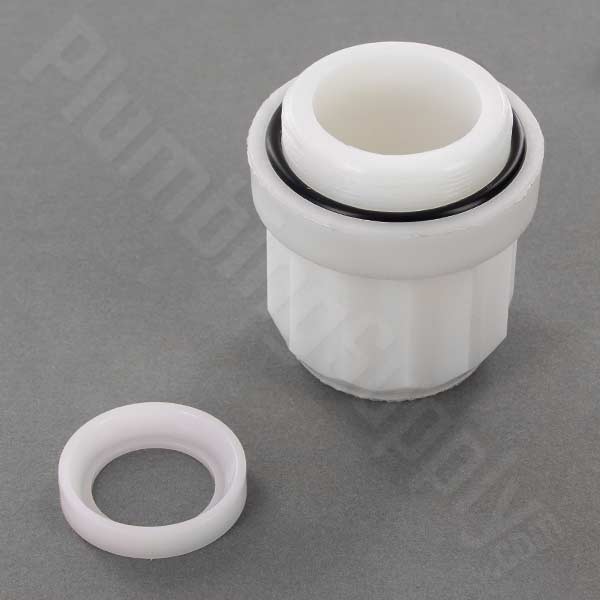

4d delany flush valve F171-PA 171-PA (old #F171-PA) Main valve seat assembly for valve F451/F451-1.0 - includes items 18 thru 19 - Interchangeable with F171A supplied on earlier models $12.33 Enter a quantity and

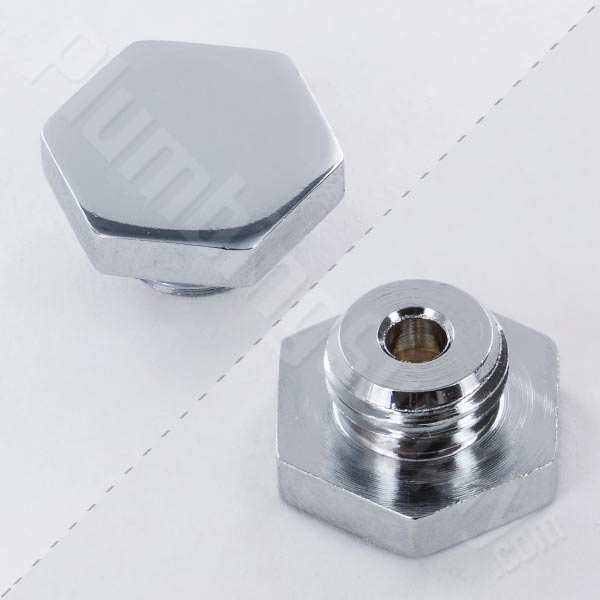

5 delany flush valve F3 Cover screw $2.00 Enter a quantity and

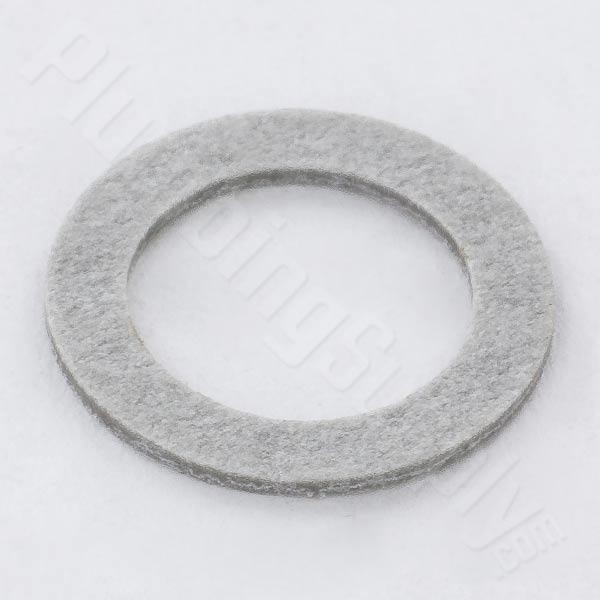

6 delany flush valve cover screw washer f2 F2 Cover screw washer - omitted in later flush valve production Discontinued

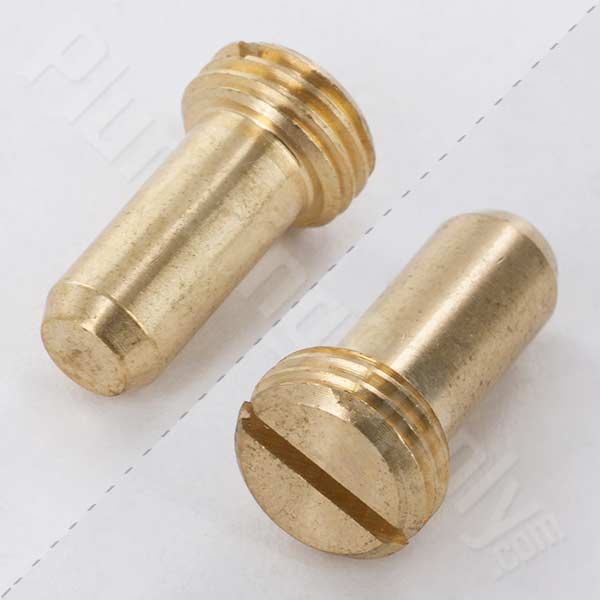

7 delany flush valve regulating screw F4 F4 Regulating screw $1.74 Enter a quantity and
8a --- F159Q Cover Only - no cover screw - for valve F402/F452 Not sold separately
Use F159-A
8b --- F159-3Q Cover Only - no cover screw - for valve F402-3/F452-3 Not sold separately
Use F159-A

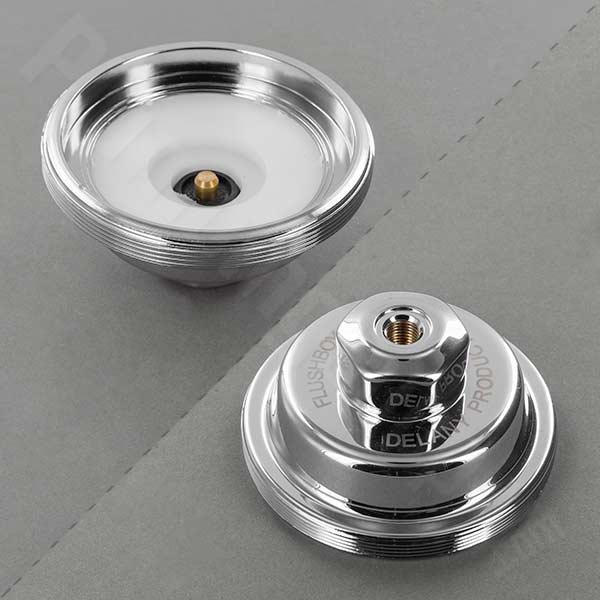

8c delany flush valve F159-1.6Q F159-1.6Q Cover Only without cover screw for valve F402-1.6/F452-1.5 $29.79 Enter a quantity and
8d --- F159-1Q Cover Only - no cover screw - for valve F451/F451-1.0 Not sold separately
Use F159-A
Enter a quantity and

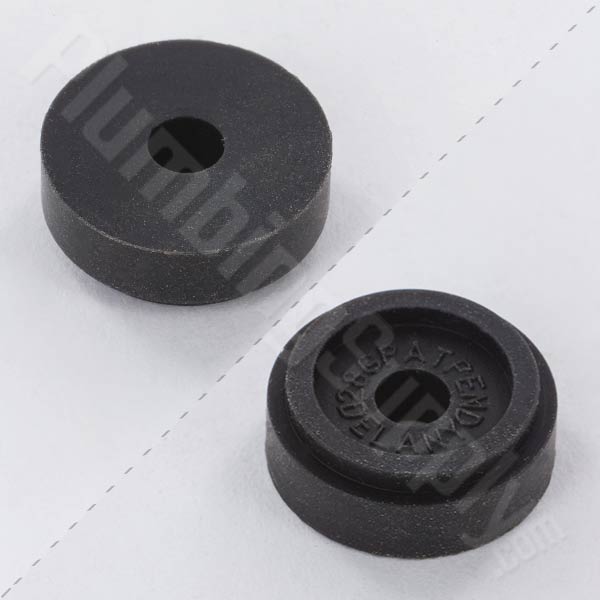

9 F28G Packing for cover Not sold separately
Use F159-A

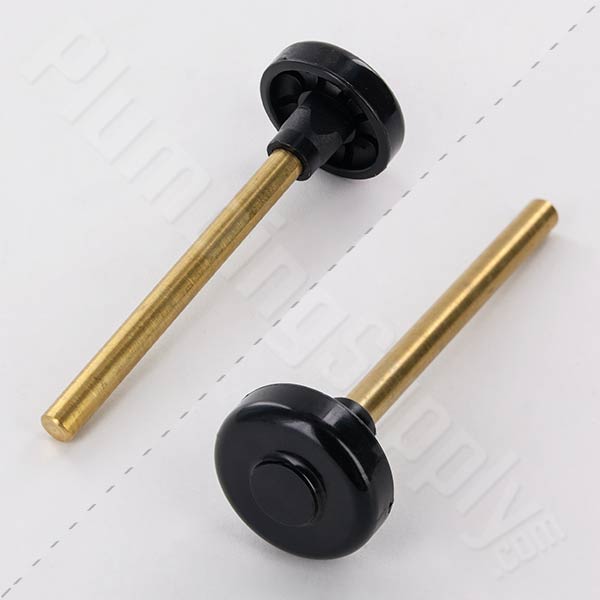

10 delany flush valve auxiliary valve F20 20 (old #F20) Auxiliary valve $16.62 Enter a quantity and

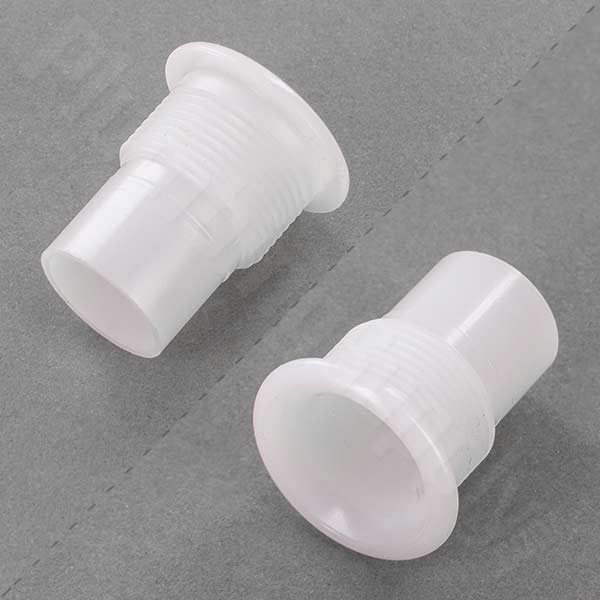

11 delany flush valve diapgrahm bushing F16 F16 Diaphragm bushing Not sold separately
Use 143-ACQ

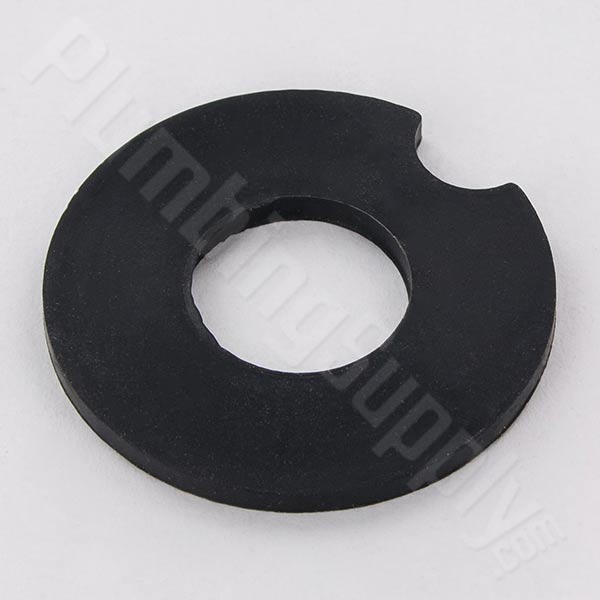

12 delany flush valve auxiliary valve seat F8 F8 Auxiliary valve seat Not sold separately
Use 143-ACQ

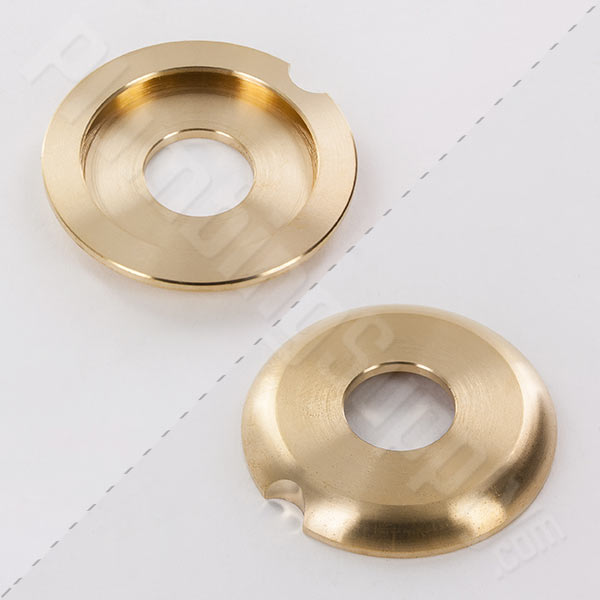

13 delany auxiliary valve seat holder F6 F6 Auxiliary valve seat holder Not sold separately
Use 143-ACQ

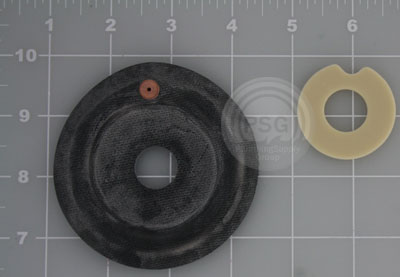

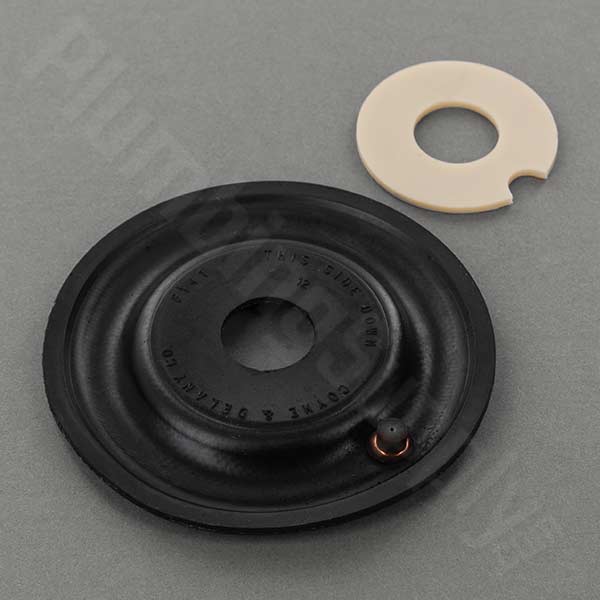

14a delany flush valve renewal kit F141KC F141KC Renewal kit for valve F402/F452 - includes item 13 Not sold separately
Use F143ACQ
14b --- F141-3C Renewal kit for valve F402-3/F452-3 - includes item 13 Not sold separately
Use F143-3-ACQ
14c delany flush valve renewal kit F141-1.6KC F141-1.6KC Renewal kit for valve F402-1.6/F452-1.5 - includes item 13 Not sold separately
Use 143-1.6-ACQ

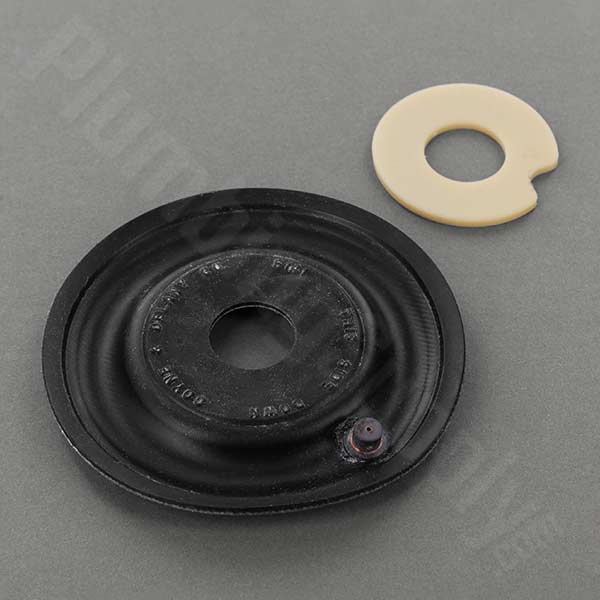

14d delany flush valve renewal kit F141-1KU F141-1KU Renewal kit for valve F451/F451-1.0 - includes item 13 Not sold separately
Use 143-1-AU

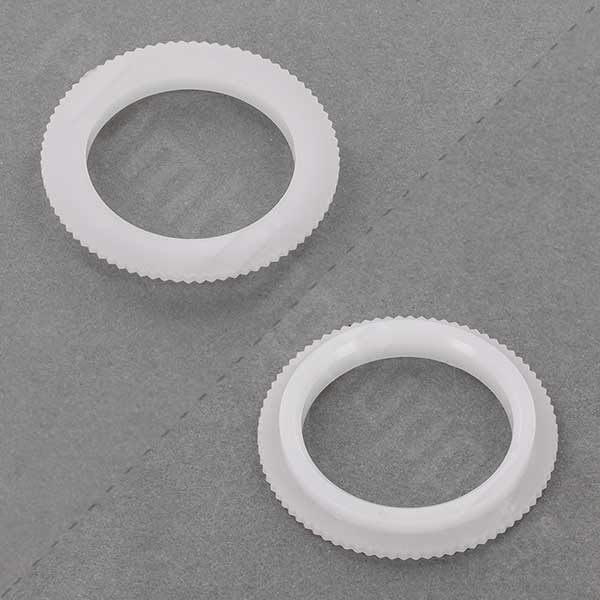

15 delany flush valve refill ring F353 F353 Refill ring $3.69 Enter a quantity and

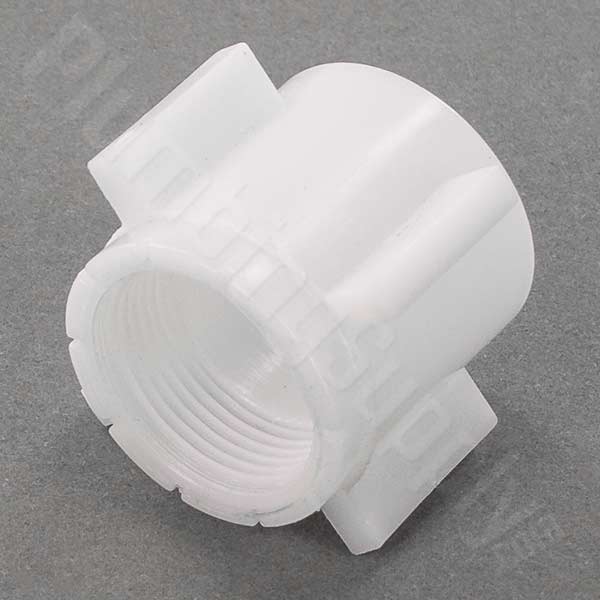

16a delany flush valve seat guide f170-4 F170-4 Seat guide for valve F402/F452 Not sold separately
Use 143-ACQ

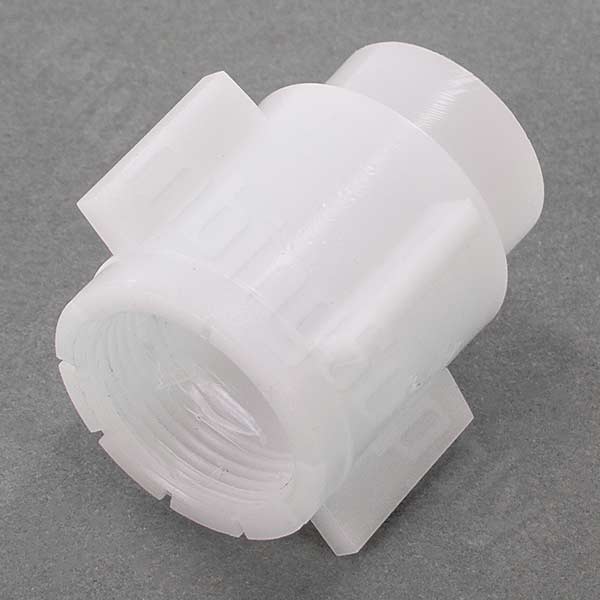

16b delany flush valve seat guide F354 F354 Seat guide for valve F402-3/F452-3 Not sold separately
Use 143-3-ACQ
16c delany flush valve seat guide F354 F354 Seat guide for valve F402-1.6/F452-1.5 Not sold separately
Use 143-1.6-ACQ

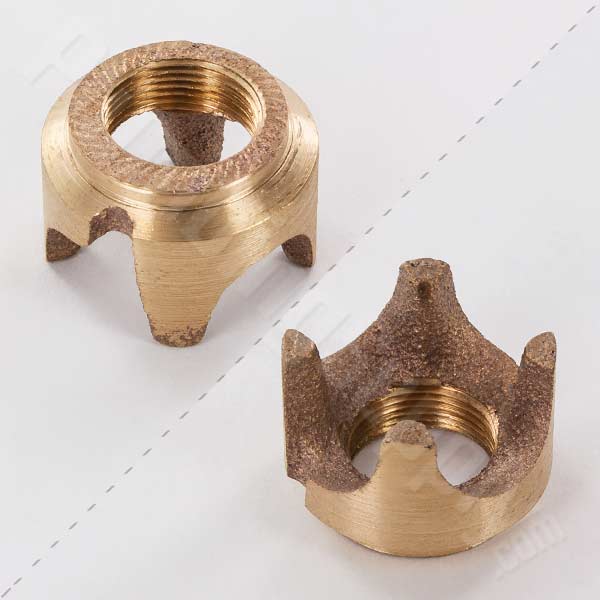

16d delany flush valve seat guide F170U F170U Seat guide for valve F451/F451-1.0 $12.02 Enter a quantity and

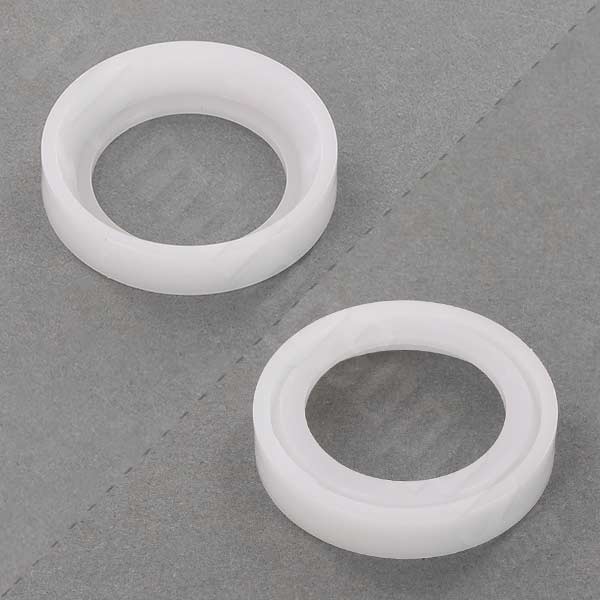

17a delany flush valve choke ring for main valve seat F171-4-I F171-4-I Choke ring for main valve seat - For valve F402/F452 Not sold separately
Use F171-4-PA

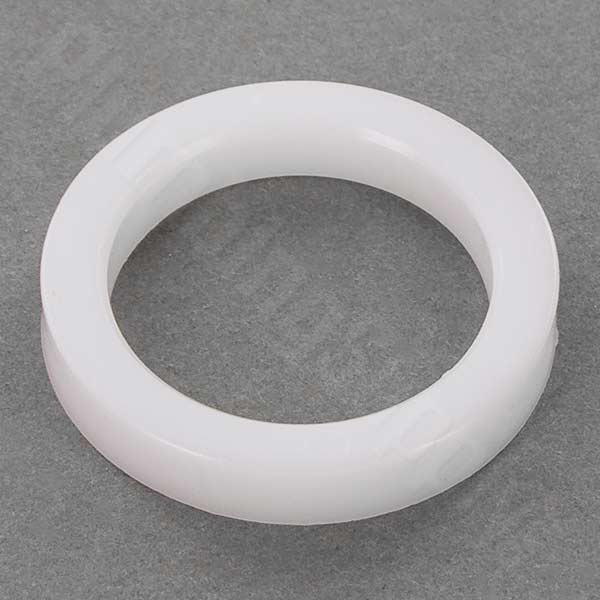

17b delany flush valve choke ring for main valve seat F355 F355 Choke ring for main valve seat - For valve F402-3/F452-3 Not sold separately
Use F171-5-PA
17c delany flush valve choke ring for male valve seat F355 F355 Choke ring for main valve seat - For valve F402-1.6/F452-1.5 Not sold separately
Use F171-5-PA
18 --- F171-4-PI Main valve seat Not sold separately
Use F171-4-PA

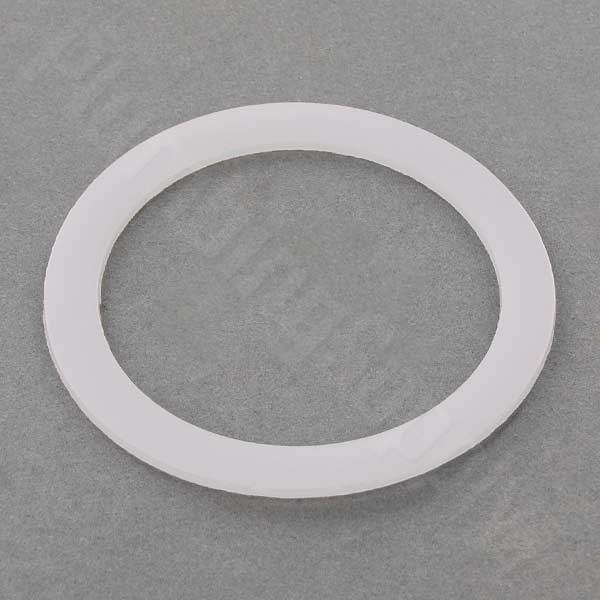

19 delany flush valve main valve seat washer F25 F25 Main valve seat washer $0.36 Enter a quantity and
20 delany flush valve rubberflex handle assembly 333A 333A (old #F333A) Rubberflex handle assembly $26.69 Enter a quantity and
21 --- F400A-ARA KwikFit valve body assembly Use New
Flushometer

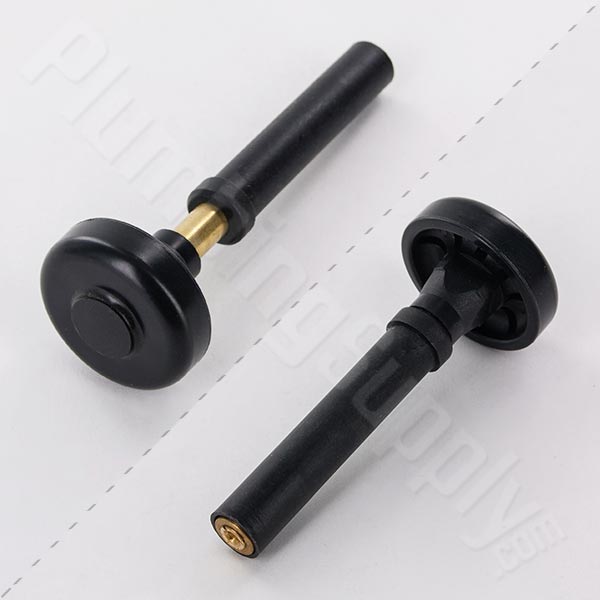

22 delany flush valve auxiliary valve F180 F180 Auxiliary valve - for FLUSHBOY valves with non-hold-open feature $10.27 Enter a quantity and

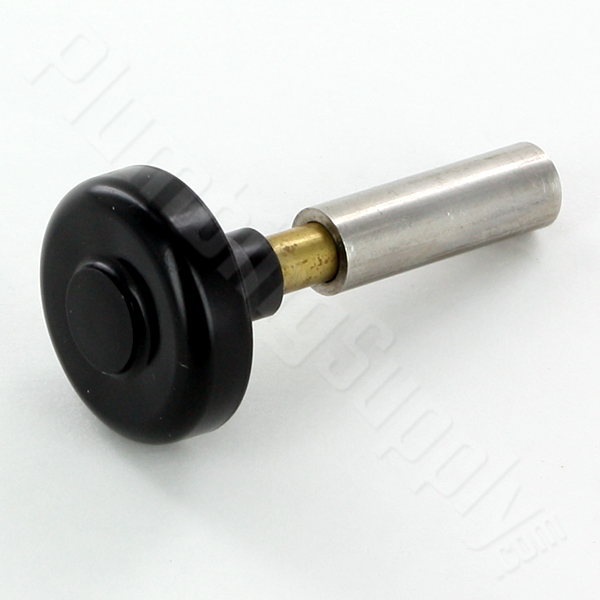

delany auxiliary valve for presto models p180 P180 Auxiliary valve - for PRESTO valves with non-hold-open feature $10.48 Enter a quantity and

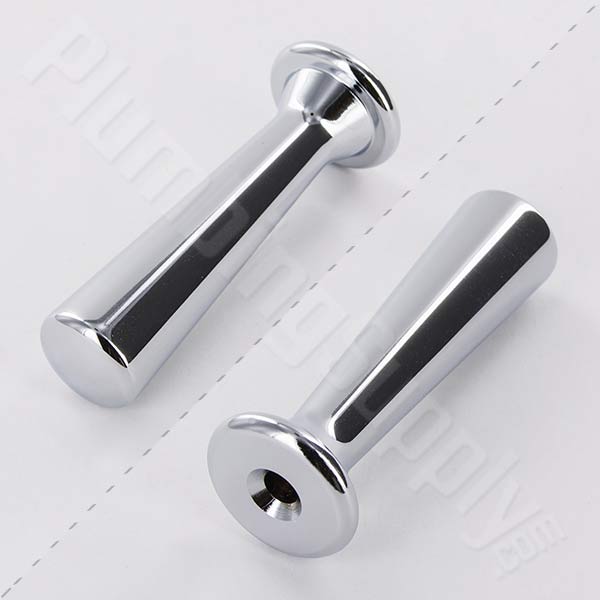

23 delany flush valve handle F36 F36 Handle $12.28 Enter a quantity and

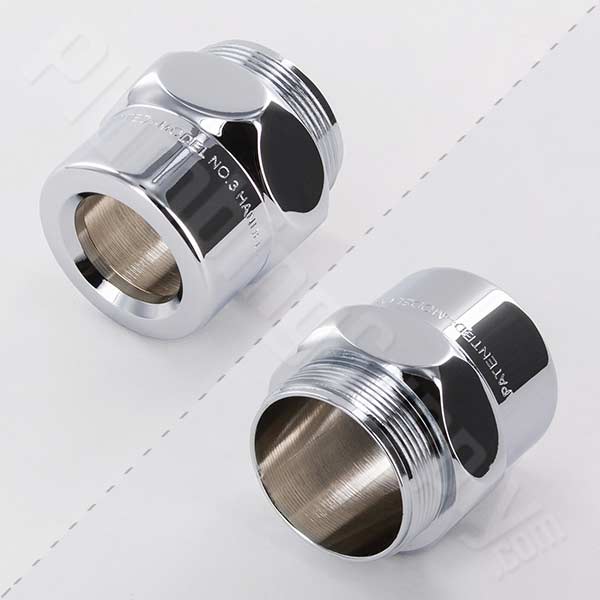

24 delany flush valve handle nut F224 F224 Handle nut $11.61 Enter a quantity and

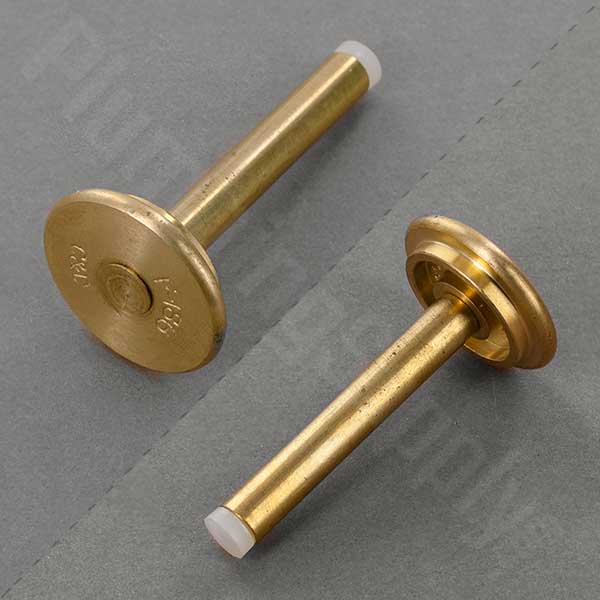

25 delany flush valve operating stem for non-hold open feature F186 Operating stem for non-hold-open feature - 1-13/16" length Discontinued
Use 186A-K below
--- 186A-K Rubberflex Internal Handle Assy Repair Kit - For All Non-Hold Open Valves - 1-7/8" Overall Length $15.92 Enter a quantity and
26 delany flush valve operating stem F223-2 F223-2 Operating stem - 1-7/8" length $7.99 Enter a quantity and
27 delany flush valve flexer F222-3 F222-3 Flexer $3.59 Enter a quantity and
26-27 --- 223-2A-K Rubberflex Internal Handle Assy Repair Kit - For All Delany Valves - 1-7/8" Overall Length $12.98 Enter a quantity and
28 delany flush valve brass insert converter 222-BIC 222-BIC Brass insert converter Discontinued
29 --- F400A-AR KiwkFit valve body - No Longer Sold Separately Use New
Flushometer

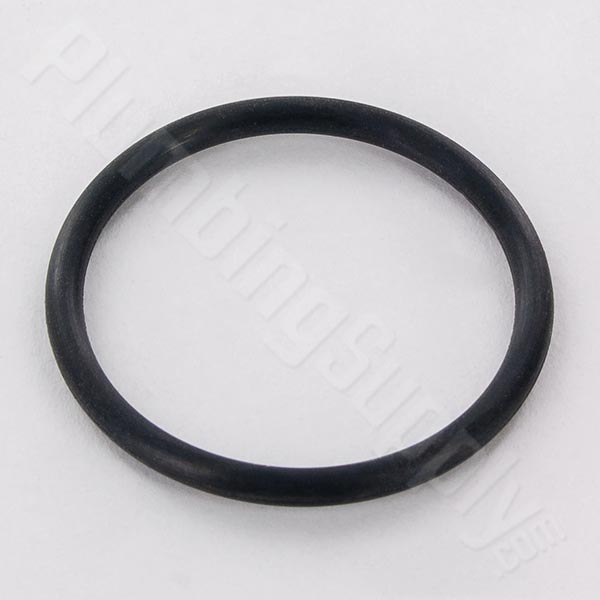

30 delany flush valve o-ring 65 65 O-ring Not sold separately
Use 64 Tailpiece

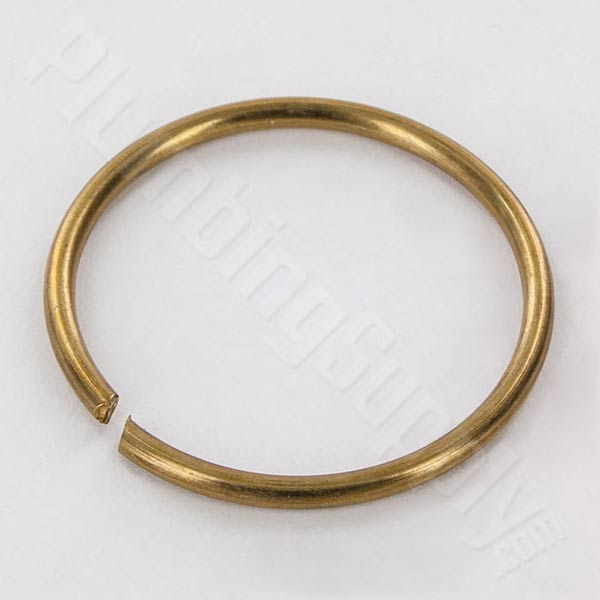

31 delany flush valve clamping ring 66 66 Clamping ring Not sold separately
Use 64 Tailpiece

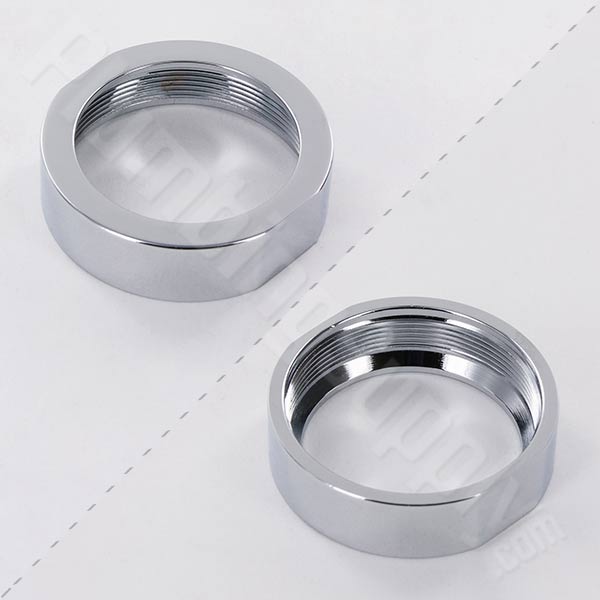

32 delany flush valve clamping nut 57 57 Clamping nut Not sold separately
Use 64A tailpiece
assembly below

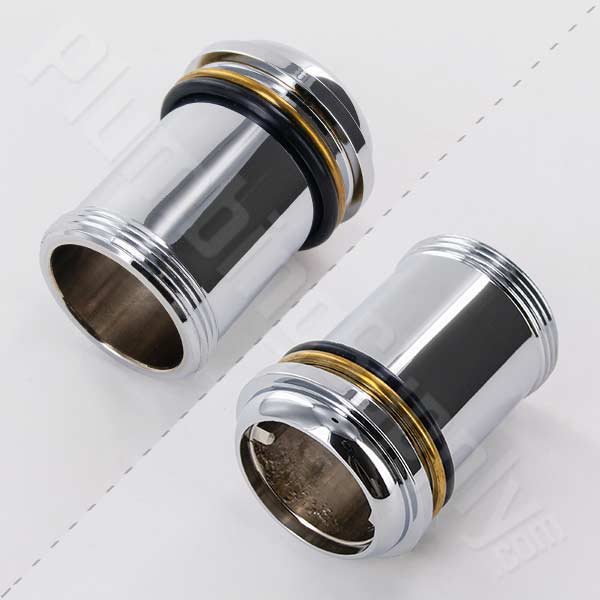

33 delany flush valve kwikfit union tailpiece 2 inch length 64 64A 2" KwikFit union tailpiece assembly - includes #57 clamping nut and #58 union nut
- 2" overall length allows for 4-1/2" to 5-1/2" centers for ground joint versions of Flushboy
$46.27 Enter a quantity and
--- 64-1 3" KwikFit union tailpiece only - 3" overall length allows for 5-1/2" to 6-1/2" centers for ground joint versions of Flushboy $65.82 Enter a quantity and

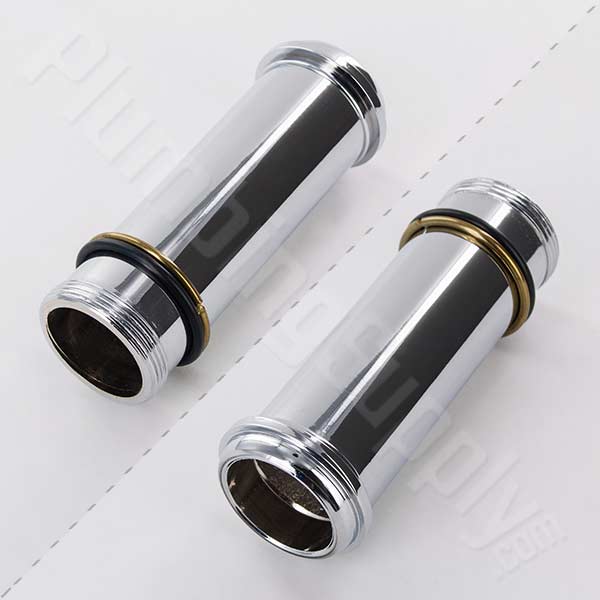

delany flush valve kwikfit union tailpiece 4 inch length 64-2 64-2 4" KwikFit union tailpiece only - 4" overall length allows for 6-1/2" to 7-1/2" centers for ground joint versions of Flushboy $35.02 Enter a quantity and
--- 64-3 5" KwikFit union tailpiece only - 5" overall length allows for 7-1/2" to 8-1/2" centers for ground joint versions of Flushboy $82.51 Enter a quantity and

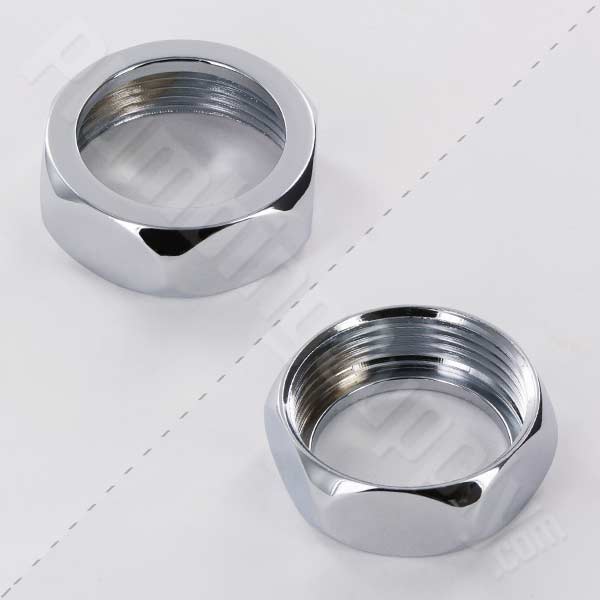

34 delany flush valve 58 union nut 58 Union nut - Limited To Stock - once sold out these will only be available in the 64A Assembly $8.93 Enter a quantity and

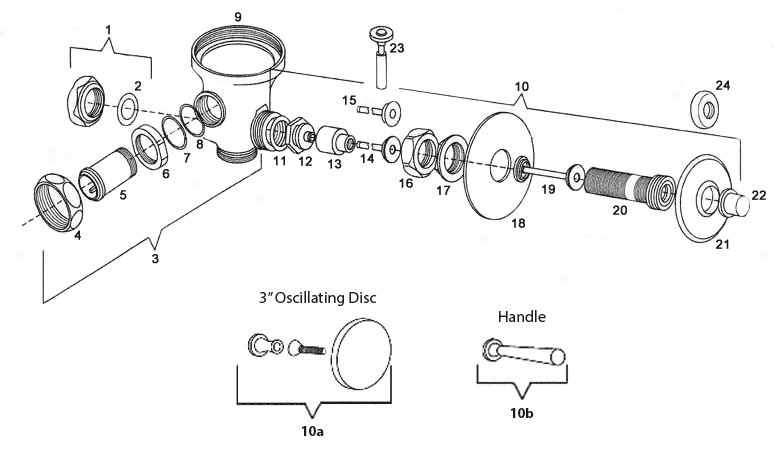

Concealed Valve Parts For ALL Delany Manual Concealed Valves

Delany Manual Concealed Valve parts
Item # Image Part # Item Description Price & Quantity

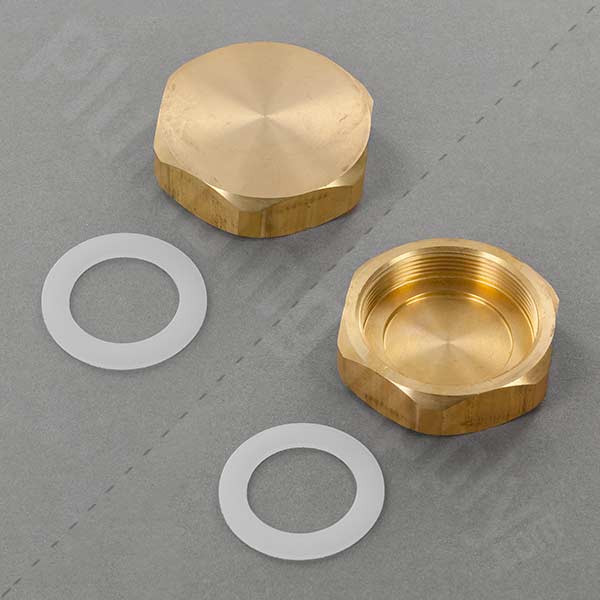

1 delany flush valve 278a 278A Cap handle for opening $5.18 Enter a quantity and

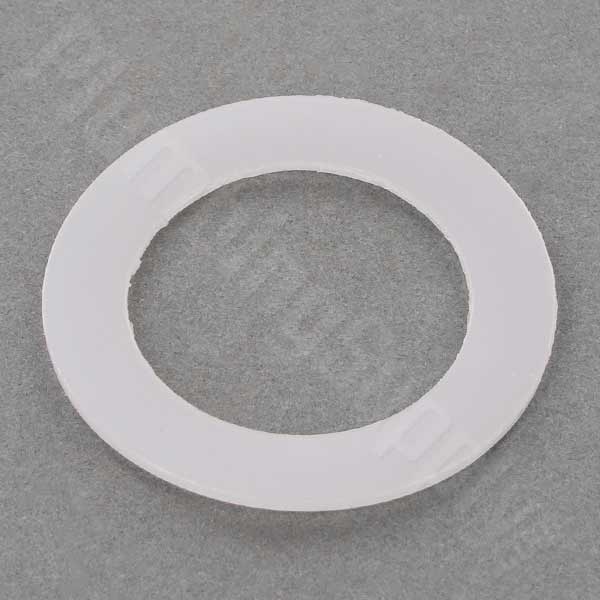

2 delany flush valve washer for coupling nut 123 123 Washer for coupling nut or handle Not sold separately
Use 278A above
3 --- F5600-ARA KwikFit concealed valve body assembly Use New
Flushometer
4 delany flush valve 58 58 Union nut $8.93 Enter a quantity and
5 delany flush valve kwikfit union tailpiece 2 inch length 64 64A 2" KwikFit union tailpiece assembly - includes #57 clamping nut and #58 union nut
2" overall length allows for 4-1/2" to 5-1/2" centers for ground joint versions of Flushboy
$46.27 Enter a quantity and
--- 64-1 3" KwikFit union tailpiece only - 3" overall length allows for 5-1/2" to 6-1/2" centers for ground joint versions of Flushboy $65.82 Enter a quantity and
delany flush valve kwikfit union tailpiece 4 inch length 64-2 64-2 4" KwikFit union tailpiece only - 4" overall length allows for 6-1/2" to 7-1/2" centers for ground joint versions of Flushboy $35.02 Enter a quantity and
--- 64-3 5" KwikFit union tailpiece only - 5" overall length allows for 7-1/2" to 8-1/2" centers for ground joint versions of Flushboy $82.51 Enter a quantity and
6 delany flush valve clamping nut 57 57 Clamping nut Not sold separately
Use 64A tailpiece
assembly - above
7 delany flush valve claming ring 66 66 Clamping ring Not sold separately
Use 64 Tailpiece
8 delany flush valve o-ring 65 65 O-Ring Not sold separately
Use 64 Tailpiece

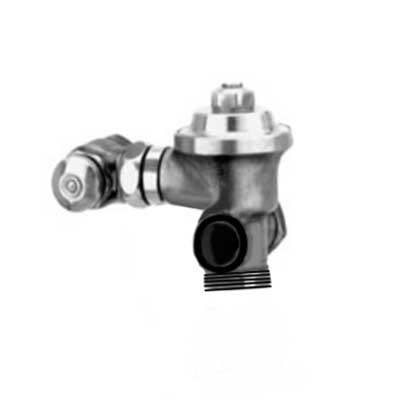

9 --- F5600-AR KwikFit concealed valve body - Replaced by #F534-3-VO Valve Only - 3.5 gpf Discontinued
Use New
Flushometer
10 --- 339A-B Rubberflex 1/2" push button assembly for various wall thicknesses Enter a quantity and
10a --- 339A-C Rubberflex 3" Oscillating Disc Assembly for various wall thicknesses Enter a quantity and
10b --- 339A-T28 Rubberflex Handle Assembly for various wall thicknesses Enter a quantity and
11 delany flush valve washer for coupling nut or handle opening cap 123 Washer for coupling nut or handle opening cap Not sold separately
Use 278A

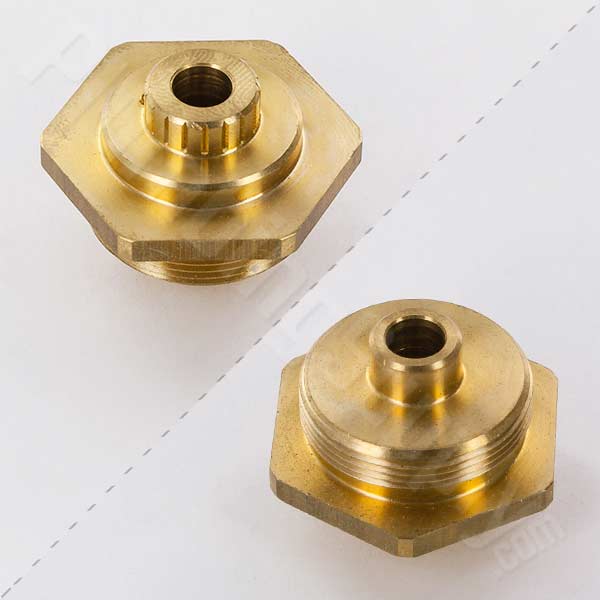

12 delany wall sleeve bushing 366 366 Wall sleeve bushing $12.65 Enter a quantity and
13 delany flush valve f222-3 flexer 222-3 Flexer Discontinued
Use item #13-14
368A-K

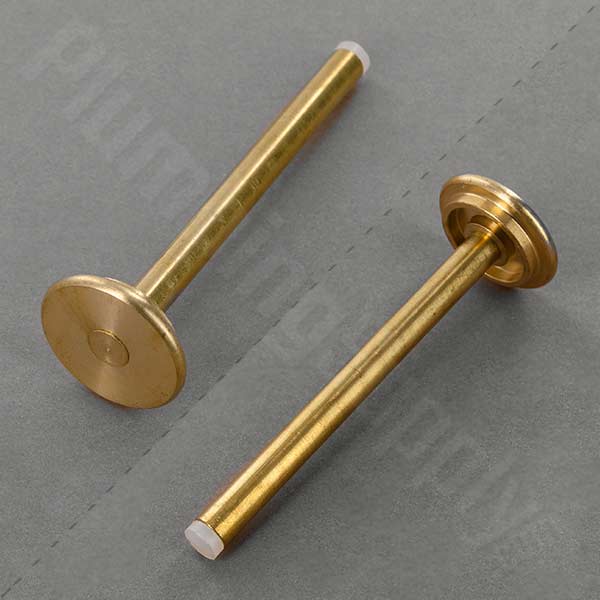

14 delany flush valve operating stem 368 368 Operating stem 3-1/32" Overall length
for use w/ concealed Flushboy, Empire, & Presto valves
Discontinued
Use item #13-14
368A-K

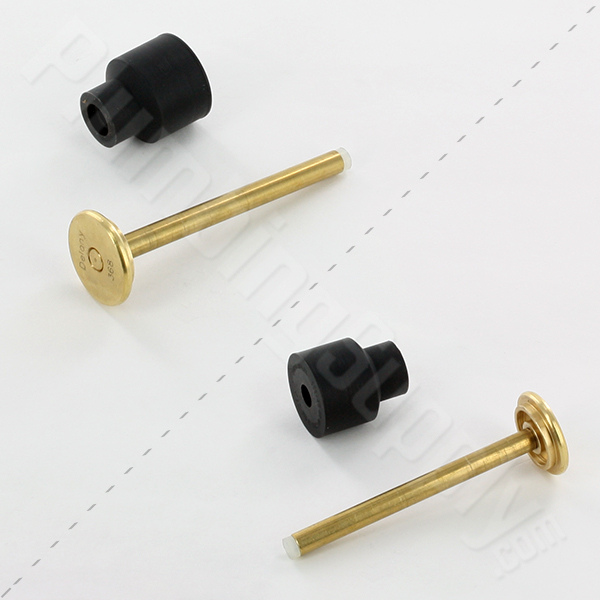

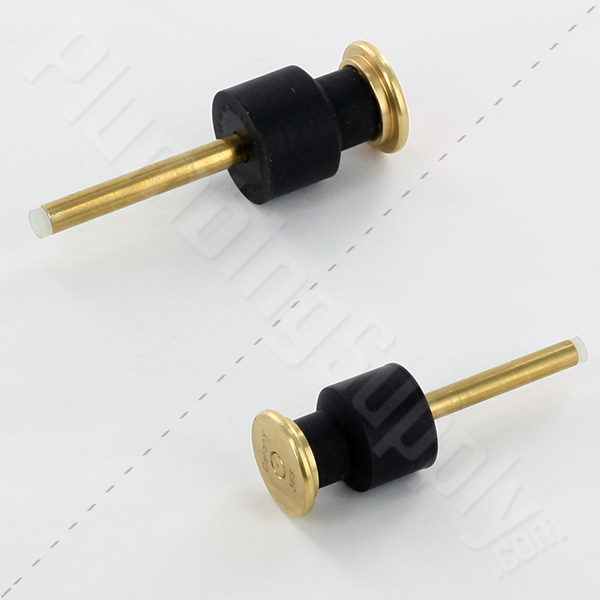

13-14 delany operating stem with flexer attached 368a-k 368A-K Includes Flexer and Operating stem 3-1/32" Overall length
for use w/ concealed Flushboy, Empire, & Presto valves
$5.18 Enter a quantity and
15 delany flush valve 368n 368N Operating stem for NON HOLD OPEN feature valves - 2-15/16" overall length
for use w/ concealed Flushboy, Empire, & Presto valves
Note: Must be used with Part# F180
$4.75 Enter a quantity and

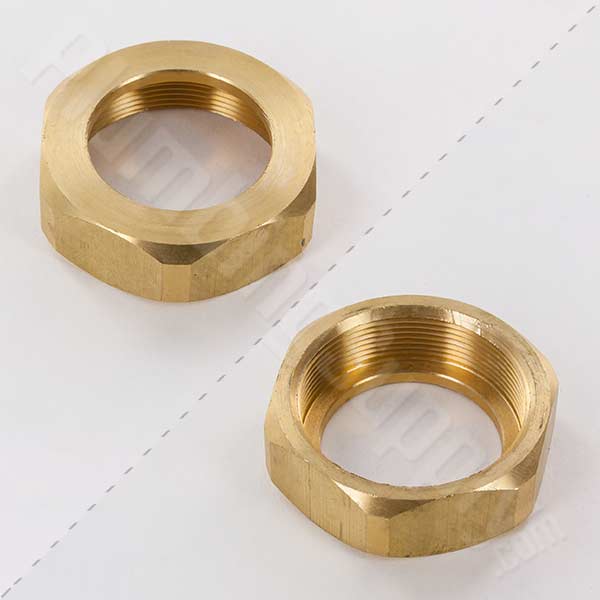

16 delany flush valve 244 244 Coupling nut $10.55 Enter a quantity and

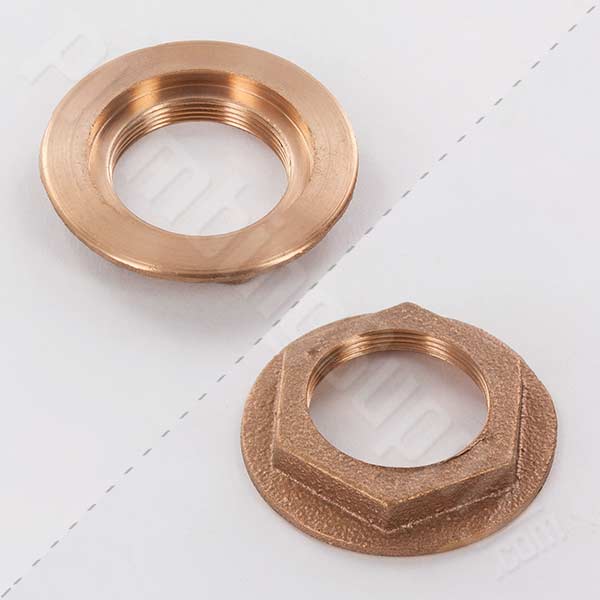

17 delany flush valve locknut 243 243 Locknut $9.34 Enter a quantity and

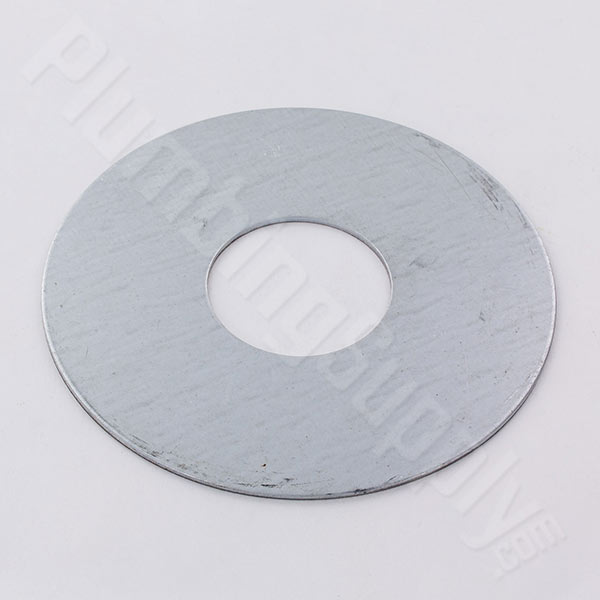

18 delany flush valve bearing plate 293 293 Bearing plate $2.54 Enter a quantity and

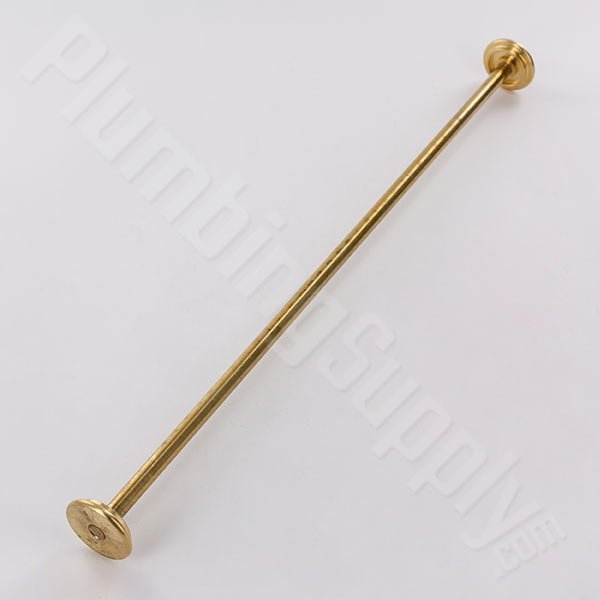

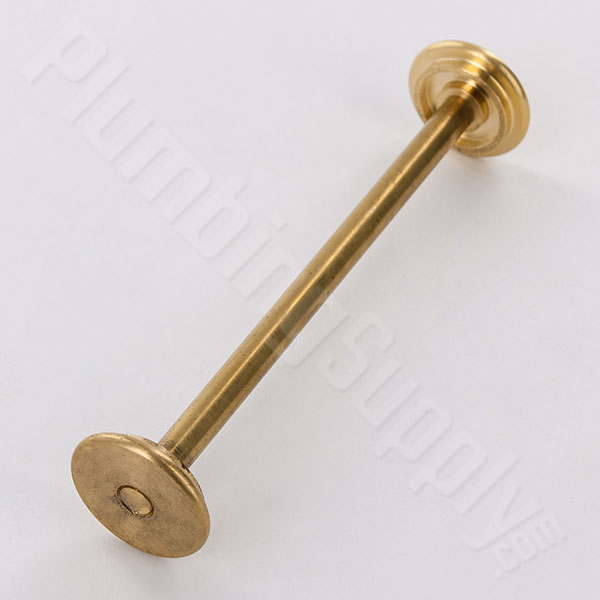

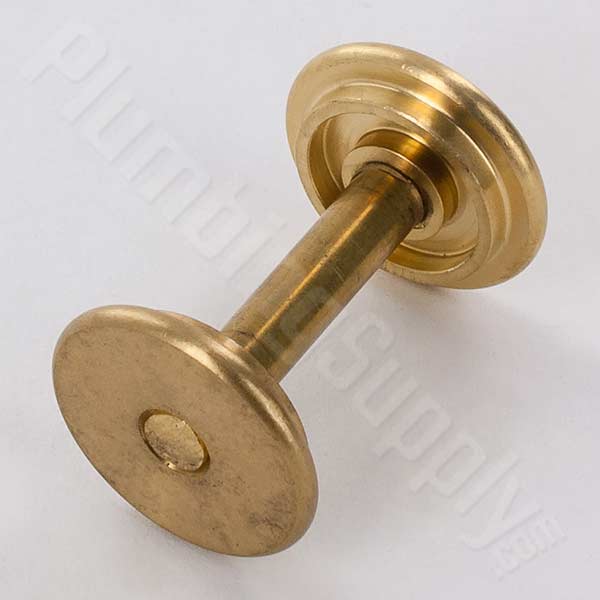

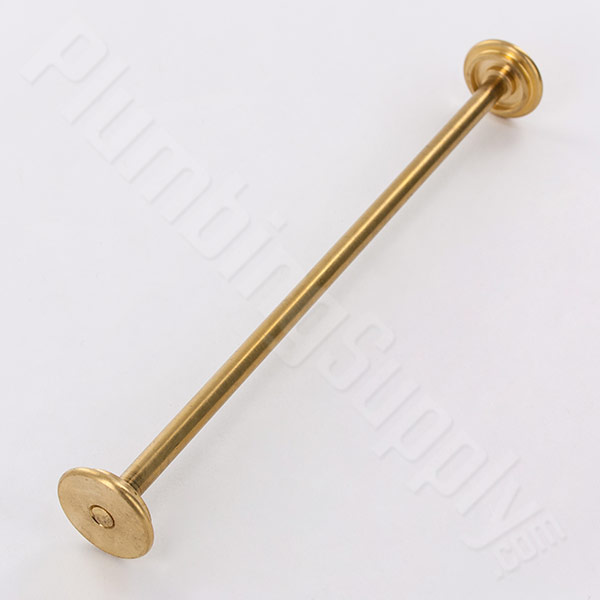

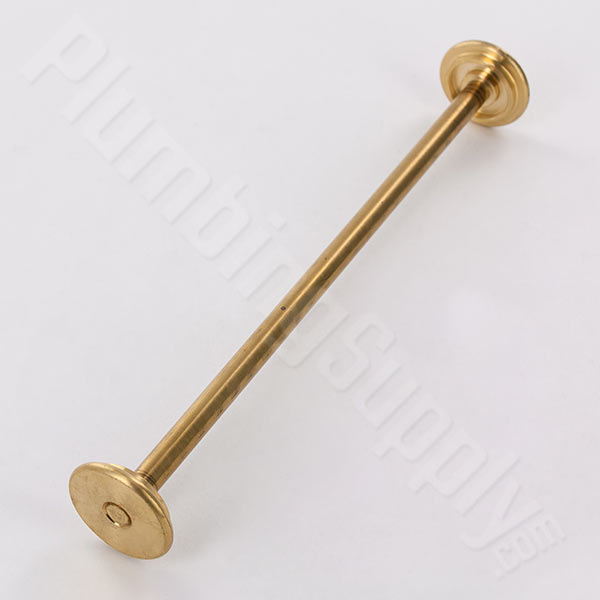

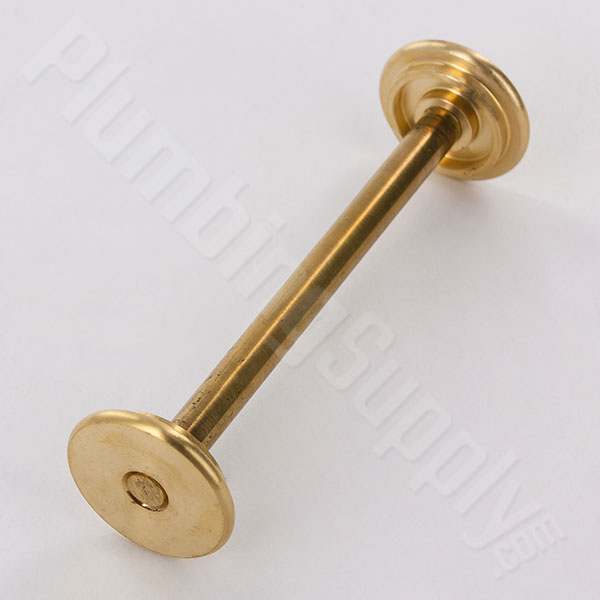

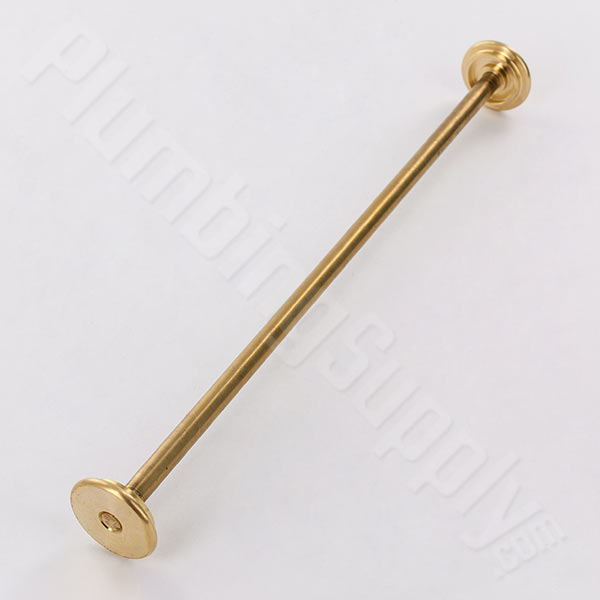

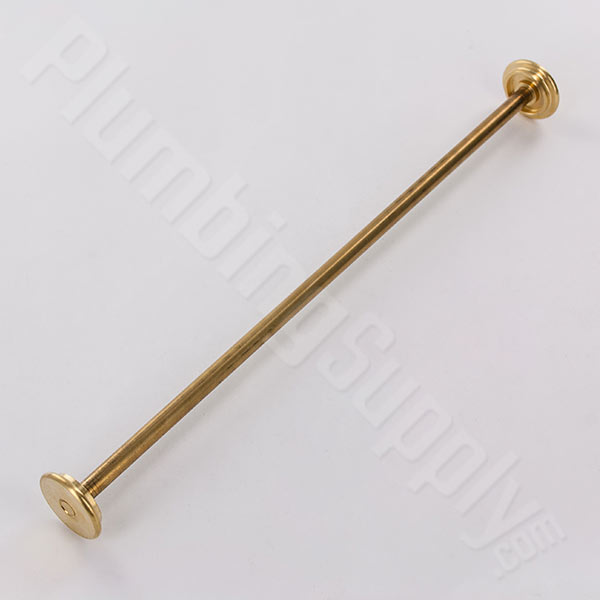

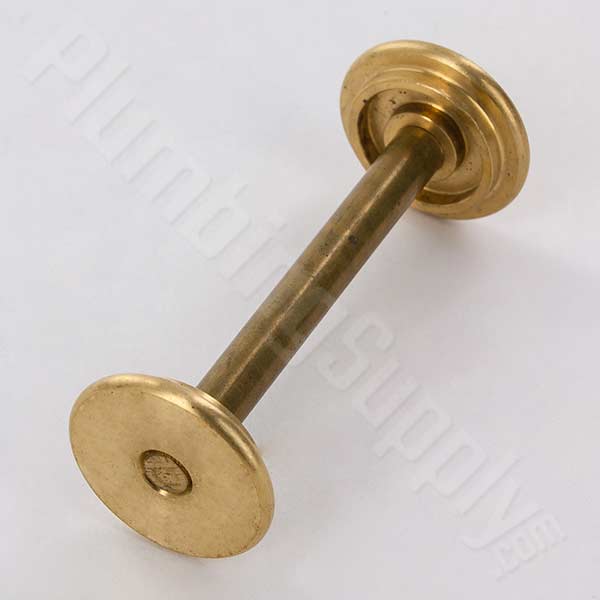

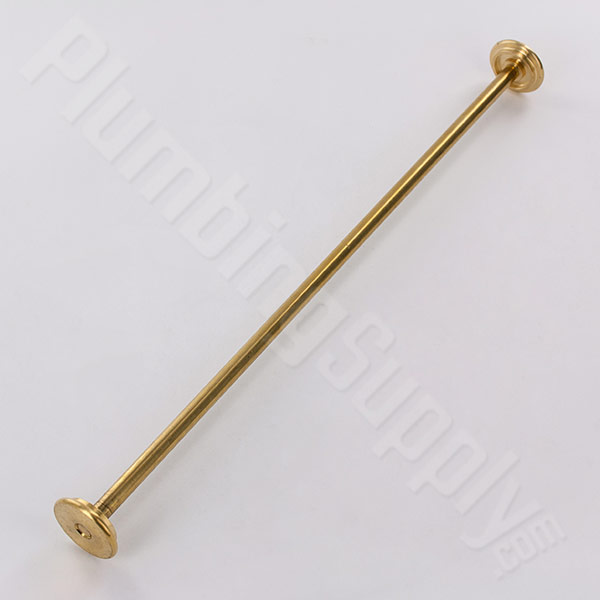

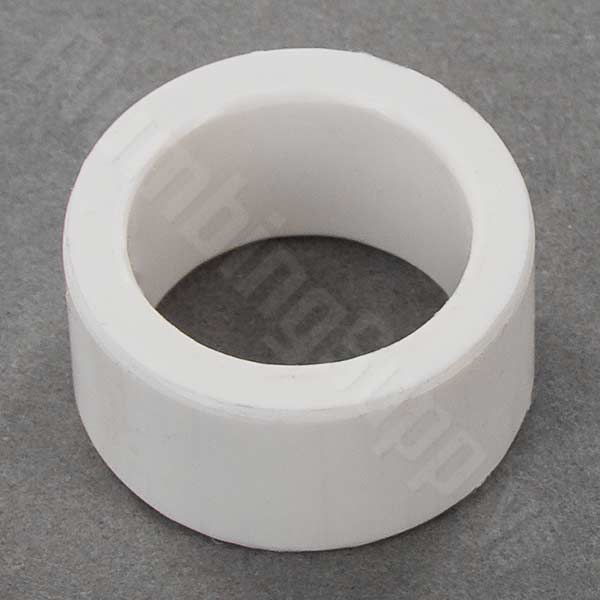

19 delany flush valve wall sleeve space 365 365 Wall sleeve spacer for various wall thicknesses Enter a quantity and
20 --- 242A-# W Wall sleeve for various wall thicknesses
- For use with Oscilllaing Disc, Handle, & Foot Pedal
Not sold separately
Use 339A-B
339A-C
or 339A-T28

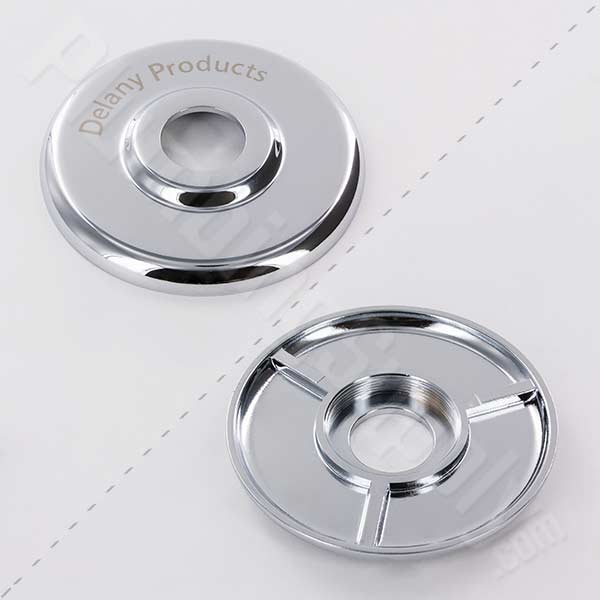

21 delany flush valve 120-1 120-1 Wall flange for use with 1/2" push button Discontinued

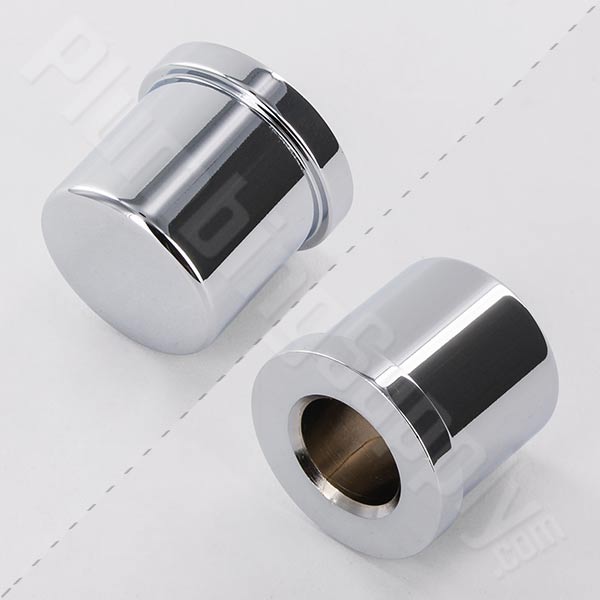

22 delany flush valve push button 226 226 1/2" push button for use with concealed valve $10.20 Enter a quantity and
23 delany flush valve auxiliary flave f180 F180 Auxiliary Valve for Flushboy Valves with Non-Hold-Open Feature
Note: Must be used with Part #368N
$10.27 Enter a quantity and

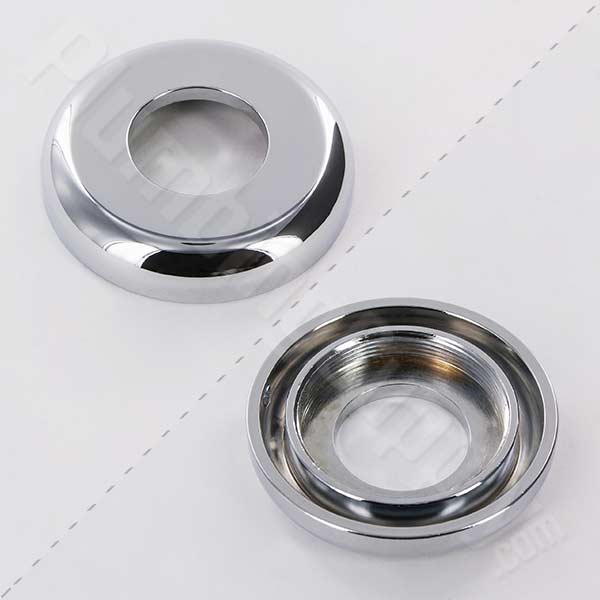

24 delany flush valve sink flange 124 124 Sink flange for use with 1/2" push button $19.43 Enter a quantity and

More Delany Repair Parts

Image Model # Description Price & Quantity

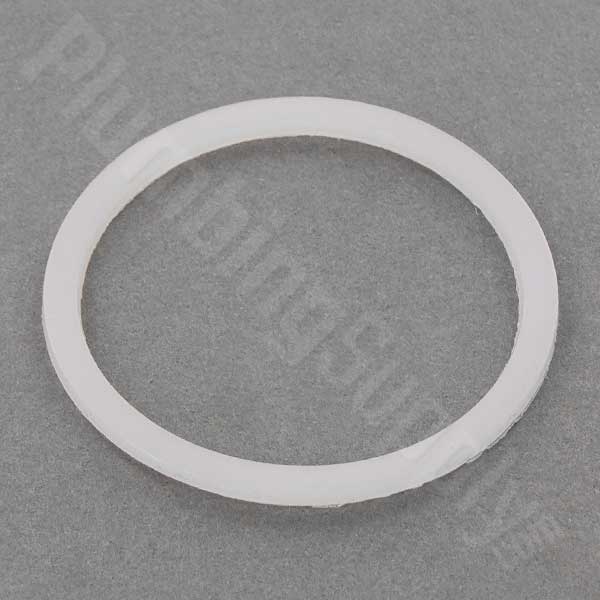

delany flush valve bonnet washer 60 60 Bonnet Washer - for ALL Delany Control Stops $0.64 Enter a quantity and
delany flush valve vacuum breaker rubber sleeve 427a 427A Vacuum Breaker - Rubber Sleeve with insert & fiber washer - for ALL Delany valves $3.30 Enter a quantity and
delany renewal kit for 1 inch supply F141-3KC F141-3KC Renewal kit 1" supply water saver - (contains F1413C & F8) Discontinued
delany flush valve renewal kit F141KC F141KC "Will Fit" Renewal kit 1" supply (contains F-141C & F8) - 1 gpf Discontinued

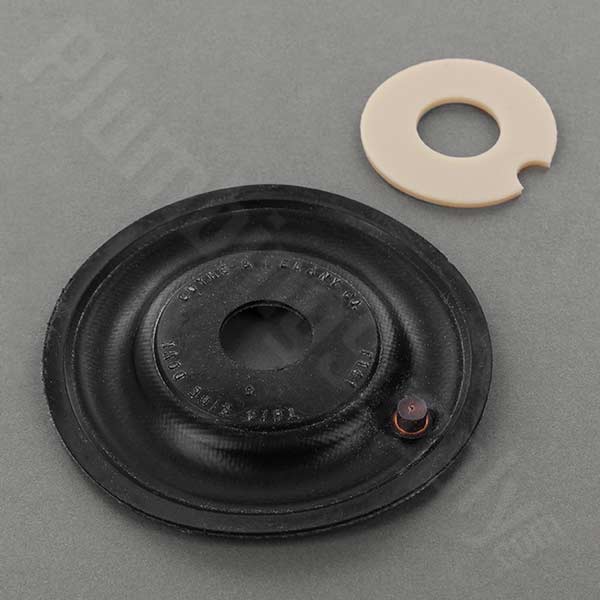

delany flush valve renewal kit 3/4 inch supply urinal F141KU F141KU Renewal kit 3/4" supply urinal kit for flushboy (contains F141C & F8) - 1 gpf
(old number F141KU-1)
Discontinued
