Carlyle Toilet Repair Parts

by Toto

The Carlyle series of toilets offers you elegance and subtle integration into almost any bathroom design without sacrificing water efficiency. If your toilet has developed a leak or the parts have simply worn out, we've got everything you need to get it back in shape. Whether you're looking for a new flapper or toilet seat, need a flush valve or just a trip lever, PlumbingSupply.com® is your source for quality Toto toilet parts.
Toto Carlyle ToiletCarlyle
Toto Carlyle II ToiletCarlyle II

Replacement Parts for Toto Carlyle Toilet
One Piece Model - #MS874114 - Tank #CST874 G-Max Flushing System
1.6 gpf

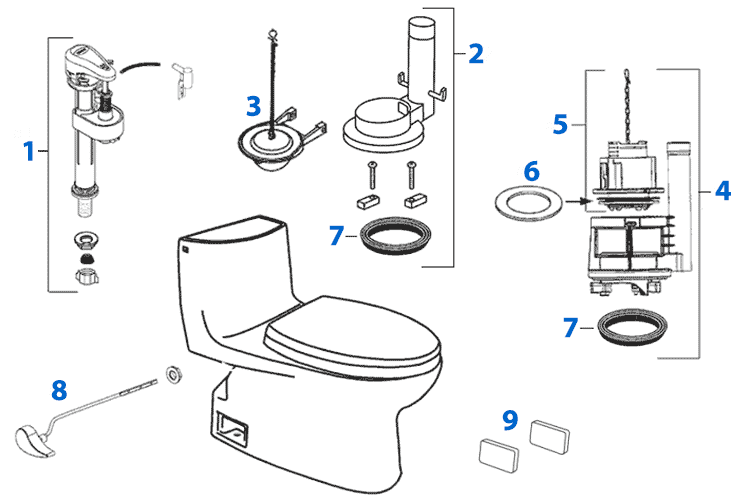

Parts diagram for Carlyle one-piece toilets
Item # Part # Description Price & Quantity
1 TSU99A.XR Fill Valve - Replaces TSU08A.11 & TSU18A - (set height of TSU99A.XR to notch 10 - refill ratio 4) $37.31
528T "Will Fit" High Output Fill Valve $26.99 Enter a quantity and
2 THU229 Fill Valve Filter - for original valves ONLY - Replaced by THU297
- fits discontinued fill valves TSU08A.6, TSU08A.6R, TSU24A, TSU36A.6 & TSU33A
Discontinued
3 THU013W Flush Valve - includes flapper Discontinued use item #5
4 THU500S Flapper with Chain - Use arrow #7, chain length #13, and lever hole #1
Replaces THU138S, THU175S, & THU331S
$14.99
2021 "Will Fit" Replacement Flapper $13.32 Enter a quantity and
5 THU854-A Drain Valve (flush valve) - includes THU440-A flush tower assembly
Replaces discontinued THU451.10A-A & THU013W flush valve
$35.39 Enter a quantity and
6 THU440-A Flush Tower Assembly - (includes THU407 flush tower seal gasket) $13.92 Enter a quantity and
7 THU407 Replacement Flush Tower Seal Gasket $12.35 Enter a quantity and
8 9BU002E Flush Valve Gasket - fits THU013W and THU453.10C-A flush valves Discontinued
9 THU808 Replaces old #THU004 Side Mount Trip Lever - Toto® OEM available finishes Select your Toto finish and
"Will-Fit" THU004 Side Mount Trip Lever - special finishes Select your special finish and

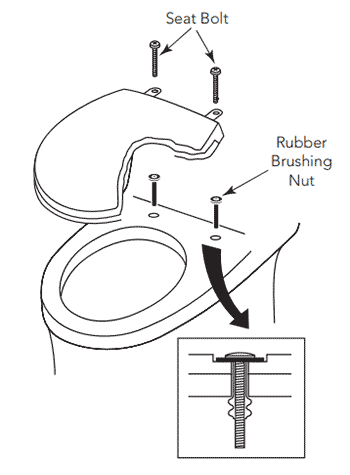

10 THU651N Top Mounting Seat Hardware $11.92 Enter a quantity and
11 TCU884CV#01 Side Plates with Velcro Tape - Cotton $55.51
TCU884CV#03 Side Plates with Velcro Tape - Bone $62.79
TCU884CV#11 Side Plates with Velcro Tape - Colonial White $55.53
TCU884CV#12 Side Plates with Velcro Tape - Sedona Beige $62.81
TCU884CV#51 Side Plates with Velcro Tape - Ebony $81.90 Enter a quantity and
Not Shown SS114
Elongated Seat
view dimensions
Toto® OEM Slow Closing Toilet Seat - Bone $98.65
Toto® OEM Slow Closing Toilet Seat - Colonial White $81.22
Toto® OEM Slow Closing Toilet Seat - Cotton White $82.81
Toto® OEM Slow Closing Toilet Seat - Sedona Beige $96.51 Enter a quantity and
Toto® OEM Slow Closing Toilet Seat - Ebony $114.72 Enter a quantity and
Not Shown "Will-Fit"
Elongated Seat
Premium Quality Replacement Toilet Seat by Bemis - Cotton White - Slow closing with easy-clean & change hinge $77.03
Premium Quality Replacement Toilet Seat by Bemis - Sedona Beige (Biscuit/Linen) - Slow closing with easy-clean & change hinge $77.03
Premium Quality Replacement Toilet Seat by Bemis - Ebony (Black/Onyx) - Slow closing with easy-clean & change hinge $152.68 Enter a quantity and
The toilet seats featured here are the manufacturer's closest color match available & are non-returnable. View more Wiil-Fit Premium Quality colored toilet seats.

Replacement Parts for Toto Carlyle II Toilet
One Piece Model - #MS614, #MW614
Tank #CST614CEF Double Cyclone Flushing System 1.28 gpf
Tank #CST614CUF Tornado Flushing System 1.0 gpf

Parts diagram for Carlyle II toilets
Item # Part # Description Price & Quantity
1 TSU25A Fill Valve - Replaced by TSU99A.XR
- for 1.0 gpf set height of TSU99A.XR to notch 12 - refill ratio 4
- for 1.28 gpf set height of TSU99A.XR to notch 9 - refill ratio 4
$37.31 Enter a quantity and
2 THU013W Flush Valve - includes flapper Discontinued use item #4
3 THU175S Flapper with Chain - Replaced by THU500S
Use arrow #1, chain length #16, and lever hole #2
$14.99 Enter a quantity and
4 THU854-A Drain Valve (flush valve) - includes THU440-A flush tower assembly
Replaces discontinued THU451.10A-A & THU013W flush valve
$35.39 Enter a quantity and
5 THU440-A Flush Tower Assembly - (includes THU407 flush tower seal gasket) $13.92 Enter a quantity and
6 THU407 Replacement Flush Tower Seal Gasket $12.35 Enter a quantity and
7 9BU002E Flush Valve Gasket - fits THU013W and THU453.10C-A flush valves Discontinued
8 THU808 Replaces old #THU004 Side Mount Trip Lever - Toto® OEM available finishes Select your Toto finish and
"Will-Fit" THU004 Side Mount Trip Lever - special finishes Select your special finish and
9 TCU884CV#01 Side Plates with Velcro Tape - Cotton $55.51
TCU884CV#03 Side Plates with Velcro Tape - Bone $62.79
TCU884CV#11 Side Plates with Velcro Tape - White $55.53
TCU884CV#12 Side Plates with Velcro Tape - Sedona Beige $62.81
TCU884CV#51 Side Plates with Velcro Tape - Ebony $81.90 Enter a quantity and
Not Shown THU651N Top Mounting Seat Hardware $11.92 Enter a quantity and
Not Shown SS124
Elongated Seat
view dimensions
Toto® OEM Slow Closing Toilet Seat - Bone $95.19
Toto® OEM Slow Closing Toilet Seat - Colonial White $82.83
Toto® OEM Slow Closing Toilet Seat - Cotton White $82.79
Toto® OEM Slow Closing Toilet Seat - Ebony $122.93
Toto® OEM Slow Closing Toilet Seat - Sedona Beige $95.25 Enter a quantity and
Not Shown "Will-Fit"
Elongated Seat
Premium Quality Replacement Toilet Seat by Bemis - Cotton White - Slow closing with easy-clean & change hinge $77.03
Premium Quality Replacement Toilet Seat by Bemis - Sedona Beige (Biscuit/Linen) - Slow closing with easy-clean & change hinge $77.03
Premium Quality Replacement Toilet Seat by Bemis - Ebony (Black/Onyx) - Slow closing with easy-clean & change hinge $152.68 Enter a quantity and
The toilet seats featured here are the manufacturer's closest color match available & are non-returnable. View more Wiil-Fit Premium Quality colored toilet seats.

Replacement Parts for Toto Carlyle II Toilet
One Piece Models
#MW6143074CEFG, MW6143084CEFG, MS614124CEFG, MW6143046CEFGA, MW6143056CEFGA
Tornado Flushing System 1.28 gpf

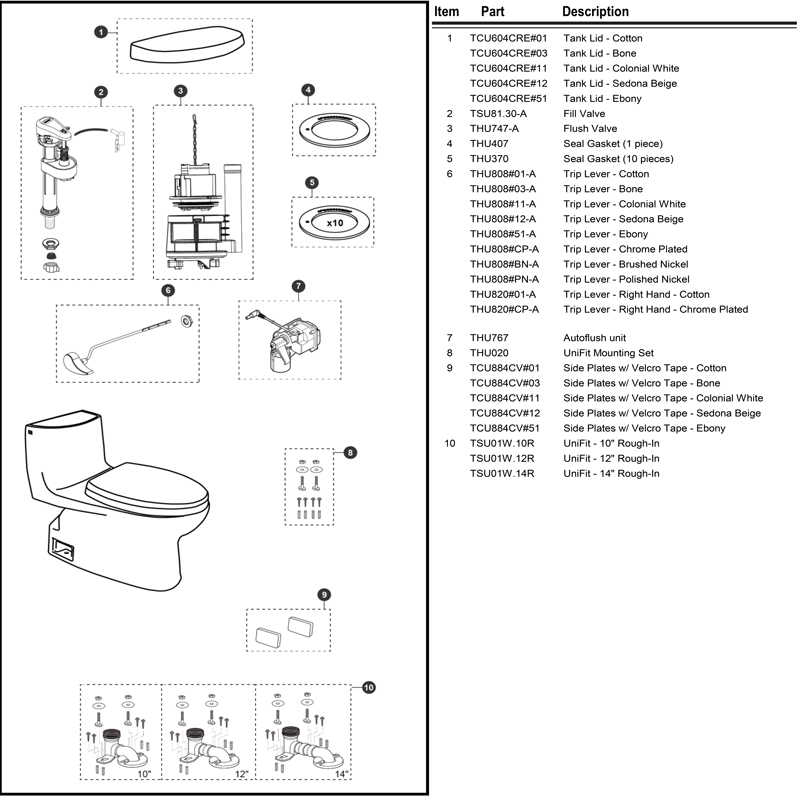

Toto Toilet Repair Parts for the Model MW6143074CEFG Toilet.
Item # Part # Description Price & Quantity
1 TCU604CRE Toilet Tank Lid Select your color and
2 TSU81.30-A Fill Valve $39.87 Enter a quantity and
3 THU747-A Flush Valve $35.16 Enter a quantity and
4 THU407 Seal Gasket (1 piece) $12.35 Enter a quantity and
5 THU370 Seal Gasket (10 pieces) $59.95 Enter a quantity and
6 THU808#01-A Trip Lever - Cotton $38.81 Enter a quantity and
THU808#03-A Trip Lever - Bone $42.77 Enter a quantity and
THU808#11-A Trip Lever - Colonial White $38.40 Enter a quantity and
THU808#12-A Trip Lever - Sedona Beige $38.46 Enter a quantity and
THU808#51-A Trip Lever - Ebony $50.79 Enter a quantity and
THU808#CP-A Trip Lever - Chrome Plated $43.93 Enter a quantity and
THU808#BN-A Trip Lever - Brushed Nickel $56.85 Enter a quantity and
THU808#PN-A Trip Lever - Polished Nickel $47.79 Enter a quantity and
THU820#01-A Trip Lever - Right Hand - Cotton $39.56 Enter a quantity and
THU820#CP-A Trip Lever - Right Hand - Chrome $39.58 Enter a quantity and
7 THU767 Autoflush unit $136.51 Enter a quantity and
8 THU020 UniFit Mounting Set $12.85 Enter a quantity and
9 TCU884CV#01 Side Plates with Velcro Tape - Cotton $55.51
TCU884CV#03 Side Plates with Velcro Tape - Bone $62.79
TCU884CV#11 Side Plates with Velcro Tape - Colonial White $55.53
TCU884CV#12 Side Plates with Velcro Tape - Sedona Beige $62.81
TCU884CV#51 Side Plates with Velcro Tape - Ebony $81.90 Enter a quantity and
10 TSU01W.10R UniFit - 10" Rough-in $107.97 Enter a quantity and
TSU01W.12R UniFit - 12" Rough-in $107.95 Enter a quantity and
TSU01W.14R UniFit - 14" Rough-in $107.93 Enter a quantity and
Not Shown SS124
Elongated Seat
view dimensions
Toto® OEM Slow Closing Toilet Seat - Bone $95.19
Toto® OEM Slow Closing Toilet Seat - Colonial White $82.83
Toto® OEM Slow Closing Toilet Seat - Cotton White $82.79
Toto® OEM Slow Closing Toilet Seat - Ebony $122.93
Toto® OEM Slow Closing Toilet Seat - Sedona Beige $95.25 Enter a quantity and

Replacement Parts for Toto Carlyle II Toilet
One Piece Models #
MW6143074CUFG, MW6143084CUFG, MW6143046CUFGA, MW6143056CUFGA
Tornado Flushing System 1.0 gpf

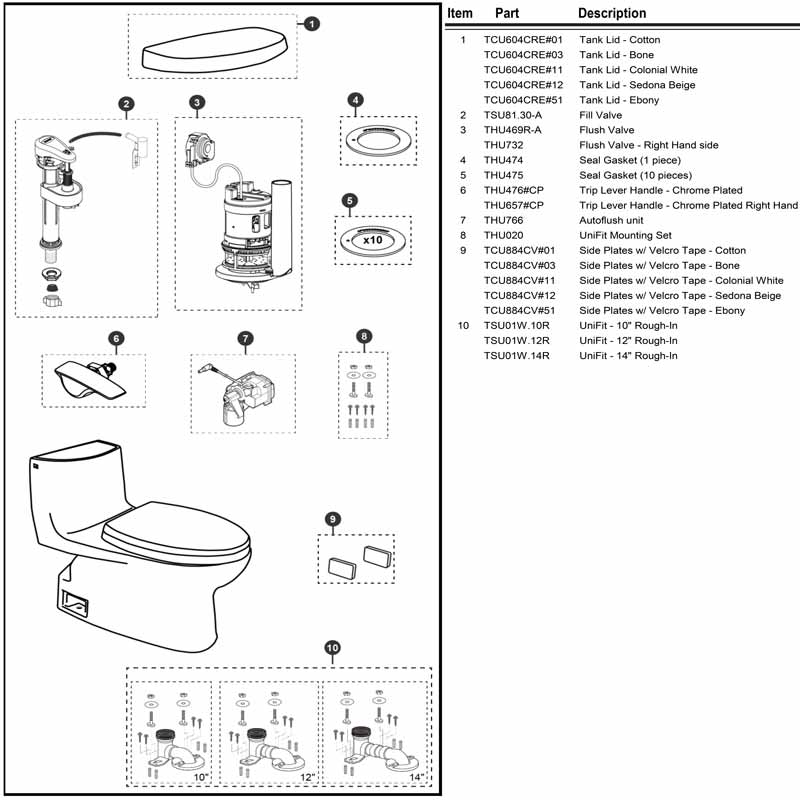

Toto Toilet Repair Parts for the Models MW6143074CUFG & MW6143084CUFG & MW6143046CUFGA & MW6143056CUFGA Toilets.
Item # Part # Description Price & Quantity
1 TCU604CRE Toilet Tank Lid Select your color and
2 TSU81.30-A Fill Valve $39.87 Enter a quantity and
3 THU469R-A Flush Valve $53.77 Enter a quantity and
THU732 Flush Valve - Right Hand side $35.40 Enter a quantity and
4 THU474 Seal Gasket (1 piece) $5.95 Enter a quantity and
5 THU475 Seal Gasket (10 pieces) $39.83 Enter a quantity and
6 THU476#CP Trip Lever Handle - Chrome Plated $34.41 Enter a quantity and
THU657#CP Trip Lever Handle - Chrome Plated Right Hand $37.85 Enter a quantity and
7 THU766 Trip Lever Handle - Chrome Plated Right Hand $136.49 Enter a quantity and
8 THU020 UniFit Mounting Set $12.85 Enter a quantity and
9 TCU884CV#01 Side Plates with Velcro Tape - Cotton $55.51
TCU884CV#03 Side Plates with Velcro Tape - Bone $62.79
TCU884CV#11 Side Plates with Velcro Tape - Colonial White $55.53
TCU884CV#12 Side Plates with Velcro Tape - Sedona Beige $62.81
TCU884CV#51 Side Plates with Velcro Tape - Ebony $81.90 Enter a quantity and
10 TSU01W.10R UniFit - 10" Rough-in $107.97 Enter a quantity and
TSU01W.12R UniFit - 12" Rough-in $107.95 Enter a quantity and
TSU01W.14R UniFit - 14" Rough-in $107.93 Enter a quantity and
Not Shown SS124
Elongated Seat
view dimensions
Toto® OEM Slow Closing Toilet Seat - Bone $95.19
Toto® OEM Slow Closing Toilet Seat - Colonial White $82.83
Toto® OEM Slow Closing Toilet Seat - Cotton White $82.79
Toto® OEM Slow Closing Toilet Seat - Ebony $122.93
Toto® OEM Slow Closing Toilet Seat - Sedona Beige $95.25 Enter a quantity and

Replacement Parts for Toto Carlyle II Toilet
One Piece Model - #MS614114CUFG
Tornado Flushing System 1.0 gpf

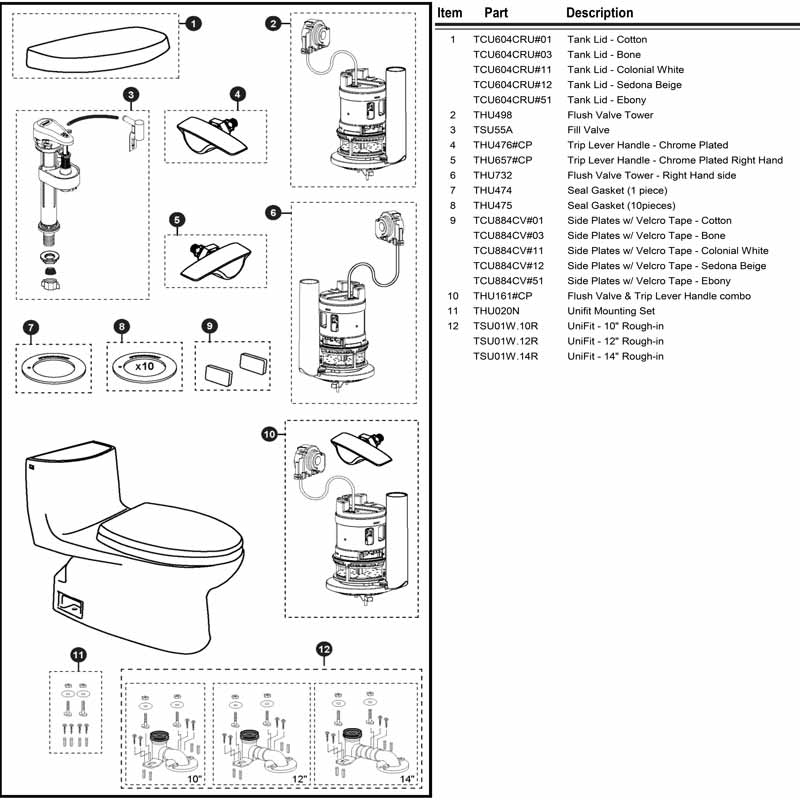

Toto Toilet Repair Parts for the Model MS614114CUFG Toilet.
Item # Part # Description Price & Quantity
1 TCU604CRU Toilet Tank Lid Select your color and
2 THU498 Flush Valve Tower Discontinued
3 TSU55A Fill Valve Discontinued
4 THU476#CP Trip Lever Handle - Chrome Plated $34.41 Enter a quantity and
5 THU657#CP Trip Lever Handle - Chrome Plated Right Hand $37.85 Enter a quantity and
6 THU732 Flush Valve - Right Hand side $35.40 Enter a quantity and
7 THU474 Seal Gasket (1 piece) $5.95 Enter a quantity and
8 THU475 Seal Gasket (10 pieces) $39.83 Enter a quantity and
9 TCU884CV#01 Side Plates with Velcro Tape - Cotton $55.51
TCU884CV#03 Side Plates with Velcro Tape - Bone $62.79
TCU884CV#11 Side Plates with Velcro Tape - Colonial White $55.53
TCU884CV#12 Side Plates with Velcro Tape - Sedona Beige $62.81
TCU884CV#51 Side Plates with Velcro Tape - Ebony $81.90 Enter a quantity and
10 THU161#CP Flush Valve & Trip Lever Handle combo $72.90 Enter a quantity and
11 THU020N Unifit Mounting Set $11.89 Enter a quantity and
12 TSU01W.10R UniFit - 10" Rough-in $107.97 Enter a quantity and
TSU01W.12R UniFit - 12" Rough-in $107.95 Enter a quantity and
TSU01W.14R UniFit - 14" Rough-in $107.93 Enter a quantity and
Not Shown SS114
Elongated Seat
view dimensions
Toto® OEM Slow Closing Toilet Seat - Bone $98.65
Toto® OEM Slow Closing Toilet Seat - Colonial White $81.22
Toto® OEM Slow Closing Toilet Seat - Cotton White $82.81
Toto® OEM Slow Closing Toilet Seat - Sedona Beige $96.51 Enter a quantity and
Toto® OEM Slow Closing Toilet Seat - Ebony $114.72 Enter a quantity and

Toto Carlyle Toilet Parts Related Items

Frequently Asked Questions

Q. "How do I connect the toilet seat to the bowl on a one piece toilet since the bolts are not accessible from underneath the bowl?"
A. If you are using a Toto OEM toilet seat you may need to use the THU651N anchor kit if the original bolts and anchors cannot be re-used for any reason. The bolts provided in the OEM seat are larger than the bolts that fit into the anchors. To install the top mount anchor kit, insert the rubber bushing nuts into the bowl seat holes. Place the seat on the bowl and rotate the seat hinge into place while holding the seat down on the bowl. Fasten and tighten the seat bolt (included with anchor kit) from the top with a screwdriver. View THU651N anchor kit installation.

If you are using the "Will-Fit" 200SLOWT or 1200SLOWT you will need a Hardware Kit for 1-pc Toilets (HK36) as well as the THU651N anchor kit if the original bolts and anchors cannot be re-used for any reason. You will need to use the plastic adapter from the HK36 and the bolts from the THU651N. The HK36 Hardware kit can be purchased here = $5.72   Enter a quantity and

Q. "How can I find the model number and color of my Toto toilet?"

A. Look inside your tank. Always exercise caution when removing the tank lid, as it is fragile and can be easily broken if stepped on or dropped. Inside your tank on the back wall of the tank or sometimes on the right hand wall (opposite the trip lever), you will see a model number stamped or engraved in the porcelain. Typically, for Toto toilets, you will see letters with a three-digit number. There may be more letters following, depending on additional features available on that model of the toilet. Elsewhere in your toilet tank, you will find a color code. Color codes start with a # followed by a two-digit number. The most common Toto colors are #01 - Cotton White, #03 - Bone, #04 - Gray, #11 - Colonial White, #12 - Sedona Beige, and #51 - Ebony.

How to find Toto toilet model number and color code

Q. "What's the difference between the original and 'Eco' versions of Toto toilets? Will the same parts work for both versions?"

A. "Eco" versions of Toto toilets have the same model number as the original version, but will have an "E" somewhere after the number. The only difference between the original and "Eco" versions is the amount of water they flush (1.6gpf vs 1.28gpf) - thus, they use a different flush valve and/or a different flapper that utilizes less water. The other internal components will typically be the same. Any internal differences will be noted on the product page.

Additionally, be aware that on occasion Toto has changed the NAME of certain lines, but the model number remains the same. For example, the Gwyneth one-piece is now the Ultramax II and the Gwyneth two-piece is now the Drake II. We have provided the most current names to better assist our customers, but please refer primarily to model NUMBER when selecting your toilet parts to ensure you're getting the right parts for your model.

Q. "How do the different Toto flushing systems work? Can I put parts from a different flushing system in my Toto toilet to change the gpf rate?"

A. Almost all of the Toto toilets (with the exception of a few older models that work like most other gravity-fed toilets), feature an extra wide 3" flush outlet and a larger trapway to deliver more water at a faster rate for a more powerful flush. We do NOT recommend attempting to put a different flushing system in your existing Toto toilet - toilets are designed holistically, meaning that the entire bowl, tank, internal parts, etc. are all designed to fit together in a very specific way. Even though some toilets might have similar parts and use similar technology, each toilet will perform differently based on additional factors like tank size, whether or not the porcelain has the Sanagloss finish, etc.

Learn more about the different flushing systems below:
  • Power Gravity: One of Toto's older flushing systems, this system was designed to provide maximum flush efficiency in low-profile toilets. Because of the smaller tank size, there is less water in the tank to "push" waste out of the toilet when flushing, but this is still one of the most powerful and efficient flushing systems for low-profile toilets.
  • G-Max & E-Max: As mentioned above, the big difference between the G-Max and E-Max flushing systems is the amount of water used per flush. As the industry moves toward all toilets being 1.28gpf, the E-Max is essentially a "retro-fit" of the G-Max design. Like most standard toilet bowls, the water rinses straight down when you flush - so you still get a powerful flush and rinse.
  • Cyclone: A Cyclone flushing system uses a single nozzle located at the tank end of the bowl just under the lip of the bowl which has no rim holes. When the toilet is flushed, water streams out of the nozzle towards the front of the bowl causing the water to swirl around the complete inside of the bowl. This Cyclone rinsing action not only completely cleans the bowl but effectively helps flush the bowl. The Cyclone efficiently out-performs other gravity flushing toilets.
  • Double Cyclone: The Double Cyclone is considered by many as the "best" Toto flushing system. It provides the same powerful flush as the Power Gravity, the G-Max/E-Max and the Cyclone systems, only better! Instead of one bowl entry nozzle the Double Cyclone has two opposite side rinse inlets flowing the same direction creating more swirling force than a single rinse inlet. Basically, the water quickly swirls around the bowl when you flush, causing a wash down effect that leaves the bowl cleaner - while still using only 1.28gpf.
  • Dual Max: This is Toto's first dual flush system - delivering only 0.9 gallons per half-flush and 1.6 gallons per full flush, without sacrificing the performance you expect from Toto toilets.
  • Tornado: The Tornado flush uses gravity and two powerful nozzles to create a centrifugal, cyclonic action reducing waste build-up. Water is forced to spin around the rim and bowl creating a more powerful flush. The two nozzles replace rim holes to maximize the bowl and rim cleaning action with less trapped dirt. This high efficiency dual nozzle water propulsion system is used for 1 gallon or 1.28 gallon per flush toilets. The Tornado flushing system is considered to be more effective in one flush than most toilets are with multiple flushes.
  • Dynamax Tornado: The Dynamax Tornado flush sends 100% of the water through the rim of the bowl so all of the water gets used to clean the bowl and remove the waste using less water more efficiently. When the toilet is flushed the Dynamax system creates a vortex using a pushing force to discharge the waste first. The powerful bowl wash combined with the waste discharge dramitically improves the amount flushed out and away. This new discharge design make for a quieter and more powerful bowl evacuation.

Q. "Toto uses many different letters before and after their numbers stamped on the inside back of the toilet tank. Are these letters just part of the number or do they have some significance?"

A. The letters shown with the part numbers are part of the Toto number and they are very significant. Each letter or combination of letters are different codes used by Toto to completely and accurately designate what the toilet or tank consisted of when it was sold. The letters MS listed before model numbers means the toilet includes a seat. The following is a list of letters Toto uses and what they mean: B=Bolt down tank lid; C=Cyclone or Tornado flush; CST=Gravity type toilet; CT=Bowl; D=Insulated tank; E=E-max 1.28 gpf; F=Universal bowl height 16.125"; G= Sanigloss or CeFiONtect (ceramic glaze); L=ADA height 16.5" high bowl; M=Dual-Max; R=Right hand tank lever; S=G-Max; ST=Tank; T=Drain valve tower type; U=Ultra low volume (1.0 gallon).

Example: CST604CUFG: CST=Gravity type toilet; 604=Ultramax II tank model number; C=Tornado flush; U=Ultra low volume (1.0 gallon); F=Universal height; G=CeFiONtect (ceramic glaze);
