Thermostatic Mixing Valves

Help protect against both scalding and bacteria in your water supply with these quality thermostatic mixing valves. These valves allow you to set your water heater to the recommended 140°F to reduce bacteria, while sending cooler 120°F water to your faucets, showers, and tub. Available for a wide range of applications - water heater, point-of-use, metering showers, multiple fixtures, underfloor hydronic heating, etc. - we've got the valve you need. As an added bonus, that higher tank temperature means hot water demands can be satisfied longer so you don't have to worry about being last in the shower anymore.

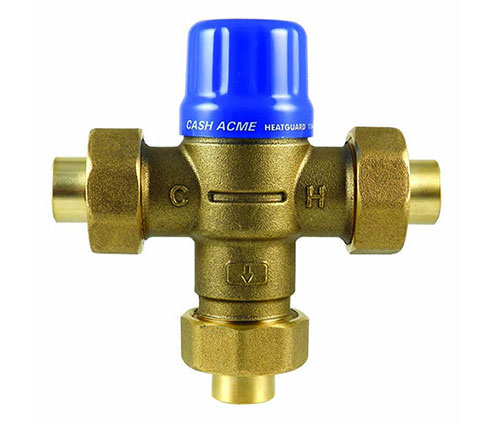

Cash Acme HeatGuard® HG110-D Whole House or Multiple Fixture Thermostatic Mixing Valves

Thermostatic mixing valves should be sized according to the flow capacity required from the valve and NOT according to the pipe size supplied to the valve.

HeatGuard HG110-D whole house or multiple fixture thermostatic mixing valve by Cash Acme
These temperature limiting valves feature:
  • Suitable for whole house or multiple fixture use
  • Fast-acting thermostatic element senses the water temperature and reacts to maintain a stable delivery temperature
  • Durable bronze construction with your choice of connection system
  • Lead free design suitable for use with potable water systems
  • Adjusting handle can be locked at desired temperature or automatic mode
  • Clearly marked handle is easy to use and decipher
  • Delivers water at a maximum of 120°F with adjustable outlet temperature range of 85°F - 130°F (max hot supply temp 180°F)
  • 1 gpm minimum / 20 gpm maximum flow rate - suitable for most homes
  • IAPMO and ASSE listed - inspector friendly!
  • View full specifications and installation diagram

Model Description Inlet/Outlet Connection Price & Quantity

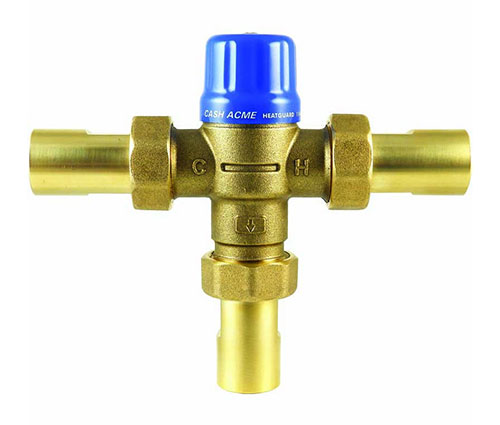

24501 HeatGuard® HG110-D Series Thermostatic Mixing Valve 1/2" Copper Sweat $77.54

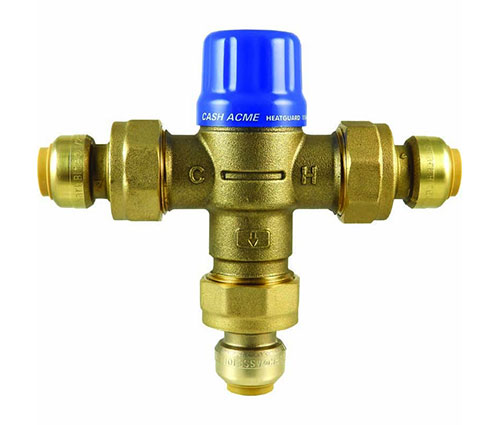

24504 HeatGuard® HG110-D Series Thermostatic Mixing Valve 1/2" SharkBite $79.56
24506 HeatGuard® HG110-D Series Thermostatic Mixing Valve 1/2" PEX/Barb $77.38

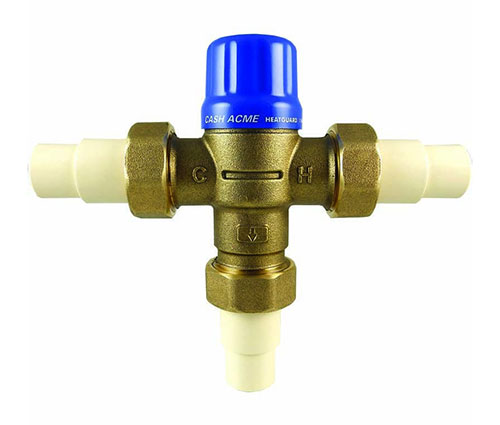

24508 HeatGuard® HG110-D Series Thermostatic Mixing Valve 1/2" CPVC $77.26
24510 HeatGuard® HG110-D Series Thermostatic Mixing Valve 1/2" FNPT $77.26
24502 HeatGuard® HG110-D Series Thermostatic Mixing Valve 3/4" Copper Sweat $77.58
24505 HeatGuard® HG110-D Series Thermostatic Mixing Valve 3/4" SharkBite $79.90
24507 HeatGuard® HG110-D Series Thermostatic Mixing Valve 3/4" PEX/Barb $77.48
24509 HeatGuard® HG110-D Series Thermostatic Mixing Valve 3/4" CPVC $77.36
24511 HeatGuard® HG110-D Series Thermostatic Mixing Valve 3/4" MNPT $77.36

- OR - View Cart

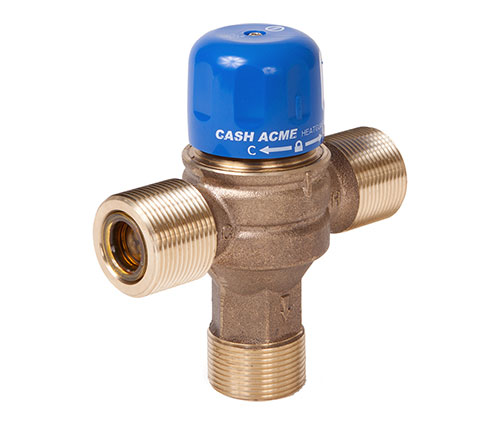

Cash Acme HeatGuard® HG115 High Capacity Thermostatic Mixing Valves

Thermostatic mixing valves should be sized according to the flow capacity required from the valve and NOT according to the pipe size supplied to the valve.

HeatGuard HG115 high capacity thermostatic mixing valve by Cash Acme
These temperature limiting valves feature:
  • Larger sized valve provides higher flow rates for larger homes and families or commercial applications
  • Fast-acting thermostatic element senses the water temperature and reacts to maintain a stable delivery temperature
  • Durable bronze construction with your choice of threaded or sweat connections
  • Lead free design suitable for use with potable water systems
  • Adjusting handle can be locked at desired temperature or automatic mode
  • Clearly marked handle is easy to use and decipher
  • Delivers water at a maximum of 120°F with adjustable outlet temperature range of 85°F - 176°F (max hot supply temp 180°F)
  • 2.5 gpm minimum / 27.2 gpm maximum flow rate - ideal for higher flow needs
  • IAPMO and ASSE listed - inspector friendly!
  • View full specifications and installation diagram

Model Description Inlet/Outlet Connection Price & Quantity
24522 HeatGuard® HG115 High Capacity Thermostatic Mixing Valve 3/4" NPT $194.79
24519 HeatGuard® HG115 High Capacity Thermostatic Mixing Valve 3/4" Copper Sweat $189.68
24520 HeatGuard® HG115 High Capacity Thermostatic Mixing Valve 1" Copper Sweat $194.82
24521 HeatGuard® HG115 High Capacity Thermostatic Mixing Valve 1-1/4" Copper Sweat $199.84

- OR - View Cart

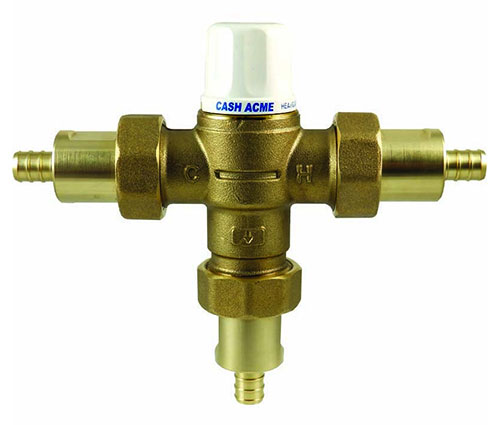

Cash Acme HeatGuard® HG160 Single or Multiple Fixture Thermostatic Mixing Valves

Thermostatic mixing valves should be sized according to the flow capacity required from the valve and NOT according to the pipe size supplied to the valve.

HeatGuard HG160 single or multiple fixture thermostatic mixing valve by Cash Acme
These temperature limiting valves feature:
  • Intended to control the water temperature to individual or multiple fixtures such as sinks, lavatories, gang showers, or bath tubs
  • Rapid response thermostatic element senses the water temperature and reacts to maintain a stable delivery temperature
  • Durable bronze construction available in a variety of connection types
  • Lead free design suitable for use with potable water systems
  • Adjusting handle can be locked at desired temperature or automatic mode
  • Clearly marked handle is easy to use and decipher
  • Delivers water at a maximum of 120°F with adjustable outlet temperature range of 95°F - 120°F (max hot supply temp 180°F)
  • 0.34 gpm minimum / 11 gpm maximum flow rate
  • IAPMO and ASSE listed - inspector friendly!
  • View full specifications and installation diagram

Model Description Inlet/Outlet Connection Price & Quantity
24536 HeatGuard® HG160 Series Thermostatic Mixing Valve 1/2" FNPT $109.65
24528 HeatGuard® HG160 Series Thermostatic Mixing Valve 1/2" Copper Sweat $99.62
24531 HeatGuard® HG160 Series Thermostatic Mixing Valve 1/2" PEX/Barb $104.67
24533 HeatGuard® HG160 Series Thermostatic Mixing Valve 1/2" CPVC $108.35
24532 HeatGuard® HG160 Series Thermostatic Mixing Valve 3/4" PEX/Barb $114.32
24534 HeatGuard® HG160 Series Thermostatic Mixing Valve 3/4" CPVC $108.37

- OR - View Cart

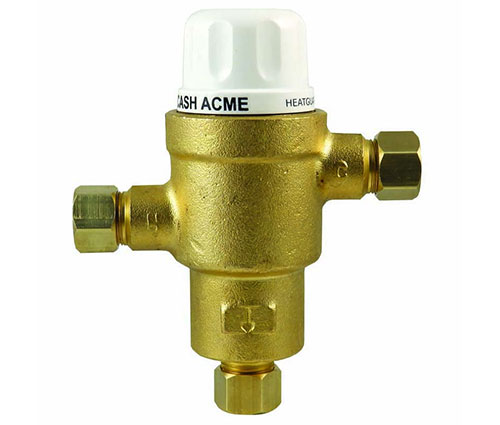

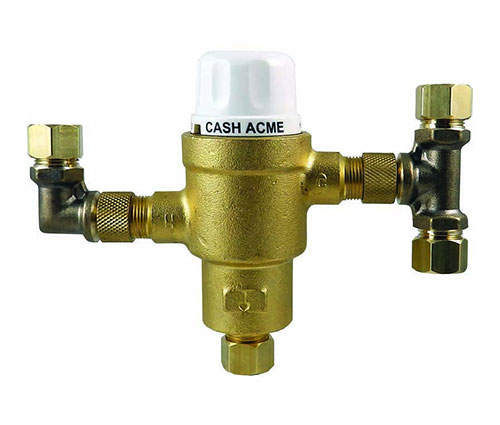

Cash Acme HeatGuard® HG145 Point-of-Use Single Fixture Thermostatic Mixing Valves

Thermostatic mixing valves should be sized according to the flow capacity required from the valve and NOT according to the pipe size supplied to the valve.

HeatGuard HG145 point-of-use or single fixture thermostatic mixing valve by Cash Acme
These temperature limiting valves feature:
  • Compact design easily fits under or behind a single basin
  • Superior, fast acting thermostatic element provides stable operation
  • Reduces the outlet flow to a trickle in the event of cold water supply failure
  • Inlet connections are typical supply line 3/8″ compression for 3/8″ OD tube
  • Inlet strainer screens help prevent the valve from being clogged with dirt/debris
  • Included mounting clamp allows for secure fastening to the wall
  • Supplied standard with check valves at hot and cold water inlets
  • Delivers water at a maximum of 120°F with adjustable outlet temperature range of 95°F - 118°F (max hot supply temp 194°F)
  • 0.34 gpm minimum / 5.8 gpm maximum flow rate - ideal for sensor faucets
  • IAPMO and ASSE listed - inspector friendly!
  • View full specifications and installation diagram

Model Description Price & Quantity
24524 HeatGuard® HG145 Point-of-Use Mixing Valve - 3/8" compression $68.47
24525 HeatGuard® HG145 Point-of-Use Mixing Valve - 3/8" compression (includes tee & elbow) $77.76

- OR - View Cart

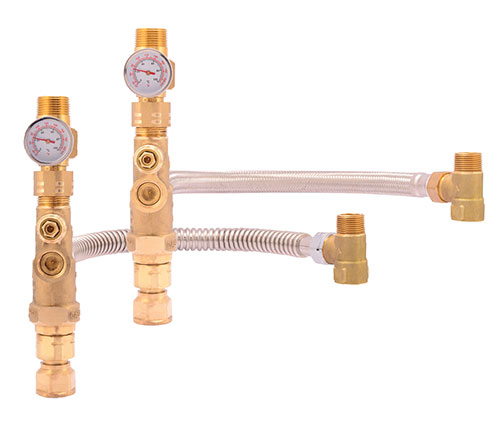

Cash Acme Tank Booster Pro Temperature Actuated Whote House Mixing Valves

Tank Booster Pro thermostatic mixing valve with supply and temperature gauge by Cash Acme
These unique whole house valves feature:

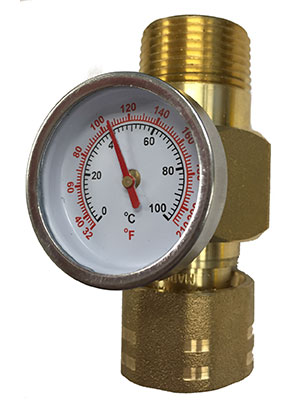

  • Combines a thermostatic mixing valve, temperature gauge, flexible connector and water heater tee in one package
  • Can increase a household’s hot water heater capacity and keep it set at bacteria-reducing 140°F while delivering hot water to fixtures at safer temperatures
  • Can be used with SharkBite flexible water heater connectors and ball valves for easy installation in systems using copper, CPVC or PEX tubing
  • Adjustable and lockable mechanism minimizes unauthorized tampering
  • Integral recirculation port allows quick and neat installation with recirculation
  • Integral non-returns and filters for both inlets
  • Delivers water at a maximum of 120°F with adjustable outlet temperature range of 90°F - 130°F (max hot supply temp 195°F)
  • IAPMO and ASSE listed - inspector friendly!
  • View full specifications and installation diagram

Model Description Price & Quantity
24643 Tank Booster Pro Mixing Valve with Corrugated Supply Hose & Temperature Gauge $99.96
24644 Tank Booster Pro Mixing Valve with Braided Supply Hose & Temperature Gauge $99.97

- OR - View Cart

Symmons TEMPCONTROL® Thermostatic Mixing Valves

Thermostatic mixing valves should be sized according to the flow capacity required from the valve and NOT according to the pipe size supplied to the valve.

Symmons 7-200
These temperature limiting valves feature:
  • Supplies tempered water to an individual or group of metering shower systems
  • Adjustable temperature (70°-150°F) with vandal resistant lockable handle feature
  • Internal stainless steel check stops for easy shut-off at valve
  • Removable cartridge with strainer
  • IPS inlets & outlets in a variety of sizes to suit your needs
  • Durable brass valve housing and stainless steel internal parts
  • 2014 Federal Safe Drinking Water Act compliant
  • Optional piping and cabinet set includes: 3/4" tamper resistant hex bolt with safety lock nut (range 70°-150°). Bottom supplies, top outlet. 16 gauge stainless steel cabinet body and 13 gauge hinged left hand door with cylinder lock and white enamel finish. Brass, bronze, stainless steel valve construction. Standard cabinet fully recessed. Includes bi-metal temperature gauge with 3" face, register range of 20° to 240°F. and volume control ball valve

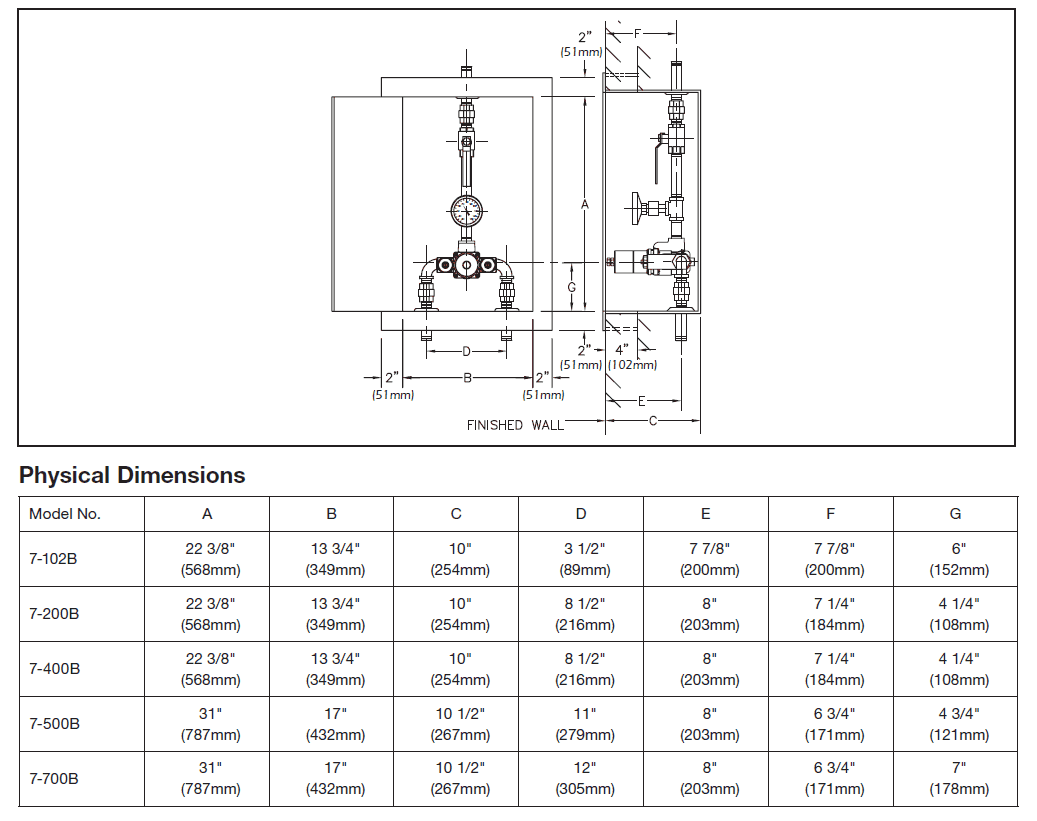

  • View detailed valve dimensions   -   View piping & cabinet set dimensions
Model Description Inlet Outlet Flow Rate
@ 45 PSI
Price & Quantity
7-200 TEMPCONTROL® Thermostatic Controller ONLY 3/4" 3/4" 27 gpm $629.59
7-200-W TEMPCONTROL® Thermostatic Controller with Wall Bracket 3/4" 3/4" 27 gpm $660.58
7-200B TEMPCONTROL® Thermostatic Controller with Piping & Cabinet Set 3/4" 3/4" 27 gpm $1,451.69

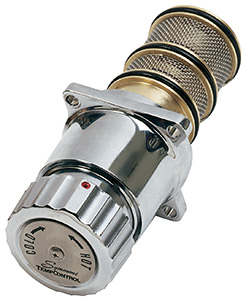

Replacement Cartridge Only #7-200NW - (for 7-200, 7-200-W, and 7-200B) $641.68
7-400 TEMPCONTROL® Thermostatic Controller ONLY 3/4" 1" 53 gpm $856.57
7-400-W TEMPCONTROL® Thermostatic Controller with Wall Bracket 3/4" 1" 53 gpm $861.44
7-400B TEMPCONTROL® Thermostatic Controller with Piping & Cabinet Set 3/4" 1" 53 gpm $1,679.90
Replacement Cartridge Only #7-400NW - (for 7-400, 7-400-W and 7-400B) $726.95
7-500 TEMPCONTROL® Thermostatic Controller ONLY 1" 1-1/4" 70 gpm $953.82
7-500-W TEMPCONTROL® Thermostatic Controller with Wall Bracket 1" 1-1/4" 70 gpm $946.22
7-500B TEMPCONTROL® Thermostatic Controller with Piping & Cabinet Set 1" 1-1/4" 70 gpm $1,900.82
Replacement Cartridge Only #7-500NW - (for 7-500, 7-500-W, and 7-500B) $728.50
7-700 TEMPCONTROL® Thermostatic Controller ONLY 1-1/4" 1-1/2" 77 gpm $975.97
7-700-W TEMPCONTROL® Thermostatic Controller with Wall Bracket 1-1/4" 1-1/2" 77 gpm $963.44
7-700B TEMPCONTROL® Thermostatic Controller with Piping & Cabinet Set 1-1/4" 1-1/2" 77 gpm $1,901.14
Replacement Cartridge Only #7-700NW - (for 7-700, 7-700-W, and 7-700B) $729.94
7-900 TEMPCONTROL® Thermostatic Controller ONLY 1-1/2" 1-1/2" 104 gpm $1,054.61
7-900-W TEMPCONTROL® Thermostatic Controller with Wall Bracket 1-1/2" 1-1/2" 104 gpm $1,110.90
7-900B TEMPCONTROL® Thermostatic Controller with Piping & Cabinet Set 1-1/2" 1-1/2" 104 gpm $2,150.10
Replacement Cartridge Only #7-900NWM - (for 7-900, 7-900-W, and 7-900B) $990.16
7-1000 TEMPCONTROL® Thermostatic Controller ONLY 1-1/2" 2" 140 gpm $1,448.94
7-1000-W TEMPCONTROL® Thermostatic Controller with Wall Bracket 1-1/2" 2" 140 gpm $1,461.47
7-1000B TEMPCONTROL® Thermostatic Controller with Piping & Cabinet Set 1-1/2" 2" 140 gpm $2,433.75

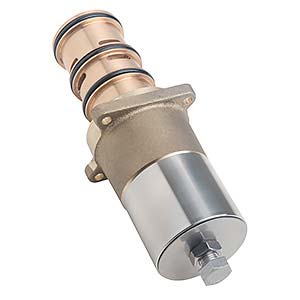

Replacement Cartridge Only #7-1000NW - (for 7-1000, 7-1000-W, and 7-1000B) $990.01

- OR - View Cart

Symmons TEMPCONTROL® Low Flow Thermostatic Mixing Valve

Thermostatic mixing valves should be sized according to the flow capacity required from the valve and NOT according to the pipe size supplied to the valve.

Symmons 7-102
These temperature limiting valves feature:
  • Adjustable within 5° of ambient water temperature up to 150° - providing greater control at low temperatures for use in photography, x-ray work or other special process applications
  • Union check stops, removable cartridge with strainer, stainless steel piston and liquid fill thermal motor with bellows mounted out of water

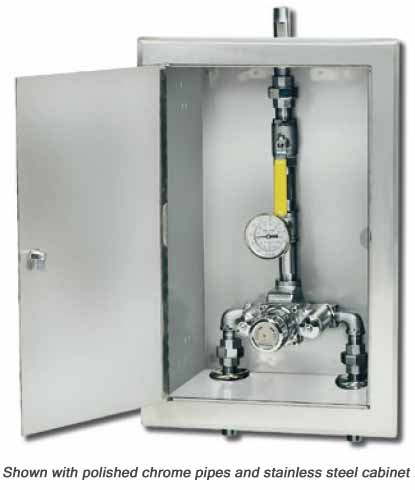

  • Optional piping and cabinet set includes: Tamper-resistant hex bolt helps prevent unwanted temperature adjustments; (range 70°-150°)Bottom supplies, top outlet. 16 gauge stainless steel cabinet body and 13 gauge hinged left hand door with cylinder lock and white enamel finish. Brass, bronze, stainless steel valve construction. Standard cabinet fully recessed. Includes bi-metal temperature gauge with 3" face, register range of 20° to 240°F. and volume control ball valve

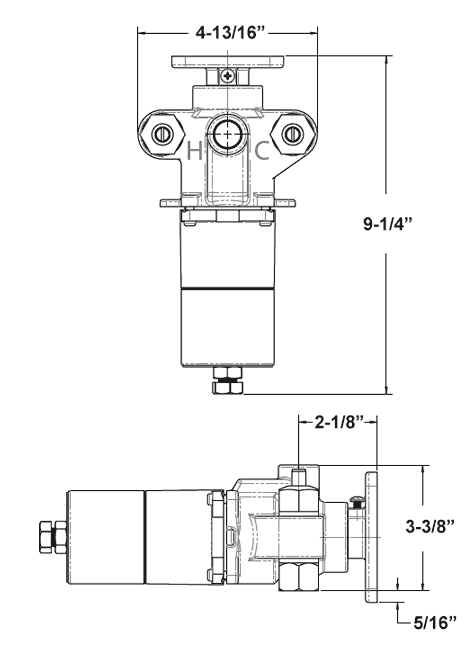

  • View mixing valve dimensions
  • 2014 Federal Safe Drinking Water Act compliant

Model Description Price & Quantity
7-102-W TEMPCONTROL® Low Flow Thermostatic Temperature Controller with Wall Bracket
Rough Nickel finish with 1/2" IPS inlet/outlet connections - Flow rate 0.5 gpm minimum to 11 gpm @ 45 psi
$604.08

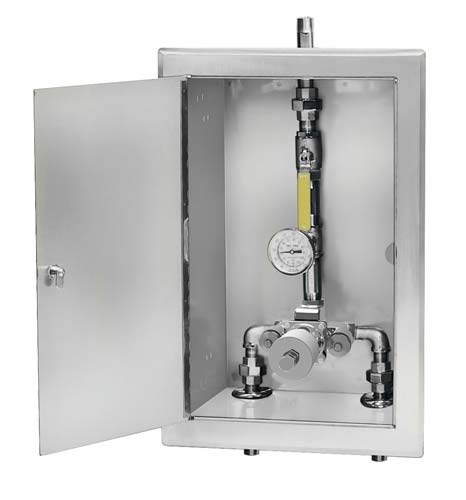

7-102B TEMPCONTROL® Low Flow Thermostatic Temperature Controller with Piping & Cabinet Set
With 1/2" IPS inlet and outlet connections - Flow rate 0.5 gpm minimum to 11 gpm @ 45 psi
$1,712.87
Replacement Cartridge Only #7-102NW - (for 7-102, 7-102-W and 7-102B) $672.97
7-102-PW TEMPCONTROL® Low Flow Thermostatic Temperature Controller with Wall Bracket
Polished Chrome finish with 1/2" IPS inlet/outlet connections - Flow rate 0.5 gpm minimum to 11 gpm @ 45 psi
$707.57
Replacement Cartridge Only #7-102P-NW - (for 7-102-PW) $811.18

- OR - View Cart

Related Items & Accessories



Frequently Asked Questions

Q. "What are check valves?"
A. Check valves prevent the back flow and cross flow of water. With a check valve water can only flow one direction. Check valves are recommended to prevent by-pass when a Thermixer is installed with a downstream shut-off device.

Q. "What are screwdriver stops?"
A. With stops, it means the valve has shut-offs for the water line so you don't have to shut off water to the entire house to work/repair parts on the shower/tub system.
