Eliminator® Submersible Sump/Effluent Pumps
by Little Giant Pump Co.

Little Giant has a solid reputation for high quality and long-lasting submersible pumps! PlumbingSupply.com® is your source for submersible effluent and sump pumps, packaged ejection systems, and thousands of other plumbing products, fixtures and supplies. Looking for a great selection of pumps for a variety of uses? Click here.

6EC-Series Sump/Effluent Pumps by Little Giant

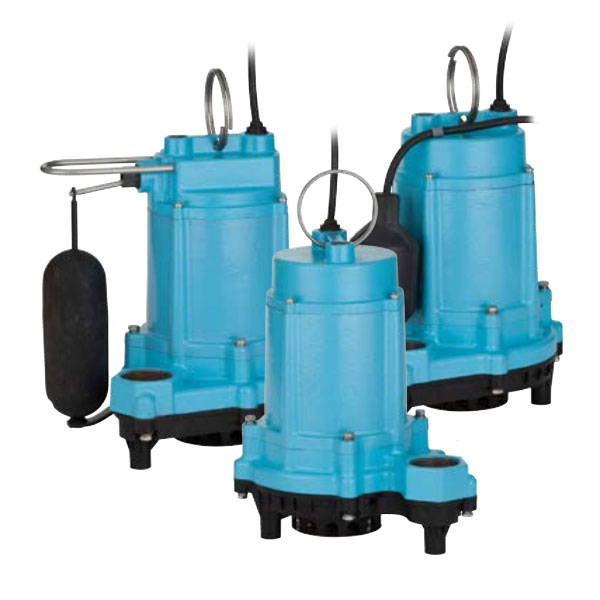

Little Giant effluent pump 6EN seriesPolypropylene Bases
These pumps feature:
  • Energy efficient 5 amp motor
  • 1/3 HP submersible sump/effluent pump
  • 53 gpm @ 5 ft. of head - 34 gpm @ 20 ft.
  • Maximum vertical lift (Shut-Off) at 28'
  • Handles liquid and solid waste materials up to 1/2" diameter
  • Designed for continuous duty, but must not be allowed to run dry
  • Stainless steel screws, bolts, handle and seal assembly
  • Mechanical seals (stainless steel spring, nitrile parts, carbon and ceramic faces)
  • Thermal overload protection
  • Epoxy coated volute
  • Manual and Automatic models available
  • 1-1/2" FNPT discharge
  • Liquid temperature rating: 140° F (60° C)
  • Snap-action float switch activates "on" level at approximately 8" to 11" and "off" level at approximately 2" to 5"
  • Piggyback mechanical float switch "on" level activates at approximately 13" to 15" and "off" level at approximately 6" to 8"

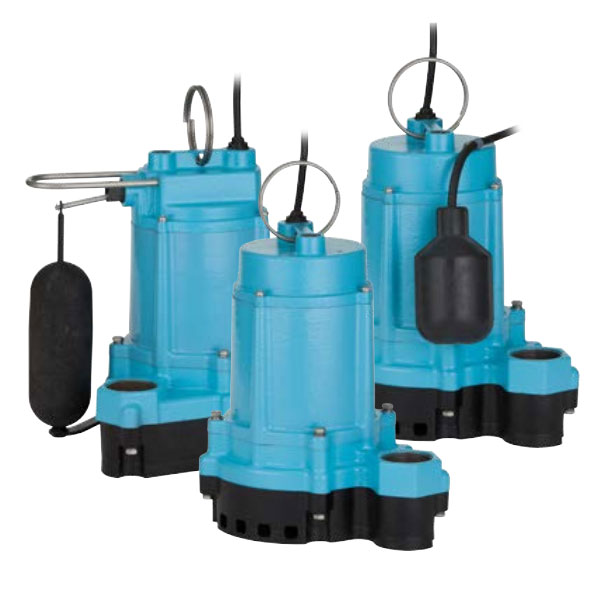

Little Giant effluent pump 6EN seriesCast Iron Bases
pump curve chart for the Little Giant 6EC Series pumps

Little Giant permanent split capacitor (PSC) motors provide lower current draw increasing energy efficiency, improved performance, and a cooler running motor. An epoxy coated cast iron housing and cover, your choice of either a polypropylene or cast iron base, and a nylon impeller, provides a long lasting, corrosion and rust resistant, down right durable pump. The pump's motor housing is filled with a dielectric oil for motor heat dissipation and provides lifetime lubrication of the bearings. This oil is non-toxic to aquatic life.

115 Volts - 60Hz, 5.0 Amps, 1/3 HP, 53 GPM @ 5' Models (UL/CSA Certified)

Description Polypropylene Base
Price & Quantity
Cast-Iron Base
Price & Quantity
6EC-CIM - 1/3 hp - manual pump with 10' cord $195.31 $212.78 Enter a quantity and
6EC-CIM - 1/3 hp - manual pump with 20" cord $210.91 $228.38 Enter a quantity and
6EC-CIM - 1/3 hp (506806 polypropylene base) - manual pump (black) with 20' cord $220.90 Not Manufactured Enter a quantity and
6EC-CIA-SFS - 1/3 hp - automatic pump with snap action float switch - 10' cord $210.29 $227.76 Enter a quantity and
6EC-CIA-SFS - 1/3 hp - automatic pump with snap action float switch - 20' cord $221.52 $239.62 Enter a quantity and

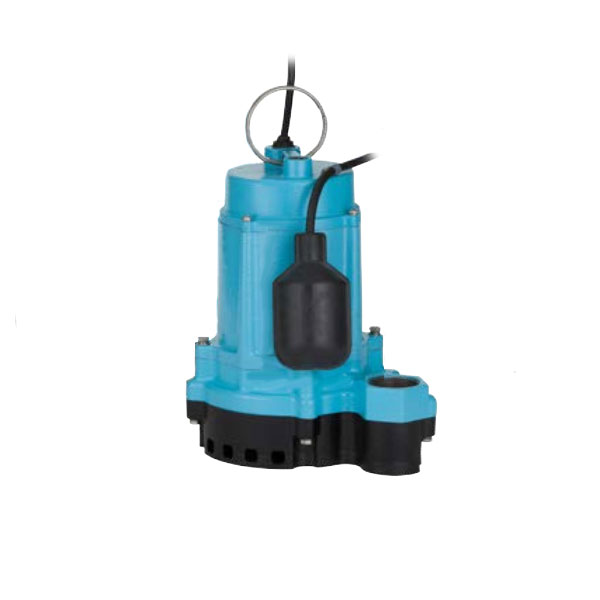

6EC-CIA-RF - 1/3 hp - automatic pump with piggyback mechanical float switch - 10' cord $233.38 $250.85 Enter a quantity and
6EC-CIA-RF - 1/3 hp - automatic pump with piggyback mechanical float switch - 20' cord Not Manufactured $268.94 Enter a quantity and

9EN-Series High Head Effluent Pumps by Little Giant

effluent pump 9EN seriesModel 9EN-CIA-RF
These pumps feature:
  • Ideal for use in commercial, residential, agricultural and industrial applications for dewatering, effluent waste, and waste water
  • Powerful 4/10 hp fully submersible sump/effluent pump
  • Moves water at a whopping rate of 80 gallons per minute at 5 feet of head pressure
  • Maximum vertical lift (Shut-Off) at 32'
  • Handles liquid and solid waste materials up to 3/4" diameter
  • Excellent for light or medium waste water movement from a collection area upwards to sewer lines, septic lines, or drainage areas
  • Thermal overload protection
  • 1-1/2" FNPT discharge
  • Automatic pump has 9" - 14" "On" level and 2" - 6" "Off" level range with adjustable Piggyback Mechanical Float Switch
9EN pump performance curve chart

Permanent split capacitor motors run cooler because they use a lower electrical current draw. And as an added benefit the motor housing is oil filled for rapid heat dissipation and lifetime lubrication to the bearings. The external housing is cast iron with a protective epoxy coating using stainless steel screws, bolts, handle and seal assemblies for corrosion and rust resistance. All of these combined pump features not only provide for more energy efficiency but also improve pump performance in turn leading to extended pump life.

115 Volts - 60Hz, 9.0 Amps 4/10 HP, 80GPM @ 5' Models (UL/CSA Certified)

Description Price & Quantity
9EN-CIM (509207) - 4/10 hp - manual pump with 20' cord $328.22 Enter a quantity and
9EN-CIM (509208) - 4/10 hp - manual pump with 30' cord $336.34 Enter a quantity and
9EN-CIA-RF (509209) - 4/10 hp - automatic pump w/piggyback mechanical float switch and 20' cord $371.28 Enter a quantity and
9EN-CIA-RF (509210) - 4/10 hp - automatic pump w/piggyback mechanical float switch and 30' cord $407.47 Enter a quantity and

Little Giant 14EH-Series Sump/Effluent Pumps

Eliminator High Head Series

ejector pump 14EH seriesModel 14EH-CIM shown
These pumps feature:
  • 1/2 HP but designed for very high head
  • Flow rate: 60 gpm at 20' head
  • Maximum vertical lift (shut-off) of 50 feet
  • Handles liquids and solid waste materials up to 3/4 diameter
  • Recommended when head pressure will be higher than 20 feet of head
  • A float switch or liquid level controller must be used for automatic operation
  • Designed for continuous use completely submerged

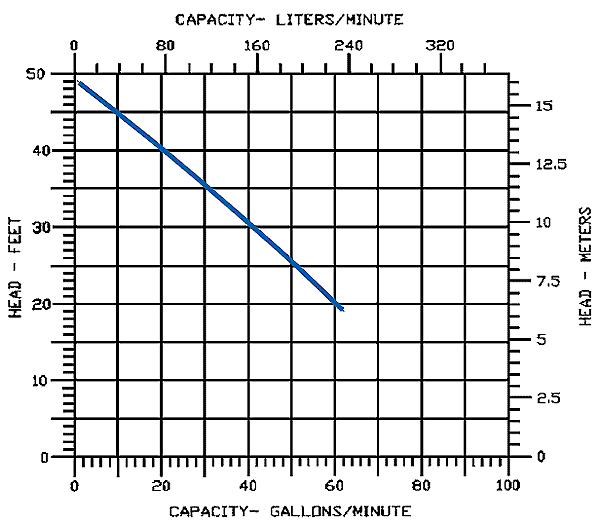

Little Giant 14EH-CIM pump curve chart

The pump housing is heavy duty epoxy coated cast iron and has stainless steel screws, bolts and lifting ring to help resist rust and corrosion. Permanent split capacitor motor puts out a high speed of 3450 (RPM) and the pump motor is equipped with an automatic-resetting, thermal protector that will protect the pump from over heating. The motor housing is oil-filled to not only cool the motor but to also lubricate the bearings and seals. For longer pump life and best cooling results the level of the liquid being pumped should be above the top of the motor housing. This pump is equipped with an epoxy coated cast iron, dynamically balanced, two-vane non-clogging impeller with pump-out vanes for optimum pumping performance and efficiency. The capacitor and power cord connections are isolated from the oil filled motor housing for easier field maintenance. The Little Giant 14EH-CIM pumps weigh 82 lbs.

This Little Giant 14EH-CIM effluent pump can pump water up to a maximum of 50 feet in vertical height. This means even though the pump can still be running, effluent (fluid/solid mixture) will be unable to lift any higher than 50 feet, and will just stay at that height in the pipe. This pump is not recommended for operation when head pressure will be lower than 20 feet of head. Operation at less than 20 feet of head pressure can cause reduced pump life, motor overload, motor damage and failure.

115 Volts - 60Hz, 12.5 Amps, 1/2Hp - 60 Gpm @ 20' Model - (UL/CSA Certified)

Description Price & Quantity
14EH-CIM - 1/2 hp manual pump with 20' cord - 2" discharge    (1450 watts-12.5 amps) $860.50 Enter a quantity and

Due to size/weight and to ensure safe delivery, certain items ship by truck and have a $175 additional shipping fee per freight item.
Please select your type of address:
Commercial -or- Residential

Related Items & Information



Effluent Pump Cross Reference Chart

Little Giant is discontinuing the 6E, 6EN, 8E, and 9E Series pumps. The cross reference below shows the old part numbers and which pump numbers you can order to replace your existing pump. Most of the Little Giant 10E Series pumps have also been discontinued. The 10E Series pumps are 1/2 HP but the 9EN Series 4/10 HP provide the same 80 gallons per minute at 5 feet of head, have a higher cut off height and cost much less than the 1/2 HP 10E Series. They also cost less to run because the amperage use is lower. We also show cross reference numbers for the 10E Series pumps below.

OLD Model No. OLD Item No. Use Model No. Use Item No.
6E-CIM 506710 6EC-CIM 506801
560851
6EN-CIM 506610
6E-CIM 506711 6EC-CIM 506802
560852
6EN-CIM 506611
6E-CIM 506730 230 volt
Discontinued
6EN-CIM 506615
6E-CIM 506735 230 volt
Discontinued
6EN-CIM 506616
6E-CIM 506775 6EC-CIM 506806
6EN-CIM 506641
6EN-CIA-SFS 506630 6EC-CIA-SFS 506807
506855
6E-CIA-SFS 506701 6EC-CIM 506804
6EN-CIA-SFS 506631
6EN-CIA-SFS 506635 230 volt
Discontinued
6EN-CIA-SFS 506636
6EN-CIA-RF 506619 6EC-CIA-RF 506858
6EN-CIA-RF 506620 6EC-CIA-RF 506803
506853
8E-CIM 509000
509005
9EN-CIM 509207
8E-CIM 509125
9EN-CIM 509208
8E-CIA-RFS 509100
509105
509120
9EN-CIA-RF 509209
9E-CIM 509200 9EN-CIM 509207
9E-CIM 509225 9EN-CIM 509208
9EH-CIM 509330 9EN-CIM 509208
9E-CIA-RFS 509300
509320
9EN-CIA-RF 509209
9EH-CIA-RFS 509350 9EN-CIA-RF 509209
10E-CIM 511200 9EN-CIM 509207
10E-CIA-VDS 511201 9EN-CIA-RF 509209
10E-CIM 511225 9EN-CIM 509208
10E-CIA-RFS 511300 9EN-CIA-RF 509209
10E-CIA-SFS 511350 9EN-CIA-RF 509209
10E-CIA-SFS 511355 9EN-CIA-RF 509210
