Wheeler-Rex Soil Pipe Cutters

Wheeler-Rex is a leading worldwide supplier to the plumbing, waterworks, wastewater, construction and water processing industry. Their tools are the very finest available, and PlumbingSupply.com® is your source on the Internet for products from Wheeler-Rex.

Image of the Wheeler Rex 590 Cutter

590 and 591 Wheeler Manual Soil Pipe Cutter

Cleanly cut cast iron soil pipe with a single stroke! Slide the cutter wheel chain around the pipe and engage it in the upper jaws. Pull the handles toward each other and snap the pipe.

The Model #591 includes a roller kit for the purpose of scoring the surface of thin wall pipes first, to ensure the cut will be clean

Model Cuts Pipe Sizes from 1-1/2" to: Price & Quantity
Std Pipe XH Soil Pipe No-Hub® Tile
590-6 6" 5" 6" 6" $562.26
590-8 6" 5" 6" 8" $619.47
590-10 6" 5" 6" 10" $669.78
590-12 6" 5" 6" 12" $734.37
590-15 6" 5" 6" 15" $807.45
591-6 - - 6" 6" $585.91
591-8 - - 6" 8" $632.27

- OR - View Cart

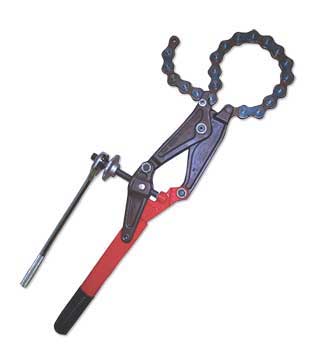

Image of the Wheeler Rex 490 Cutter

490 and 491 Wheeler Ratchet Pipe Cutter
Includes free ratchet wrench

These soil pipe cutters can allow you to not only cut pipe in a ditch or on the ground, but also overhead or in close quarters. The ratchet action operation is done parallel to the pipe providing a definitive advantage over other types of manual snap cutters.

The Model #491 includes a roller kit for the purpose of scoring the surface of thin wall pipes first, to ensure the cut will be clean

Model Cuts Pipe Sizes from 1-1/2" to: Price & Quantity
Std Pipe XH Soil Pipe No-Hub® Tile
490-6 6" 5" 6" 6" $517.59
490-8 8" 5" 8" 8" $575.95
490-10 8" 5" 8" 10" $629.21
490-12 8" 5" 8" 12" $689.55
490-15 8" 5" 8" 15" $759.34
491-6 - - 6" 6" $557.85
491-8 - - 8" 8" $606.63

- OR - View Cart

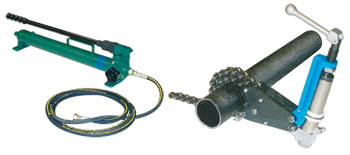

image of the Wheeler Rex 2990 cutter

2990 Wheeler Hydraulic Pipe Cutter

Cleanly cuts cast-iron, tile or asbestos cement pipe in just seconds. Pipe is squeezed by the cutter wheels on the chain which causes the pipe to pop apart. The cutter does not rotate around the pipe. This powerful, time saving tool requires just 2" to 3" of clearance and works wonders in trenches.

See example of this hydraulic pipe cutter in action.

All models cut 2" - 6" ASA class 22 CI water main, and 2" - 6" service wt. or XH soil pipe in addition to the sizes and materials listed by each model.

Model Cuts Pipe Sizes from 2" to: Price & Quantity
Std Pipe XH Soil Pipe Tile
2990-6 6" 6" 6" $1,924.68
2990-8 8" 8" 8" $2,085.30
2990-10 10" 8" 10" $2,257.90
2990-12 10" 8" 12" $2,295.90
2990-15 10" 8" 15" $2,383.90

- OR - View Cart

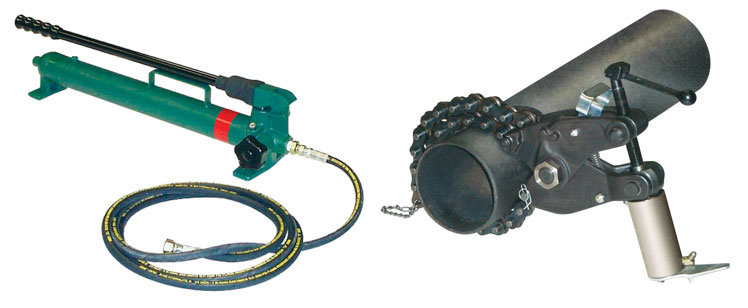

image of the Wheeler Rex 3890 cutter

3890 Wheeler Heavy Duty Hydraulic Pipe Cutter

Absolutely the best tool for cutting Cast Iron, Tile or AC piping! The cutter wheel chain is wrapped around the pipe but does not rotate around the pipe. As the cutter wheel chain is tightened it squeezes the pipe until it pops from the even pressure of the cutter wheels applied around the pipe.

All models cut 4" - 12" ASA class 22 CI water main, and 4" - 10" ASA class
26 CI water main in addition to the sizes and materials listed by each model


See example of this hydraulic pipe cutter in action.
View manufacturers operating instructions


Model Cuts Pipe Sizes from 4" to: Price & Quantity
Std Pipe XH Soil Pipe Tile Concrete
3890-12 12" 12" 12" 12" $3,132.79
3890-15 15" 15" 15" 15" $3,277.39
3890-18 18" 18" 18" 18" $3,447.50
3890-24 24" 24" 24" 24" $3,636.25

- OR - View Cart

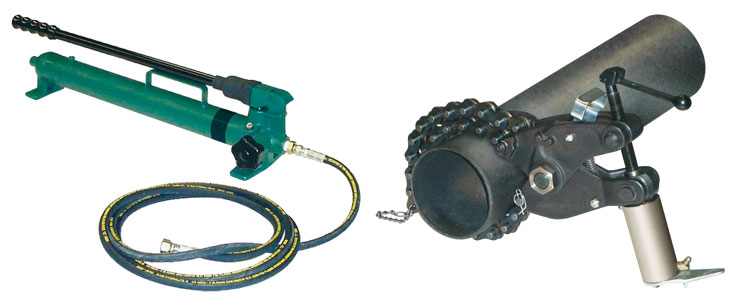

image of the Wheeler Rex 5590 cutter

5590 Wheeler Super Hydraulic Pipe Cutter

Without a doubt this super hydraulic pipe cutter is the ultimate tool used to cut Cast-iron, Tile or AC piping. Properly wrap the cutter wheel chain around the pipe and the hydraulic action squeezes the pipe until it pops from the equally applied pressure. Cutting pipes in trenches can now take just minutes instead of hours.

See example of this hydraulic pipe cutter in action.

All models cut 6" - 18" ASA class 26 CI water main in
addition to the sizes and materials listed by each model

Model Cuts Pipe Sizes from 6" to: Price & Quantity
ASA Class 26
Water Main
ASA Class 22
Water Main
Tile Concrete
5590-18 18" 18" 18" 18" $4,326.59
5590-20 18" 20" 20" 20" $4,545.79
5590-24 18" 20" 24" 24" $4,985.28
5590-36 18" 20" 36" 36" $6,172.30

- OR - View Cart

Ratch-Cut Tube and Pipe Cutters

1/8" to 3/8" Ratch Cut With Metal Handle

Ratch Cut
Designed for fast, accurate pipe cutting, especially in confined, nearly inaccessible location. Suitable for use on mild or stainless steel, copper or thinwall PVC and CPVC tubing from 1/8" to 3/8"

Description Price & Quantity
#3590 Ratch Cut With Metal Handle $38.99
#8040 Replacement cutter wheel $9.99

- OR - View Cart

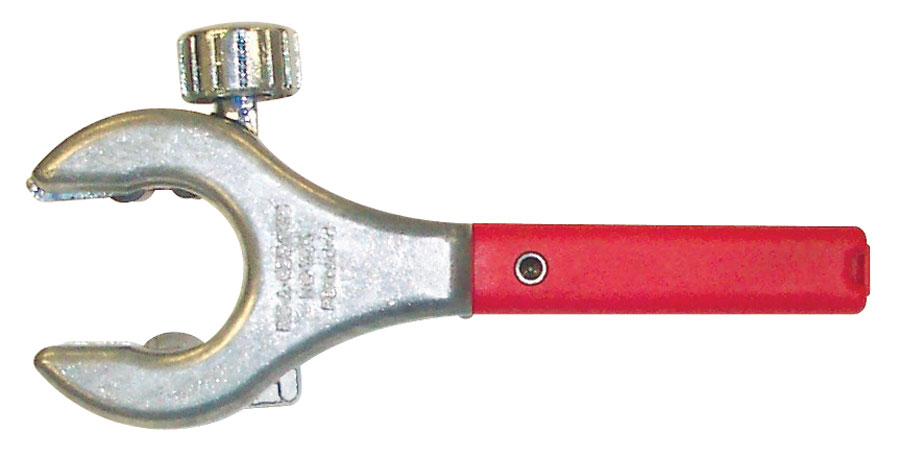

5/16" to 1-1/8" Ratch Cut With Metal Handle

Ratch Cut
A larger version of the #3590 cutter above. This is cutter is great for quick, precise cutting of mild or stainless steel, copper or thinwall PVC and CPVC tubing from 5/16" to 1-1/8"

Description Price & Quantity
#3790 Ratch Cut With Metal Handle $52.99
#8041 Replacement cutter wheel $9.98
#8044 Replacement cutter wheel
For thin walled stainless steel
$15.98

- OR - View Cart

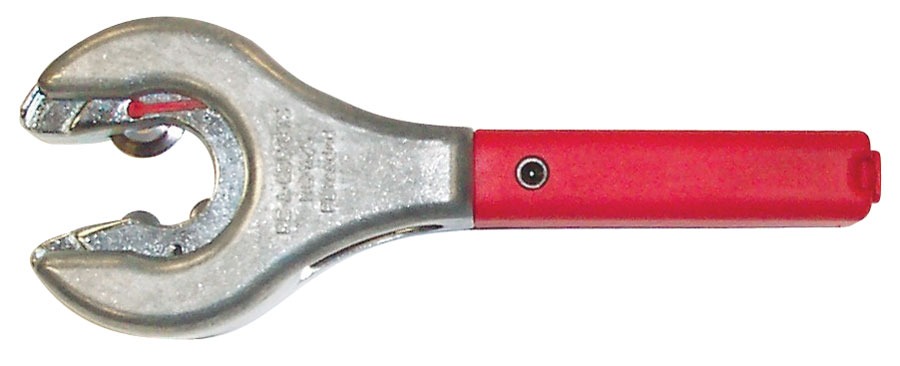

5/8" O.D. Self Feeding Ratch Cut With Metal Handle

Ratch Cut
Uniquely designed for fast, accurate pipe cutting, especially in confined areas. Simply place the cutter onto your pipe and being ratcheting. The self feeding cutter wheel will automatically tighten as you ratchet the handle back and forth. Perfect for use on 5/8" OD mild or stainless steel, copper or thinwall PVC and CPVC tubing

Description Price & Quantity
#4590 Ratch Cut With Metal Handle $47.99
#8042 Replacement cutter wheel $9.97

- OR - View Cart

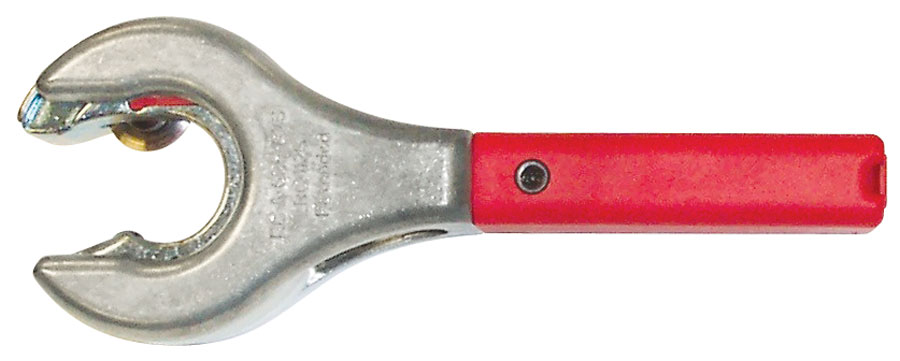

7/8" Self Feeding Ratch Cut With Metal Handle

Ratch Cut
A larger version of the #4590 cutter described above. This cutter is great for quick, precise cutting of 7/8" OD mild or stainless steel, copper or thinwall PVC and CPVC tubing.

Description Price & Quantity
#4790 Ratch Cut With Metal Handle $49.99
#8043 Replacement cutter wheel $9.96

- OR - View Cart

Compete Ratch Pipe & Tube Cut Kit

Ratch Cut Kit
The complete ratchet tube & pipe cut kit includes:
  • #3590 1/8" to 3/8" Ratch cut with metal handle
  • #3790 5/16" to 1-1/8" Ratch cut with metal handle
  • #4590 5/8" O.D. Self-feeding ratch cut with metal handle
  • #4790 7/8" O.D. Self-feeding ratch cut with metal handle

#700945 Ratch Cut Kit = $208.63

- OR - View Cart

Cutter Wheel Replacement Kit

Cutter Wheels
The replacement cutter kit includes:
  • #8040 Replacement cutter wheel - Fits #3590 ratch cut
  • #8041 Replacement cutter wheel - Fits #3790 ratch cut
  • #8044 Replacement cutter wheel for thin walled stainless steel - Fits #3790 self-feeding ratch cut
  • #8042 Replacement cutter wheel - Fits #4590 ratch cut
  • #8043 Replacement cutter wheel - Fits #4790 self-feeding ratch cut

Replacement Cutter Kit = $54.58

- OR - View Cart

Cutter Chains

Chains for 490 Ratchet Cutter and 590 Manual Cutter
Part # Description Length # of Pins Price & Quantity
522 Chain for 6" pipe 26-1/4" 21 $219.25
532 Chain for 6" pipe w/ rollers for No-Hub® 26-1/4" 21 $236.47
528 Chain for 8" pipe 36" 29 $317.56
533 Chain for 8" pipe w/ rollers for No-Hub® 36" 29 $337.76
5210 Chain for 10" pipe 43-3/4" 35 $377.15
5212 Chain for 12" pipe 51" 41 $442.10
5215 Chain for 15" pipe 58-1/2" 47 $514.41
519 Kit to convert 590 to 591 No-Hub® cutter or 490 to 491 No-Hub® cutter - - $21.39

- OR - View Cart

Chains for 2990 Hydraulic Cutter
Part # Description Length # of Pins Price & Quantity
1926 Chain for 6" pipe 26-1/4" 21 $326.78
1924 Chain for 8" pipe (replaces 2924) 36-1/4" 29 $433.94
192410 Chain for 10" pipe (replaces 292410) 46-1/4" 37 $548.40
192412 Chain for 12" pipe (replaces 292412) 53-3/4" 43 $632.67
192415 Chain for 15" pipe (replaces 292415) 61-1/4" 49 $727.54

- OR - View Cart

Chains for 3890 Heavy Duty Hydraulic Cutter
Part # Description Length # of Pins Price & Quantity
3824 Chain for 12" pipe 50-3/4" 29 $824.73
382415 Chain for 15" pipe 63" 37 $992.30
382418 Chain for 18" pipe 76-1/2" 43 $1,158.50
382424 Chain for 24" pipe 97-1/2" 55 $1,496.57

- OR - View Cart


Chains for 5590 Super Hydraulic Cutter
Part # Description Length # of Pins Price & Quantity
5524 Chain for 18" pipe 72-1/2" 29 $2,223.06
552420 Chain for 20" pipe 82-1/2" 33 $2,468.55
552424 Chain for 24" pipe 97" 39 $2,984.85
552436 Chain for 36" pipe 142" 57 $4,155.76

- OR - View Cart

Budget Copper Tubing Cutter

Copper tubing cutter
Features:
  • For cutting 1/4" O.D. to 2-1/2" O.D. copper tubing
  • Durable all metal construction
  • Quick Release handle
  • Includes deburring blade and spare cutting wheel in a convenient storage compartment
Budget Copper Tubing Cutter - $28.75

- OR - View Cart

Economy Mini Copper Tubing Cutter

Mini copper tubing cutter
Features:
  • Made for cutting 1/8" O.D. to 7/8" O.D. copper tubing
  • Durable construction
  • Compact size for use in extra tight spots
  • Wheel can cut through copper and aluminum tubing
Economy Mini Copper Tubing Cutter - $6.93

- OR - View Cart

Example of the Hydraulic Pipe Cutter In Action
Models 2990, 3890 and 5590
