Parts for Woodford Yard Hydrants

We at PlumbingSupply.com® feel that Woodford brand outdoor faucets are some of the finest, most value-priced freezeless utility, yard and sanitary yard hydrants as well as freezeless wall hydrants and lawn & garden faucets available today. With our abundant selection of repair and replacement parts for these rugged hydrants, your faucet will last for many years to come. Below you will find our extensive list of repair parts specifically for Woodford yard hydrants.

Repair Kits for Yard Hydrants

Model/Description Price & Quantity

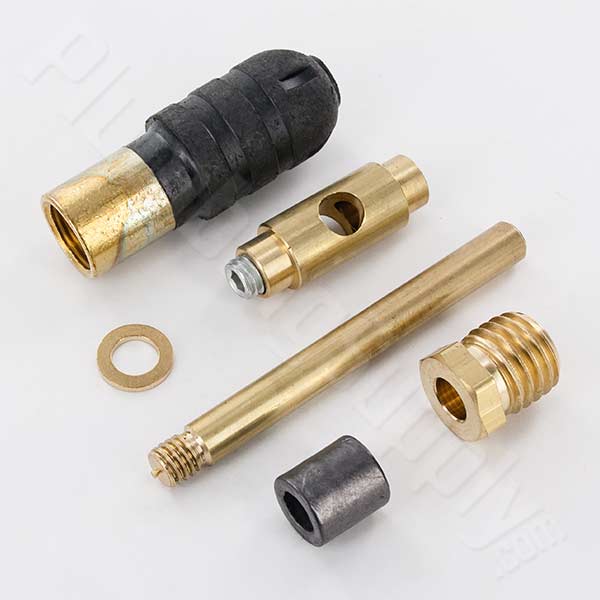

RK-W34 - Repair Kit $40.88

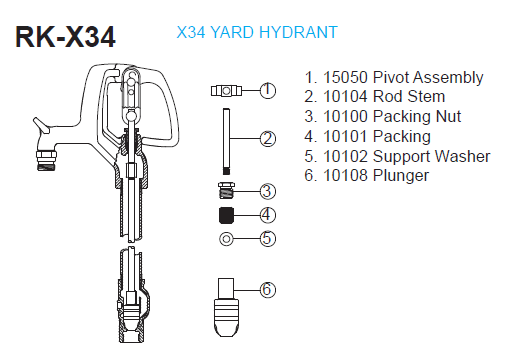

RK-X34 - Repair Kit $34.65

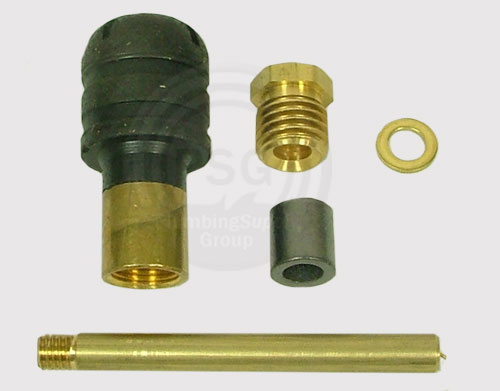

RK-Y1 - Repair Kit $33.96
RK-Y30 - Repair Kit $101.91

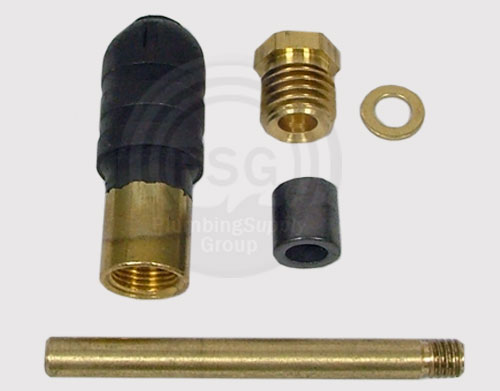

RK-Y34 - Repair Kit $29.31
RK-Y95 - Repair Kit $101.46

- OR - View Cart

Most Popular Parts for Woodford Yard Hydrants

Model Description Price & Quantity

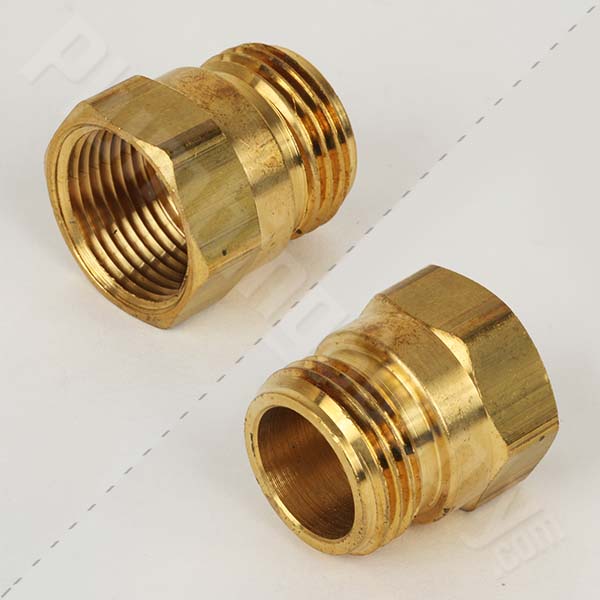

10004 Brass Nose Nozzle - 3/4" $13.73
10007 Brass Nose Nozzle - 1" $35.17

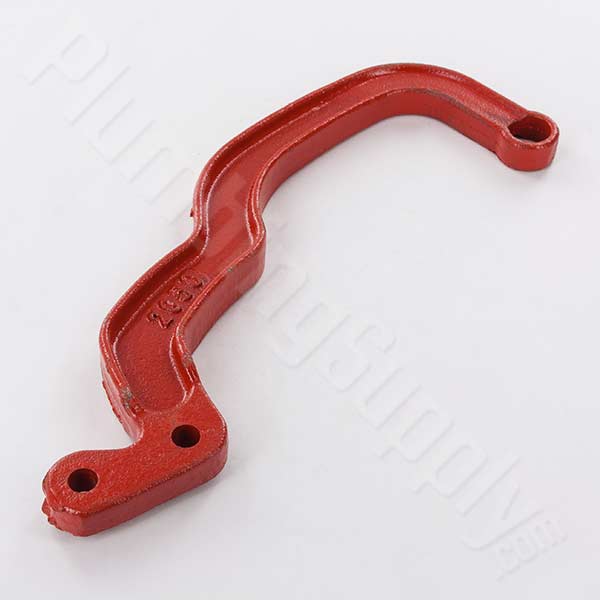

10008 Lever $42.51

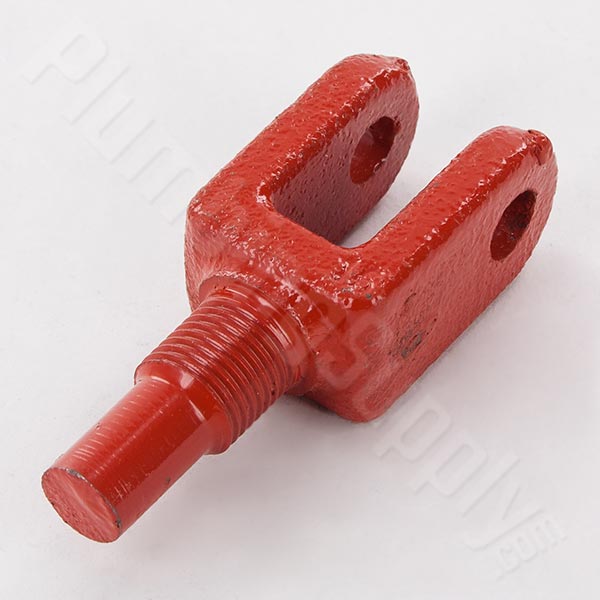

10009 Upper Link $9.75

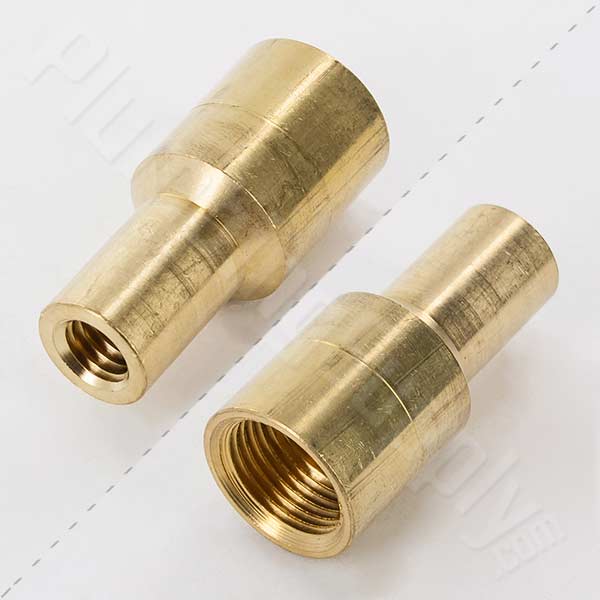

10011 Reducing Coupling $9.52
10018 Valve Body - 3/4" NPT Inlet $44.47

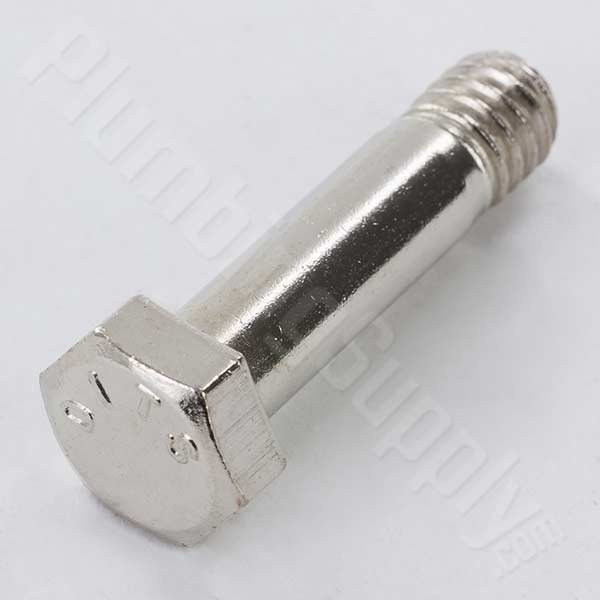

10020 Link Bolt $3.60

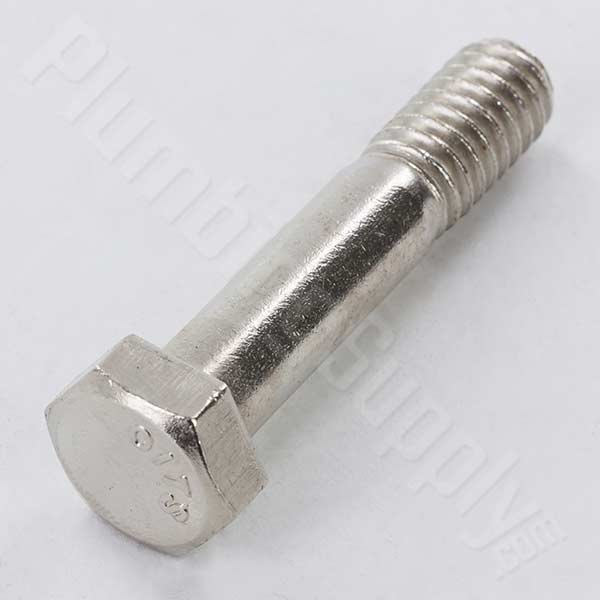

10021 Lever Bolt $4.31
10100 Packing Nut $8.00

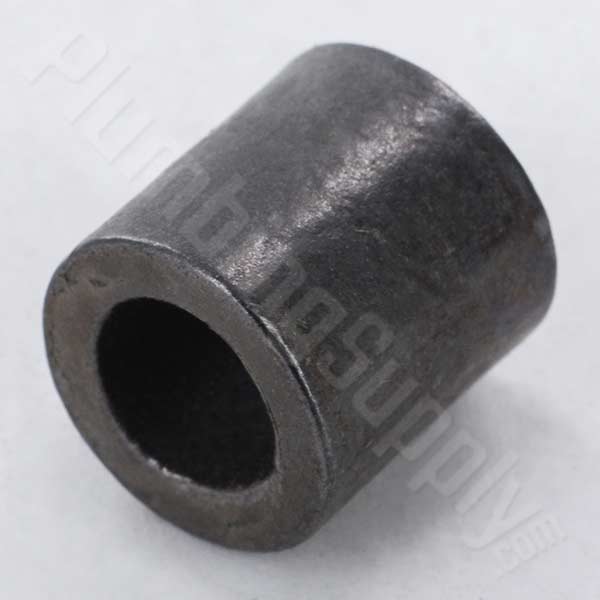

10101 Packing $3.03

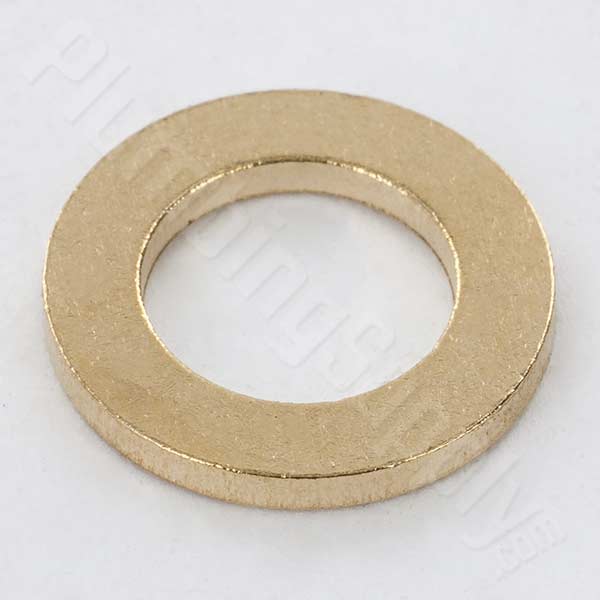

10102 Packing Support Washer $4.19

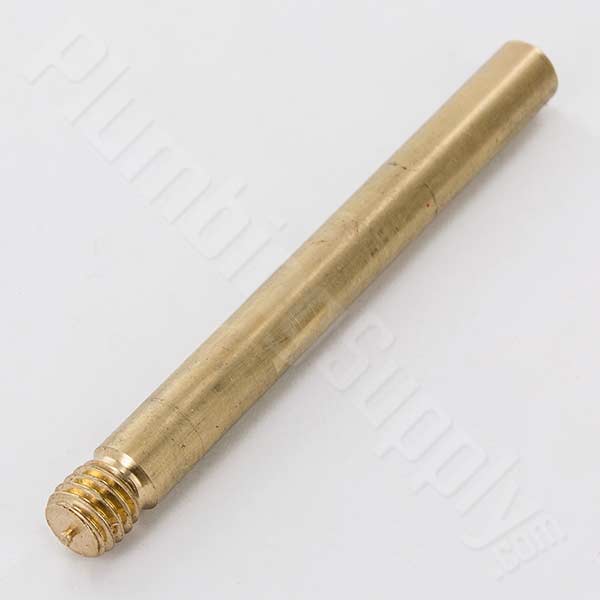

10104 Brass Rod Stem $3.45

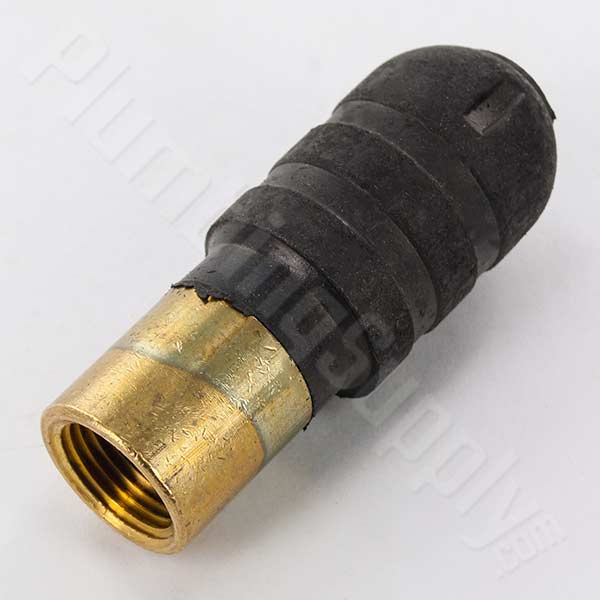

10105 Plunger $15.08

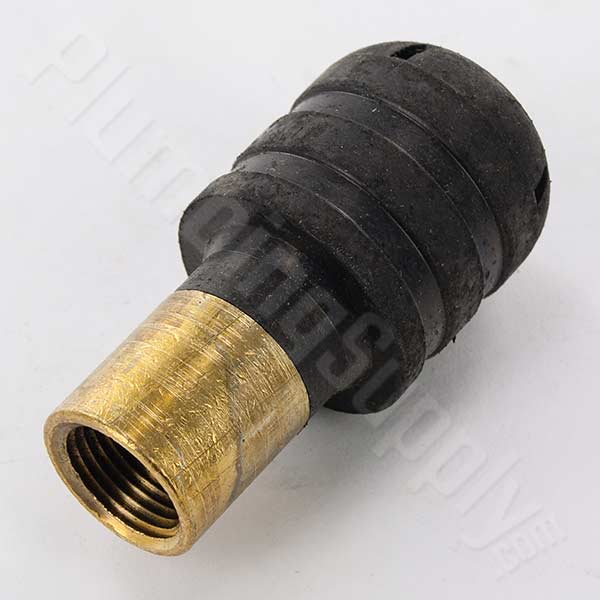

10106 Plunger $18.90

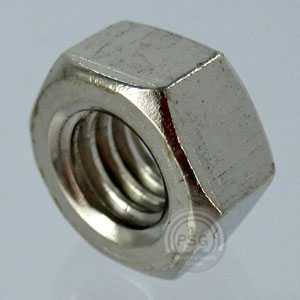

10206 Hex Nut $3.35

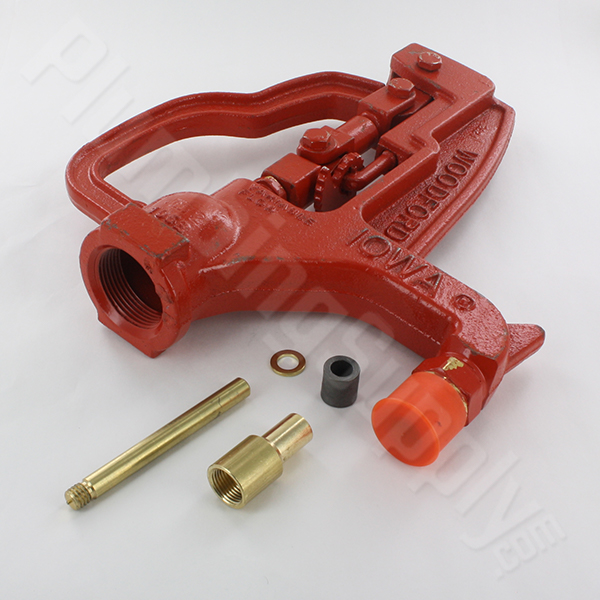

15001 Y1 Head Assembly $157.31
15002 Y1 Head with 3/4" Nozzle $103.70
15003 Y34 Head Assembly $144.80
15004 Y34 Head with 3/4" Nozzle $88.05

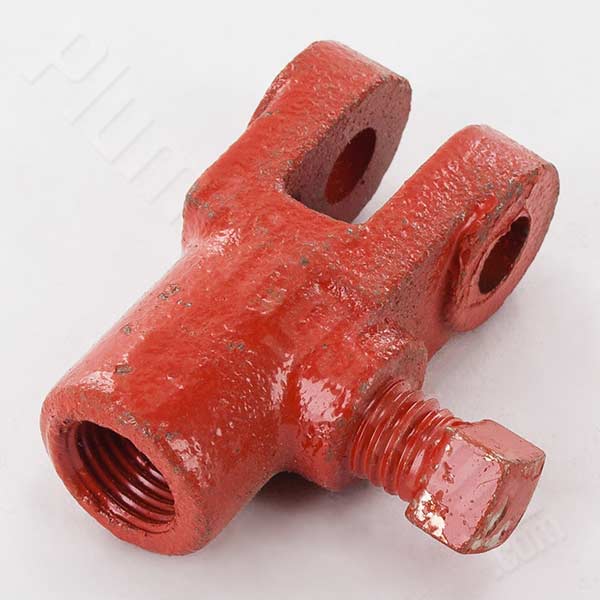

15007 Lower Link with Set Screw $14.42

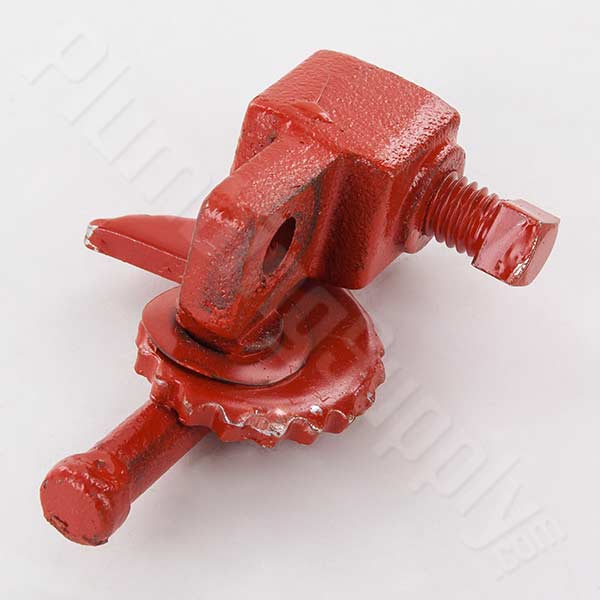

15008 Cam and Clevis Assembly $29.51

- OR - View Cart

Parts For Y34 & Y1 Yard Hydrants


The Y34 and Y1 yard hydrant models look the same! How do I know which one I have?

When you look at the head of the hydrant, around the base of the head you'll see either 105B or 106D molded into the metal. If your hydrant says 105B, you have the Y1 model, and if your hydrant says 106D, you have the Y34 model.

Looking for a new Y34 or Y1 hydrant?

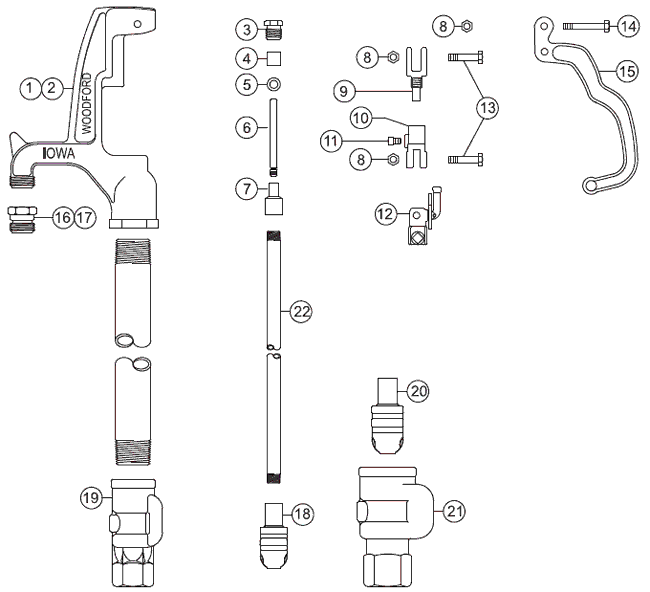

Woodford yard hydrant schematics for y34 and y1

Order quantities required (or more) for greater savings

# Part # Description Price & Quantity
  15003 Y34 Head Assembly (includes #'s 1, 3-16) $144.80
  15001 Y1 Head Assembly (includes #'s 2, 3-15 & 17) $157.31
1 15004 Head With 3/4" Nozzle (for Y34) $88.05
2 15002 Head With 3/4" Nozzle (for Y1) $103.70

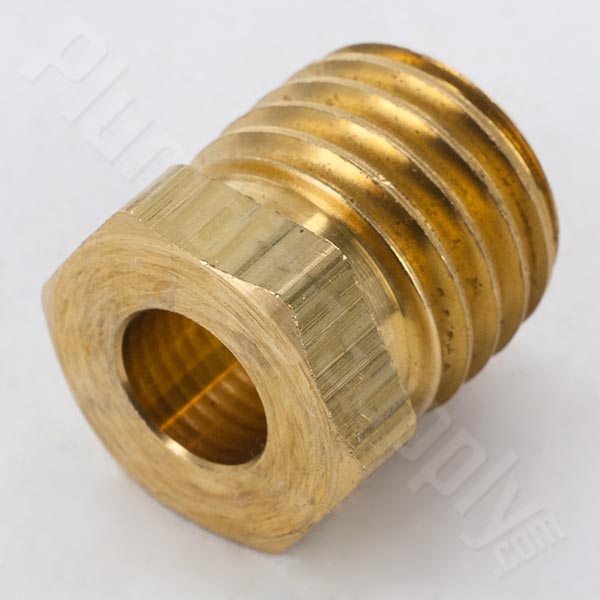

3 10100 Packing Nut $8.00
4 10101 Packing $3.03
5 10102 Packing Support Washer $4.19
6 10104 Brass Rod Stem $3.45
7 10011 Reducing Coupling $9.52
8 10206 Hex Nut (3 required for complete rebuild) $3.35
9 10009 Upper Link $9.75
10 15007 Lower Link (includes #11) $14.42

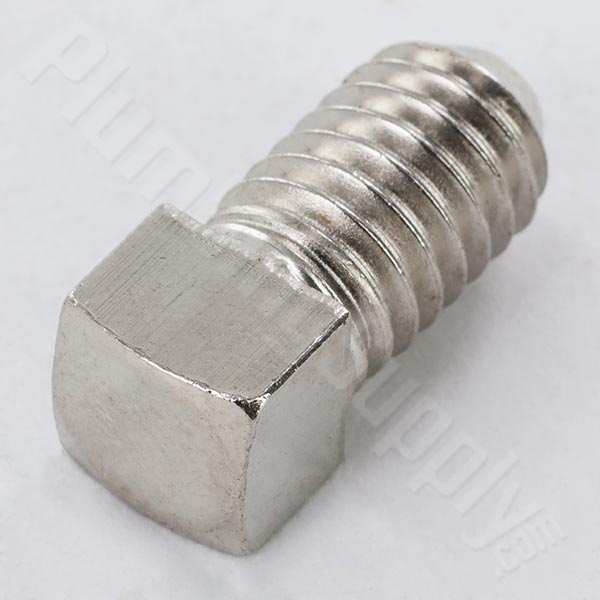

11 10019 Set Screw $3.00
12 15008 Cam & Clevis Assembly $29.51
13 10020 Link Bolt (2 required for complete rebuild) $3.60
14 10021 Lever Bolt $4.31
15 10008 Lever $42.51
16 10004 3/4" Brass Hose Nozzle (standard) $13.73
17 10007 1" Brass Hose Nozzle (optional) $35.17
18 10105 Plunger (for Y34) $15.08
19 10018 Valve Body (3/4" NPT inlet) $44.47
20 10106 Plunger (for Y1) $18.90
21 10017 Valve Body (for Y1) - (1" NPT inlet) $81.95
22 100XX Operating Pipe See Table Below

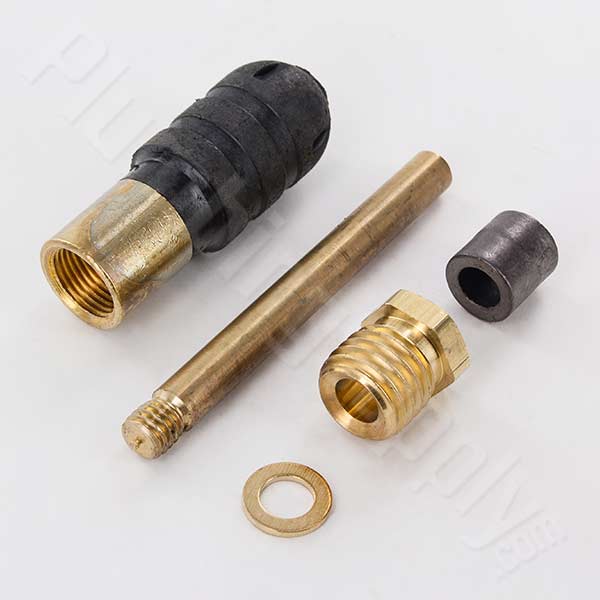

  RK-Y34 Repair Kit (includes #'s 3-6 & 18) $29.31

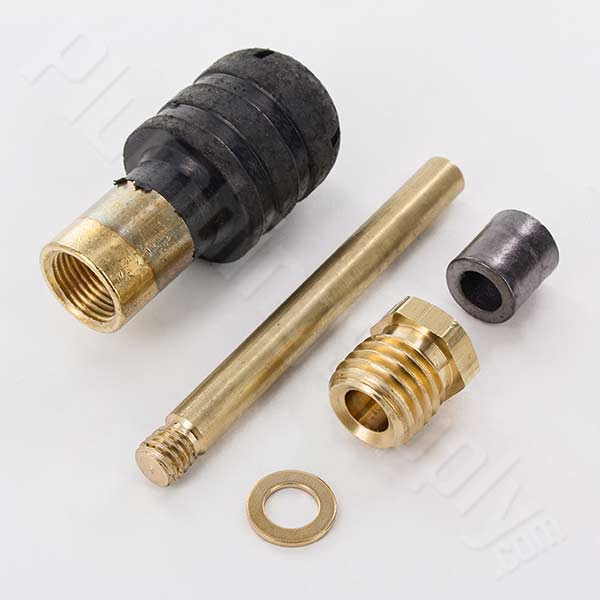

  RK-Y1 Repair Kit (includes #'s 3-6 & 20 $33.96

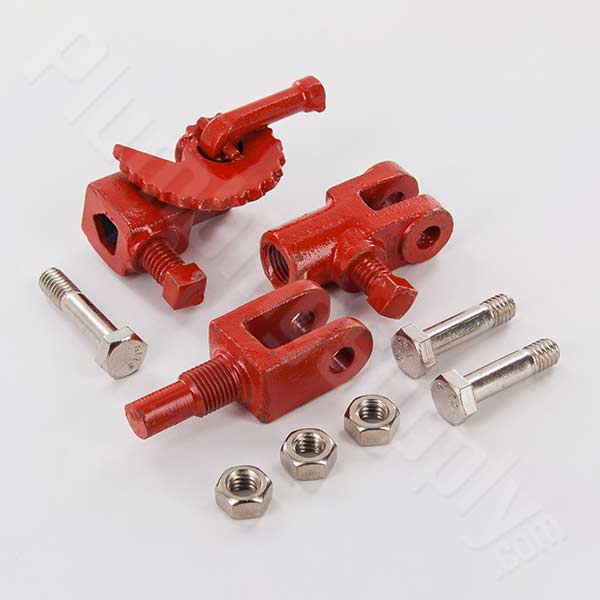

  RK-YHL Repair Kit (includes #'s 8-14) $34.92

Order quantities required (or more) for greater savings

- OR - View Cart

#22 Operating Pipe (for Y34, Y1 & Y2)

Part # Bury Depth (ft) & Length (in) Price & Quantity
10023 1' bury depth (35 1/2" long) $22.73
10024 2' bury depth (47 1/2" long) $29.10
10025 3' bury depth (59 1/2" long) $37.42
10026 4' bury depth (71 1/2" long) $45.68

- OR - View Cart

Parts For Y2 Yard Hydrants


Looking for a new Y2 hydrant?

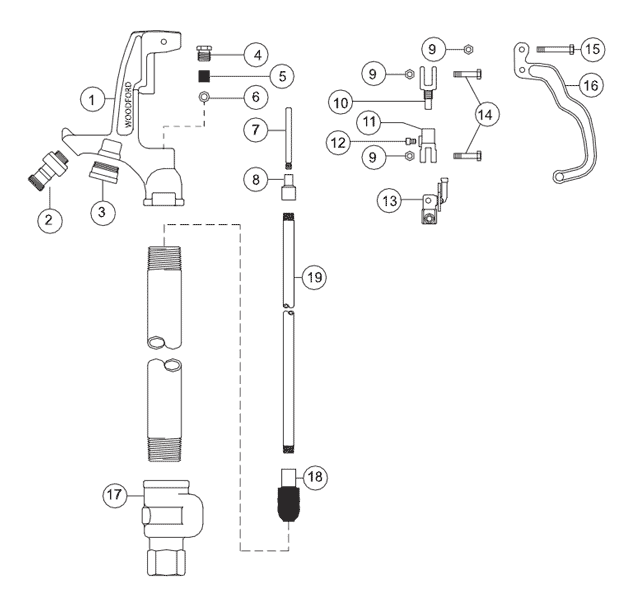

Woodford yard hydrant y2 parts

Order quantities required (or more) for greater savings

# Part # Description Price & Quantity
  15239 Y2 Head Assembly (includes #'s 1-16) $248.54
1 10539 Y2 Head $104.78
2 50HF-BR Backflow Preventer $33.30

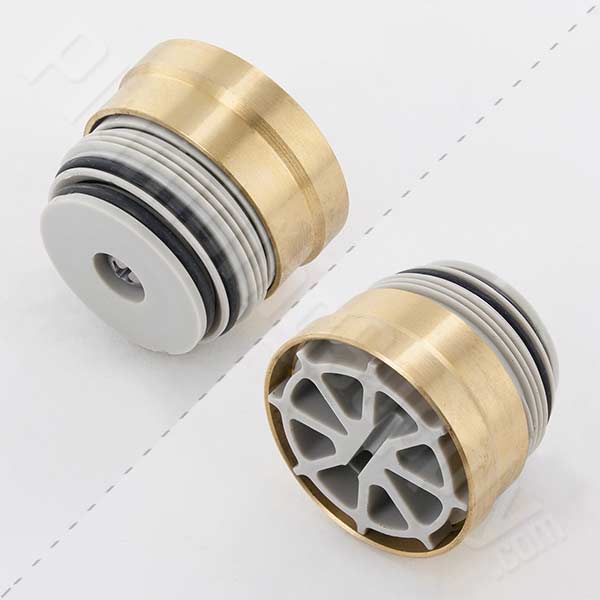

3 15238 Diverter Assembly $39.35
4 10100 Packing Nut $8.00
5 10101 Packing $3.03
6 10102 Packing Support Washer $4.19
7 10104 Brass Rod Stem $3.45
8 10011 Reducing Coupling $9.52
9 10206 Hex Nut (3 required for complete rebuild) $3.35
10 10009 Upper Link $9.75
11 15007 Lower Link (includes #12) $14.42
12 10019 Set Screw $3.00
13 15008 Cam & Clevis Assembly $29.51
14 10020 Link Bolt (2 required for complete rebuild) $3.60
15 10021 Lever Bolt $4.31
16 10008 Lever $42.51
17 10017 Valve Body (1" NPT Inlet) $81.95
18 10106 Plunger (for Y2) $18.90
19 100XX Operating Pipe See Table Below
  RK-Y1 Repair Kit (includes #'s 4-7 & 18 $33.96
  RK-YHL Repair Kit (includes #'s 9-15) $34.92

Order quantities required (or more) for greater savings

- OR - View Cart

#22 Operating Pipe (for Y34, Y1 & Y2)

Part # Bury Depth (ft) & Length (in) Price & Quantity
10023 1' bury depth (35 1/2" long) $22.73
10024 2' bury depth (47 1/2" long) $29.10
10025 3' bury depth (59 1/2" long) $37.42
10026 4' bury depth (71 1/2" long) $45.68

- OR - View Cart

Parts For W34 Yard Hydrants


View me for a new W34 yard hydrant

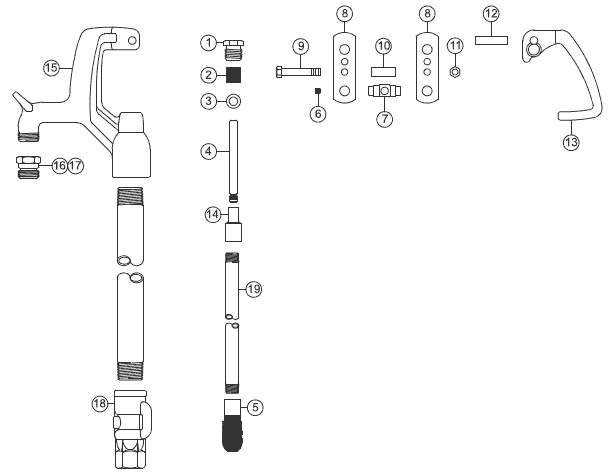

Woodford yard hydrant schematics model w34

Order quantities required (or more) for greater savings

# Part # Description Price & Quantity
  15039 Head Assembly - Complete (includes #'s 1-4, 6-16) $104.81
1 10100 Packing Nut $8.00
2 10101 Packing $3.03
3 10102 Packing Support Washer $4.19
4 10104 Brass Rod Stem $3.45
5 10105 Plunger $15.08

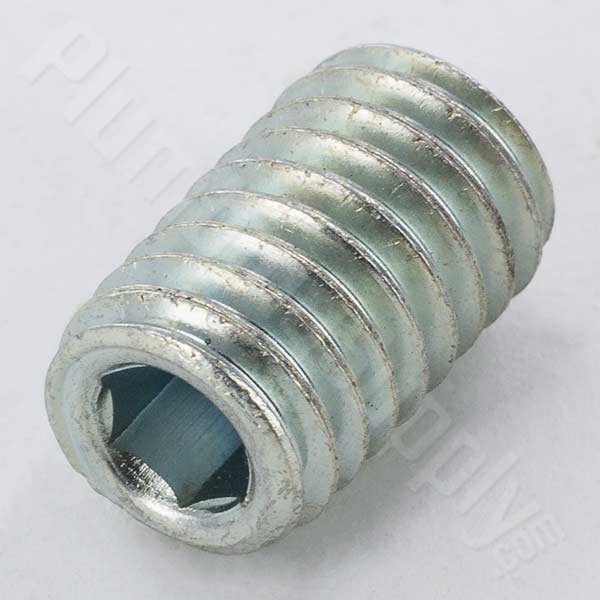

6 10158 Pivot Set Screw $3.32

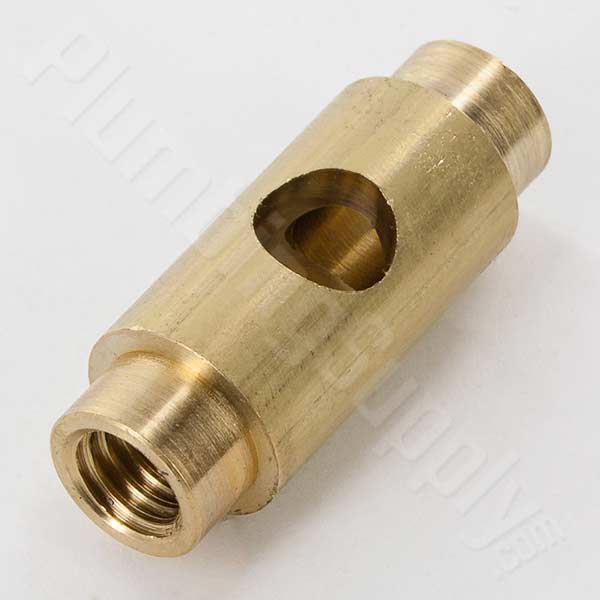

7 10159 Pivot $15.27

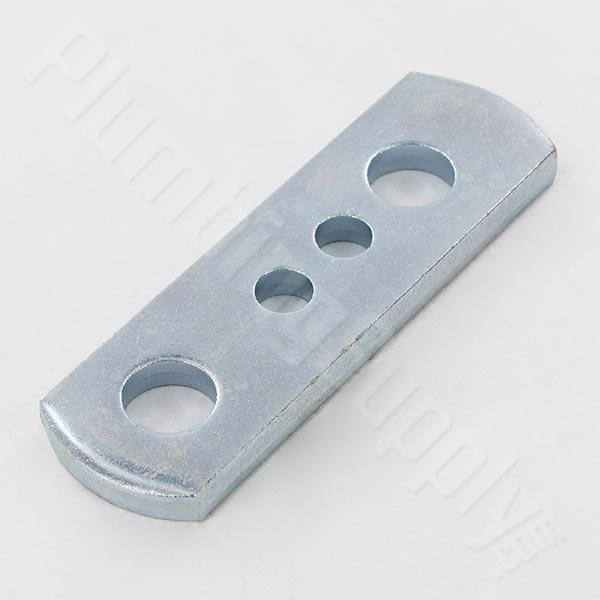

8 10144 Steel Link (2 required for complete rebuild) $13.04

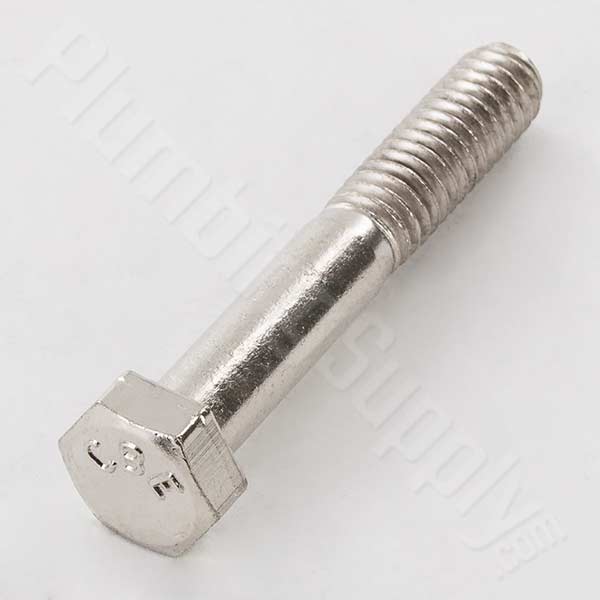

9 10157 Link Bolt $3.47

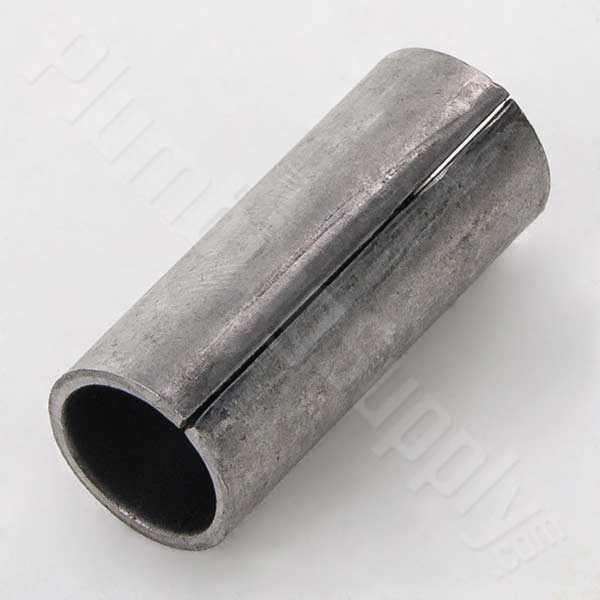

10 10146 Link Spacer $6.65
11 10206 Link Bolt Nut $3.35

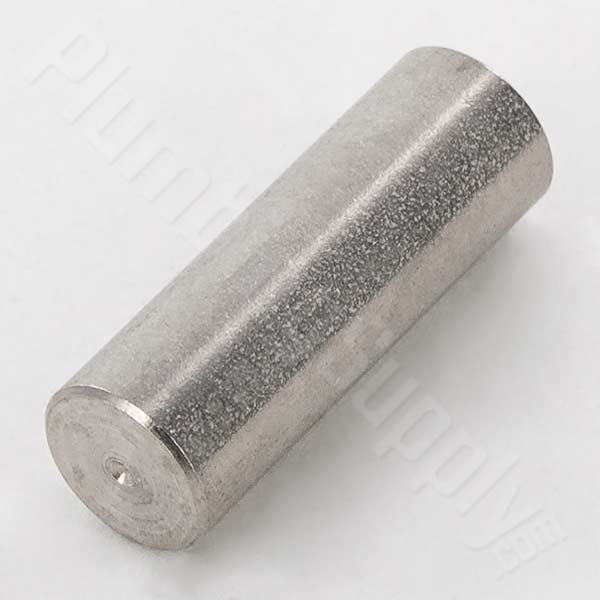

12 10142 Handle Pin $6.80

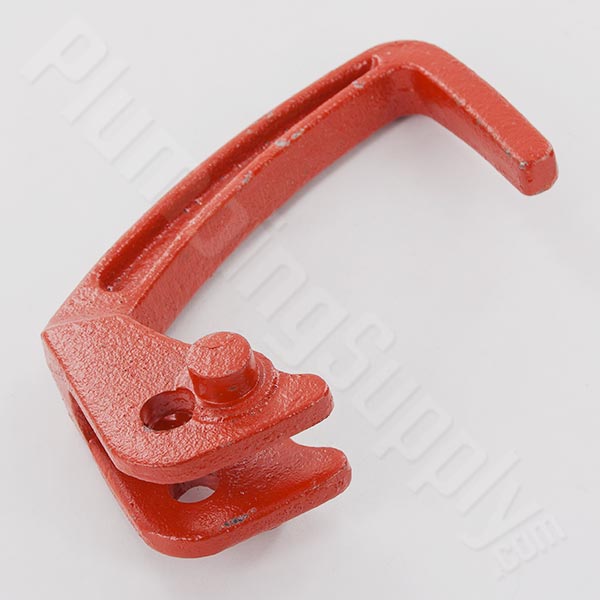

13 10211 Handle $29.03
14 10011 Reducing Coupling $9.52
15 15040 Head & Nozzle Assembly (includes #16) $81.98
16 10004 3/4" Brass Hose Nozzle (standard) $13.73
17 10007 1' Brass Hose Nozzle (optional) $35.17
18 10018 Valve Body $44.47
19 100XX Operating Rod See Table Below
  RK-W34 Repair Kit (includes #'s 1-7) $40.88

Order quantities required (or more) for greater savings

- OR - View Cart

#19 Operating Pipe (3/8")

Part # Bury Depth (ft) & Length (in) Price & Quantity
10023 1' bury (35 1/2" long) $22.73
10024 2' bury (47 1/2" long) $29.10
10025 3' bury (59 1/2" long) $37.42
10026 4' bury (71 1/2" long) $45.68

- OR - View Cart

Parts For Y30 Yard Hydrants


Need a new Y30 yard hydrant?

Woodford yard hydrant schematics model y30
# Part # Description Price & Quantity

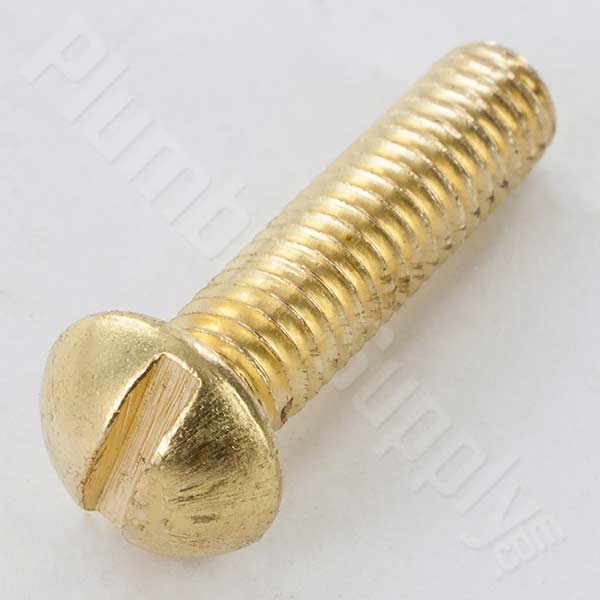

1 30002 Handle Screw (brass) $2.75

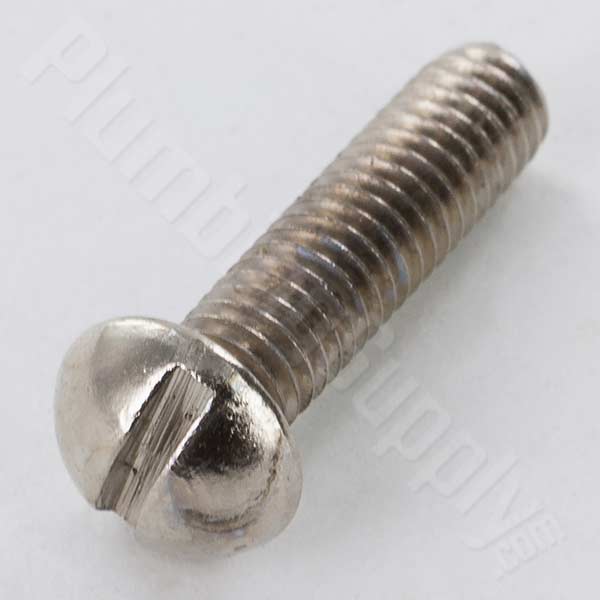

30121 Handle Screw (nickel) $4.31

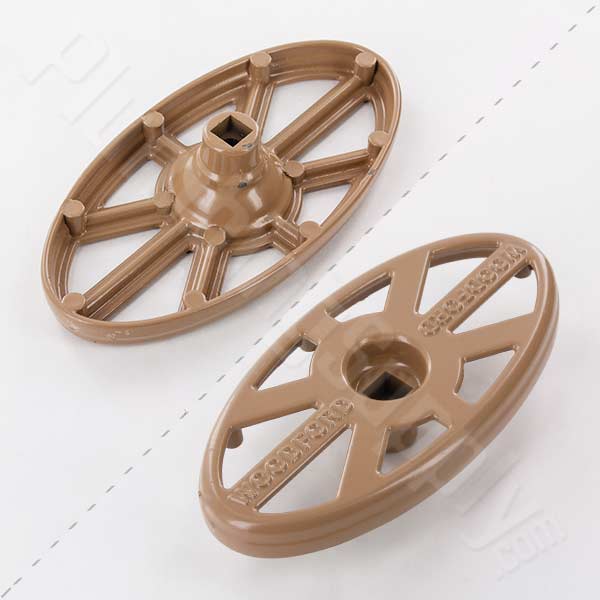

2 10630 Oval Wheel Handle - new style
(brown, die cast aluminum)
$24.67

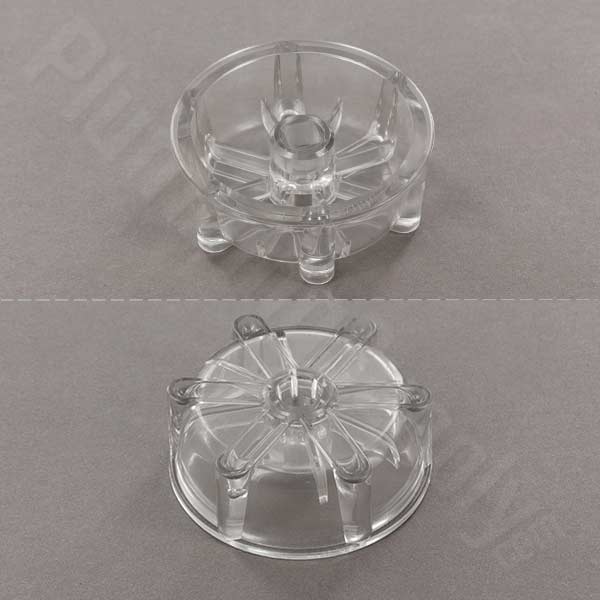

50022 Wheel Handle (clear) $8.75

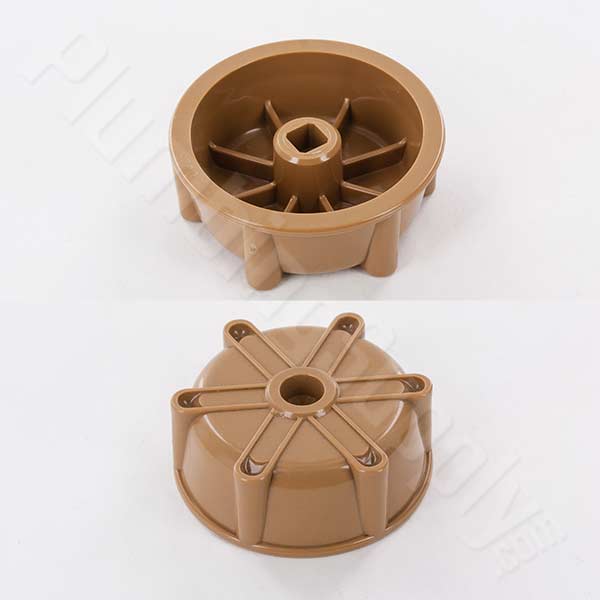

50023 Wheel Handle (brown, plastic) $7.13

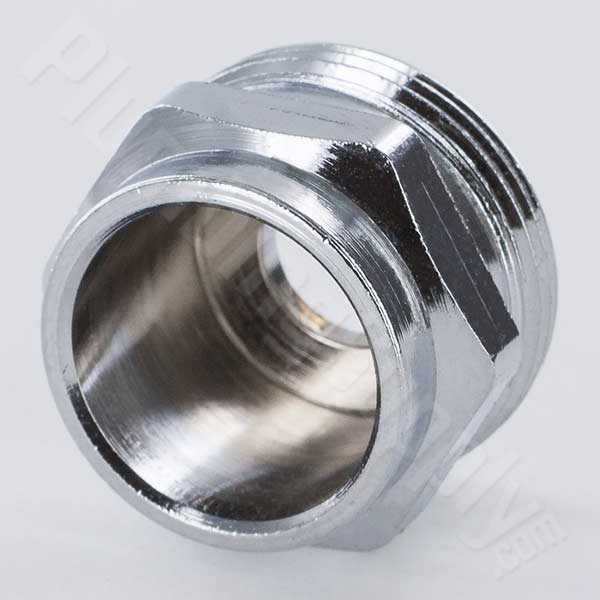

3 30109 Packing Nut (chrome) $16.47
30107 Packing Nut (brass) $11.90
4 30247 Packing $5.36
5 55179 Head Nut Assembly (chrome) $26.70

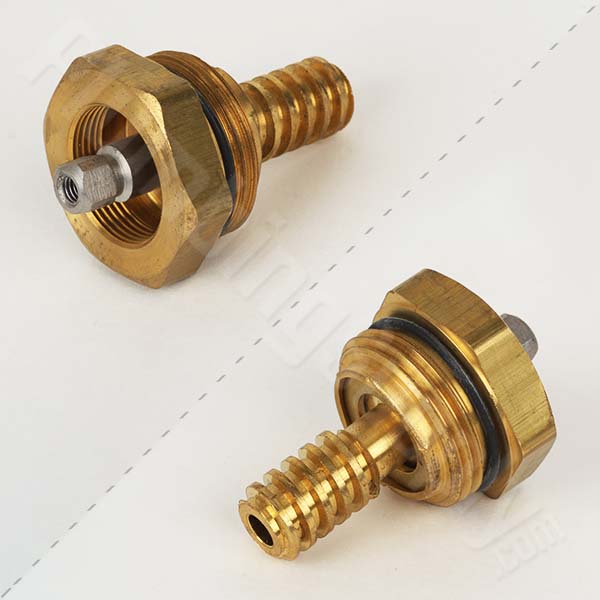

55178 Head Nut Assembly (brass) $24.75
6 10109 Yoke Nut $28.02
7 10105 Plunger $15.08
8 50075 Head (brass) $98.12
50076 Head (chrome) $98.15
9 10018 Valve Body $44.47

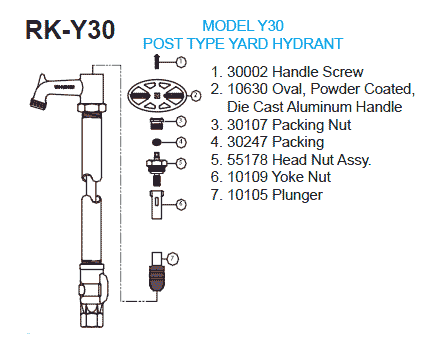

  RK-Y30 Repair Kit (includes #'s 1-7) $101.91

- OR - View Cart

#10 Operating Pipe (3/8")

Part # Bury Depth (ft) & Length (in) Price & Quantity
10033 1' bury (28 1/8" long) $24.38
10034 2' bury (40 1/8" long) $29.63
10035 3' bury (52 1/8" long) $41.40
10036 4' bury (64 1/8" long) $44.93

- OR - View Cart

Parts For Y95 Yard Hydrants


View me for a new Y95 yard hydrant

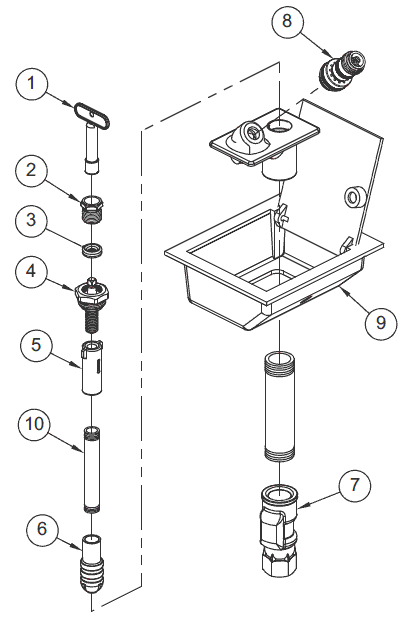

Woodford yard hydrant schematics model y95
# Part # Description Price & Quantity

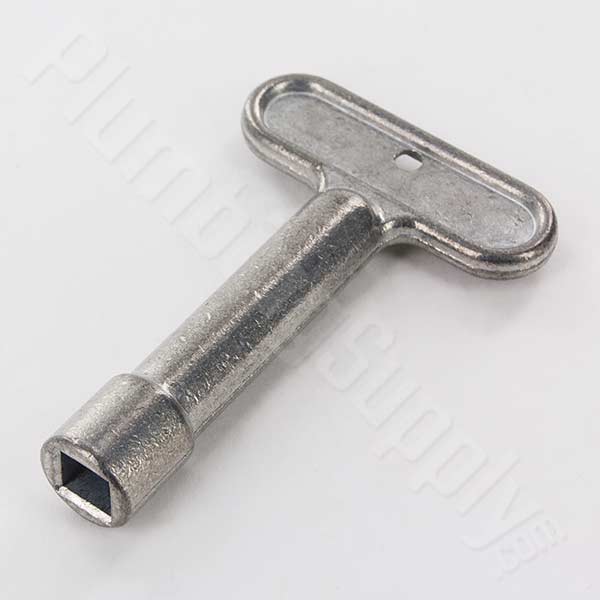

1 50010 Tee Key (replaces RK-LTK) $10.58
2 30109 Packing Nut (chrome) $16.47
30107 Packing Nut (brass) $11.90

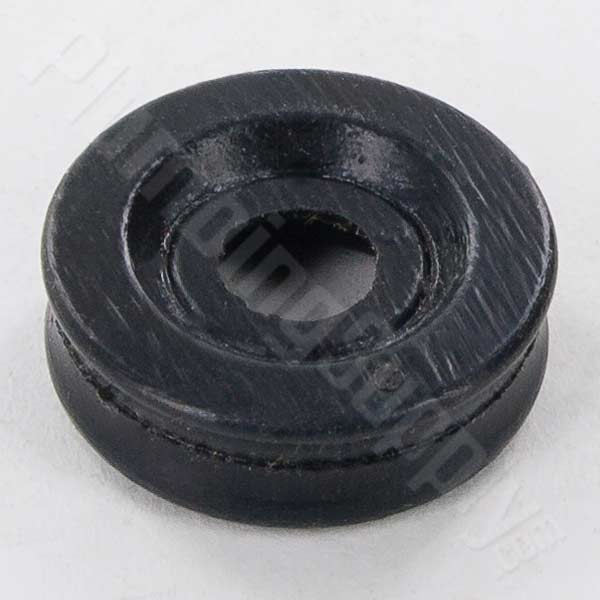

3 30247 EPDM Packing $5.36

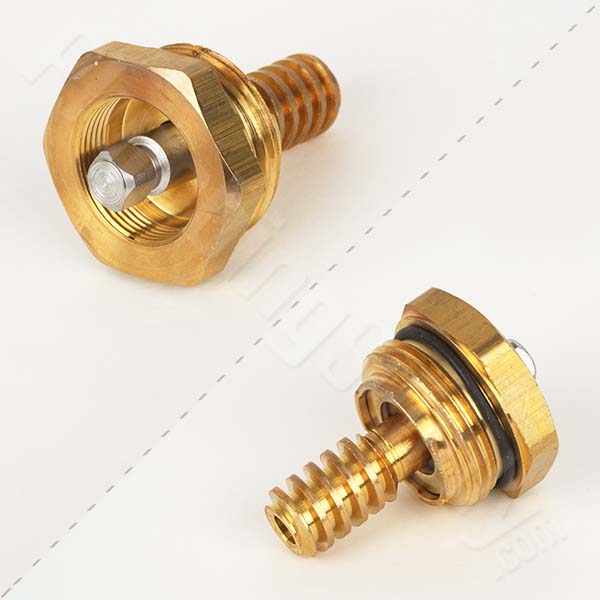

4 55176 Head Nut Assembly - Brass $41.63
55177 Head Nut Assembly - Chrome $46.35
5 10109 Yoke Nut $28.02
6 10105 Plunger $15.08
7 10018 Valve Body $44.47
8 50HF-BR 50HF Vacuum Breaker-Brass $33.30
9 55020 Box Assembly $359.37
10 100XX Operating Pipe See Table Below

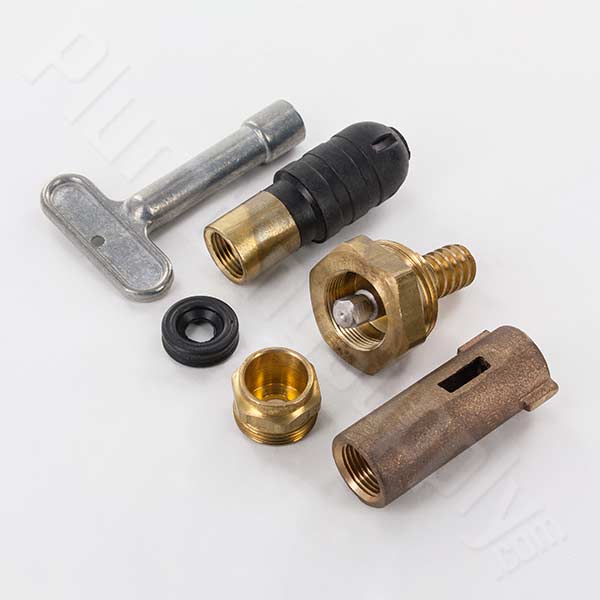

  RK-Y95 Repair Kit (includes #'s 1-6) $101.46

- OR - View Cart

#10 Operating Pipe (3/8")

Part # Bury Depth (ft) & Length (in) Price & Quantity
10031 1' bury (4 1/8" long) $9.07
10032 2' bury (16 1/8" long) $16.27
10033 3' bury (28 1/8" long) $24.38
10034 4' bury (40 1/8" long) $29.63

- OR - View Cart

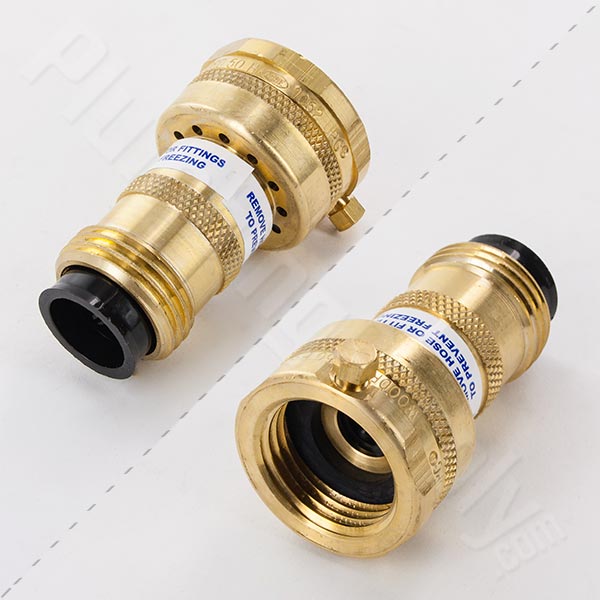

Woodford Double Check Backflow Preventers


Backflow Preventer
Features:
  • Prevents backflow contamination and freezing
  • 120°F maximum temperature rating
  • Maximum pressure 125 p.s.i.
  • 3/4" male hose outlet connection
  • Available in brass and chrome finishes

Model Description Price & Quantity
Chrome Finish
Price & Quantity
Brass Finish

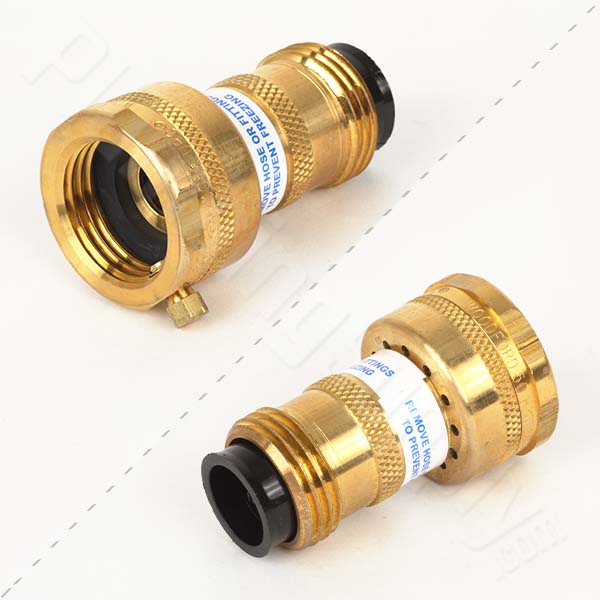

# 50H 3/4" female hose inlet connection $38.73 $33.56

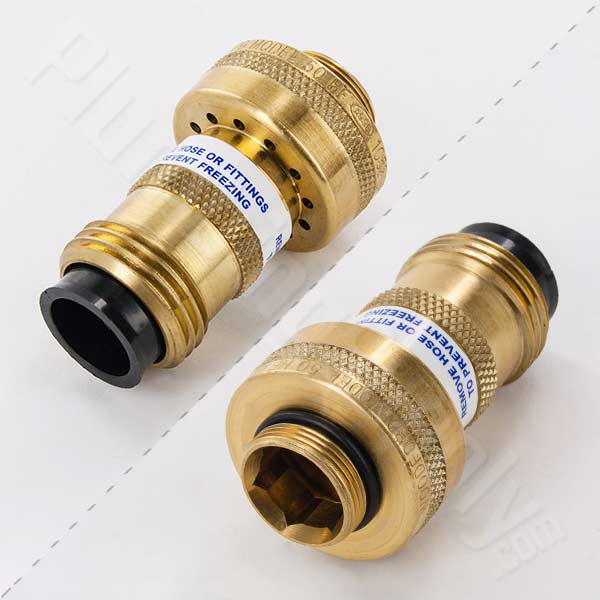

# 50HF - 13/16" special thread inlet connection
- Fits woodford faucets: 26, B26, Y26, Y2, and H34
$39.64 $33.30

- OR - View Cart

Related Items & Accessories



Frequently Asked Questions

Q. "You list the burial depths for the yard hydrants; what does this mean? How much of the unit is exposed above ground?"
A. The listed burial depths show how much of the stand-pipe should be buried beneath ground level. The rest of the unit then stands an additional 3 feet above ground. (For instance, a unit with a 3-foot burial depth is actually approximately 6 feet long; 3 feet of it would be underground and 3 feet aboveground)

Q. "The Y34 and Y1 yard hydrant models look the same! How do I know which one I have?"
A. When you look at the head of the hydrant, around the base of the head you'll see either 105B or 106D molded into the metal. If your hydrant says 105B, you have the Y1 model, and if your hydrant says 106D, you have the Y34 model.
