LavAdvantage Thermostatic Electric Water Heaters
by Eemax

Proudly made in the USA
The LavAdvantage line of tankless water heaters by Eemax are the latest innovation in thermostatic water heating technology. Designed to easily replace old flow-controlled heaters in the field, these electric point-of-use units offer you multi-directional mounting, enhanced temperature control, and incredibly efficient heating.

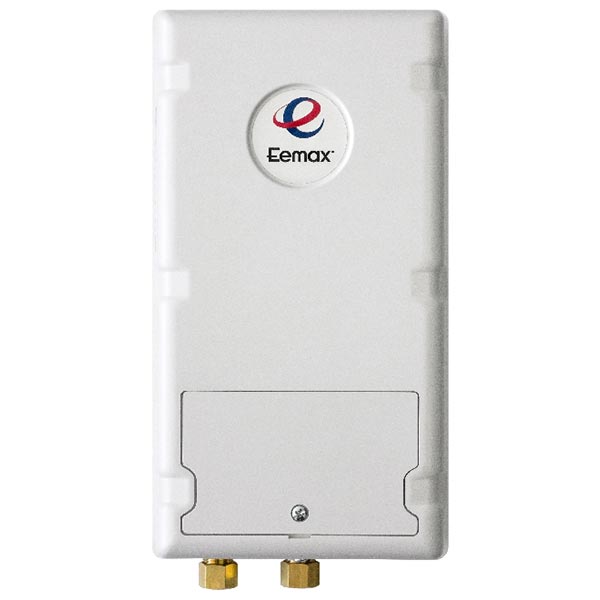

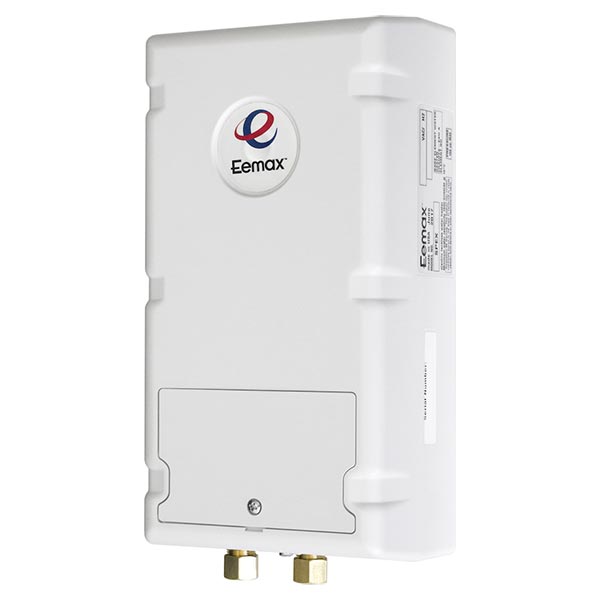

Eemax LavAdvantage Thermostatic Electric Tankless Water Heater

Eemax LavAdvantage tankless water heater
These point-of-use heaters feature:
  • Ideal for residential or commercial bathrooms, kitchen sinks, handwashing stations, or emergency eyewash fountains
  • Designed for point-of-use installation to help eliminate the need for mixing valves
  • Super low 0.2 gpm activation helps you save water and is compatible with modern low-flow fixtures and "green" building standards
  • Exceptional efficiency with power modulating controls that actively manage energy usage and on-demand flow meter that heats water only when it's called for
  • Compact size fits almost anywhere and can be mounted in any orientation
  • Easy to use digital interface (controls located behind access panel) that allows you to field adjust the temperature and monitor inlet/outlet temperature
  • Field adjustable set point range between 70° - 140°F with factory set temperature at 120°F (3.5kW and below set at 105°F)
  • 3/8" compression fittings for easy, no-solder installation

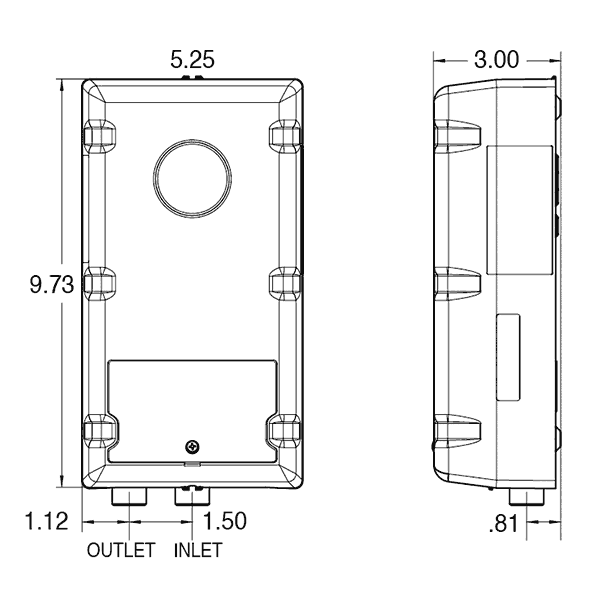

  • View detailed unit dimensions

LavAdvantage Thermostatic Water Heaters - 120V

Model # kW Amps Recommended
Wire Size
Temperature Rise Price & Quantity
0.2 gpm 0.35 gpm 0.5 gpm 1.0 gpm 2.0 gpm
SPEX1812T 1.8 15 14 AWG 61°F 35°F 25°F 12°F 6°F $340.24 Enter a quantity and
SPEX2412T 2.4 20 14 AWG 82°F 47°F 33°F 16°F 8°F $339.91 Enter a quantity and
SPEX3012T 3.0 25 12 AWG 102°F 59°F 41°F 20°F 10°F $339.74 Enter a quantity and
SPEX3512T 3.5 29 12 AWG 68°F 48°F 24°F 12°F $340.43 Enter a quantity and
Temperature electronically limited to factory preset not to exceed temperature

LavAdvantage Thermostatic Water Heaters - 208V

Model # kW Amps Recommended
Wire Size
Temperature Rise °F Price & Quantity
0.2 gpm 0.35 gpm 0.5 gpm 1.0 gpm 2.0 gpm
SPEX3208T 3.0 15 14 AWG 102°F 59°F 41°F 20°F 10°F $341.81 Enter a quantity and
SPEX4208T 4.1 20 14 AWG 80°F 56°F 28°F 14°F $343.08 Enter a quantity and
SPEX8208T 8.3 40 8 AWG 57°F 28°F $342.91 Enter a quantity and
Temperature electronically limited to factory preset not to exceed temperature

LavAdvantage Thermostatic Water Heaters - 240V

Model # kW Amps Recommended
Wire Size
Temperature Rise °F Price & Quantity
0.35 gpm 0.5 gpm 1.0 gpm 2.0 gpm
SPEX35T 3.5 15 14 AWG 68°F 48°F 24°F 12°F $339.13 Enter a quantity and
SPEX48T 4.8 20 14 AWG 94°F 66°F 33°F 16°F $343.63 Enter a quantity and
SPEX55T 5.5 23 12 AWG 75°F 38°F 19°F $338.32 Enter a quantity and
SPEX65T 6.5 27 12 AWG 89°F 44°F 22°F $338.25 Enter a quantity and
SPEX75T 7.5 32 10 AWG 102°F 51°F 26°F $340.43 Enter a quantity and
SPEX95T 9.5 40 8 AWG 65°F 32°F $339.96 Enter a quantity and
SPEX012240T 11.5 48 6 AWG 79°F 39°F $432.75 Enter a quantity and
Temperature electronically limited to factory preset not to exceed temperature

LavAdvantage Thermostatic Water Heaters - 277V

Model # kW Amps Recommended
Wire Size
Temperature Rise °F Price & Quantity
0.2 gpm 0.35 gpm 0.5 gpm 1.0 gpm 2.0 gpm
SPEX3277T 3.0 11 14 AWG 102°F 59°F 41°F 20°F 10°F $341.71 Enter a quantity and
SPEX4277T 4.1 14.8 14 AWG 80°F 56°F 28°F 14°F $342.41 Enter a quantity and
SPEX60T 6.0 22 14 AWG 82°F 41°F 20°F $343.65 Enter a quantity and
SPEX80T 8.0 29 12 AWG 55°F 27°F $342.50 Enter a quantity and
SPEX90T 9.0 33 10 AWG 61°F 31°F $341.50 Enter a quantity and
SPEX100T 10.0 36 10 AWG 68°F 34°F $343.01 Enter a quantity and
Temperature electronically limited to factory preset not to exceed temperature

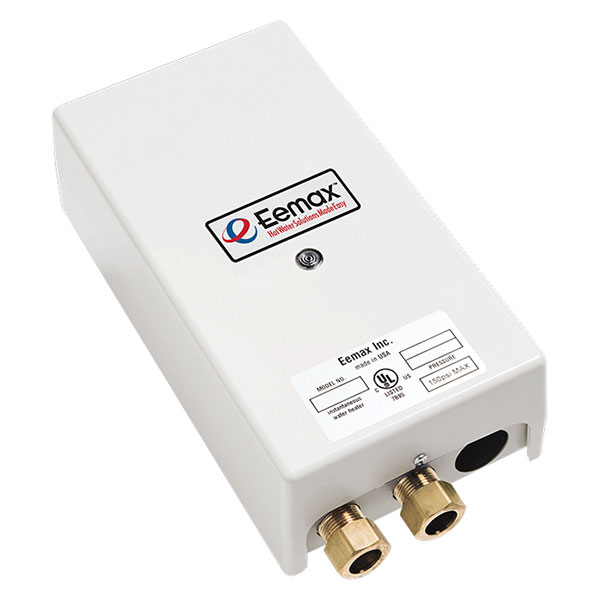

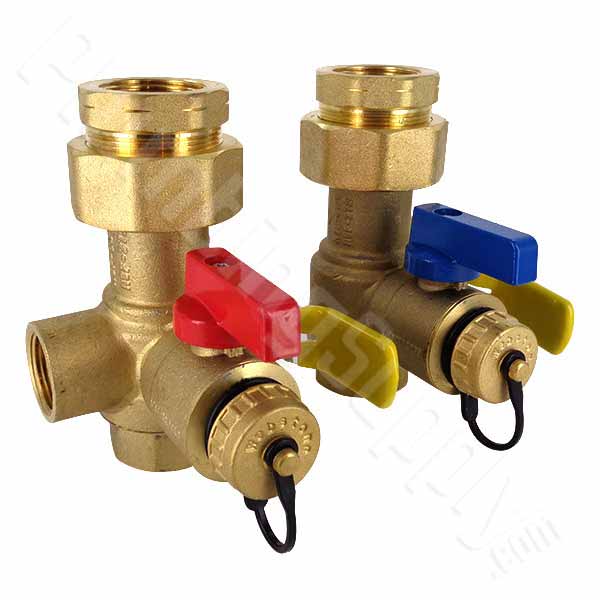

Related Items & Accessories



Frequently Asked Questions

Q. "Your products specify the 'temp. rise' based on the GPM flow; what do you mean by this?"
A. Temperature rise is the amount the heater raises the temperature of the incoming water, based on the flow rate shown of that water.


Please note: While we strive to ensure every product we label as "Made in the USA" really is 100% made in the USA, it is also important to understand that sometimes manufacturers make changes to their products, or for various reasons may receive components or materials that they would normally purchase domestically from an overseas supplier - and they don't necessarily let distributors (like us!) know that they've changed something about the product or where it is manufactured.

If you receive a product that PlumbingSupply.com® says is "Made in the USA" and the product states it was manufactured elsewhere, please contact us. We will happily replace or refund your purchase to your satisfaction.
