Transfer Assistant Bars - Specs

Experience the peace-of-mind that comes with the protection and independence offered by personal mobility products from HealthCraft. They have something for every personal mobility need. Let PlumbingSupply.com® be your source for HealthCraft.

SuperPole Basic Specifications - G2

breakdown of the HealthCraft SuperPole parts and options
Specifications:
  • Floor to ceiling height range - 93" to 99" / 236 to 253 cm (standard). Custom pole heights up to 120"
  • Pole Material - Heavy gauge steel, 1.5" / 3.8 cm diameter - High temperature baked powder coat gloss white enamel.
  • Base Plate - Heavy gauge steel, 5" / 12.7 cm outer diameter with non-marking base plate rubber, ribbed for better gripping.
  • Finish - High temperature baked powder coat gloss white enamel.
  • Ceiling Plate - Steel 2.5 X 20" / 6 X 50 cm & 2 holes at 16"spacing.
  • Pole Grip - Gray, premium quality, washable, 20" / 50 cm long - does not contain natural dried rubber or latex
  • Expansion Mechanism - steel jackscrew, zinc plated, 1-1/8" fine cut thread.
  • Jackscrew - Steel, zinc plated, 1-1/8" fine cut thread.
  • User Weight Capacity
    • Standard model 300lbs/136kg
    • Bariatric model 450lbs/205kg - Cannot be used with SuperTrapeze or Uni-Fit Extender
  • Assistance Level - 2

CUSTOM OPTIONS (each sold separately)

Uni-Fit Extender Increase floor to ceiling range to 100-120"/254-305cm. NOT TO BE USED WITH SUPERTRAPEZE

SuperPole Ultra Longer pole accommodates floor to ceiling range to 121-140"/307-356cm. NOT TO BE USED WITH SUPERBAR, SUPERTRAPEZE, OR SAFETY ISLAND

Ceiling Plate Extender Allows standard ceiling plate (20"/51cm length) to span 30"/76cm with holes for ceiling attachment to 24"/61cm ceiling beam centers

Angled Ceiling Plate for SuperPole Allows standard SuperPole to mount to angled ceilings up to 45 degrees

Please Note: The SuperPole System should only be installed between floors and ceilings of solid construction or injury may result. The SuperPole System should not be installed on loose floor coverings, in rooms with radiant ceiling heating, in mobile homes, or in suspended or angled ceilings. Recommended weight limits are 300 lbs / 136 kg for all models; no more than 150 lbs / 70 kg should be exerted on trapeze system (for repositioning and sitting up assistance only).

Manufacturer has the right to change designs and specifications without notice.

Purchase the SuperPole G2 Basic

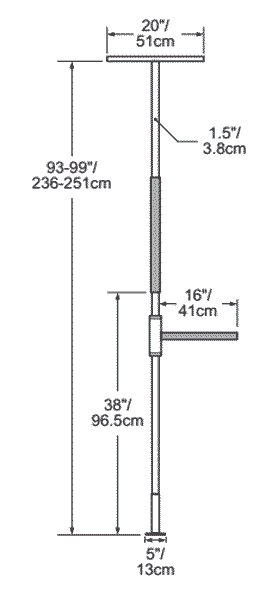

SuperPole SuperBar

example of the HealthCraft SuperPole SuperBar and how it moves
Specifications:
  • Horizontal Support Bar - 16" / 40 cm long rail with premium quality grey grip.
  • Bar Height Range - typically 24" to 38" from floor
  • Locking - 8 positions @ 45 degrees, locked if down; lift 1/4" to unlock. The locking collar is fixed to the pole with three penetrating set screws.
  • Assistance Level - 3
  • Product Dimensions

MODEL NUMBER for SuperBar and SuperBar Heavy Duty
SPB-S SuperPole with SuperBar (ceiling height range 93-99") (300 lbs).
SPB-HDS SuperPole with SuperBar HEAVY DUTY (user weight to 450 lbs.)
SPB-AK *SuperBar Add-On-Kit (to add SuperBar to existing SuperPole).
*For use with HealthCraft SuperPole and SuperPole Bariatric only.

Please Note: The SuperPole System should only be installed between floors and ceilings of solid construction or injury may result. The SuperPole System should not be installed on loose floor coverings, in rooms with radiant ceiling heating, in mobile homes, or in suspended or angled ceilings. Recommended weight limits are 300 lbs / 136 kg for all models.

Manufacturer has the right to change designs and specifications without notice.

Purchase the SuperPole SuperBar

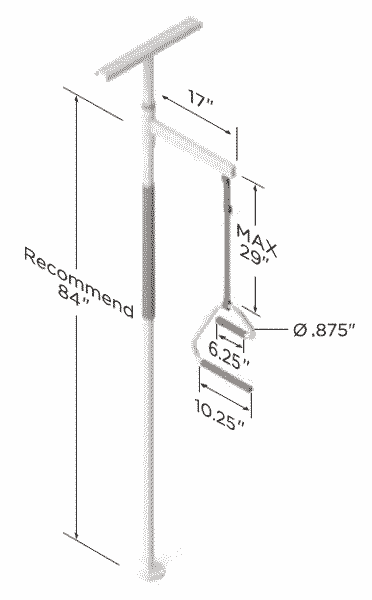

SuperPole SuperTrapeze

HealthCraft SuperPole SuperTrapeze
Specifications:
  • Support Pole - 93" to 99" / 236 to 253cm (standard).
  • Support Arm Height Range - 84" (recommended) from floor. Fixed to the pole with 3 penetrating set screws.
  • Support Arm Length - 17" / 43 cm
  • Trapeze Handle - overall size 12X12" / 30X30 cm.
  • Trapeze Handle - height range 42-70" / 106-178 cm from ceiling.
  • Strap Range - Maximum 29" / 74 cm from support arm
  • Assistance Level - 3
  • Product Dimensions
MODEL NUMBER for SuperPole Basic (Not applicable with ceilings higher than 99")
STP-S SuperPole Basic with SuperTrapeze (standard ceiling height range 93-99") (300 lbs).
STP-AK *SuperTrapeze Add-On-Kit Only

*Strictly for use with HealthCraft SuperPole, or injury may occur.

CUSTOM OPTIONS for SuperPole (Ceiling Height / Plates)
SP-CPE SuperPole Ceiling Plate Extender (30"wide for use with 24" beam centers).

Note: The SuperPole System should only be installed between floors and ceilings of solid construction or injury may result. The SuperPole System should not be installed on loose floor coverings, in rooms with radiant ceiling heating, in mobile homes, or on suspended or angled ceilings. Recommended weight limits are 300 lbs / 136 kg for all models; no more than 150 lbs / 70 kg should be exerted on trapeze system (for repositioning and sitting up assistance only).

Manufacturer has the right to change designs and specifications without notice.

Purchase the SuperPole SuperTrapeze

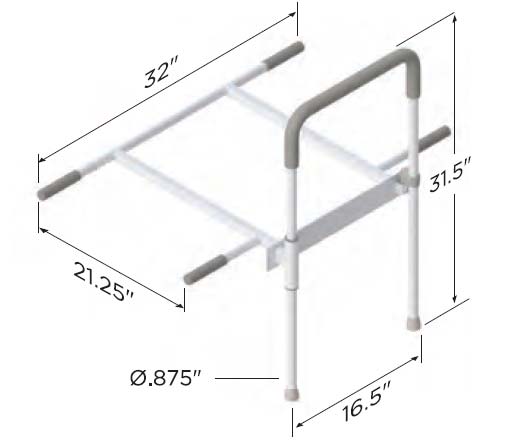

Smart-Rail

HealthCraft Smart-Rail
Assistance Level - 1
Specifications:
  • Support Frame - Rigid tubular steel construction. Baked enamel finish for durability. Unlike particle board based designs, it will not soak in moisture or emit odors. Works on either side of bed.
  • Support Rail - Strong tubular steel construction. Includes deluxe grip for comfort. White rubber base tips prevent slippage and protects your floor. Maximum user weight 300 lbs / 136 kg.
  • Bed Cleats - rubber cleat style pads engage positively with bed to minimize slippage of frame. Safety Latch - unique design provides positive locking of rail at bed-side, easy unlocking (lift rail 1"/25mm to unlock), and sets height of bed rail while in the locked position.
  • Safety Straps - holds support frame from pulling out under heavy use - two straps are supplied that simply loop around the opposite bed frame rail - tightened and released with a side release buckle.
  • Product Dimensions
MODEL NUMBER for Smart-Rail
SR-S Smart-Rail for conventional box spring and mattress beds.

Note: VERTICAL LOAD BEARING ONLY. Product intended for moderate vertical weight bearing on rail only. Do not use if sideward (lateral) support is needed. Avoid rail latch unlocking - Ensure that rail is at least 2"/50mm off floor when rail is in locked position. (Soft type box spring beds can compress downward under load allowing support frame to move down, and rail to become unlatched). Do not use on wet or slippery floors. Do not use with electric or hospital style beds. Both supplied straps must be installed for secure operation. Product intended for moderate assist with sitting up and standing only. Maximum user weight 300 lbs/136kg.

Manufacturer has the right to change designs and specifications without notice.

Purchase the Smart-Rail

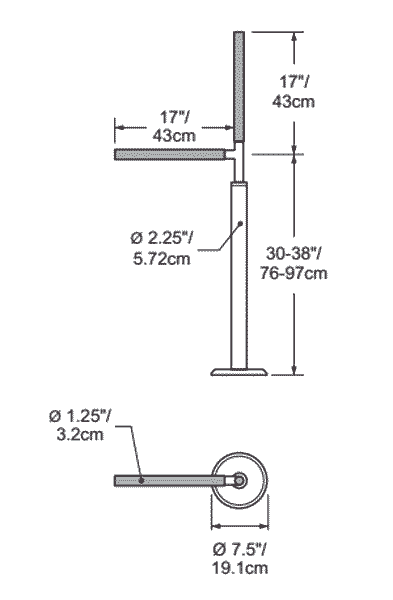

Advantage Rail

HealthCraft Advantage Rail
Assistance Level - 3
Specifications:
  • Pivoting and Locking Horizontal Bar - 17" / 40 cm long rail with premium quality grey grip.
  • Bar Height Range - five settings between 30-38" / 75 - 95cm.
  • Locking - 8 positions @ 45 degrees, locked if down; lift 1/4" to unlock.
  • Floor Plate - 7.5" diameter.
  • Weight Capacity - 300 lbs (AR-T) capacity, 450 lbs (AR-T-HD) capacity
  • Advantage Pole Height - 54" tall
  • Product Dimensions
MODEL NUMBER for Advantage-Rail Portable
AR-T Advantage Rail Standard "T" Handle

Note: The Advantage Rail should only be installed in floors of solid construction or injury may result. Recommended weight limits are 300 lbs / 136 kg for all models.

Manufacturer has the right to change designs and specifications without notice.

Purchase the Advantage Rail


Advantage Rail Portable

HealthCraft Advantage Rail Portable
Assistance Level - 3
Specifications:
  • Floor Plate - Six hole floor screw pattern (6 X 3/8" holes on 6.75" diameter).
  • Weight Capacity - 300 lbs capacity

MODEL NUMBER for Advantage Rail/Pole Portable
AR-PT Advantage Rail Portable "T" Handle (includes one floor plate)
AR-FP Advantage Rail Low Profile Floor Plate

Note: The Advantage Rail/Pole Portable should only be installed in floors of solid construction or injury may result. Recommended weight limits are 300 lbs / 136 kg for all models.

Manufacturer has the right to change designs and specifications without notice.

Purchase the Advantage Rail Portable™


Advantage Pole

HealthCraft Advantage Pole
Assistance Level - 2
Specifications:
  • Independence - For those who require minimal assistance to achieve a standing or sitting position.
  • Floor Plate - Six hole floor screw pattern (6 X 3/8" holes on 7.5" diameter).

MODEL NUMBER for Advantage Pole
AR-AP Advantage Pole 350 Pole Only
AR-AP-CK Advantage Pole 350™ Conversion Kit (Convert AR-T to AR-AP)
AR-TS-CK Advantage Pole 350™ Standard "T" Handle (Convert AR-AP to AR-T)

Note: The Advantage Pole 350 should only be installed in areas where the floor is structurally sound. If you are not equipped to undertake the outlined work we recommend that you have your Advantage Pole 350 installed by a qualified contractor. Unit must be secured to floor with fasteners appropriate to the floor material - fasteners must be rated for at least 400lbs/188kg retention force each. Floor mount fasteners should be inspected monthly and tightened if necessary. Maximum suggested user weight of 450lbs/205kg.

Manufacturer has the right to change designs and specifications without notice.

Purchase the Advantage Pole

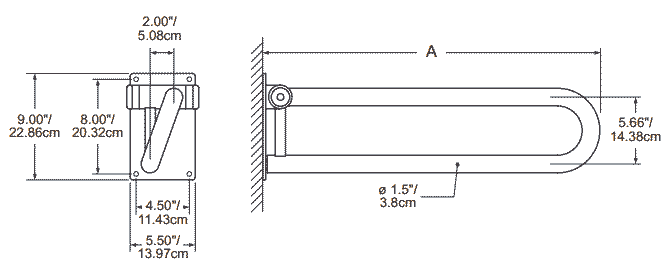

PT Rail Wall Rail System

HealthCraft PT Rail™ Wall Rail System

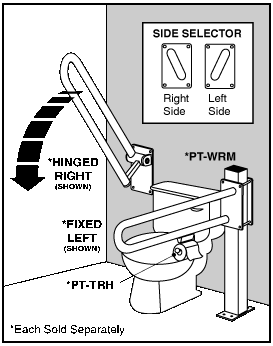

HealthCraft PT Rail and examples of mounting options
Assistance Level - 2
Specifications:
  • Rail Length - 28" & 32" from wall to tip of rail
  • Rail Diameter - 1-1/2" (ADA Compliant)
  • Rail Offset - 6" vertical, 1-1/2" horizontal offset
  • Wall Plate - 5.5" x 9" with 4 fastener holes (3/8" dia.)
  • Construction - Alloy steel, with baked enamel
  • Pivot Joint - fluid feel pivot, tested to over 75 years daily usage
  • Weight Capacity - 400 lbs.
  • Product Dimensions
MODEL NUMBER for P.T. Rail Fold Away
  • PT-WR28L Wall Rail Hinged, Left Side 28"
  • PT-WR28R Wall Rail Hinged, Right Side 28"
  • PT-WR32L Wall Rail Hinged, Left Side 32"
  • PT-WR32R Wall Rail Hinged, Right Side 32"
MODEL NUMBER for P.T. Rail Fixed
  • PT-FIX28L Wall Rail Fixed, Left Side 28"
  • PT-FIX28R Wall Rail Fixed, Right Side 28"
  • PT-FIX32L Wall Rail Fixed, Left Side 32"
  • PT-FIX32R Wall Rail Fixed, Right Side 32"

Note: The P.T. Rail should only be installed in areas where the mounting surface is structurally sound. If you are not equipped to undertake the outlined work we recommend that you have your P.T. Rail installed by a qualified contractor. The P.T. Rail, ( or P.T. Rail Floor Mast System) must be secured to wall (or floor) with fasteners appropriate to the structural material. Fasteners must be rated for certain retention force each for maximum weight capacity. Mounting fasteners should be inspected monthly and tightened if necessary. Rail is capable of supporting a maximum suggested user weight of 400lbs/181kg.

Note: Fastening hardware is NOT included Due to variances in needs, materials and local construction methods, the information contained within concerning mounting location, fasteners and wall fabrication is provided as suggestion only. Consult the appropriate local professionals for best advice.

Manufacturer has the right to change designs and specifications without notice.

Purchase the P.T. Rail Fixed

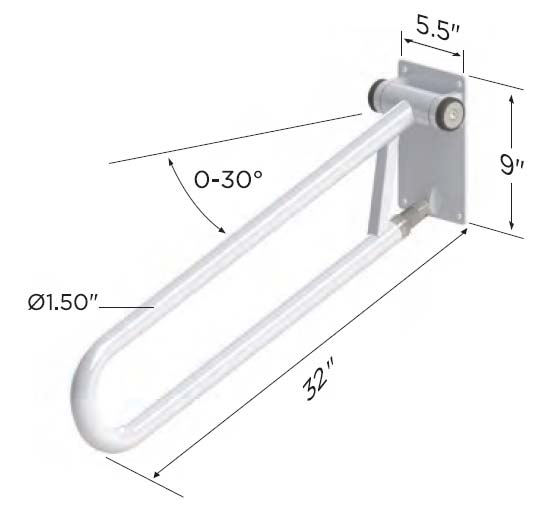

PT Rail Angled Wall Rail System

picture of the HealthCraft PT Rail Angled Wall Rail System
Assistance Level - 2
Specifications:
  • Rail Length - 32" from wall to tip of rail
  • Rail Diameter - 1-1/2" (ADA Compliant)

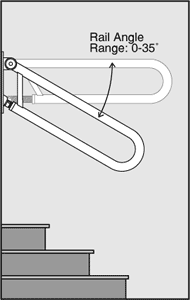

  • Angle Range - 0-35°
  • Wall Plate - 5.5" x 9" with 4 fastener holes (3/8" dia.)
  • Construction - Alloy steel, with baked enamel
  • Pivot Joint - fluid feel pivot, tested to over 75 years daily usage
  • Weight Capacity - 400 lbs.
  • Product Dimensions


MODEL NUMBER for P.T. Rail Fold Away: PT-ANG32
Note: The P.T. Rail Angled should only be installed in areas where the mounting surface is structurally sound. If you are not equipped to undertake the outlined work we recommend that you have your P.T. Rail Angled installed by a qualified contractor. The P.T. Rail Angled, ( or P.T. Rail Floor Mast System) must be secured to wall (or floor) with fasteners appropriate to the structural material. Fasteners must be rated for certain retention force each for maximum weight capacity. Mounting fasteners should be inspected monthly and tightened if necessary. Rail is capable of supporting a maximum suggested user weight of 400lbs/181kg.

Note: Fastening hardware is NOT included - Due to variances in needs, materials and local construction methods, the information contained within concerning mounting location, fasteners and wall fabrication is provided as suggestion only. Consult the appropriate local professionals for best advice.

Manufacturer has the right to change designs and specifications without notice.

Purchase the P.T. Rail Angled

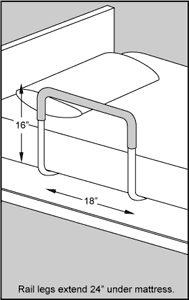

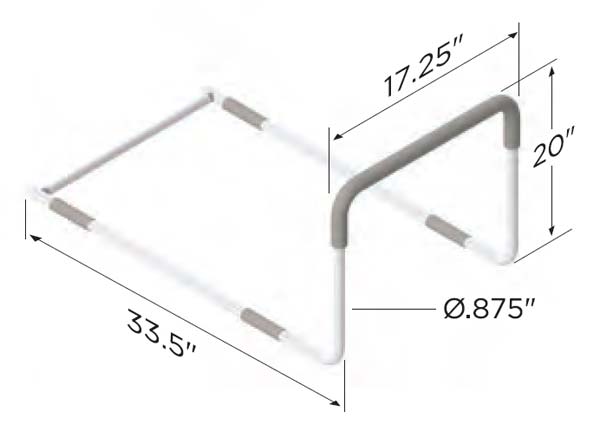

AssistaRail

HealthCraft AssistaRail™
Assistance Level - 2
Specifications:
  • Assista-Rail - Heavy gauge steel, .875" diameter. High temperature baked powder coat gloss white enamel.
  • Grip Material - Grey, NPVC non-latex grip. 1.25" diameter.
  • Rail Width - 17.25"
  • Rail Height - 20"
  • Weight Capacity: 300 lbs.
  • Product Dimensions
Note: VERTICAL LOAD BEARING ONLY - DO NOT use if you require more than minimal sideward (lateral) support. Maximum user weight 300lbs/136kg. Do not use with electric or hospital style beds. Supplied strap must be installed, tightened and regularly inspected for secure operation. Lock casters on mobile beds prior to using rail. Due to the potential risks associated with neck entrapment, the Assista-Rail is not recommended for users with the following conditions: erratic body movements, altered mental status, pre-existing conditions such as confusion, restlessness and dementia.

Note: Due to variances in needs, materials and local construction methods, the information contained within concerning mounting location, fasteners and wall fabrication is provided as suggestion only. Consult the appropriate local professionals for best advice.

ENTRAPMENT WARNING: Due to the potential risks associated with head / limb entrapment, the AssistaRail is not recommended for users with the following conditions: erratic body movements, altered mental status, pre-existing conditions such as confusion, restlessness and dementia.

Manufacturer has the right to change designs and specifications without notice.

Purchase the AssistaRail

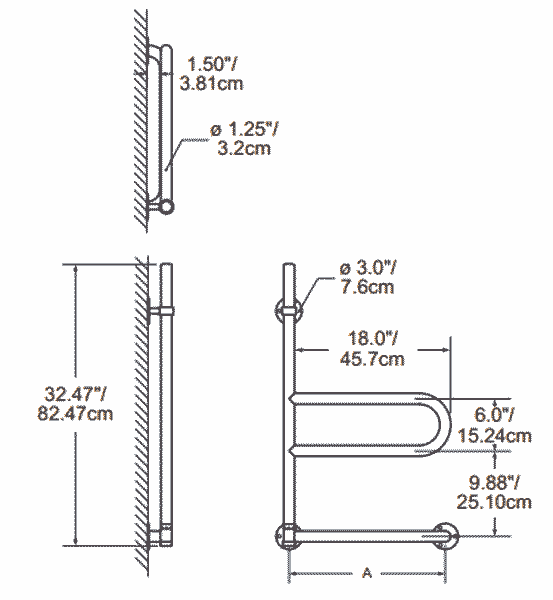

DependaBar

HealthCraft DependaBar™
HealthCraft DependaBar™
Assistance Level - 3
Specifications:
  • Pivot Rail - 1.25" grip diameter, stainless steel construction.
  • Pivot Rail Length - "P" shaped dual rail extends 17" length (20" from bathroom wall). 6" spacing between horizontal rails. Locks every 45° (5 positions).
  • Vertical Grab Bar Length - 33" tall
  • Horizontal Grab Bar - 1-1/4" grip diameter. 1-1/2" clearance from wall (ADA Compliant). Height adjustable at time of installation, typically 4" cm from top of bathtub surface. Stainless steel construction.
  • Horizontal Grab Bar Lengths - 18" and 32" lengths available.
  • Weight Capacity: 325 lbs.
  • Product Dimensions
Note: The Dependa-Bar should only be installed in areas where the mounting surface is structurally sound. If you are not equipped to undertake the outlined work we recommend that you have your Dependa-Bar installed by a qualified contractor. The Dependa-Bar must be secured to wall with fasteners appropriate to the structural material. Fasteners must be rated for certain retention force each for maximum weight capacity. Mounting fasteners should be inspected monthly and tightened if necessary. Rail is capable of supporting a maximum suggested user weight of 325lbs/147kg.

Note: Due to variances in needs, materials and local construction methods, the information contained within concerning mounting location, fasteners and wall fabrication is provided as suggestion only. Consult the appropriate local professionals for best advice.

Manufacturer has the right to change designs and specifications without notice.

Purchase the DependaBar™



Product Compatibility Chart

SB = SuperBar, ST = SuperTrapeze, ACP = Angle Ceiling Plate, UFE = Uni-Fit Extender, CPE = Ceiling Plate Extender
= Applicable, X = Cannot be used together

Model
Number
Description User
Weight
Capacity
Floor To
Ceiling
Range
SB ST ACP UFE CPE
Floor To Ceiling Options (each sold separately)
SP-S Superpole
Floor to ceiling support rail
300lbs /
136kg
93-99" /
236-251cm
SP-HD Superpole Bariatric
SuperPole with increased weight capacity
450lbs /
205kg
93-99" /
236-251cm
X X X
SP-UF Uni-Fit Extender
Extension tube attaches to SuperPole
300lbs /
136kg
100-120" /
254-305cm
X --
Ceiling Plate Accessories (each sold separately)
SP-CPE Ceiling Plate Extender
Longer plate (30"/76cm) spans wider ceiling joists (24"/61cm spacing)
X --
SP-ACP Angled Ceiling Plate
Bolts to angled ceilings between 0-45°. Top plate diameter 18"/45cm
X -- X

Frequently Asked Questions

Q. "I noticed there are assistance levels on these products, can you tell me which number means what, etc.?"
A. The levels are....

Assistance Level 1: Minimal - I can stand up or transfer on my own, but need some support for safety. I may use a cane and/or a walker on occasion.

Assistance Level 2: Moderate - I require firm or solid support to be able to complete standing or transfers. I may use a cane and/or a walker on occasion. I occasionally use a scooter on days where I'm feeling a bit tired.

Assistance Level 3: Maximum - I am not able to perform standing and transferring without assistance. I require leaning & resting support. I depend on my walkers / wheelchair to get around.

Assistance Level 4: Powered Assistance - I require the use of a mechanical lift or powered device to safely perform transfers. I will apply most, if not all, of my body weight on the transfer aide. I use a wheelchair / scooter to get around.

Q. "What is the weight capacity of your products?"
A. Generally, the weight capacity is 300 lbs/136kg. We do have a heavy duty SuperPole available with a weight capacity of 450 lbs/205kg , and the P.T. Rail has a weight capacity of 400 lbs/181kg.
