Fluidmaster® Pro Series Toilet Parts

PlumbingSupply.com® is proud to offer Fluidmaster's® Pro Series replacement toilet accessories. Fluidmaster's superior engineering and top grade materials produce reliable replacement parts that are built to last, and we offer a great selection of fill valves and flush valves, plus flappers, tank levers and more.

click any image to jump directly to that section


Pro Series Fill Valves

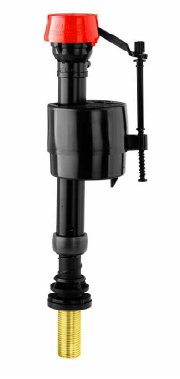

The PRO45B is similar to the PRO45 with the exception of a heavy duty brass shank. The same design elements are incorporated which make for quiet operation but with the added strength of a brass shank which reduces the chance of cracking . This fill valve is also adjustable in height from 9-1/4" to 13-1/2". The PRO45B works great in applications where more strength is needed than the typical fill valve can provide.

Model# PRO45B Features:
  • Heavy duty brass shank manages water flow, eliminating water hammer by 99% and delivering tank refill at half the noise level of other valves
  • Adjustable height for a universal fit and a float screw for fine tuning
  • Extremely durable

Model# Price & Quantity
PRO45B Fill Valve $16.91
Fill Valve Replacement Seal Only $2.65
Fill Valve Replacement Cap Assembly Only $5.13

- OR - View Cart

The Fluidmaster Pro Series are designed with the plumbing professional in mind. You can adjust the height of the PRO45 from 9-1/4" to 13-1/2". These fill valves are designed to reduce water hammer which reduces noise while refilling the tank. Since these are designed for plumbing contractors, they are more durable than the typical replacement fill valve, resulting in fewer repairs.

Model# PRO45 Features:
  • Ultra quiet operation
  • Adjustable height for a universal fit and a float screw for fine tuning
  • Extremely durable

Model# Price & Quantity
PRO45 Fill Valve $11.65
Fill Valve Replacement Seal Only $2.65
Fill Valve Replacement Cap Assembly Only $5.13

- OR - View Cart

Fluidmaster also offers Pro Series fill valve and flapper combo packs. The PRO45C includes a PRO45 fill valve and a PRO55 Chlorine resistant flapper. The Pro Series combo packs allow you to order the two most commonly replaced toilet parts with ease and confidence. Fill valve height adjustable from 9-1/4" to 13-1/2".

Model# PRO45C Features:
  • Ultra quiet fill valve - less water hammer, and delivers tank refill at half the noise level of other valves
  • Adjustable height for a universal fit and a float screw for fine tuning
  • Includes the PRO55 flapper

Model# Price & Quantity
PRO45C Fill Valve $12.73
Fill Valve Replacement Seal Only $2.65

- OR - View Cart

This is truly a universal fill valve - it includes 6 refill inserts which allow it to work on all toilets - from the old 5 GPF to the new 1.28 HET toilets, including many specialty toilets and high-refill toilets. The refill inserts and water saving refill adjuster adjust the flow rate to restore the toilet to its original specifications. The valve height is adjustable between 9" and 14". The inlet shank has a special insert which makes this model ultra quiet, and eliminating water-hum.

Model# PRO45U Features:

Model# Price & Quantity
PRO45U Universal Fill Valve $18.11
Fill Valve Replacement Cap Only $5.13
Fill Valve Replacement Seal Only $2.65

- OR - View Cart

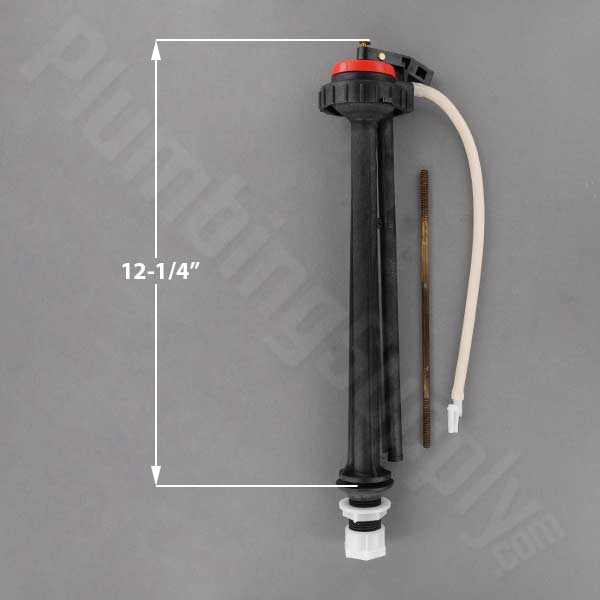

Introducing the Fluidmaster PRO15 fill valve (ballcock). This fill valve measures 12" in overall height and comes with an 8" brass float rod. The tank ball is not included but is available separately. The PRO15 is a contractor grade fill valve designed to be quick and reliable.

Fluidmaster Pro15Pro15
Model# PRO15 Features:
  • 12" ballcock
  • Solid brass arm
  • Three year manufacture warranty
  • Float ball sold separately
  • Limited to Stock

Model# Price & Quantity
PRO15 Ballcock - SUPER SALE! - While supplies last $5.14
Fill Valve Plastic Float Ball Only $4.05
Fill Valve Copper Float Ball Only $10.43

- OR - View Cart

Model# 400ARHR Features:
  • The highest efficiency refill range on the market
  • EZ-twist height adjusts from 10" to 15" to fit most tanks
  • Universal fit - works with most toilets, including Kohler, Toto, American Standard and dual flush toilets
  • Includes water saving roller clamp which allows you to regulate the fill level in the bowl, saving you water & money
  • Large turbo port for exceptional fill power
  • Includes Torque Guard lock nut to prevent thread damage from over tightening

Model# Price & Quantity
400ARHR Fill Valve - Adjustable from 10" to 15" $18.19

- OR - View Cart

Model# PRO747K Features:
  • A water saving refill adjuster
  • Ultra quite design
  • Designed to fit many Kohler toilet models: K-3466, K-3467, K-3384-2, K-3386, K-3524, K-3492, K-3607 & K3393
  • Includes water saving roller clamp which allows you to regulate the fill level in the bowl, saving you water and money
  • Constructed of chemical resistant material for durability
Model# Price & Quantity
PRO747K Complete Fill Valve Assembly w/Riser - approx 13" tall $18.08
PRO747 Fill Valve Service Kit - 8 3/4" tall $15.65

- OR - View Cart

Pro SeriesFlush Valves

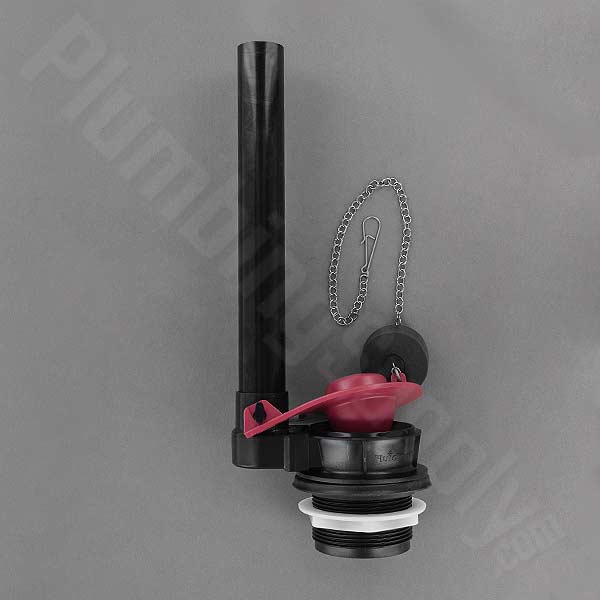

The PRO57 flush valve is designed for most two piece toilets and features a 10" tall overflow tube as well as a chlorine resistant PRO55 adjustable flapper. The float allows you to adjust the timing of the flapper for the proper flush cycle.

Model# PRO57 Features:
  • Includes the PRO55 adjustable flapper with float
  • Control flush volume with movable float on chain
  • Kink-free stainless steel chain
  • Ends leaks at the drain
  • Fits most tanks
  • 10" tall (inside tank dimension)
  • View dimensions
  • Installation instructions included

Model# Price & Quantity
PRO57 Flush Valve $6.69
Replacement flapper only - PRO55 $7.90

- OR - View Cart

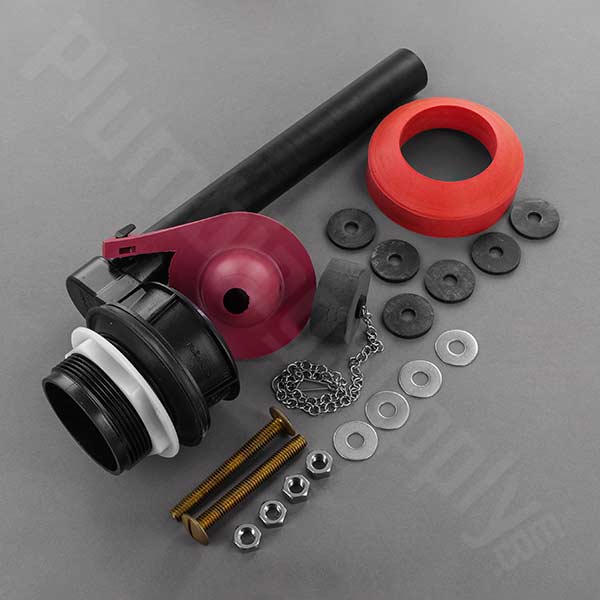

Looking for a flush valve and tank to bowl mounting kit? The PRO57K is the perfect product. This kit includes the PRO57 flush valve, tank to bowl gasket (3-1/2" outside diameter, 1-1/8" tall), 3 tank to bowl bolts and an assortment of washers and nuts.

Fluidmaster Pro57KPRO57K
Model# PRO57K Features:

PRO57K Flush Valve = $12.80

- OR - View Cart

3" Flush Valve & Flapper Rebuild Kit

3" flush valve and tank to bowl mounting kit. The 540AKR is a complete universal toilet tank flush valve and flapper repair kit to replace most 3" high efficiency toilet (HET) flush valves. This kit includes the flush valve, an adjustable flapper, a flush valve washer, a tank to bowl gasket (4-3/4" outside diameter, 1-1/8" tall), 2 corrosion resistant brass tank to bowl bolts, 4 tank to bowl rubber washers, 4 flat metal washers, and 4 nuts. Everything needed to replace your existing flush valve.

Model# 540AKR Features:
  • Restores your toilet to original performance
  • High efficiency toilet (HET) complete flush valve replacement for 3" flapper flush valves
  • Fits American Standard, Toto, Briggs and many other 3" flapper toilets
  • Overflow tube slides up or down for needed height
    -adjustable from 5-9/16" to 8" tall
  • Flapper adjusts to match your toilets original setting for maximum water savings
  • View 540AKR flush valve dimensions

540AKR Flush Valve & Flapper Repair Kit = $19.38

- OR - View Cart

Pro Series Complete Kits

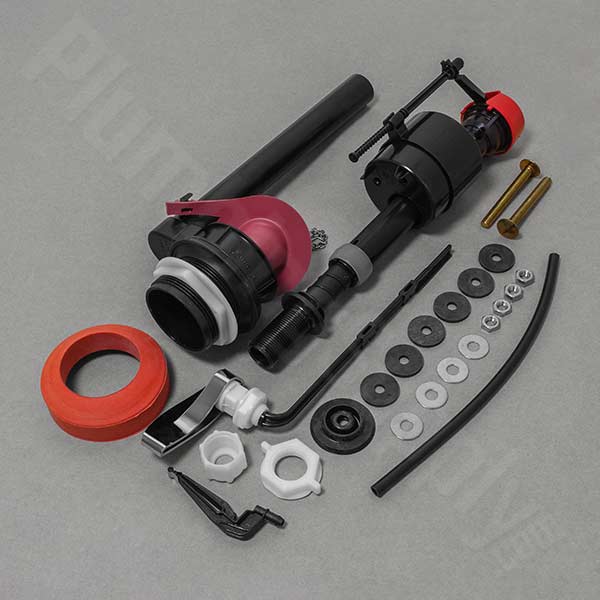

Need a professional grade complete toilet rebuild kit? How about the PRO45K. This kit includes all the parts necessary to completely rebuild a typical two piece toilet: fill valve, flush valve (PRO57) with flapper (PRO55), tank to bowl mounting kit and trip lever (PRO61). Fill valve height adjustable from 9-1/4" to 13-1/2".

Model# PRO45K Features:
  • Complete tank overhaul kit
  • PRO45 fill valve
  • PRO57 flush valve
  • PRO61 tank lever
  • Sponge gasket
  • Tank to bowl bolt set
  • Installation instructions included

Model# Price & Quantity
PRO45K Complete Kit $24.80
Fill Valve Replacement Seal Only $2.65
Flush Valve Replacement Flapper Only $4.57
Replacement WA84 flush valve gasket only $1.58

- OR - View Cart

Model# 400AK Features:
  • Complete tank overhaul kit
  • 400A fill valve, adjustable from 9" - 14"
  • 507AK flush valve 10" from tank to top of overflow
  • Chrome tank lever
  • Sponge gasket
  • Tank to bowl bolt set
  • Installation instructions included

Model# Price & Quantity
400AK Complete Kit $29.45
Fill Valve Replacement Seal Only $2.65
Flush Valve Replacement Flapper Only $4.57
Replacement WA84 flush valve gasket only $1.58

- OR - View Cart

Pro Series Flappers

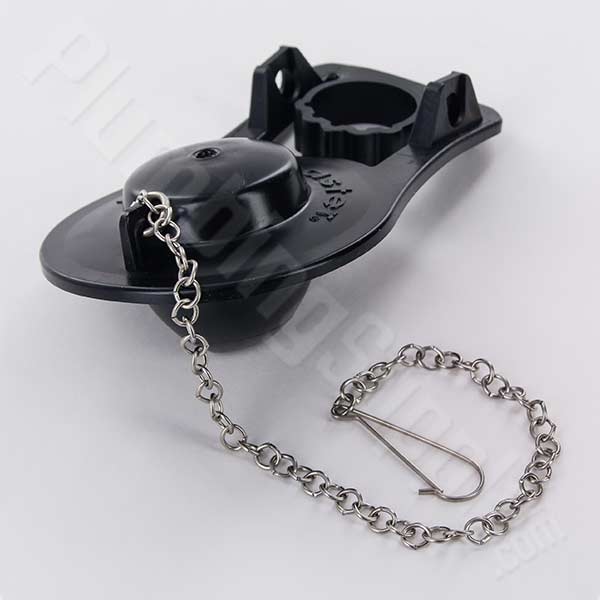

The PRO53 flapper is a heavy duty flapper which will work for most modern flush valves. This flapper can be attached by either sliding over the overflow tube or by attaching to the hooks on the side. Overall length of the chain and hook is 10".

Fluidmaster Pro53Pro53
Model# PRO53 Features:
  • Professional grade material
  • Kink-free heavy duty metal chain
  • Replaces most worn flapper or tank ball units

Fluidmaster PRO53 Toilet Flapper = $5.05

- OR - View Cart

Looking for a chlorine resistant heavy duty flapper? The Fluidmaster PRO54 may be the right choice for you. This professional grade flapper features a 10" chain and can be attached to either the sides or over the overflow tube on the flush valve.

Fluidmaster Pro54Pro53
Model# PRO54 Features:
  • Chlorine resistant material
  • Kink-free heavy duty metal chain
  • Won't rot, great for harsh water situations

Fluidmaster PRO54 Toilet Flapper = $5.11

- OR - View Cart

The PRO55 has all the same features as the PRO54 with the addition of an adjustable float. The float allows you to adjust the rate at which the flapper closes making for the ideal flush every time. The PRO55 also has a 12" chain which is a little longer than the PRO53 and PRO54.

Fluidmaster Pro55Pro55
Model# PRO55 Features:
  • Adjustable volume for optimal flushes every time
  • Heavy duty metal chain with float
  • Fits most flapper or tank ball units
PRO55 Toilet Flapper w/ Adjustable Float = $7.90

- OR - View Cart

Pro Series Tank Levers

No need to stock a multitude of different trip levers for the many different tank designs that are in service today. Both of the trip levers below can be bent and/or cut to match the trip levers that need to be replaced. Reduce trips to the supply house by stocking these on your service truck or in your maintenance shop.

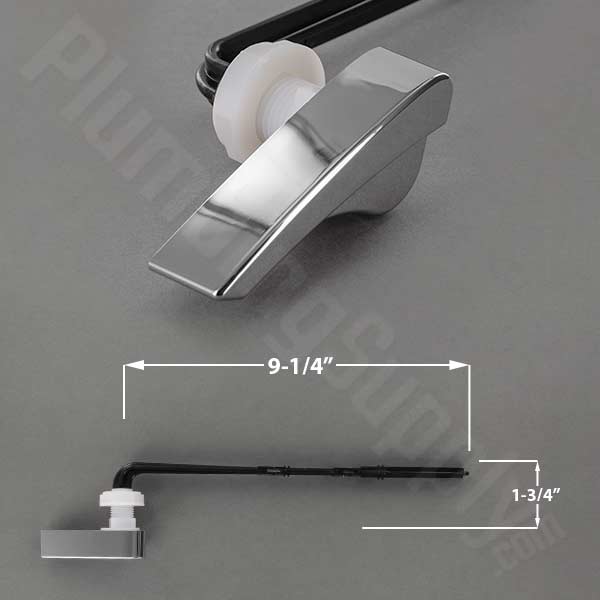

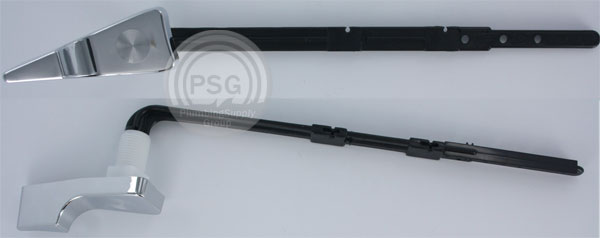

This is a direct replacement for toilets which use a standard 90 degree trip lever and features an all plastic construction. The lever is approximately 9" long and has several locations to attach the flapper chain.

Model# PRO61 Features:
  • Can be bent and/or cut to fit most front, side or angle mount toilet tanks
  • Direct replacement tank lever
  • Chrome finished plastic handle and plastic lever
  • Self-Tightening lock nut (won't loosen over time)
  • Fits most: Eljer®, American Standard®, Kohler Wellworth®, and Mansfield® toilets

Fluidmaster PRO61 Tank Lever - Chrome = $5.13

- OR - View Cart

The PRO64 is Fluidmaster's deluxe trip lever. While the handle is chrome plated plastic the rod itself is made of brass. The Rod is 9" long and has five points of attachment for the flapper chain.


Model# PRO64 Features:
  • Can be bent and/or cut to fit most front, side or angle mount toilet tanks
  • Direct replacement tank lever
  • European style chrome finished handle
  • Self-Tightening lock nut (won't loosen over time)
  • Fits most: Eljer®, American Standard®, Kohler Wellworth®, and Mansfield® toilets

Fluidmaster PRO64 Euro Style Tank Lever = $8.84

- OR - View Cart

Related Items & Information



PRO45U Flow Rates & Insert Cross-Reference

Toilet Model Model Number Tank
Model Number
Insert Color
Toto GMax
Carlyle - 1 Pc MS874114 CST874 Black
Carrollton - 2 Pc CST774 ST774 Tan
Clayton - 2 Pc CST784 ST784 Tan
Dartmouth - 2 Pc CST754 ST753 Tan
Drake - 2 Pc CST74X ST743S Black
Lloyd - 1 Pc MS934304 CST934 Black
Mercer - 2 Pc MS756204 ST755 Black
Nexus - 2 Pc CST794 ST794 Tan
Pacifica - 2 Pc CST804 ST804 Tan
Vespin - 2 Pc CST764 ST707 Tan
Whitney - 2 Pc CST754 ST754 Tan
Ultramax - 1 Pc MS854114 CST854 Black
Toto Power Gravity
Bristol - 1 Pc MS866114 CST866 Black
Carolina - 1 Pc MS884114 CST884 Black
Dorian - 1 Pc MS914114 CST914 Black
Pacifica - 1 Pc MS904114 CST904 Tan
Plymouth - 2 Pc MS924154 CST924 Black
Supreme - 1 Pc MS86X11X MS86X11X Black
Ultimate - 1 Pc MS85X11X MS85X11X Black
Toto Eco
Eco Drake - 2 Pc CST743E ST743E White
Eco Nexus - 2 Pc CST794E ST794E Black
Eco Supreme - 1 Pc CST863 CST863 White
Eco Supreme - 1 Pc CST864E CST864E White
Eco UltraMax - 1 Pc MS854114 CST854E White
Toilet Model Model Number Tank
Model Number
Insert Color
Toto Cyclone
Guinevere - 1 Pc MS974224 CST974 White
Soiree - 1 Pc MS964214 CST964 White
Kohler Class 5
Archer - 2 Pc K-3517 K-4493 Gray
Bancroft - 2 Pc K-3487 K-4633 Gray
Cimarron - 1 Pc K-3489 K-3489 Gray
Cimarron - 2 Pc K-349X K-4287 Gray
Cimarron - 2 Pc K-349X K-4634 Gray
Devonshire - 2 Pc K-3503 K-4708 Gray
Gabrielle - 1 Pc K-3513 K-3513 Black
Highline - 2 Pc K-3611 K-4632 Gray
Memoirs - 1 Pc K-3451 K-3451 White
Memoirs - 1 Pc K-3453 K-3453 White
Memoirs - 2 Pc K-35XX K-4491 White
Memoirs - 2 Pc K-35XX K-4492 White
Portrait - 1 Pc K-3506 K-3506 White
Kohler
Wellworth - 2 Pc K-3575 K-4436 Red
American Standard
Boulevard Dual - 1 Pc 2891.200 -- Red
Studio Dual Flush - 2 Pc 2794.204 4000.204 Red
Studio Dual Flush - 2 Pc 2795.204 4000.204 Red


Frequently Asked Questions

Q. "How long 'should' the parts inside of my toilet last?"
A. That depends on a number of variables and which parts. Water quality is one of the major factors. If your water source is heavily chlorinated then many parts won't last long. Or if you have a lot of sand or grit or have a low pH or "aggressive" water source then parts simply won't last as long as the 'average' length of time. Also the quality of the parts matters. The replaceable parts such as flappers and washers/seals generally will last at least 4 to 5 years on "average." If you use a bowl cleaner some flappers won't even last one year. If your flapper has black "goo" on it then it is either due to age or quality of your water and if it feels soft then it's best to change it.

Q. "How do I install the Fluidmaster 747 Fill Valve Service Kit?"
A. To install the Fluidmaster 747 Fill Valve Service Kit, you need to first turn the water supply to the toilet off. Using your fingers, turn the cap (usually blue but not always) connected to the copper (or plastic) riser tube a quarter of a turn counterclockwise to release the cap from the float assembly. A wrench should not be required. Once the cap is disconnected from the tabs keeping it in place, pull the float assembly straight off. Align the replacement Fluidmaster 747 fill valve service kit (float assembly) up and push it back into the cap and turn the cap clockwise a quarter of a turn until it tightens onto the tabs on the float assembly (fill valve service kit). Turn your water back on and check for leaks.
