Woodford Close Coupled Wall Faucets


We at PlumbingSupply.com® feel that Woodford brand outdoor faucets are some of the finest, most value-priced lawn/garden and utility faucets, available today. We offer their freezeless outdoor faucets and parts, their yard, utility and sanitary utility hydrants. We also offer many replacement parts.

Close Coupled Wall Faucets

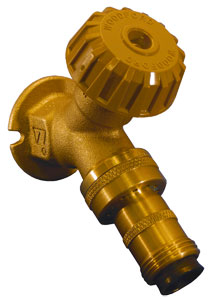

Woodford close coupled wall faucet
These wall faucets feature:
  • For use in mild climate areas only
  • Fits within 2" x 4" wall
  • All structural components made of brass
  • No lead solder
  • 3/4" male hose thread
  • Max pressure: 125psi
  • Max temperature: 120°

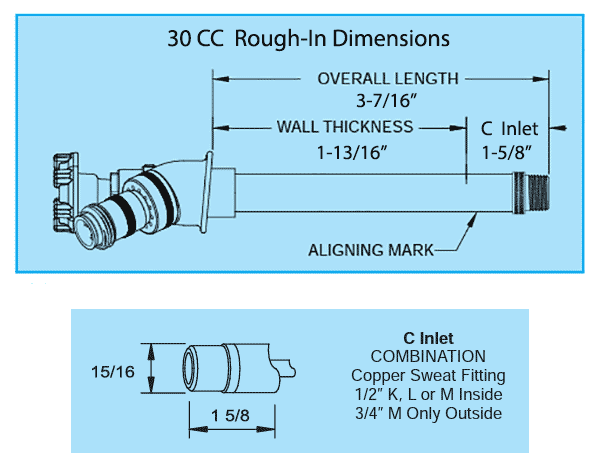

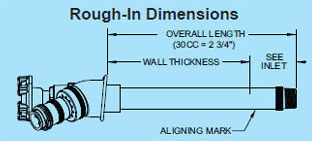

  • Click here for Rough-In Dimensions

Model Description Price & Quantity
30CC Close Coupled Wall Faucets - C Inlet Only $57.88

- OR - View Cart

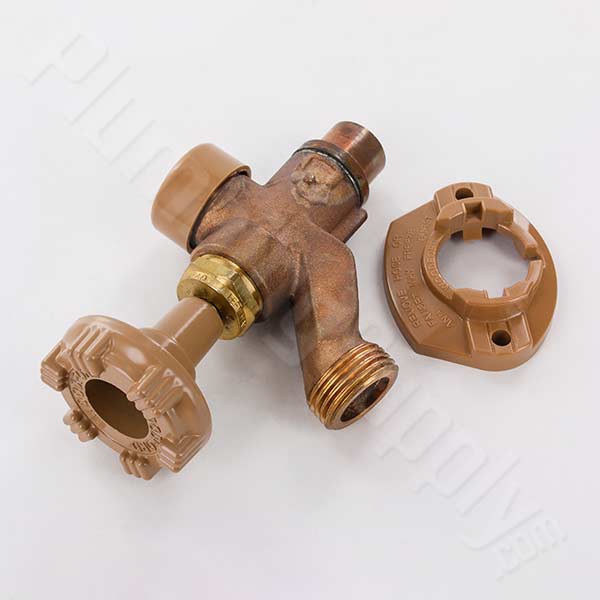

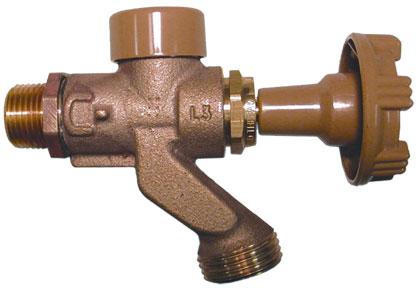

Model 101C Anti-Siphon Wall Faucets

Model 101 is an anti-siphon protected wall faucet designed for use in mild climate areas. The anti-siphon feature includes an integral check and atmospheric vent which eliminates the need for an add-on vacuum breaker that restricts flow.

Features:
  • Anti-siphon with integral check and atmospheric vent
  • 3/4" male hose thread
  • Max pressure: 125psi
  • Max temperature: 120°F

Model Description Price & Quantity
101C Anti-siphon wall faucet - 1/2" & 3/4" copper sweat inlet $32.03
101CP 1/2" MPT & 1/2" sweat inlet $32.03
101P 3/4" MPT & 1/2" FPT inlet $34.27
101PX 1/2" Pex tube inlet $32.07

- OR - View Cart

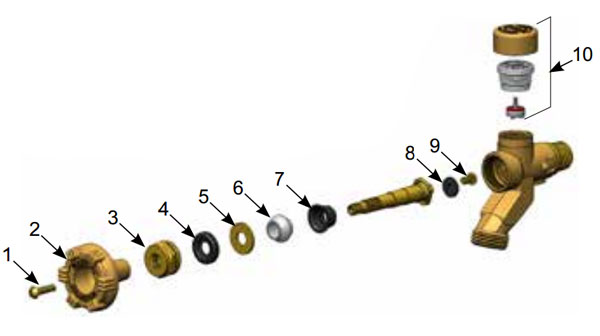

Replacement Parts for Model 101C


Item # Image Part # Description Price & Quantity
1 Woodford handle screw 30002 Handle Screw $3.58
2 Woodford round wheel handle 30096 Round Wheel Handle - Die Cast Aluminum $3.55
3 Woodford packing nut 30570 Packing nut - (requires 2 per faucet) $12.59
4 Woodford EPDM packing 30247 EPDM Packing - (requires 2 per faucet) $3.40
5 Woodford packing washer 30105 Packing support washer - (requires 2 per faucet) $3.05
6 Woodford anti-turbulence sleeve 30824 Anti-turbulence sleeve - (requires 2 per faucet) $1.11
7 Woodford check valve 30459 Check valve - (requires 2 per faucet) $3.62
8 Woodford rubber valve seat 30008 Valve Seat Rubber $2.16
9 Woodford retainer screw 30009 Retainer Screw $2.78
10 -- RK-101VB Vacuum Breaker Float Kit $3.35
  -- RK-101 Repair Kit (items 1-10) $29.30

- OR - View Cart


Replacement Wheel Handles

for close coupled wall faucets

Model Description Price & Quantity
30096 Replacement wheel handle - metal $3.55
30239 Replacement wheel handle - metal - for model 27CC $4.21
Note: The #30099 plastic handle has been replaced by the #30096 metal handle.

- OR - View Cart


Model 75 Wall Hydrant With Swivel Inlet

With Anti-Siphon Vacuum Breaker

Model 75 is an anti-siphon wall hydrant designed for use in mild climate areas or within temperature controlled buildings. It is 2 5/8" deep and fits inside a stud wall.

Features:
  • Anti-siphon vacuum breaker with 3/4" male hose thread nozzle
  • Adjustable packing nut (lock nut prevents packing nut from loosening)
  • Swivel inlet with adjustable 360° orientation
  • Chrome finish
  • Max pressure: 125psi
  • Max temperature: 120°


Anti-siphon wall hydrant = $158.76

- OR - View Cart


Model 79 Wall Hydrant - With Swivel Inlet

With Backflow Preventer

Model 79 is a backflow prevented wall hydrant. It is designed for use in mild climate areas or within temperature-controlled malls and plazas.
Features:
  • Hose connection backflow preventer with 3/4" male hose thread nozzle
  • Adjustable packing nut (lock nut prevents packing nut from loosening)
  • Swivel inlet with adjustable 360° orientation - 3/4" FPT
  • Chrome finish
  • Max pressure: 125psi
  • Max temperature: 120°

Backflow Prevented Wall Hydrant = $161.71

- OR - View Cart


Woodford Double Check Backflow Preventers

Backflow Preventer
# 50H
Backflow Preventer Feature:
  • Prevents backflow contamination and freezing by automatically draining when hose is removed
  • 120°F maximum temperature rating
  • Maximum pressure 125 p.s.i.
  • 3/4" male hose outlet connection
  • Available in brass and chrome finishes

Image Description Price & Quantity
Chrome Finish
Price & Quantity
Brass Finish
Backflow Preventer #50H Backflow Preventer
- 3/4" female hose inlet connection
- 3/4" male hose outlet connection
- Fits Woodford faucets with standard 3/4" hose threaded outlets
$35.13 $29.59
Backflow Preventer #50HF Backflow Preventer
- 13/16" special thread inlet connection
- 3/4" male hose outlet connection
- Fits Woodford faucets: 26, B26, Y26, Y2, and H34
$35.95 $30.20

- OR - View Cart

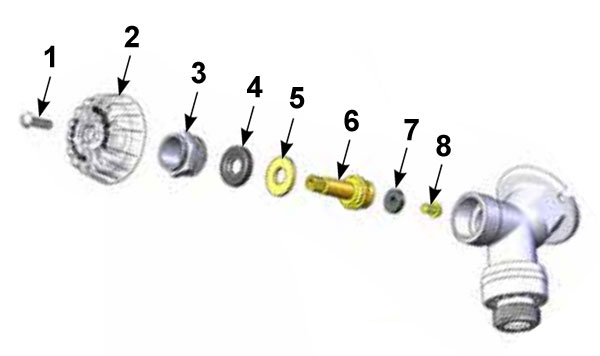

Replacement Parts for Models 21, 24, B24, 26, B26, Y24 & Y26


Item # Image Part # Description Price & Quantity
1 Woodford nickel screw 30121 Handle Screw $2.73

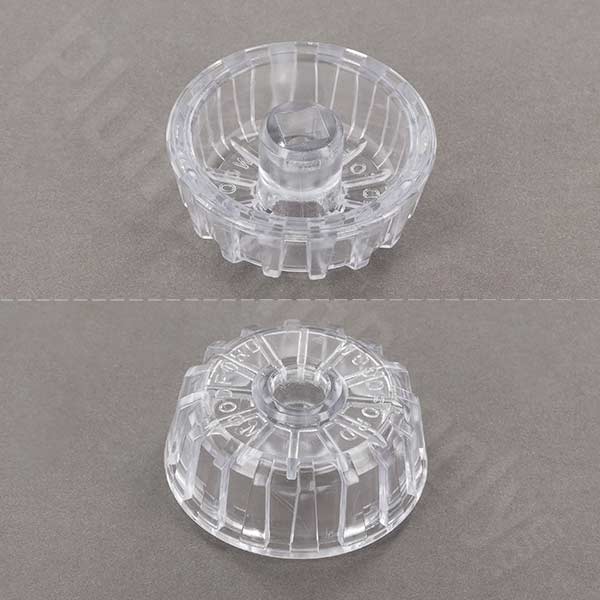

2 Woodford clear plastic handle 30120 Wheel Handle - Clear Plastic $3.35
3 Woodford packing nut 30109 Packing Nut $11.89
4 Woodford EPDM packing 30247 EPDM Packing $3.40
5 Woodford packing washer 30105 Packing support washer $3.05
6 -- 30104 Operating Screw $13.12
7 Woodford valve seat rubber 30008 Valve seat rubber $2.16
8 Woodford retainer screw 30009 Retainer screw $2.78
  -- RK-24 Complete Repair Kit (includes items 1-8) $23.56

- OR - View Cart

Related Items & Accessories



Frequently Asked Questions

Q. "What are close coupled wall faucets?"
A. Close coupled wall faucets have a short inlet and are designed for non-freeze areas.

Q. "What is EPDM?"
A. EPDM is Ethylene Propylene Diene M-class rubber. It is used in a variety of plumbing applications due to it's compatibility with hot and cold water. It has good resistance to inorganic acids, water, salt, bleach and physical tearing. EDPM washers can withstand temperatures ranging from approximately -58°F to 300°F. and are non toxic. EDPM is the most universal and economical material used for seat washers and o-rings.

Q. "Why do some of the faucets have two different inlet sizes shown?"
A. Some of the faucets shown have two different sized inlets because they are able to fit two different sized pipes. For example: model 101P has 1/2" Female Pipe Thread (FPT) on the inside and 3/4" Male Pipe Thread (MPT) on the outside.
