Sparco Powertrack Motorized Zone Valve Specifications

Zone Valves

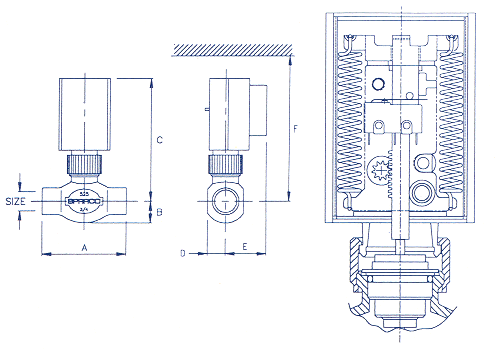

  Dimensions (in.)
Product
Number
Size
(in.)
Aux.
Switch
A B C D E F Wt (lbs.)
MZV525 3/4 no 3.3 0.8 4.7 0.7 1.6 5.5 1.7
MZV525E 3/4 yes 3.3 0.8 4.7 0.7 1.6 5.5 1.7
MZV526 1 no 3.8 1.0 4.7 0.8 1.6 5.5 2.0
MZV526E 1 yes 3.8 1.0 4.7 0.8 1.6 5.5 2.0
MZV527 1 1/4 no 8.3 1.0 4.7 0.8 1.6 5.5 2.2
MZV527E 1 1/4 yes 8.3 1.0 4.7 0.8 1.6 5.5 2.2
MZV 520RP - yes Operator for MZV 525E/526E/527E
MZV 521RP - no Operator for MZV 525/526/527
Maximum water pressure: 125 psi, 862 kPa. Maximum shutoff pressure: 3/4"- 20psi; 1" - 17 psi.
Maximum temperature: 240ºF (115ºC). Motor: 24 VAC, 60 Hz, 0.25 ampere.

click here to purchase Sparco Powertrack zone valves

click here to purchase parts for Sparco PowerTrack zone valves

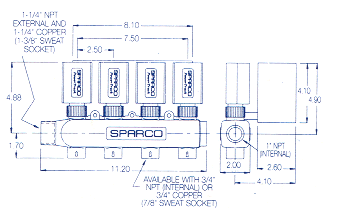

SparcoZone Multiple Zone Valve Specifications

Zone Valves

Product
Number
Description 1 1/4" MNPT/sweat
SZ3S1 3-zones • 3/4" sweat Without control
SZ4S1 4 zones • 3/4" sweat
SZ3T1 3 zones • 3/4" threaded
SZ4T1 4 zones • 3/4" threaded
S2Z3S3 3 zones • 3/4" sweat Includes control
with priority
S2Z4S3 4 zones • 3/4" sweat
S2Z3T3 3 zones • 3/4" threaded
SZtj24T3 4 zones • 3/4" threaded
SH4S 4 zones, header only • 3/4" sweat
SH4T 4 zones, header only • 3/4" threaded

Typical Installation

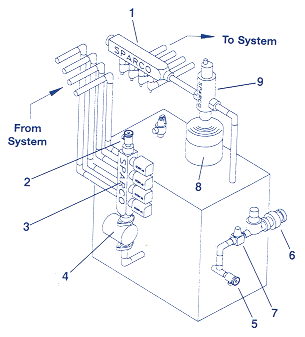

  1. Sparcozone header
  2. Drain valve for purging
  3. Sparcozone multiple zone valve
  4. Circulator
  5. Boiler Drain
  6. Sparco backflow preventer
  7. Sparco dual control
  8. Sparco diaphragm expansion tank
  9. Sparco power vent

click here to purchase parts for SparcoZone multiple zone valves


Frequently Asked Questions

Q. "My valve does not open when the thermostat closes?"
A.Check voltage between yellow and orange wires; voltage should be between 22 and 26 volts.

Q. "Why does my valve chatter when closing?"
A.It may have been installed backwards. Check for proper flow direction.
