Heavy Duty Commercial Gas Connectors
Find everything you need to connect your commercial gas-burning appliances to their source safely and effectively at PlumbingSupply.com®. These commercial restaurant range gas connector kits come complete with everything listed, including the gas connector in your choice of length. Individual fittings and connectors are also available for greater flexibility in your commercial kitchen.
These Deluxe Safety Kits are currently unavailable for 3-4 months
Deluxe Safety Quik® Gas Connector Kits
Safety Quik® Gas Connector Kits are made to order and non-returnable
Safety Quik® fitting is not for use in temperatures less than 32°F
Safety Quik® is a quick-disconnect protection valve designed for restaurant kitchens that combines the one-handed, push-to-connect functionality of the standard quick-disconnect coupling but includes a patented safety system that protects you, your business and your staff. The combined 'on-off' valve and quick disconnect means that users cannot accidentally turn on the gas while the appliance is disconnected from the supply line. It also prevents the hose from being disconnected whenever gas is flowing. With the Safety Quik®, gas connector cannot be disconnected until the valve is shut-off, and the valve cannot be opened until the gas connector is attached. Thermal shutoff at temperatures in excess of 350°F for your safety.
Safety System Gas Connector Kits With Safety Quik® & Double SwivelMAX®
Blue Hose Gas Connector
Safety Quik® Valve
SwivelMAX® Fittings (2)
Restraining Cable & Hardware
Related Items & Accessories
BTU Flow Capacities For Natural Gas
(BTU per hour Natural Gas 0.64 specific gravity @ 0.5" water column pressure drop)
Safety System Moveable Gas Connectors
| Model # |
I.D. |
BTU Rating |
| 12" |
24" |
36" |
48" |
60" |
72" |
| 1650B, 1650BP |
1/2" |
152,000 |
150,000 |
120,000 |
106,000 |
93,000 |
87,000 |
| 1650BQ, BPQ, BPCF |
1/2" |
98,000 |
87,000 |
77,000 |
68,000 |
60,000 |
55,000 |
| 1675B, 1675BP |
3/4" |
326,000 |
291,000 |
256,000 |
225,000 |
198,000 |
175,000 |
| 1675BQ, BPQ, BPCF |
3/4" |
260,000 |
232,000 |
218,000 |
180,000 |
158,000 |
139,000 |
| 16100B, 16100BP |
1" |
652,000 |
582,000 |
512,000 |
451,000 |
397,000 |
350,000 |
| 16100BQ, BPQ, BPCF |
1" |
425,000 |
414,000 |
379,000 |
334,000 |
294,000 |
279,000 |
| 16125B, 16125BP |
1-1/4" |
1,204,000 |
1,075,000 |
946,000 |
833,000 |
733,000 |
645,000 |
| 16125BQ, BPQ |
1-1/4" |
783,000 |
699,000 |
615,000 |
541,000 |
476,000 |
419,000 |
Safety System Moveable Gas Connectors with Safety Quik® & SwivelMAX® Fittings
| Model # |
I.D. |
BTU Rating |
| 12" |
24" |
36" |
48" |
60" |
72" |
| 1650BPQS, BPCFS |
1/2" |
92,000 |
81,000 |
72,000 |
63,000 |
56,000 |
51,000 |
| 1650BPQ2S, BPCF2S |
1/2" |
88,000 |
77,000 |
69,000 |
60,000 |
54,000 |
48,000 |
| 1675BPQ2, BPCFS |
3/4" |
242,000 |
216,000 |
203,000 |
167,000 |
147,000 |
130,000 |
| 1675BPQ2S, BPCF2S |
3/4" |
230,000 |
205,000 |
193,000 |
160,000 |
140,000 |
124,000 |
| 16100BPQS, BPCFS |
1" |
396,000 |
385,000 |
353,000 |
310,000 |
274,000 |
260,000 |
| 16100BPQ2S, BPCF2S |
1" |
377,000 |
366,000 |
336,000 |
295,000 |
261,000 |
247,000 |
| 16125BPQS |
1-1/4" |
556,000 |
535,000 |
491,000 |
482,000 |
463,000 |
460,000 |
| 16125BPQ2S |
1-1/4" |
482,000 |
472,000 |
461,000 |
449,000 |
441,000 |
440,000 |
Stationary Gas Connectors
| Model # |
I.D. |
BTU Rating |
| 12" |
24" |
36" |
48" |
60" |
72" |
| 1650NPFS |
1/2" |
152,000 |
150,000 |
120,000 |
106,000 |
93,000 |
86,000 |
| 1675NPFS |
3/4" |
326,000 |
291,000 |
256,000 |
225,000 |
198,000 |
175,000 |
| 16100NPFS |
1" |
652,000 |
582,000 |
512,000 |
451,000 |
397,000 |
350,000 |
| 16125NPFS |
1-1/4" |
1,204,000 |
1,075,000 |
946,000 |
833,000 |
733,000 |
645,000 |
SwivelMax® Fitting
| Model # |
I.D. |
BTU Rating |
| SM50 |
1/2" |
190,000 |
| SM75 |
3/4" |
229,000 |
| SM100 |
1" |
457,000 |
| SM125 |
1-1/4" |
1,101,000 |
Safety Quik® QDV Fitting
| Model # |
I.D. |
BTU Rating |
| CF-50 |
1/2" |
111,000 |
| CF-75 |
3/4" |
237,000 |
| CF-100 |
1" |
360,000 |
Frequently Asked Questions
Q. "What is Safety Quik®?"
A. Safety Quik® is the first and only Quick Disconnect Valve combination fitting. It meets operational and safety needs of commercial kitchens, and the food service industry. With SafetyQuik® the connector cannot be disconnected until the gas valve is shut off, and can not be opened until the gas connector is attached.

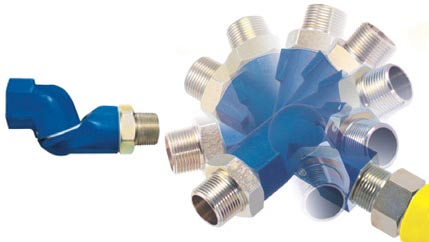

Q. "What is SwivelMAX®?"
A. SwivelMAX® allows 360-degree multi-plane movement, meaning movement is possible back-and-forth, side-to-side, and at various angles, reducing stress on the hose and maximizing performance, mobility and space in the production area since equipment can move closer to the wall. Overall, decreasing stress gives you a safer gas connection.
Q. "What is SnapFast®?"
A. SnapFast® incorporates a unique push-to-connect technology that allows for one-handed quick-disconnecting of equipment gas lines. If you are purchasing a Safety Quik®, SnapFast® is not necessary.
