Slimline Bedpan Washing System

By Sloan

Sloan is a leader in the manufacturing of commercial products known for providing smart, clean and sustainable restroom solutions. The bedpan washing systems shown below are just a small example of the quality craftsmanship the Sloan company is known for. Let PlumbingSupply.com® be your source for Sloan products, along with thousands of other plumbing-related products!

ADA Compliant Slimline Royal Bedpan Washers
Efficient - Compact - Versatile

  • Reduces hours and expense of operating and maintaining centralized bedpan washing unit
  • Thoroughly cleans and rinses bedpans in seconds
  • Fixed spray arm position helps prevent water from spilling onto the floor that can occur with hose sprays
  • Reduces chances of cross-contamination
  • Presents a leaner, more aesthetic installation, reducing possible bacteria growth on hidden and hard-to-reach surfaces found on the other bedpan washer units
  • Eliminates need for unsanitary hose sprays AND the additional housekeeping that hoses require, in additional to potential slipping by patients
  • Integral vacuum breaker simplifies water supply rough-in
  • First and only bedpan washer to incorporate patented one-piece construction body design, maintaining the spray arm in an upright position
  • Valve body, stop body, diverter body and diverter pivot made from brass casting using semi-red brass for durability
  • "O" ring design of pivot with counter balance spring provides long life and easy maintenance
  • ADA Compliant when installed correctly according to manufacturer

Model Description Price & Quantity

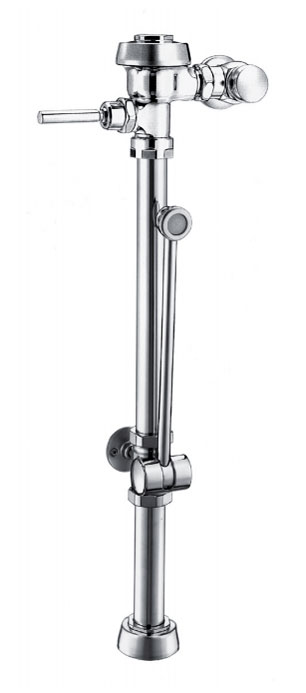

BPW-1100 Slimline Royal Bedpan Washer - Low Consumption 1.6gpf $613.90

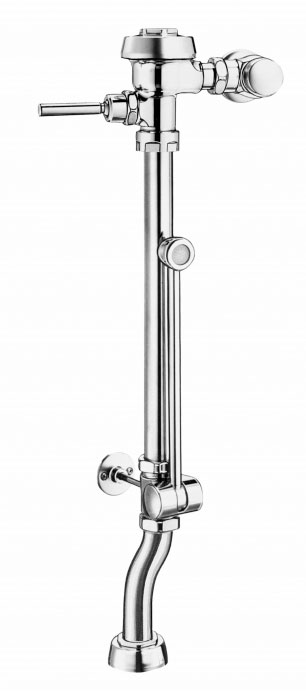

BPW-1150 Slimline Royal Bedpan Washer - Low Consumption 1.6gpf
Offset flush tube and flush connection for clearance around grab bar installations
$633.65

- OR - View Cart

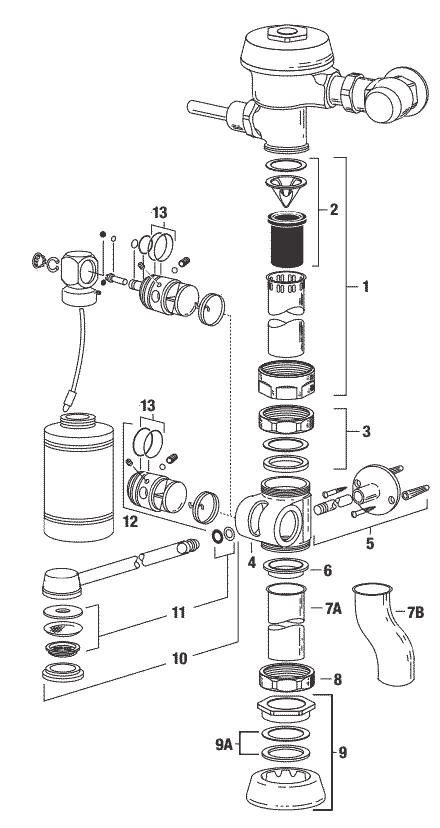

Replacement/Repair Parts For Slimline Bedpan Washers
For Models BPW-1100 (Straight) & BPW-1150 (Offset)

No. Description Price & Quantity
#1 1-1/2" x 21-1/2" CP Vacuum Breaker $42.42
1-1/2" x 13-1/2" CP Vacuum Breaker
(ADA Height)
$40.48
1-1/2" x 21-1/2" CP Vacuum Breaker
with 2" offset (for model BPW-1150)
$134.28

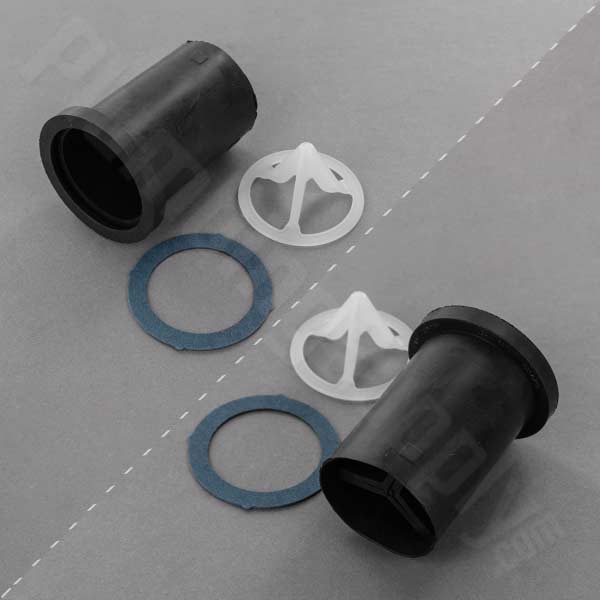

#2 Vacuum Breaker Repair Kit $5.79
#3 1-1/2" Slip Joint Coupling - Chrome $9.83
#4 Diverter Valve Body $81.58
#5 Wall Support Kit $45.71
#6 Outlet Tube Gasket - for flanged tubes only $2.25
#7A Outlet Tube - straight $15.47
#7B Outlet Tube - with 1-1/2" offset
(for model BPW-1150)
$65.00
#8 1-1/2" Coupling Nut $6.16

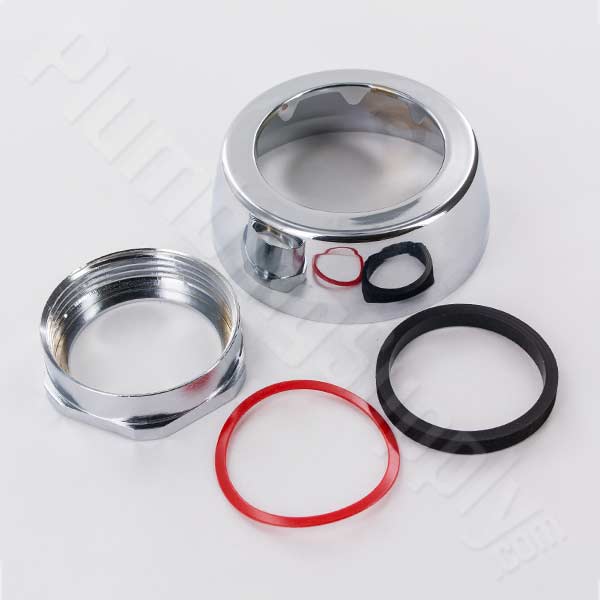

#9 1-1/2" Spud Coupling Assembly $18.06
#9A See Slip Joint Gaskets and Rings Below
#10 12" Spray Arm Replacement Kit $70.02
Short Spray Arm Replacement Kit - for use with #7B
(for model BPW-1150)
$70.13
#11 Spray Arm Repair Kit $9.84
#12 Pivot Replacement Kit $57.93
#13 O-Ring Piston - 2 required for repair (6 per package) $2.97
  Diverter Valve Assembly and 12" Spray Arm
includes: #3, #4, #8, #10 & #12
$259.95
  Handle Assembly CP (ADA Compliant)
with Sani-Guard
$42.69

- OR - View Cart

Bedpan Washer Diverter Rebuild Kits

Description Includes Price & Quantity
Diverter Rebuild Kit Outlet Tube Gasket (#6), Spray Arm Repair Kit (#11),
& all items in Pivot Replacement Kit (#12) except Pivot
$13.65

- OR - View Cart

Item #9A - Slip Joint Gaskets & Rings

Size Description Price & Quantity
1-1/2" Red Friction Ring $1.12
Black Slip Joint Gasket $2.18
1-1/4" Red Friction Ring $1.11
Black Slip Joint Gasket $2.29
Rigid Seat (rubber over brass) $4.21
1" Red Friction Ring $1.13
Black Slip Joint Gasket $2.22
3/4" Red Friction Ring $1.11
Black Slip Joint Gasket $2.23

- OR - View Cart

Bedpan Washers Related Items
