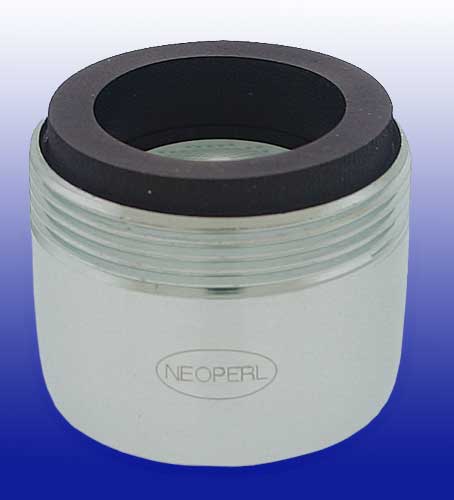

Water Saving Ultra Low Flow Aerators

by Neoperl®

These low-flow aerators can be used to quickly and easily replace your existing faucet aerators to convert your water wasting faucets into environmentally friendly, water saving faucets. If the water flow rate from your faucet is more than 1.5 gpm (gallons per minute), you should replace your aerator with a more high-efficiency water flow rate aerator to not only reduce water waste but to save you money.
water saving aerator
These Water Saving Aerators features:
  • High precision flow aerators for drinking water conservation
  • Proven first class quality construction and plating
  • Simple, low cost faucet flow transformation for optimum water usage
  • Ultimate low flow rates of 0.35 gallon per minute
  • Ultra low flow rates of 0.50 gallon per minute
Note: Tankless water heaters require a minimum flow rate in order to turn on and heat the water. When deciding which aerator to use, choose an aerator with the correct flow rate to allow your tankless water heater to activate properly.

Choosing the Right Aerator

Image of Male threads versus Female threads
Aerator size comparison

1. Determine whether your faucet spout is female or male threaded. Female-threaded spouts have their threads inside the end of the spout; male threads are found on the outside of the spout. If your faucet has female threads, you'll need a male threaded aerator. If your faucet has male threads, you'll need a female threaded aerator.

2. Now, you'll need to find out what size aerator you require. The easiest way to do so is by grabbing some spare change: a quarter, nickel, and dime. You'll compare these coins to the size of your existing aerator (or the outlet of the faucet spout itself).

  • A Regular/Standard size aerator (aka 15/16" x 27 thread Male or 55/64" x 27 thread Female) will be roughly the diameter of a quarter
  • A Junior size aerator (aka 13/16" x 27 thread Male or 3/4" x 27 thread Female) will be roughly the diameter of a nickel
  • A "Tom Thumb" size aerator (aka M18 x 1 thread Male or M16 x 1 thread Female) will be roughly the diameter of a dime

Ultimate Low Flow 0.35 GPM Aerators
(approximately 10.7 seconds to fill 8oz glass)

Example Description Stream Price & Quantity

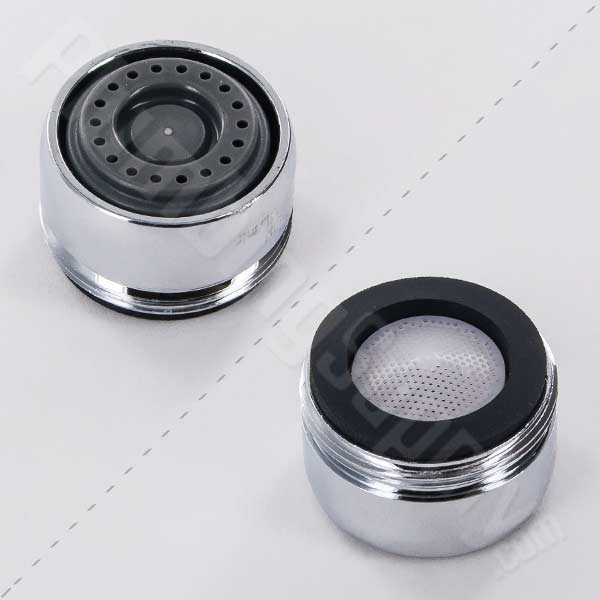

Regular Male Threaded .35 GPM Pressure Compensating Aerator 13-6000 Regular Male 15/16"-27 Thread - Chrome
Pressure Compensating - Model #13-6000-5
Spray Stream $2.95 Enter a quantity and

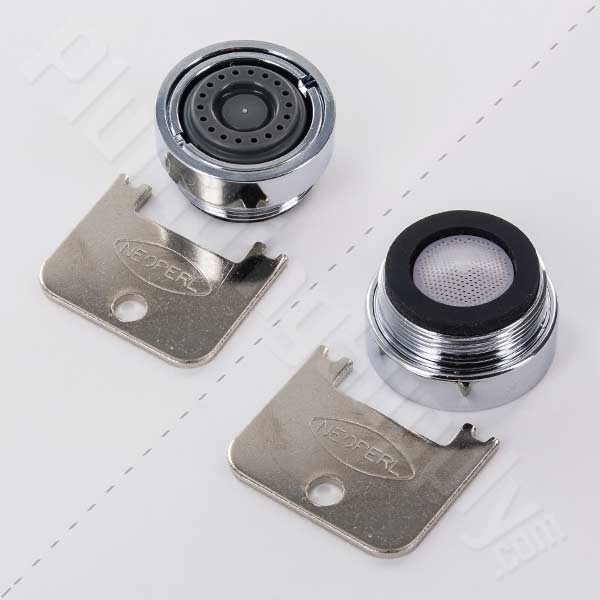

Regular Vandal Proof Male Threaded .35 GPM Pressure Compensating Aerator 13-6040 Regular Male 15/16"-27 Threads - Chrome
Pressure Compensating - Vandal Proof - Model #13-6040-5
Spray Stream $6.20 Enter a quantity and

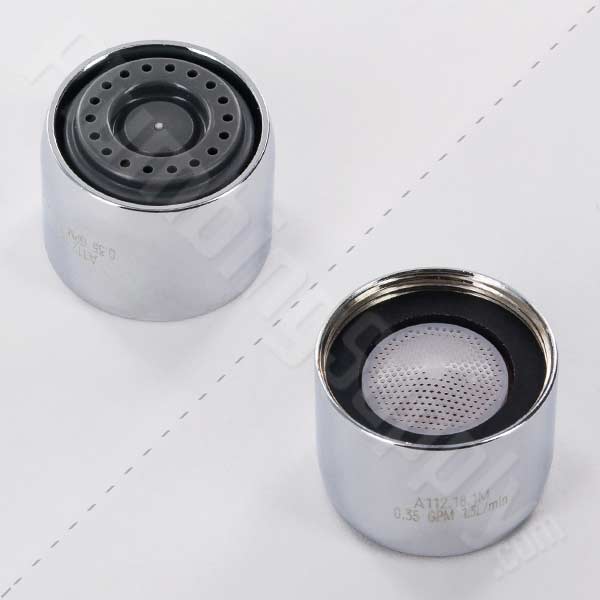

Regular Female Threaded .35 GPM Pressure Compensating Aerator 13-6100 Regular Female 55/64"-27 Thread - Chrome
Pressure Compensating - Model #13-6100-5
Spray Stream $2.97 Enter a quantity and

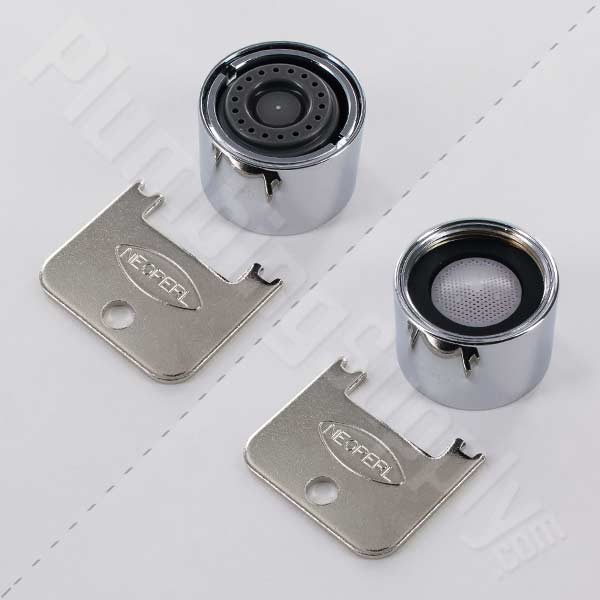

Regular Vandal Proof Female Threaded .35 GPM Pressure Compensating Aerator 13-6140 Regular Female 55/64"-27 Threads - Chrome
Pressure Compensating - Vandal Proof - Model #13-6140-5
Spray Stream $6.17 Enter a quantity and

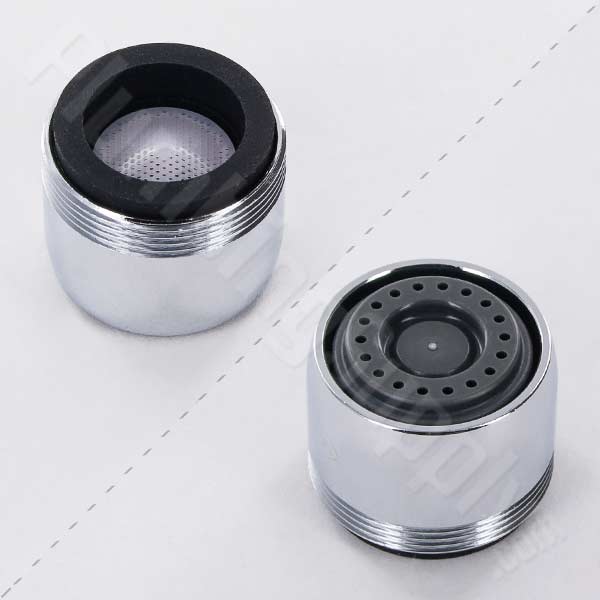

Regular Dual Threaded .35 GPM Pressure Compensating Aerator 13-6200 Regular Dual (Male 15/16"-27 x Female 55/64"-27) Threads - Chrome
Pressure Compensating - Model #13-6200-5
Spray Stream $3.02 Enter a quantity and

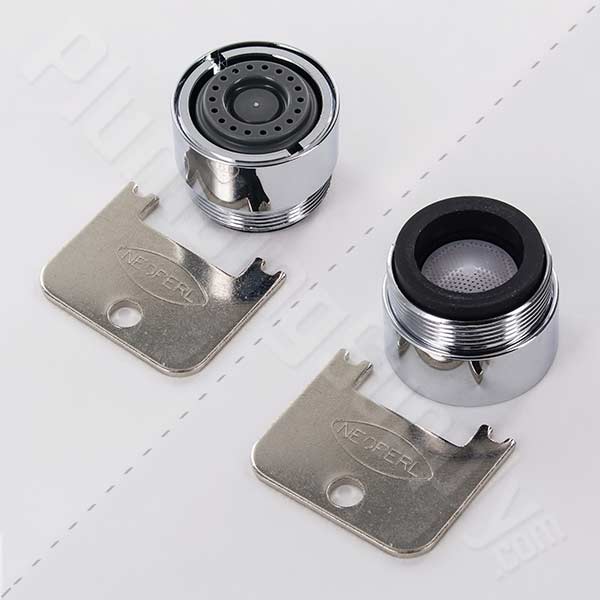

Regular Vandal Proof Dual Threaded .35 GPM Pressure Compensating Aerator 13-6260 Regular Dual (Male 15/16"-27 x Female 55/64"-27) Threads - Chrome
Pressure Compensating - Vandal Proof - Model #13-6260-5
Spray Stream $6.72 Enter a quantity and

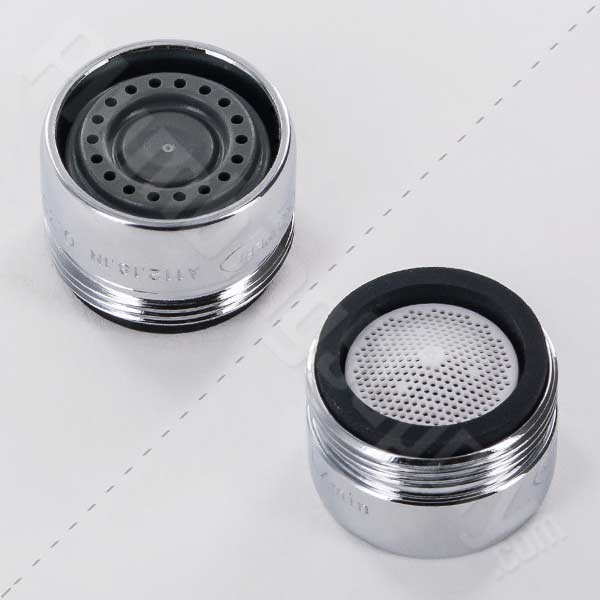

Junior Male Threaded .35 GPM Pressure Compensating Aerator 13-6700 Junior Male 13/16"-27 Thread - Chrome
Pressure Compensating - Model #13-6700-5
Spray Stream $3.31 Enter a quantity and

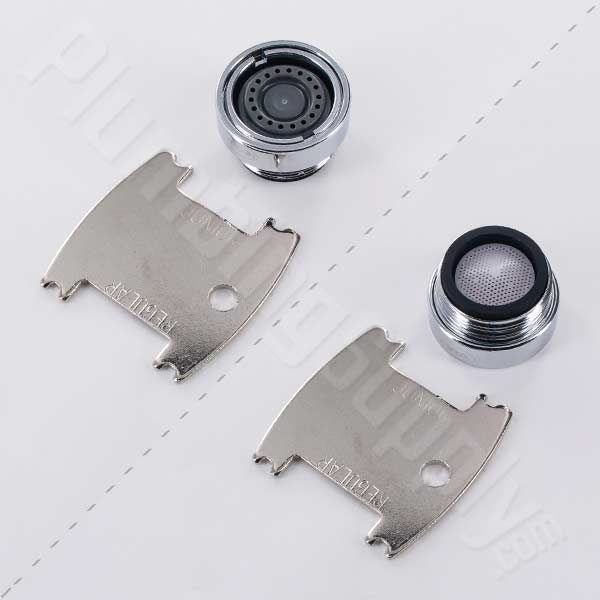

Junior Vandal Proof Male Threaded .35 GPM Pressure Compensating Aerator 13-6740 Junior Male 13/16"-27 Threads - Chrome
Pressure Compensating - Vandal Proof - Model #13-6740-5
Spray Stream $6.93 Enter a quantity and

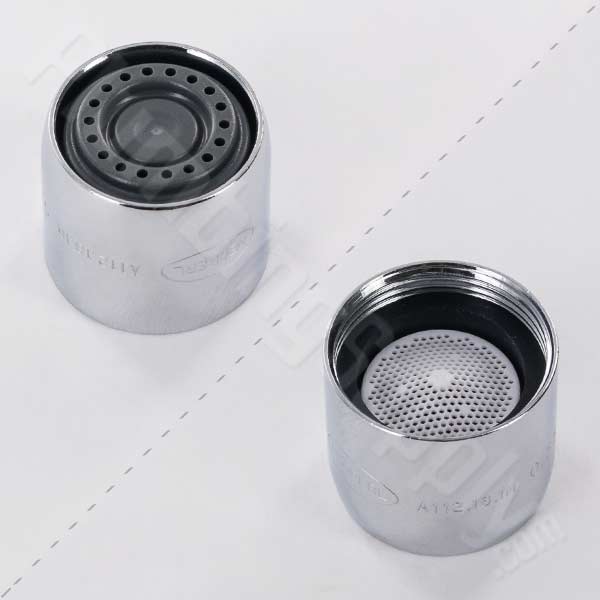

Junior Female Threaded .35 GPM Pressure Compensating Aerator 13-6800 Junior Female 3/4"-27 Thread - Chrome
Pressure Compensating - Model #13-6800-5
Spray Stream $3.33 Enter a quantity and

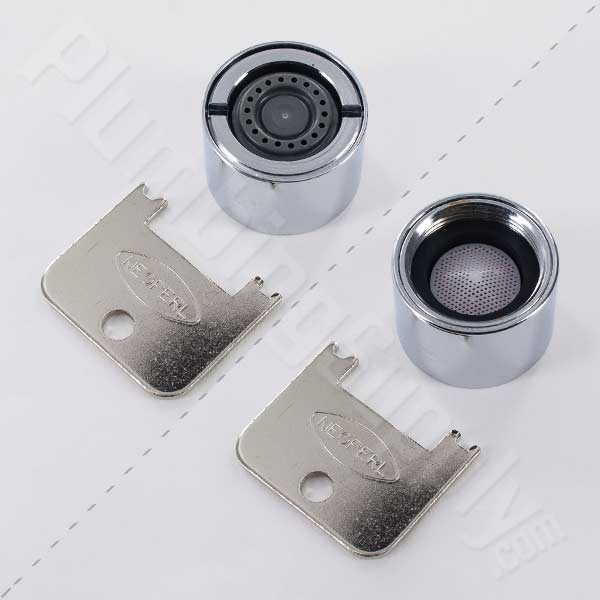

Junior Vandal Proof Female Threaded .35 GPM Pressure Compensating Aerator 13-6840 Junior Female 3/4"-27 Threads - Chrome
Pressure Compensating - Vandal Proof - Model #13-6840-5
Spray Stream $7.00 Enter a quantity and

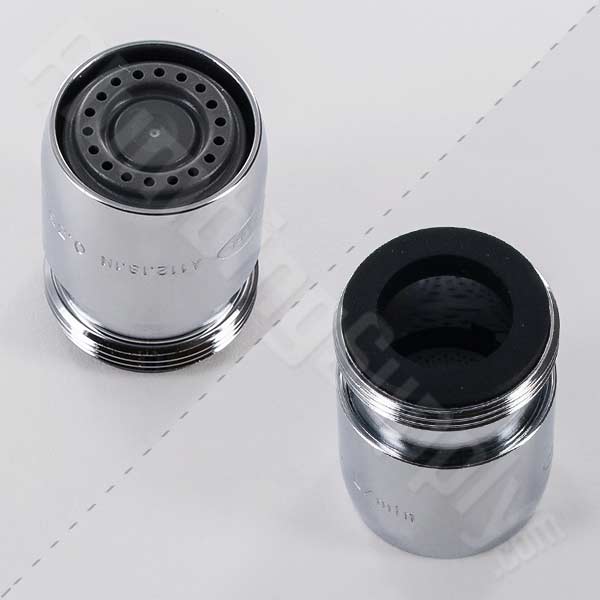

Junior Dual Threaded .35 GPM Pressure Compensating Aerator 13-6580 Junior Dual (Male 13/16"-27 x Female 3/4"-27) Threads - Chrome
Pressure Compensating - Model #13-6580-5
Spray Stream $4.37 Enter a quantity and
Order 6 or more of the same item for greater savings!
Or order 50 or more of the same item for even greater savings!!!
Pricing discounts will be shown in the shopping cart.

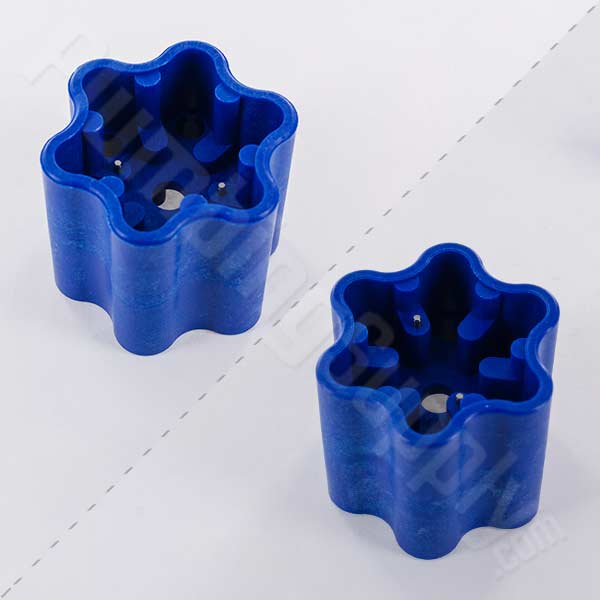

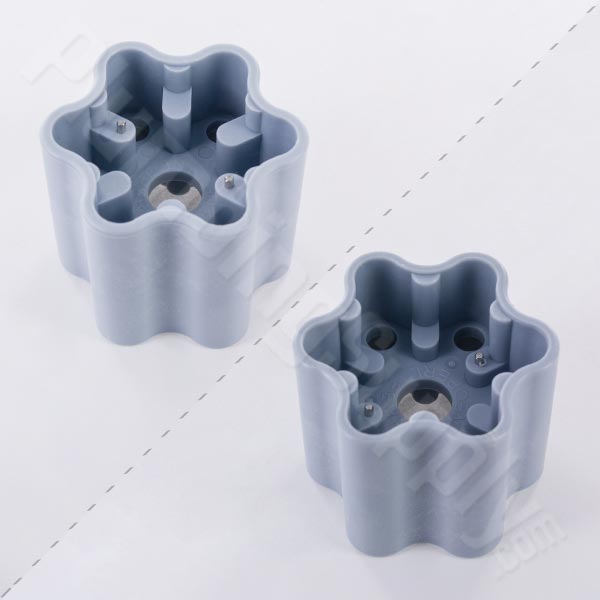

Comfort Wrench for easy installation & removal of Junior size vandal-proof aerators - $2.89
Comfort Wrench for easy installation & removal of Junior size vandal-proof aerators - $2.89
Comfort Wrench for easy installation & removal of Regular & Junior size aerators - $3.19
Not for use with vandal-proof aerators

Ultra Low Flow 0.5 GPM Aerators
(approximately 7.5 seconds to fill 8oz glass)

Example Description Stream Price & Quantity

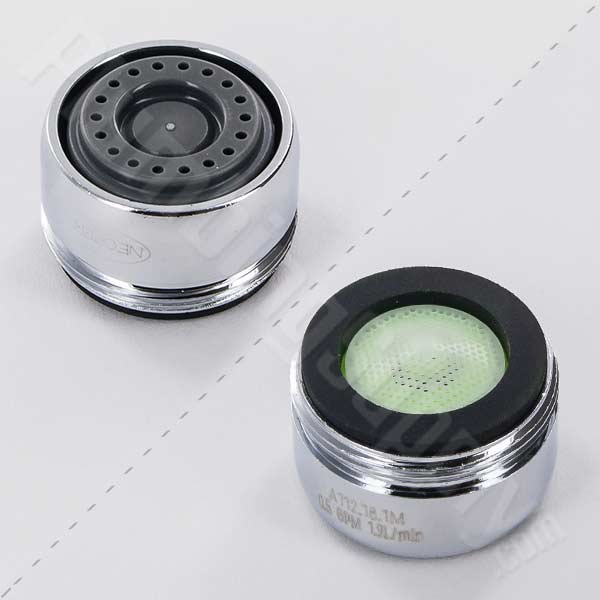

Regular Male Threaded .5 GPM Pressure Compensating Aerator 10-2000 Regular Male 15/16"-27 Thread - Chrome
Pressure Compensating - Model #10-2000-5
Spray Stream $2.90 Enter a quantity and

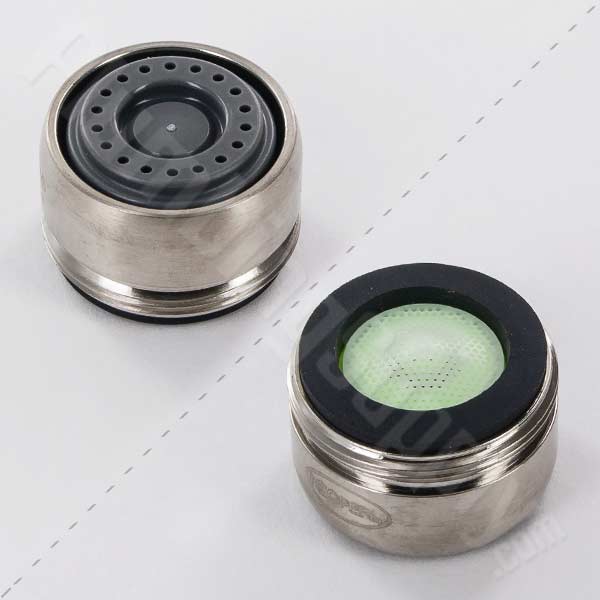

Regular Male Threaded .5 GPM Pressure Compensating Aerator 10-2020 Regular Male 15/16"-27 Thread - Brushed Nickel
Pressure Compensating - Model #10-2020-5
Spray Stream $4.22 Enter a quantity and

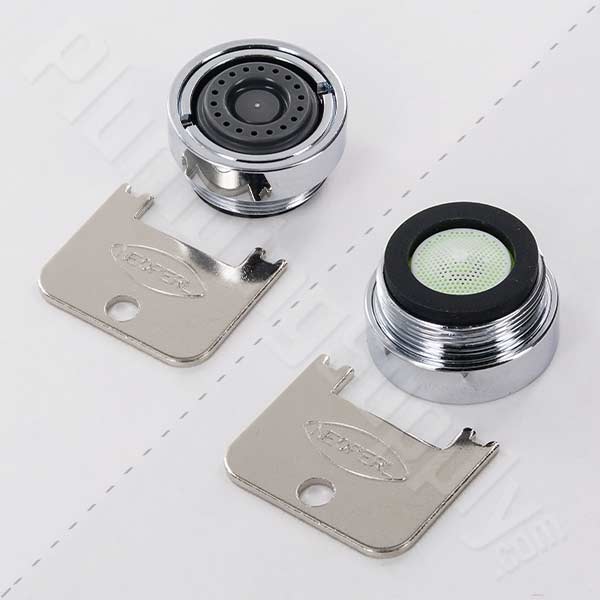

Regular Vandal Proof Male Threaded .5 GPM Pressure Compensating Aerator 10-2040 Regular Male 15/16"-27 Threads - Chrome
Pressure Compensating - Vandal Proof - Model #10-2040-5
Spray Stream $6.17 Enter a quantity and

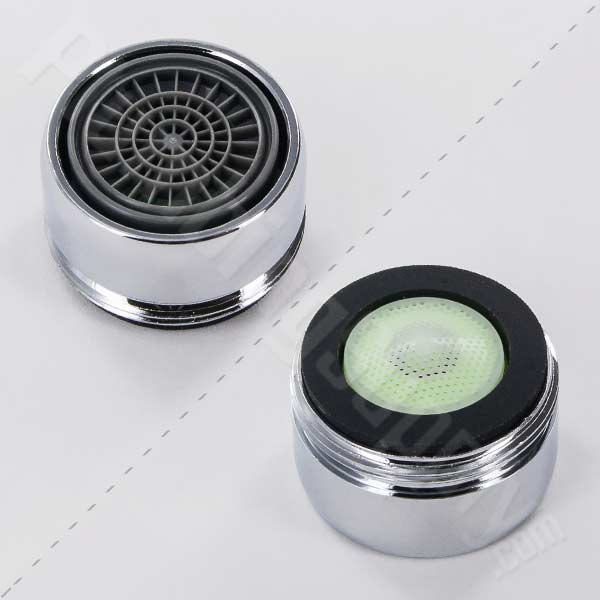

Regular Male Threaded .5 GPM Pressure Compensating Aerator 31-2000 Regular Male 15/16"-27 Thread - Chrome
Pressure Compensating - Screenless Cascade® Construction - Model #31-2000-5
Aerated Stream $4.42 Enter a quantity and

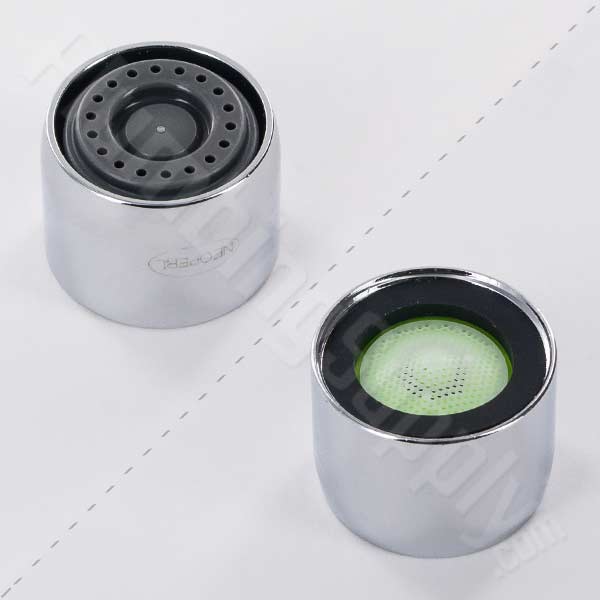

Regular Female Threaded .5 GPM Pressure Compensating Aerator 10-2100 Regular Female 55/64"-27 Thread - Chrome
Pressure Compensating - Model #10-2100-5
Spray Stream $2.91 Enter a quantity and

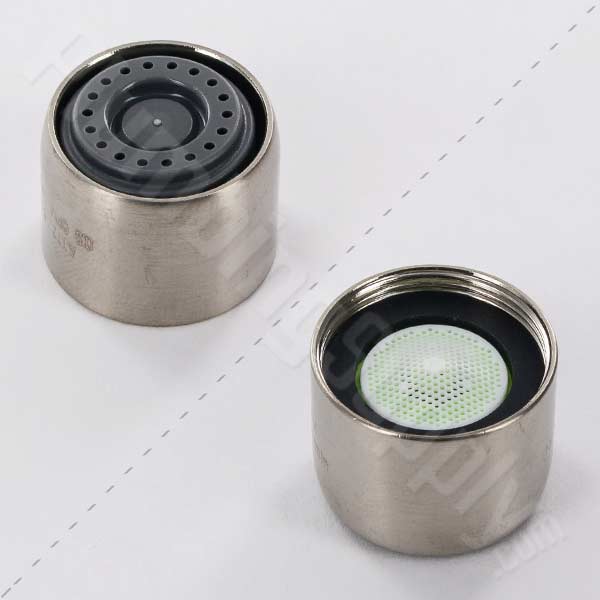

Regular Female Threaded .5 GPM Pressure Compensating Aerator 10-2120 Regular Female 55/64"-27 Thread - Brushed Nickel
Pressure Compensating - Model #10-2120-5
Spray Stream $4.25 Enter a quantity and

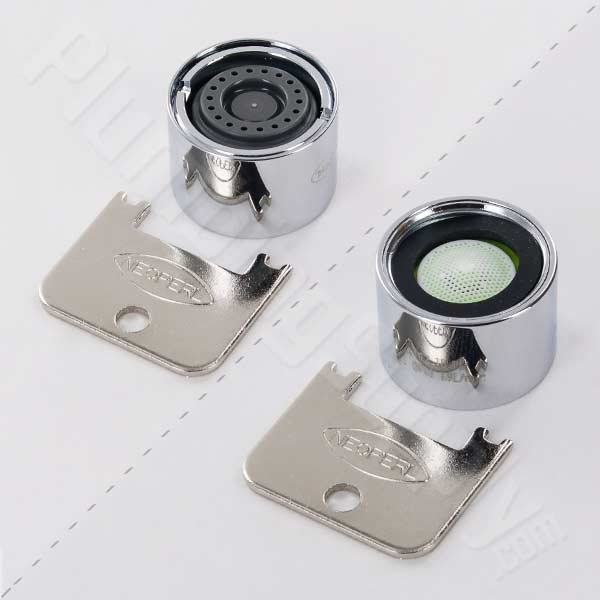

Regular Vandal Proof Female Threaded .5 GPM Pressure Compensating Aerator 10-2140 Regular Female 55/64"-27 Threads - Chrome
Pressure Compensating - Vandal Proof - Model #10-2140-5
Spray Stream $6.27 Enter a quantity and
Regular Female Threaded .5 GPM Pressure Compensating Aerator 31-2100 Regular Female 55/64"-27 Thread - Chrome
Pressure Compensating - Screenless Cascade® Construction - Model #31-2100-5
Aerated Stream $4.41 Enter a quantity and
Regular Dual Threaded .5 GPM Pressure Compensating Aerator 10-2200 Regular Dual (Male 15/16"-27 x Female 55/64"-27) Threads - Chrome
Pressure Compensating - Model #10-2200-5
Spray Stream $2.98 Enter a quantity and

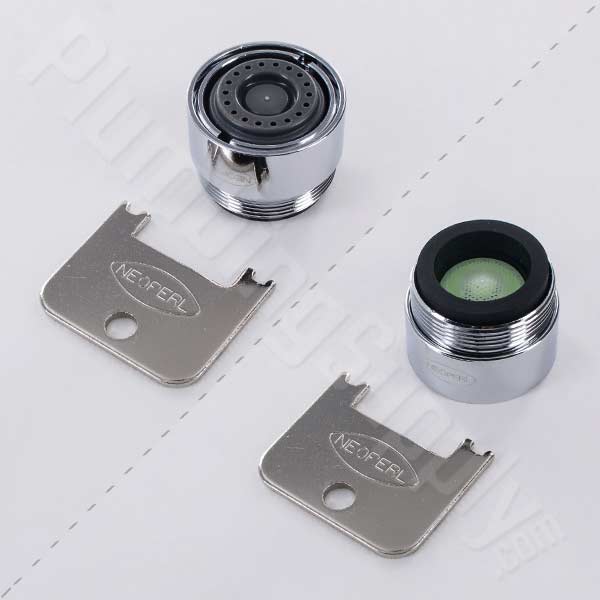

Regular Vandal Proof Dual Threaded .5 GPM Pressure Compensating Aerator 10-2260 Regular Dual (Male 15/16"-27 x Female 55/64"-27) Threads - Chrome
Pressure Compensating - Vandal Proof - Model #10-2260-5
Spray Stream $6.30 Enter a quantity and

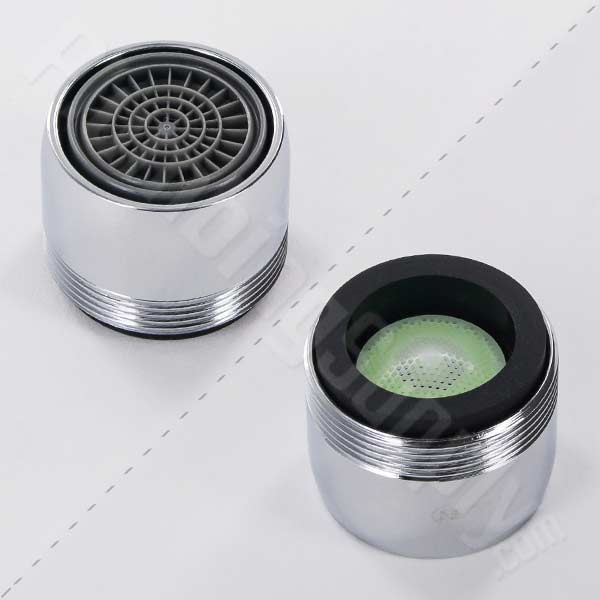

Regular Dual Threaded .5 GPM Pressure Compensating Aerator 10-2200 Regular Dual (Male 15/16"-27 x Female 55/64"-27) Threads - Chrome
Pressure Compensating - Screenless Cascade® Construction - Model #31-2200-5
Aerated Stream $4.70 Enter a quantity and

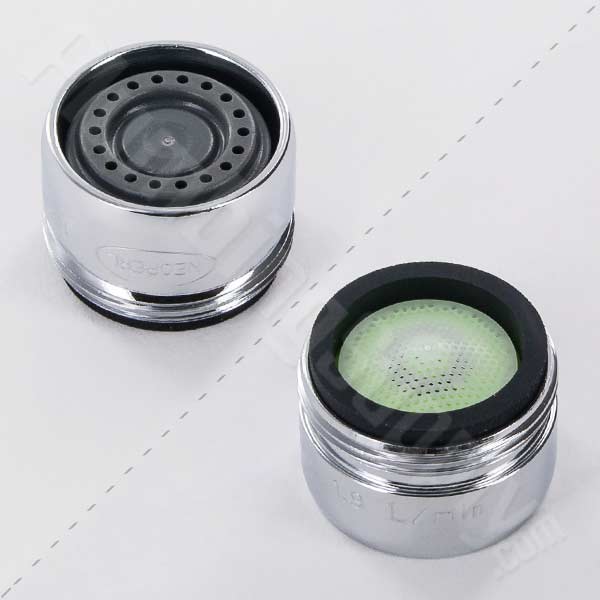

Junior Male Threaded .5 GPM Pressure Compensating Aerator 10-2700 Junior Male 13/16"-27 Thread - Chrome
Pressure Compensating - Model #10-2700-5
Spray Stream $3.25 Enter a quantity and

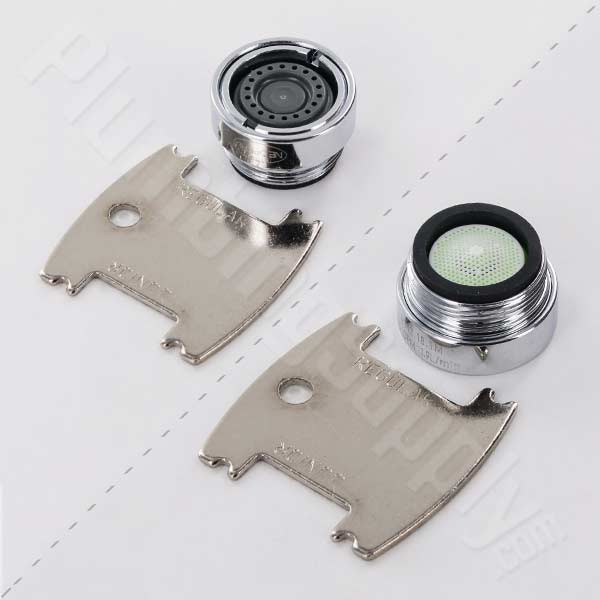

Junior Vandal Proof Male Threaded .5 GPM Pressure Compensating Aerator 10-2740 Junior Male 13/16"-27 Threads - Chrome
Pressure Compensating - Vandal Proof - Model #10-2740-5
Spray Stream $6.90 Enter a quantity and

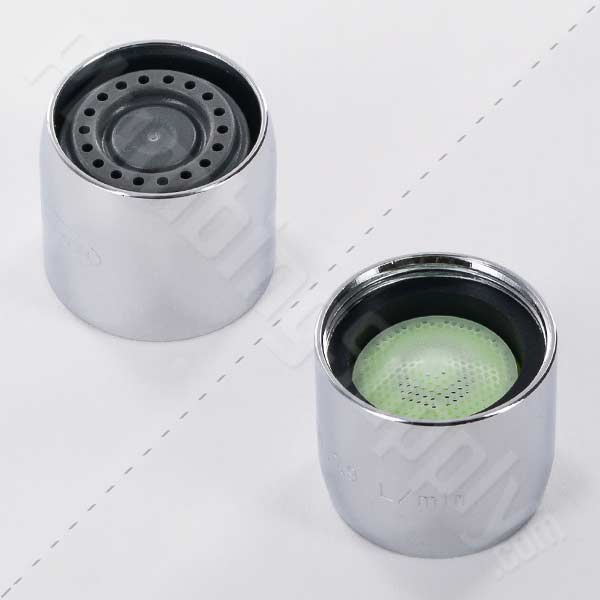

Junior Female Threaded .5 GPM Pressure Compensating Aerator 10-2800 Junior Female 3/4"-27 Thread - Chrome
Pressure Compensating - Model #10-2800-5
Spray Stream $3.28 Enter a quantity and

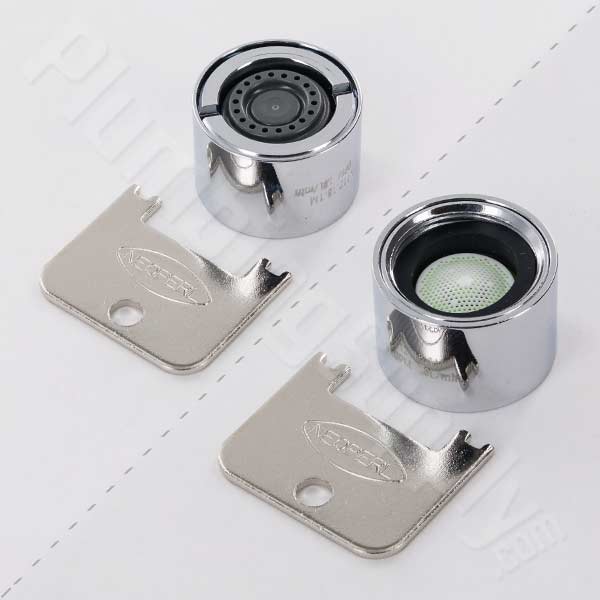

Junior Vandal Proof Female Threaded .5 GPM Pressure Compensating Aerator 10-2840 Junior Female 3/4"-27 Threads - Chrome
Pressure Compensating - Vandal Proof - Model #10-2840-5
Spray Stream $6.91 Enter a quantity and
Junior Vandal Proof Female "Chicago" Threaded .5 GPM Aerator 10-2850 Junior Female 13/16"-24 "Chicago" Threads - Chrome
Pressure Compensating - Vandal Proof - Model #10-2850-5
Spray Stream $6.92 Enter a quantity and
Order 6 or more of the same item for greater savings!
Or order 50 or more of the same item for even greater savings!!!
Pricing discounts will be shown in the shopping cart.
Comfort Wrench for easy installation & removal of Junior size vandal-proof aerators - $2.89
Comfort Wrench for easy installation & removal of Junior size vandal-proof aerators - $2.89
Comfort Wrench for easy installation & removal of Regular & Junior size aerators - $3.19
Not for use with vandal-proof aerators

Related Items & Information


What is an Aerated Stream?

Aerated Stream

Faucet Aerators introduce air into the water stream to produce a larger, fuller, whiter, softer and non-splashing water stream.
Applications:

  • Residential
  • Office Kitchen

What is a Laminar Stream?

Laminar Stream

Laminar stream straighteners produce a non-aerated, crystal clear and non-splashing water stream.
Applications:

  • Hospital
  • Daycare
  • Patient Care

What is a Spray Stream?

Spray Stream

Spray device is a multiple needle like laminar stream used when the flow rate is to low to provide a full coverage of the hands during washing.
Applications:

  • Public Restroom
  • Hospital Restrooms
