Bathtub Drains and Replacement Parts

by Watco

Replace your old, worn out waste and overflow assemblies or update the look of your remodeled bathroom with these stylish, durable replacements from PlumbingSupply.com®! Available in many beautiful finishes, these assemblies not only come complete, but also have replacement trim and working parts available should you need them down the road.


Complete Trip Lever Style Bathtub Waste And Overflows

Model 500-TL fits most tubs 14" - 16" high - 1-1/2" O. D. tubing
Model 550-TL fits most tubs up to 24" high - 1-1/2" O. D. tubing

This trip lever waste and overflow assembly features:
  • Designed for heavy duty use - ideal for hotels, motels and rental properties
  • Durable ABS or PVC tubular body
  • Brass constructed trip lever and faceplate
  • Metal strainer body works great with cast iron or plastic tubs

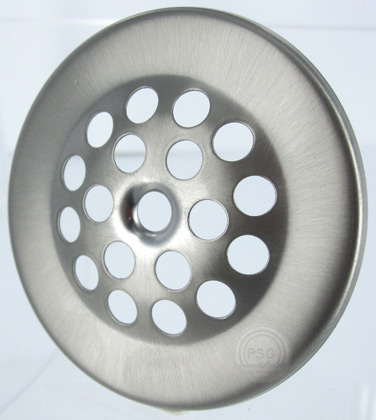

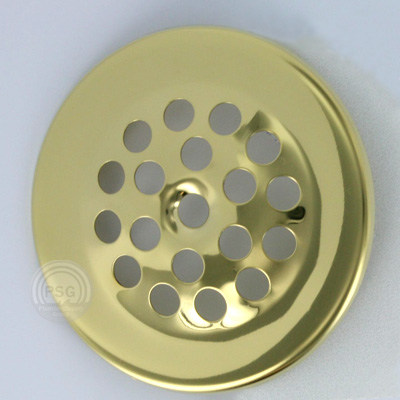

  • Strainer plate is flush with drain
  • Lift the trip lever 'up' to close and push 'down' to open drain
  • 1-1/2" drain body and drain ell thread size with 11-1/2 threads per inch
  • 1.865" outside thread diameter

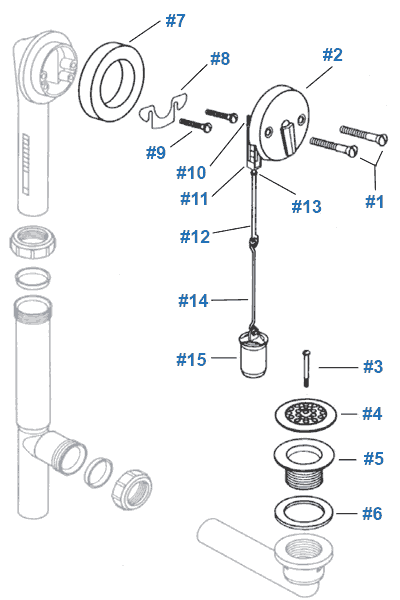

  • View all included parts
  • Click here for 500-TL rough-in dimensions

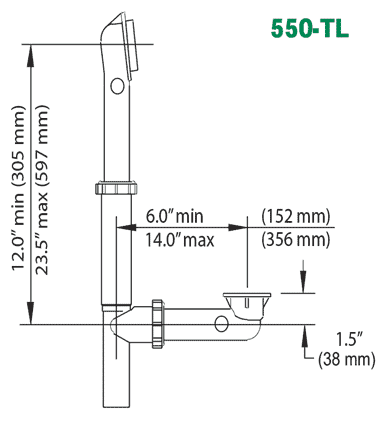

  • Click here for 550-TL rough-in dimensions

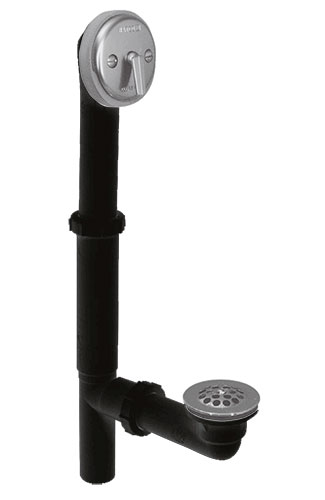

ABS - Model 500-TL

Model # Finish Price & Quantity
500-TL-ABS-CP Chrome $23.61
500-TL-ABS-PB Polished Brass $49.32
500-TL-ABS-BN Brushed Nickel $65.75

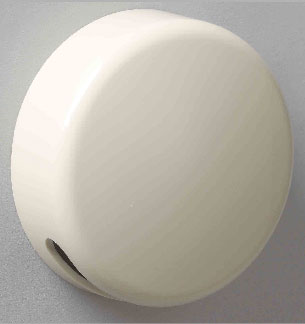

500-TL-ABS-BO Bone $49.60
500-TL-ABS-BS Biscuit $52.19
500-TL-ABS-BZ Oil Rubbed Bronze $54.76
500-TL-ABS-NP Polished Nickel $49.51
500-TL-ABS-CB Brushed Chrome $60.05
500-TL-ABS-WH White $46.13

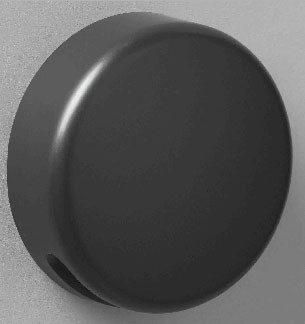

500-TL-ABS-WI Wrought Iron $70.68

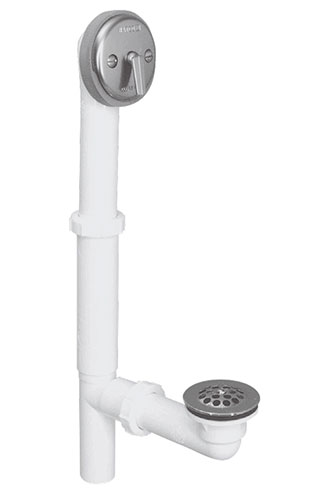

PVC - Model 500-TL

Model # Finish Price & Quantity
500-TL-PVC-CP Chrome $23.69
500-TL-PVC-PB Polished Brass $49.47
500-TL-PVC-BN Brushed Nickel $54.58
500-TL-PVC-BO Bone $49.71
500-TL-PVC-BS Biscuit $52.02
500-TL-PVC-BZ Oil Rubbed Bronze $54.59
500-TL-PVC-NP Polished Nickel $49.46
500-TL-PVC-CB Brushed Chrome $60.25
500-TL-PVC-WH White $46.36
500-TL-PVC-WI Wrought Iron $70.90

Need parts for this bathtub waste and overflow assembly? We've got them!

- OR - View Cart

ABS - Model 550-TL

Model # Finish Price & Quantity
550-TL-ABS-CP Chrome $31.17
550-TL-ABS-PB Polished Brass $69.61
550-TL-ABS-BN Brushed Nickel $77.51
550-TL-ABS-BO Bone $69.38
550-TL-ABS-BS Biscuit $69.57
550-TL-ABS-BZ Oil Rubbed Bronze $77.57
550-TL-ABS-NP Polished Nickel $69.32
550-TL-ABS-CB Brushed Chrome $81.58
550-TL-ABS-WH White $69.50
550-TL-ABS-WI Wrought Iron $139.73

PVC - Model 550-TL

Model # Finish Price & Quantity
550-TL-PVC-CP Chrome $31.16
550-TL-PVC-PB Polished Brass $69.39
550-TL-PVC-BN Brushed Nickel $77.80
550-TL-PVC-BO Bone $69.46
550-TL-PVC-BS Biscuit $69.32
550-TL-PVC-BZ Oil Rubbed Bronze $77.59
550-TL-PVC-NP Polished Nickel $69.59
550-TL-PVC-CB Brushed Chrome $81.62
550-TL-PVC-WH White $69.41
550-TL-PVC-WI Wrought Iron $139.96

Need parts for this bathtub waste and overflow assembly? We've got them!

- OR - View Cart

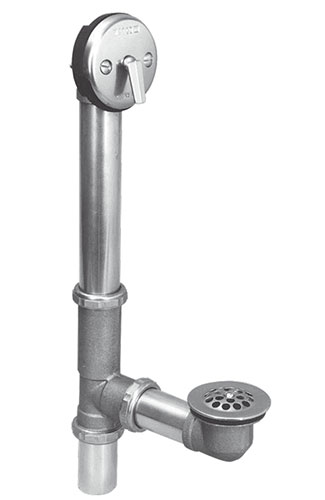

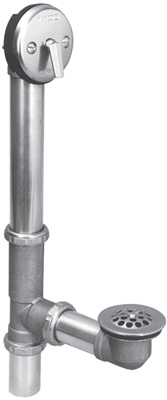

Complete Trip Lever Style Bathtub Waste And Overflow

Watco brass body trip lever waste and overflow
Models 501-TL & 502-TL fit most tubs 14" - 16" high - 1-1/2" O. D. tubing
Models 551-TL & 552-TL fit most tubs up to 24" high - 1-1/2" O. D. tubing

This trip lever waste and overflow assembly features:
  • Designed for heavy duty use - ideal for hotels, motels and rental properties
  • Brass constructed trip lever and faceplate
  • Metal strainer body works great with cast iron or plastic tubs
  • Models 501-TL & 551-TL have a heavy duty 17 gauge brass tubular body
  • Models 502-TL & 552-TL have a 20 gauge brass tubular body
  • Strainer plate is flush with drain
  • Lift trip lever 'up' to close and push 'down' to open drain
  • 1-1/2" drain body and drain ell thread size with 11-1/2 threads per inch
  • 1.865" outside thread diameter

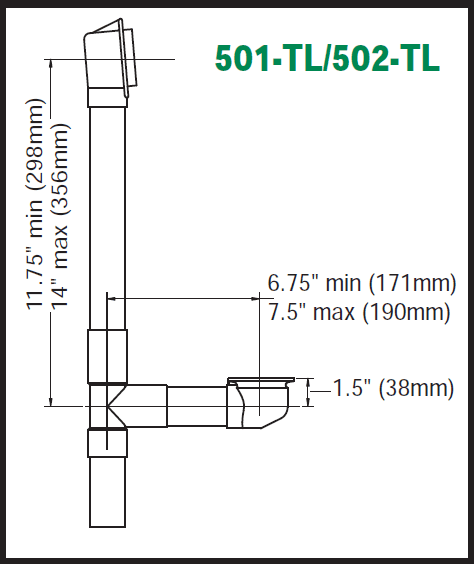

  • Click here for 501-TL/502-TL rough-in dimensions

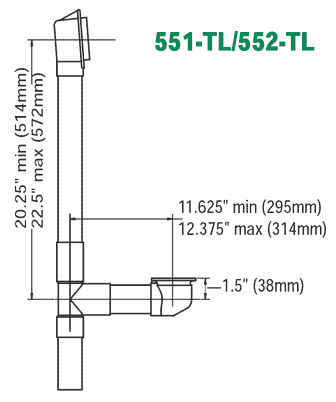

  • Click here for 551-TL/552-TL rough-in dimensions

17 Gauge Brass - Model 501-TL

Model # Finish Price & Quantity
501-TL-BRS-CP Chrome $79.95
501-TL-BRS-PB Polished Brass $116.95
501-TL-BRS-BN Brushed Nickel $114.63
501-TL-BRS-BO Bone $116.85
501-TL-BRS-BS Biscuit $117.14
501-TL-BRS-BZ Oil Rubbed Bronze $114.48
501-TL-BRS-NP Polished Nickel $122.85
501-TL-BRS-CB Brushed Chrome $133.15
501-TL-BRS-WH White $104.99
501-TL-BRS-WI Wrought Iron $167.17

20 Gauge Brass - Model 502-TL

Model # Finish Price & Quantity
502-TL-BRS-CP Chrome $73.28
502-TL-BRS-PB Polished Brass $111.15
502-TL-BRS-BN Brushed Nickel $109.08
502-TL-BRS-BO Bone $110.99
502-TL-BRS-BS Biscuit $111.27
502-TL-BRS-BZ Oil Rubbed Bronze $109.28
502-TL-BRS-NP Polished Nickel $117.16
502-TL-BRS-CB Brushed Chrome $127.85
502-TL-BRS-WH White $100.30
502-TL-BRS-WI Wrought Iron $160.87

Need parts for this bathtub waste and overflow assembly? We've got them!

- OR - View Cart

17 Gauge Brass - Model 551-TL

Model # Finish Price & Quantity
551-TL-BRS-CP Chrome $89.54
551-TL-BRS-PB Polished Brass $116.94
551-TL-BRS-BN Brushed Nickel $125.80
551-TL-BRS-BO Bone $117.27
551-TL-BRS-BS Biscuit $116.75
551-TL-BRS-BZ Oil Rubbed Bronze $125.88
551-TL-BRS-NP Polished Nickel $116.77
551-TL-BRS-CB Brushed Chrome $139.16
551-TL-BRS-WH White $117.33
551-TL-BRS-WI Wrought Iron $160.75

20 Gauge Brass - Model 552-TL

Model # Finish Price & Quantity
552-TL-BRS-CP Chrome $85.12
552-TL-BRS-PB Polished Brass $112.69
552-TL-BRS-BN Brushed Nickel $121.59
552-TL-BRS-BO Bone $112.42
552-TL-BRS-BS Biscuit $112.33
552-TL-BRS-BZ Oil Rubbed Bronze $121.06
552-TL-BRS-NP Polished Nickel $112.57
552-TL-BRS-CB Brushed Chrome $134.39
552-TL-BRS-WH White $112.19
552-TL-BRS-WI Wrought Iron $156.25

Need parts for this bathtub waste and overflow assembly? We've got them!

- OR - View Cart

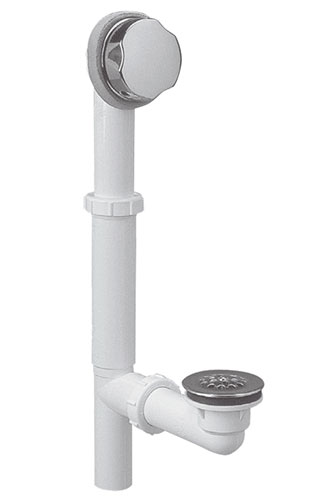

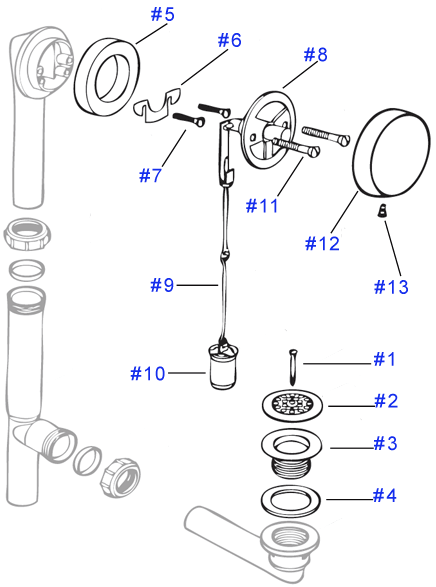

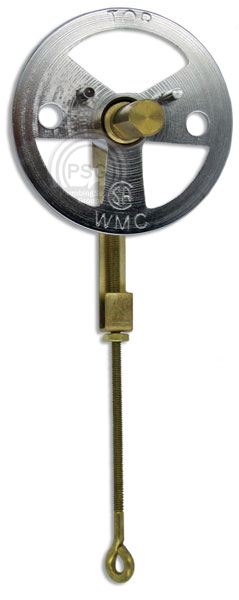

Complete Turn Style Bathtub Waste And Overflow

Model 500-TS fits most tubs 14" - 16" high - 1-1/2" O. D. tubing
Model 550-TS fits most tubs up to 24" high - 1-1/2" O. D. tubing

This turn style waste and overflow assembly features:
  • Designed for heavy duty use - ideal for hotels, motels and rental properties
  • Metal strainer body works great with cast iron or plastic tubs
  • Metal handle, faceplate and strainer body
  • Available with ABS or PVC tubular body
  • Slip jointed tubular body
  • Strainer plate is flush with drain

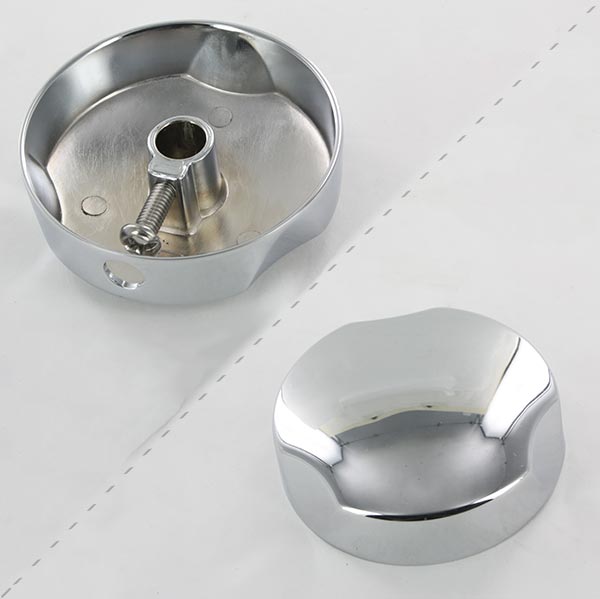

  • Turn overflow plate clockwise to close drain and counter-clockwise to open
  • 1-1/2" drain body and drain ell thread size with 11-1/2 threads per inch
  • 1.865" outside thread diameter

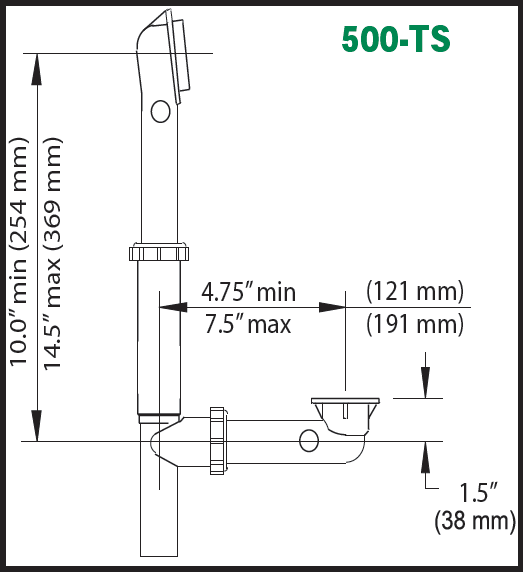

  • Click here for 500-TS rough-in dimensions

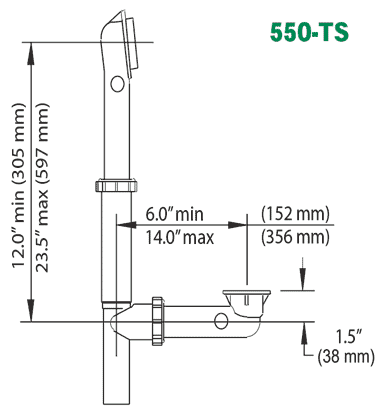

  • Click here for 550-TS rough-in dimensions

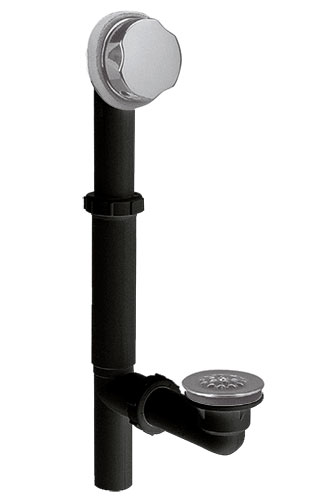

ABS - Model 500-TS

Model # Finish Price & Quantity
500-TS-ABS-CP Chrome $52.75
500-TS-ABS-PB Polished Brass $78.89
500-TS-ABS-BN Brushed Nickel $87.84
500-TS-ABS-BO Bone $78.83
500-TS-ABS-BS Biscuit $78.50
500-TS-ABS-BZ Oil Rubbed Bronze $83.72
500-TS-ABS-NP Polished Nickel $78.87
500-TS-ABS-CB Brushed Chrome $92.60
500-TS-ABS-WH White $78.51
500-TS-ABS-WI Wrought Iron $158.69

PVC - Model 500-TS

Model # Finish Price & Quantity
500-TS-PVC-CP Chrome $52.90
500-TS-PVC-PB Polished Brass $78.74
500-TS-PVC-BN Brushed Nickel $87.94
500-TS-PVC-BO Bone $78.59
500-TS-PVC-BS Biscuit $78.94
500-TS-PVC-BZ Oil Rubbed Bronze $88.09
500-TS-PVC-NP Polished Nickel $78.63
500-TS-PVC-CB Brushed Chrome $92.57
500-TS-PVC-WH White $78.50
500-TS-PVC-WI Wrought Iron $158.20

Need parts for this bathtub waste and overflow assembly? We've got them!

- OR - View Cart

ABS - Model 550-TS

Model # Finish Price & Quantity
550-TS-ABS-CP Chrome $56.27
550-TS-ABS-PB Polished Brass $79.10
550-TS-ABS-BN Brushed Nickel $87.36
550-TS-ABS-BO Bone $79.12
550-TS-ABS-BS Biscuit $79.10
550-TS-ABS-BZ Oil Rubbed Bronze $87.66
550-TS-ABS-NP Polished Nickel $79.40
550-TS-ABS-CB Brushed Chrome $91.78
550-TS-ABS-WH White $79.07
550-TS-ABS-WI Wrought Iron $149.57

PVC - Model 550-TS

Model # Finish Price & Quantity
550-TS-PVC-CP Chrome $56.31
550-TS-PVC-PB Polished Brass $79.06
550-TS-PVC-BN Brushed Nickel $87.18
550-TS-PVC-BO Bone $79.51
550-TS-PVC-BS Biscuit $79.37
550-TS-PVC-BZ Oil Rubbed Bronze $87.65
550-TS-PVC-NP Polished Nickel $79.33
550-TS-PVC-CB Brushed Chrome $91.68
550-TS-PVC-WH White $79.11
550-TS-PVC-WI Wrought Iron $149.46

Need parts for this bathtub waste and overflow assembly? We've got them!

- OR - View Cart

Heavy Duty Complete Turnstyle Bathtub Waste And Overflow

Model 600-TS fits most tubs 14" - 16" high - 1-1/2" O. D. tubing
Model 650-TS fits most tubs up to 24" high - 1-1/2" O. D. tubing

This turnstyle waste and overflow assembly features:
  • Designed for heavy duty use - ideal for hotels, motels and rental properties
  • Metal strainer body works great with cast iron or plastic tubs
  • Brass constructed trip lever and faceplate
  • Turn overflow plate clockwise to close drain and counter-clockwise to open
  • Available with ABS or PVC Sch.40 (Solvent weld assembly)
  • The look of a cable operated overflow without the potential for difficult, messy behind the wall repair
  • Strainer plate is flush with drain
  • 1-1/2" drain body and drain ell thread size with 11-1/2 threads per inch
  • 1.865" outside thread diameter
  • Click here for 600-TS rough-in dimensions

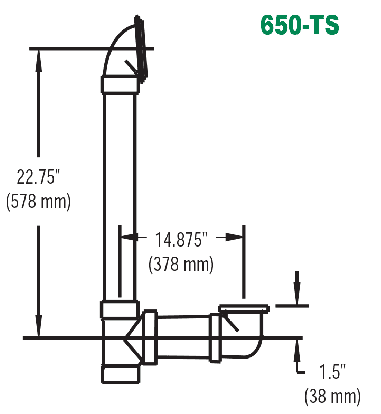

  • Click here for 650-TS rough-in dimensions

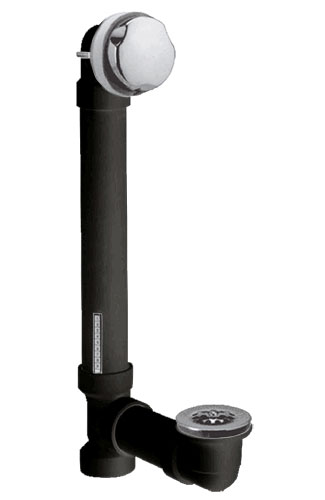

Sched. 40 ABS - Model 600-TS

Model # Finish Price & Quantity
600-TS-ABS-CP Chrome $68.33
600-TS-ABS-PB Polished Brass $94.03
600-TS-ABS-BN Brushed Nickel $106.70
600-TS-ABS-BO Bone $94.02
600-TS-ABS-BS Biscuit $94.91
600-TS-ABS-BZ Oil Rubbed Bronze $106.67
600-TS-ABS-NP Polished Nickel $94.25
600-TS-ABS-CB Brushed Chrome $111.86
600-TS-ABS-WH White $94.91
600-TS-ABS-WI Wrought Iron $125.77

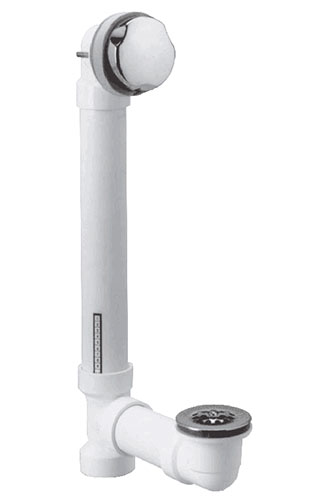

Sched. 40 PVC - Model 600-TS

Model # Finish Price & Quantity
600-TS-PVC-CP Chrome $68.05
600-TS-PVC-PB Polished Brass $94.30
600-TS-PVC-BN Brushed Nickel $106.19
600-TS-PVC-BO Bone $94.83
600-TS-PVC-BS Biscuit $94.22
600-TS-PVC-BZ Oil Rubbed Bronze $106.08
600-TS-PVC-NP Polished Nickel $94.02
600-TS-PVC-CB Brushed Chrome $112.03
600-TS-PVC-WH White $94.11
600-TS-PVC-WI Wrought Iron $125.61

Need parts for this bathtub waste and overflow assembly? We've got them!

- OR - View Cart

Sched. 40 ABS - Model 650-TS

Model # Finish Price & Quantity
650-TS-ABS-CP Chrome $64.43
650-TS-ABS-PB Polished Brass $87.49
650-TS-ABS-BN Brushed Nickel $99.34
650-TS-ABS-BO Bone $87.83
650-TS-ABS-BS Biscuit $87.52
650-TS-ABS-BZ Oil Rubbed Bronze $99.12
650-TS-ABS-NP Polished Nickel $87.82
650-TS-ABS-CB Brushed Chrome $103.94
650-TS-ABS-WH White $87.65
650-TS-ABS-WI Wrought Iron $135.77

Sched. 40 PVC - Model 650-TS

Model # Finish Price & Quantity
650-TS-PVC-CP Chrome $64.64
650-TS-PVC-PB Polished Brass $87.72
650-TS-PVC-BN Brushed Nickel $99.41
650-TS-PVC-BO Bone $87.76
650-TS-PVC-BS Biscuit $87.85
650-TS-PVC-BZ Oil Rubbed Bronze $98.97
650-TS-PVC-NP Polished Nickel $87.76
650-TS-PVC-CB Brushed Chrome $104.51
650-TS-PVC-WH White $87.61
650-TS-PVC-WI Wrought Iron $135.78

Need parts for this bathtub waste and overflow assembly? We've got them!

- OR - View Cart

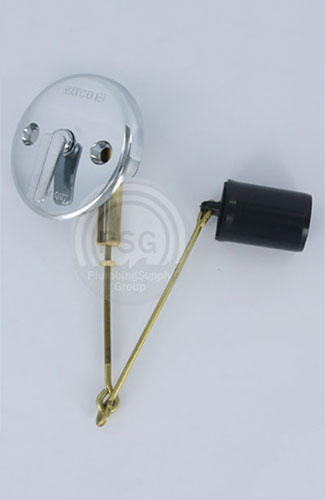

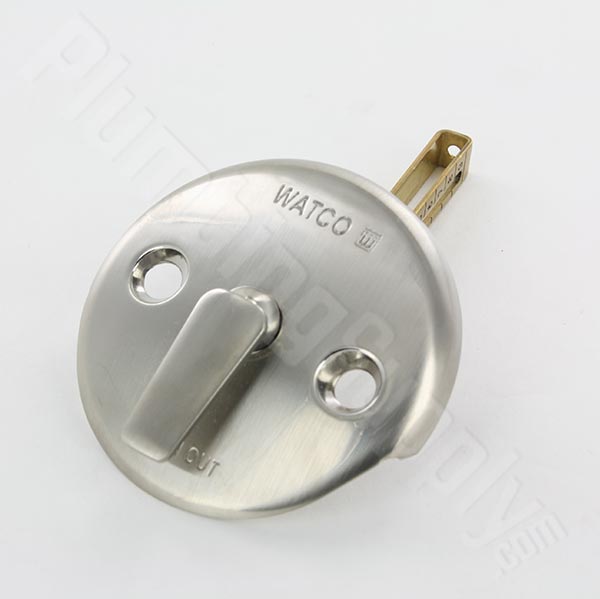

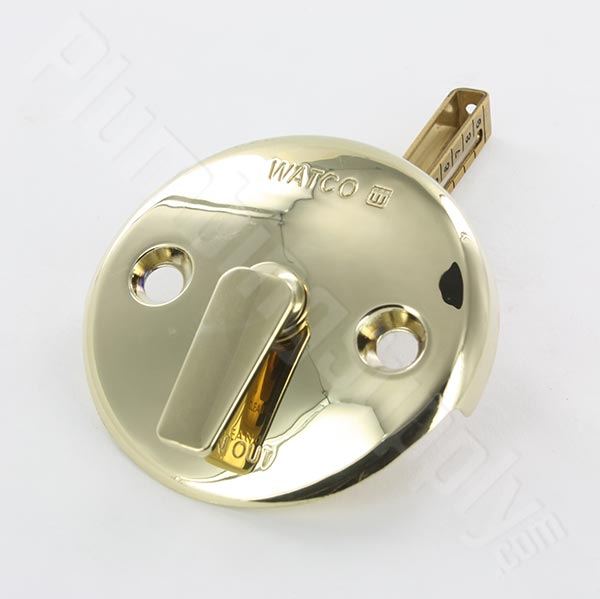

Trip Lever Assembly Kit

Fits most tubs up to 24" high

Trip lever face plate assembly includes:

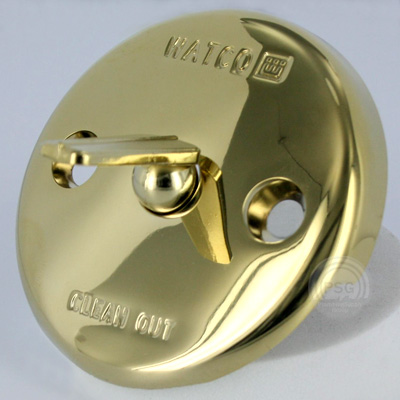

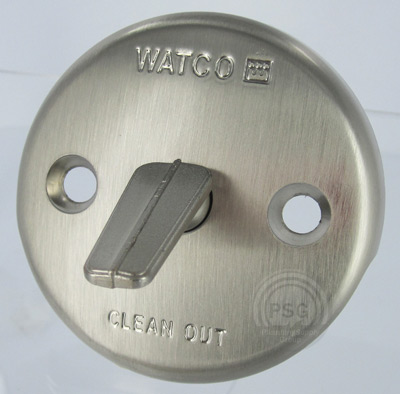

  • #10700 Trip lever face plate

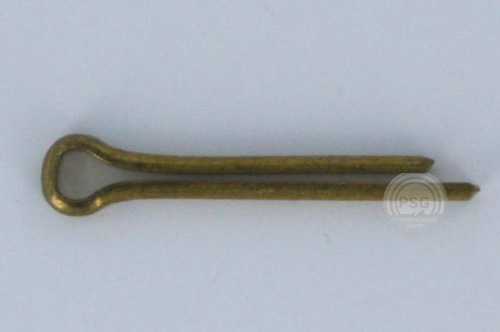

  • #10930 Cotter pin

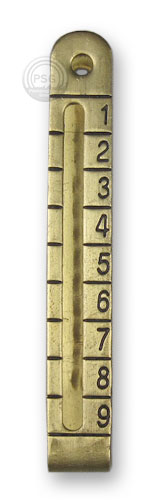

  • #10950 Quick adjust clevis

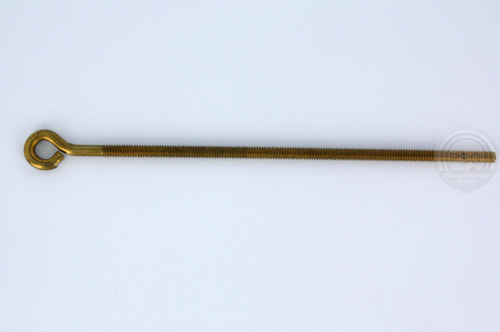

  • #10953 Top linkage eye bolt
  • #10954 Double loop wire

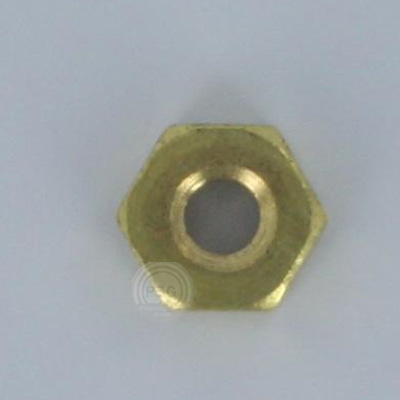

  • #10952 Linkage nut

  • and 1 Each of one of the following:

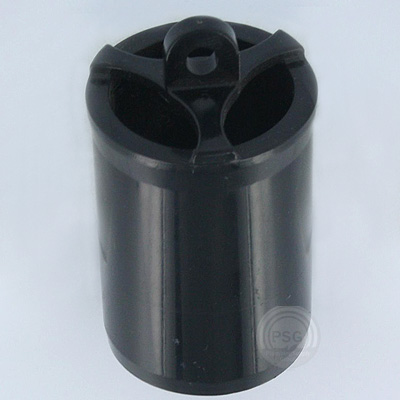

  • #11005 ABS Drop cylinder - (for ABS units)
  • #14005 PVC Drop cylinder - (for PVC units)

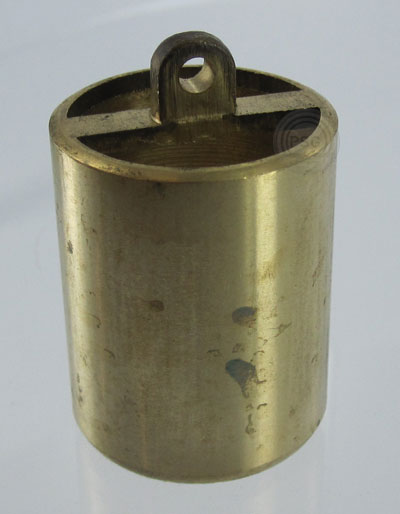

  • #41005 Brass Drop cylinder - (for Brass units)
Finish Part # Drop Cylinder
Material
Price & Quantity
Chrome 10770-PVC-CH PVC $14.84
10770-ABS-CH ABS $18.36
10770-BRS-CH Brass $22.09
Polished Brass 10770-PVC-PB PVC $35.60
10770-ABS-PB ABS $35.58
10770-BRS-PB Brass $40.62
Brushed Nickel 10770-PVC-BN PVC $49.48
10770-ABS-BN ABS $45.12
10770-BRS-BN Brass $49.99
Finish Part # Drop Cylinder
Material
Price & Quantity
White 10770-PVC-WH PVC $39.58
Biscuit 10770-PVC-BS PVC $39.57
Brushed Chrome 10770-PVC-CB PVC $52.55
Oil Rubbed Bronze 10770-PVC-BZ PVC $46.57
Polished Nickel 10770-PVC-NP PVC $41.50
Wrought Iron 10770-PVC-WI PVC $63.24

- OR - View Cart

Replacement Parts For Trip Lever Waste & Overflow Assemblies

For 500-TL, 501-TL, 502-TL, 550-TL, 551-TL, and 552-TL waste & overflow assemblies

Trip Lever Waste and Overflow Assembly

Item Part # Description Finish Price & Quantity Finish Price & Quantity
#1 01024 Overflow faceplate screw
sold EACH (2 required)
Chrome $2.84 Polished Brass $3.79
Brushed Nickel $3.94 Oil Rubbed Bronze $3.99
#2 10700 Trip lever faceplate Chrome $6.97 Polished Brass $21.63
Brushed Nickel $22.01 Oil Rubbed Bronze $28.89
#3 01040 Strainer cover plate screw Chrome $1.52 Polished Brass $4.76
Brushed Nickel $4.42 Oil Rubbed Bronze $4.79
#4 01006 Strainer cover plate Chrome $6.78 Polished Brass $11.43
Brushed Nickel $14.36 Oil Rubbed Bronze $13.96
Item Part # Description Price & Quantity Item Part # Description Price & Quantity
#5 11495 Strainer drain body - Chrome $7.51 #11 10950 Quick adjust clevis $2.11
#6 10696 Drain elbow gasket $1.37 #12 10953 Top linkage eye bolt $1.51
#7 10675 Overflow elbow washer
for 500-TL/550-TL
$2.07 #13 10952 Linkage nut $1.31
40675 Overflow elbow washer
for 501-TL/551-TL & 502-TL/552-TL
$1.66 #14 10954 Double loop wire $1.87
#8 11530 Retainer plate $1.73 #15 11005 ABS Drop cylinder $2.34
#9 11540 Retainer plate screw (2 required)
for 500-TL/550-TL
$1.06 14005 PVC Drop cylinder $2.72
41540 Retainer plate screw (2 required)
for 501-TL/551-TL & 502-TL/552-TL
$0.99 41005 Brass drop cylinder $6.42
#10 10930 Cotter pin $1.67

- OR - View Cart

Replacement Parts for Turnstyle Waste & Overflow Assemblies

For 500-TS, 550-TS, 600-TS and 650-TS waste & overflow assemblies

Trip Lever Waste and Overflow Assembly

Item Part # Description Price & Quantity Item Part # Description Price & Quantity
#1 01040 Strainer cover plate screw
Chrome
$1.52 #7 11540 Retainer plate screw (2 required) $1.06
Strainer cover plate screw
Polished Brass
$4.76 #8 20200 Turn style assembly - Chrome $15.23
Strainer cover plate screw
Brushed Nickel
$4.42 #9 10954 Double loop wire $1.87
#2 01006 Strainer cover plate
Chrome
$6.78 #10 11005 ABS Drop cylinder $2.34
Strainer cover plate
Polished Brass
$11.43 14005 PVC Drop cylinder $2.72
Strainer cover plate
Brushed Nickel
$14.36 #11 01024 Overflow faceplate screw - Chrome
sold EACH (2 required)
$2.84
#3 11495 Strainer drain body - Chrome $7.51 #12 20030 Turnstyle overflow plate - Chrome $13.91
#4 10696 Drain elbow gasket $1.37 Turnstyle overflow plate
Polished Brass
$33.82
#5 10675 Overflow elbow gasket $2.07 Turnstyle overflow plate
Brushed Nickel
$33.79
#6 11530 Retainer plate - for 500-TS $1.73 #13 20140 Turnstyle overflow locking screw $1.61
11531 Retainer plate - for 600-TS $1.97

- OR - View Cart

Hair Catching Cleaning Brush

Example of kitchen drain cleaning brush
This cleaning brush features:
  • Easily remove hair clogs from sink and tub drains
  • Great for homes as well as hotels and gyms
  • Thin flexible brush bypasses push/pull and toe touch type stoppers
  • Choose standard 17" length for showers and sinks or extra long 26" length for sink overflows, tubs, and whirlpool baths
  • 17.5" OR 26" length x 0.5" brush dia. x 1" handle dia.
  • View how to use this brush
  • Proudly made in the USA

Description Price & Quantity
Standard 17.5" Hair Catching & Sink Overflow Cleaning Brush $4.99
Extra Long 26" Hair Catching & Sink Overflow Cleaning Brush $5.95

Order 12, 24, 48 or more of the same size for additional savings!
Pricing discounts will show up in your shopping cart.

- OR - View Cart

Related Items & Accessories



Frequently Asked Questions

Q. "What is ABS pipe?"
A. Acrylonitrile Butadiene Styrene (ABS) pipe is a black plastic pipe used for water distribution, drain, waste, vent and sewage applications. One of the benefits of ABS pipe is that if it catches on fire it does not give off toxic fumes; PVC does. Generally, ABS is a much safer product to use in homes.

Q. "Can I use PVC cement on ABS fittings?"
A. PVC cement is designed for PVC, not ABS, and so will not work properly with ABS fittings. Always use cements and glues designed specifically for the type of fitting you are using. Looking for ABS glue/cement? Click here..

Q. "I see that you offer bath waste and overflow kits, but I only want to replace a small piece. Can you help me?"
A. We offer quality repair parts for bath waste and overflow systems here. These parts made by Watco are very nearly universal and will fit most common bath waste and overflow installations.

Q. "I want to order a brass drop cylinder for my trip waste and overflow but don't know what brand I have. Will the brass cylinder you sell fit all brands of trip waste and overflows?"
A. Not necessarily. All brands of trip wastes can use different lengths of drop cylinders depending on how the drain tee was made by the manufacturer. Unfortunately, the only way to find out if the brand we have will work for your waste and overflow is to install it and test it, which then makes it non-returnable because it has now been used. If you know the brand of drain you have then it's better to purchase that brand of drop cylinder. If you are unable to identify which brand you have and don't want to chance getting the wrong parts you will need to replace the entire drain assembly and start anew.

Q. "I notice that you offer polished brass, brushed nickel, and other designer finishes. Are they as durable as chrome?"
A. No, items with chrome finish are less likely to tarnish with proper care.

Q. "Will a Bath Waste & Overflow prevent water from overflowing the tub if the faucet is flowing water half to full force?"
A.The overflow drain on a tub will not prevent an overflow of the tub if the tub or tub/shower valve is flowing water faster than 2 or 3 gallons per minute. The main purpose of the overflow drain on a tub is to have a place for the water to exit as water is displaced when someone enters the tub. Most people fill up the tub and then turn off the water before entering the tub. The normal tub overflow is 1 1/2" diameter which can normally handle 2 to 3 gallons of water per minute if the piping is clean and free of any debris or hair. Many tub or tub/shower combination valves in use today were installed before water conservation laws were passed and are capable of allowing water flow rates of between 6 and 35 gallons per minute depending on the type of valve installed. As you can see, a normal, gravity fed, tub overflow will not be able to keep up if the faucet is running faster than 2 or 3 gallons per minute. To prevent a tub overflow we suggest you keep watch while your tub is filling with water.


return to top ↑

Copyright© 1995-2016 PlumbingSupply.com.
All Rights Reserved.
