Single-Handled Kitchen Faucet Parts

for Valley Faucets
- genuine Valley brand parts -

PlumbingSupply.com® is your source for genuine Valley repair parts. Why replace when you may be able to repair your quality Valley faucet?

Traditional Single Handle Kitchen Faucet Parts

some parts listed below may fit the following faucet models
CL1038, CL1148, CV1038, CV1548, CV1748, L1038/9, L1148/9, L1338/9, L2038/9, L2148/9, L2338/9, L2448/9, L2638/9, NL1038/9, NL1148/9, NL1338/9, NL2148/9, NL2638/9, NV1038, NV1148, NV1338
Old StyleValley single handle kitchen faucet parts diagram - 1038/9, 1148/9 old style
New Style
Valley single handle kitchen faucet parts diagram - 1038/9, 1148/9 new style
Item # Description Price & Quantity
1 V1165 - Metal Lever Handle - Chrome - stamped hot/cold at end of handle $19.06 Enter a quantity and
2 V6679 - Acrylic Teardrop Handle $19.33 Enter a quantity and
3 VP1989 - Short Lever Handle - Chrome $20.98
VP1988 - Long Lever Handle - Chrome $10.97 Enter a quantity and
4 V7810 - Handle Adapter Screw $1.02 Enter a quantity and
5 VP1963 - Handle Adapter $2.40 Enter a quantity and

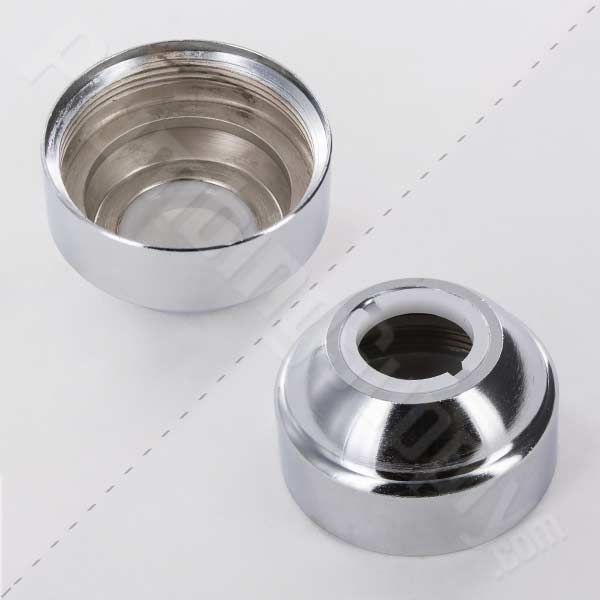

6 V6633 - Bonnet Nut Assembly - Chrome - Replaced by V8228 $14.25 Enter a quantity and
7 VP1713 - Bonnet Lock Ring - for VP1712 bonnet nut $2.77 Enter a quantity and
8 VP1712 - Bonnet Nut - Chrome $14.53 Enter a quantity and
9 V6680 - Genuine Single Handle Cartridge $19.25
V6680 - "Will Fit" Single Handle Cartridge $13.98 Enter a quantity and
10 VP1964 - NON-Diverter Cartridge $16.64
VP1965 - Diverter Cartridge $22.64 Enter a quantity and
11 Old Style 5", 8", or 9-1/2" Spout Assembly Discontinued
12 New Style 5", 8" or 9-1/2" Spout Assembly Discontinued
13 V7068 - Aerator Discontinued
Item # Description Price & Quantity
14 V7713 - Diverter Discontinued
15 V7001 - Swivel Spray Discontinued

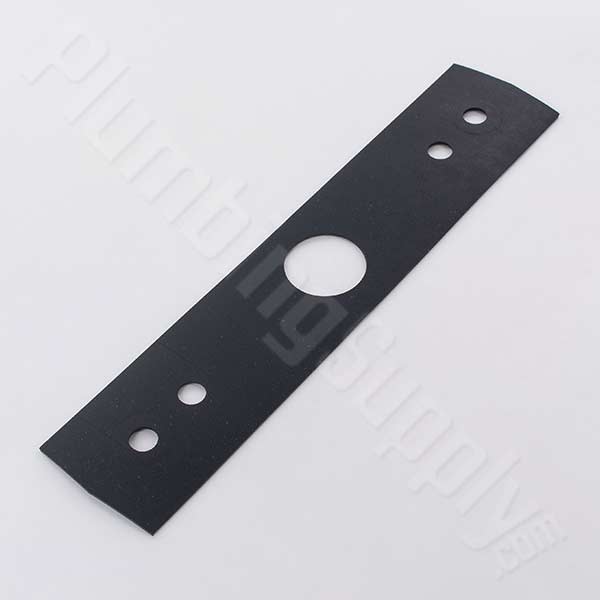

16 V1121 - Deck Gasket $6.05 Enter a quantity and
17 V6645 - Mounting Parts Bag Discontinued
18 V6643 - IPS Mounting Parts Bag Discontinued
19 V7714 - Spray & Hose Assembly Discontinued
20 V7715 - Hose Guide with Nut - Chrome $7.11 Enter a quantity and
21 V1001 - Repair Kit (includes tool) $10.94 Enter a quantity and
22 VP1956 - O-Ring (for diverter control only) $0.74 Enter a quantity and
23 V1112 - O-Ring Repair Kit $6.15 Enter a quantity and
24 VP1987 - Spout O-Ring $1.42 Enter a quantity and
25 V7059 - Seals & Springs Repair Kit $4.37 Enter a quantity and
V7059 - "Will-fit" Seals & Springs Repair Kit $3.57 Enter a quantity and
26 VP1952 - Port Seal Ring - fits V1964 and V1965 cartridges for new style faucets $2.07 Enter a quantity and
27 V1910 - Bearing Hub Discontinued
28 V2007 - Metal Loop Handle - Chrome $32.15 Enter a quantity and
Not Shown Stem & O-Ring Lubricant (1/4 oz.) $2.52 Enter a quantity and
Please carefully compare available pictures and diagrams with your faucet to be sure you are ordering the correct Valley part. The parts that we show are what we ship. We do charge a restocking fee if you order the wrong Valley parts.

Colourburst Collection Single Handle Kitchen Faucet Parts

some parts listed below may fit the following faucet models
Y11301, Y11309, Y11501, Y11509, Y11601, Y11609
Valley single handle kitchen faucet parts diagram - Colourburst Collection with side spray
Valley single handle kitchen faucet parts diagram - Colourburst Collection with escutcheon spray
Item # Description Price & Quantity
1 VP1989 - Short Lever Handle - Chrome $20.98
VP19894 - Short Lever Handle - Polished Brass - Replaced by VP19898 $29.34
VP1988 - Long Lever Handle - Chrome $10.97 Enter a quantity and
2 V2019 - Spout Only - Chrome Discontinued
3 V7810 - Handle Adapter Screw $1.02 Enter a quantity and
4 VP1963 - Handle Adapter $2.40 Enter a quantity and
5 V2006 - Metal Loop Handle - Chrome $25.76 Enter a quantity and
6 VP1713 - Bonnet Lock Ring $2.77 Enter a quantity and
7 VP1712 - Bonnet Nut - Chrome $14.53
VP17124 - Bonnet Nut - Polished Brass - Replaced by VP17128 $20.36
VP171219 - Bonnet Nut - Almond $8.94 Enter a quantity and
8 VP1964 - NON-Diverter Cartridge $16.64
VP1965 - Diverter Cartridge $22.64 Enter a quantity and
Item # Description Price & Quantity
9 VP1956 - O-Ring (for diverter control only) $0.74 Enter a quantity and
10 VP1952 - Port Seal Ring $2.07 Enter a quantity and
11 V1996 - 8" Spout Discontinued
12 VP1987 - Spout O-Ring (2 required) $1.42 Enter a quantity and
13 V1910 - Bearing Hub Discontinued
14 V7068 - Aerator Discontinued
15 V1121 - Deck Gasket $6.05 Enter a quantity and
16 V6645 - Mounting Parts Bag Discontinued
17 V6643 - IPS Mounting Hardware Parts Bag Discontinued
18 V7714 - Spray & Hose Assembly Discontinued
19 V7715 - Hose Guide with Nut - Chrome $7.11
20 V2199 - Spacer Ring Discontinued
21 V7832 - Wing Mounting Nut Discontinued
Not Shown Stem & O-Ring Lubricant (1/4 oz.) $2.52 Enter a quantity and
Please carefully compare available pictures and diagrams with your faucet to be sure you are ordering the correct Valley part. The parts that we show are what we ship. We do charge a restocking fee if you order the wrong Valley parts.

Single Loop Handle Kitchen Faucet Parts

some parts listed below may fit the following faucet models
Y11345, Y11645

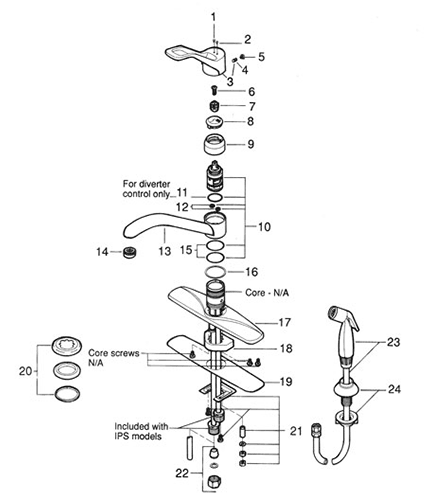

Valley single handle kitchen faucet parts diagram - loop handle
Item # Description Price & Quantity
1 V8136 - Index Button - Red $1.10 Enter a quantity and
2 V8137 - Index Button - Blue $1.09 Enter a quantity and
3 V8105 - Loop Handle Assembly (includes V8136, V8137, V8199) - Chrome $22.45
V8105-14 - Loop Handle Assembly (includes V8136, V8137, V8199) - White $31.75
V8105-15 - Loop Handle Assembly (includes V8136, V8137, V8199) - Almond $31.87 Enter a quantity and
4 V7719 - Set Screw for Loop Handle $1.35 Enter a quantity and
5 V8199 - Handle Plug Button $1.68 Enter a quantity and
6 VP1780 - Handle Adapter Screw $1.66 Enter a quantity and
7 VP1963 - Handle Adapter $2.40 Enter a quantity and

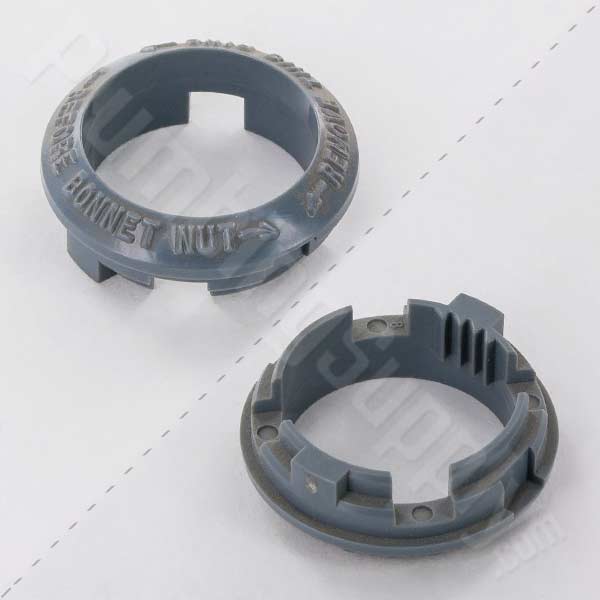

8 VP1913 - Locking Ring $1.60 Enter a quantity and

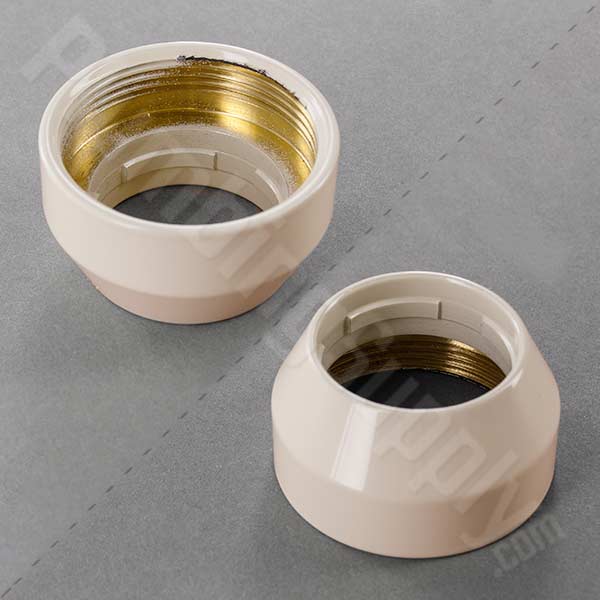

9 V8104-15 - Bonnet Nut - Almond $5.60 Enter a quantity and
10 VP1964 - NON-Diverter Cartridge $16.64
VP1965 - Diverter Cartridge $22.64 Enter a quantity and
11 VP1956 - O-Ring (for diverter control only) $0.74 Enter a quantity and
Item # Description Price & Quantity
12 VP1952 - Port Seal Ring - fits V1964 and V1965 cartridges for new style faucets $2.07 Enter a quantity and
13 V8102 - 12" Spout Discontinued
14 LV3101 - "Will Fit" Aerator - Chrome $5.58
LV31014 - "Will Fit" Aerator - Polished Brass $6.04 Enter a quantity and
15 VP1987 - Spout O-Ring $1.42 Enter a quantity and
16 V1910 - Bearing Hub Discontinued
17 VP8106 - Coverplate Discontinued
18 V8107 - Base Support Discontinued
19 V8225 - Gasket $1.63 Enter a quantity and
20 V8218 - Round Cover Parts Bag Discontinued
21 V8190 - Mounting Parts Bag Discontinued
22 V6643 - IPS Mounting Hardware Parts Bag Discontinued
23 V7714 - Spray & Hose Assembly Discontinued
24 V7715 - Hose Guide with Nut - Chrome $7.11 Enter a quantity and
Not Shown Stem & O-Ring Lubricant (1/4 oz.) $2.52 Enter a quantity and
Please note: Due to state mandated low-flow regulations, these aerators cannot be shipped to California.
Please carefully compare available pictures and diagrams with your faucet to be sure you are ordering the correct Valley part. The parts that we show are what we ship. We do charge a restocking fee if you order the wrong Valley parts.

Single Handle Kitchen Faucet Parts

some parts listed below may fit the following faucet models
KL1038, KL1148
Valley single handle kitchen faucet parts diagram - budget economy model

Item # Description Price & Quantity
1 VP1932 - Handle Assembly Discontinued
2 V6419 - Bonnet Nut Discontinued
3 VP1964 - NON-Diverter Cartridge $16.64
VP1965 - Diverter Cartridge $22.64 Enter a quantity and
4 V6425 - Spout O-Ring Discontinued
5 VP1987 - Spout O-Ring $1.42 Enter a quantity and
6 V6421 - Friction Spacer Discontinued
Item # Description Price & Quantity
7 V1996 - 8" Spout Discontinued
8 V7068 - Aerator Discontinued
9 V1121 - Deck Gasket $6.05 Enter a quantity and
10 V6214 - Mounting Parts Bag Discontinued
11 V7689 - Hose Guide Discontinued
12 V6399 - Spray with Hose Discontinued
Not Shown Stem & O-Ring Lubricant (1/4 oz.) $2.52 Enter a quantity and
Please carefully compare available pictures and diagrams with your faucet to be sure you are ordering the correct Valley part. The parts that we show are what we ship. We do charge a restocking fee if you order the wrong Valley parts.

Classic Single Handle Kitchen Faucet Parts

some parts listed below may fit the following faucet models
L1518/9, L1628/9, NL1518/9, NL1628/9

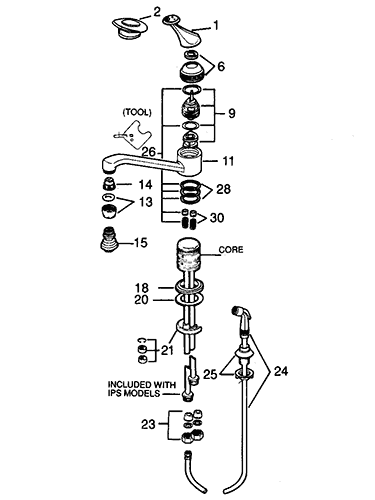

Old StyleValley single handle kitchen faucet parts diagram - 1518/9, 1628/9 old style

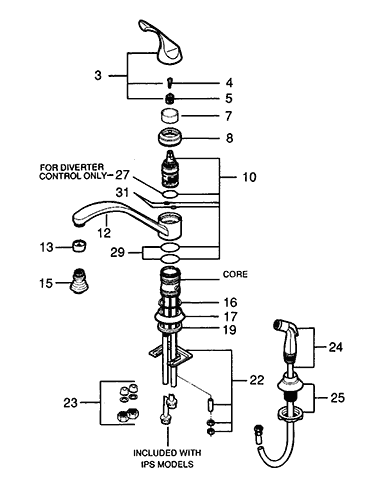

New Style
Valley single handle kitchen faucet parts diagram - 1518/9, 1628/9 new style

Item # Description Price & Quantity
1 V1165 - Metal Lever Handle - Chrome - stamped hot/cold at end of handle $19.06 Enter a quantity and
2 V6679 - Acrylic Teardrop Handle $19.33 Enter a quantity and
3 VP1989 - Short Lever Handle - Chrome $20.98
VP1988 - Long Lever Handle - Chrome $10.97 Enter a quantity and
4 VP1780 - Handle Adapter Screw $1.66 Enter a quantity and
5 VP1963 - Handle Adapter $2.40 Enter a quantity and
6 V6633 - Bonnet Assembly - Replaced by V8228 $14.25 Enter a quantity and
7 VP1713 - Bonnet Lock Ring - for VP1712 bonnet nut $2.77 Enter a quantity and
8 VP1712 - Bonnet Nut - Chrome $14.53 Enter a quantity and
9 V6680 - Single Handle Cartridge $19.25
V6680 - "Will Fit" Single Handle Cartridge $13.98 Enter a quantity and
10 VP1964 - NON-Diverter Cartridge $16.64
VP1965 - Diverter Cartridge $22.64 Enter a quantity and
11 Old Style 5", 8", or 9-1/2" Spout Assembly Discontinued
12 New Style 5", 8" or 9-1/2" Spout Assembly Discontinued
13 V7068 - Aerator Discontinued
14 V7713 - Diverter Discontinued
15 V7001 - Swivel Spray Discontinued
Item # Description Price & Quantity
16 V1910 - Bearing Hub Discontinued
17 V2023 - Core Seat $7.59 Enter a quantity and
18 V5502 - Core Seat Discontinued
19 V3833 - Gasket Discontinued
20 V5504 - Gasket Discontinued
21 V6230 - Mounting Hardware Parts Bag Discontinued
22 V6237 - Mounting Hardware Parts Bag $1.50 Enter a quantity and
23 V6643 - IPS Mounting Hardware Parts Bag Discontinued
24 V7714 - Spray & Hose Assembly Discontinued
25 V7715 - Hose Guide with Nut - Chrome $7.11 Enter a quantity and
26 V1001 - Repair Kit (includes tool) $10.94 Enter a quantity and
27 VP1956 - O-Ring (for diverter control only) $0.74 Enter a quantity and
28 V1112 - O-Ring Repair Kit $6.15 Enter a quantity and
29 VP1987 - Spout O-Ring $1.42 Enter a quantity and
30 V7059 - Seals & Springs Repair Kit $4.37
V7059 - "Will Fit" Seals & Springs Repair Kit $3.57 Enter a quantity and
31 VP1952 - Port Seal Ring - fits V1964 and V1965 cartridges for new style faucets $2.07 Enter a quantity and
Not Shown Stem & O-Ring Lubricant (1/4 oz.) $2.52 Enter a quantity and
Please carefully compare available pictures and diagrams with your faucet to be sure you are ordering the correct Valley part. The parts that we show are what we ship. We do charge a restocking fee if you order the wrong Valley parts.

Hi-Style® Single Handle Kitchen Faucet Parts

some parts listed below may fit the following faucet models
CL1030, CL1140, NL1030, NL1140, NL1160, NL1730, NL1740, NL1760, Y11001, Y11801
Valley single handle kitchen faucet parts diagram - high spout style
Item # Description Price & Quantity
1 V2028 - Complete Spout Assembly Discontinued
2 V2019 - Spout Only - Chrome Discontinued
3 LV3101 - "Will Fit" Aerator - Chrome $5.58
LV31014 - "Will Fit" Aerator - Polished Brass $6.04 Enter a quantity and
4 V2013 - Bonnet Nut for Spout - Chrome $6.18 Enter a quantity and
5 V2015 - Retainer Ring $0.16 Enter a quantity and
6 V2022 - O-Ring for Hi-Style Spout $1.09 Enter a quantity and
7 V2018 - Spout Adapter Discontinued
8 V1817 - O-Ring - 13/16" I.D. x 15/16" O.D. - 1/8" thick Discontinued
9 V1819 - Diverter $11.89 Enter a quantity and
10 V3957 - Escutcheon with V3836 Gasket - Chrome Discontinued
V39574 - Escutcheon with V3836 Gasket - Polished Brass Discontinued
11 V3423 - Gasket (replaced by V3836, not available separately)
12 V3637 - Pipe Caps Discontinued
13 V3410 - Mounting Washer $2.49 Enter a quantity and
14 V7828 - Nut Discontinued
15 V7714 - Spray & Hose Assembly Discontinued
16 V7715 - Hose Guide with Nut - Chrome $7.11
17 VP1989 - Short Lever Handle - Chrome $20.98
VP19894 - Short Lever Handle - Polished Brass - Replaced by VP19898 $29.34 Enter a quantity and
Item # Description Price & Quantity
17a VP1988 - Long Lever Handle - Chrome $10.97 Enter a quantity and
18 VP1780 - Handle Adapter Screw $1.66 Enter a quantity and
19 VP1963 - Handle Adapter $2.40 Enter a quantity and
20 VP1713 - Bonnet Lock Ring $2.77 Enter a quantity and
21 VP1712 - Bonnet Nut - Chrome $14.53
VP17124 - Bonnet Nut - Polished Brass - Replaced by VP17128 $20.36
VP171219 - Bonnet Nut - Almond $8.94 Enter a quantity and
22 VP1964 - Cartridge $16.64 Enter a quantity and
23 VP1952 - Port Seal Ring - fits V1964 and V1965 cartridges for new style faucets $2.07 Enter a quantity and
24 VP1926 - Spout Hub - Chrome $4.79 Enter a quantity and
25 VP1987 - Spout O-Ring (2 required) $1.42 Enter a quantity and
26 V1910 - Bearing Hub Discontinued
27 V2023 - Core Seat $7.59 Enter a quantity and
28 V3833 - Gasket Discontinued
29 V3835 - Crossover Hose $8.98 Enter a quantity and
30 V6237 - Mounting Hardware Parts Bag $1.50 Enter a quantity and
31 V6643 - IPS Mounting Hardware Parts Bag Discontinued
32 V2000 - Pump Dispenser Assembly Discontinued
Not Shown Stem & O-Ring Lubricant (1/4 oz.) $2.52 Enter a quantity and
Please note: Due to state mandated low-flow regulations, these aerators cannot be shipped to California.
Please carefully compare available pictures and diagrams with your faucet to be sure you are ordering the correct Valley part. The parts that we show are what we ship. We do charge a restocking fee if you order the wrong Valley parts.

Looking for more Valley Faucet parts?


Please note: Although the parts we have available are made from the same molds used by the original manufacturer, Valley is no longer in business, so warranty coverage on existing products is no longer available. Parts that we offer fall under our standard policy.

Frequently Asked Questions

Q. "What's the difference (besides a slightly different look) between the VP1964 Non-Diverter and the VP1965 Diverter cartridges?"
A. The VP1964 Non-Diverter cartridge is used for all Valley "new style" single control kitchen and lavatory faucets that do NOT have a hand spray attachment. The VP1965 Diverter cartridge has a diverter in it to divert water from the spout to the hand spray when the hand spray lever is pushed. The VP1965 Diverter cartridge is used on single control kitchen and lavatory faucets with a hand spray attachment except for the Valley Hi-Style series. The Valley Hi-Style kitchen faucets use the VP1964 Non-Diverter cartridge because the diverter is located in the base of the spout and not in the cartridge. Click here to compare each cartridge.

Note: The VP1964 Non-Diverter cartridge is also used for Valley "new style" bath/shower valves. This does not include the back-to-back or pressure balance bath/shower valves because a different style cartridge is used.

Q. "I don't know what year my faucet was installed or manufactured. How can I be certain what type of cartridge is in my faucet, the old style or the new style?"
A. There are two ways. One is to turn your water off, remove the cartridge and compare your cartridge with the pictures we show on our site. The old style and new style cartridges are very different in appearance and the stems (handle shafts) are very different. The other way does not involve turning your water off. You just need to measure the outside diameter of the bonnet nut. The outside diameter of the bonnet nut for the old style cartridge measures 1-15/16" while the outside diameter of the bonnet nut for the new style cartridge measures 1-11/16".

return to top ↑

Copyright© 1995-2018 PlumbingSupply.com.
All Rights Reserved.
