Repair Parts For Symmons Products

If you need repair parts for your Symmons products, you'll find them here at PlumbingSupply.com®! From aerators to wrenches, we've got them. And, if you are considering a new Symmons product, click here for our entire selection.

PlumbingSupply.com® is pleased to offer an extensive collection of Symmons parts.
Simply click on any link below to jump to a specific model.



W-400, 500B, 600, 602 Protector Valve for
Automatic Washing Machine Supplies - Replacement Parts
Model Description Price & Quantity

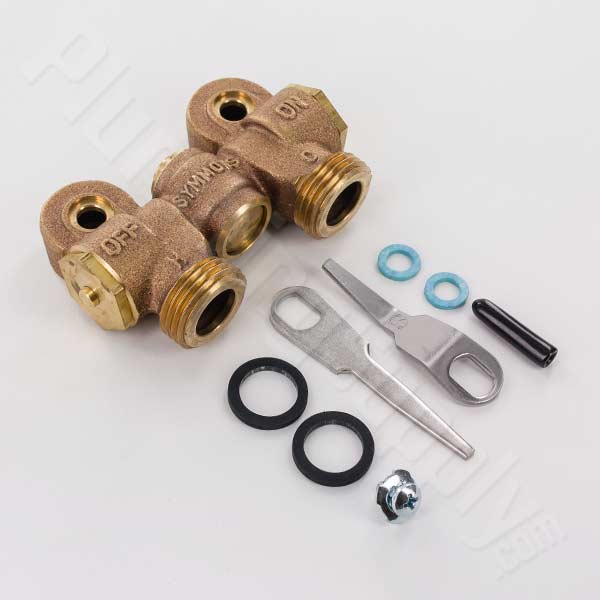

KIT-AA rebuild unit for washing machine valves $47.71

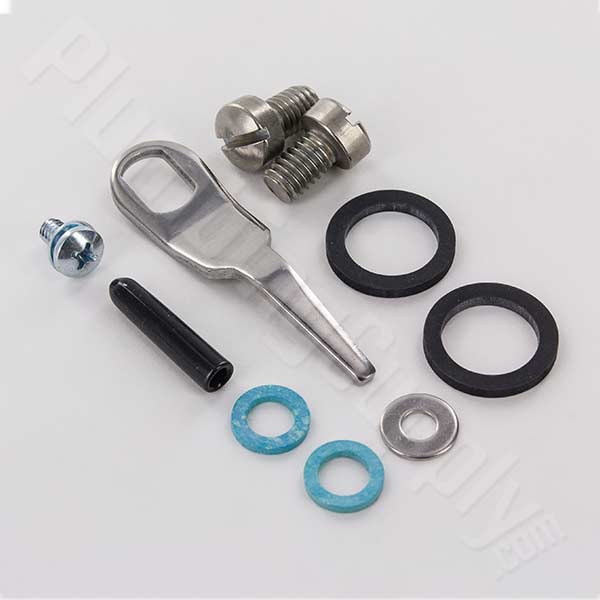

KIT-W-400 hardware & gasket kit for 400 series $17.40
KIT-W-600 hardware & gasket kit for 600 series $17.39

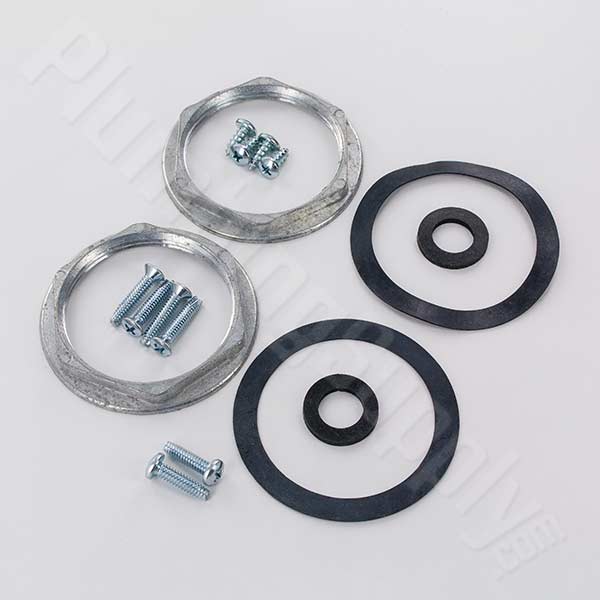

KIT-W-602 hardware & gasket kit for 602 series $17.27
KIT-WM piston & o-ring for valve after 1984 $23.31
LM-1 box for w-600 $24.52
LM-2 cover $23.12
LM-3A drip pan $13.08
LM-4 mounting bracket $10.55

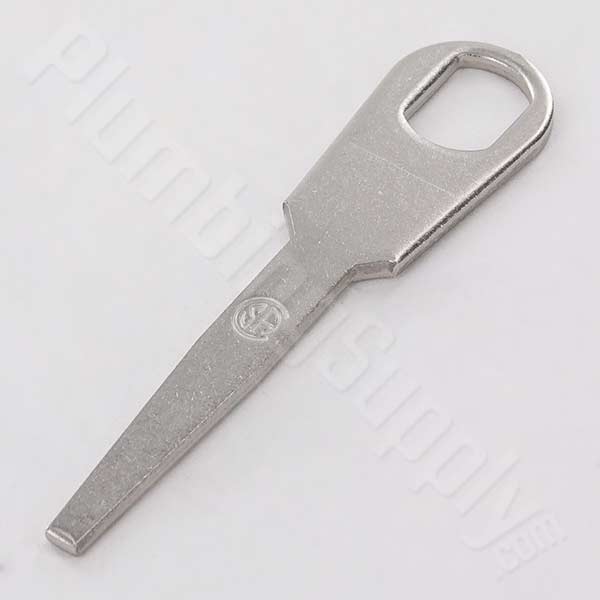

LM-5 handle $7.21
LM-6/7 label $3.26
LM-8 drain nut for w-600 $3.28
LM-9 drain nut for w-602 $3.29

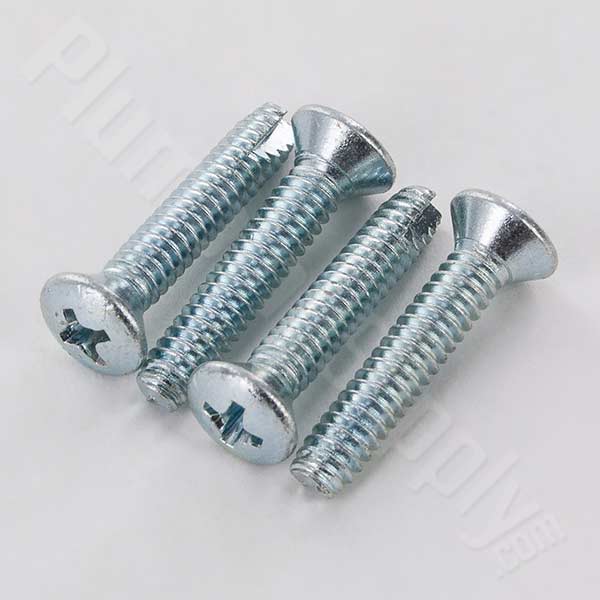

LM-12 screw $3.27
LM-13 drain washer for w-600 $3.25
LM-14 drain washer for w-602 $3.26
W-2 combination fitting - sweat/IPS $19.70
W-2A sweat elbow fitting $19.55
W-12 screw $3.85

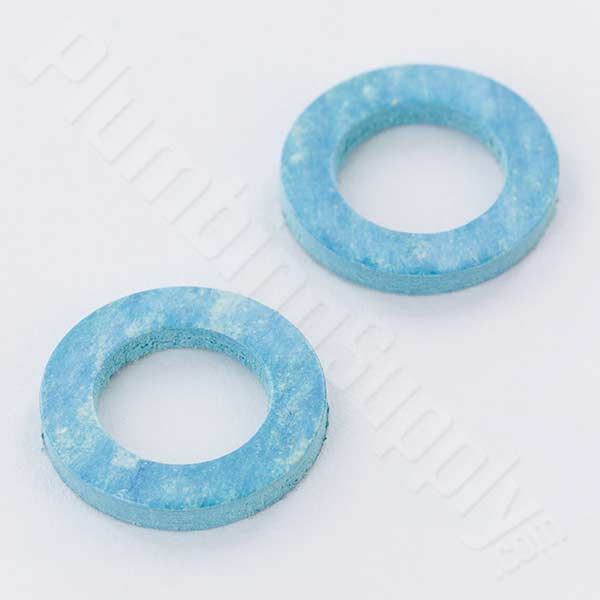

W-13 gasket - small $3.25

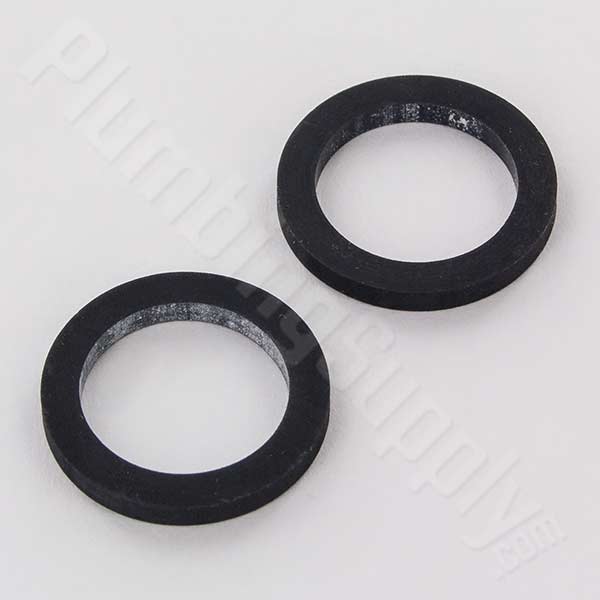

W-14 gasket - large $3.31

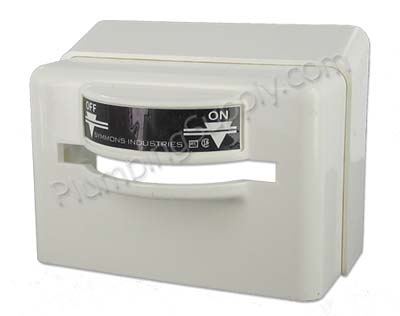

WS-17 cover w/ label for w-500b $6.06
WS-18/19 handle & knob $10.87

- OR - View Cart

SCOT Slow-Closing Omni Temperature
Bathroom Faucet Repair Parts (from 1984 - March 2000)
Model Description Price & Quantity

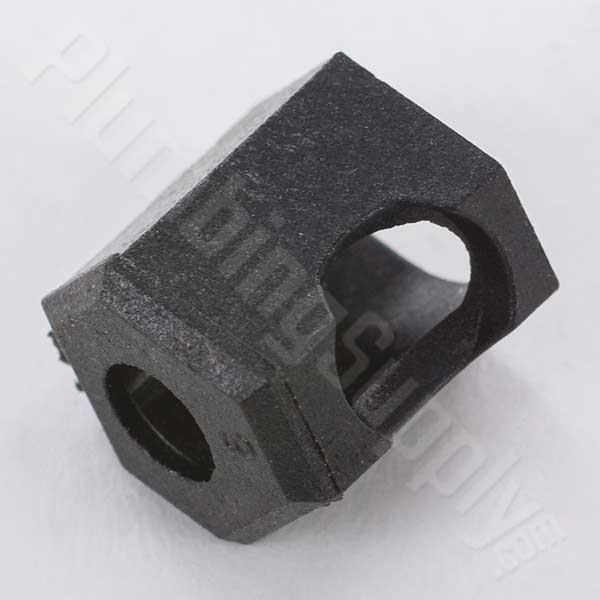

K-15P handle insert $3.27

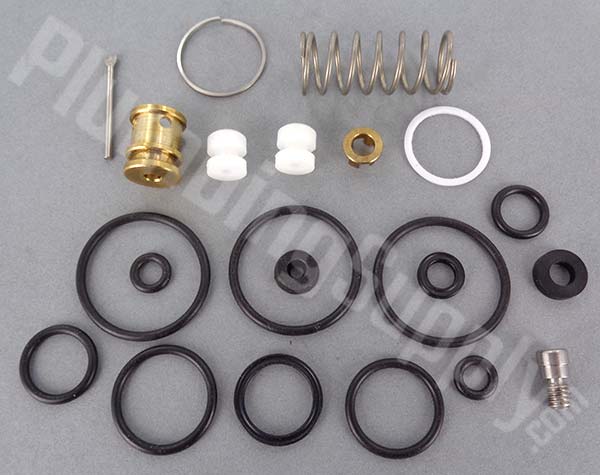

KIT-LL o-ring kit $22.93
LL-1A control cartridge $101.16
LL-1B control cartridge for quick closing $101.51
LL-13 inlet seat - PAIR (qty of two) $3.26
LL-14 spout retainer Discontinued
LL-14A spout assembly - new style Discontinued
LL-18 handle use RL-156
LL-18H handicap handle use RL-156
LL-19A base plate assembly Discontinued
LL-20L undercover plate $4.88
LL-21 base plate gasket $3.98

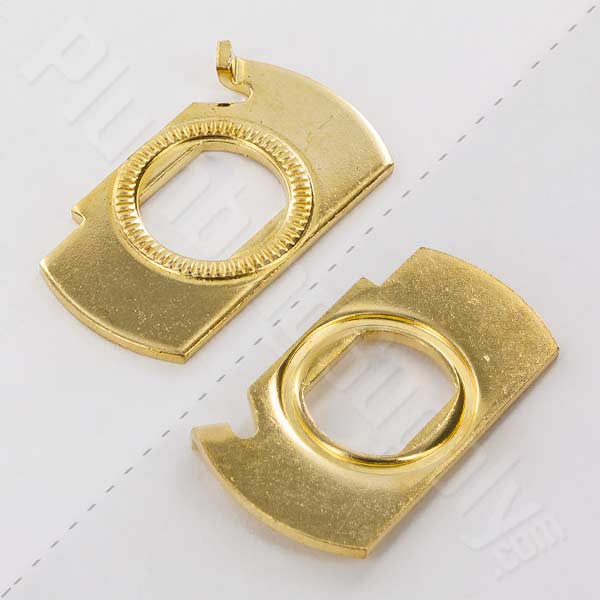

LL-22 limit stop washer - fixed $3.28

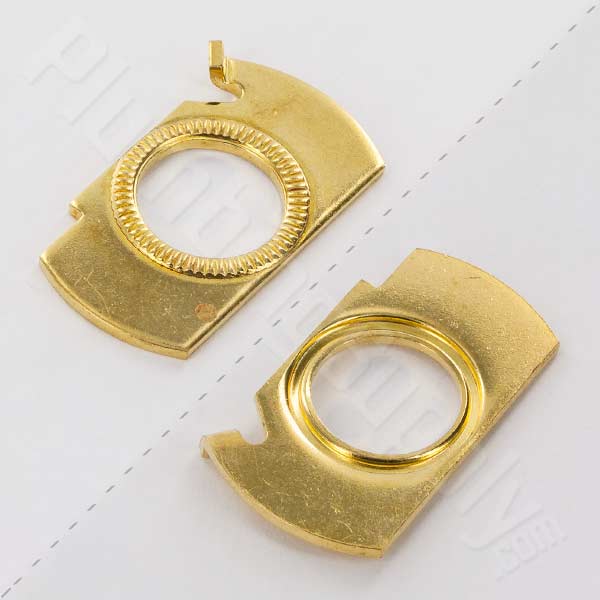

LL-23 limit stop washer - adjustable $3.25
LL-25L-A spout assembly Discontinued
LL-26 undercover plate screw $3.24

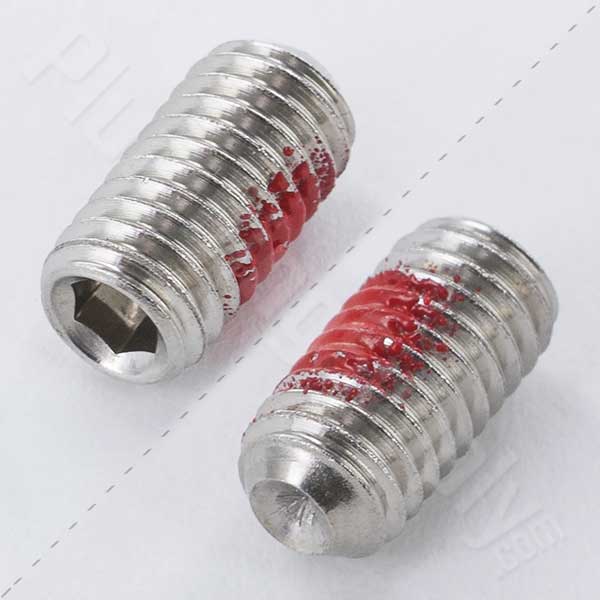

LL-27 handle set screw $3.23

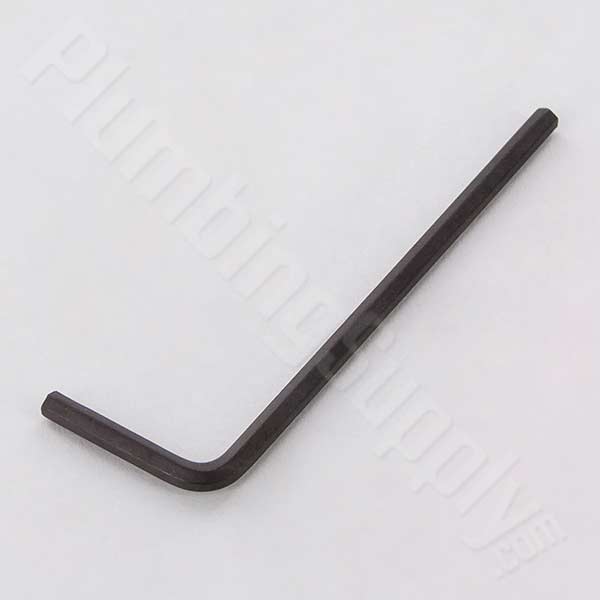

LL-27W wrench $3.24
LL-3 upper housing $15.74

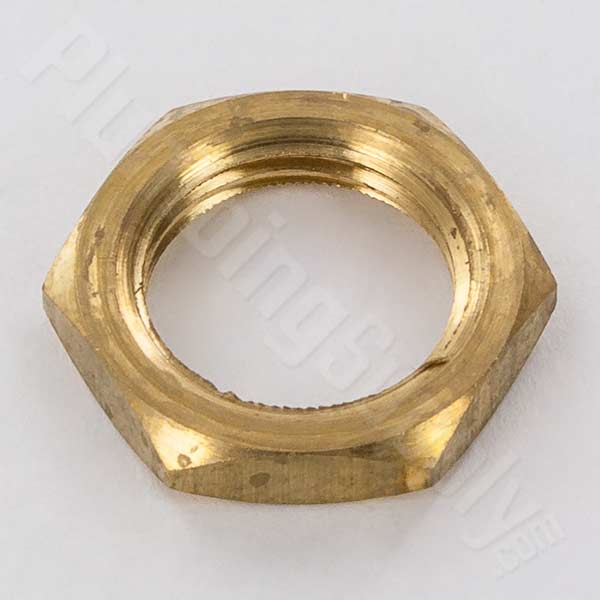

LL-6 limit stop retainer nut $3.51
LL-7L shell Discontinued
LL-9 shell locking nut $3.96
LL-33 inlet seat springs - PAIR (qty of two) $3.26

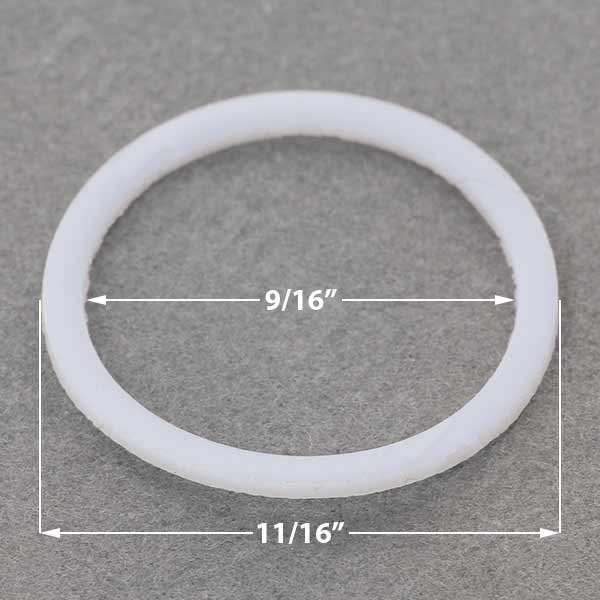

LL-35 thrust washer $3.27
LL-38 mounting bolt $3.23
LL-39 mounting washer $3.24
LL-40 mounting nut $3.30
LL-42 inlet seat o-rings $3.26
LL-43 spout o-ring $3.25

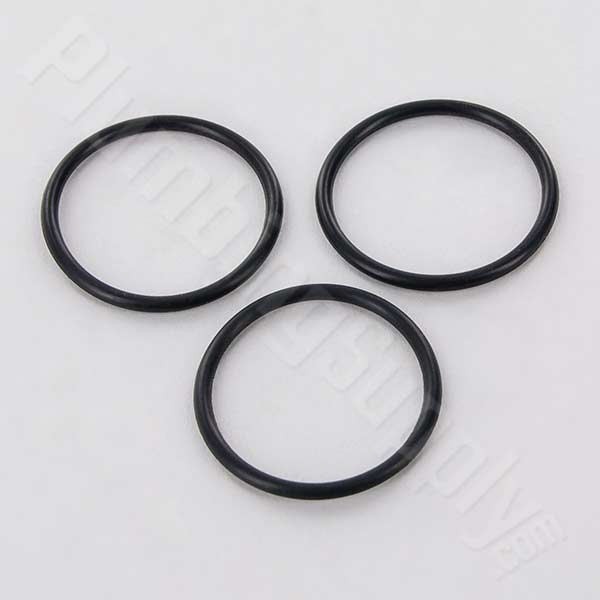

LL-48 upper housing o-rings - set of three $3.26
LL-60 spray outlet use LL-60B
LL-60B aerator - vandal resistant $23.29
LL-60W wrench $3.28
LL-71B in-line check screen assembly - PAIR (qty of two) $47.77
LL-KIT-W tool kit $21.18
LT-44 adapter nut Discontinued

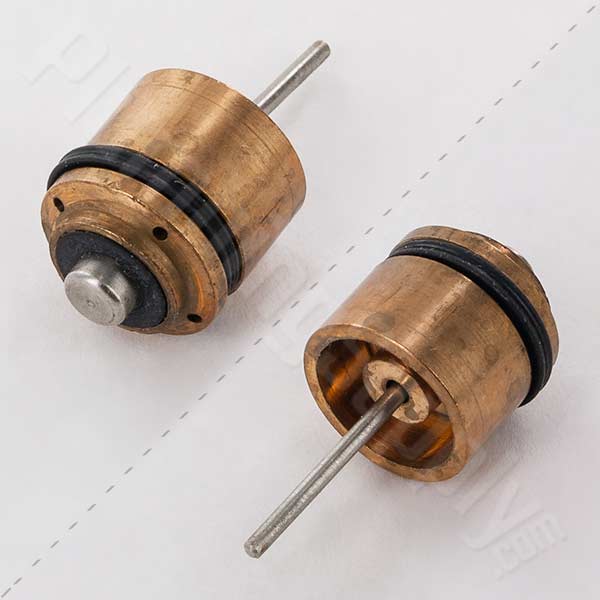

LT-4A piston assembly $23.25
S-60-H-RETRO-KIT repair kit Discontinued

- OR - View Cart

SCOT Slow-Closing Omni Temperature
Bathroom Faucet Repair Parts (from April 2000 - current)
Model Description Price & Quantity
KIT-LL o-ring kit $22.93
LL-1A control cartridge $101.16
LL-1B control cartridge for quick closing $101.51

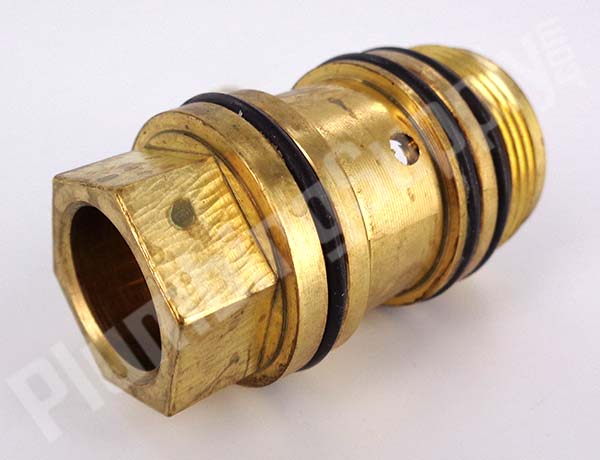

LL-3N upper housing $15.60
LL-6 limit stop retainer nut $3.51
LL-13 inlet seat - PAIR (qty of two) $3.26
LL-22 limit stop washer - fixed $3.28
LL-23 limit stop washer - adjustable $3.25
LL-27 handle set screw $3.23
LL-27W wrench $3.24
LL-33 inlet seat springs - PAIR (qty of two) $3.26
LL-35 thrust washer $3.27
LL-42 inlet seat springs - PAIR (qty of two) $3.26
LL-48 upper housing o-rings - set of three $3.26
LL-71B in-line check screen assembly - PAIR (qty of two) $47.77

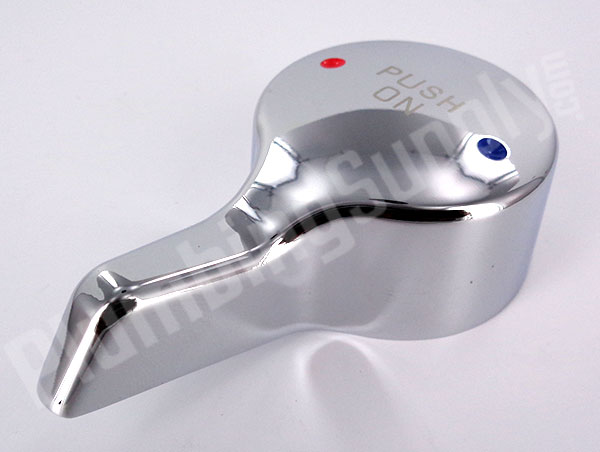

LL-104 handle w/ set screw use RL-156
LL-105 shell $89.34
LL-106 base gasket $3.25
LN-100 .5 gpm aerator - vandal resistant $11.00
LN-101 aerator - vandal resistant $14.68
LT-4A piston assembly $23.25
RL-156 handle w/ set screw $27.49

to metering bathroom faucets by Symmons

- OR - View Cart

Slow Close Metering Bathroom Faucet Parts
(from 1984 - March 2000)
Model Description Price & Quantity
KIT-LT o-ring kit $23.12
LL-7L shell use S-61-RETRO-KIT
LL-9 shell locking nut $3.96
LL-14 spout retainer Discontinued
LL-14A spout assembly - new style Discontinued
LL-20L undercover plate $4.88
LL-21 base plate gasket $3.98
LL-25L-A spout assembly Discontinued
LL-26 undercover plate screw $3.24
LL-27 handle set screw $3.23
LL-27W wrench $3.24
LL-38 mounting bolt $3.23
LL-39 mounting washer $3.24
LL-40 mounting nut $3.30
LL-43 spout o-ring $3.25
LL-60 spray outlet use LL-60B
LL-60B aerator - vandal resistant $23.29
LL-60W wrench $3.28
LL-KIT-W tool kit $21.18
LT-1A control cartridge $102.37
LT-1B control cartridge for quick closing $102.88
LT-2 metering cylinder $16.16

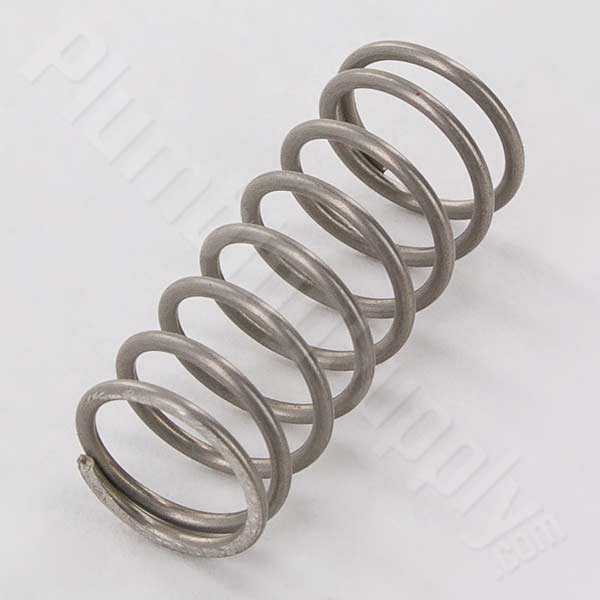

LT-3 piston spring $3.30
LT-4A piston assembly $23.25
LT-23A base plate assembly Discontinued
LT-28 valve housing gasket $3.29
LT-37 handle w/ set screw $51.53
LT-44 adapter nut Discontinued
S-61-RETRO-KIT repair kit $102.53

to metering bathroom faucets by Symmons

- OR - View Cart

Slow Close Metering Bathroom Faucet Parts
(from April 2000 to current)
Model Description Price & Quantity
KIT-LL o-ring kit $22.93
LL-1A control cartridge $101.16
LL-1B control cartridge for quick closing $101.51
LL-27W wrench $3.24
LL-105 shell $89.34
LL-106 base gasket $3.25
LN-100 .5 gpm aerator - vandal resistant $11.00
LN-101 aerator - vandal resistant $14.68
LT-4A piston assembly $23.25
LT-71B in-line check screen assembly $23.96

to metering bathroom faucets by Symmons

- OR - View Cart

S-70 Series Metering Faucet Replacement Parts
(from 1996 - August 2002)
Model Description Price & Quantity
EVB-9 o-ring $3.30
K-60 washer $3.26
KIT-MF o-ring kit $10.86
KN-23 anchor bar $4.39
KN-26 mounting spacer - PAIR (qty of two) $6.66
LL-24 control rod $3.26
LL-27W wrench $3.24
LL-37 rubber washer $3.29
LL-60B aerator - vandal resistant $23.29
LL-60K spray outlet wrench $3.27
MF-1 replacement cartridge Discontinued
MF-KIT-W tool kit $5.10
SPF-1 spout assembly $45.27
SPF-2 bushing cap $11.03
SPF-3 bushing Discontinued
SPF-4 cap $40.40
SPF-5 flange $3.25
SPF-6 metering chamber Discontinued
SPF-7 seat Discontinued
SPF-8 u-cup nut Discontinued
SPF-9 metering pin Discontinued
SPF-14 huvacup Discontinued
SPF-16 u-cup Discontinued
SPF-18 compression spring Discontinued
SPF-19 set screw Discontinued
SPF-26 hex nut $5.05
SPF-27 deck plate gasket $3.28
SPF-28 deck plate $22.00
TT-47 o-ring Discontinued

to metering bathroom faucets by Symmons

- OR - View Cart

S-70 Series Metering Faucet Replacement Parts
(from August 2002 - current)
Model Description Price & Quantity
K-60 washer $3.26
KIT-LL o-ring kit $22.93
LL-1A control cartridge $101.16
LL-1B control cartridge for quick closing $101.51
LL-27 handle set screw $3.23
LL-27W wrench $3.24
LL-3N upper housing $15.60
LL-48 upper housing o-rings - set of three $3.26
LL-60K spray outlet wrench $3.27
LL-101 in-line screen $6.33
LN-100 .5 gpm aerator - vandal resistant $11.00
LN-101 aerator - vandal resistant $14.68
LT-4A piston assembly $23.25
MV-10 washer $3.28
MV-107 check $7.59
SPF-5 flange $3.25
SPF-26 hex nut $5.05
SPF-27 deck plate gasket $3.28
SPF-28 deck plate $22.00
SPF-38 lock washer $3.77
SPF-103 bushing $10.84
SPF-104 cap $50.10
SPF-104C cap - cold $44.95
SPF-104H cap - hot $50.49
SPF-107 spout assembly $45.88
SPF-KIT mounting kit $4.55

to metering bathroom faucets by Symmons

- OR - View Cart

FS & FSB Series Handspray Repair Parts
Model Description Price & Quantity

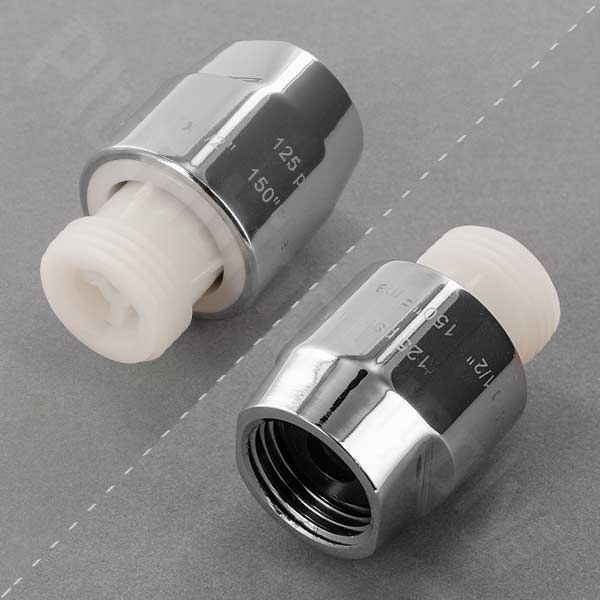

INLINE-VB vacuum breaker $41.35
FP-1 open flow handspray $95.57

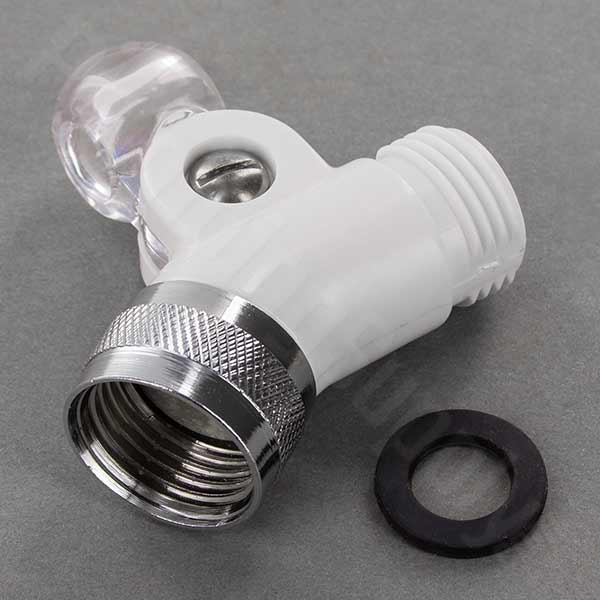

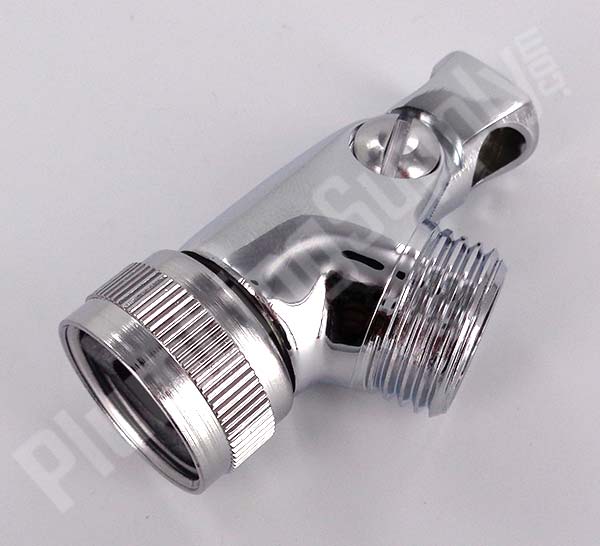

FP-1E swivel - for use with FP-24C - Plastic $11.94
FP-1E swivel - for use with FP-24C - Brass $32.29
FP-1-TEMPTROL temptrol open flow handspray $31.46
FP-2 wall bracket with screws $16.97
FP-24A bar end with screws $15.17

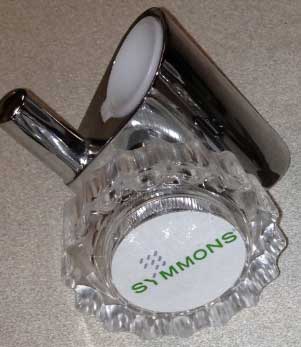

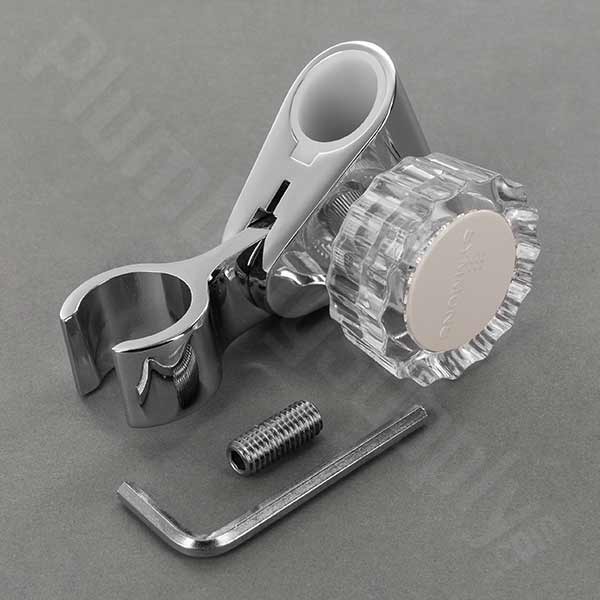

FP-SM3 slide with knobs (replaces FP-24C)
- does not require use of FP-1E
$48.93
FP-30B bar - 30" $51.45
FP-40 wall connection with flange $44.19
FP-48B bar - 48" $88.44
HS-5 ADA screw for slide $3.27
SP-4 hose - 5ft $27.69
SP-4-6 hose - 6ft $42.35
ST-12RV vinyl hose - 6ft $39.96

- OR - View Cart

H300 Series Handspray Repair Parts
Model Description Price & Quantity
EF-100 single mode handspray $52.04
EF-101 three mode handspray $47.73
SC-127 five mode handspray $92.84
EF-104 hose w/ vacuum breaker $64.19
EF-105 elbow $70.72

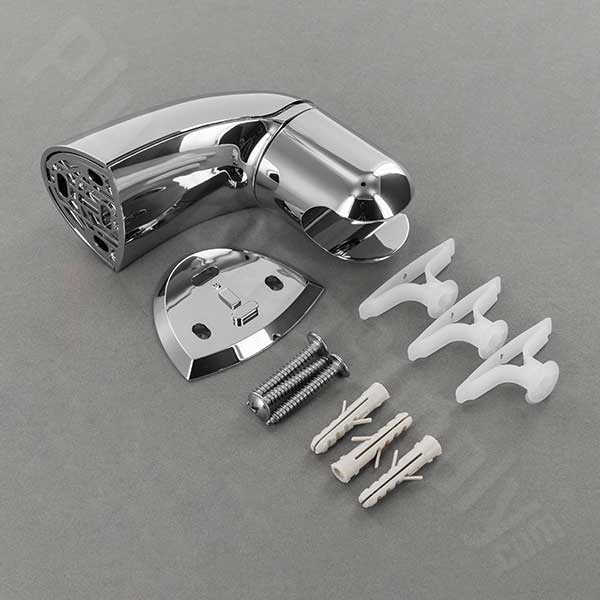

EF-106 wall mounting bracket $20.07
EF-107 bar with mount ends & slide rail $84.32
EF-109 vacuum breaker $33.88

- OR - View Cart

H400 Series Handspray Repair Parts
Model Description Price & Quantity
EF-104 hose w/ vacuum breaker $64.19
EF-105 elbow $70.72
EF-106 wall mounting bracket $20.07
EF-107 bar with mount ends & slide rail $84.32
EF-109 vacuum breaker $33.88
EF-118 single mode handspray $92.42
EF-119 three mode handspray $121.81

- OR - View Cart

4-295/150 Showerhead Repair Parts
Model Description Price & Quantity
FF-1A front insert for 4-295 $81.48
FF-2B washer $3.25
IH-EX adapter for male head $33.94
NIH-1F flow restrictor w/ retainer $15.37
NIH-2 mounting bracket - sweat $41.91
NIH-2-IPS mounting bracket - IPS $42.20
NIH-3 set screw $3.29
NIH-5 face plate for 4-150 $6.55
NIH-6 anchor plate w/ screws $11.12
A-4-295 anchor plate $20.28
B-4-295 back plate $32.65
UH-1C o-ring for head bracket $3.29

- OR - View Cart

to shower heads by Symmons

4-151 Showerhead Repair Parts
Model Description Price & Quantity

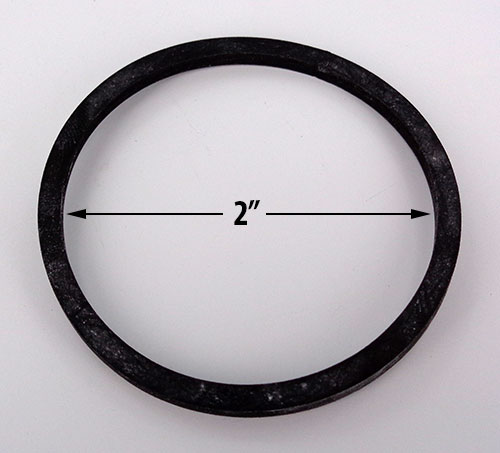

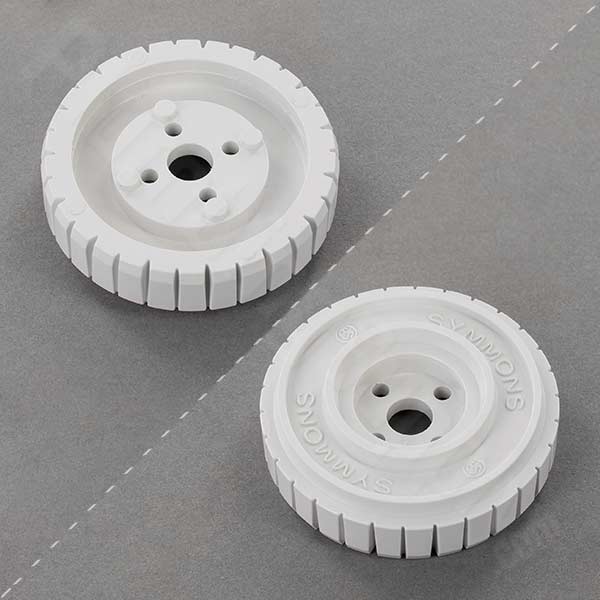

S2H-5 face plate $9.40
S2H-5A face plate gasket $3.24
SH-7 locking nut $3.25
UH-1A front insert $109.06
UH-1B mounting bracket - sweat $52.40
UH-1B-IPS mounting bracket - IPS $52.18
UH-1C o-ring for head bracket $3.29

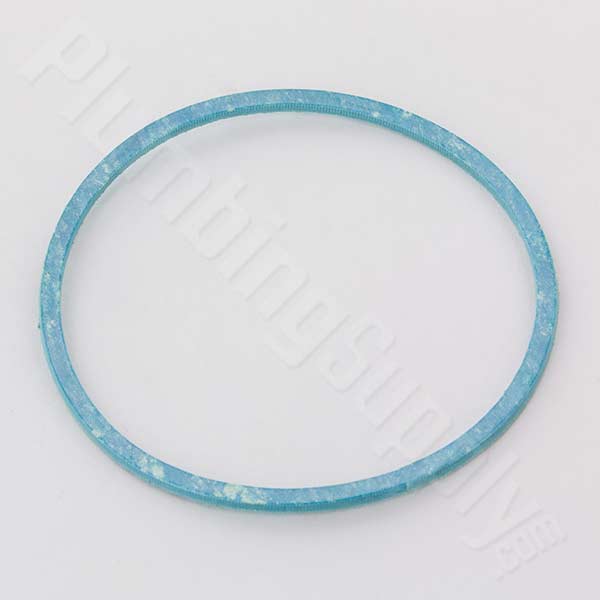

UH-3A insert gasket $3.28

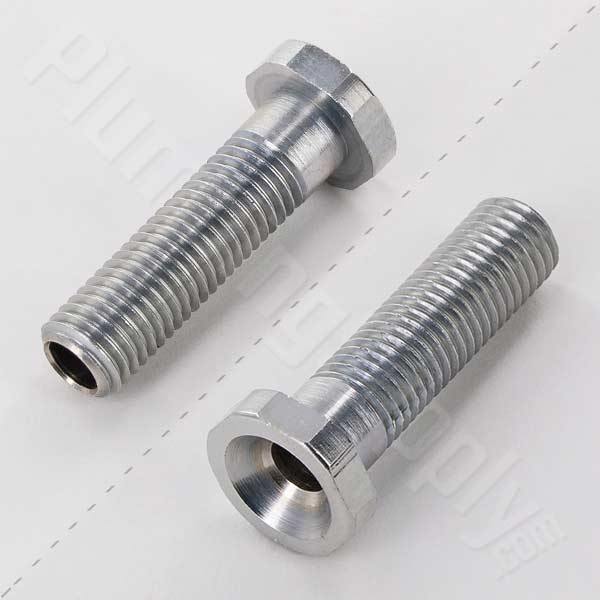

UH-5 stud screw $8.65

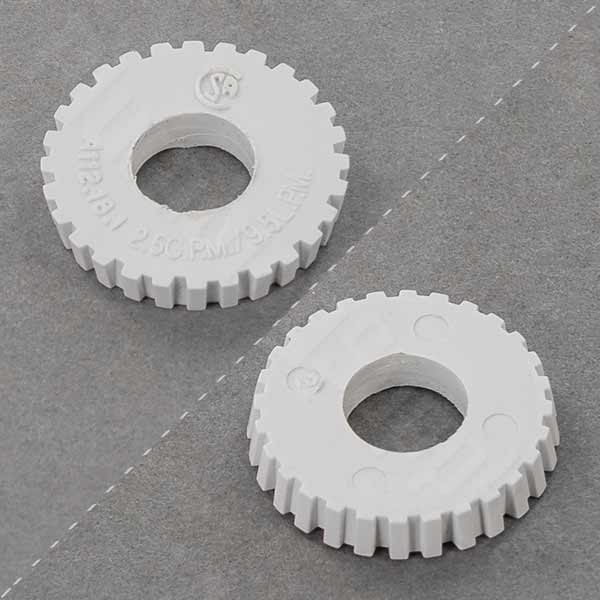

UH-5A spray insert $3.28
UH-5C spacer $3.23

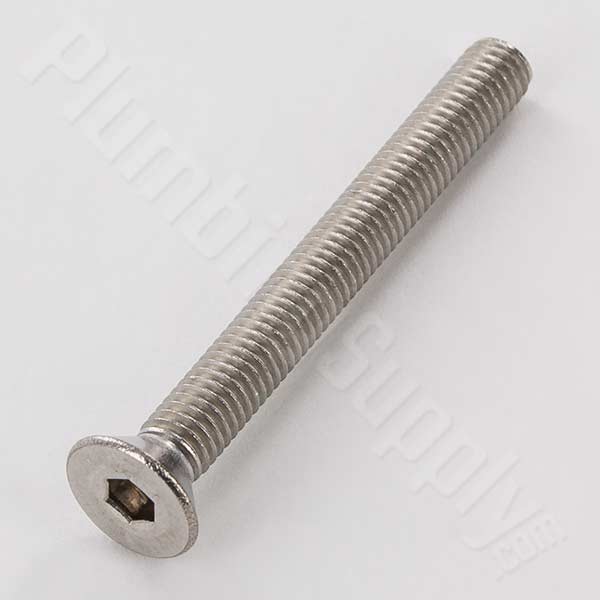

UH-6 face plate screw $3.24
UH-7A insert gasket screw $7.94

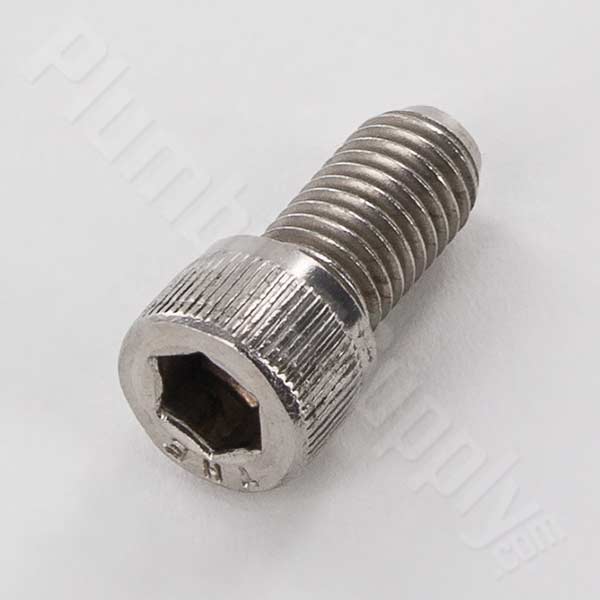

UH-7B insert screw $3.24

- OR - View Cart

S-6080 Ultra-Sense Replacement Repair Parts
Model Description Price & Quantity

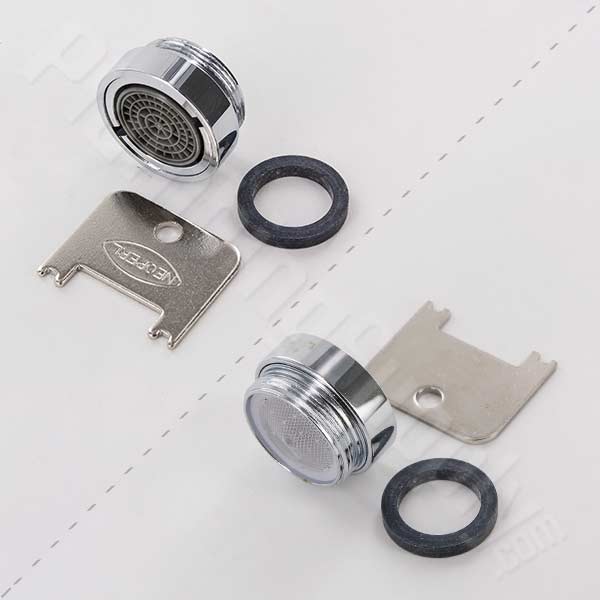

SF-125 aerator w/ key $22.54
SF-138 deck plate $12.43
SF-140 gasket $3.27
SF-142 mounting kit $3.89
SF-146 check strainer repair kit $22.43
SF-147 sensor repair kit $288.51
SF-148 supply hose $11.65
SF-150A pilot valve repair kit $100.44

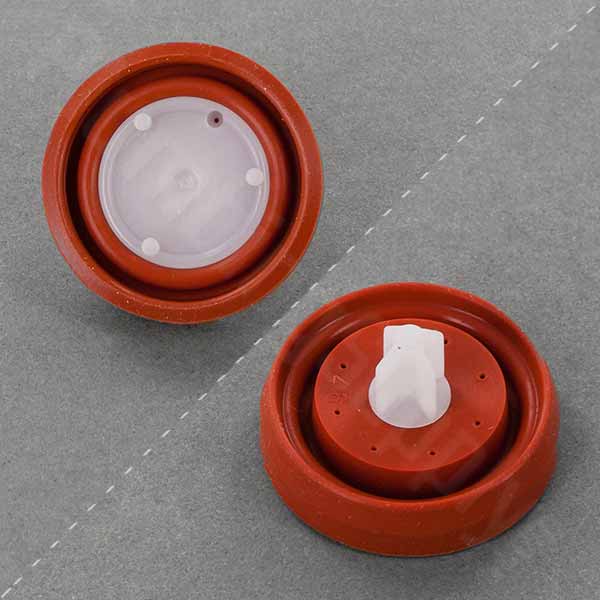

SF-151 solenoid valve membrane $5.84
SF-152 housing screw $3.25
SF-153 handle plug button $7.50

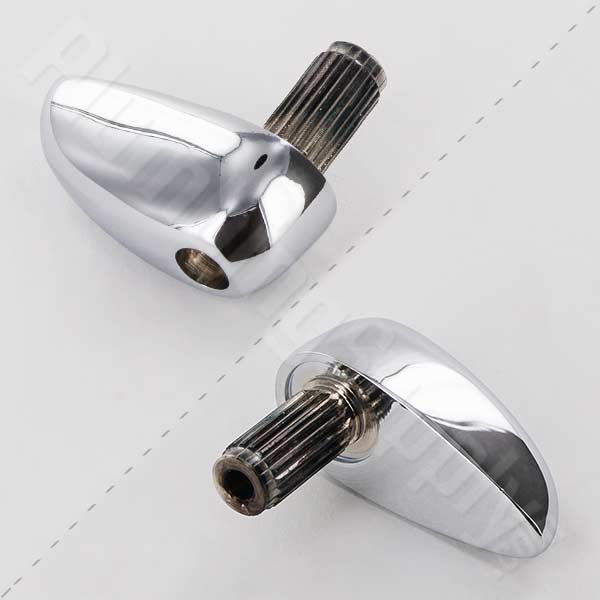

SF-154 handle $10.07

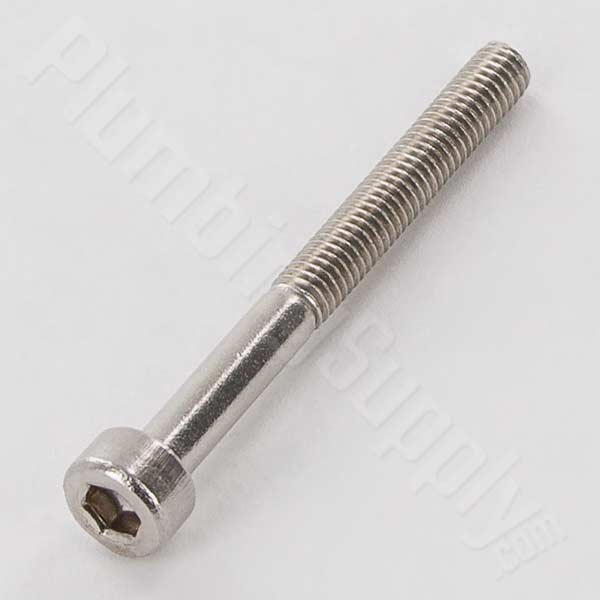

SF-155 handle screw $3.26
SF-156 handle limit stop $3.46

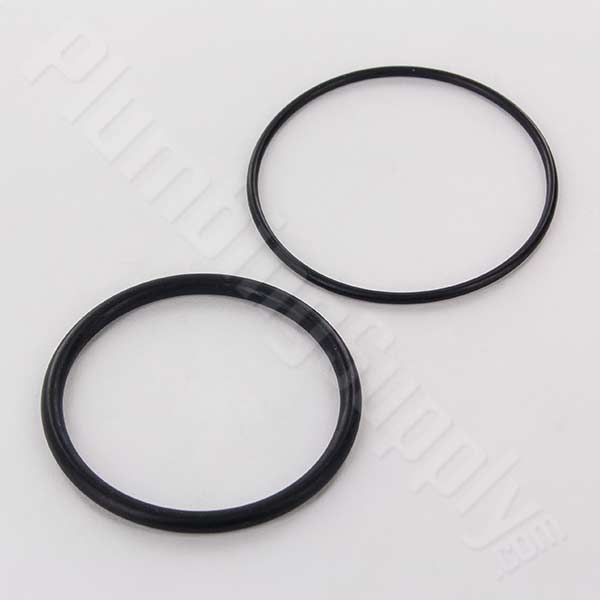

SF-157 o-ring kit $3.23
SF-158 single mount kit $9.51
SF-159 plug $3.46
SF-162 mixer $27.90
SF-173 deck plate - 8" $99.28
SF-186 check strainer kit $59.54
SF-189 wall mount transformer $70.17
SF-2CR5 6V Lithium Battery $23.49

- OR - View Cart

Tempcontrol Thermostatic Water Controller Repair Parts
Model Description Price & Quantity

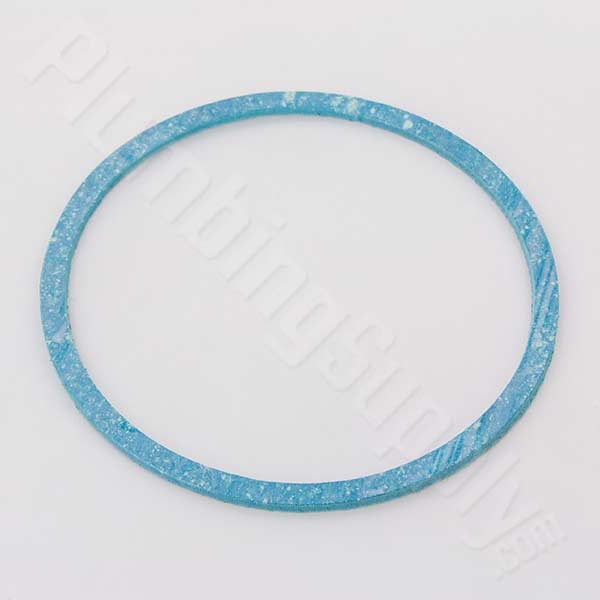

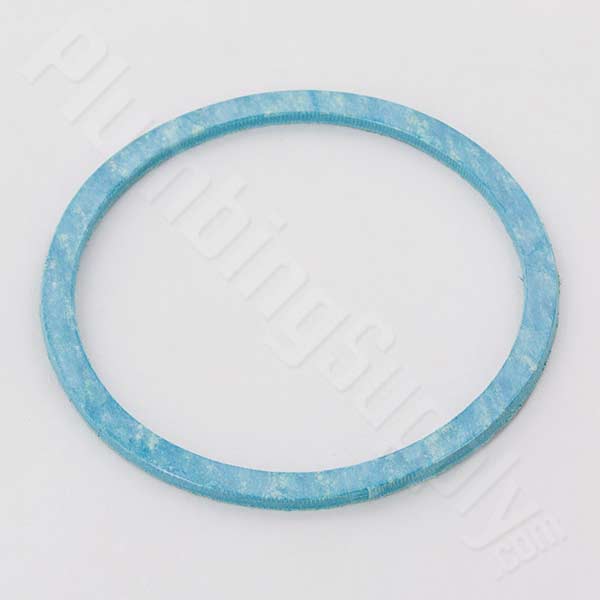

TT-11-100 casing gasket $7.51

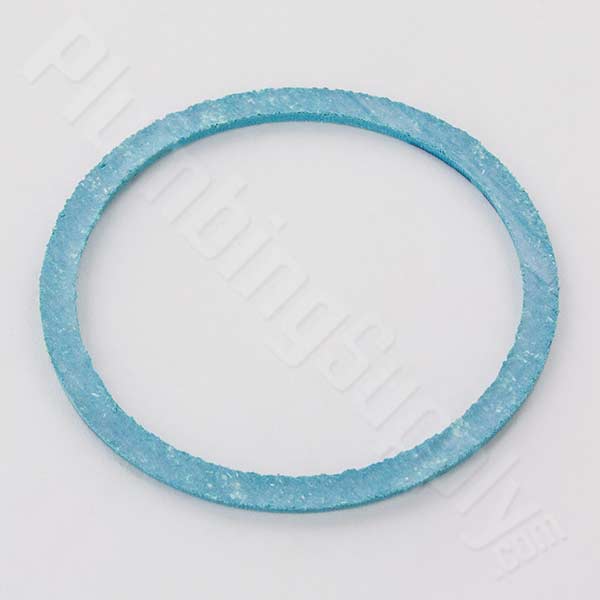

TT-11-200 casing gasket $7.35

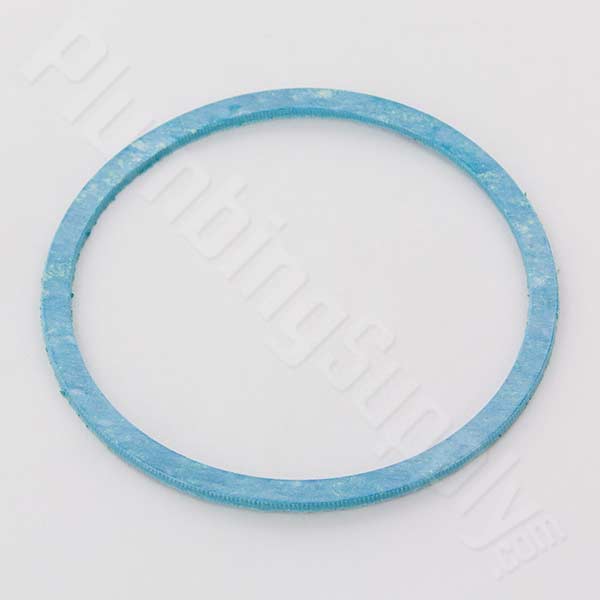

TT-11-400 casing gasket $7.42

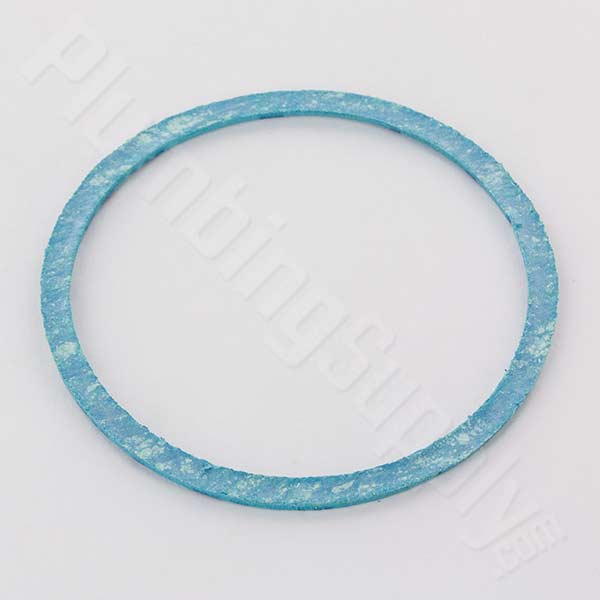

TT-11-500 casing gasket $7.37

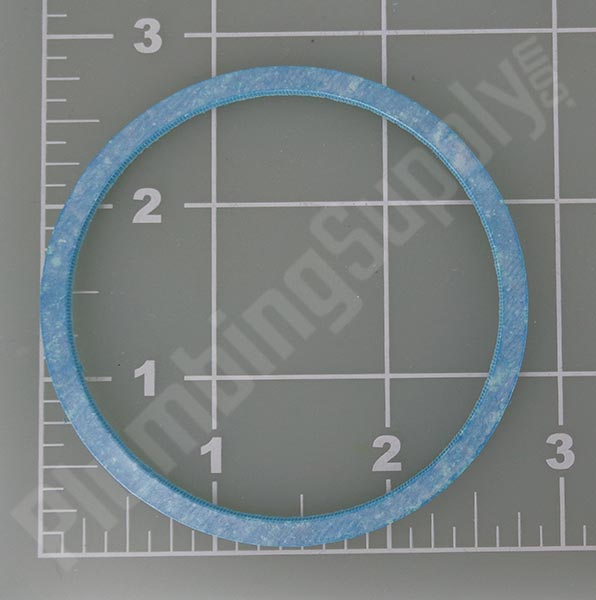

TT-11-700 casing gasket $7.35

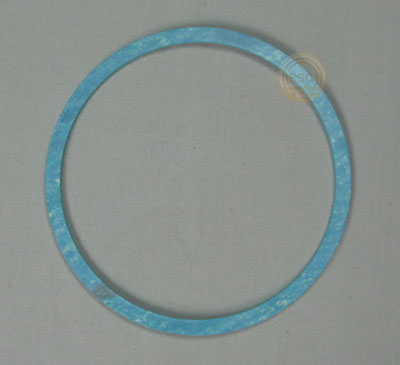

TT-11-900 casing gasket $7.40

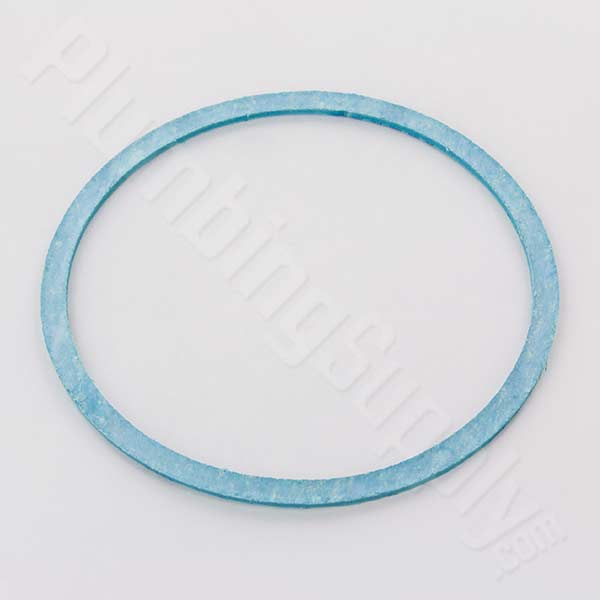

TT-11-1000 casing gasket $7.47

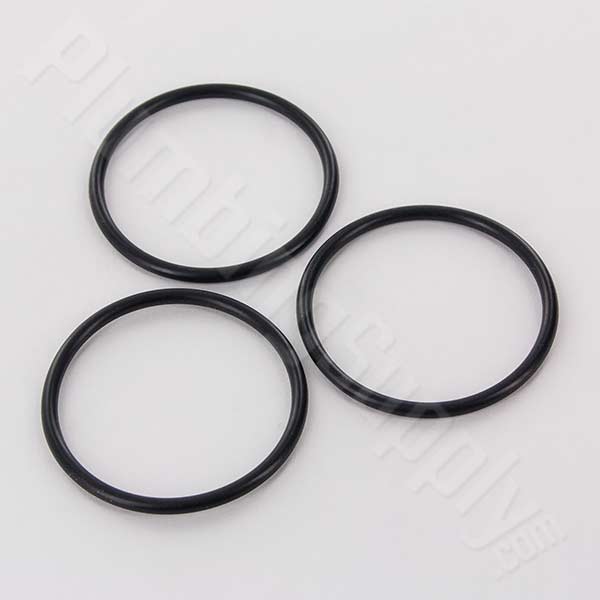

TT-15-100 sleeve o-rings - set of three $9.56
TT-15-200 sleeve o-rings - set of three $9.65

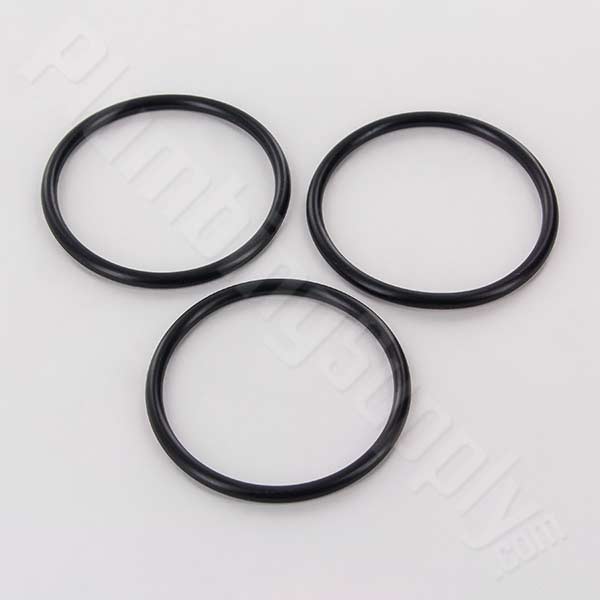

TT-15-400 sleeve o-rings - set of three $9.65
TT-15-500 sleeve o-rings - set of three $9.62

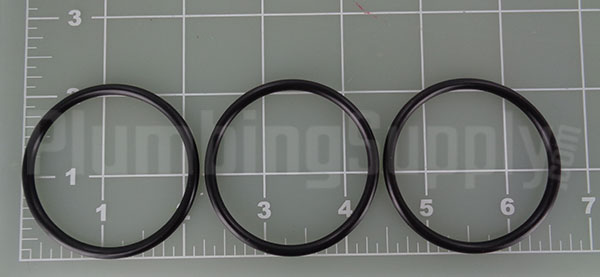

TT-15-700 sleeve o-rings - set of three $9.74

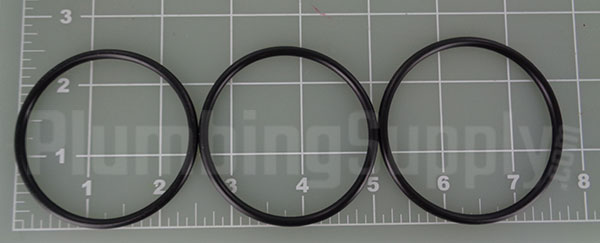

TT-15-900 sleeve o-rings - set of three $10.73

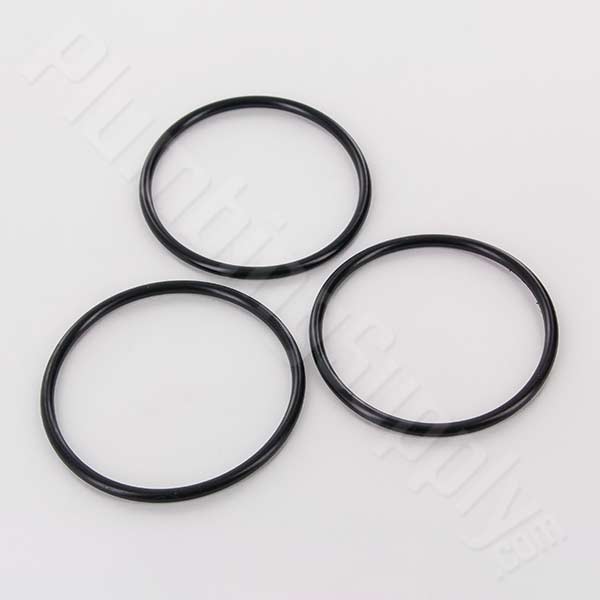

TT-15-1000 sleeve o-rings - set of three $10.84
TT-16-100 spring w/ spring saddle $10.62
TT-16-200 spring w/ spring saddle $10.61
TT-16-400 spring w/ spring saddle $10.60
TT-16-500 spring w/ spring saddle $10.52
TT-16-700 spring w/ spring saddle $10.66
TT-16-900 spring w/ spring saddle $14.88
TT-16-1000 spring w/ spring saddle $14.86
TT-17N-200 check spring retainer $9.42
TT-17N-400 check spring retainer $9.48
TT-17N-500 check spring retainer $9.54
TT-19-200 gland nut & packing - PAIR (qty of two) Discontinued
TT-19-400 gland nut & packing - PAIR (qty of two) $14.67
TT-19-500 gland nut & packing - PAIR (qty of two) $14.84
TT-19-700 gland nut & packing - PAIR (qty of two) $14.83
TT-19-900 gland nut & packing - PAIR (qty of two) $14.75
TT-20-900 cap - PAIR (qty of two) $113.66
TT-20-1000 cap - PAIR (qty of two) $113.35
TT-20N-200 cap - PAIR (qty of two) $63.26
TT-20N-400 cap - PAIR (qty of two) $80.61
TT-20N-500 cap - PAIR (qty of two) $113.24
TT-20N-700 cap - PAIR (qty of two) $113.52
TT-21-200 cap gasket - PAIR (qty of two) $3.25
TT-21-400 cap gasket - PAIR (qty of two) $3.26
TT-21-500 cap gasket - PAIR (qty of two) $3.26
TT-21-700 cap gasket - PAIR (qty of two) $3.29
TT-21-900 cap gasket - PAIR (qty of two) $3.29
TT-21-1000 cap gasket - PAIR (qty of two) $3.29
TT-22-900 stop spindle - PAIR (qty of two) $32.96
TT-22-1000 stop spindle - PAIR (qty of two) $33.24
TT-22N-200 stop spindle - PAIR (qty of two) $17.65
TT-22N-400 stop spindle - PAIR (qty of two) $17.59
TT-22N-500 stop spindle - PAIR (qty of two) $17.69
TT-22N-700 stop spindle - PAIR (qty of two) $17.82
TT-24-400 check spindle & spring - PAIR (qty of two) Discontinued
TT-24-500 check spindle & spring - PAIR (qty of two) Discontinued
TT-24-700 check spindle & spring - PAIR (qty of two) Discontinued
TT-24-900 check spindle & spring - PAIR (qty of two) Discontinued
TT-24-1000 check spindle & spring - PAIR (qty of two) Discontinued
TT-24N-200 check spindle & spring - PAIR (qty of two) Discontinued
TT-24N-400 check spindle & spring - PAIR (qty of two) Discontinued
TT-24N-500 check spindle & spring - PAIR (qty of two) Discontinued
TT-24N-700 check spindle & spring - PAIR (qty of two) Discontinued
TT-26-200 check seat - PAIR (qty of two) $40.16
TT-26-400 check seat - PAIR (qty of two) $40.33
TT-26-500 check seat - PAIR (qty of two) $63.34
TT-26-700 check seat - PAIR (qty of two) $62.72
TT-27-900 check stop body - PAIR (qty of two) $412.25
TT-27-1000 check stop body - PAIR (qty of two) $411.24
TT-32A gasket for 5-900/1000 series - PAIR (qty of two) $3.26
TT-47N stop spindle o-ring - PAIR (qty of two) $2.84
TT-50AN-200 stop assembly - PAIR (qty of two) $132.34
TT-50AN-400 stop assembly - PAIR (qty of two) $170.92
TT-50AN-500 stop assembly - PAIR (qty of two) $194.06
TT-50AN-700 stop assembly - PAIR (qty of two) $193.83

- OR - View Cart

Tempcontrol 5-102 Thermostatic Water Controller Repair Parts
Model Description Price & Quantity
CSE-25 stop body $99.90
CSE-26 cap $51.19
CSE-29 o-ring $3.97
CE-30 gasket - PAIR (qty of two) $3.96
CSE-31 washer $3.26
CSE-32 check washer $3.29
CSE-33 check assembly Discontinued
CSE-34 spring $4.02
CSE-35 check spindle $30.30

- OR - View Cart

Thermixer Replacement Repair Parts
Model Description Price & Quantity
TMX-112 cap $7.19
TMX-128 handle kit $4.85
TMX-135 conical spring $33.20
TMX-146 thermal motor replacement kit $51.44
TMX-187 spindle assembly $30.80
TMX-191 check assembly - 1/2" - PAIR (qty of two) $27.02
TMX-197 check assembly - 3/4" - PAIR (qty of two) $26.58
TMX-201 check assembly - 1" - PAIR (qty of two) $61.51

- OR - View Cart

Frequently Asked Questions

Q. "What is the quality of Symmons products?"
A. Since the 1930's Symmons has provided superior engineering, and solid workmanship in every product. Product manufacturing, assembly, and handling are subject to strict quality control and only the highest quality materials are selected to ensure durability for years to come.



return to top ↑
