Origins™ Series Tub and Shower Systems
by Symmons®
Founded in 1939, Symmons Industries is a premier manufacturer of commercial and residential plumbing products. Their premium line of products offers style and durability at a price to fit every plumbing budget. PlumbingSupply.com® is proud to be your source for Symmons.
The tub/shower systems on this page are
CEC compliant and
WaterSense certified for exceptional low-flow performance
Origins™ Complete Tub/Shower/Handshower Systems
These tub/shower/handshower systems feature:
- Temptrol pressure balance valve maintains temperature during pressure variations
- Adjustable stop screw helps prevent scalding
- Optional integral diverter located below the on/off handle lets you conveniently divert water from the tub spout to the separate wall mounted diverter valve provided for the two shower heads (S-9606 only)
- Separate, wall mounted, 2-function, lever handled diverter allows user to divert water back and forth from showerhead to handshower as needed (9606 uses triple outlet diverter)
- Stationary single mode 2 gpm shower head with easy clean rubber nozzles (includes shower arm and wall flange)
- ADA single mode 1.5 gpm hand shower with trickle shut-off valve and 60" hose
- Supply 90° elbow wall connection and flange with in-line vacuum breaker
- ADA 1-1/2" diameter 36" length stainless steel grab bar with concealed flanges
- Adjustable slider bracket secures hand shower to grab bar
- 5-1/2" regular (non-diverter) tub spout included
- In-line handshower vacuum breaker prevents potential contaminated water from entering water supply in the event of a pressure drop
- Click here for 9606 specifications
- Click here for S-9606 specifications

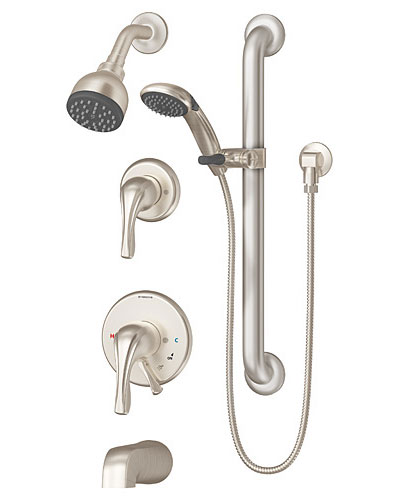

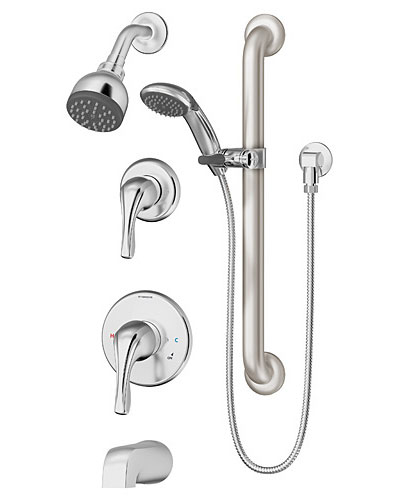

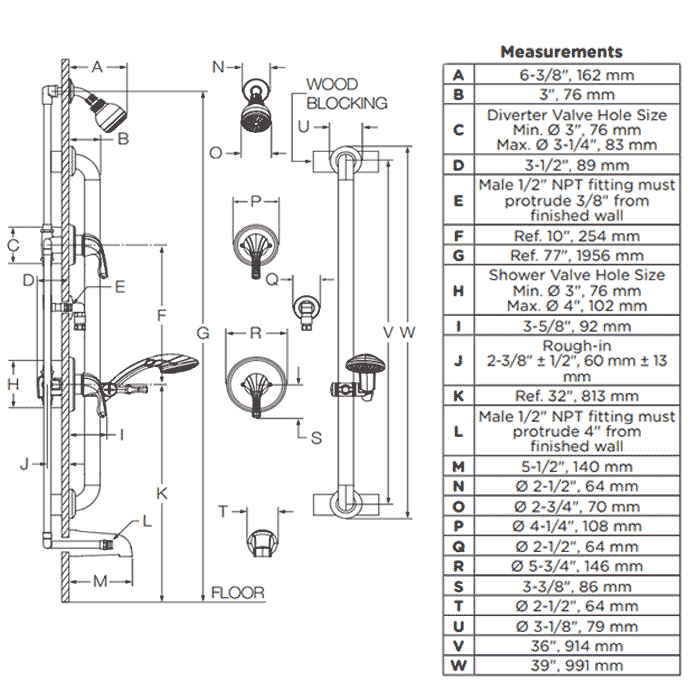

Origins Complete System w/ Triple Outlet Diverter 9606-PLR

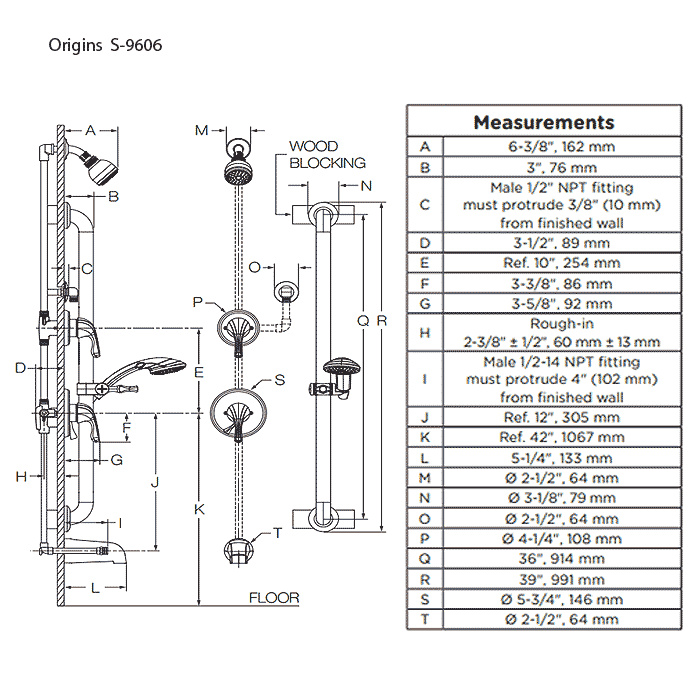

Origins Complete System w/ Integral Diverter S-9606-PLR

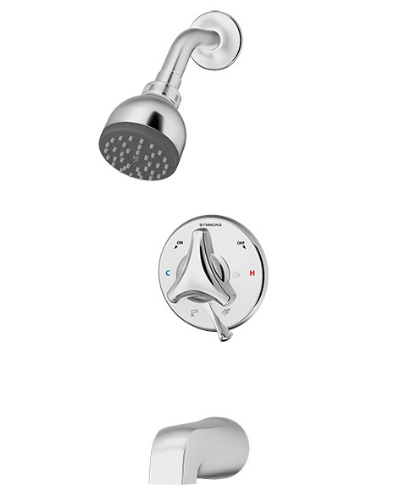

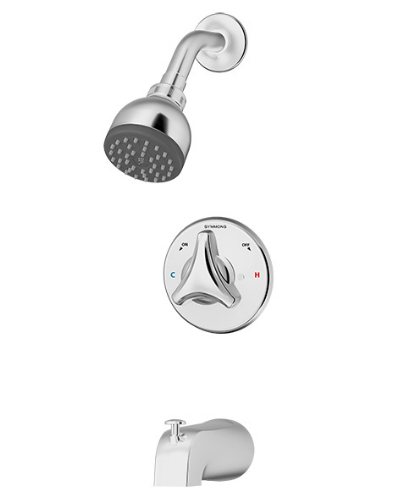

Origins™ Tub & Shower Systems (Tri-Star Handle)
These tub & shower systems feature:
- 1.5 gpm single mode showerhead with rubber nozzles for easy cleaning
- Tri-star handle design
- Optional integral diverter eliminates the need for a diverter in the tub spout (S-9602-P only)
- Temptrol® pressure balance mixing valve keeps water temperature balanced during pressure fluctuations
- Adjustable stop screw limits handle turn to help prevent scalding
- Polished Chrome finish
- 5-1/2" diverter or 5-1/4" non-diverter tub spout

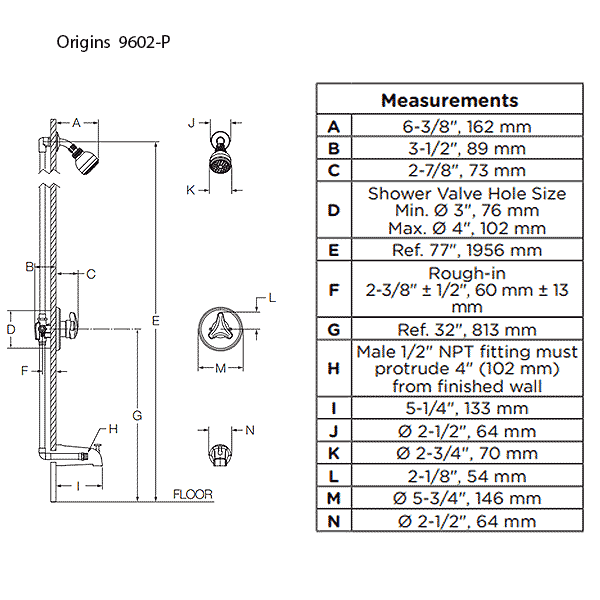

- Click here for 9602-P specifications

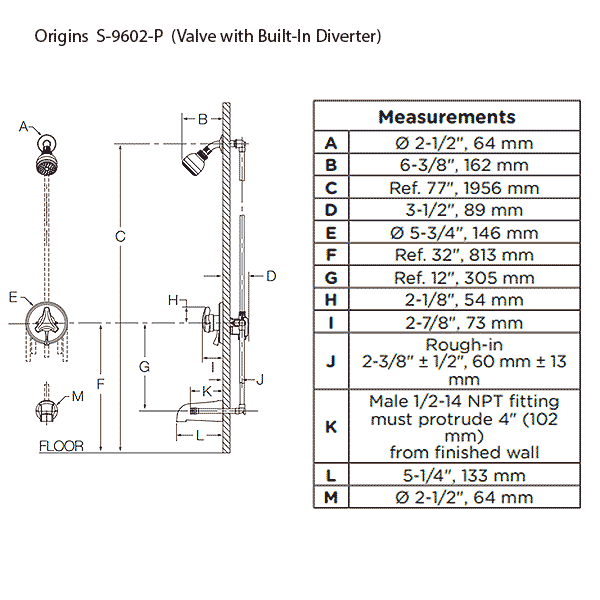

- Click here for S-9602-P specifications
Origins Tub/Shower System
Origins™ Tub & Shower Systems
These Tub and Shower Systems feature:
- Temptrol pressure-balancing mixing valve
- Stylish metal lever handle
- Adjustable stop screw can limit the handle from being turned to excessively hot temperatures and helps prevent scalding
- Optional integral diverter eliminates the need for a diverter in the tub spout (S-9602-PLR only)
- Single mode shower head has easy clean nozzles and includes shower arm and matching wall escutcheon
- 5-1/2" diverter or 5-1/4" non-diverter tub spout
- Water efficient 1.5 gpm or less shower head flow rate
- Click here for 9602-PLR specifications
- Click here for S-9602-PLR specifications

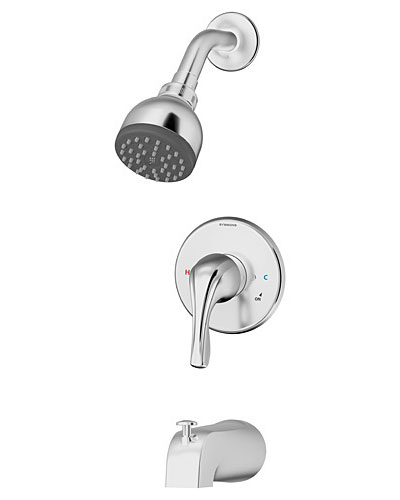

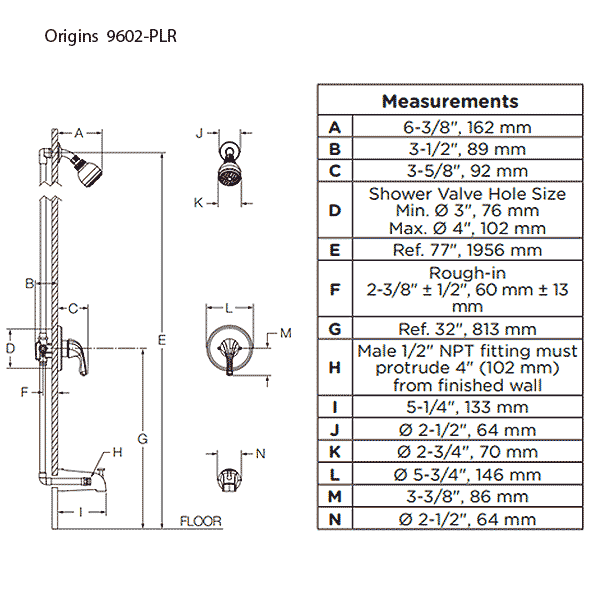

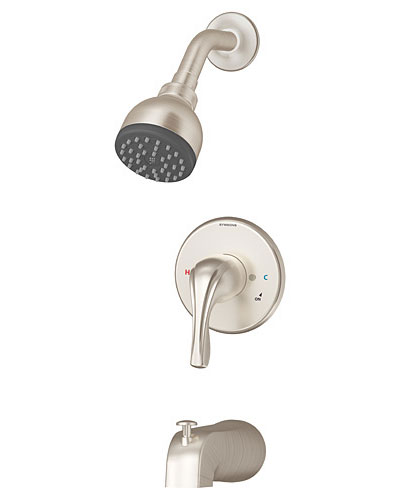

Origins Tub/Shower System 9602-PLR

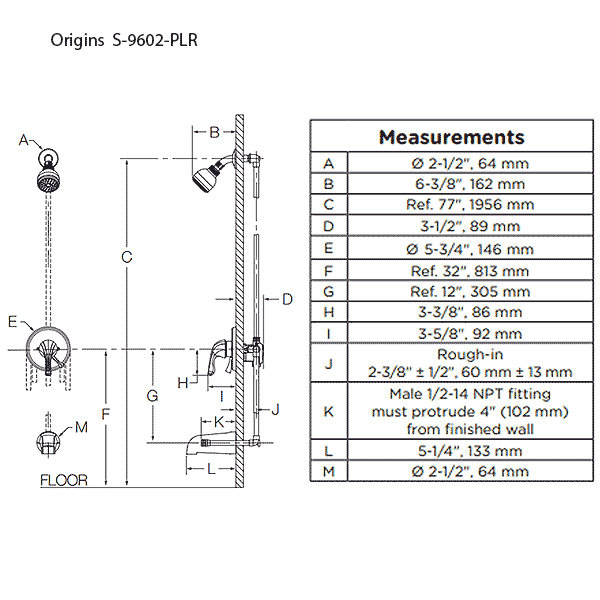

Origins Tub/Shower System w/ Integral Diverter S-9602-PLR
Origins™ Shower & Handshower System
This shower set features:
- Shower and handshower system
- Pressure-balancing Temptrol mixing valve with lever handle
- Adjustable stop screw limits handle turn capability and helps prevent scalding
- 2-funtion separate diverter to switch from shower to handshower and vice versa
- Single mode 1.5 gpm shower head has easy clean nozzles and includes shower arm and matching wall escutcheon
- ADA single mode 1.5 gpm hand shower with trickle shut-off valve includes 60" flexible hose
- Supply 90° elbow wall connection and flange with in-line vacuum breaker
- ADA 1-1/2" diameter 36" length stainless steel grab bar with concealed flanges
- Adjustable slider bracket secures hand shower to grab bar
- Click here for 9605 specifications

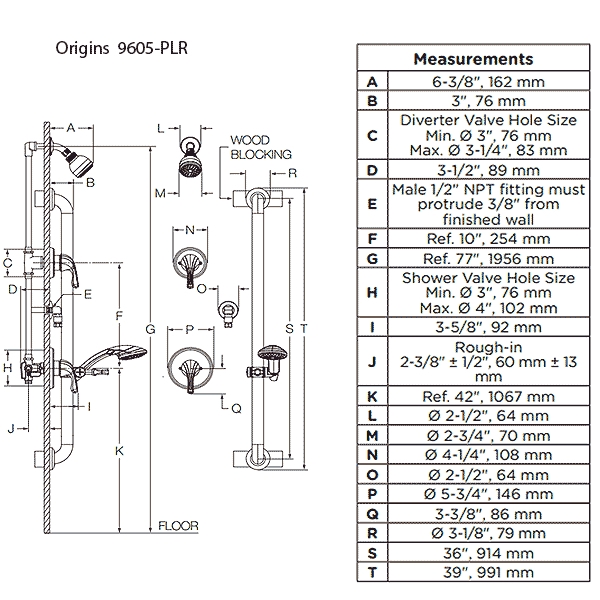

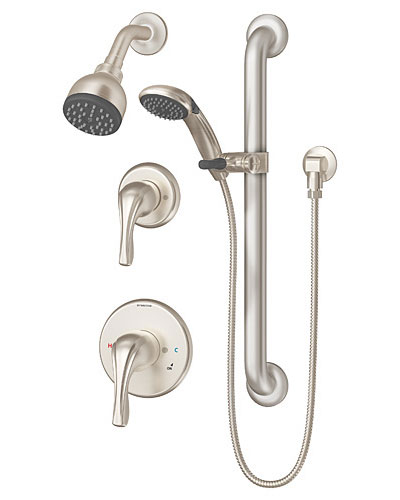

Origins Shower/Handshower System 9605-PLR
Origins™ Shower Systems
These shower systems feature:
- Temptrol pressure balancing mixing valve not only controls on and off but also provides consistent water temperature by compensating for water pressure fluctuations
- Adjustable stop screw limits handle turning capability and helps prevent scalding
- Optional secondary integral volume control handle lets you set the amount of water flowing from your system (S-9601-PLR only)
- Water efficient 1.5 gpm
- Single mode shower head has easy clean nozzles and includes shower arm and matching wall escutcheon
- Click here for 9601-PLR specifications

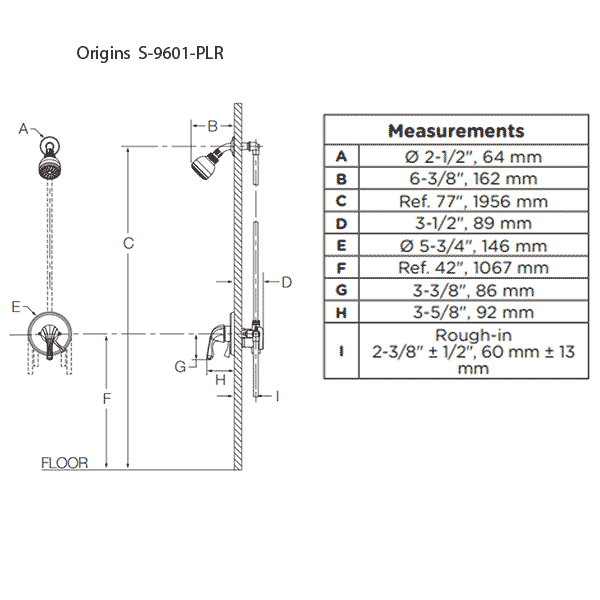

- Click here for S-9601-PLR specifications

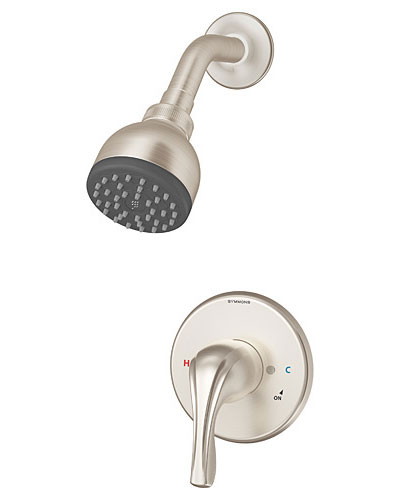

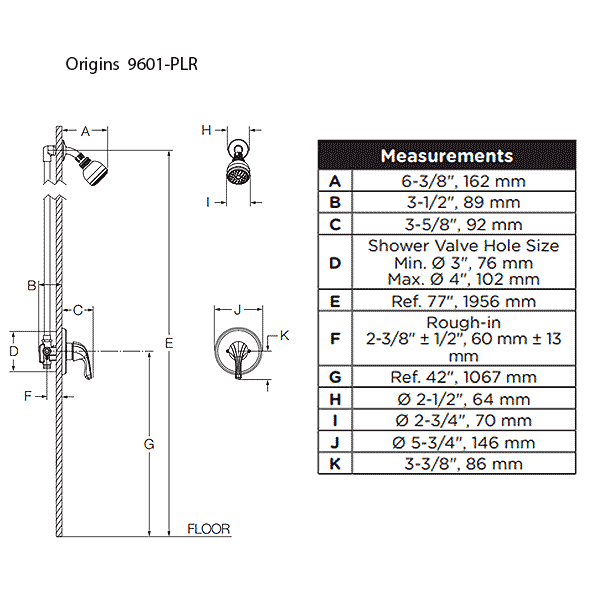

Origins Shower System 9601-PLR

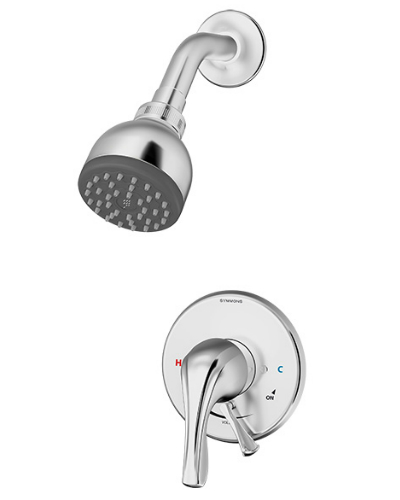

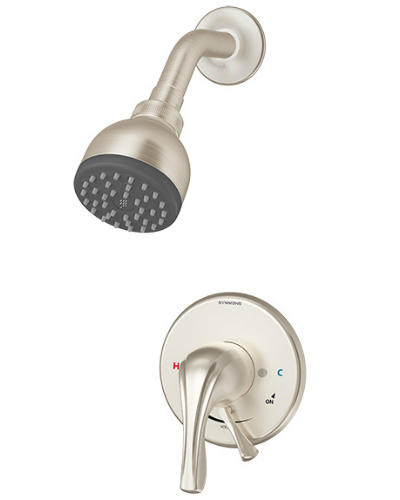

Origins Shower System w/ Volume Control S-9601-PLR

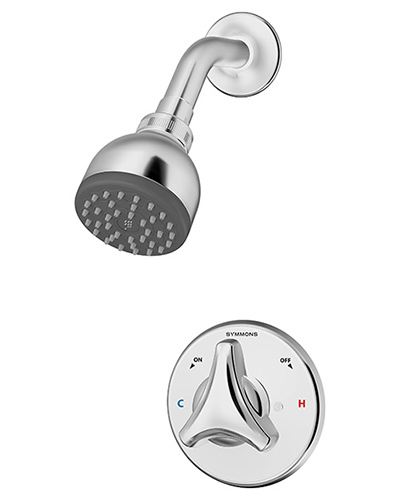

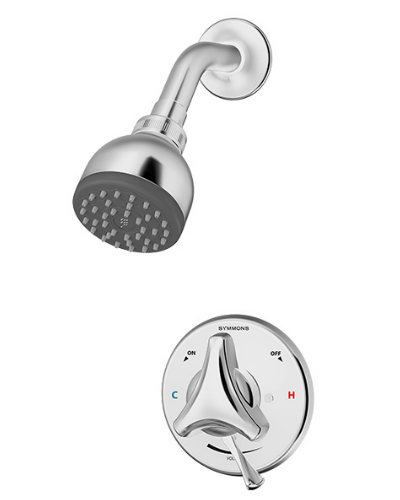

Origins™ Shower Systems (Tri-Star Handle)
These handshower systems feature:
- 1.5 gpm single-mode showerhead with easy to clean nozzles
- Tri-star handle design
- Optional secondary integral volume control handle lets you set the amount of water flowing from your system (S-9601-P only)
- Dependable Temptrol pressure-balancing valve helps prevent fluctuations in temperature
- Adjustable stop screw limits handle turning to maximum hot temperatures and helps prevent scalding

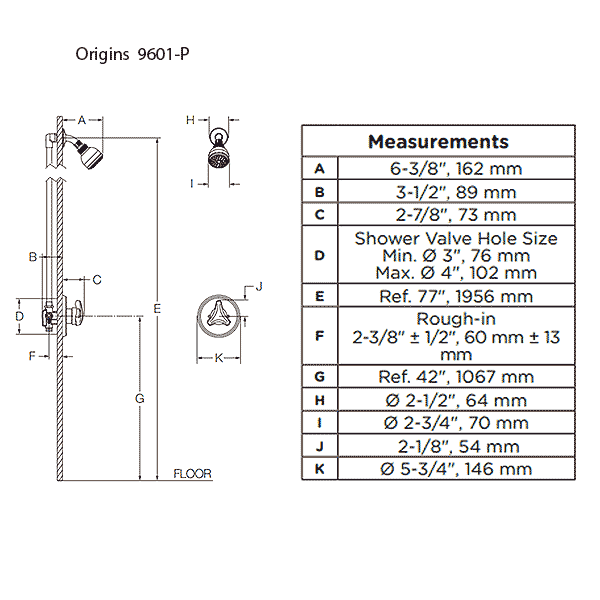

- Click here for 9601-P specifications

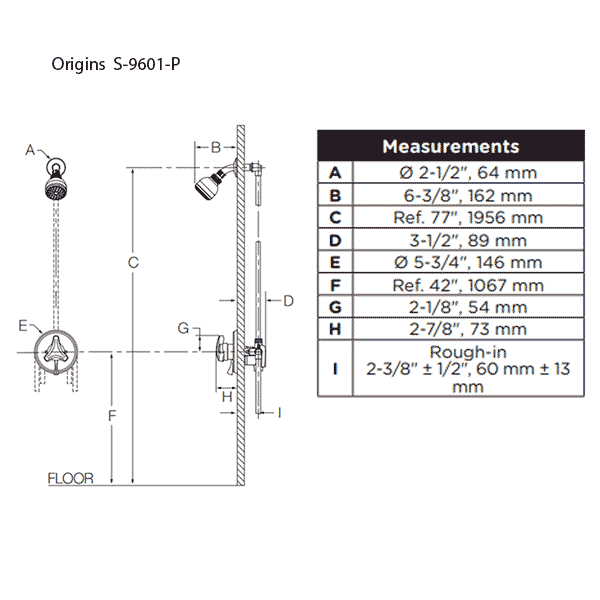

- Click here for S-9601-P specifications
Origins™ Shower System
- Temptrol pressure balancing mixing valve not only controls on and off but also provides consistant water temperature by compensating for water pressure fluctuations
- Adjustable stop screw limits handle turning capability and helps prevent scalding
- Water efficient 1.5 gpm
- 2 mode shower head has massage feature and includes shower arm and matching wall escutcheon
Origins™ Handshower Systems
These shower sets feature:
- Dependable Temptrol pressure-balancing valve helps prevent fluctuations in temperature
- Easy to use on/off lever handle (turns clockwise/counterclockwise)
- Adjustable stop screw limits handle turning to maximum hot temperatures and helps prevent scalding
- Optional secondary integral volume control handle lets you set the amount of water flowing from your system (S-9603-PLR only)
- ADA 1-1/2" diameter 36" length grab bar with concealed flanges
- Adjustable slider bracket secures hand shower to grab bar
- ADA single mode water saving 1.5 gpm handshower with trickle shut-off valve includes 60" flexible hose
- Supply 90° elbow wall connection and flange with in-line vacuum breaker
- In-line vacuum breaker prevents potential contaminated water from siphoning into water supply in the event of a pressure drop
- ADA 1-1/2" diameter 36" length stainless steel grab bar with concealed flanges
- Adjustable slider bracket secures hand shower to grab bar

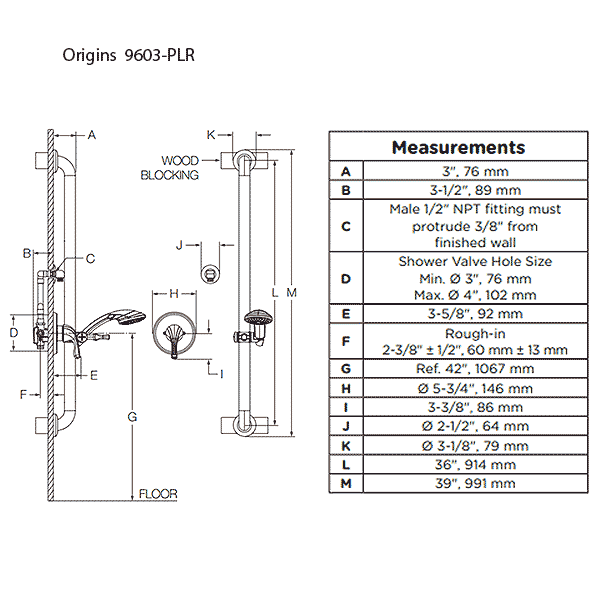

- Click here for 9603 specifications
- Click here for S-9603 specifications

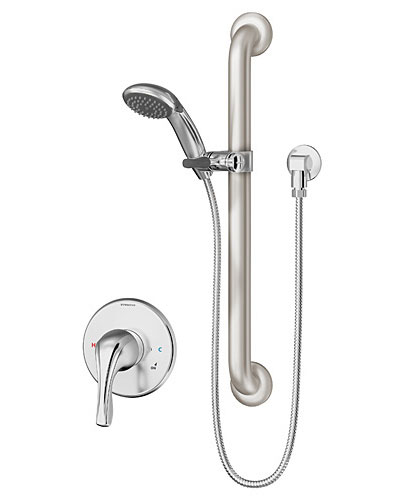

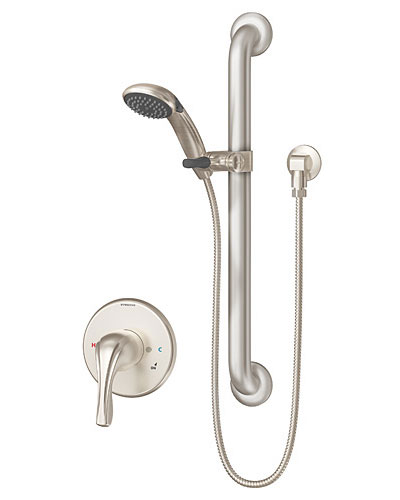

Origins Handshower System 9603-PLR

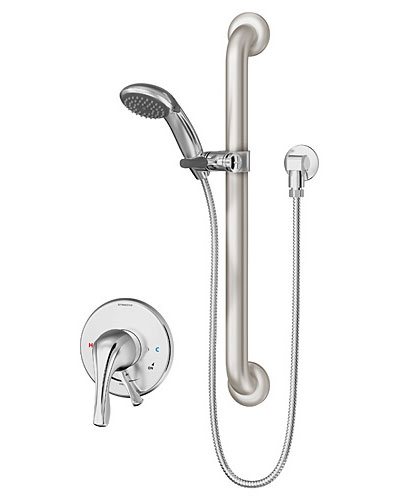

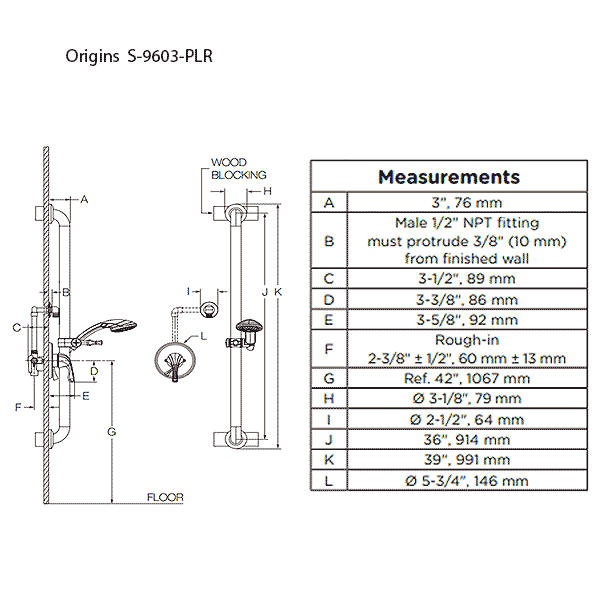

Origins Handshower System w/ Volume Control S-9603-PLR
Origins™ Tub/Handshower Systems
These tub/handshower systems feature:
- Tub filler with versatile handshower system
- Pressure-balancing temptrol mixing valve controls water temperature and variations in water pressure
- Smooth operating on/off lever handle (turns clockwise/counterclockwise)
- Tub to shower diverter conveniently built into pressure balance valve
- Adjustable stop screw limits handle turning to full hot capacity to help prevent scalding
- ADA single mode 1.5 gpm hand shower with trickle shut-off valve includes 60" flexible hose
- Supply 90° elbow wall connection and flange with in-line vacuum breaker
- ADA 1-1/2" diameter 36" length grab bar with concealed flanges
- Adjustable slider bracket secures hand shower to grab bar
- Regular non-diverter tub spout - 5-1/2"
- Click here for 9604-PLR specifications
- Click here for S-9604-PLR specifications

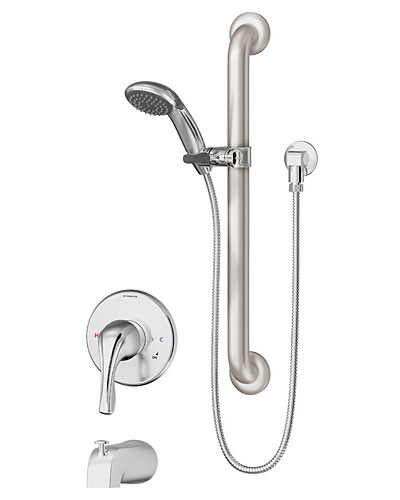

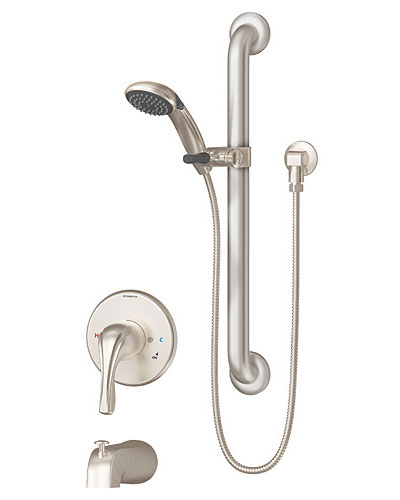

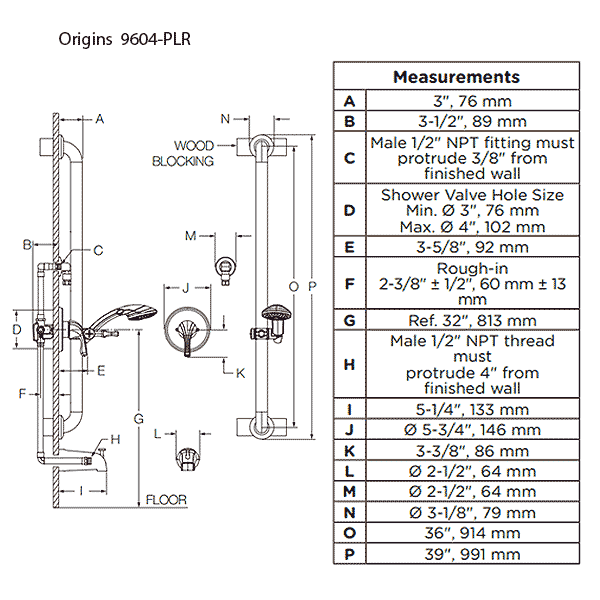

Origins Tub/Handshower System w/ Diverter Spout 9604-PLR

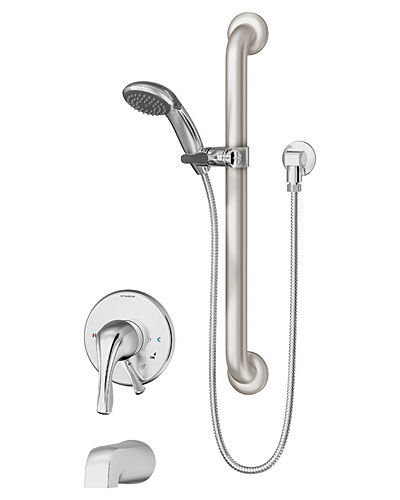

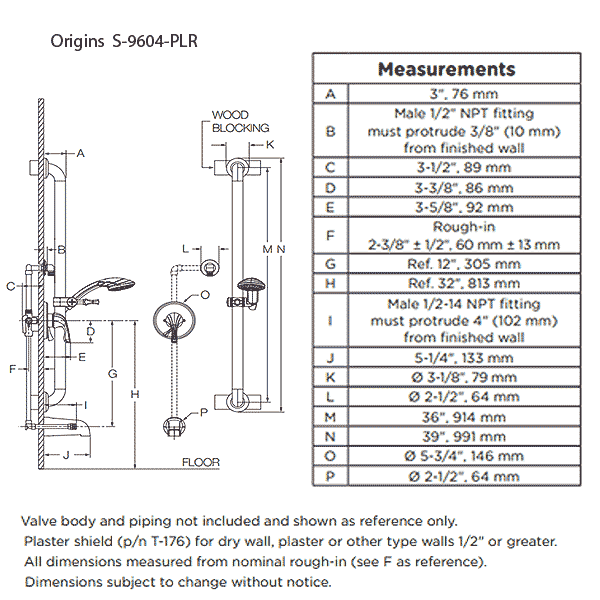

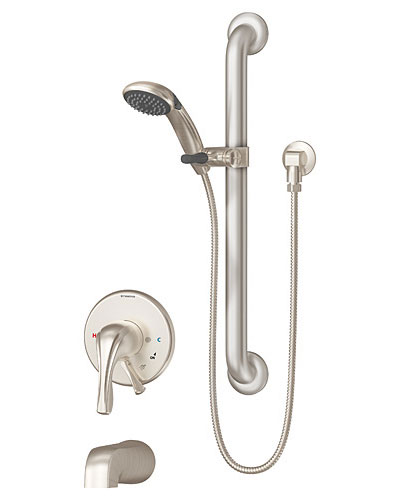

Origins Tub/Handshower System w/ Integral Diverter S-9604-PLR
Origins Components & Accessories
Origins™ Tub or Shower Pressure Balance Valves
These pressure balancing valves feature:
- Temptrol® pressure balance mixing valve controls on/off function, hot & cold water temperature and also provides consistent water temperature by compensating for water pressure fluctuations
- Unique Tri-Star handle design
- Adjustable stop screw limits the handle fully turning towards the "hot" side and helps prevent accidental scalding
- Modern streamlined tri-star handle is easy to turn and looks stylish
- Use with diverter tub spout or separate diverter valve for tub/shower utilization
- 1/2" nominal copper sweat inlets and outlets
- Available with integral volume control or built-in diverter to suit your application

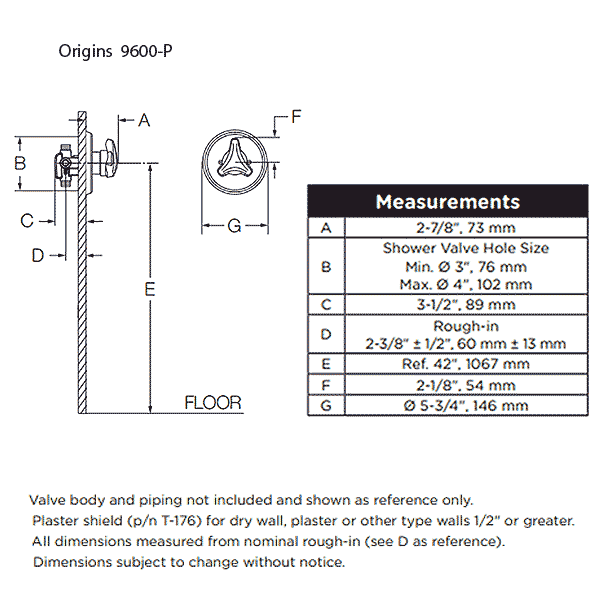

- Click here for 9600-P specifications
Replaces discontinued models:
- 9600-P replaces discontinued Temptrol® models #86-2 and #BP-46-2

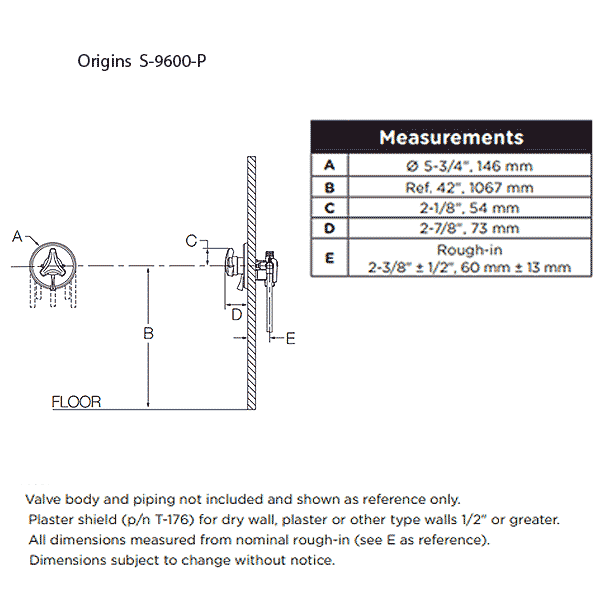

- S-9600-P replaces discontinued Temptrol® model #S-86-1
- S-9600TS-P replaces discontinued Temptrol® model #S-86-2
Origins shower valves feature:
- Fresh, simple design style
- Add on to your existing Origins suite shower or upgrade an old valve and trim
- Shower valve and trim only allows you to mix and match with your favorite showerhead and/or tub spout
- Durable metal construction that is built to last
- Uses the Symmons Temptrol pressure balancing mixing valve with adjustable stop screw to limit handle turn

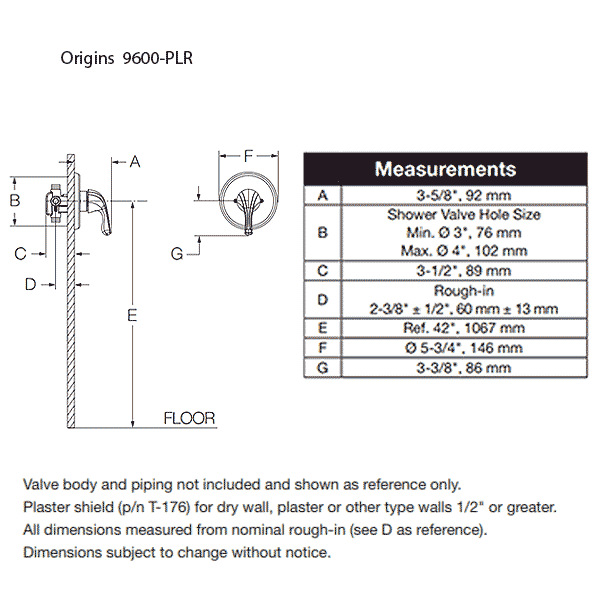

- Click here for 9600-PLR specifications

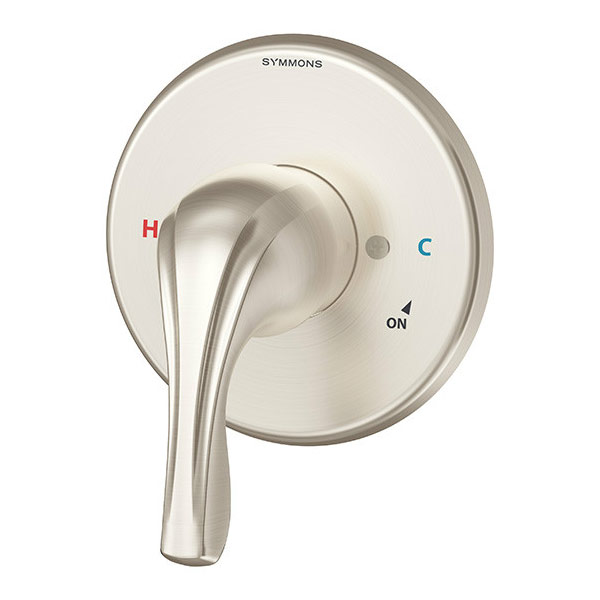

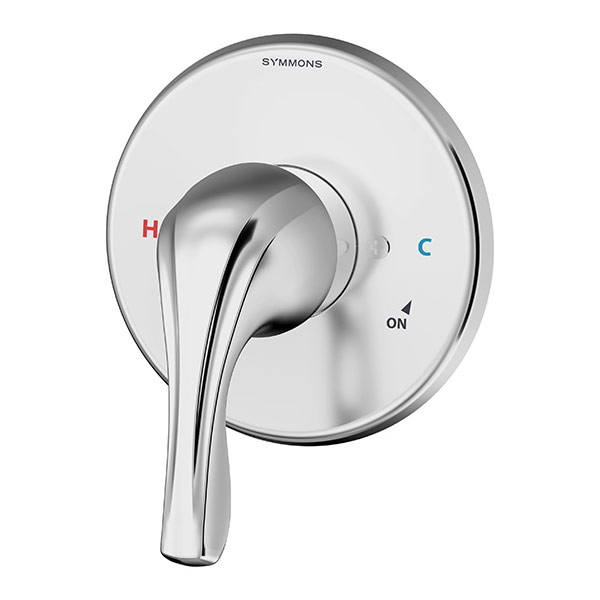

Origins Shower Valve 9600-PLR

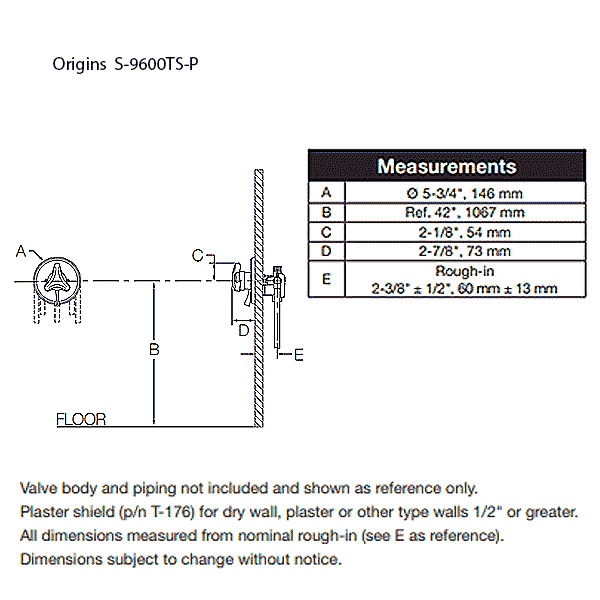

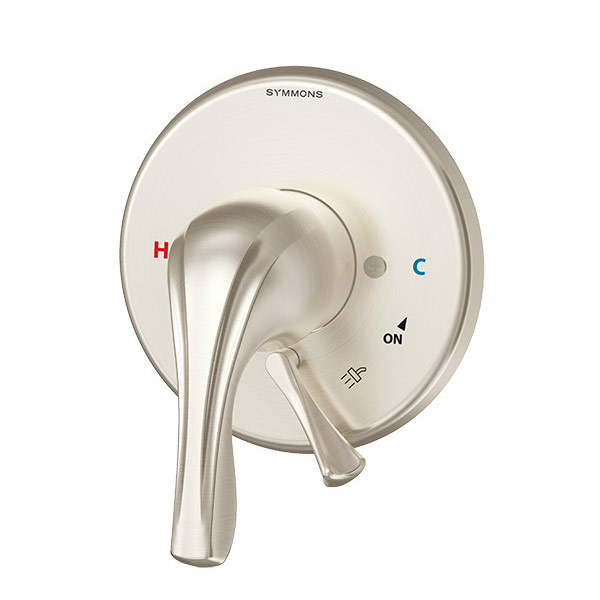

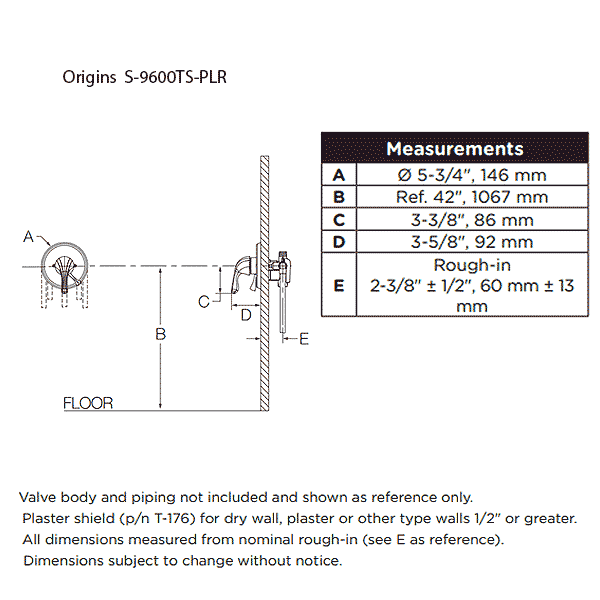

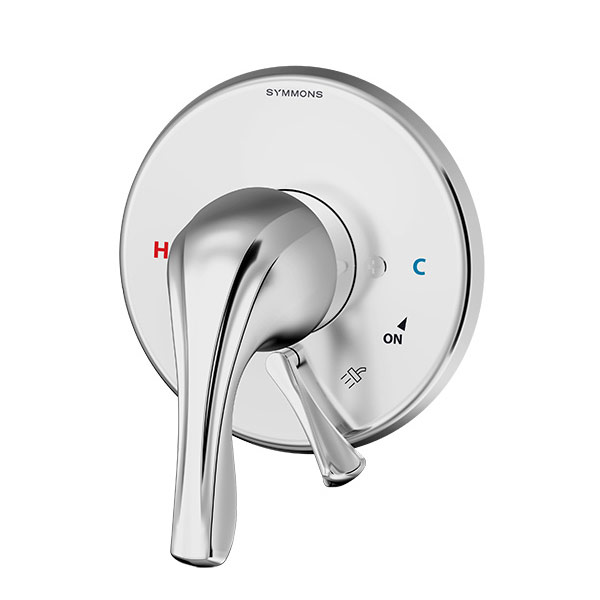

Origins Tub/Shower Valve with Diverter & Trim - S-9600TS-PLR

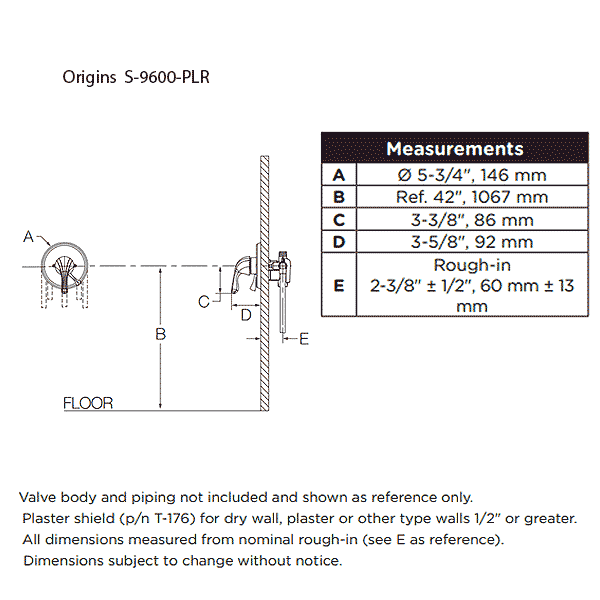

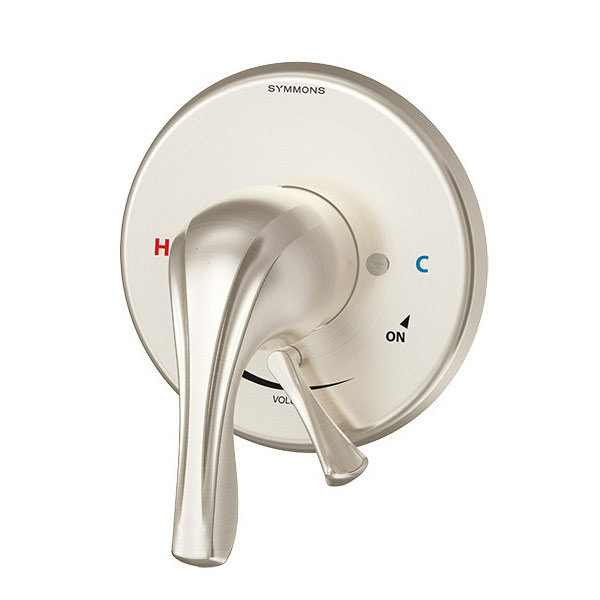

Origins Shower Valve & Trim with Volume Control - S-9600-PLR

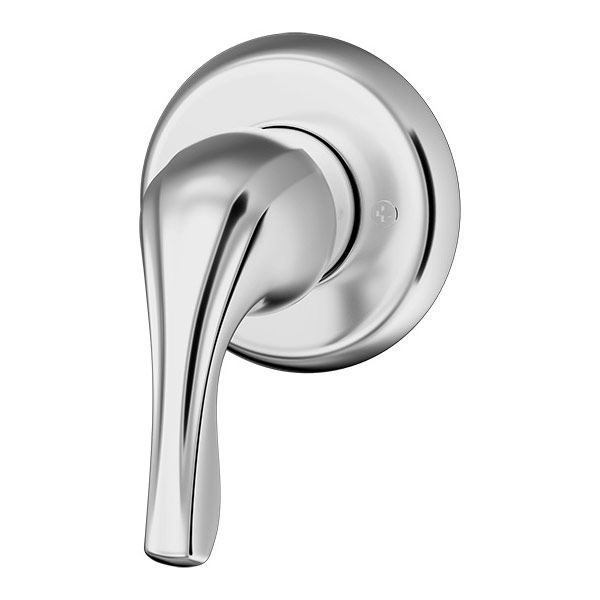

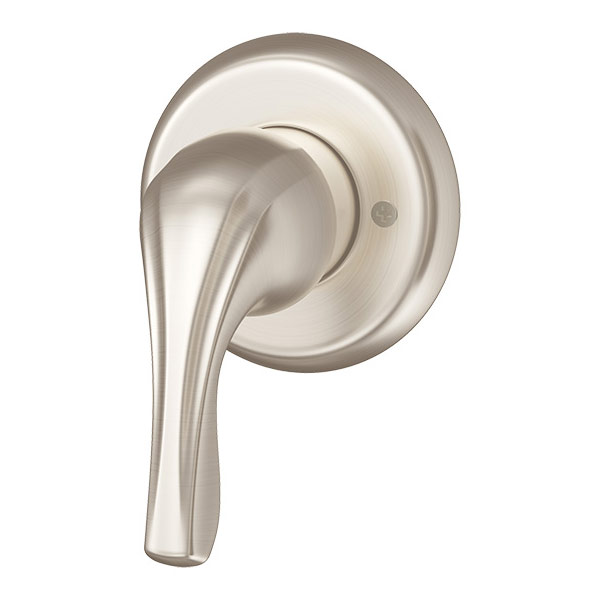

Origins Triple Outlet Diverter - 96-3DIV
Origins Dual Outlet Diverter - 96-2DIV
Related Items & Accessories
Frequently Asked Questions
Q. "What is the advantage of the adjustable stop screw?"
A. The adjustable stop screw allows you to adjust the limit to which the handle can turn in the hot direction. By doing so, you can preset the handle to turn to the desired temperature setting. Many hot water heaters are set at high temperatures for automatic dishwashing and clothes washing, but the temperature may also be high enough to scald. By using the stop screw, the handle will be stopped from going into the higher temperature range.
Q. "What is the quality of Symmons products?"
A. Since the 1930's Symmons has provided superior engineering, and solid workmanship in every product. Product manufacturing, assembly, and handling are subject to strict quality control and only the highest quality materials are selected to ensure durability for years to come.
