Concealed Toilet Flushometers - Manually Operated

by Sloan Valve

When you need the very best in flushometers, Sloan has what you need. Sloan Flushometers come in a variety of models, and there's one for every toilet - whether you need a top spud or a back spud flushometer, you'll find them here on PlumbingSupply.com®!

Logo for Buy American Act compliant products Look for this symbol to find Sloan products that meet requirements of the Buy American Act

Concealed Water Closet Flushometers - Royal® 140 Series

Designed for floor mounted 1 1/2" back spud bowls

Royal Flushometer
This water closet flushometer features:
  • Permex molded rubber diaphragm, handle packing, stop seat, & vacuum breaker provides chloramine corrosion resistance
  • Dual filtered diaphragm reduces debris from entering the flushometer and ensures maximum performance in demanding environments
  • 1" IPS wheel handle angle stop
  • High back pressure vacuum breaker
  • Spud coupling, wall & spud flange for 1-1/2" exposed back spuds
  • Elbow flush connection
  • Exposed parts chrome plated
  • High copper, low zinc brass casting for dezincification resistance
  • Non-hold open handle to ensure maximum water conservation
  • Toilet outlet to handle is 13" center to center

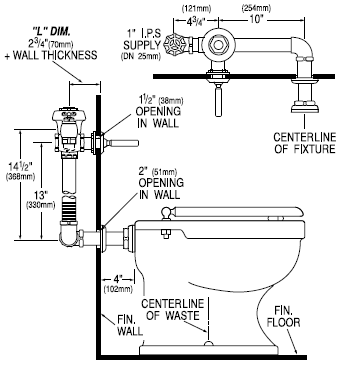

  • 10" offset - Click here for detailed dimensions
  • ASSE 1037, ANSI/ASME 112.19.6, & military spec V-29193 compliant
  • All of the flushometers below are Buy American Act compliant Buy American Act Compliant

Wall
Thickness
LDIM Price & Quantity
↓ 1.6 GPF low consumption concealed toilet flushometers
0" 2-3/4" $232.47
8" 10-3/4" $232.07

- OR - View Cart

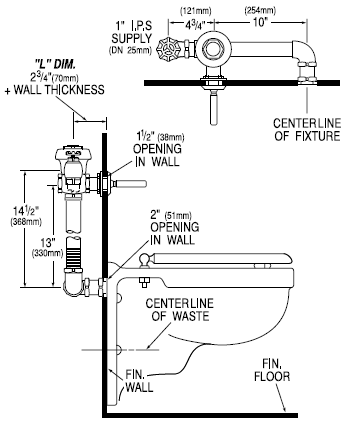

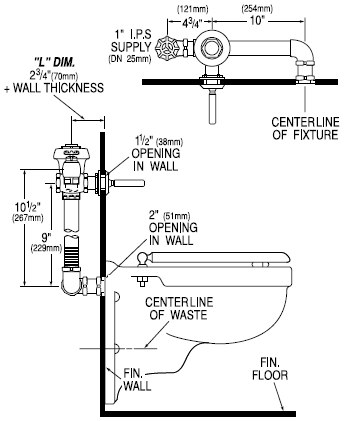

Concealed Water Closet Flushometers - Royal® 143/144 Series

Designed for wall hung 1 1/2" back spud bowls

Royal Flushometer
This water closet flushometer features:
  • Permex molded rubber diaphragm, handle packing, stop seat, & vacuum breaker provides chloramine corrosion resistance
  • Dual filtered diaphragm reduces debris from entering the flushometer and ensures maximum performance in demanding environments
  • 1" IPS wheel handle angle stop
  • High back pressure vacuum breaker
  • Spud coupling, wall & spud flange for 1-1/2" concealed back spuds
  • Elbow flush connection
  • Exposed parts chrome plated
  • High copper, low zinc brass casting for dezincification resistance
  • Non-hold open handle to ensure maximum water conservation
  • 10" offset
  • ASSE 1037, ANSI/ASME 112.19.6, & military spec V-29193 compliant
  • Buy American Act compliant (note symbol for participating products)

Wall
Thickness
LDIM Price & Quantity
(13" outlet to handle)
Price & Quantity
(9" outlet to handle)
↓ 1.6 GPF low consumption concealed toilet flushometers
1" 3-3/4" Buy American Act Compliant $204.17 $202.67
2" 4-3/4" Buy American Act Compliant $205.14 Buy American Act Compliant $205.14
4" 6-3/4" Buy American Act Compliant $206.94 Buy American Act Compliant $207.55
5" 7-3/4" Buy American Act Compliant $215.66 Buy American Act Compliant $210.63
6" 8-3/4" Buy American Act Compliant $206.24 Buy American Act Compliant $215.42
7" 9-3/4" Buy American Act Compliant $222.81 Buy American Act Compliant $220.14
8" 10-3/4" Buy American Act Compliant $205.47 Buy American Act Compliant $223.26
10" 12-3/4" -- Buy American Act Compliant $233.18

- OR - View Cart

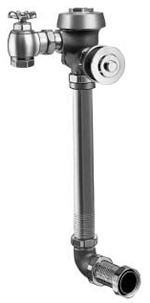

Concealed Water Closet Flushometers - Royal® 152 Series

Designed for wall hung 1 1/2" back spud bowls

Royal Flushometer
This water closet flushometer features:
  • Permex molded rubber diaphragm, handle packing, stop seat, & vacuum breaker provides chloramine corrosion resistance
  • Dual filtered diaphragm reduces debris from entering the flushometer and ensures maximum performance in demanding environments
  • 1" IPS wheel handle angle stop
  • High back pressure vacuum breaker
  • Spud coupling, wall & spud flange for 1-1/2" concealed back spuds
  • Elbow flush connection
  • Exposed parts chrome plated
  • High copper, low zinc brass casting for dezincification resistance
  • Non-hold open push-button to ensure maximum water conservation
  • Toilet outlet to handle is 22-1/2" center to center
  • Click here for detailed dimensions
  • ASSE 1037, ANSI/ASME 112.19.6, & military spec V-29193 compliant
  • All of the flushometers below are Buy American Act compliant Buy American Act Compliant

Wall
Thickness
LDIM Price & Quantity
↓ 1.6 GPF low consumption concealed toilet flushometers
0" 2-3/4" $192.62
1" 3-3/4" $193.34
2" 4-3/4" $192.24
3" 5-3/4" $193.19
4" 6-3/4" $193.23
5" 7-3/4" $193.80
6" 8-3/4" $193.06
7" 9-3/4" $191.38
8" 10-3/4" $192.76
9" 11-3/4" $194.02
10" 12-3/4" $190.42

- OR - View Cart

Concealed Water Closet Flushometers - Royal® 154 Series

Designed for floor mounted 1 1/2" exposed back spud bowls

Royal Flushometer
This water closet flushometer features:
  • Permex molded rubber diaphragm, handle packing, stop seat, & vacuum breaker provides chloramine corrosion resistance
  • Dual filtered diaphragm reduces debris from entering the flushometer and ensures maximum performance in demanding environments
  • 1" IPS wheel handle angle stop
  • High back pressure vacuum breaker
  • Spud coupling, wall & spud flange for 1-1/2" exposed back spuds
  • Elbow flush connection
  • Exposed parts chrome plated
  • High copper, low zinc brass casting for dezincification resistance
  • Non-hold open push-button to ensure maximum water conservation
  • Toilet outlet to handle is 22-1/2" center to center
  • Click here for detailed dimensions
  • ASSE 1037, ANSI/ASME 112.19.6, & military spec V-29193 compliant
  • Buy American Act compliant (note symbol for participating products)

Wall
Thickness
LDIM Price & Quantity
↓ 1.6 GPF low consumption concealed toilet flushometers
1" 3-3/4" Buy American Act Compliant $194.25
3" 5-3/4" $197.86
4" 6-3/4" Buy American Act Compliant $199.98
5" 7-3/4" Buy American Act Compliant $204.66
6" 8-3/4" Buy American Act Compliant $209.22
8" 10-3/4" $218.32

- OR - View Cart

Concealed Water Closet Flushometers - Royal® 142 Series

Designed for floor mounted or wall hung 1 1/2" top spud bowls

Royal Flushometer
This water closet flushometer features:
  • Permex molded rubber diaphragm, handle packing, stop seat, & vacuum breaker provides chloramine corrosion resistance
  • Dual filtered diaphragm reduces debris from entering the flushometer and ensures maximum performance in demanding environments
  • 1" IPS wheel handle angle stop
  • High back pressure vacuum breaker
  • Spud coupling, wall & spud flange for 1-1/2" exposed top spuds
  • Elbow flush connection
  • Exposed parts chrome plated
  • High copper, low zinc brass casting for dezincification resistance
  • Non-hold open handle to ensure maximum water conservation
  • Toilet outlet to handle is 7-1/2" center to center

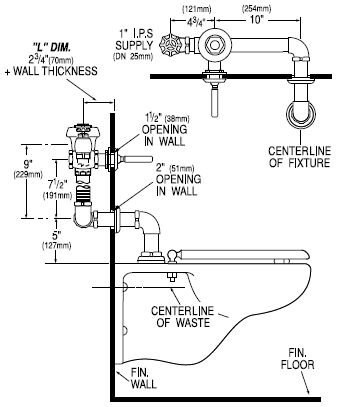

  • 10" offset - Click here for detailed dimensions
  • ASSE 1037, ANSI/ASME 112.19.6, & military spec V-29193 compliant
  • Buy American Act compliant (note symbol for participating products)

Wall
Thickness
LDIM Price & Quantity
↓ 1.6 GPF low consumption concealed toilet flushometers
1" 3-3/4" Buy American Act Compliant $265.05
2" 4-3/4" $269.96
4" 6-3/4" Buy American Act Compliant $271.71
6" 8-3/4" Buy American Act Compliant $279.35
7" 9-3/4" $282.79
8" 10-3/4" Buy American Act Compliant $267.68

- OR - View Cart

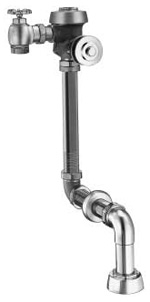

Concealed Water Closet Flushometers - Royal® 153 Series

Designed for floor mounted or wall hung 1 1/2" top spud bowls

Royal Flushometer
This water closet flushometer features:
  • Permex molded rubber diaphragm, handle packing, stop seat, & vacuum breaker provides chloramine corrosion resistance
  • Dual filtered diaphragm reduces debris from entering the flushometer and ensures maximum performance in demanding environments
  • 1" IPS wheel handle angle stop
  • High back pressure vacuum breaker
  • Spud coupling, wall & spud flange for 1-1/2" exposed top spuds
  • Elbow flush connection
  • Exposed parts chrome plated
  • High copper, low zinc brass casting for dezincification resistance
  • Non-hold open push-button to ensure maximum water conservation
  • Toilet outlet to handle is 17-1/2" center to center

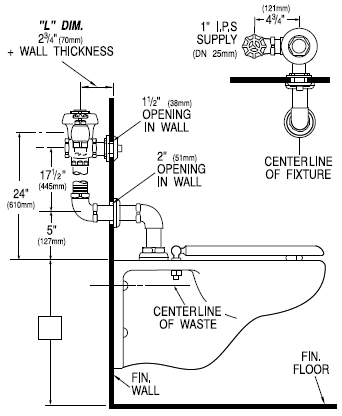

  • Click here for detailed dimensions
  • ASSE 1037, ANSI/ASME 112.19.6, & military spec V-29193 compliant
  • Buy American Act compliant (note symbol for participating products)

Wall
Thickness
LDIM Price & Quantity
↓ 1.6 GPF low consumption concealed toilet flushometers
1" 3-3/4" Buy American Act Compliant $233.00
2" 4-3/4" $236.42
4" 6-3/4" Buy American Act Compliant $238.45
5" 7-3/4" $243.67
6" 8-3/4" Buy American Act Compliant $234.13
8" 10-3/4" Buy American Act Compliant $234.90

- OR - View Cart

Hydraulic Concealed Water Closet Flushometers - Regal® Prison 9603 Series

Designed for stainless steel back spud water closets

Regal Flushometer
This water closet flushometer features:
  • Permex molded rubber diaphragm, handle packing, stop seat, & vacuum breaker provides chloramine corrosion resistance
  • ADA Compliant non-hold-open push button
  • 1" IPS wheel handle angle stop
  • High back pressure vacuum breaker
  • Elbow flush connection & coupling for 1-1/2" NPT back inlet
  • Exposed parts chrome plated
  • High copper, low zinc brass casting for dezincification resistance
  • Toilet outlet to handle is 14-1/2" center to center

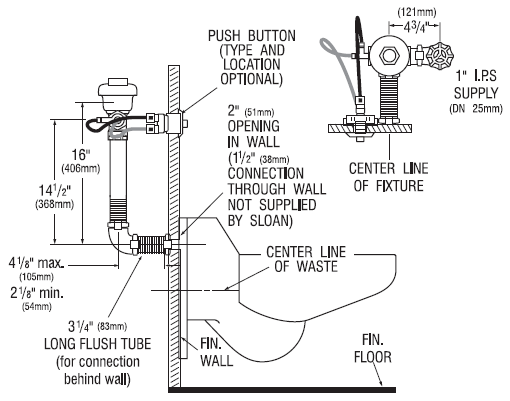

  • Click here for detailed dimensions
  • ASSE 1037, ANSI/ASME 112.19.6, & military spec V-29193 compliant
  • Due to many wall thicknesses, toilet carrier not supplied with these flushometers
  • All of the flushometers below are Buy American Act compliant Buy American Act Compliant

Actuator Type Price & Quantity
↓ 1.6 GPF low consumption concealed toilet flushometers
MBPM
Metal button panel mount
For use with wall box
$273.52
MBFW
Metal button fixture wall actuator
$285.31

- OR - View Cart

Related Items & Accessories



Frequently Asked Questions

Q. "What is the LDIM?"
A. LDIM is the wall thickness plus 2-3/4" distance for the installation offset measured from the interior finished wall to the centerline of the flush valve.

Q. "What is Permex?"
A. Permex is a patented rubber compound that is formulated to withstand the deteriorating effects of ammonia and chloramine which are often used in water treatment facilities and cleaners.

Q. "What is Chloramine?"
A. Chloramine is commonly used in low concentrations as a disinfectant in municipal water systems as an alternative to chlorination.

Q. "What does it mean that a product is compliant with the Buy American Act (BAA) or with the American Recovery and Reinvestment Act (ARRA)? Are these products manufactured in the USA?"
A. The Buy American Act is a part of the American Recovery and Reinvestment Act of 2009 intended to help stimulate the United States' economy through the purchase of American-made goods. While the Buy American Act portion of the bill primarily regulates government spending, the regulations can help guide conscious consumers who wish to purchase American-made products. In general, an item that meets the requirements of the Buy American Act is assembled in the US and at least 50% of its components are domestically produced. While every single component of these products may not be produced in the US, a large portion are - and that portion is helping our American economy to grow and thrive.
