Chicago Laboratory Faucets

Proudly made in the USA
Dependable lab components are an absolute necessity, and whether you're looking to install new lab turrets and faucets for your medical lab, research facility, or college or high school science classroom, you can rest assured you're always getting the best professional grade product when you order from PlumbingSupply.com®. We strive to deliver only the very best products to our customers, and are confident these lab faucets from Chicago will exceed your highest expectations. With a wide range of styles and types of turret faucets to choose from, you're sure to find exactly what you're looking for - and their solid brass construction means these faucets will be consistently reliable through years of constant use.

Please note: These laboratory faucets are not for use with deionized (DI) or reverse osmosis (RO) water.


Single Turret Combinations

Perfect for smaller labs or medical offices, or wherever you need a dedicated line, these single turret combinations offer you professional grade reliability at an affordable price.

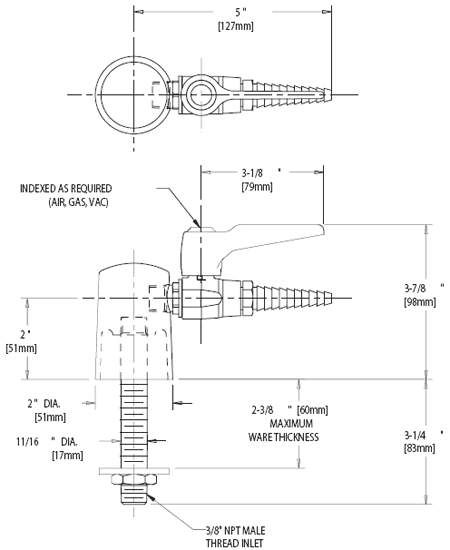

980-WS909AGVCP turret faucet
This single turret faucet features:
  • Chrome finished turret with single ball valve
  • 909 valve certified for gas service per ANSI Z21.15b-2006/CSA 9.1b-2006
  • 0 - 0.5 PSI maximum operating pressure
  • ADA compliant per ANSI/ICC A117.1
  • Lever handle with air, gas, & vacuum service button
  • E7T full flow removable 10-serration typical lab hose nozzle
  • 957-003KJKABRBF 3/8" NPT x 4-3/4" inlet shank - All threaded connections are factory assembled to turret
  • View detailed dimensions
980-WS909AGVCP Single Turret Combination - $67.57
Enter a quantity and

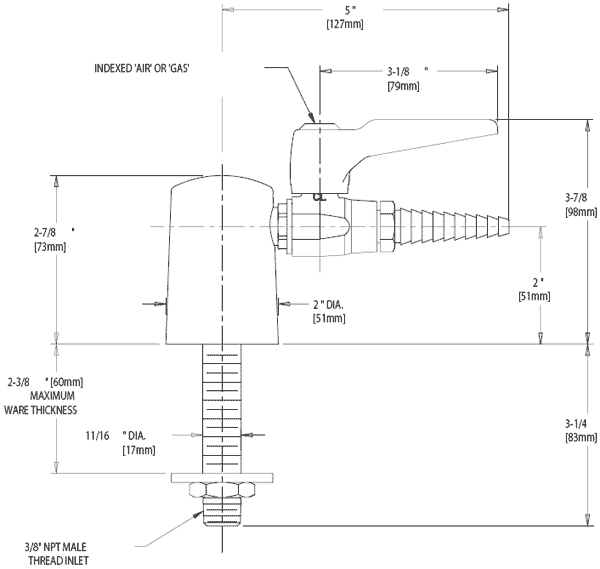

980-WS909CAGCP turret faucet
This single turret faucet features:
  • Chrome finished turret with single ball valve
  • 909 valve certified for gas service per ANSI Z21.15b-2006/CSA 9.1b-2006
  • 0 - 0.5 PSI maximum operating pressure
  • ADA compliant per ANSI/ICC A117.1
  • Lever handle with air & gas service button
  • E7TC full flow removable 10-serration nozzle for typical laboratory hoses with check valve
  • 957-003KJKABRBF 3/8" NPT x 4-3/4" inlet shank - All threaded connections are factory assembled to turret
  • View detailed dimensions
980-WS909CAGCP Single Turret Combination - $71.44
Enter a quantity and

Dual Valve Turret Combinations

These dual valve turret combinations from Chicago are the perfect solution for college and high school science classrooms, allowing two persons to work comfortably where space is limited. And with a variety of features, including a choice between 90° and 180° models, you can easily find the one that best fits your needs.

ALL of the dual valve models featured below are rated for 0 - 0.5 PSI maximum operating pressure and feature the 909 valve which is certified for gas service per ANSI Z21.15b-2006/CSA 9.1b-2006. Additionally, these turrets are ADA compliant per ANSI/ICC A117.1.

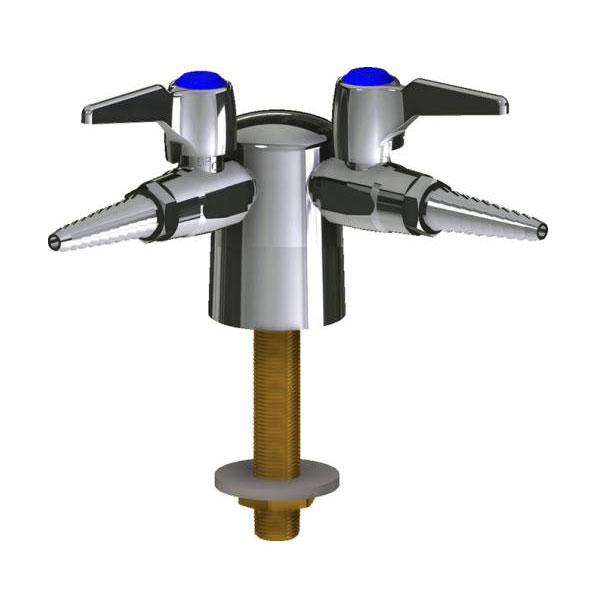

981-WS909AGVCP turret faucet
This dual turret faucet features:
  • Chrome finished turret with two ball valves @ 180°
  • Lever handles with air, gas, & vacuum service buttons
  • E7T full flow removable serrated hose nozzles
  • 957-003KJKABRBF 3/8" NPT x 4-3/4" inlet shank - All threaded connections are factory assembled to turret
  • View detailed dimensions
981-WS909AGVCP Dual Turret Combination - $98.41
Enter a quantity and

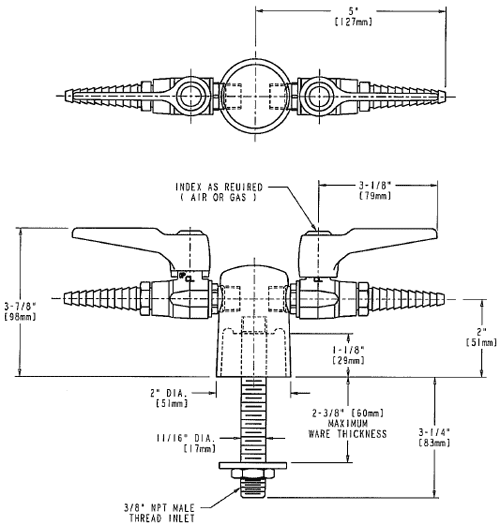

981-WS909CAGCP turret faucet
This dual turret faucet features:
  • Chrome finished turret with two ball valves @ 180°
  • Lever handles with air & gas service buttons
  • E7TC full flow removable 10-serrated hose nozzles with check valves
  • 957-003KJKABRBF 3/8" NPT x 4-3/4" inlet shank - All threaded connections are factory assembled to turret
  • View detailed dimensions
981-WS909CAGCP Dual Turret Combination - $123.56
Enter a quantity and

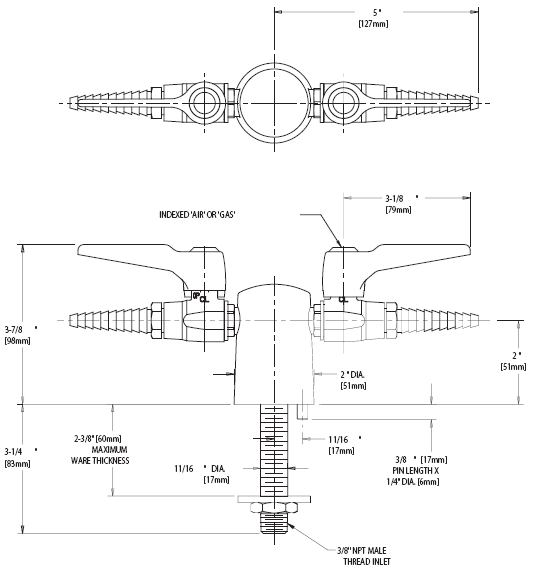

981-VR909CAGCP turret faucet
This dual turret faucet features:
  • Vandal resistant turret with two ball valves @ 180°
  • Lever handles with air, gas, & vacuum service buttons
  • E7TC full flow removable 10-serrated hose nozzles with check valves
  • 957-003KJKABRBF 3/8" NPT x 4-3/4" inlet shank - All threaded connections are factory assembled to turret
  • Threaded connections come permanently attached
  • View detailed dimensions
981-VR909CAGCP Dual Turret Combination - $144.11
Enter a quantity and

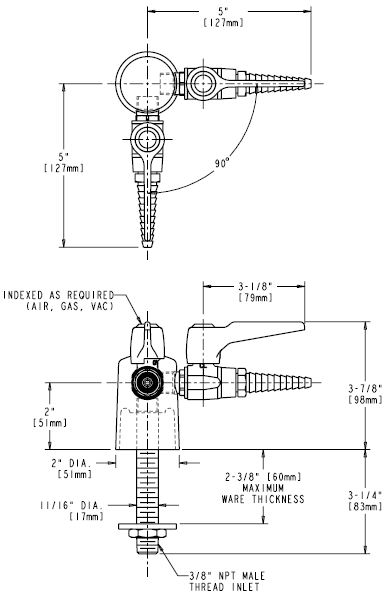

982-WS909AGVCP turret faucet
This dual turret faucet features:
  • Chrome finished turret with two ball valves @ 90°
  • Lever handles with air, gas, & vacuum service buttons
  • E7T full flow removable serrated hose nozzles
  • 957-003KJKABRBF 3/8" NPT x 4-3/4" inlet shank - All threaded connections are factory assembled to turret
  • View detailed dimensions
982-WS909AGVCP Dual Turret Combination - $102.02
Enter a quantity and

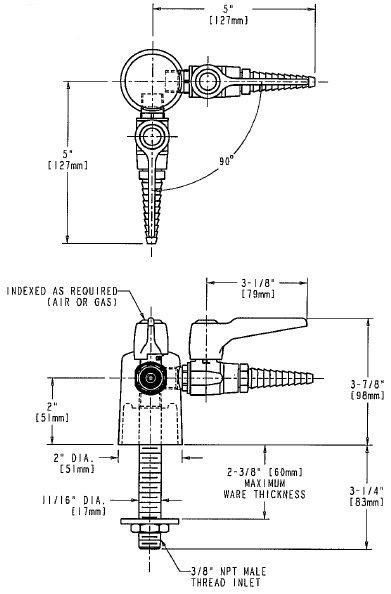

982-WS909CAGCP turret faucet
This dual turret faucet features:
  • Chrome finished turret with two ball valves @ 90°
  • Lever handles with air & gas service buttons
  • E7TC full flow removable 10-serrated hose nozzles with check valves
  • 957-003KJKABRBF 3/8" NPT x 4-3/4" inlet shank - All threaded connections are factory assembled to turret
  • View detailed dimensions
982-WS909CAGCP Dual Turret Combination - $122.82
Enter a quantity and

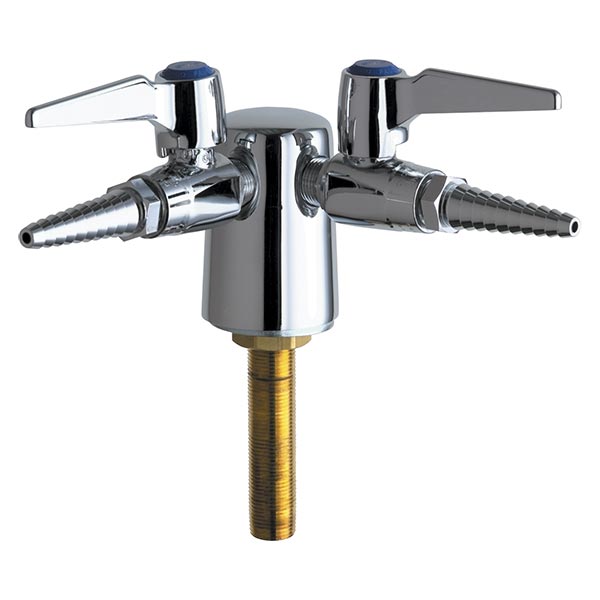

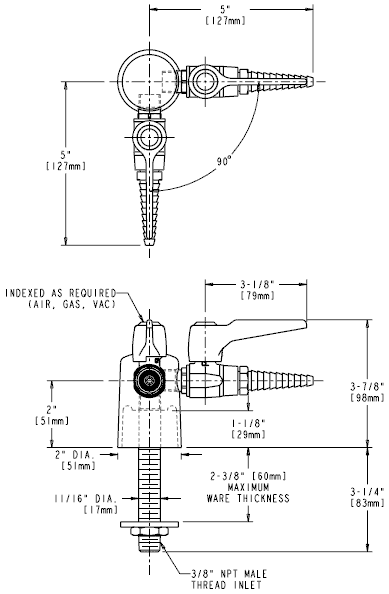

982-909-957-3KAGVCP turret faucet
This dual turret faucet features:
  • Chrome finished turret with two ball valves @ 90°
  • Lever handles with air & gas service buttons
  • E7T full flow removable serrated hose nozzles
  • 957-003KJKABRBF 3/8" NPT x 4-3/4" inlet shank - male thread, shipped loose
  • View detailed dimensions
982-909-957-3KAGVCP Dual Turret Combination - $98.72
Enter a quantity and

Four Valve Turret Combinations

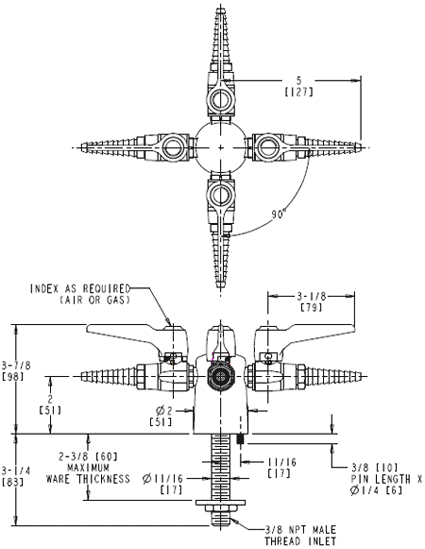

984-VR909CAGCP turret faucet
This quad turret faucet features:
  • Vandal resistant turret with four ball valves @ 90° & anti-rotational deck pin
  • Lever handles with air & gas service buttons
  • E7TC removable serrated hose nozzles with check valve
  • 957-003KJKABRBF 3/8" NPT x 4-3/4" inlet shank assembled to turret
  • 0.5 - 125 PSI maximum operating pressure
  • Threaded connections come permanently attached
  • View detailed dimensions
984-VR909CAGCP Four Turret Combination - $185.85
Enter a quantity and

Turret & Spout Combinations

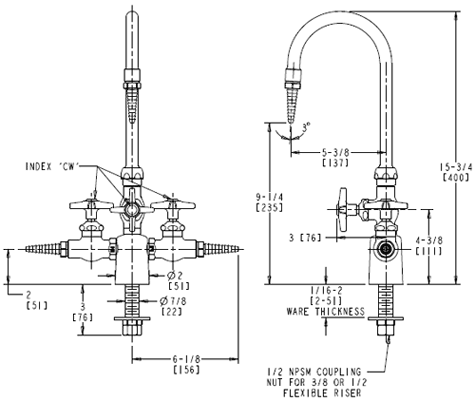

997-CP turret faucet
This turret and spout combo features:
  • Single supply cold water faucet with three control valves
  • Chrome finished turret with two ball valves @ 180°
  • 5-1/4" GN2B gooseneck swing spout
  • Cross handles with cold water service buttons
  • Slow compression operating cartridge
  • E7 full flow removable serrated hose nozzles
  • 748-003K 3/8" NPT male inlet shank included
  • 20 - 125 PSI maximum operating pressure
  • 40 - 140 °F operating temperature
  • View detailed dimensions
997-CP Turret & Spout Combination - $275.70
Enter a quantity and

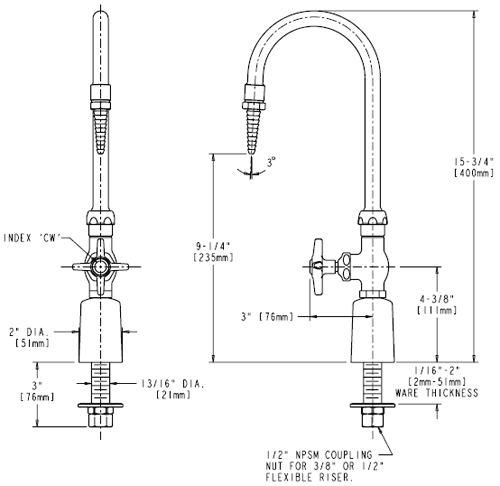

985-BCP turret faucet
This turret and spout combo features:
  • Chrome finished turret with single inlet water control valve
  • 5-1/4" GN2B gooseneck swing spout
  • Cross handle with cold water service button
  • Slow compression operating cartridge
  • E7 full flow removable serrated hose nozzle
  • Meets ASME A112.18.1/CSA B125.1 standards, certified to NSF/ANSI 61, Section 9
  • 957-003KJKABRBF 3/8" NPT x 4-3/4" inlet shank included, male threaded
  • 20 - 125 PSI maximum operating pressure
  • 40 - 140 °F operating temperature
  • View detailed dimensions
985-BCP Turret & Spout Combination - $142.42
Enter a quantity and

Wall Mounted Single Valve Laboratory Faucets

You don't have to sacrifice professional quality for the convenience of wall mounted lab faucets. These single valve, wall mounted faucets from Chicago offer you the same sturdy solid brass construction and chrome finish as their deck mounted counterparts. Choose from ball or needle valves, with shanks pre-assembled or shipped loose.

986-WSV909AGVCP laboratory faucet
This wall mounted valve features:
  • Chrome finished wall flange with ball valve
  • Lever handle with air, gas, & vacuum service buttons
  • E7T full flow removable serrated hose nozzle
  • 979-001K 3/8" NPT inlet shank - assembled to flange
  • 909 valve certified for gas service per ANSI Z21.15b-2006/CSA 9.1b-2006
  • ADA Compliant per ANSI/ICC A117.1
986-WSV909AGVCP Wall Mount Single Valve Lab Faucet - $98.97
Enter a quantity and

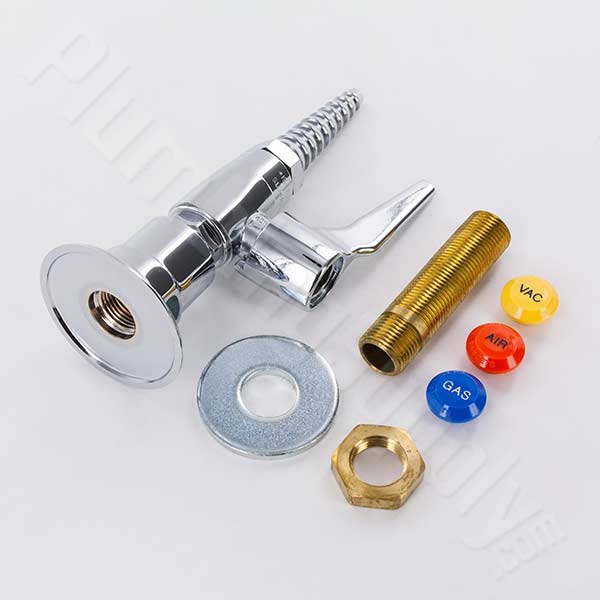

986-909AGVCP laboratory faucet
This wall mounted valve features:
  • Chrome finished wall flange with ball valve
  • Lever handle with air, gas, & vacuum service buttons
  • E7T full flow removable serrated hose nozzle
  • 979-001K 3/8" NPT inlet shank - shipped loose
  • 909 valve certified for gas service per ANSI Z21.15b-2006/CSA 9.1b-2006
  • ADA Compliant per ANSI/ICC A117.1
986-909AGVCP Wall Mount Single Valve Lab Faucet - $57.31
Enter a quantity and

986-937CHAGVCP laboratory faucet
This wall mounted valve features:
  • Chrome finished wall flange with needle valve
  • Compression operating cartridge
  • Cross handle with air, gas, & vacuum service buttons
  • E7 full flow removable serrated hose nozzle
  • 979-001K 3/8" NPT inlet shank - shipped loose
  • 937 valve certified for gas service per ANSI Z21.15b-2006/CSA 9.1b-2006
986-937CHAGVCP Wall Mount Single Valve Lab Faucet - $104.79
Enter a quantity and

Wall Mounted Dual Valve Laboratory Faucets

You need space-saving, dual function reliability, you say? We've got it. Chicago's dual valve wall mounted laboratory faucets are an excellent option for areas where more than one valve may be needed, yet you also need the convenience of wall mounting.

987-909CACGCP laboratory faucet
This wall mounted valve features:
  • Chrome "Y" pattern wall flange w/ two outlets @ 90°
  • Ball valves with check
  • Lever handles with air & gas service buttons
  • E7 full flow removable serrated hose nozzles
  • 979-001K 3/8" NPT inlet shank - shipped loose
  • 909 valve certified for gas service per ANSI Z21.15b-2006/CSA 9.1b-2006
987-909CAGCP Wall Mount Dual Valve Lab Faucet - $118.35
Enter a quantity and

987-909AGVCP laboratory faucet
This wall mounted valve features:
  • Chrome "Y" pattern wall flange w/ two ball valves @ 90°
  • Lever handles with air, gas, & vacuum service buttons
  • E7 removable serrated hose nozzles
  • 979-001K 3/8" NPT inlet shank - shipped loose
  • 909 valve certified for gas service per ANSI Z21.15b-2006/CSA 9.1b-2006
987-909AGVCP Wall Mount Dual Valve Lab Faucet - $97.74
Enter a quantity and

Replacement Turret Valve Combinations - Without Shank

Are you looking for replacement turret valve combinations for your lab or classroom? Look no further. We offer a wide range of replacement styles. Note that all of these turret valve combination models do NOT come with shanks, as they are intended to install in place of previously existing fixtures. Professional replacement is recommended to ensure compliance with plumbing and safety codes.

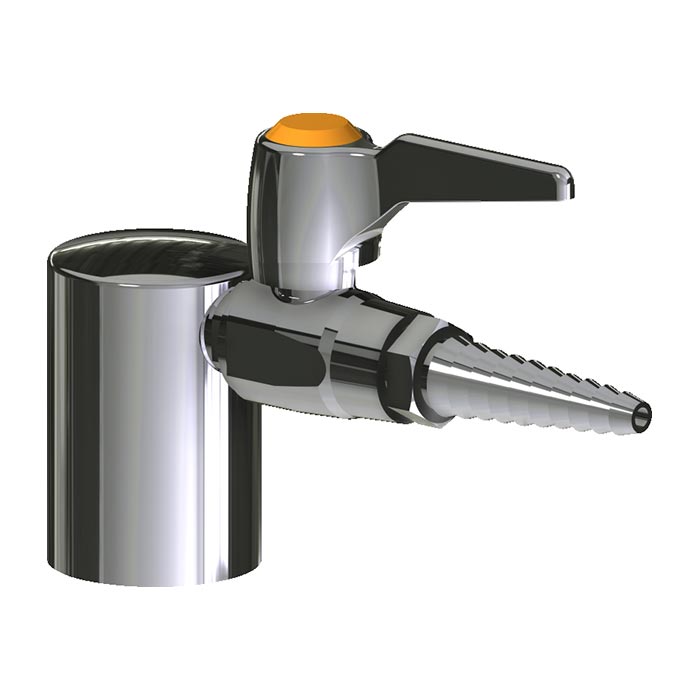

Replacement single ball valve turret
Replacement turret with single ball valve & E7TC serrated hose nozzle with check valve
980-909CAGCP - $72.26
Enter a quantity and

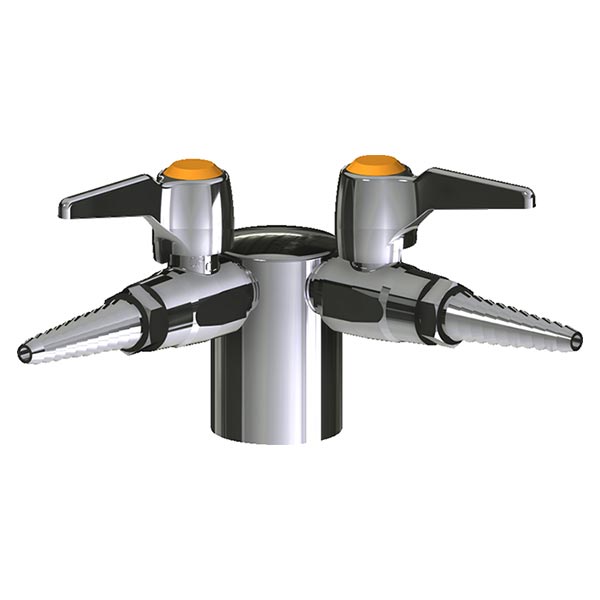

dual turret with ball valves
Replacement turret with two ball valves @ 90° & E7TC serrated hose nozzles with check valve
982-909CAGCP - $99.15
Enter a quantity and

Related Items & Accessories



Please note: While we strive to ensure every product we label as "Made in the USA" really is 100% made in the USA, it is also important to understand that sometimes manufacturers make changes to their products, or for various reasons may receive components or materials that they would normally purchase domestically from an overseas supplier - and they don't necessarily let distributors (like us!) know that they've changed something about the product or where it is manufactured.

If you receive a product that PlumbingSupply.com® says is "Made in the USA" and the product states it was manufactured elsewhere, please contact us. We will happily replace or refund your purchase to your satisfaction.
