Somerton Toilet Repair Parts

by Caroma

The distinctive styling of the Somerton toilet by Caroma pairs perfectly with its quality performance, and makes it worth repairing rather than replacing. Whether you need a new outlet (flush) valve or are just replacing the tank to bowl seal, PlumbingSupply.com® has everything you need to fix your Somerton toilet.

Replacement Parts for Caroma Somerton Toilets

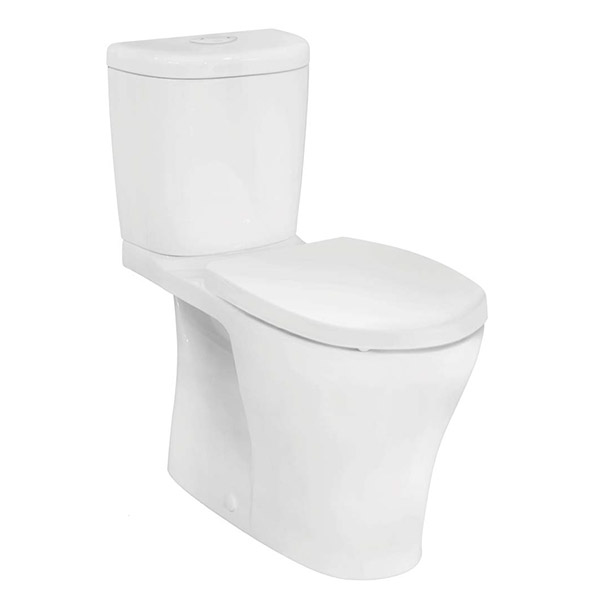

Two-Piece Model - Tank #810788

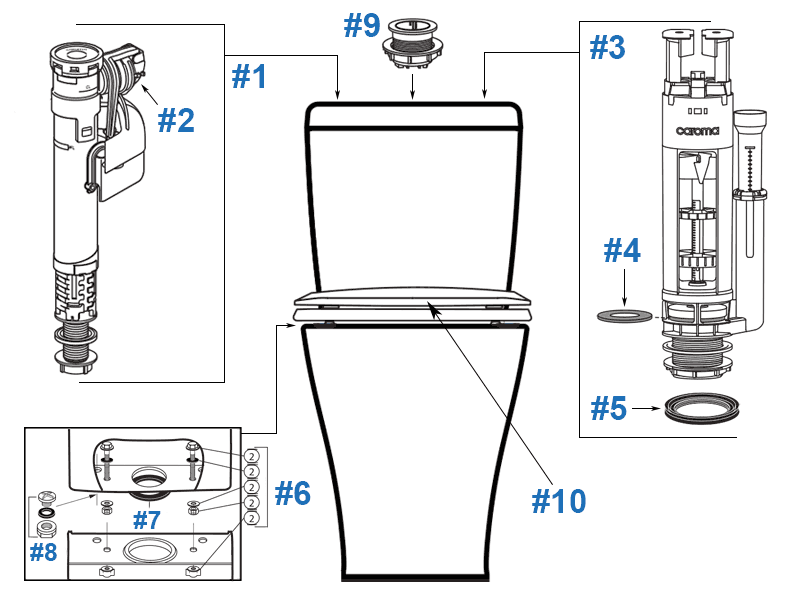

Parts diagram for Somerton toilets
Item # Part # Description Price & Quantity
1 687881 Quietflow 2 Fill Valve (aka Inlet Valve) Currently Unavailable
2 687040 Fill Valve Repair Kit for Quietflow 2 Valve $19.66
218005 Fill Valve Repair Kit for Original Quietflow Valve $23.24 Enter a quantity and
3 750895 M5 Series Flush Valve Currently Unavailable
4 750017 Flush Valve Seal $6.35 Enter a quantity and
5 687205 Flush Valve Gasket $9.89 Enter a quantity and
6 687240 Tank to Bowl Bolt Mounting Kit $12.34 Enter a quantity and
7 687214 Tank to Bowl Foam Seal $12.29 Enter a quantity and
8 687256 Plug/Washer/Nut Pack - Sold Individually $5.03 Enter a quantity and
9 415026C Flush Button & Bezel Kit - Chrome $15.69 Enter a quantity and
10 200E4 Quality Bemis "Will Fit" Round Toilet Seat - White (view more color options) $60.56
1200E4 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $67.91 Enter a quantity and
Please note: For sanitary/hygienic reasons, toilet seats are non-returnable.

Replacement Parts for Caroma Somerton Smart Toilets

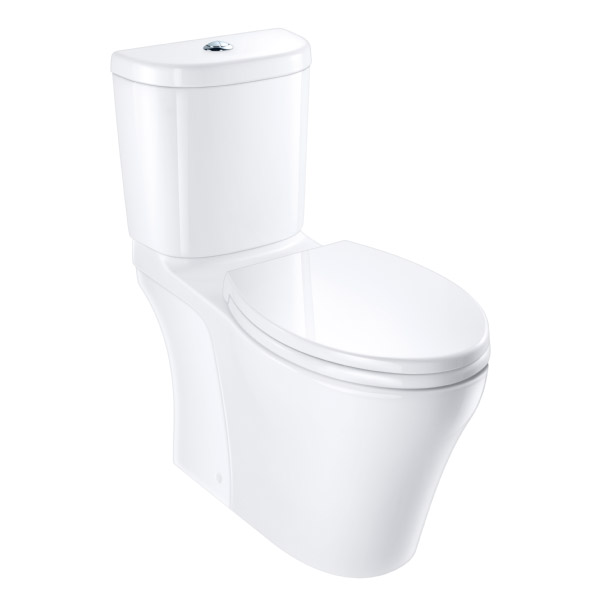

Two-Piece Model with Top Mount Flush Button - Tank #810788W

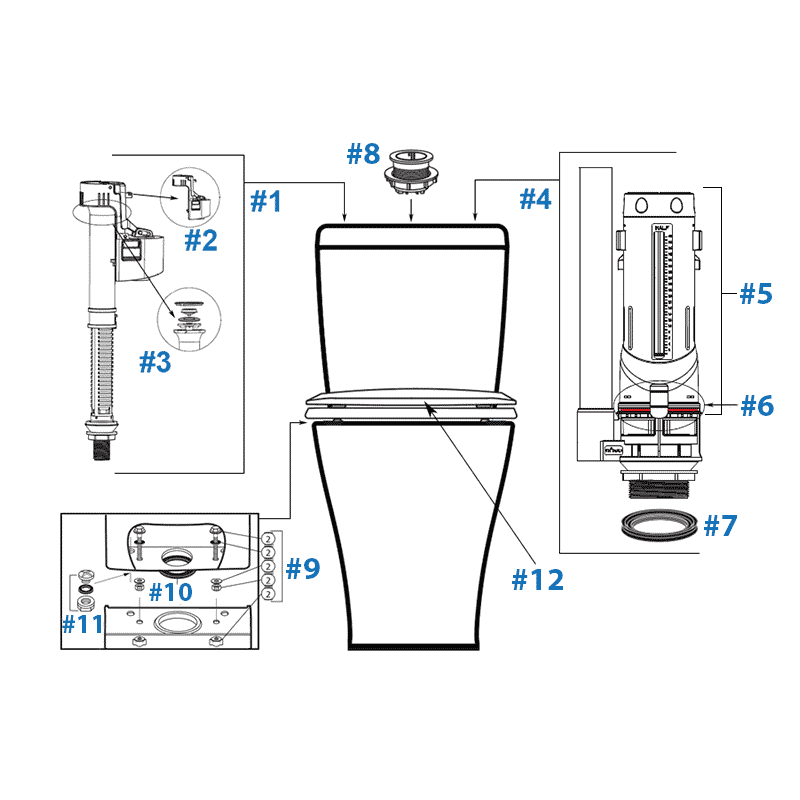

Parts diagram for Somerton Smart toilets
Item # Part # Description Price & Quantity
1 B3300-MA Smart Fill Valve $28.83 Enter a quantity and
2 B3300-MA-TOP Fill Valve Repair Kit for Smart Fill Valve $16.09 Enter a quantity and
3 B3300-MA-KIT Gasket Repair Kit for Smart Fill Valve $10.36 Enter a quantity and
4 B4920T-G-81078 (old #B4910T-G-81078) Smart Dual Flush Valve $34.28 Enter a quantity and

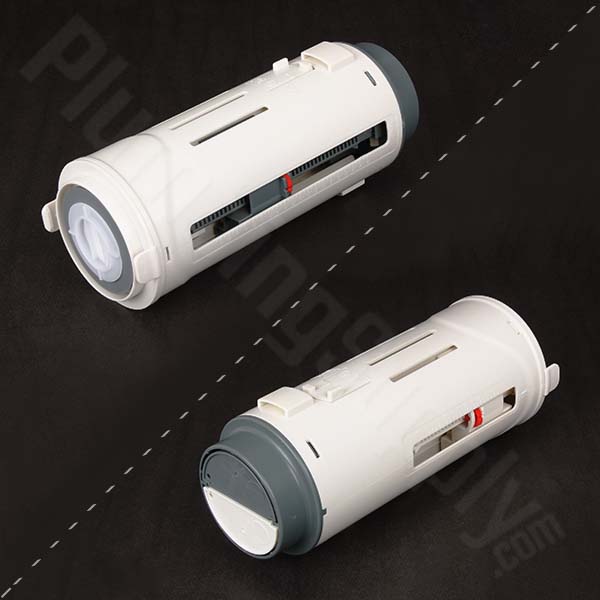

5 B4920T-G-810HD Head ONLY - for Flush Valves B4920T-G-81078, & B4910T-G-81078 $24.97 Enter a quantity and
6 30795 Flush Valve Seal $10.38 Enter a quantity and
7 687205 Flush Valve Gasket $9.89 Enter a quantity and
8 B5502 Flush Button & Bezel Kit - Chrome $22.17 Enter a quantity and
9 687240 Tank to Bowl Bolt Mounting Kit $12.34 Enter a quantity and
10 687214 Tank to Bowl Foam Seal $12.29 Enter a quantity and
11 687256 Plug/Washer/Nut Pack - Sold Individually $5.03 Enter a quantity and
12 200E4 Quality Bemis "Will Fit" Round Toilet Seat - White (view more color options) $60.56
1200E4 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $67.91 Enter a quantity and
Please note: For sanitary/hygienic reasons, toilet seats are non-returnable.

Replacement Parts for Caroma Somerton Smart Toilets

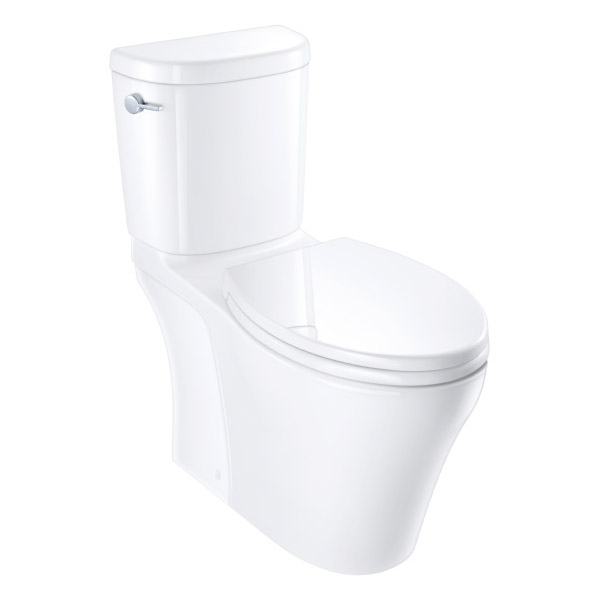

Two-Piece Model with Side Mount Lever - Tank #829110W

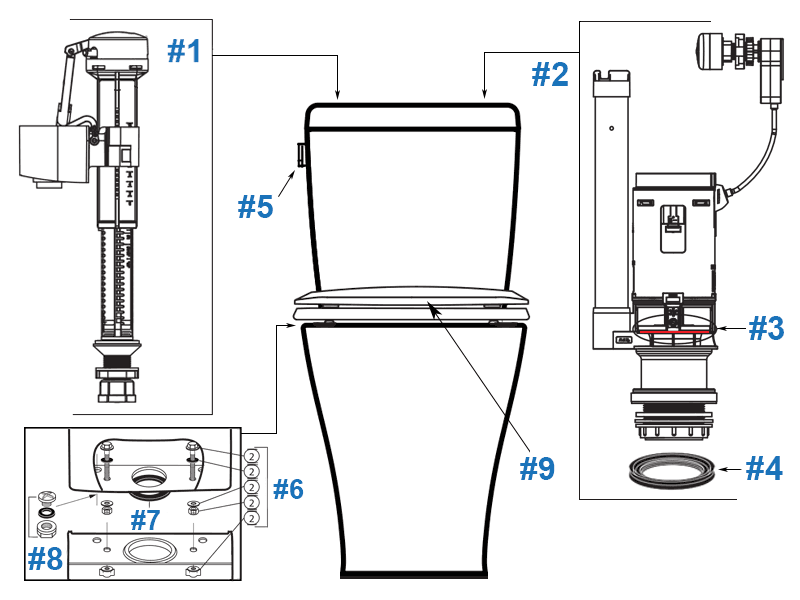

Parts diagram for Somerton Smart lever handle toilets
Item # Part # Description Price & Quantity
1 A1280 Smart Fill Valve - Replaced by B3300-MA $28.83 Enter a quantity and

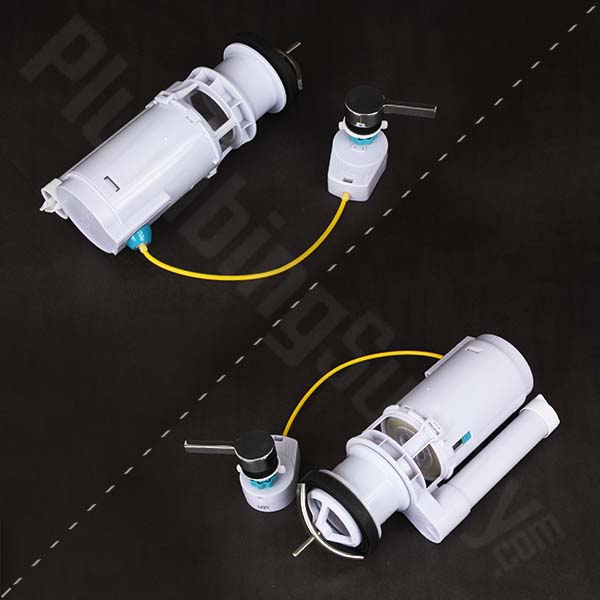

2 A2432-829110W Smart Flush Valve - for LEFT Side Trip Levers $32.70

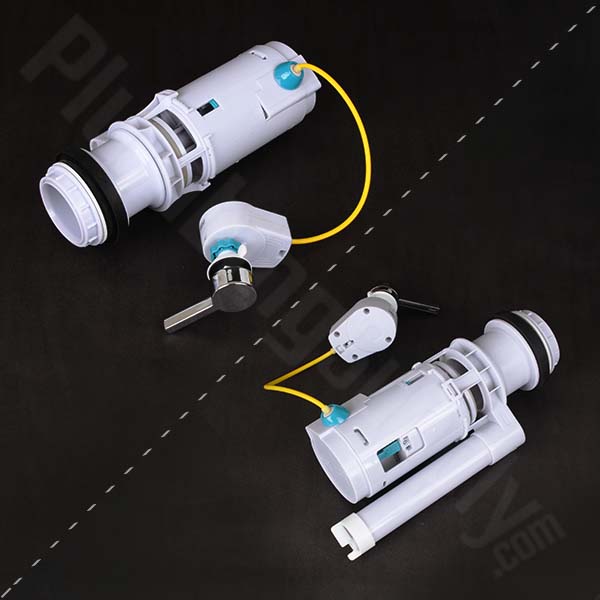

A2432-G-829110W-R Smart Flush Valve - for RIGHT Side Trip Levers $32.76 Enter a quantity and
3 30795 Flush Valve Seal $10.38 Enter a quantity and
4 687205 Flush Valve Gasket $9.89 Enter a quantity and
5 B5780 LEFT Side Mount Trip Lever - Chrome $18.47
B5780-R RIGHT Side Mount Trip Lever - Chrome $13.19 Enter a quantity and
6 687240 Tank to Bowl Bolt Mounting Kit $12.34 Enter a quantity and
7 687214 Tank to Bowl Foam Seal $12.29 Enter a quantity and
8 687256 Plug/Washer/Nut Pack - Sold Individually $5.03 Enter a quantity and
9 200E4 Quality Bemis "Will Fit" Round Toilet Seat - White (view more color options) $60.56
1200E4 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $67.91 Enter a quantity and
Please note: For sanitary/hygienic reasons, toilet seats are non-returnable.

Related Items & Information

Frequently Asked Questions

Q. "How are Caroma washdown toilets different from other toilets?"
A. According to the manufacturer, "North American toilets most commonly utilize siphon jet technology. Most of the water in the tank is used to create a vacuum or siphon effect in the trapway of the toilet bowl, which then pulls the waste out after the water. In the past, several North American toilets have been subject to clogging due to the lower volumes of water used in ultra low flow toilets. The trapways of the bowls had to be reduced to allow the vacuum to be created.

Washdown toilets do not use this flushing mechanism. When flushed, the water is released very quickly from the tank and into the bowl through an open rim bowl design. The water very effectively and efficiently pushes the waste out of the bowl, which is then followed by the water. The flush is fast and allows for superior movement down the sewage drains, as the water is following the waste. Because washdown toilets do not rely on creating a siphon effect in the trapway, the size of the trapway does not have to be reduced. Caroma toilets feature a massive 4 inch trapway!"

Q. "I just purchased a replacement M5 Series Flush Valve but the two push buttons on my tank lid will not reach the two tabs on the flush valve to activate the toilet to flush. What do I do?"
A. The blue tabs on the M5 series flush valves can be adjusted up or down. In order to raise the blue tabs, use a phillps head screwdriver and place it into the round holes found at the top of the blue tabs. Turning the adjustment screw counterclockwise will raise the tabs and turning the screw clockwise will lower the tabs. Be sure not to adjust the tabs too high because you may find when you put the tank lid on there will be water leaking from the tank into the bowl. This would be due to the outlet valve being slightly activated by the buttons pushing down onto the blue tabs. You would like about 1/8" of play before the buttons activate the flush.

image of push buttons on tank lid and adjustment screw location under blue tabs of flush valve

Q. "What is the difference between the Caroma 270 and 305 bowls? Does this matter when I'm looking for repair parts?"
A. The main difference between these two bowl styles is the size of the rough-in - either 10"-12" adjustable for the 270 bowl or 12" for the 305 bowl. This offers people options for toilet installation, and is not usually pertinent to typical repairs like changing the flush valve seal or installing a new push button mechanism. If you're looking for a new toilet seat, you will need to know whether your bowl is round or elongated, but both the 270 and 305 models come in round or elongated so it is important to measure to make sure you're getting the right size. To find common repair parts, such as fill valves, flush valves, gaskets, etc. refer to the model number of your tank to help you find the right parts.

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs

return to top ↑
