Condensing NRC111 Tankless Water Heaters

by Noritz

The technological advances made in tankless water heating are demonstrated in the Noritz line of tankless water heaters. These innovative water heaters provide instant, dependable hot water, and the efficiency will save energy, and save you money and time. The high performance water heaters you want are right here at PlumbingSupply.com®!

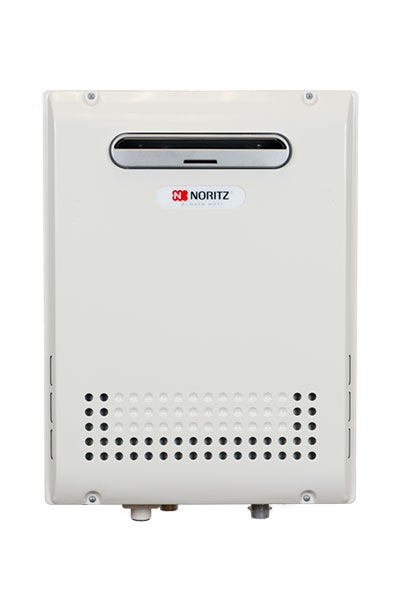

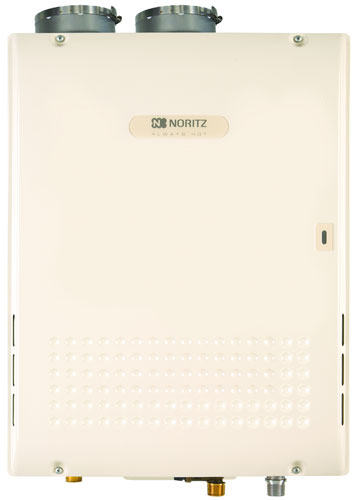

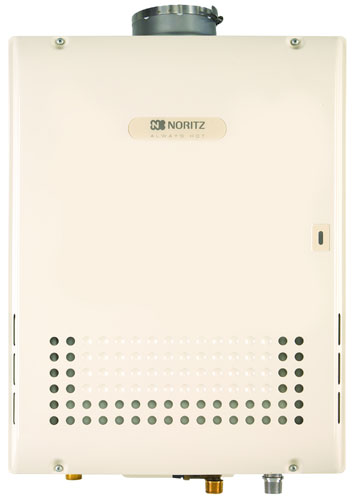

Noritz NRC111 Series Condensing Tankless Water Heaters

Features:
  • Cost efficient and compact design makes this a perfect fit for many residential homes with up to 4 baths
  • Fully modulating dual burner design precisely tracks hot water needs by providing an accurate and efficient response to hot water demands
  • Recaptures waste heat to heat a secondary stainless steel heat exchanger to raise the incoming water temperature before it passes through the main copper heat exchanger. This highly efficient process both heats water and cools exhaust gasses, allowing this unit to be used with PVC venting material (Although we personally do not recommend ever using PVC venting for gas water heaters)
  • Dual flame burner minimizes temperature fluctuations
  • Quick-Connect cord system allows two units to link together to satisfy higher flow demands
  • includes remote thermostat that can precisely adjust the output temperature from 100°F to 140°F with the capability to display temperatures in both °C and °F
  • Built-in neutralizing system for condensation means less wear and tear on heat exchanger
  • Direct ignition means no standby pilot light to waste energy
  • Self-diagnostic onboard computer system, combined with the included digital remote, provides ease of maintenance and temperature adjustment

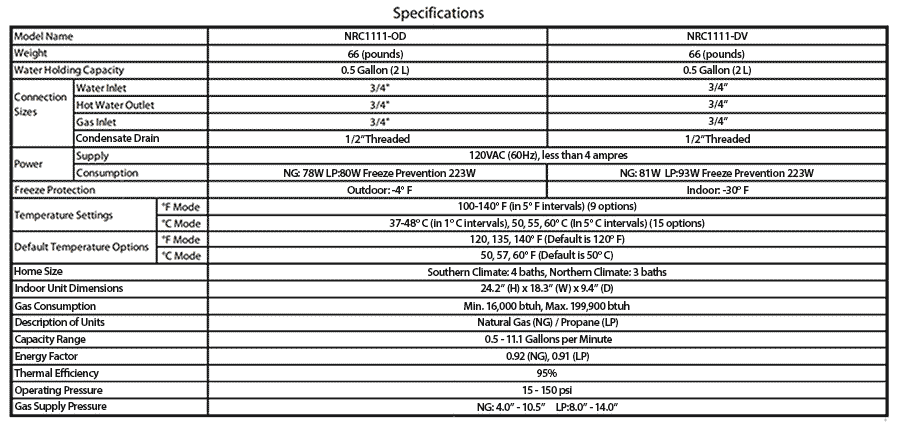

  • View more specifications

Flow Rates for Noritz NRC111-DV and NRC111-OD
Temperature Rise (°F) 30 40 45 50 60 70 80 90 100
Flow Rate (GPM) 11.1 9.3 8.4 7.4 6.2 5.3 4.6 4.1 3.7

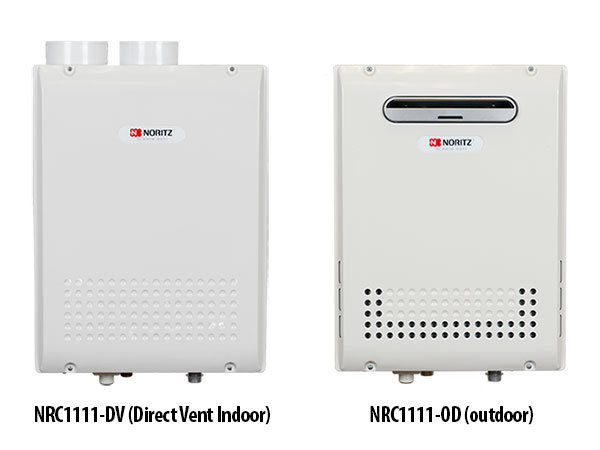

Model Number Description Natural Gas Propane

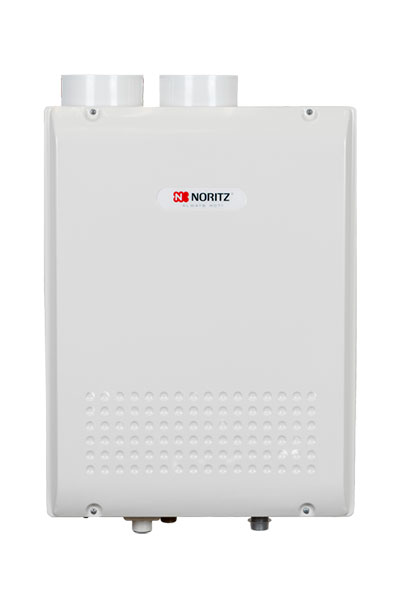

NRC111-DV Indoor Direct Vent Condensing Tankless Water Heater $1,583.12 $1,590.79
NRC111-OD Outdoor Condensing Tankless Water Heater $1,579.32 $1,584.15

Due to weight and to ensure safe delivery, these items ship by truck and have a $175 additional shipping fee per freight item.
Please select your type of address: Commercial -or- Residential

- OR - View Cart

Accessories for Noritz Tankless Water Heaters

Quick-Connect Cord

Use the Quick-Connect cord to quickly and easily connect two identical units to satisfy greater hot water demands.
Image Description Price & Quantity
Quick connect cord Quick-Connect Cord $29.75

- OR - View Cart

Brass Pressure Relief Valves

Image Description Size Price & Quantity
Pressure relief valve Brass Pressure Relief Valve
  • A pressure relief valve is required for all tankless water heaters. In some areas, a temperature and pressure relief valve is required. Check your local plumbing code for more information
3/4" FIPS x 3/4" MIPS $14.67 Enter a quantity and

Brass Temperature & Pressure Relief Valves

Image Description Size Material Price & Quantity
Pressure and temperature relief valve Brass Temperature and Pressure Relief Valve 3/4" FIPS x 3/4" MIPS FOR Potable Water $59.65 Enter a quantity and
3/4" FIPS x 3/4" MIPS NOT FOR Potable Water $13.95 Enter a quantity and

"The Isolator" Isolation Valves

Includes pressure relief valve. Complete inlet/outlet valve system that provides everything you need for a secure installation including full port testing and flushing of the system with easy to install union connections. Includes pressure relief valve. 2014 Federal Safe Drinking Water Act compliant.
Image Description Size Price & Quantity
Isolation valve set Isolation Valve - Set   (Hot & Cold)  3/4" FIP Union x 3/4" FIP $99.62
Isolation valve set Isolation Valve - Set   (Hot & Cold)   3/4" FIP Union x 3/4" Sweat $99.42

- OR - View Cart

Gas Connectors

Image Description Size Price & Quantity
Stainless gasflex Stainless Gasflex 1" OD (3/4" ID) x 24"
with adapter to 3/4" FIP x 3/4" MIP
$35.44
Gas ball valve Gas Ball Valve 3/4" $8.28

- OR - View Cart

Ball Valves

Image Description Size Price & Quantity
3/4inch ball valve FIP Ball Valve   3/4" FIP $13.64
3/4inch ball valve sweat Ball Valve   3/4" Sweat $13.65
Stainless steel nipple adapter Stainless Steel Nipple Adapter 3/4" MIP x 1-1/2" Long $3.97

 Order 10, 50, 100 or more of the same item for additional savings!
Pricing discounts will show up in your shopping cart.

- OR - View Cart

Water Connectors

Image Description Material Size Length Price & Quantity
Stainless steel water heater flexes Flexible Corrugated Water Flex Stainless Steel 3/4" FIP x 3/4" FIP 18" $7.44
3/4" FIP x 3/4" FIP 24" $8.27
Copper / Stainless Steel 3/4" FIP x 3/4" Nominal Sweat 18" $7.61
3/4" FIP x 3/4" Nominal Sweat 24" $8.34

- OR - View Cart


Related Items and Accessories



Please note: For potential safety reasons, we do not recommend using PVC to vent gas tankless water heaters. For the best results, we recommend using Category 3 stainless steel gas vent pipe for all gas tankless water heaters.



Frequently Asked Questions

Q. "What does the term "temperature rise" mean?"
A. Temperature rise is the amount the heater raises the temperature of the incoming water, based on the flow rate shown of that water.

Q. "How does a tankless heater provide hot water without a storage tank?"
A. Tankless water heaters heat on demand. The water is heated as it flows through the unit. Automated valves control water and gas flow so that your water comes out at the temperature you set it to.

Q. "What's the difference between a conventional flue and a direct vent?"
A. A conventional flue is what most people are familiar with. It typically consists of a double-wall flue pipe going from the top of the heater through the roof, venting outside. The fixture draws its combustion air from the space around it (utility room, garage, hallway, etc.). A direct-vent unit vents and draws its combustion air through a specially designed pipe from the outside via an adjacent wall.

Q. "What makes a condensing tankless water heater different?"
A. Noritz condensing water heaters use a dual heat exchanger system to increase efficiency by using the residual heat from the exhaust temperature, which is captured by the first, corrosion-resistant stainless steel heat exchanger, to preheat incoming water before it runs through the main commercial grade copper heat exchanger. This reduces carbon dioxide emissions and increases efficiency. This also means vented exhaust is lower in temperature than other tankless water heater designs.

Q. "Can I use PVC to vent this tankless water heater?"
A. The idea of using PVC venting instead of Category III stainless steel venting for condensing tankless water heaters is that it will save money on venting since the exhaust temperatures are specified by the manufacturer as within the capabilities of PVC to handle safely. However, we never recommend PVC for venting. In the real world, gas water heaters are rarely maintained to their ideal, which eventually results in raised exhaust temperatures. These raised exhaust temperatures quickly pass beyond what PVC can safely handle and overheated PVC can release dangerous fumes and even collapse as it fails. For this reason, there is a higher incident of dangerous issues associated with PVC venting on gas tankless water heaters and we cannot, in good conscience, recommend PVC venting for gas water heaters.

Q. "How does the Water Heater Scale Inhibitor System prevent corrosion?"
A. It forms a thin protective layer on the inside of pipes and metal parts. This film or layer is microscopic in thickness and will not build up over time.

Q. "What are the best reasons to install a Scale Inhibitor System?"
A. A Scale Inhibitor System helps protect the system by reducing scale buildup and adding to the longevity and efficiency of the heater.

Q. "This is a water heater. Why would I need a battery backup?"
A. Since this tankless water heater has direct electronic ignition, power is needed to create a spark, as well as run the computer and remote. A battery backup is not required, but may be beneficial if you are in an area where there are frequent power outages as this would help provide power to your Nortiz tankless hot water heater for a short time. When choosing a battery backup, which can be purchased locally, please note it must produce a pure sine wave. Also, battery backups are only for indoor units that are plugged in as opposed to hardwired.

Q. "Will an instantaneous water heater save me money on my utility bills?"
A. In many applications you can see a savings. There are some variables that could reduce the amount you save. One example is you will not run out of hot water, so longer showers could cut into your savings. Also, the cost of electricity, propane and natural gas in your area will affect the amount of money saved. The higher the cost for the energy type used to heat your water, the quicker you can recover the higher initial cost of installing a tankless versus tank style water heater.

Positives:

  • You will never run out of hot water. "You want an hour long shower? No problem!"
  • Electric units can be installed at the point of use.
  • You're not paying energy costs to heat water 24 hours a day.
  • They're easy to install.
  • Our electric units don't require a T&P valve (no tank!) - if code allows
  • Installing a tankless water heater can indeed be a bonus to the environment (why should we choose wastefulness when we're talking about finite natural resources?)

Negatives:

  • They all need a minimum flow rate & pressure to turn on.
  • The faster water flows through them, the lower the temperature rise. So, if you expect to take a shower while the clothes washer is running, you will need to select a unit sized to your maximum hot water flow requirements. (Gas units generally handle this a little better than electric models)
  • Electric units need heavy gauge wire. Example: the 9.5kw must have 8ga wire and a 50amp breaker.
  • Gas units need a much larger, special flue pipe and larger gas supply than a conventional water heater.
  • At times they can produce very hot water. It's easier to get scalded.
  • Gas units are more complicated than a conventional water heater.
  • With some brands, parts are hard to find (not a negative if you originally purchase from us, as we like to carry parts for the units that we sell).

Summary:
Tankless water heaters have their place. They're not "the answer" to every hot water need, but if they're used correctly they can be the solution to many of them.
