Hydapipe® Exposed Tub/Shower Systems

by Symmons Industries

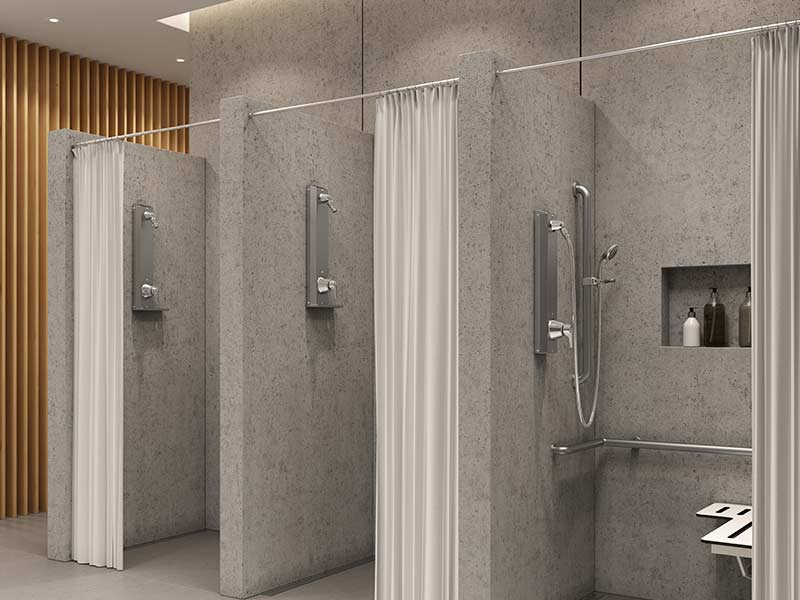

Finding the perfect shower system for schools, clubs, campgrounds, gyms, etc. is easy when you look to Hydapipe®. These durable Hydapipe® showers eliminate the need for piping chases, so you now have the option of installing a shower on a narrow partition wall. These shower systems can be easily installed on the wall (instead of in it), which reduces construction costs. With multiple styles to choose from, you're sure to find the right one for the job.

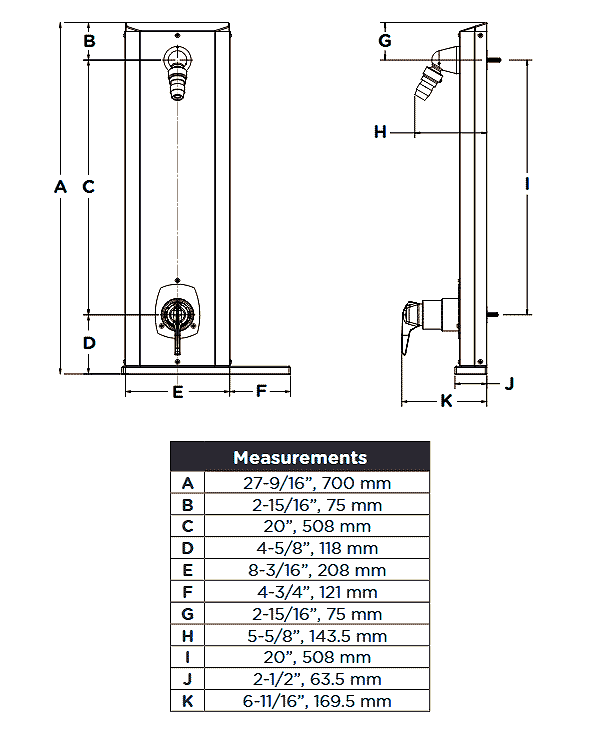

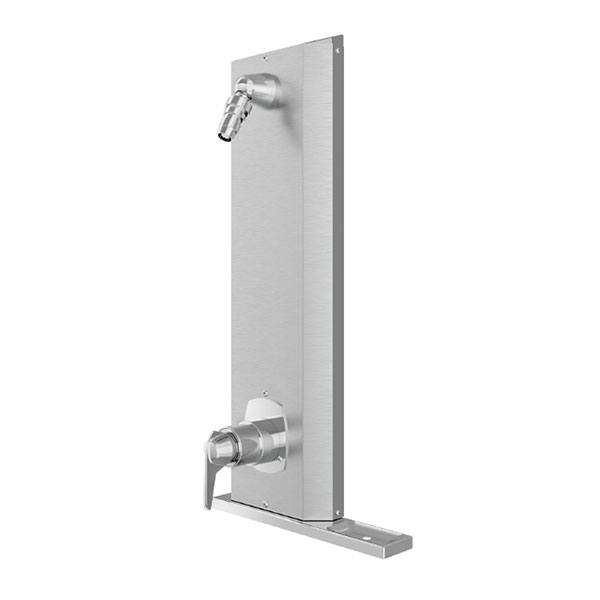

Hydapipe® 800 Series

Thru-Wall Piping, Hydapipe Shower Faucet


Symmons Hydapipe Shower Unit
Features:
  • Heavy duty, Safetymix pressure balancing mixing valve with integral screwdriver service stops and adjustable stop screw to prohibit valve handle from being turned to excessive hot discharge temperatures (easy to set, provides full range adjustment)
  • Shower unit includes super shower head with adjustable spray & ball joint mounted to institutional type head bracket
  • Hand spray unit includes wall/hand shower with flexible 5' metal hose with in-line vacuum breaker, wall connection, flange & 30" adjusting slide bar for hand shower mounting
  • All units include attached soap dish and metal top cap reducing areas for concealment of contraband
  • All functioning valve parts are brass, bronze and stainless steel for maximum trouble free performance
  • 18 gauge stainless steel covering
  • 1/2" IPS connections

Description Price & Quantity
Hydapipe standard shower unit (view specifications) $693.45
Hydapipe standard Hand spray unit w/ 30" Slide Bar (view specifications) $916.69
Hydapipe standard shower unit w/ shower head, hand spray, 30" slide bar & lever diverter (view specifications) $1,245.88

- OR - View Cart

Corner Installation, Hydapipe Shower Faucet


Symmons Hydapipe Shower Unit
Features:
  • Heavy duty, Safetymix pressure balancing mixing valve with integral screwdriver service stops and adjustable stop screw to prohibit valve handle from being turned to excessive hot discharge temperatures (easy to set, provides full range adjustment)
  • Includes super shower head w/ adjustable spray & ball joint mounted to institutional type head bracket
  • Includes attached soap dish and top corner cap reducing areas for concealment of contraband
  • All functioning valve parts are brass, bronze and stainless steel for maximum trouble free performance
  • 18 gauge stainless steel covering
  • 1/2" IPS connections

Description Price & Quantity
Hydapipe standard shower unit for corner installation (view specifications) $848.26

- OR - View Cart

Hydapipe® 900 Series

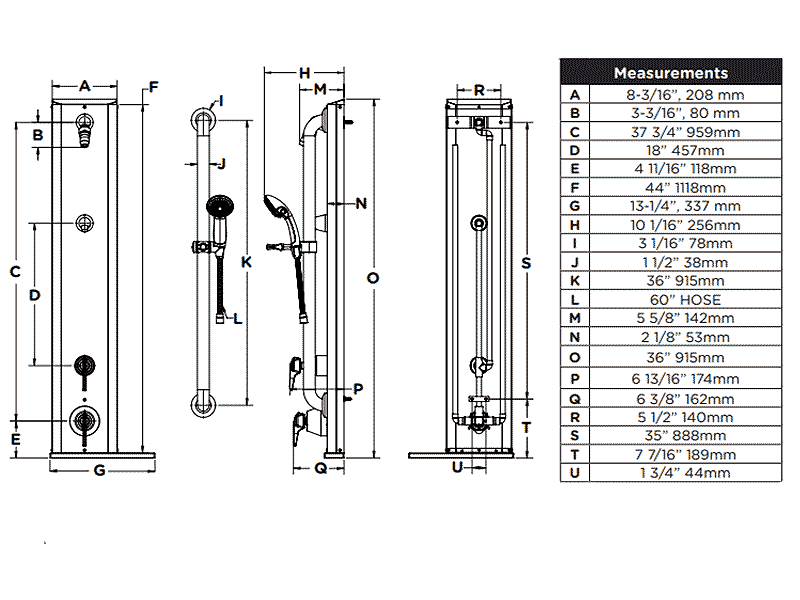

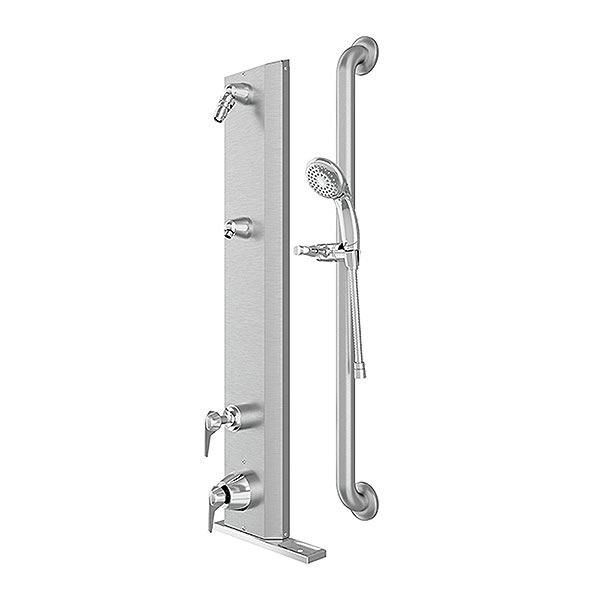

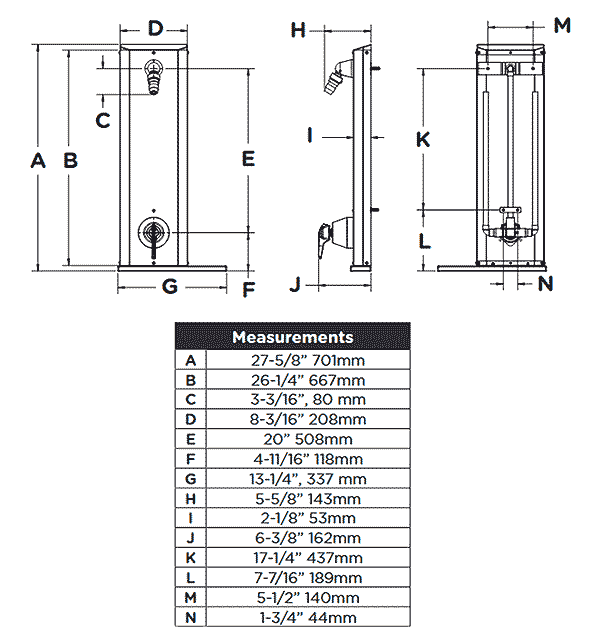

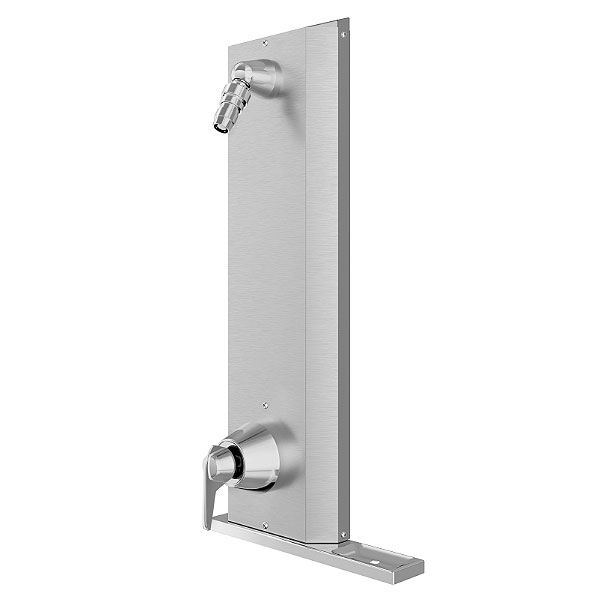

Thru-Wall Piping, Hydapipe Shower Faucet


Symmons Hydapipe Shower Unit
Features:
  • Heavy duty, Safetymix pressure balancing mixing valve with integral screwdriver service stops and adjustable stop screw to prohibit valve handle from being turned to excessive hot discharge temperatures (easy to set, provides full range adjustment)
  • Shower unit includes free-flow, all brass, vandal resistant shower head with ball joint mounted to institutional type head bracket
  • Hand spray unit includes wall/hand shower with flexible 5' metal hose with in-line vacuum breaker, wall connection, flange & 30" adjusting slide bar for hand shower mounting
  • All units include attached soap dish and metal top cap reducing areas for concealment of contraband
  • All functioning valve parts are brass, bronze and stainless steel for maximum trouble free performance
  • 18 gauge stainless steel covering
  • 1/2" IPS connections

Description Price & Quantity
Hydapipe standard shower unit (view specifications) $580.56
Hydapipe standard hand spray unit w/ 30" slide bar (view specifications) $651.90
Hydapipe standard shower unit w/ shower head, hand spray, 30" slide bar & lever diverter (view specifications) $1,031.02

- OR - View Cart

Corner Installation, Hydapipe Shower Faucet


Symmons Hydapipe Shower Unit
Features:
  • Heavy duty, Safetymix pressure balancing mixing valve with integral screwdriver service stops and adjustable stop screw to prohibit valve handle from being turned to excessive hot discharge temperatures (easy to set, provides full range adjustment)
  • Includes free-flow, all brass, vandal resistant shower head with ball joint mounted to institutional type head bracket
  • Includes sloped metal top corner cap reducing areas for concealment of contraband
  • All functioning valve parts are brass, bronze and stainless steel for maximum trouble free performance
  • 18 gauge stainless steel covering
  • 1/2" IPS connections

Description Price & Quantity
Hydapipe standard shower unit for corner installation - chrome finish (view specifications) $698.57

- OR - View Cart

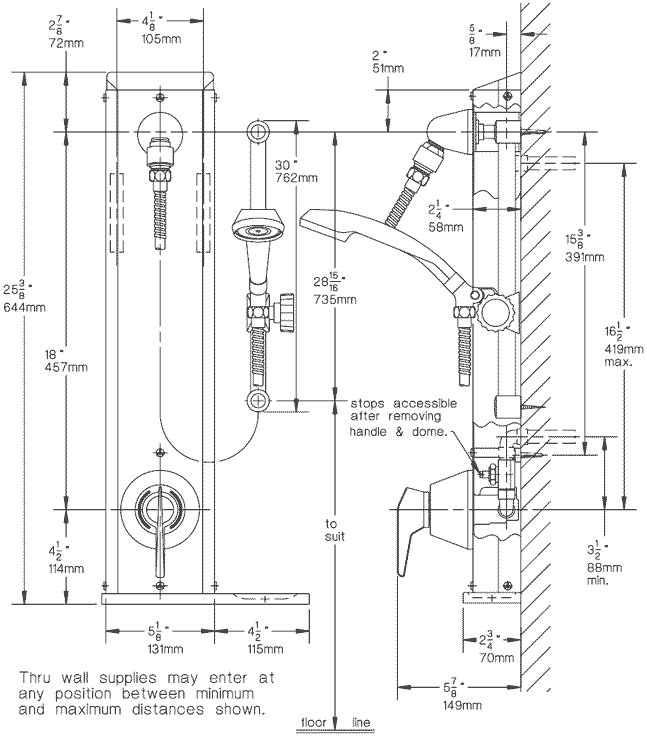

Flat Wall Recessed Supply Piping, Hydapipe Shower Faucet


Symmons Hydapipe Shower Unit
Symmons Hydapipe Shower Unit
Features:
  • Heavy duty, Safetymix pressure balancing mixing valve with integral screwdriver service stops and adjustable stop screw to prohibit valve handle from being turned to excessive hot discharge temperatures (easy to set, provides full range adjustment)
  • Includes free-flow, all brass, vandal resistant shower head with ball joint mounted to institutional type head bracket
  • Optional wall/hand shower with flexible 5' metal hose with in-line vacuum breaker, wall connection, flange, 30" adjusting slide bar for hand shower mounting & Levertrol lever diverter with volume control
  • Includes recessed soap dish
  • All functioning valve parts are brass, bronze and stainless steel for maximum trouble free performance
  • 18 gauge stainless steel covering
  • 1/2" IPS connections

Description Price & Quantity
Hydapipe standard shower unit (view specifications) $875.92
Hydapipe standard shower shower unit w/ shower head, hand spray, 30" slide bar & lever diverter (view specifications)
(shown on right side above without 30" slide bar)
$1,227.95

- OR - View Cart

Thru-Wall Supply Piping, Hydapipe Double Shower Faucet


Symmons Hydapipe Double Shower Unit
Features:
  • System includes two heavy duty, Safetymix pressure balancing mixing valves with integral screwdriver service stops and adjustable stop screw to prohibit valve handles from being turned to excessive hot discharge temperatures (easy to set, provides full range adjustment)
  • Includes two free-flow, all brass, vandal resistant shower heads with ball joint mounted to institutional type head brackets
  • Includes sloped metal top cap reducing areas for concealment of contraband
  • All functioning valve parts are brass, bronze and stainless steel for maximum trouble free performance
  • 18 gauge stainless steel covering
  • 1/2" IPS connections

Description Price & Quantity
Hydapipe standard double shower unit (view specifications) $1,607.48

- OR - View Cart

Thru-Wall Supply Piping, Hydapipe Triple Shower System


Symmons Hydapipe Triple Shower Unit
Features:
  • System includes three heavy duty, Safetymix pressure balancing mixing valves with integral screwdriver service stops and adjustable stop screw to prohibit valve handles from being turned to excessive hot discharge temperatures (easy to set, provides full range adjustment)
  • Includes three free-flow, all brass, vandal resistant shower heads with ball joint mounted to institutional type head brackets
  • Includes sloped metal top cap reducing areas for concealment of contraband
  • All functioning valve parts are brass, bronze and stainless steel for maximum trouble free performance
  • 18 gauge stainless steel covering
  • 1/2" IPS connections

Description Price & Quantity
Hydapipe standard triple shower unit (view specifications) $1,840.15

- OR - View Cart

Thru-Wall Supply Piping, Hydapipe Tub/Shower System


Symmons Hydapipe Tub/Shower Unit
Features:
  • Heavy duty, Safetymix pressure balancing mixing valve with integral screwdriver service stops and adjustable stop screw to prohibit valve handle from being turned to excessive hot discharge temperatures (easy to set, provides full range adjustment)
  • Includes super shower head w/ adjustable spray & ball joint mounted to institutional type head bracket
  • Includes diverter tub spout & sloped metal top cap reducing areas for concealment of contraband
  • All functioning valve parts are brass, bronze and stainless steel for maximum trouble free performance
  • 18 gauge stainless steel covering
  • 1/2" IPS connections

Description Price & Quantity
Hydapipe standard tub/shower unit (view specifications) $717.07

- OR - View Cart

Related Items & Accessories



Frequently Asked Questions

Q. "Why should I use Hydapipe?"
A. The architect and engineer can eliminate the need of pipe chases, use narrow partition walls and put the shower system and piping on the wall not in it. This means you'll lower construction costs.

Q. "How does the Safetymix pressure balancing mixing valve work?"
A. The heart of the Symmons pressure balancing mixing valve is a precision-crafted piston that "floats" between hot and cold water supplies. As pressure from either source drops, the piston moves to compensate for the drop, thereby maintaining correct temperature. A standard feature on all Symmons pressure-balancing systems is an adjustable limit stop screw. A simple screwdriver adjustment will restrict the handle to a maximum temperature level.

Example of a pressure balance valve.
