Delta Bath / Shower Valve Repair Parts


Delta cartridge assembly for 1300 and 1400 series
Popular Cartridge Assembly for the 1300/1400 series - #RP19804 = $70.42

- OR - View Cart

Single Lever Bath Shower Valves
Non-Pressure Balance - Model 601

Delta Bath and Shower valves models: 601

Item # Description Part # Price & Quantity
1 Handle with set screw - chrome RP17443 $22.69
Handle with set screw - polished brass RP17443PB $40.14
2 Set Screw - chrome RP152 $4.09
3 Adjusting ring - adjustment wrench sold separately RP250 $4.49
4 Cap with adjusting ring - chrome - adjustment wrench sold separately RP50 $15.79
Cap with adjusting ring - polished brass - adjustment wrench sold separately RP50PB $33.78
5 Cam & packing RP61 $6.47
6 Ball assembly RP70 $11.57
7 Seats & springs RP4993 $4.99
8 Sleeve - chrome RP5893 $13.21
Sleeve - polished brass RP5893PB $22.29
9 Push button assembly - chrome RP5649 $26.98
Push button assembly - polished brass RP5649PB $36.39
10 Pipe plug RP76 $4.61
11 Stop stem assembly RP16213 $15.59
12 Screws (2) - chrome RP196 $5.98
Screws (2) - polished brass RP196PB $8.01
13 Escutcheon (push button) - chrome RP6046 $35.68
14 Escutcheon (non-diverter) - chrome RP5883 $39.57
Escutcheon (non-diverter) - polished brass RP5883PB $118.89
Escutcheon (non-diverter) - antique brass RP5883AB $122.01
Tool Wrench and hex key for handle removal and adjustment ring RP1974 $2.54

Complete Trim Kits

Example Description Price & Quantity
Chrome tub/shower trim kit with metal lever handle for Delta CHROME Trim Kit
Fits Delta 601 & 603 lever handle shower
Kit includes:
  • One #RP17443 Lever handle
  • One #RP5883 Escutcheon (non diverter)
  • One pair #RP196 Escutcheon screws
  • One #RP50 Bonnet nut with adjusting ring
  • One #RP5893 Sleeve
$69.74
Chrome tub/shower trim kit with acrylic knob handle for Delta CHROME Trim Kit
Fits MOST Delta 601, 603, 602, 604, 606, 612, 622, 624, 636, 638, 642, 644, and Monitor 1400 series single handle showers
Kit includes some NON-OEM parts:
  • One Metal lever handle
  • One Acrylic Handle
  • One Escutcheon (for diverter but includes plug for non-diverter)
  • One Sleeve like #RP5893
$49.98

- OR - View Cart

Single Knob Handle Shower and Bath Valves
Non-Pressure Balance - Models 602, 606, 612, 622, 636, 642

Delta Shower-Bath Valve Schematic - Models: 602, 606, 612, 636, 642

Item # Description Part # Price & Quantity
1 Button - chrome RP17446 $6.27
Button - polished brass RP17446PB $6.59
Button - old style RP2411 $5.36
2 Screw RP6369 $4.34
3 Handle with button & screw - chrome RP17451 $16.77
Handle with button & screw - polished brass RP17451PB $18.09
Handle with button & screw - old style RP2391 $15.19
4 Cap with adjusting ring - chrome - adjustment wrench sold separately RP50 $15.79
Cap with adjusting ring - polished brass - adjustment wrench sold separately RP50PB $33.78
5 Adjusting ring - adjustment wrench sold separately RP250 $4.49
6 Cam & packing
Replaced by new style assembly
RP188 $5.44
7 Ball assembly RP212 $11.34
  Reverse ball for single acrylic handled shower RP16423 $35.33
8 Diverter assembly - chrome RP5649 $26.98
Diverter assembly - polished brass RP5649PB $36.39
9 Seats & springs RP4993 $4.99
10 Sleeve - chrome RP5893 $13.21
Sleeve - polished brass RP5893PB $22.29
11 Pipe plug RP76 $4.61
12 Stop stem assembly RP16213 $15.59
13 Screws (2) - chrome RP196 $5.98
Screws (2) - polished brass RP196PB $8.01
14 Escutcheon (push button) - chrome RP6046 $35.68
15 Escutcheon (non diverter) - chrome RP5883 $39.57
Escutcheon (non diverter) - polished brass RP5883PB $118.89
Escutcheon (non diverter) - antique brass RP5883AB $122.01
Tool Wrench for adjustment ring RP1974 $2.54

Complete Trim Kits

Example Description Price & Quantity
Chrome Trim Kits - Non-push button diverter models
Chrome tub/shower trim kit with acrylic knob handle for Delta CHROME Trim Kit
Fits Delta single knob
Shower and Tub Valve Models 602, 604, 606, 612, 622, 624, 636, 638, 642, 644
Non-push button diverter models

Kit includes Genuine Delta OEM parts:
  • Handle (#3 above)
  • Escutcheon (non-diverter #15 above)
  • Matching escutcheon screws (#13 above)
  • Bonnet nut with adjusting ring (#4 above)
  • Sleeve (#10 above)
$64.89
Chrome trim kit with acrylic knob handle for Delta CHROME Trim Kit
Fits Delta single knob
Shower and Tub Valve Models 602, 604, 606, 612, 622, 624, 636, 638, 642, 644
Non-push button diverter models

Kit includes NON OEM parts:
  • Handle (#3 above)
  • Escutcheon (non-diverter #15 above)
  • Matching escutcheon screws (#13 above)
$23.45
Chrome tub/shower trim kit with acrylic knob handle for Delta CHROME Trim Kit
Fits MOST Delta 601, 603, 602, 604, 606, 612, 622, 624, 636, 638, 642, 644, and Monitor 1400 series single handle showers
Kit includes some NON-OEM parts:
  • One Metal lever handle
  • One Acrylic Handle
  • One Escutcheon (for diverter but includes plug for non-diverter)
  • One Sleeve like #RP5893
$49.98
Satin/Brushed Nickel Trim Kit - Non-push button diverter models
Satin Nickel trim kit with acrylic knob handle for Delta Satin Nickel (Brushed Nickel) Trim Kit
Fits Delta single knob
Shower and Tub Valve Models 602, 604, 606, 612, 622, 624, 636, 638, 642, 644
Non-push button diverter models

Kit includes the following NON-OEM parts not sold separately:
  • Handle - clear acrylic w/arrow indicator cover button
  • Escutcheon (non-diverter)
  • Matching escutcheon screws
  • Bonnet nut with adjusting ring
  • Sleeve
$47.59
Push Button Diverter Style Trim Kit
Chrome push button diverter trim kit with acrylic knob handle for Delta CHROME Trim Kit
Fits Delta single knob
Shower and Tub Valve Models 602, 604, 606, 612, 622, 624, 636, 638, 642, 644
Push button diverter models

Kit includes NON OEM parts:
  • Handle (w/arrow indicator cover button)
  • Escutcheon (push button-diverter #14 above)
  • Matching escutcheon screws (#13 above)
$32.57
Chrome tub/shower trim kit with acrylic knob handle for Delta CHROME Trim Kit
Fits MOST Delta 601, 603, 602, 604, 606, 612, 622, 624, 636, 638, 642, 644, and Monitor 1400 series single handle showers
Kit includes some NON-OEM parts:
  • One Metal lever handle
  • One Acrylic Handle
  • One Escutcheon (for diverter but includes plug for non-diverter)
  • One Sleeve like #RP5893
$49.98

- OR - View Cart

Single Lever Bath Shower Valves
Pressure Balance - Model 603

Delta Shower - Bath Valves Model: 603

Item # Description Part # Price & Quantity
1 Handle with set screw - chrome RP17443 $22.69
Handle with set screw - polished brass RP17443PB $40.14
2 Set Screw - chrome RP152 $4.09
3 Adjusting ring - adjustment wrench sold separately RP250 $4.49
4 Cap with adjusting ring - chrome
- adjustment wrench sold separately
RP50 $15.79
Cap with adjusting ring - polished brass
- adjustment wrench sold separately
RP50PB $33.78
5 Cam & packing RP61 $6.47
6 Ball assembly RP70 $11.57
7 Seats & springs RP4993 $4.99
8 Sleeve - chrome RP5893 $13.21
Sleeve - polished brass RP5893PB $22.29
9 Screws (2) - chrome RP196 $5.98
Screws (2) - polished brass RP196PB $8.01
10 Escutcheon (push button) - chrome RP6046 $35.68
11 Escutcheon (non-diverter) - chrome RP5883 $39.57
Escutcheon (non-diverter) - polished brass RP5883PB $118.89
Escutcheon (non-diverter) - antique brass RP5883AB $122.01
12 Stop stem assembly RP2090 $21.52
13 Pipe plug RP76 $4.61
14 Diverter assembly - chrome RP5649 $26.98
Diverter assembly - polished brass RP5649PB $36.39
15 Balance spool assembly RP574 $77.54
Tool Wrench and hex key for handle removal and adjustment ring RP1974 $2.54

Complete Trim Kits

Example Description Price & Quantity
Chrome tub/shower trim kit with metal lever handle for Delta CHROME Trim Kit
Fits Delta 601 & 603 lever handle shower
Kit includes:
  • One #RP17443 Lever handle
  • One #RP5883 Escutcheon (non diverter)
  • One pair #RP196 Escutcheon screws
  • One #RP50 Bonnet nut with adjusting ring
  • One #RP5893 Sleeve
$69.74
Chrome tub/shower trim kit with acrylic knob handle for Delta CHROME Trim Kit
Fits MOST Delta 601, 603, 602, 604, 606, 612, 622, 624, 636, 638, 642, 644, and Monitor 1400 series single handle showers
Kit includes some NON-OEM parts:
  • One Metal lever handle
  • One Acrylic Handle
  • One Escutcheon (for diverter but includes plug for non-diverter)
  • One Sleeve like #RP5893
$49.98

- OR - View Cart

Single Knob Handle Shower and Bath Valves
Pressure Balance - Models 604, 624, 638, 644

Delta Shower-Bath Valve Schematic - Models: 604, 624, 638, 644

Item # Description Part # Price & Quantity
1 Button - chrome RP17446 $6.27
Button - polished brass RP17446PB $6.59
Button - old style RP2411 $5.36
2 Screw RP6369 $4.34
3 Handle with button & screw - chrome RP17451 $16.77
Handle with button & screw - polished brass RP17451PB $18.09
Handle with button & screw - old style RP2391 $15.19
4 Cap with adjusting ring - chrome
- adjustment wrench sold separately
RP50 $15.79
Cap with adjusting ring - polished brass
- adjustment wrench sold separately
RP50PB $33.78
5 Adjusting ring - adjustment wrench sold separately RP250 $4.49
6 Cam & packing
Replaced by new style assembly
RP188 $5.44
7 Ball assembly RP212 $11.34
  Reverse ball for single acrylic handled shower RP16423 $35.33
8 Balance Spool Assembly RP574 $77.54
9 Diverter assembly - chrome RP5649 $26.98
Diverter assembly - polished brass RP5649PB $36.39
10 Seats & springs RP4993 $4.99
11 Sleeve - chrome RP5893 $13.21
Sleeve - polished brass RP5893PB $22.29
12 Pipe plug RP76 $4.61
13 Stop stem assembly RP2090 $21.52
14 Screws (2) - chrome RP196 $5.98
Screws (2) - polished brass RP196PB $8.01
15 Escutcheon (push button) - chrome RP6046 $35.68
16 Escutcheon (non diverter) - chrome RP5883 $39.57
Escutcheon (non diverter) - polished brass RP5883PB $118.89
Escutcheon (non diverter) - antique brass RP5883AB $122.01
Tool Wrench for adjustment ring RP1974 $2.54

Complete Trim Kits

Example Description Price & Quantity
Chrome tub/shower trim kit with acrylic knob handle for Delta CHROME Trim Kit
Fits Delta single knob
Shower and Tub Valve Models 602, 604, 606, 612, 622, 624, 636, 638, 642, 644
Non-push button diverter models
Kit includes:
  • Handle (#3 above)
  • Escutcheon (non-diverter #16 above)
  • Matching escutcheon screws (#14 above)
  • Bonnet nut with adjusting ring (#4 above)
  • Sleeve (#11 above)
$64.89
Chrome tub/shower trim kit with acrylic knob handle for Delta CHROME Trim Kit
Fits MOST Delta 601, 603, 602, 604, 606, 612, 622, 624, 636, 638, 642, 644, and Monitor 1400 series single handle showers
Kit includes some NON-OEM parts:
  • One Metal lever handle
  • One Acrylic Handle
  • One Escutcheon (for diverter but includes plug for non-diverter)
  • One Sleeve like #RP5893
$49.98

- OR - View Cart

Looking to change the look of your tub/shower?
We also offer a huge selection of brushed nickel accessories for Valley, Mixet and Moen


Two Handle Shower Bath Valves
8" Centers - Model 2650

Delta Shower - Bath Valves Model: 26502

Item # Description Part # Price & Quantity
1 Extra long 3-7/8" trim screws (2) - chrome RP12630 $8.64
Extra long 3-7/8" trim screws (2) - polished brass RP12630PB $12.09
2 Handle bases - Replaced by H22 (set screw style) RP15249 Replaced by H22
Handle bases with screws - chrome H22 $47.98
Handle bases with screws - polished brass H22PB $66.38
3 Handle accents - use A12/A22 with H22 bases A12 & A22 Click Here
4 Handle - To Order: use item #2 and item #3 above
5 Escutcheon - chrome RP18276 $17.84
Escutcheon - polished brass RP18276PB $55.39
6 Button set - clear RP19659 $5.92
7 Screws (2) RP12629 $5.47
8 Handles (see H21) RP19660 see below

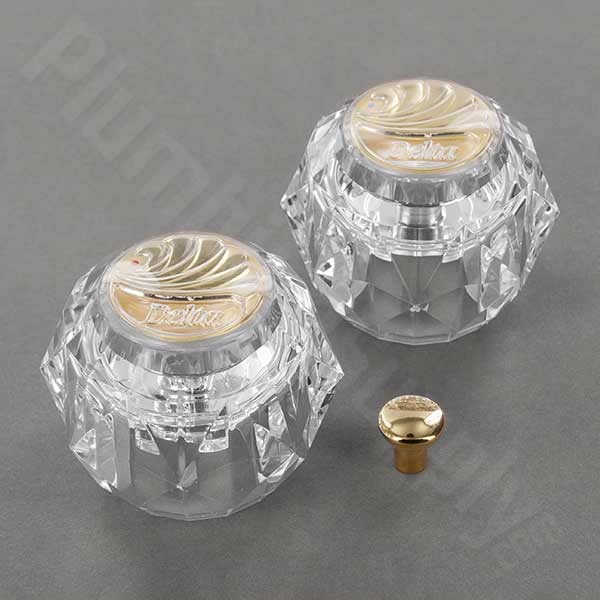

Clear Handles with screws & chrome buttons H21 $15.89
Clear Handles with screws & polished brass buttons H21PB $25.23
9 Escutcheon - chrome RP18090 $12.69
10 Sleeve - chrome RP18136 $16.04
Sleeve - polished brass RP18136PB $30.58
11 Extenders with screws - PAIR RP12631 $8.26
13 Stem unit assembly - EACH RP1740 $6.91
13 Stem unit assembly - PAIR RP1740 $12.99
14 Seats & springs RP4993 $4.99
15 Stop stem assembly (universal) RP6185 $17.59
16 Coupling nuts & tailpieces RP6203 $23.72
17 Ejector RP15565 Discontinued
18 Pipe plug RP76 $4.61
19 Stop stem assembly (copper) RP16213 $15.59

Complete Trim Kits

Example Description Price & Quantity
Chrome tub/shower trim kit for Valley CHROME Trim Kit
Fits Delta 2650 two handle shower with acrylic knob handles
Kit includes:
  • One Pair #H21 - Handles with screws & buttons
  • One Pair #RP12629 3" long screws
  • Two #RP18090 Escutcheons
  • Two #RP18136 Sleeves
$59.85

- OR - View Cart


Didn't find your tub/shower system on this page? Don't stress, we offer a wide selection of replacement parts for many Delta tub/shower systems.


View our Delta parts index page where you can browse all of the tub/shower systems
we offer parts for to find the one you're looking for.

Frequently Asked Questions

Q. "Are there any helpful hints for changing balls/cartridges/seals?"
A. When changing the ball/cartridge and/or seal it is recommended that with an assistant, you hold a cup or towel over the open valve, turn on the water to flush out the lines, then install the new part. This may help to extend the life of the parts.

Q. "I have a Delta single control shower valve, but the hot and cold seem to be backwards (the cold is on the left and the hot is on the right). Is there a solution for this other than tearing open the wall and reversing the pipes?"
A.We have the solution for you! Delta makes a 'Reverse Ball' #RP16423, offered here.

Q. "I put in a new cartridge but now it turns on and off opposite of before. Did I purchase the wrong cartridge?"
A. No, you will need to remove the cartridge and turn it 180° then put it back in.

Q. "How do I get the seal out after I remove the cartridge/ball?"
A. Push a pen or pencil into the seal then pull it out.

Q. "How come some of the parts shown are available in Antique Brass finish but others are not?"
A. Unfortunately, the 'Antique Brass' finish was discontinued by Delta many years ago. We are currently offering (new / unused) Antique Brass parts that we still have available and are stocked in our warehouse.

Customer Testimonials

"Glad I could find the necessary parts to repair our older model Delta shower assemblies."
- John Hanks, Salida, Colorado 81201-1171

"It was a pleasure to do business with your company and I don't mind sharing that with others. My boss and I are constantly looking for examples of companies who go the extra mile and promote customer service. Thank you for giving an excellent example. I have already shared my story with many of our staff and my friends."
- Dann Petersen, Salt Lake City, Utah 84106

Please note that every customer testimonial shown on our pages has given us written permission to quote them. Our customer's privacy is very important to us so we will never give, share or sell contact information or e-mail addresses to anyone!


return to top ↑

Copyright© 1995-2016 PlumbingSupply.com.
All Rights Reserved.
