Deck Mount Hand Shower Accessories

Deluxe Deck Mount Handshower Bases

Features:

• Handshower attaches to top swivel nut
• Handshower hose attaches to bottom male threads
• Sits in SL-8019 deck mount sleeve (available directly below)
• View an example deck mount set-up
• H-8029 angled handshower base dimensions
• H-8030 straight handshower base dimensions

H-8030 Straight Handshower Base

H-8029 Angled Handshower Base

SL-8019 Deck Mount Sleeve - View Specifications

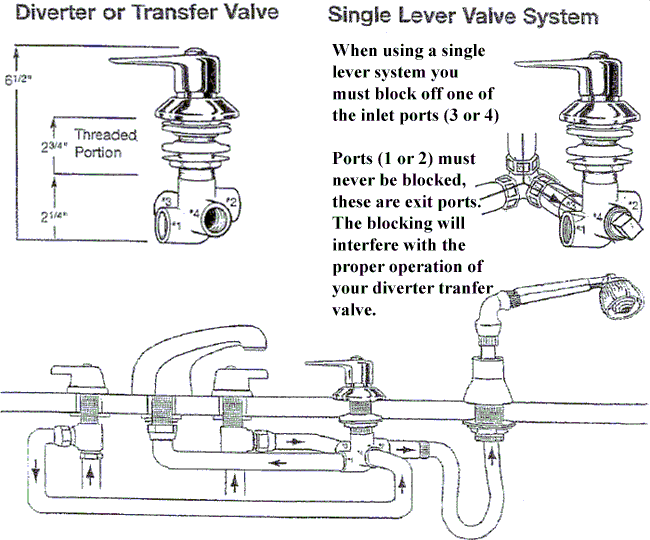

3-4-5 Diverter Valve - 1/2" Inlet & Outlets

Features:

• 3-Way, 4 ports, 5 functions
• One 1/2" inlet, three 1/2" outlets
• 4-1/2" long stem broach notched every 1/2"
• Extra long stem allows for deep in-wall installations, yet also allows for shallow installations (stem can be cut for acrylic, fiberglass, or other thin wall installations)
• 3-way valve operation (one outlet at a time) and allows 2 optional combinations of two of the outlets (2 at one time) - View all 5 water flow configuration examples
• You can enjoy your shower or your handshower or both at the same time
• Reliable long-life ceramic cartridge
• In-wall diverter rough-in valve only - handles (trim kits) sold separately
• 12 gpm flow rate at 60 psi water pressure
• View dimensions

3-4-5  Diverter Valve - 1/2" inlet/outlets = $230.74

Handles (Trim Kits) For Diverter Valves

Contemporary Cross Handle Volume Control - Trim Only

Features:

• Brass handle, & escutcheon
• 2-1/4" diameter brass escutcheon
• View dimensions
• Note: This is the volume control trim only - complete unit is directly above

Contemporary Lever Handle Volume Control - Trim Only

Features:

• Brass handle, & escutcheon
• 2-1/4" diameter brass escutcheon
• View dimensions
• Note: This is the volume control trim only - complete unit is directly above

Durable Interlink Stainless Steel Hose

Features:

• Stainless steel interlink braided hose
• 24" long
• 1/2" male IPS x 1/2" male IPS brass ends
• Pull hose through deck to allow for easy replacement of hose
• View dimensions
