Water Closet & Urinal Spuds

Why spend the time searching for that hard-to-find closet or urinal spud? PlumbingSupply.com® stocks all and delivers them right to your home or business! Whether you need a spud, replacement washers, or even a specialty tool to remove and install them, we've got it.

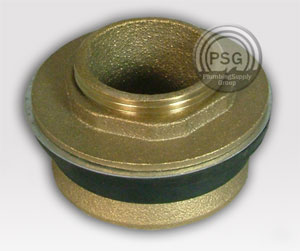

Closet (Toilet) Spuds

All are brass bodies and each spud comes with a rubber washer, friction ring, and brass locknut. Washer & friction ring available separately. An adjustable closet spud wrench is available below.

Size
(Spud x IPS for tailpiece)
Spud Side
(Fits in Hole)
Closet Spud Rubber Washer Friction Ring
1-1/4" x 1-1/4" 2" $10.61 $1.39 $0.80
1-1/2" x 1-1/4" 2-3/16" $12.73 $1.41 $0.80
1-1/2" x 1-1/2" 2-3/16" $11.74 $1.41 $0.77
2" x 1-1/4" 2-5/8" $20.00 $2.58 $1.39
2" x 1-1/2" 2-5/8" $19.75 $2.48 $1.45
2" x 2" 2-5/8" $18.39 $1.67 $1.42
Order 100, 200, 500 or more of the same spud washer for additional savings!
Order 10, 25, 50 or more of the same friction ring for additional savings!
Pricing discounts will show up in your shopping cart.

- OR - View Cart

Please Note: The closet spud side (washer side) is the part that will fit into the hole in the porcelain fixture. An internal spud wrench is used to hold the spud in place, while the nut on the outside is tightened to allow the washer to tighten evenly around the inside of the hole in the porcelain. The threaded side is for the connection from a flushometer to the toilet fixture or from the tank piping into the bowl (wall hung toilets), depending on how the spud is being used.


Urinal Spuds

All are brass bodies and each spud comes with a rubber washer, friction ring, and brass locknut. Washer & friction ring available separately. An adjustable closet spud wrench is available below.

Size
(Spud x IPS for tailpiece)
Spud Side
(Fits in Hole)
Urinal Spud Rubber Washer Friction Ring
1" x 3/4" 1-9/16" $8.97 $1.27 $0.74
1-1/4" x 3/4" 2" $9.06 $1.22 Not Available
1-1/2" x 3/4" 2-1/4" $13.40 Not Available Not Available
Order 10, 20 or more of the same brass urinal spud for additional savings!
Order 100, 200, 500 or more of the same spud washer for additional savings!
Pricing discounts will show up in your shopping cart

- OR - View Cart

Please Note: The urinal spud side (washer side) is the part that will fit into the hole in the porcelain fixture. An internal spud wrench is used to hold the spud in place, while the nut on the outside is tightened to allow the washer to tighten evenly around the inside of the hole in the porcelain. The threaded side is for the connection from a flushometer to the urinal fixture or from the tank piping out of the drain of the urinal, depending on how the spud is being used.


Urinal Flanges

Each kit comes with either ABS or cast brass urinal flange, rubber gasket, and bolt set. Available in several different styles, including adjustable. Designed to fit 2" DWV pipe.

Model Description Material Price & Quantity
AKT-111 Horizontal Adjustable Urinal Flange Kit - view dimensions ABS $17.54
AUR-107 Radially Adjustable Urinal Flange Kit - view dimensions ABS $23.72

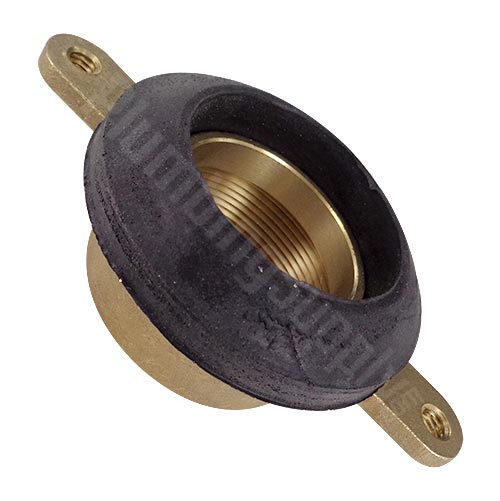

94703 Threaded Urinal Flange Kit - view dimensions Cast Brass $26.08
BKT110 Threaded Adjustable Slotted Urinal Flange Kit - view dimensions Cast Brass $66.78
- OR - View Cart

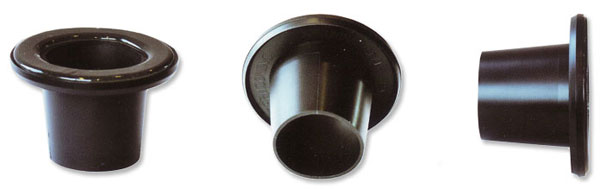

Wax-Free Urinal Seal

Wax free urinal seal
This wax-free urinal seal features:
  • Ideal for new installations as well as replacing failed seals
  • Fast, easy installation provides a long term solution
  • Reusable on the same urinal during service
  • Engineered to seal to the inside diameter of 2" drain pipe forming a water tight, gas tight and odor tight seal
  • Made of flexible PVC that will move with the urinal
  • Will not absorb moisture or break down over time
  • Impervious to mold and mildew
  • View installation example
Wax Free Urinal Seal - $4.54
- OR - View Cart

Adjustable Spud Wrenches

Works with all closet and urinal spuds. May not look exactly as pictured.

Model Description Fits Spud Size Price & Quantity
4562 Adjustable Internal Spud Wrench 1-1/4" - 2" $15.65
4571 Adjustable External Spud Wrench 1" - 2" $10.06
RSPUD Deluxe Adjustable External Spud Wrench 1" - 2" $47.61
- OR - View Cart
