Wheelchair Accessible Sinks with Drainboards

by Just Manufacturing

Proudly made in the USA

For many wheelchair users, the ability to comfortably work at a sink or countertop is made difficult due to low hanging sink bowls, cabinet aprons, and drain pipes. A great way to alleviate the inconvenience and make access more comfortable is to install one of these attractive, U.S.-made, single- or double-bowl sinks with multi-use drainboards. Choose the number of bowls, then select the drainboard configuration best suited for your installation, and get greater accessibility with the perfect sink - proudly offered by PlumbingSupply.com®!

Left or Right Drainboard Sinks

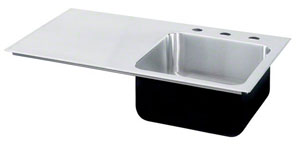

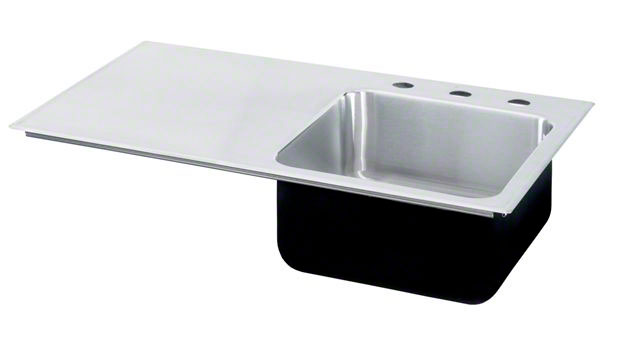

image of left side drainboard stainless steel sink

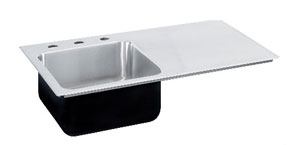

image of right side drainboard stainless steel sink
Features:
  • Terrific for retrofitting existing sinks for wheelchair access
  • Built-in drainboard allows a place to dry dishes or set down a hot pot
  • Fully coated underside insulates sound and reduces condensation
  • 6" bowl depth meets ADA Compliant requirements
  • Offset center rear drain for easier wheelchair access
  • Straight sided bowl compartments with radius corners provide greater capacity
  • Self rimming for easy replacement of most double bowl sinks
  • 18 gauge type 304 stainless steel, 18% chromium, 8% nickel
  • Polished to a hand-blended satin finish with highlighted bowl rim
  • 3 faucet holes - allows many faucet and accessory possibilities
  • 3 1/2" Drain opening located center rear - drain sold separately
  • Used in schools, dormitories, hospitals, health care or assisted living facilities, hotels, offices, warehouses, and residential applications
  • Easy top mount installation using the amazing Grip-Rim® Plus spring tension clips
  • Available with Integra-Flow overflow system mounted at rear of sink bowl

These single or double bowl sinks with a left or right drainboard are a handy way to add physical accessibility to any sink and provide an easily cleanable surface and a safe place to put hot plates or pans. These sinks can also be used in laundry rooms, utility rooms, arts and craft rooms, classrooms, office break rooms, conference rooms, or any room a sink is needed.

Choose the sink model needed for your particular installation without sacrificing any cabinet or sink sizing restrictions. All Just Manufacturing commercial stainless steel sinks are Made in the USA with 100% American steel and certified for ARRA project work specifications.

O.D. Dimensions
L x W
Drainboard
Location
Drainboard Size
L x W
Single Bowl Size
L x W x D
Price & Quantity
Less Overflow
Price & Quantity
With Integra-Flow
Single Bowl - Single Drainboard
33" x 22" Left 12 1/2" x 22" 19" x 16" x 6" $756.17 $819.06
33" x 22" Left 17 1/2" x 22" 14" x 16" x 6" $790.52 $801.39

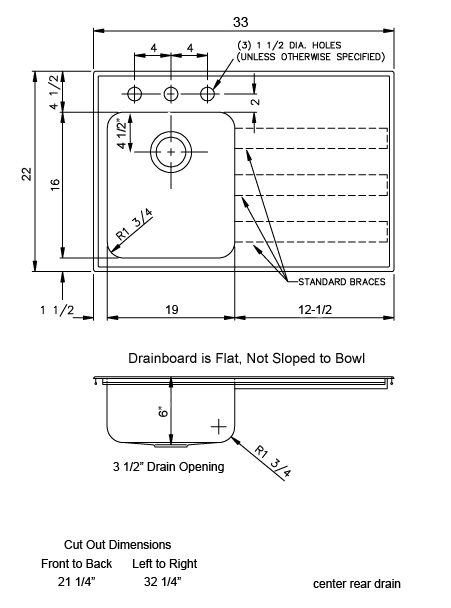

33" x 22" Right 12 1/2" x 22" 19" x 16" x 6" $753.91 $813.69

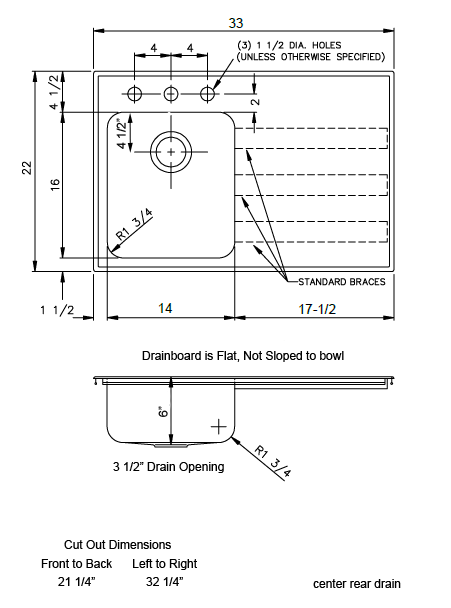

33" x 22" Right 17 1/2" x 22" 14" x 16" x 6" $791.15 $797.62

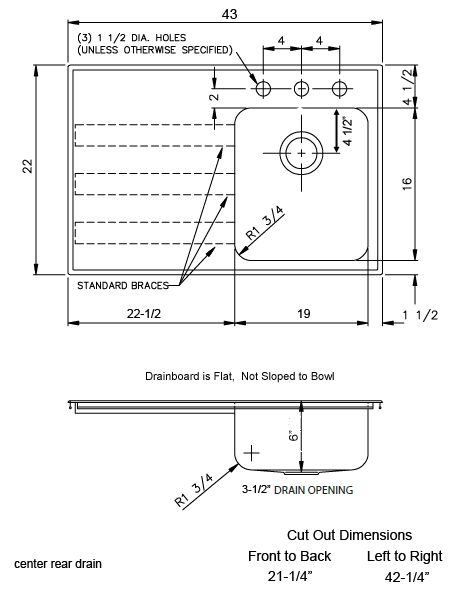

43" x 22" Left 19 1/2" x 22" 22" x 16" x 6" $887.56 $946.43
43" x 22" Left 22 1/2" x 22" 19" x 16" x 6" $848.67 $912.68
43" x 22" Right 19 1/2" x 22" 22" x 16" x 6" $885.98 $946.83

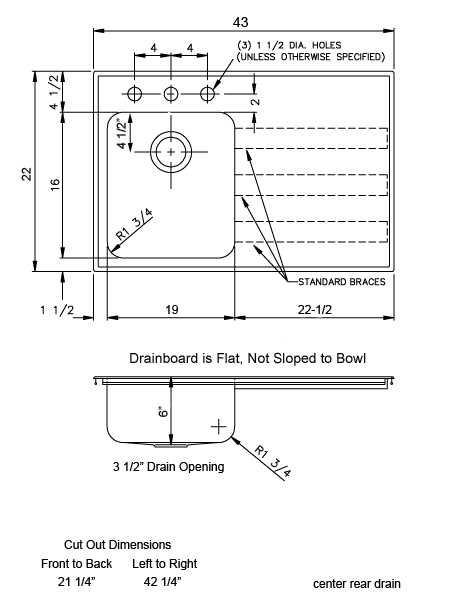

43" x 22" Right 22 1/2" x 22" 19" x 16" x 6" $852.99 $913.72
Double Bowl - Single Drainboard

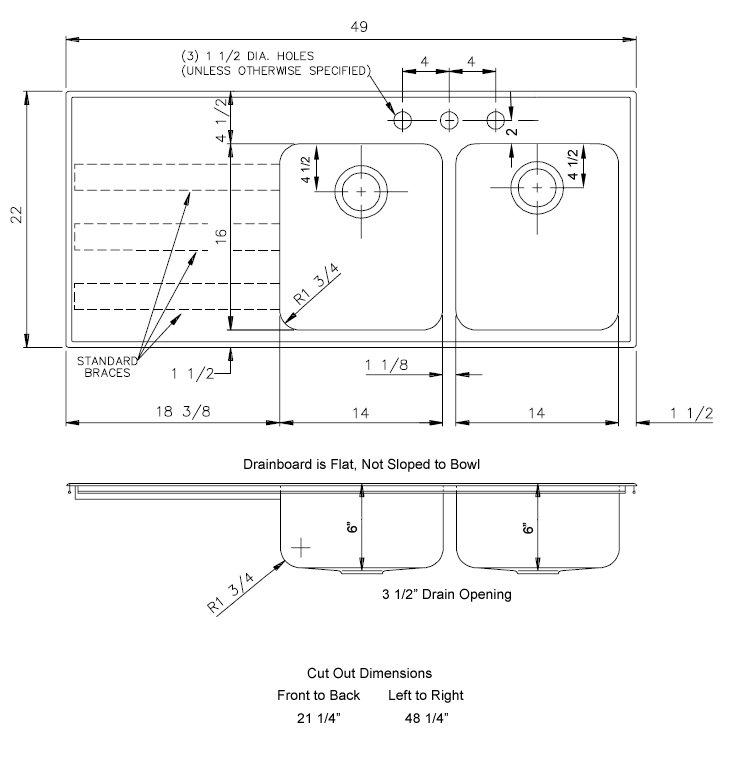

49" x 22" Left 18 3/8" x 22" 14" x 16" x 6" $1,164.54 $1,284.32
49" x 22" Right 18 3/8" x 22" 14" x 16" x 6" $1,163.12 $1,285.79
Sink Mounting Clips for Thick Counters 6 Pack 8 Pack 10 Pack
J-A-LUG "A" sink clips for counters up to 3/4" thick $4.12 $5.19 $6.29
J-B-LUG "B" sink clips for counters up to 1" thick $4.13 $5.16 $6.28
J-C-LUG "C" sink clips for counters up to 1-1/4" thick $4.18 $5.18 $6.27
J-D-LUG "D" sink clips for counters over 1-1/2" thick $9.99 $13.99 $16.55

Due to size and to ensure safe delivery, sinks over 33" length ship by truck and have a $175 additional shipping fee per freight item.
Please select your type of address: Commercial -or- Residential

- OR - View Cart

Check out some convenient in-sink accessories


Dual Drainboard Sinks

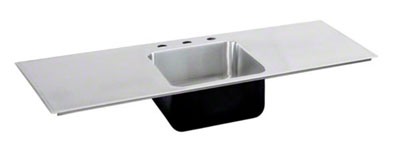

image of the double drainboard single bowl sink

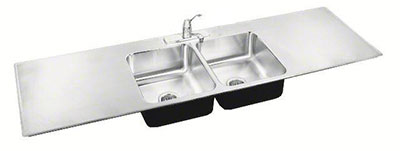

image of the dual drainboard double bowl sink
Features:
  • Single or double bowl sinks with two drainboards
  • ADA compliant when installed properly per the manufacturer's specifications
  • 6" bowl depth meets Americans with Disabilities requirements
  • Offset center rear drain for easier wheelchair access
  • 18 gauge type 304 stainless steel, 18% chromium, 8% nickel
  • Fully coated underside helps to deaden sound and reduce condensation
  • Polished to a hand-blended satin finish with highlighted bowl rim
  • Self-rimming for easy top mounting installation
  • 3 faucet holes - allows many faucet and accessory possibilities
  • 3 1/2" Drain opening located center rear - drain sold separately
  • Made in the USA and certified for ARRA project work specifications
  • Easy top mount installation using the amazing Grip-Rim® Plus spring tension clips
  • Available with Integra-Flow overflow system mounted at rear of sink bowl
  • Plenty of kitchen accessory options are available for these sinks
Faucet Hole Covers are also an ideal alternative solution to cover up sink holes not currently being used and provide the opportunity for accessories to be added at a later date.

O.D. Dimensions
L x W
Drainboard Sizes
L x W
Single Bowl Size
L x W x D
Price & Quantity
Less Overflow
Price & Quantity
With Integra-Flow
Single Bowl - Dual Drainboards

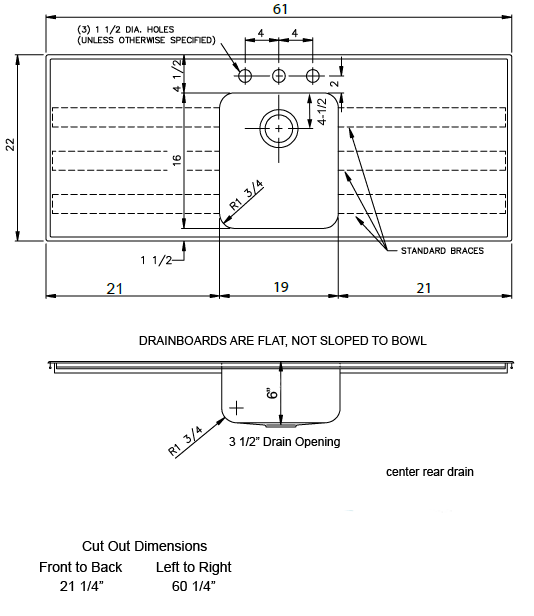

61" x 22" 21" x 22" 19" x 16" $970.26 $1,035.04

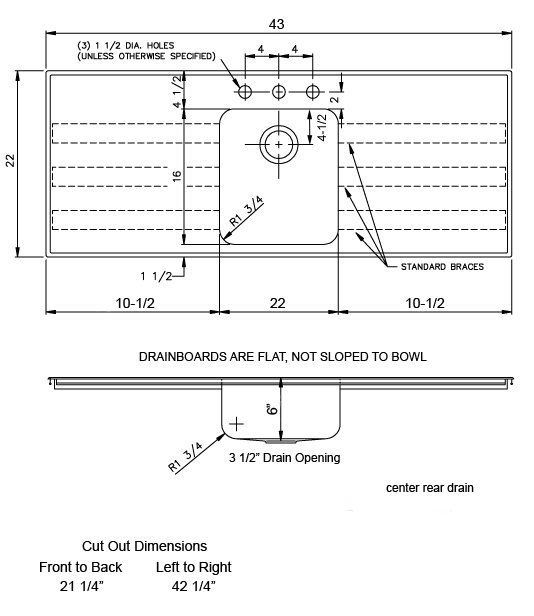

43" x 22" 10 1/2" x 22" 22" x 16" $976.99 $1,043.39
Double Bowl - Dual Drainboards

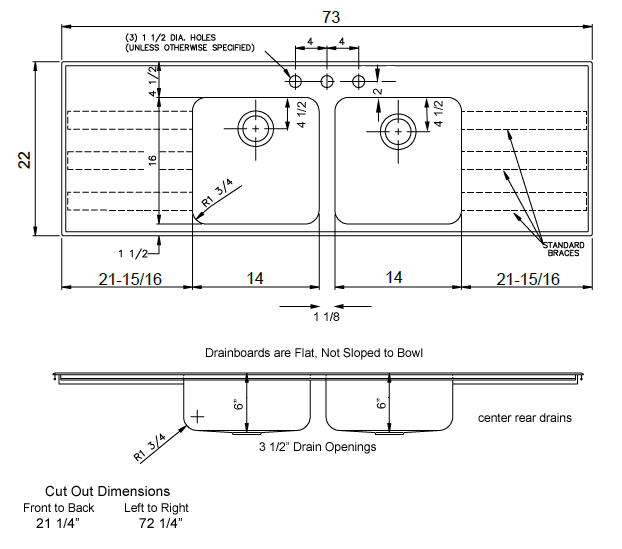

73" x 22" 21 15/16" x 22" 14" x 16" x 6" $1,537.40 $1,668.17
67" x 22" 16 1/2" x 22" 16" x 16" x 6" $1,540.93 $1,611.71

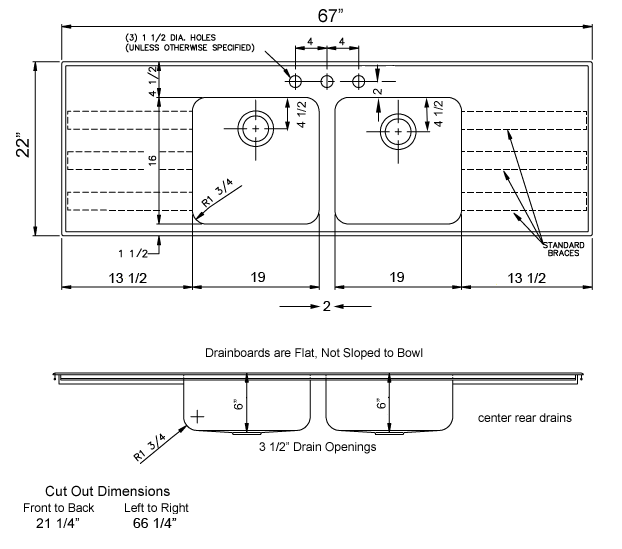

67" x 22" 13 1/2" x 22" 19" x 16" x 6" $1,510.09 $1,632.12
Sink Mounting Clips for Thick Counters 6 Pack 8 Pack 10 Pack
J-A-LUG For counters up to 3/4" thick $4.12 $5.19 $6.29
J-B-LUG For counters up to 1" thick $4.13 $5.16 $6.28
J-C-LUG For counters up to 1-1/4" thick $4.18 $5.18 $6.27
J-D-LUG For counters over 1-1/2" thick $9.99 $13.99 $16.55

Due to size and to ensure safe delivery, sinks over 33" length ship by truck and have a $175 additional shipping fee per freight item.
Please select your type of address: Commercial -or- Residential

- OR - View Cart

Need a drain to go with your new sink? Add an ADA compliant off-set drain.
Create more room under the sink for easier mobile accessibility.
We offer a large selection of sink drain strainers here.

Photo of off set drain assembly

3-1/2" Off-set drain = $58.35

This product proudly made in the USA   ADA logo
- OR - View Cart

Optional Accessories For ADA Sinks With Drainboards

Description Dimensions Price & Quantity
Hardwood Cutting Board 11" x 17"
fits 14" x 16" bowl size or larger
$89.67
Hardwood Cutting Board 17" x 17"
fits 16" x 16" bowl size or larger
$99.89
Stainless Steel Sink Grid View dimensions
fits 14" x 16" bowl
$65.79
Stainless Steel Sink Grid View dimensions
fits 16" x 19" bowl
$84.93
Adjustable Stainless Steel In-Sink Dish Rack 13-3/4" x 11-1/2" x 5"
arm extends up to 27-1/2"
$91.17
Adjustable Stainless Steel In-Sink Colander 13-1/2" x 9-1/2"
arm extends up to 22"
$76.37
Stainless Steel In-Sink Colander fits 14" bowl size $129.69
Stainless Steel In-Sink Colander fits 16" bowl size $130.98

- OR - View Cart

Related Items & Accessories



Frequently Asked Questions

Q. "What is the Integra-Flow system?"
A. The Integra-Flow system is an effective vandal resistant, overflow preventative system built-in to the sink. Any sink has the potential to have an occasional overflow which can cause all kinds of damage. ADA compliant sinks are especially prone to overflowing due to their shallower code compliance bowl depths. Just Manufacturing Integra-Flow systems are especially effective in helping to reduce overflow possibilities. Just stainless steel sinks with Integra-Flow systems include a plastic reinforced hose to be connected to the drain tailpiece using a branch wye. Branch wyes can be purchased on our tubular drain products page.

Image of Integra-Flow system
Image of the overflow connection

Q. "What is the Grip-Rim® Plus mounting feature?"
A. Just Manufacturing invented the Grip-Rim® Plus mounting system so you can install their sinks from the top of the counter. You don't have to crawl under or squeeze inside the cabinet. It's all quite simple. (1) Nail the self leveling clips in place in the counter top cutout (from the top). (2) Position the sink over the clips and snap in (from the top). That's all there is to it. With Grip-Rim®Plus it's impossible for water to seep between the sink and the rim. You don't have to lay uncomfortably on your back. It's wonderful! The Grip-Rim® Plus clip does the work for you! The clip is a spring tension clip that actually pulls the sink down to the counter top for the installer. No struggling underneath or straining to push the sink down from the top. And since the Grip-Rim® Plus is so space efficient there will be no more fighting along the back ledge on a tight, 19" front to back measurement or dealing with reinforced front edge countertops, allowing you the largest sink in the smallest space. Those stubborn corners no longer need special attention because the Grip-Rim® Plus clips pull your sink down for you. The possibility of dimpling the sink will no longer be a problem. So save time and effort and install Grip-Rim®Plus sinks! They are also easy to remove once installed via their pop out feature.


Please note: While we strive to ensure every product we label as "Made in the USA" really is 100% made in the USA, it is also important to understand that sometimes manufacturers make changes to their products, or for various reasons may receive components or materials that they would normally purchase domestically from an overseas supplier - and they don't necessarily let distributors (like us!) know that they've changed something about the product or where it is manufactured.

If you receive a product that PlumbingSupply.com® says is "Made in the USA" and the product states it was manufactured elsewhere, please contact us. We will happily replace or refund your purchase to your satisfaction.


Customer Testimonials

"It's refreshing to know there is a company, like yours, that operates in the old-fashioned way of providing good service to its customers! I am so very pleased with your service and have book marked your website for future use. I will recommend your business to others and will contact you again when I need plumbing merchandise."
- Judy Green, Burleson, Texas 76028-5614

Please note that every customer testimonial shown on our pages has given us written permission to quote them. Our customer's privacy is very important to us so we will never give, share or sell contact information or e-mail addresses to anyone!
