Commercial Steam Generators
by Steam-Whirl

Steam-Whirl is an innovator in technology and design believing that if you keep it simple and easy, you create a user-friendly product. Give your clients a luxurious, purifying experience - with little maintenance and easy-to-use controls for your staff. If you're looking to upgrade your spa, salon, fitness center, or therapy gym, these generators are a solid choice.

Is a steam bath the right choice for my clients?

Woman using steam shower

Today steam baths are considered an integral method for purifying and detoxifying the skin and body, increasing circulation, stimulating the immune system and encouraging complete physical and mental well-being. Many are aware of the wide range of benefits of steam.

There are a number of ways your clients can benefit from steam bathing:
  • Steam baths can increase suppleness of muscles and create a deep sense of relaxation in preparation for massage or physical therapy.
  • Aroma therapy treatments are easily given by placing essential oils directly onto the steam head.
  • Steam can enhance your spa or salon facial and body treatments. During a treatment the heat stimulates circulation while preparing the surface of the skin for better absorption of products. The steam cleans the skin through perspiration and creates an energy throughout the body that helps burn up fat.
  • Steam baths have a stimulating effect on the cardiovascular system. The pulse rate increases from 75 beats per minute to between 100-150 beats per minute during a 15-20 minute treatment This increases blood circulation and enables the blood stream to carry greater amounts of nutrients to the skin, enhancing the nutritive status.
  • Many people feel relaxed and rejuvenated after a steam bath.

Please note: Although steam baths are generally safe, there can be some risk issues for people with certain medical conditions, children, and pregnant women. Please consult with your doctor before steaming.


Commercial Steam Generators

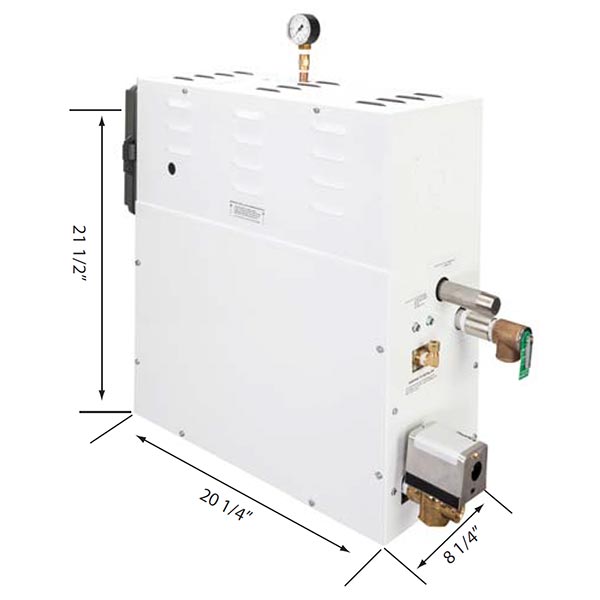

Steam-Whirl steam generator - Commercial Series
These steam generators feature:
  • Affordable way to offer a luxurious, upscale experience to your clients or guests
  • Ideal for therapy gyms, massage therapists' offices, bed & breakfasts, salons, spas, and smaller fitness centers
  • Several models available to accommodate from 400-650 cubic feet in a variety of electrical configurations to meet the needs of your existing room/building
  • Includes pressure gauge and site glass so you can easily monitor the unit's function and water quality
  • Factory installed automatic blowdown with 24 hour time clock ensures the unit is flushed at least once a day to help keep water fresh and extend generator life
  • Compatible with either light duty manual timer or heavy duty automatic timer commercial accessory kits (required - sold separately below)

Model Max. Capacity kW Volts Phase Amps Breaker Size Wire Size Price & Quantity
SW-10 400 cu. ft. 10 240 1 42 60A 6AWG $3,319.64
SW-10-3 3 24 30A 10AWG $3,322.29
SW-10-8 208 1 48 60A 6AWG $3,320.80
SW-10-83 3 28 40A 10AWG $3,338.66
SW-12 500 cu. ft. 12 240 1 50 70A 4AWG $3,500.15
SW-12-3 3 29 40A 8AWG $3,509.48
SW-12-8 208 1 58 80A 4AWG $3,499.52
SW-12-83 3 33 50A 8AWG $3,515.35
SW-15 650 cu. ft. 15 240 1 63 80A 4AWG $3,627.35
SW-15-3 3 36 45A 8AWG $3,609.77
SW-15-8 208 1 72 90A 4AWG $3,598.81
SW-15-83S 3 42 60A 6AWG $3,598.98

- OR - View Cart

Commercial Gemini Series Steam Generators

Steam-Whirl steam generator - Commercial Gemini Series
These steam generators feature:
  • Dual generator system provides you with two steam heads to cover a larger area without sacrificing a quality steam experience
  • Excellent solution for larger spas and fitness centers, country clubs, college or community recreation centers, and aquatic centers
  • Several models available to accommodate from 800-1300 cubic feet in a variety of electrical configurations to meet the needs of your existing room/building
  • Each generator includes its own pressure gauge and site glass that lets you quickly and easily ensure proper functioning and water quality
  • Factory installed automatic blowdowns with 24 hour time clocks ensures each unit is flushed at least once a day to help keep water fresh and extend generator life
  • Compatible with either light duty manual timer or heavy duty automatic timer commercial accessory kits (required - sold separately below)
  • Dimensions: 20-1/4" x 8-1/4" x 21-1/2" (both units have same dimensions)

Model Max. Capacity kW Volts Phase Amps Breaker Size Wire Size Price & Quantity
SW-20CG 800 cu. ft. (2) 10 240 1 (2) 42 (2) 60A 6AWG $6,642.54
SW-20-3CG 3 (2) 24 (2) 30A 10AWG $6,642.26
SW-20-8CG 208 1 (2) 48 (2) 60A 6AWG $6,676.44
SW-20-83CG 3 (2) 28 (2) 40A 10AWG $6,667.59
SW-24CG 1000 cu. ft. (2) 12 240 1 (2) 50 (2) 70A 4AWG $6,998.78
SW-24-3CG 3 (2) 29 (2) 40A 8AWG $6,999.11
SW-24-8CG 208 1 (2) 58 (2) 80A 4AWG $7,000.30
SW-24-83CG 3 (2) 33 (2) 50A 8AWG $6,999.37
SW-30CG 1300 cu. ft. (2) 15 240 1 (2) 63 (2) 80A 4AWG $7,193.65
SW-30-3CG 3 (2) 36 (2) 45A 8AWG $7,193.39
SW-30-8CG 208 1 (2) 72 (2) 90A 4AWG $7,194.28
SW-30-83CG 3 (2) 42 (2) 60A 6AWG $6,899.69

- OR - View Cart

Steam Generator Accessory Kits

Please note you must choose at least one of these kits for proper operation of these commercial steam generators



All kits include TC-2 thermostat, your choice of timer, and either one or two steam heads with escutcheons
  • Easy to program TC-2 electronic temperature control allows you to set a hi/low temperature in either Fahrenheit or Celsius
  • TC-2 sensors keep the steam room within the temperature range you set and helps to reduce the risk of misuse or heat-related injury since users cannot change the temperature settings
  • Lockout switch on TC-2 thermostat prevents tampering or vandalism
  • 3/4" steam head and escutcheon - available in popular designer finishes to match your existing fixtures and décor
  • Your choice of light duty or heavy duty timer to suit your needs
    • Light duty timer: Utilizes simple mechanical knob to set the steam generator for up to 60 minutes - allows users to set desired time and generator only comes on during use
    • Heavy duty timer: Programmable 24 hour/7 day control so steam generator is continuously running at specified times - all customers have to do is enter the steam room and enjoy (Please note: The 24/7 timer can only be used in conjunction with the TC-2 thermostat - it is not designed to be wired directly to the steam generator and could cause electrical problems or injury if used inappropriately)
If you are purchasing a Commercial Gemini dual steam generator unit, you must choose a kit with TWO steam heads (one per unit)

Model # Description Price & Quantity
90-69 Light Duty Commercial Accessory Kit with ONE Steam Head
90-69-2 Light Duty Commercial Accessory Kit with TWO Steam Heads
90-70 Heavy Duty Commercial Accessory Kit with ONE Steam Head
90-70-2 Heavy Duty Commercial Accessory Kit with TWO Steam Heads
90-4225 TC-2 Programmable Thermostat - 240V $194.76
90-4320 24 hour/7 day Timer (only for use with TC-2) $297.32

- OR - View Cart

More Steam Room Generator Accessories

High Quality Aromatherapy Oils

Aromatherapy oils

Aromatherapy oils that are inhaled into the lungs are believed to offer both psychological and physical benefits. Some aromatherapy benefits include stress and headache relief, sleep improvement, mood boosting, muscle relaxation, and so much more. Choose your favorite scent and experience the ultimate steam bath. Please note: Some aroma therapy oils may cause allergic reactions in certain people - please use with caution and consult your doctor if you're unsure.

Aromatherapy Oils - 10ml each Price & Quantity
Geranium - A powerful leafy-rose aroma with a minty undertone. A balancing oil for the mind and body - helps relax, calm agitation, ease frustration, and uplift. $26.63
Lavender - A soft, relaxing, floral fragrance that promotes peace of mind and emotional balance. Helpful in soothing depression and stress. $20.29
Peppermint - A sharp, powerful, minty aroma. This oil has an energetic nature to help stimulate your mind and calm your nerves. $28.70
Ylang Ylang - An intensely sweet and floral scent. Hypnotic and relaxing aroma, affecting both mind and the emotions. Aids in calming tension and lifting negative moods. $29.88

- OR - View Cart

Optional Steam Generator Drain Pan

Drain pan in use
  • Compatible with ALL Steam-Whirl commercial generators
  • Helps to prevent water damage to your facility in the unlikely event of a leak or other plumbing failure
  • Strong 1.0mm galvanized steel is lightweight and powder coated for added durability and rust protection
  • Common 3/4" NPT drain fitting hooks up to your existing plumbing
  • Dimensions: 10-3/4" x 22-3/4" x 2"
  • Shown with Elite Series residential generator (sold separately)
Steam Generator Drain Pan = $68.08

- OR - View Cart

Steam Head Finishes

Please note: Finishes are representational only and may differ depending on monitor settings.

Steam-Whirl steam head and escutcheon in Polished Chrome finishPolished Chrome
Steam-Whirl steam head and escutcheon in Antique Brass finishAntique Brass
Steam-Whirl steam head and escutcheon in Oil Rubbed Bronze finishOil Rubbed Bronze

Steam-Whirl steam head and escutcheon in Pewter finishPewter
Steam-Whirl steam head and escutcheon in Polished Brass finishPolished Brass
Steam-Whirl steam head and escutcheon in Polished Gold finishPolished Gold

Steam-Whirl steam head and escutcheon in Polished Nickel finishPolished Nickel
Steam-Whirl steam head and escutcheon in Satin Brass finishSatin Brass
Steam-Whirl steam head and escutcheon in Satin Gold finishSatin Gold

Steam-Whirl steam head and escutcheon in Satin Nickel finishSatin Nickel
Steam-Whirl steam head and escutcheon in Weathered Copper finishWeathered Copper
