Riosa Series Toilet Repair Parts
by Delta


Delta Riosa series toiletRiosa
Delta Riosa Select series toiletRiosa Select

Replacement Parts for Delta Riosa Toilets
Tank # RP71191 - Model C43906

Does your toilet have a rigid supply line? Use these parts instead.

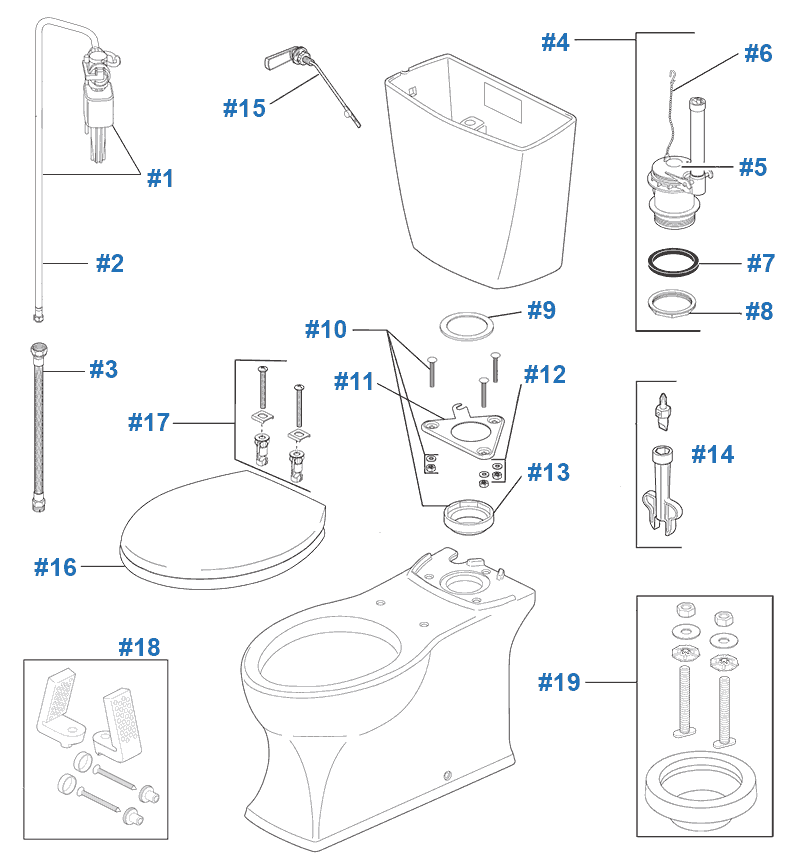

Parts diagram for Riosa toilets
Item # Part # Description Price & Quantity
1 RP71168 Fill Valve & Supply Line $54.81 Enter a quantity and
2 RP72849 Supply Line ONLY $28.21 Enter a quantity and
3 RP71182 Supply Line Hose Extension - 12" - Replaced by "will fit" braided flex - for RP71168 $4.61 Enter a quantity and
4 RP70878 Flush Valve Assembly - includes valve, flapper, chain, gasket, and nut $48.22 Enter a quantity and
5 RP72472 Flapper & Chain $17.51 Enter a quantity and
6 RP72850 Flapper Chain ONLY $10.26 Enter a quantity and
7 RP72809 Flush Valve Gasket $12.41 Enter a quantity and
8 RP72810 Flush Valve Nut $9.09 Enter a quantity and
9 RP71118 Tank Gasket $13.67 Enter a quantity and
10 RP72471 Tank to Bowl Kit - includes bolts (3), nuts (3), washers (3), and tank to bowl gasket (1) $19.52 Enter a quantity and
11 RP70874 Tank Bracket $20.61 Enter a quantity and
12 RP73321 Nuts & Washers (3 of each) $5.90 Enter a quantity and
13 RP70875 Tank to Bowl Gasket $12.29 Enter a quantity and
14 RP71197 Wrench & Screwdriver Adapter $18.96 Enter a quantity and
15 RP71172 Side Mount Trip Lever - Chrome $56.54 Enter a quantity and
16 RP71194 Elongated Front Toilet Seat - White $64.19
1200E3 Premium Bemis "Will Fit" Elongated Front Toilet Seat - White (view more color options) $56.10 Enter a quantity and
17 RP72813 Elongated Front Toilet Seat Mounting Hardware - for OEM toilet seat only $13.71 Enter a quantity and
18 RP71200 Concealed Mounting Hardware - includes brackets (2), screws (2), nuts (2), and caps (2) $14.37 Enter a quantity and
19 RP71146 Toilet Mounting Hardware - includes toilet bolts (2), washers (4), nuts (2), and wax ring (1) $19.26 Enter a quantity and
Replacing your wax ring? Use this handy kit to help you get the job done with minimal mess - $15.47

Replacement Parts for Delta Riosa Toilets with Rigid Supply Line
Tank # RP71191-RSL - Model C43906-RSL

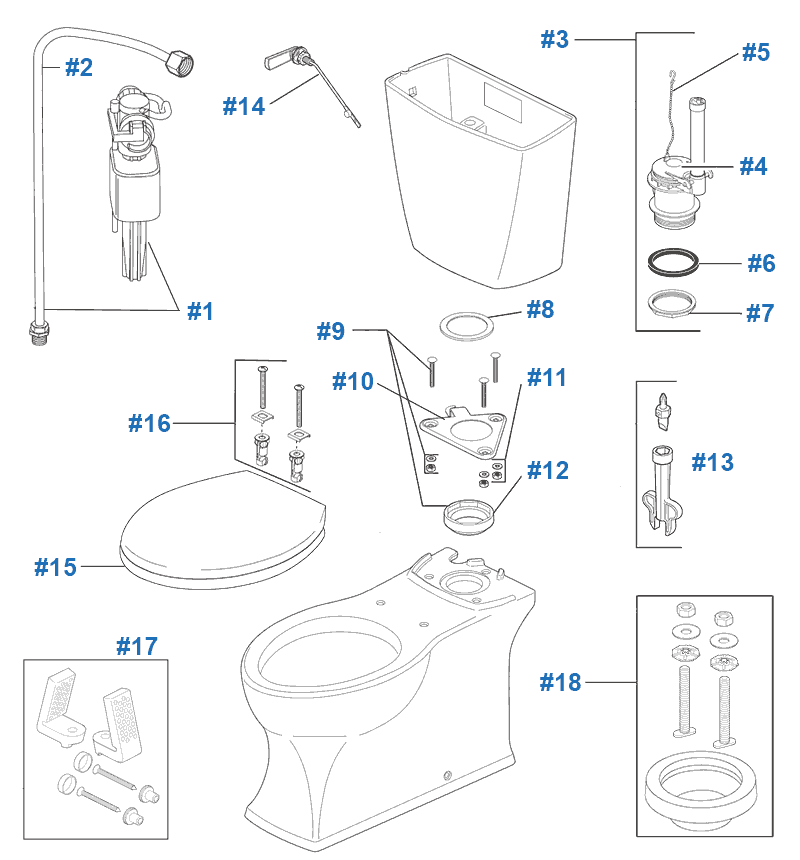

Parts diagram for Riosa toilet with rigid supply line
Item # Part # Description Price & Quantity
1 RP71168RSL Fill Valve & Rigid Supply Line $62.59 Enter a quantity and
2 RP71156 Rigid Supply Line ONLY $75.38 Enter a quantity and
3 RP70878 Flush Valve Assembly - includes valve, flapper, chain, gasket, and nut $48.22 Enter a quantity and
4 RP72472 Flapper & Chain $17.51 Enter a quantity and
5 RP72850 Flapper Chain ONLY $10.26 Enter a quantity and
6 RP72809 Flush Valve Gasket $12.41 Enter a quantity and
7 RP72810 Flush Valve Nut $9.09 Enter a quantity and
8 RP71118 Tank Gasket $13.67 Enter a quantity and
9 RP72471 Tank to Bowl Kit - includes bolts (3), nuts (3), washers (3), and tank to bowl gasket (1) $19.52 Enter a quantity and
10 RP72529 Tank Bracket $22.63 Enter a quantity and
11 RP73321 Nuts & Washers (3 of each) $5.90 Enter a quantity and
12 RP70875 Tank to Bowl Gasket $12.29 Enter a quantity and
13 RP71197 Wrench & Screwdriver Adapter $18.96 Enter a quantity and
14 RP71172 Side Mount Trip Lever - Chrome $56.54 Enter a quantity and
15 RP71194 Elongated Front Toilet Seat - White $64.19
1200E3 Premium Bemis "Will Fit" Elongated Front Toilet Seat - White (view more color options) $56.10 Enter a quantity and
16 RP72813 Elongated Front Toilet Seat Mounting Hardware - for OEM toilet seat only $13.71 Enter a quantity and
17 RP71200 Concealed Mounting Hardware - includes brackets (2), screws (2), nuts (2), and caps (2) $14.37 Enter a quantity and
18 RP71146 Toilet Mounting Hardware - includes toilet bolts (2), washers (4), nuts (2), and wax ring (1) $19.26 Enter a quantity and
Replacing your wax ring? Use this handy kit to help you get the job done with minimal mess - $15.47

Replacement Parts for Delta Riosa Select Toilets
Tank # RP84502 - Model C43907

Parts diagram for Riosa toilets
Item # Part # Description Price & Quantity
1 RP71188M Fill Valve - Replaced by "will fit" 400A (adjustable from 9" to 14") $10.92 Enter a quantity and
2 RP76481R Flush Valve Assembly - includes flapper, chain, gasket, nut $64.77 Enter a quantity and
3 RP72472 Flapper & Chain $17.51 Enter a quantity and
4 RP72850 Flapper Chain ONLY $10.26 Enter a quantity and
5 RP72809 Flush Valve Gasket $12.41 Enter a quantity and
6 RP72810 Flush Valve Nut $9.09 Enter a quantity and
7 RP71118 Tank Gasket $13.67 Enter a quantity and
8 RP72471 Tank to Bowl Kit - includes bolts (3), nuts (3), washers (3), and tank to bowl gasket (1) $19.52 Enter a quantity and
9 RP72233 Tank Bracket $19.69 Enter a quantity and
10 RP73321 Nuts & Washers (3 of each) $5.90 Enter a quantity and
11 RP70875 Tank to Bowl Gasket $12.29 Enter a quantity and
12 RP84503 Front Mount Trip Lever - Chrome (find a "will fit" replacement) Discontinued
13 RP71194 Elongated Front Toilet Seat - White $64.19
1200E3 Premium Bemis "Will Fit" Elongated Front Toilet Seat - White (view more color options) $56.10 Enter a quantity and
14 RP72813 Elongated Front Toilet Seat Mounting Hardware - for OEM toilet seat only $13.71 Enter a quantity and
15 RP71200 Concealed Mounting Hardware - includes brackets (2), screws (2), nuts (2), and caps (2) $14.37 Enter a quantity and
16 RP71146 Toilet Mounting Hardware - includes toilet bolts (2), washers (4), nuts (2), and wax ring (1) $19.26 Enter a quantity and
Replacing your wax ring? Use this handy kit to help you get the job done with minimal mess - $15.47
