We at PlumbingSupply.com feel that Woodford brand outdoor faucets are some of the finest, most value-priced freezeless lawn/garden faucets, freezeless wall, yard and utility hydrants as well as freezeless sanitary yard hydrants available today.
All of these faucets come with metal handles

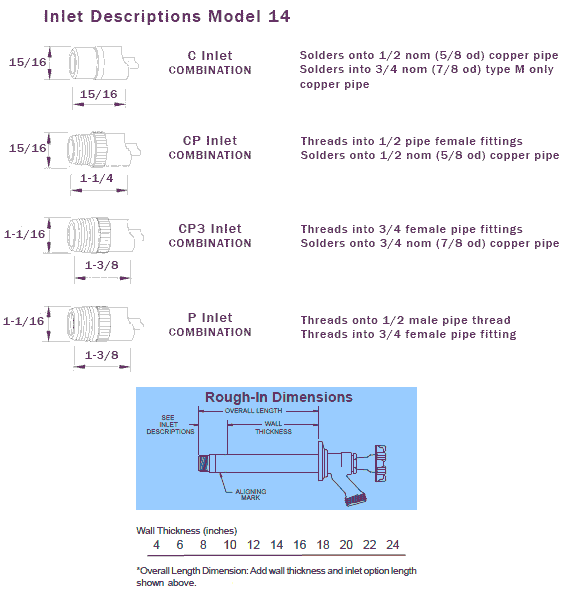

Woodford Model 14 Freezeless Wall Faucets
These faucets are also available for 2"x4" installations (for non-freeze areas) - click here
Woodford freezeless wall faucet model 14 Woodford model 14 wall faucet drains as handle is shut off and hose is removed. This faucet is designed for residential outside water service applications. This unit offers no anti-siphon or back flow protection (see model 17 below if you desire these).
Features:
  • 3/4" male hose thread
  • Permanent stainless steel seat - will not wire draw
  • EPDM Packing - helps prevent leaking
  • Max pressure: 125psi
  • Max temperature: 120°F
  • Adjustable flange (poly carbonate) - makes easier to mount
Model 14 Freezeless Wall Faucets
Wall
Thickness
Model 14C
(1/2" K,L,M inside)
(3/4" outside)
Model 14C1
(1/2" female sweat
fitting)
Model 14CP
(1/2" male pipe thread)
(1/2" female sweat)
Model 14CP3
(3/4" male pipe thread)
(3/4" female sweat)
Model 14P
(1/2" female pipe thread)
(3/4" male pipe)
4" $27.74 $27.79 $32.38 $33.21 $28.70
6" $29.81 $29.44 $33.57 $35.10 $30.20
8" $31.64 $31.40 $36.99 $38.82 $31.82
10" $32.91 $32.59 $37.92 $38.90 $34.22
12" $34.37 $33.80 $39.83 $40.74 $35.65
14" $36.24 $36.30 $41.09 $43.31 $37.08
16" $37.63 $37.55 $43.27 $44.68 $38.22
18" $39.61 $39.12 $47.29 $49.19 $40.52
20" $41.34 $40.28 $47.26 $48.44 $42.04
22" $42.41 $42.86 $49.09 $50.63 $43.54
24" $44.73 $44.39 $50.35 $51.59 $45.03

- Or -View Button


Woodford Model WF-MS Mounting Sleeve
mounting sleeve
installed example - included parts
The Woodford wall faucet mounting sleeve takes the guesswork out of how far to stub-out your wall faucet. It also provides a secure anchor for the faucet. The mounting sleeve allows the plumber to determine a stub-in location and set an adjustable finish depth required by the brick or stone mason. A numbered scale is built into the top of the mounting sleeve.
- For Woodford models 14, 16, 17, & 19 only
WF-MS Mounting Sleeve = $11.97
Order 10 (or more) for additional savings

- Or -View Button


Woodford Model 16 Freezeless Wall Faucets
Woodford wall faucet model 16 Woodford model 16 contains an internal resetting pressure relief valve which prevents the faucet casing tube from bursting in freezing conditions even if a hose is unintentionally left on. The faucet is designed for residential outside water service application and is not intended for continuous use applications
Features:
  • Nozzle - 3/4" male hose thread
  • Stainless steel seat - will not wire draw
  • EPDM packing - helps prevent leaking
  • Adjustable wall flange
  • Max pressure: 125psi
  • Max temperature: 120°F
Model 16 Freezeless Wall Faucets
Wall
Thickness
Model 16C
(1/2" K,L,M inside)
(3/4" outside)
Model 16CP
(1/2" male pipe thread)
(1/2" female sweat)
Model 16CP3
(3/4" male pipe thread)
(3/4" female sweat)
Model 16P
(1/2" female pipe thread)
(3/4" male pipe)
4" $32.58 $32.29 $33.84 $33.85
6" $33.77 $34.10 $35.22 $35.31
8" $35.80 $35.22 $36.56 $36.81
10" $37.30 $37.54 $38.07 $38.25
12" $38.95 $38.96 $39.85 $39.76
14" $40.01 $40.26 $41.43 $41.14
16" $42.15 $41.74 $43.20 $42.73
18" $43.24 $43.12 $44.43 $44.22
20" $44.98 $45.25 $46.26 $46.09
22" $46.00 $46.52 $47.94 $47.68
24" $48.36 $47.93 $49.22 $49.23

- Or -View Button


Woodford Model WF-MS Mounting Sleeve
mounting sleeve
installed example - included parts
The Woodford wall faucet mounting sleeve takes the guesswork out of how far to stub-out your wall faucet. It also provides a secure anchor for the faucet. The mounting sleeve allows the plumber to determine a stub-in location and set an adjustable finish depth required by the brick or stone mason. A numbered scale is built into the top of the mounting sleeve.
- For Woodford models 14, 16, 17, & 19 only
WF-MS Mounting Sleeve = $11.97
Order 10 (or more) for additional savings

- Or -View Button


Woodford Model 17 Freezeless Wall Faucets - With Vacuum Breaker
These faucets are also available for 2"x4" installations (for non-freeze areas) - click here
Woodford wall faucet model 17 Woodford model 17 wall faucet drains as handle is shut off and hose is removed. This faucet is designed for residential outside water service. This unit offers anti-siphon protection.
Features:
  • Nozzle - 3/4" male hose thread
  • Stainless steel seat - will not wire draw
  • EPDM packing - helps prevent leaking
  • Max pressure: 125psi
  • Max temperature: 120°F
  • Adjustable flange, vacuum breaker cap & body (poly carbonate)
Model 17 Freezeless Wall Faucets
Wall
Thickness
Model 17C
(1/2" K,L,M inside)
(3/4" outside)
Model 17CP
(1/2" male pipe thread)
(1/2" female sweat)
Model 17CP3
(3/4" male pipe thread)
(3/4" female sweat)
Model 17P
(1/2" female pipe thread)
(3/4" male pipe)
4" $31.25 $29.82 $31.18 $31.29
6" $32.95 $31.44 $32.55 $32.47
8" $34.28 $32.53 $34.12 $34.36
10" $36.10 $34.74 $35.76 $35.56
12" $37.88 $35.73 $37.21 $37.24
14" $45.05 $41.96 $43.19 $43.70
16" $41.08 $38.40 $40.09 $40.44
18" $42.01 $40.36 $41.53 $40.87
20" $43.21 $41.24 $42.94 $43.17
22" $45.42 $43.18 $43.98 $44.26
24" $46.44 $44.62 $45.86 $45.48

- Or -View Button


Woodford Model WF-MS Mounting Sleeve
mounting sleeve
installed example - included parts
The Woodford wall faucet mounting sleeve takes the guesswork out of how far to stub-out your wall faucet. It also provides a secure anchor for the faucet. The mounting sleeve allows the plumber to determine a stub-in location and set an adjustable finish depth required by the brick or stone mason. A numbered scale is built into the top of the mounting sleeve.
- For Woodford models 14, 16, 17, & 19 only
WF-MS Mounting Sleeve = $11.97
Order 10 (or more) for additional savings

- Or -View Button


to freeze-proof hosebibbs - to freestanding freeze-proof hydrants


Most Common Model 14 & 17 Parts
Description Price & Quantity
#30099 Plastic Replacement Handle $5.18
#30096 Metal Replacement Handle $6.54
#50012 Metal T-style Replacement Handle $4.25
Note: The metal handle & plastic handle are inter-changeable

- Or -View Button


to other Woodford parts

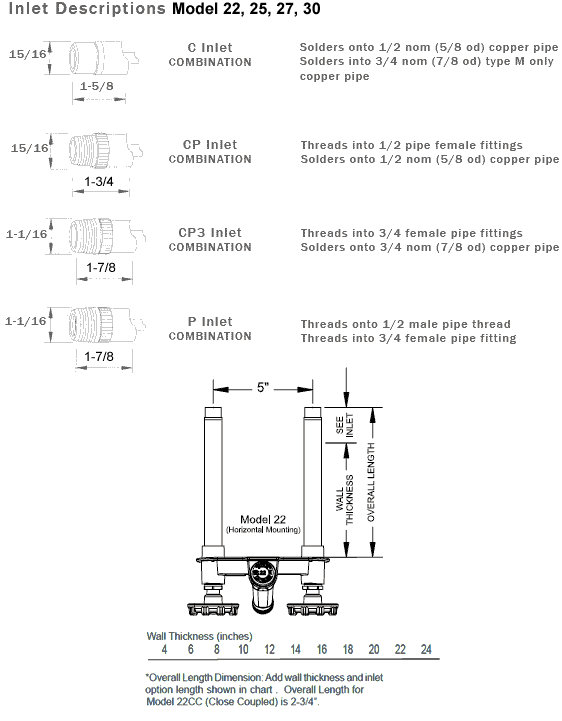

Model 22 Freezeless Wall Faucets For Hot & Cold
These faucets are also available for 2"x4" installations (for non-freeze areas) - click here
Woodford wall faucet model 22 The Woodford Model 22 is designed to provide year round hot and cold water service regardless of outside temperature. Separate hot and cold inlet tubes and operating handles allow for manual operated water temperature to flow through a central outlet with attached vacuum breaker. It has a 5" faucet hole spread. Internal, resetting pressure relief valves prevents each casing tube from bursting in freezing conditions even if a hose is unintentionally left on. This faucet also has a built-in vent float style vacuum breaker
Features:
  • Internal, resetting pressure relief valves prevents
    each casing tube from bursting in freezing conditions
  • Built-in vent float style vacuum breaker
  • EPDM packing - helps prevent leaking
  • 3/4" male hose thread
  • Max pressure: 125psi
  • Max temperature - 120°
Model 22 Freezeless Hot and Cold Wall Faucets
Wall
Thickness
Model 22C
(1/2" K,L,M inside)
(3/4" outside)
Model 22CP
(1/2" male pipe thread)
(1/2" female sweat)
Model 22P
(1/2" female pipe thread)
(3/4" male pipe)
4" $92.78 $90.64 $83.10
6" $95.32 $94.85 $86.02
8" $101.54 $98.96 $90.70
10" $102.01 $102.06 $93.14
12" $106.39 $106.50 $96.14
14" $110.15 $107.62 $99.14
16" $114.37 $109.85 $100.74
18" $118.04 $112.58 $105.26
20" $119.50 $118.27 $107.62
22" $125.29 $123.22 $110.49
24" $127.59 $126.59 $112.89

- Or -View Button


Model V22 Freezeless Hot and Cold Wall Faucets
Same as above, but designed for vertical mount
Wall
Thickness
Model V22C
(1/2" K,L,M inside)
(3/4" outside)
Model V22CP
(1/2" male pipe thread)
(1/2" female sweat)
Model V22P
(1/2" female pipe thread)
(3/4" male pipe)
4" $93.97 $91.28 $83.76
6" $96.41 $94.70 $86.16
8" $101.17 $99.05 $89.67
10" $102.39 $100.96 $94.46
12" $107.72 $106.38 $96.57
14" $110.50 $107.20 $98.09
16" $112.62 $109.56 $101.83
18" $117.00 $115.65 $104.94
20" $118.76 $117.77 $107.49
22" $125.00 $122.50 $110.30
24" $128.30 $125.73 $111.62

- Or -View Button

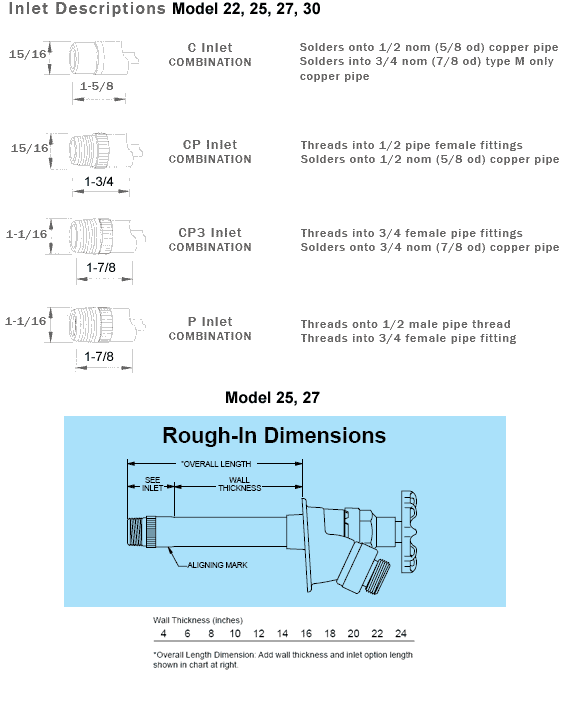

Model 25 Anti-Siphon Automatic Draining Freezeless Wall Faucets
Woodford wall faucet model 25 The Woodford Model 25 faucet drains as handle is shut off even if hose is attached. This faucet is designed for residential outside water service.
Features:
  • Anti-siphon vacuum breaker with 3/4" male hose thread
  • Max pressure: 125psi
  • Max temperature: 120°
  • Valve is molded nitrile which is suitable for hot water
  • Plunger - hemispherical cushion type

Model 25 Anti-Siphon Freezeless Wall Faucets
Wall
Thickness
Model 25C
(1/2" K,L,M inside)
(3/4" outside)
Model 25CP
(1/2" male pipe thread)
(1/2" female sweat)
Model 25CP3
(3/4" male pipe thread)
(3/4" female sweat)
Model 25P
(1/2" female pipe thread)
(3/4" male pipe)
4" $51.84 $50.75 $52.89 $52.66
6" $51.85 $52.19 $54.03 $54.86
8" $56.06 $53.95 $56.57 $55.03
10" $55.88 $55.77 $57.53 $56.96
12" $57.79 $56.65 $59.12 $59.08
14" $65.00 $63.54 $67.21 $66.63
16" $60.14 $59.46 $61.31 $61.28
18" $61.69 $60.54 $62.37 $62.67
20" $62.57 $61.96 $63.89 $64.97
22" $64.50 $63.08 $65.91 $65.26
24" $66.00 $64.78 $66.96 $67.29

- Or -View Button


Model 27 Anti-Siphon Automatic Draining Freezeless Wall Faucets
with double check back flow preventer
The Woodford Model 27 faucet drains as handle is shut off even if hose is attached. This faucet is designed for residential outside water service.
Features:
  • Hose connection backflow preventer with
    3 /4" male hose thread
  • Max pressure: 125psi
  • Max temperature: 120°
  • Valve is molded nitrile which is suitable for hot water
Model 27 Anti-Siphon Freezeless Wall Faucets
Wall
Thickness
Model 27C
(1/2" K,L,M inside)
(3/4" outside)
Model 27CP
(1/2" male pipe thread)
(1/2" female sweat)
Model 27CP3
(3/4" male pipe thread)
(3/4" female sweat)
Model 27P
(1/2" female pipe thread)
(3/4" male pipe)
4" $52.15 $50.39 $52.36 $52.84
6" $53.26 $52.09 $54.55 $54.72
8" $55.28 $54.49 $56.80 $55.01
10" $56.26 $54.99 $57.15 $57.73
12" $57.91 $55.49 $58.56 $58.74
14" $64.81 $64.69 $66.61 $66.15
16" $60.64 $58.85 $61.55 $61.09
18" $62.77 $60.76 $62.60 $62.80
20" $62.69 $62.39 $64.47 $63.44
22" $64.82 $63.35 $65.13 $65.31
24" $66.14 $64.11 $66.43 $67.37

- Or -View Button


Model 19 Pressure Reducing Freezeless Wall Faucets With Anti-siphon Protection
The Woodford Model 19 faucet drains as handle is shut off. This faucet is designed for residential outside water service. An internal resetting pressure reducing valve prevents the faucet casing tube from bursting in freezing conditions even if a hose is unintentionally left on. Wall faucet model 19
Features:
  • 3/4" male hose thread
  • Stainless steel seat - eliminates wire draw
  • Adjustable wall flange - makes for easy installation
  • EPDM packing helps prevent leaking
Model 19 Freezeless Wall Faucets
Wall
Thickness
Model 19C
(1/2" K,L,M inside)
(3/4" outside)
Model 19CP
(1/2" male pipe thread)
(1/2" female sweat)
Model 19CP3
(3/4" male pipe thread)
(3/4" female sweat)
Model 19P
(1/2" female pipe thread)
(3/4" male pipe)
Model 19CM
(1/2" compression)
(3/4" copper sweat)
4" $43.27 $43.83 $44.62 $44.64 $46.03
6" $44.98 $44.76 $45.96 $46.21 $47.91
8" $46.35 $46.55 $47.92 $47.60 $49.27
10" $47.73 $47.84 $48.87 $49.04 $50.43
12" $49.66 $49.70 $51.39 $50.87 $52.26
14" $58.05 $57.72 $59.65 $59.24 $60.70
16" $52.81 $52.85 $54.13 $54.09 $54.43
18" $53.95 $54.17 $55.43 $55.48 $57.14
20" $55.71 $56.15 $57.66 $56.96 $58.07
22" $57.44 $57.87 $58.79 $58.32 $59.40
24" $58.92 $58.71 $59.74 $60.18 $61.60

- Or -View Button


Woodford Model WF-MS Mounting Sleeve
mounting sleeve
installed example - included parts
The Woodford wall faucet mounting sleeve takes the guesswork out of how far to stub-out your wall faucet. It also provides a secure anchor for the faucet. The mounting sleeve allows the plumber to determine a stub-in location and set an adjustable finish depth required by the brick or stone mason. A numbered scale is built into the top of the mounting sleeve.
- For Woodford models 14, 16, 17, & 19 only
WF-MS Mounting Sleeve = $11.97
Order 10 (or more) for additional savings

- Or -View Button

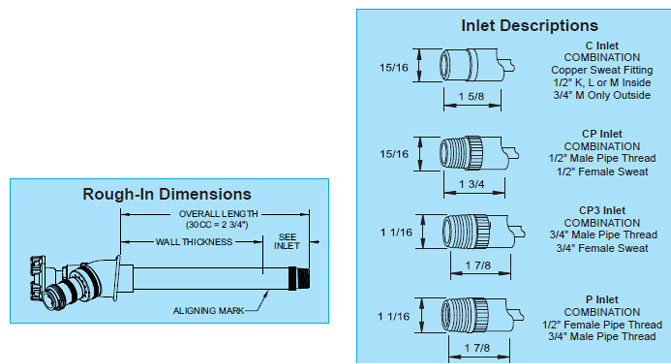

Model 30 Automatic Draining Freezeless Wall Faucet
The Woodford Model 30 faucet is designed for residential and light commercial applications. This faucet will not freeze, even with a hose attached. The faucet drains automatically, making it a worry free fixture for home and business. Wall faucet model 30
Features:
  • All structural components made of brass
  • Freezeless fixture, even with hose attached
  • Automatically drains with or without hose attached
  • Can withstand 125 p.s.i. pressure
  • Maximum temperature: 120 degrees
  • Features dual check valves and backflow prevention
Model 30 Automatic Draining Freezeless Wall Faucets
Wall
Thickness
Model 30C
(1/2" K,L,M inside)
(3/4" M outside)
Model 30CP
(1/2" male pipe thread)
(1/2" female sweat)
Model 30P
(1/2" female pipe thread)
(3/4" male pipe thread)
Model 30CP3
(3/4" male pipe thread)
(3/4" female sweat)
4" $51.81 $52.04 $55.06 $54.34
6" $54.35 $53.37 $56.39 $56.40
8" $55.72 $55.33 $58.30 $57.62
10" $57.25 $57.43 $59.97 $59.92
12" $59.10 $58.45 $61.54 $61.42
14" $60.02 $59.95 $63.06 $63.04
16" $62.36 $62.48 $63.66 $65.11
18" $64.00 $63.58 $65.93 $66.59
20" $65.60 $65.54 $67.80 $67.94
22" $66.43 $66.90 $69.23 $69.46
24" $68.40 $68.46 $70.29 $71.39

- Or -View Button


Model 30 Automatic Draining Freezeless Wall Faucets with Mounting Sleeve
Wall
Thickness
Model 30C
(1/2" K,L,M inside)
(3/4" M outside)
Model 30CP
(1/2" male pipe thread)
(1/2" female sweat)
Model 30P
(1/2" female pipe thread)
(3/4" male pipe thread)
Model 30CP3
(3/4" male pipe thread)
(3/4" female sweat)
6" $61.66 $61.70 $64.67 $65.26
8" $64.19 $65.69 $66.60 $66.31
10" $65.11 $68.95 $67.77 $68.52
12" $67.51 $69.40 $70.24 $69.03
14" $69.46 $70.73 $71.33 $71.67
16" $70.37 $73.31 $72.92 $72.81
18" $72.35 $75.14 $75.35 $74.69
20" $73.76 $75.89 $76.88 $76.54
22" $75.09 $77.10 $76.87 $77.26
24" $77.78 $79.08 $79.77 $79.62

- Or -View Button


Woodford Model WF-30MS Mounting Sleeve
mounting sleeve
installed example - included parts
The Woodford wall faucet mounting sleeve takes the guesswork out of how far to stub-out your woodford freezeless faucet. It also provides a secure anchor for the faucet. The mounting sleeve allows the plumber to determine a stub-in location and set an adjustable finish depth required by the brick or stone mason. A numbered scale is built into the top of the mounting sleeve.
- For Woodford model 30 only
WF-30MS Mounting Sleeve = $10.35
Order 10 (or more) for additional savings

- Or -View Button


Double Check Backflow Preventers for Hose Bibbs
Backflow Preventer
# 50H
These Backflow Preventers Feature:
  • Prevents backflow contamination and freezing
  • 120°F maximum temperature rating
  • Maximum pressure 125 p.s.i.
  • 3/4" male hose outlet connection
  • Available in brass and chrome finishes
Click Image Description Price & Quantity
Chrome Finish
Price & Quantity
Brass Finish
Backflow Preventer
# 50H
- 3/4" female hose inlet connection
- 3/4" male hose outlet connection
- Fits hose bibbs with standard 3/4" hose threaded outlets
$24.83 $20.50
Backflow Preventer
# 50HA
- 1-1/8" special thread inlet connection
- 3/4" male hose outlet connection
- Fits Woodford faucet: 27
$24.94 $20.46

- Or -View Button


We hope that we have helped you on this page with Woodford wall faucets,
and thank you for helping make PlumbingSupply.com the most famous Internet plumbing supplier.



Click here to go to our favorite "Quotable Quotes" page:
"There are several good protections against temptation, but the surest is cowardice."
- Mark Twain


Is there something else that you are looking for?
Enter what you're looking for here:

OR - find plumbing supplies starting with: A B C D E F G H I J K L M N O P Q R S T U V W X Y Z


Easy Payment methods

Homepage | About Us | Contact Us | How to Order | View Shopping Cart | Testimonials | Q and A | Return Policy
Copyright© 1995-2010 All Rights Reserved. PlumbingSupply.com
