Parts For Sanitary Hydrants

by Woodford

A sanitary yard hydrant from Woodford is an excellent choice when you're looking for quality and durability, and while it will last through seasons of continuous use, it is a mechanical product with moving parts that may wear out. If that happens, we're ready with all the replacement parts you need to make your faucet like new. Screws, check valves, roll pins, snifter valves and more can be replaced, and with no minimums you can order just one little set screw if you need it!

S3 - Automatic Draining Yard Hydrant Parts Listing

#	Part #	Description	Price & Quantity
1	10449	Head	$44.96
2	37HF-BR	37HF Backflow Preventer	$43.28
3	15220	Diverter Assembly	$23.81
4	10100	Packing Nut	$4.90
5	10101	Packing	$4.29
6	10102	Packing Support Washer	$4.33
7	10104	Brass Rod Stem	$3.85
8	10011	Reducing Coupling	$7.21
9	10206	Hex Nut	$4.37

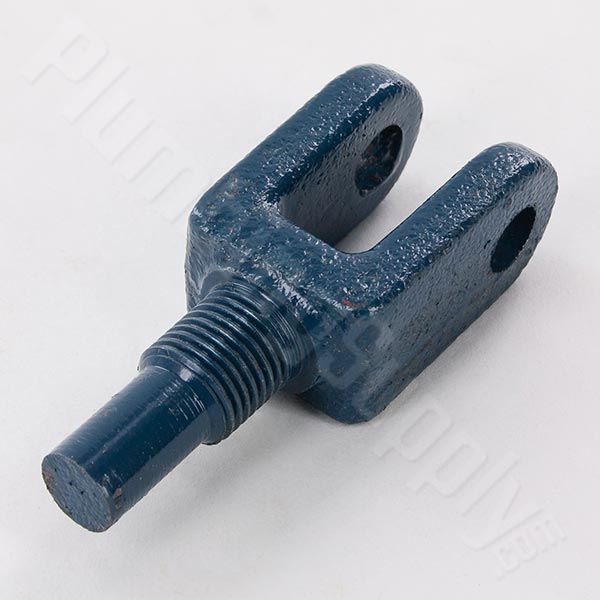

10	10444	Upper Link	$5.09

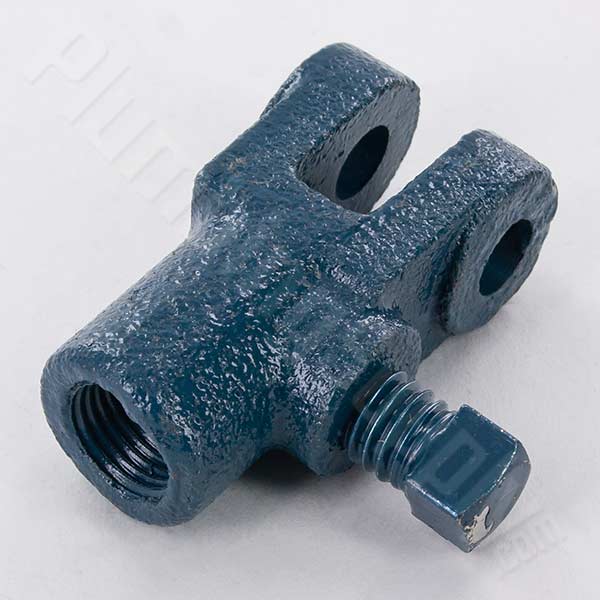

11	15211	Lower Link (with set screw 10019)	$5.66
12	10019	Set Screw	$1.52
13	15241	Cam and Clevis Assembly (blue)	$6.99
14	10020	Link Bolt	$4.53
15	10021	Lever Bolt	$4.52
16	10443	Lever	$12.84
17	10106	Plunger	$12.39
18	10017	Valve Body	$43.18

#	Part #	Description	Price & Quantity
19	104XX	Extension Pipe	See Table Below
20	15189	Venturi Assembly	$39.94

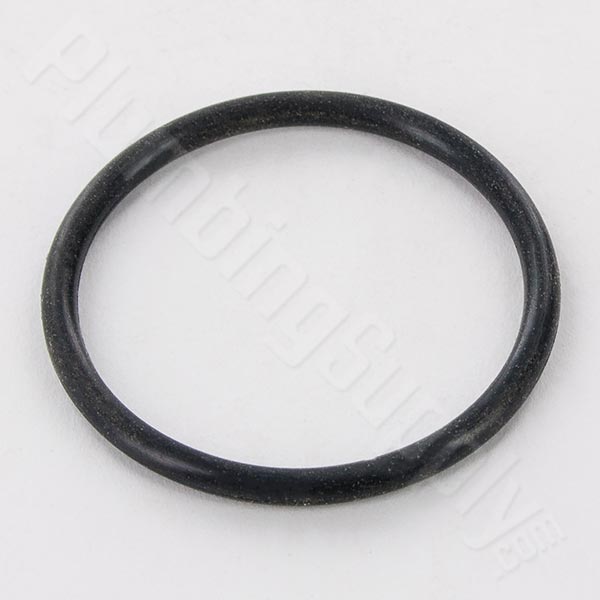

21	10321	Valve Body O-Ring (2 required) Must order 2 Each to complete set	$1.52
22	10432	Brass Elbow	$7.16
23	10408	Check Valve	$54.77
24	15216	Siphon Tube Assembly	$13.97
25	10446	Vent Cap	$5.13
26	10445	3/8" Pipe Nipple	$5.80
27	15136	Snifter Valve	$5.73

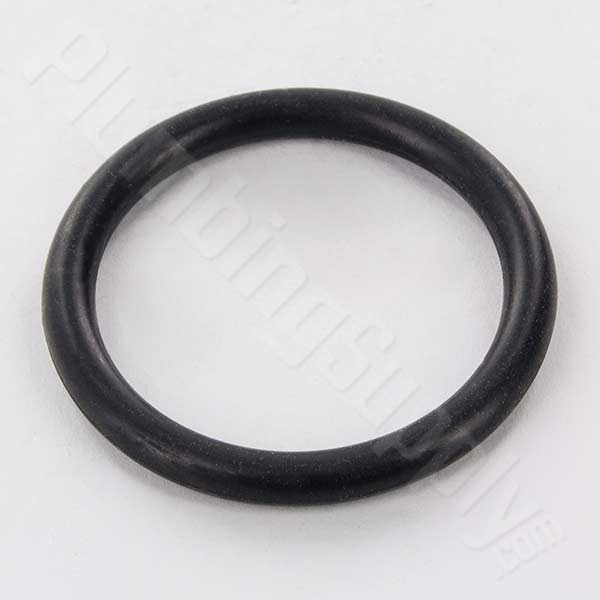

28	10405	Hydrant O-Ring	$5.10

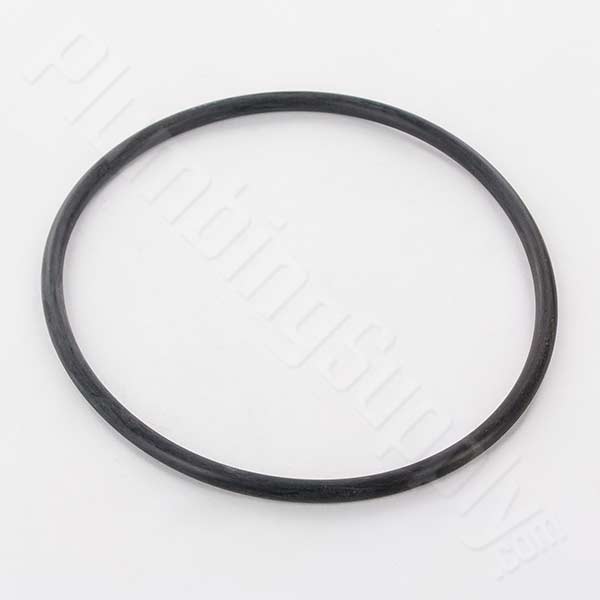

29	10410	Reservoir O-Ring	$7.02
30	10409	Reservoir Clamp Screw	$1.71
31	10404	Hydrant Clamp Screw	$1.61
32	15218	Casting Cover w/Warning Label	$39.91
33	10401	Inlet Casting	$24.85
34	100XX	Operating Pipe	See Table Below
35	100XX	1 1/4" Pipe Casing	Please Purchase Locally
36	104XX	Reservoir Pipe	See Table Below

- Or -

Find help determining which sanitary hydrant you have!

#19 Extension Pipe

Part #	Bury Depth (ft) & Length (in)	Price & Quantity
10411	1' bury (5 5/8" long)	$5.92
10412	2' bury (7" long)	$7.19
10413	3' bury (8 3/8" long)	$8.30
10414	4' bury (9 3/4" long)	$4.98

#34 Operating Pipe

Part #	Bury Depth (ft) & Length (in)	Price & Quantity
10023	1' bury depth (35 1/2" long)	$11.81
10024	2' bury depth (47 1/2" long)	$14.82
10025	3' bury depth (59 1/2" long)	$18.76
10026	4' bury depth (71 1/2" long)	$23.87

- Or -

#36 Reservoir Pipe

Part #	Bury Depth (ft) & Length (in)	Price & Quantity
10421	1' bury (26" long)	$41.60
10422	2' bury (39 1/4" long)	$62.52
10423	3' bury (52 3/4" long)	$77.84
10424	4' bury (66" long)	$98.67

- Or -

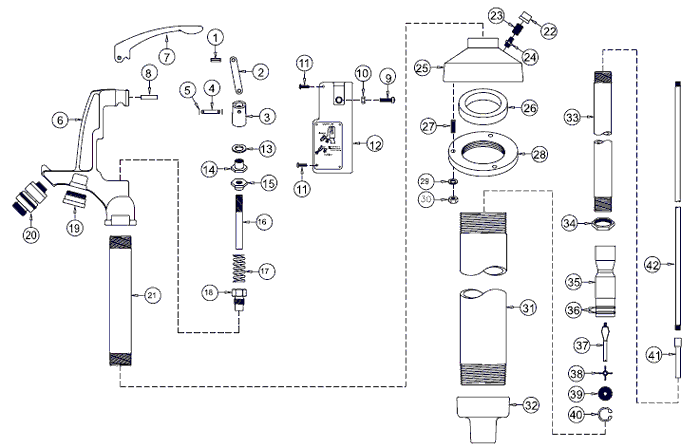

S4H - Automatic Draining Yard Hydrant Parts Listing

#	Part #	Description	Price & Quantity
	15137	Operating Link Assembly - (includes #'s 1-5)	$11.58

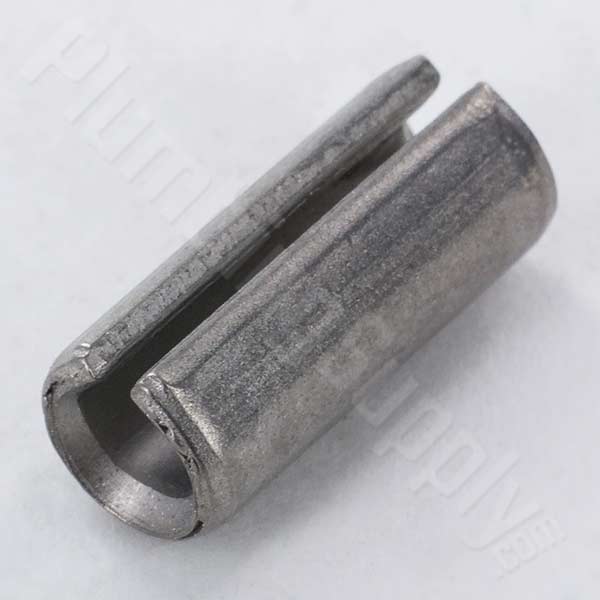

1	50040	Roll Pin	$3.19

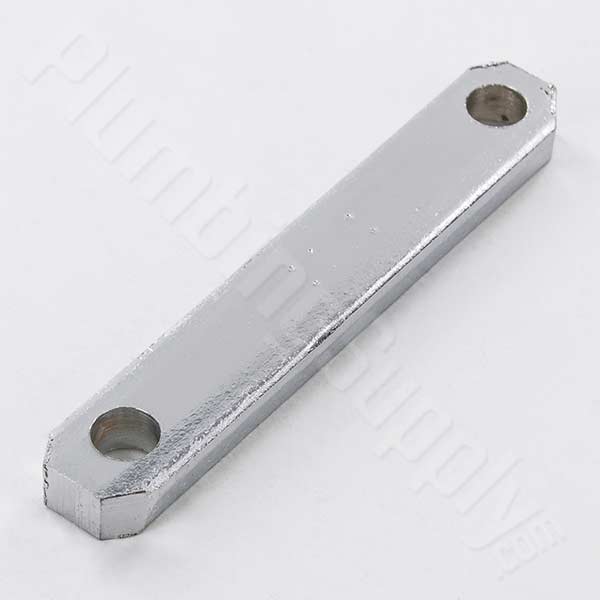

2	10375	Clevis Link	$5.20
3	10376	Clevis	$7.80
4	10377	Clevis Pin	$1.50
5	10319	Link Pin E-Rings (2)	$1.50
6	10552	S4H Head Casting	$36.87
7	10553	Handle	$15.19
8	10551	Handle Pin	$1.70
9	10328	Stop Screw	$2.89
10	10329	Jam Nut	$0.80
11	10336	Head Cover Screw (4)	$1.70
12	15240	Head Cover	$47.71
13	10307	Washer	$8.80
14	10308	Swivel Nut	$5.09
15	10494	Locking Nut	$4.00
16	10465	Operating Rod Extensions	$9.48
17	10489	Spring	$17.17
18	15232	Packing Nut Assembly - includes O-Ring (10464)	$15.87
19	15220	Diverter Assembly	$23.81
20	37HF-BR	37HF Backflow Preventer	$43.28

#	Part #	Description	Price & Quantity
21	10496	Upper Pipe	$10.88
22	10555	Vent Cap	$5.68
23	10556	3/8" Pipe Nipple	$5.61
24	15136	Snifter Valve	$5.73
25	10554	Casing Cover	$29.99

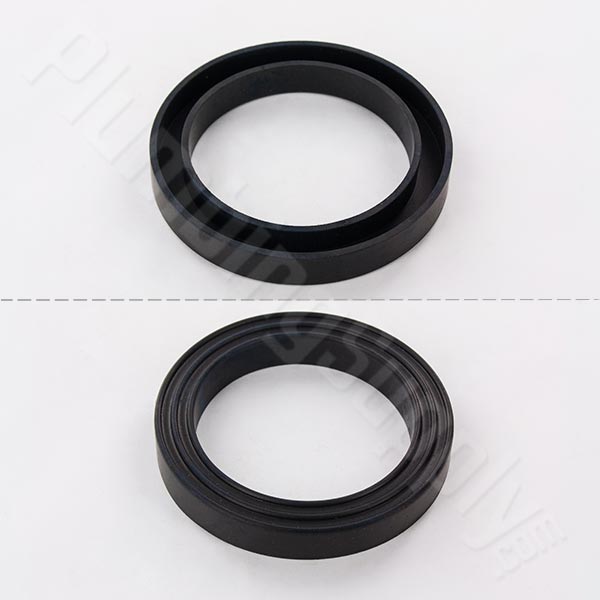

26	10491	Cup Gasket	$13.73
27	10534	Threaded Stud (3)	$5.51
28	10483	Reservoir Flange	$17.89
29	10332	Flat Washer (3)	$1.14
30	10331	Hex Nut (3)	$0.90
31	105XX	Reservoir Pipe	See Table Below
32	10482	Inlet Casing	$16.71
33	105XX	Lower Pipe	See Table Below
35	15233	Venturi Assembly	$38.79
36	10321	Venturi O-Rings (2)	$1.52
37	15134	Valve Plug	$24.36
38	10322	Valve Plug Guide	$5.29
39	10469	Inlet Screen	$6.94
40	10323	Snap Ring #3000	$2.35
41	10497	Coupling	$5.40
42	105XX	Operating Pipe	See Table Below

- Or -

#31 Reservoir Pipe

Part #	Bury Depth (ft) & Length (in)	Price & Quantity
10511	1' bury (27 7/16" long)	$29.07
10512	2' bury (41 1/16" long)	$42.78
10513	3' bury (54 15/16" long)	$43.83
10514	4' bury (68 7/16" long)	$56.69

#33 Lower Pipe

Part #	Bury Depth (ft) & Length (in)	Price & Quantity
10501	1' bury (25 1/8" long)	$25.43
10502	2' bury (38 3/4" long)	$39.22
10503	3' bury (52 1/2" long)	$49.98
10504	4' bury (66 1/8" long)	$65.40

- Or -

#42 Operating Pipe

Part #	Bury Depth (ft) & Length (in)	Price & Quantity
10521	1' bury (47 1/8" long)	$29.27
10522	2' bury (60 3/4" long)	$38.94
10523	3' bury (74 1/2" long)	$47.32
10524	4' bury (88 1/8" long)	$56.91
