Simple, straightforward and low shipping rates for these macerating upflush toilets.



Macerating Upflush Toilets

by Liberty and Zoeller


These macerator toilets will allow you to install a toilet or a full extra bathroom almost anywhere without having to break concrete to do it. This innovative product uses the same amount of water as low-consumption toilets, but uses a grinder pump to assist with flushing uphill. PlumbingSupply.com® is your source for these quality macerating sewage ejection toilets and thousands of other plumbing and plumbing-related products.

The Ascent Macerating Toilet System
Freedom to put a bathroom where you want it! Perfect for basements, garages, and additions
Liberty macerating toilet
Click here to view toilet dimensions
Complete Macerating System Features:
  • Ability to work in bathrooms below gravity drain lines allows bathroom additions and remodels without breaking up concrete basement floors
  • Less construction labor and time reduces construction costs while adding value to your property
  • Complete system includes ADA compliant toilet, toilet tank with flush valve, macerating unit, and composite wood toilet seat
  • Toilet tank, toilet bowl, macerator tank, and connections are all white for a clean and professional look
  • Includes a 8' white power cord
  • Pre assembled pump & tank makes for quick installation
  • High power, quiet 1/2 horsepower motor pumps waste up to 25' vertically and 150' away
  • Level control switch automatically turns the macerator on/off
  • 1" discharge with integral check valve
  • Macerating unit includes two optional inlets that accept 1-1/2" or 2" pipe for additional fixtures such as a bath tub, tub/shower combination, shower only, and/or sink (see one possible arrangement below)
  • Contoured tank design allows for wall molding to run behind macerator box
  • Ability to mount macerator unit behind wall with purchase of the optional extension pipe (#K001184)
Toilet Features & Specifications
  • All white, ADA compliant, comfort-height toilet - 16.25" tall (without seat) makes it easy and comfortable to use
  • Available in round or elongated/extended bowl
  • Rear discharge connects directly to macerating unit or optional extension pipe (offered separately)
  • Water efficient 1.28 gallons per flush
  • Includes flush valve
Note: tub/shower requires a base with minimum 4" rise

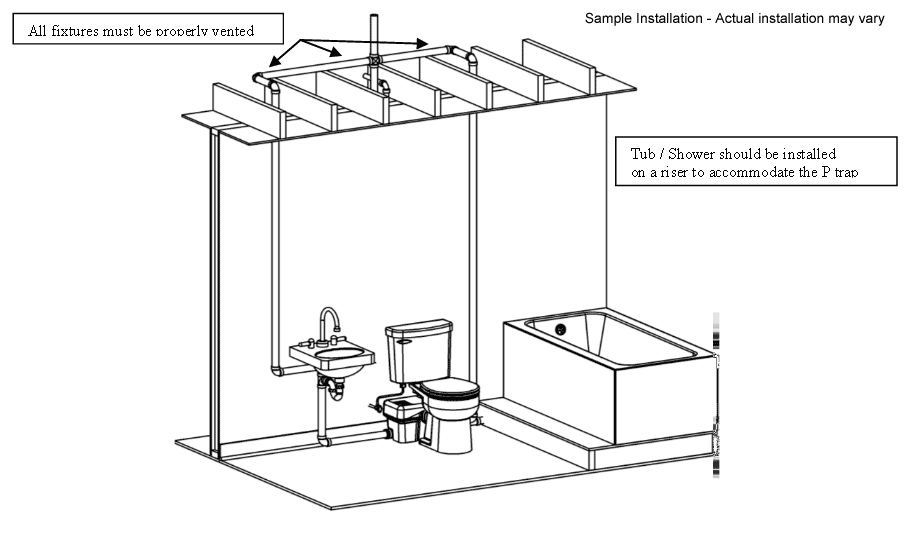

Sample installation of the Liberty Ascent II macerating toilet system

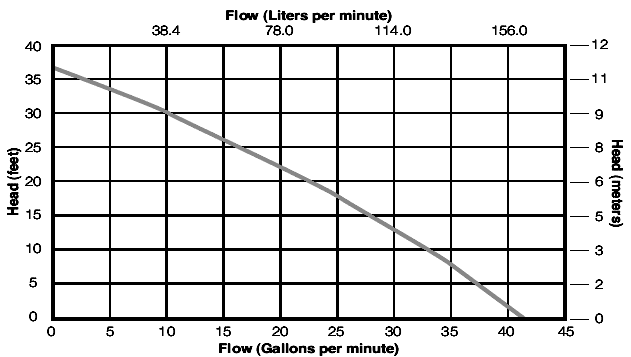

Performance Curve
performance
Macerator/Motor Specifications
  • Casing built out of durable polypropylene and is white in color to match the toilet and give you a clean look
  • Quiet 1/2hp motor with durable stainless steel waste cutter
  • IST switch technology provides for complete flush-out of debris in the cutter area which reduces potential clogging and jamming
  • Built in alarm with 9 volt battery backup and push-to-silence switch
  • LED lights indicate power on, alarm condition and low alarm battery
  • 115 volt operation, 5.2 amp, 60HZ, 3450 RPM
  • Thermally protected with automatic reset
  • Maximum fluid temperature: 104°F
  • 1" discharge
  • Two (2) 1-1/2" option side inlets (slip connection)
  • 1-1/2" vent with check valve

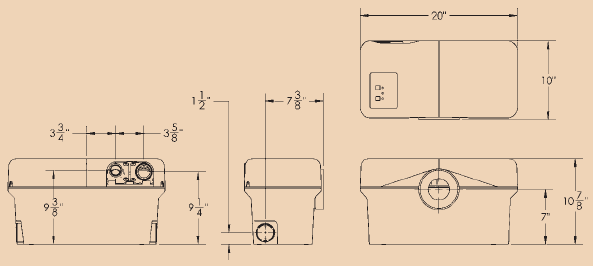

  • Click here to view macerator dimensions
  • Model Description Price & Quantity

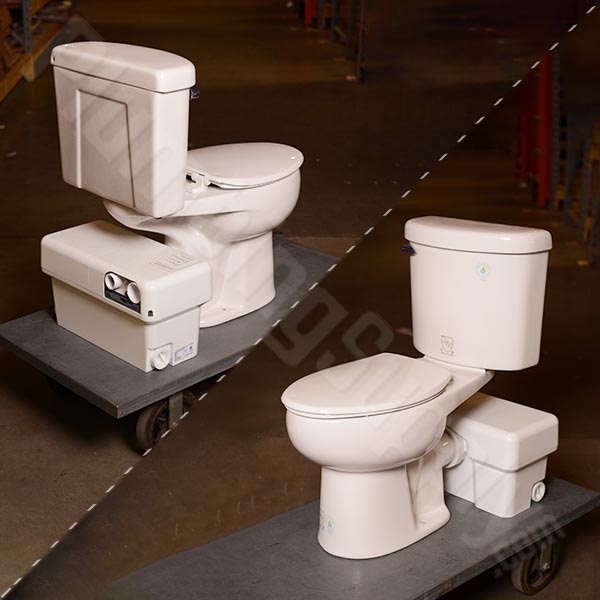

    ASCENTII-RSW Complete macerating toilet system (white)
    Includes: ADA compliant toilet (round), toilet tank with flush valve, macerating unit, and toilet seat
    $789.79
    ASCENTII-ESW Complete macerating toilet system (white)
    Includes: ADA compliant toilet (extended/elongated), toilet tank with flush valve, macerating unit, and toilet seat
    $824.74
    Model Accessories / Components Price & Quantity

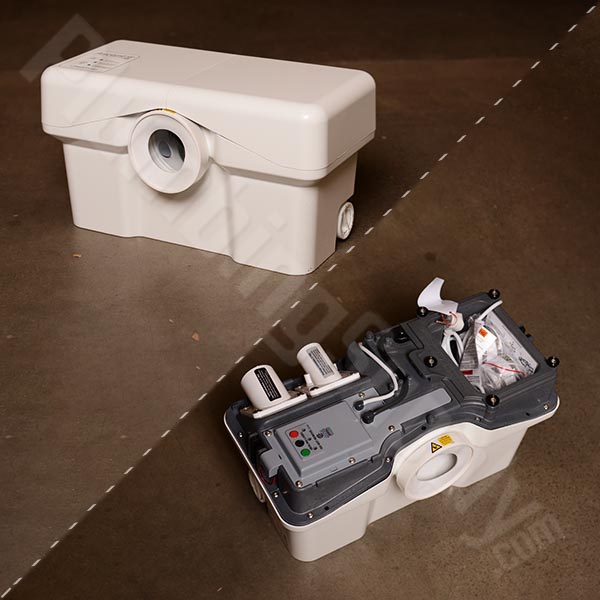

    ASCENTII-MUW White macerator unit only (115 volt) $623.35
    K001184 White extension pipe (15-3/4" x 4") with bell seal
    (allows for macerator unit to be installed behind wall)
    $42.81
      Toilet seat - premium quality, extra thick/durable plastic - round
    Click here for many more toilet seats
    $48.23

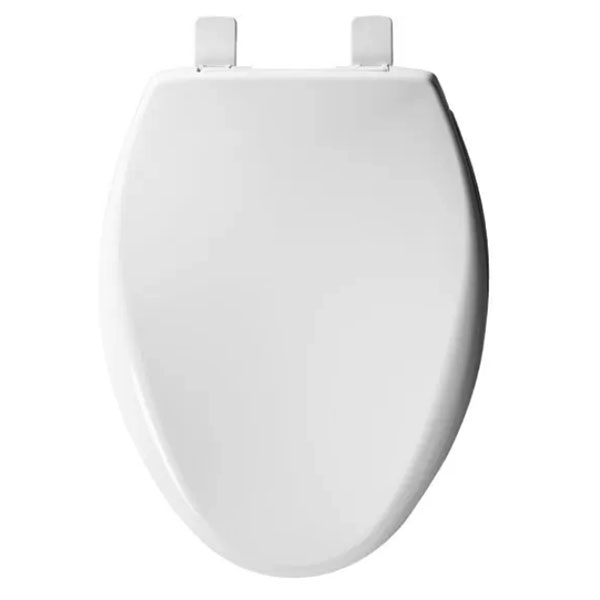

      Toilet seat - premium quality, extra thick/durable plastic - elongated/extended
    Click here for many more toilet seats
    $51.84
    Due to weight and to ensure safe delivery, the complete macerating toilet system ships by truck and has a $175 additional shipping fee.
    Please select your type of address: Commercial -or- Residential

    - Or -
    View Button

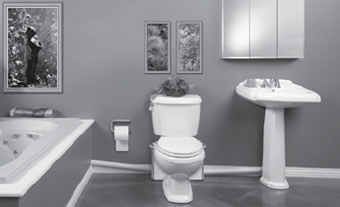

    ADA Compliant Products Image The Qwik Jon® Ultima Sewage Removal System ADA Compliant Products Image
    Economical sewage systems designed for free standing or built in installation.
    These products comply with the Americans with Disabilities (ADA) Act

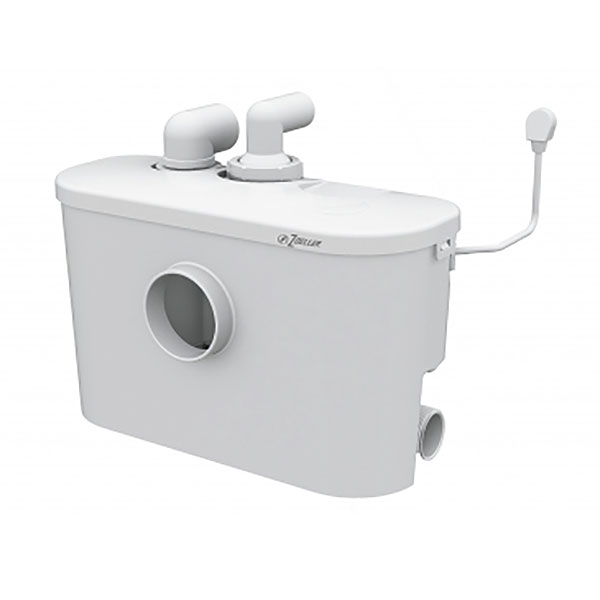

    Qwik Jon® Ultima Benefits
    Qwik Jon Ultima System

    Freestanding Quick John Ultima Mini-grinder pump Qwik Jon Ultima System
    BENEFITS:
    • 1/2 HP Zoeller compact grinder pump
    • Pre assembled pump and tank for easy installation
    • Model 203: Includes only the Zoeller grinder pump and housing - designed to accommodate toilet, lavatory and a bathtub or shower - can be used with a variety of rear outlet toilet styles with a discharge height of 4" from floor to centerline - standard rear outlet toilet must be purchased separately
    • No need to elevate floor
    • No need to destroy concrete floors
    • Designed to accommodate lavatory and a bathtub or shower
    • Perfect for basements, cabins, workshops, garages, additions, pool houses, etc.
    • Reduces construction cost
    • Works with 1" discharge & 3/4" discharge systems
    • Pumps any direction
    • Adds value to your property
    Qwik Jon Ultima System  Qwik Jon Ultima System
    Install either freestanding or behind a wall!!!
    FEATURES:
    • Non-corrosive engineered thermoplastic grinder pump
    • Pump 100% factory tested after assembly
    • 1/2 HP motor, 115v, 60hz, 3450 RPM
    • Automatic reset thermal overload protection
    • Hardened stainless steel cutter and disc
    • Carbon/Ceramic mechanical shaft seal
    • Upper and lower ball bearing running in a bath of oil
    • All stainless steel hardware
    • Works with 1" discharge & 3/4" discharge systems
    • ABS tank with 2" MPT and 1-1/2" slip side inlets
    • Pre assembled with preset piggyback vertical float switch
    • View typical installation diagram

    Model Description Price & Quantity
    203 Special Zoeller compact grinder pump with housing.
    For use with rear outlet toilets that have a discharge height of 4" from floor to centerline. Additional ports can accommodate a lavatory sink, bathtub and/or shower. Click here for dimensions
    $549.83

    - Or -
    View Button



    Accessories and Replacement Pump For Qwik Jon Ultima 202

    Model Description Price & Quantity

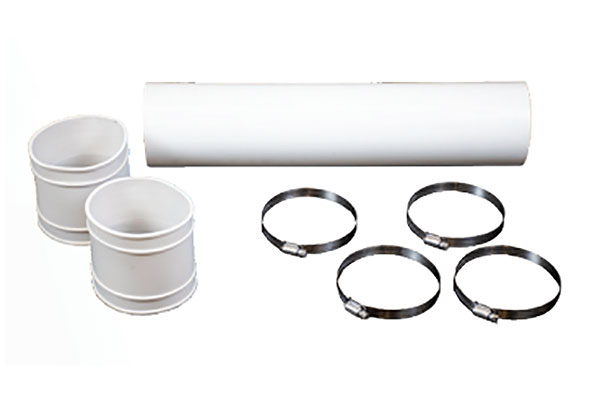

    10-2123 Extension Kit For Qwik Jon Ultima 202 - through wall pipe and hardware kit $57.52
    Replacement PumpFor Qwik Jon Ultima 202

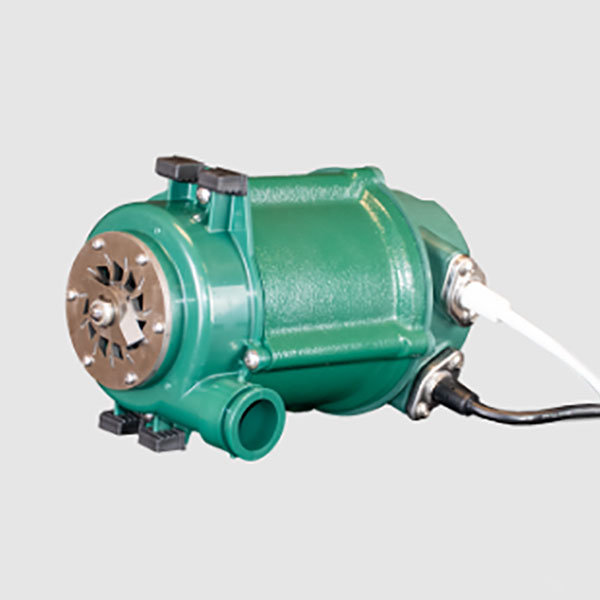

    017374 Replacement pump only - For Qwik Jon Ultima 202 $488.52




    Toilet Seat for Qwik Jon Ultima Model 202
    (white seat with white hinges)
    Slow close toilet seat
    Soft-closing elongated seat for Qwik Jon Ultima Model 202 $49.52

    - Or -
    View Button

    Note: For sanitary/hygienic reasons, toilet seats may not be returned.



    Additional Specifications and Information

    Total Dynamic Head/Flow Per Minute
    Feet Meters Gallons Liters
    5 1.5 45 170
    10 3.0 40 151
    15 4.6 35 132
    20 6.1 27 102
    25 7.6 16 61
    Shut-off Head: 30ft (9.1 meters)

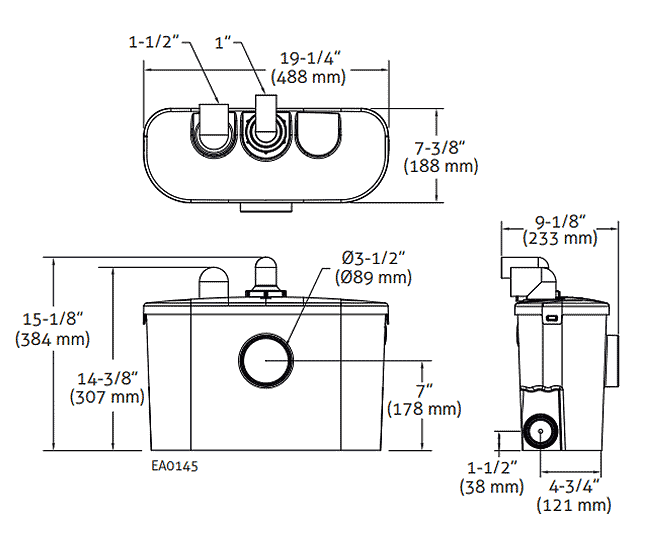

    Pump / Tank Information
    Pump Tank
    • Automatic level control switch
    • Thermal overload protected motor
    • Stainless steel screws, bolts, & handle
    • Non-clogging vortex impeller
    • UL Listed 3-wire neoprene 9ft. cord & plug
    • Maximum temperature 110°F (43°C)
    • Durable ABS tank with white finish
    • Lightweight
    • Built in check valve



    Sanivite Gray Water System
    Saniflo Sanivite system
    Features of this Sanivite pump system:
    • Hard-working device perfect for a wide variety of jobs
    • Useful for everything including the kitchen sink
    • A marvel of technology that will efficiently pump gray water from a kitchen sink, dishwasher, laundry washer, wet bar, bathtub, shower, or laundry tub. Clothes washer drainage must first be discharged into a laundry tub and then plumbed with proper gravity flow drain piping to the pump container inlet
    • Fully automatic gray water pump housed in a small container
    • Compact size - small enough to fit inside a kitchen cabinet, or under a laundry sink
    • Operational noise is comparable to that of a conventional toilet tank filling
    • Dimensions: 10 1/8"H x 14 5/8"W x 7 1/4"D (pump only) - 14-3/4" assembled height
    • Two 1 1/2-inch inlets with internal check valves located on top of pump container. Two optional 1 1/2-inch inlets with internal check valves located one on each side of the pump container to be used as required.
    • Plugs included for non used inlets
    • Inlet flexible pipe connector couplings (white - fit over pipe) included
    • Very efficient and durable induction motor
    • Pump - 115 Volt - 0.4 HP (horsepower) - Single Phase - Amperage 7.2
    • Maximum flow rate 18 gallons per minute (gpm) at 16 feet head; 29 gpm at 3 feet head
    • Effluent can be pumped vertically to 16 feet or horizontally to 150 feet, or a combination of both (can be calculated using vertical run of 3 feet as being equivalent to a horizontal run of 30 feet)
    • Discharge: 1" CPVC, PVC, or Copper
    • Maximum Temp: 140°F
    Description Price & Quantity
    Sanivite, gray water under sink pump - SUPER SALE! - Limited to Stock $179.95

    - Or -
    View Button



    Frequently Asked Questions

    Q. "Do these systems need maintenance?"
    A. No, the motor of the macerator has no gears or brushes to wear out. The motor is filled with oil and sealed for life.

    Q. "Where is the waste pumped?"
    A. The waste is pumped into a sewer system, septic tank or holding tank by means of a proper waste pipe system that compiles with the applicable codes.

    Q. "What is a macerator?"
    A. To "macerate" is to soften and break into pieces. These macerating systems use a rotating cutting blade to liquefy human waste and toilet paper. When mixed with flushing water, the waste is pumped into a sanitary sewer as fine slurry.

    Q. "Where can I use macerating systems?"
    A. Extra toilet facilities can be installed in offices, factories, and restaurants. Extra bathrooms can be installed in basements, cottages, hotels, motels, in fact, most anywhere extra washroom facilities are needed or wanted.

    Q. "How noisy is a macerating toilet system?"
    A.There are several factors which will change the noise level of a macerating toilet system, including the size of the room, furnishings, connections, etc, so it's nearly impossible to predict exactly how loud a system will be once installed. For that reason, most manufacturers won't provide a decibel rating, but state that a macerating toilet system will definitely be audible if you're in the same room when it's running. Typically, the noise level of a macerating toilet system is louder than the humming of a refrigerator but quieter than most dishwashers. The noise shouldn't travel throughout the house.

    Q. "Do I need to break up the floor to install the macerating system?"
    A. No, these units can easily be installed on top of any finished floor, eliminating the need to dig up a floor as required by methods using a sump and sewage ejector pump. Additionally, there is no need to leave an accessible space, as is the case with a floor sump system.

    Q. "Can I discharge a kitchen sink into a macerating system?"
    A. No, the greases and larger food particles associated with kitchen sinks would clog the smaller diameter pipe and eventually create a problem.

    Q. "How much water does the system use?"
    A. All models are low consumption type toilets. These toilets uses 1.6 US gal of water per flush. This compares very favorably with older systems of water closets that may use up to 8 US gal of water per flush.

    Q. "What does ADA mean?"
    A.ADA stands for Americans with Disabilities Act. The Model 202 Qwik Jon® Ultima Sewage Removal system meets the Americans with Disabilities Act and it's requirements for accessible and useable facilities.

    Q. "What is "comfort height?"
    A.Comfort height porcelain toilets are taller than standard toilets and make getting on and off the toilet much easier. The floor to seat height is 17" vs the standard 14" floor to seat height.

    Q. "How hard are these systems to install?"
    A.These systems are engineered for easy installation. All you need is a 115v electrical service, a 1/2" water supply line, and a structurally sound, relatively level surface to set the toilet and tank on. The adjustable discharge pipe connection allows the unit to be plumbed in virtually any direction, and once the system is tied into the sewer pipe, simply plug in to A/C power and go.

    Q. "Will this toilet meet my town's high efficiency toilet laws?"
    A. While we do make an effort to be aware of upcoming plumbing-related legislation, we simply cannot keep up with all the plumbing-related legislation for all municipalities. As part of the selection process for new fixtures, we highly recommend contacting your local code enforcement agencies for the latest plumbing fixture requirements. This will help you select the correct fixtures for your home or business, and will also help avoid nasty surprises should your project require a permit or inspection. If working with a plumber, confirm he or she is well aware of current legislation in your area, too.
