These Mini-Tank Water Heaters are light-weight and compact, allowing you to place it in almost any convenient location where small amounts of hot water are needed. With four capacity options to choose from, you'll find the perfect on-demand heater for your cottage, office, boat, warehouse, etc., and your wait for hot water when you need it will be over. Let PlumbingSupply.com
® be
your source for these and many
other on-demand hot water products.

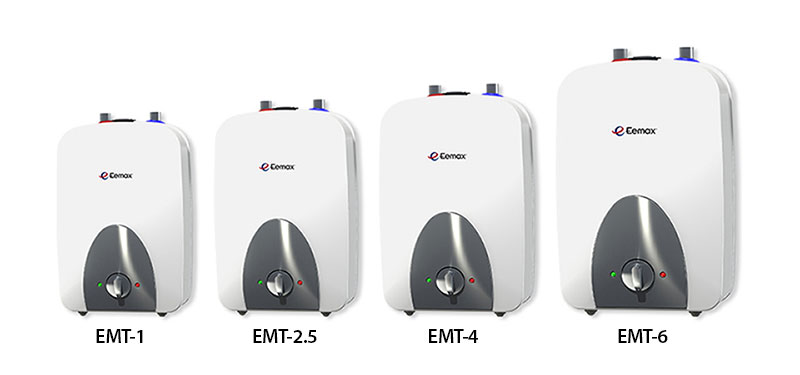

| Eemax® Electric Mini-Tank Water Heaters |

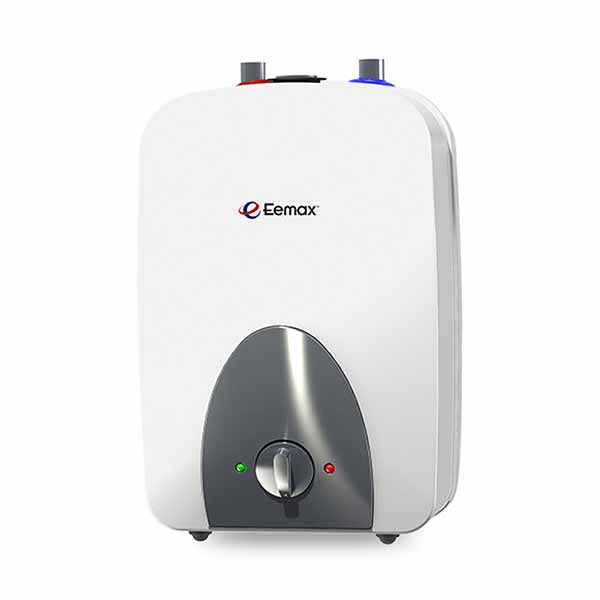

EMT2.5 mini tank pictured |
This mini-tank water heater features:
- Lightweight and compact, all models plug into a standard 110 volt outlet (includes T&P valve)
- Point-of-use water heating eliminates long runs of pipe and long waits for hot water at the tap, no water going down the drain while waiting for hot water
- Eliminate the need for a large bulky storage tank
- Impact and corrosion resistant exterior, glass lined tank inside
- Quick economical recovery and superior insulation for high efficiency
- Easy to size: 1.3 gallon for hand wash sink, 2.5 gallon for 1 sink, 4 gallon for 2 sinks, 6 gallons for more
- On/off switch for ease of maintenance and safety
- Versatile applications: Homes, cottages, kitchenettes, stores, offices, RVs, mobile homes, boats, restaurants, hotels, service stations, warehouses and factories
- Specifications below
|
|
|
| Specifications for Eemax® Electric Mini-Tank Water Heaters |
| |
EMT 1 |
EMT 2.5 |
EMT 4 |
EMT 6 |
| Voltage |
110/120 volts |
110/120 volts |
110/120 volts |
110/120 volts |
| Amperage |
12 amps |
12 amps |
12 amps |
12 amps |
| Heating Capacity |
1440 watts |
1440 watts |
1440 watts |
1440 watts |
| Phase |
Single |
Single |
Single |
Single |
| Temperature |
50-140°F |
50-140°F |
50-140°F |
50-140°F |
| Operating Pressure |
150 psi |
150 psi |
150 psi |
150 psi |
| Tank Volume |
1.3 gallons |
2.5 gallons |
4 gallons |
6 gallons |

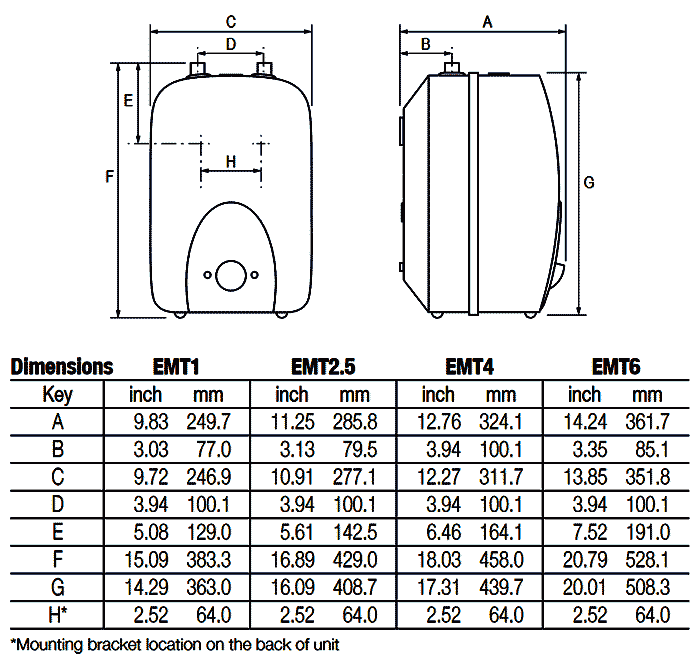

| Dimensions |
12.5"H x 11"W x 10"D |
14-1/2"H x 11-3/4"W x 10-3/8"D |
19-1/4"H x 11-3/4"W x 10-3/8"D |
18"H x 15.75"W x 15.5"D |
Recovery Time
50°F to 140°F |
15 min. |
25 min. |
45 min. |
55 min. |
| Water Connections |
1/2" NPT |
1/2" NPT |
1/2" NPT |
3/4" NPT |
| Relief Valve |
Installed |
Installed |
Installed |
Installed |
| Shipping Weight |
13.5 lbs |
20 lbs |
24 lbs |
26 lbs |
|
| Ariston's point-of-use electric water heaters are a very convenient
way to get hot water right at the point where you need it. They are compact, and will easily fit under most sinks and inside cabinets. These glass lined heaters boast a super fast recovery time and can be installed with ease by one person. They can also be used to efficiently eliminate the wait for hot water by installing in-line with a larger hot water source plumbed into it. |
Ariston Point of Use Water Heaters
small under counter electric water heaters
Order 12 or more of the same Ariston units for additional savings!
Pricing discounts will be shown in the shopping cart.
| Specifications |
GL 2.5Ti |
GL4Ti |
GL8Ti |
| Tank Volume |
2.7 Gallons |
4 Gallons |
7 Gallons |
| Dimensions (H x W x D) |
14" x 14" x 10¼" |
14" x 14" x 13½" |
17½" x 17½" x 14½" |
| Recovery at a 90°F Rise |
6.8 GPH |
6.8 GPH |
6.8 GPH |
| Water Connections |
½ inch NPT |
½ inch NPT |
¾ inch NPT |
| Relief Valve |
installed |
installed |
included |
| Multi-Directional Mounting |
no |
no |
yes |
| Inlet / Outlet Location |
top |
top |
top or side |
| Ariston Water Heaters |
| Voltage |
110/120 Volts |
| Phase |
Single |
| Amperage |
12.5 amps |
| Temperatures |
65 - 145°F |
| Heating Capacity |
1500 Watts |
| Max. Operating Press. |
150 psi |
We also offer replacement parts for Ariston mini-tank water heaters.
