Eemax is a leader in the electric tankless water heater industry. With dozens of models to choose from (both residential and commercial, single-point use or whole-house) there is something to fit any hot water heating need. Let PlumbingSupply.com supply you with a tankless water heater from Eemax.

"Series Two" Models With Single Thermostat (Two Heating Elements)
Eemax series two twin module model
This twin module water heater model features:
  • Recommended for a small house, apartment or condo
  • Replaces the existing tank type water heater, being fed with cold water only
  • Unit provides 0.75-2.5 gpm of showering temperature water
  • Works best when servicing only one outlet at a time
"Series Two" Model Specifications:
  • Single phase models
  • Dimensions: 10" x 9" x 3"
  • Weight: 8 lbs.
  • Color: white
  • Cover: enameled steel
  • Min pressure: 25 PSI
  • Max pressure: 150 PSI
  • Mounting: unit must be mounted on wall
  • Element: two replaceable Nickel-Chrome
    cartridge inserts
  • Pipe-fittings: 1/2" compression at bottom of unit

'Parallel' Models With Thermostatic Control (Two Heating Elements)
Eemax tankless water heaters Parallel models with thermostatic controls This Instant Water Heater Features:
  • Dual module water heater provides hot water for you whenever you need it
  • Ideal for dishwashers, showers, photo processing, emergency Eye/Face Wash, etc.
  • Microprocessor temperature control for accurate temperature
  • Minimum flow 1.5 GPM and Max flow 4 GPM
  • Hot or cold water feed
  • 3/4" npt water connections
  • Comes with thermal cut
  • Standard temperature range 100°F to 140°F
  • Dimensions: 10" x 9" x 3"
  • Single phase models
Model# Volts kW Total Amps °F Rise
@ 1.5 GPM
°F Rise
@ 2.0 GPM
°F Rise
@ 2.5 GPM
°F Rise
@ 3.0 GPM
Price & Quantity
EX144T2 240V 15 64A 68° 51° 41° 34° $437.54
EX190T2 240V 19 80A 87° 65° 52° 43° $436.76
EX1608T2 208V 16.6 80A 75° 57° 45° 38° $568.18
EX160T2 277V 16 58A 73° 55° 44° 36° $465.63
EX200T2 277V 20 72A 91° 68° 54° 46° $461.88

NOTE: When ordering, please be sure that the
temperature rise is adequate for your needs.

to replacement elements for these Eemax tankless water heaters

- Or -Click here to view items already in your shopping cart

'Staged' Models With Thermostatic Control (Two Heating Elements)
Eemax Staged model tankless water heaters with thermostatic controls This Instant Water Heater Features:
  • Efficient water heater provides hot water when you need it without heating up a lot of extra water
  • Activated in stages, based on your demand.
  • Ideal for showers, multi lavs, etc.
  • Microprocessor temperature control for accurate temperature
  • Minimum flow .7 GPM and Max flow 3 GPM
  • Standard temperature range 100°F to 140°F
  • Hot or cold water feed
  • 3/4" npt water connections
  • Comes with thermal cut
  • Dimensions: 10" x 9" x 3"
  • Single phase models
Model# Volts kW Total Amps °F Rise
@ 1.5 GPM
°F Rise
@ 2.0 GPM
°F Rise
@ 2.5 GPM
°F Rise
@ 3.0 GPM
Price & Quantity
EX120TC 240V 11.5 48A 52° 39° 31° 26° $346.98
EX144TC 240V 15 64A 68° 51° 41° 34° $459.74
EX190TC 240V 19 80A 87° 65° 52° 43° $458.88
EX1608TC 208V 16.6 80A 75° 57° 45° 38° $568.09
EX160TC 277V 16 58A 73° 55° 44° 36° $461.86
EX200TC 277V 20 72A 91° 68° 54° 46° $460.64

NOTE: When ordering, please be sure that the
temperature rise is adequate for your needs.

to replacement water heater elements

- Or -Click here to view items already in your shopping cart

"Parallel" Models With Two Thermostats (Two Heating Elements)
Eemax 'parallel' models twin module

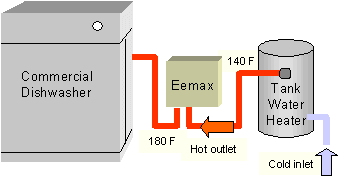

This parallel module water heater model features:
  • For preheated water feed (dishwashers, photo processing, etc.)
  • Ideally suited for any booster type application
  • These units will supply hot water up to 180°F
  • May be fed with either hot or cold water
  • Flow rates from 1.5 to 3.0 gpm
  • Useful as sanitizing booster for commercial dish washing
  • Single phase models

Model Volts kW Total Amps * Temperature Rise (°F) at/GPM Wire Size Price & Quantity
1.5
gpm
2.0
gpm
2.5
gpm
3.0
gpm
EX144T2S 240V 15 64(2x32) 65° 51° 39° 34° 8 AWG $448.92
EX190T2S 240V 19 80(2x40) 87° 65° 52° 43° 8 AWG $446.15
EX160T2S 277V 16 58(2x29) 73° 55° 44° 36° 8 AWG $475.97
EX200T2S 277V 20 72(2x36) 91° 68° 54° 46° 8 AWG $466.78

Note: Please be sure that the temp. rise of these heaters will meet your needs before you order.
* The unit must have 2 independent electrical circuits using correctly rated wire and 2 circuit breakers.

to replacement water heater elements

- Or -Click here to view items already in your shopping cart

Hot Water Heater Scale Inhibitor System
Eemax water heater scale inhibitor This water heater scale inhibitor system features:
  • Helps protect piping from corrosion
  • Maintains efficiency and extends life of system
  • Inhibits scale build-up caused by hard water
  • Translucent dispenser cartridge allows for convenient detection of remaining scale stopper level
  • Slow dissolve rate for long life and consistent dosing
  • 3/4" NPT
  • Up to 6 GPM
  • Cold water feed line
  • Multi-application design effective on all types of hot water systems-boilers, tankless, and tank-type (gas or electric)
  • Made from FDA CFR-21 compliant materials, suitable for drinking and cooking water and all food applications
  • Replacement cartridges (AP431) are available for these in-line scale inhibitor systems
Description Price & Quantity
Hot Water Heater Scale Inhibitor System $66.10
Replacement filter for hot water heater scale inhibitor system $27.31
Note: Recommended time to change/replace filter cartridge is 6 months.
Purchase a replacement cartridge to have on hand when needed.

- Or -Click here to view items already in your shopping cart

- made in U.S., the finest electric tankless water heaters made -
Small and compact, come in two different models; Flow-controlled and Thermostatic. Flow-controlled models turn on at full power while the Thermostatic unit will adjust its power lever according to the incoming water temperature. Flow-controlled units must be fed with cold water only. Thermostatic models can be fed with hot or cold water. Both models are activated by flow.

Help save our environment by saving energy.
Stand-by heat loss wastes a LOT of energy.
Installing tankless water heaters saves energy, as well as your pocket book in the long run. Think future! Think green.


Think Tankless!

- Thank you for visiting famous PlumbingSupply.com -

Frequently Asked Questions

question about how a staged turn on works"How does the staged turn on work?"
answer about how a staged tankless water heater works Staged turn on models only use the heating modules needed to produce the desired output temperature.

question about max flow rates for staged and parallel turn on"Why is the max flow lower for the staged turn on?"
answer about tankless water heatersThe heating modules are set up differently to accommodate different flow rates.

question about turn on options"What's the difference between the parallel turn on and the staged turn on?"
answer about turn on options The parallel turn on will give you a higher maximum flow rate, and it needs a higher flow rate to turn on than the staged turn on. The staged turn on will turn on with a lower flow rate, and it handles a lower maximum flow rate than the parallel turn on.

question about "Does the kW listed under each model represent the amount of energy they use if all the heating elements are on?"
system extends life Yes, the specification for kilowatt usage for all models show the maximum wattage with all heating elements on.

question about water heater installation"Are all Eemax tankless water heaters designed to be hardwired?"
question about water heater installationYes, every tankless water heater by Eemax is supposed to be hardwired when it's installed.

"Can I install these tankless water heaters in my attic?"
Without seeing all of your plumbing piping, etc. it is difficult for us to answer with a straight "yes" or "no." One must be sure that a possible water siphoning condition can not be created as these fantastic electric tankless water heaters can not have air in the lines. Water siphoning out of any brand of electric tankless water heater might damage the heater or element when the element is on and there is no water (or not enough water) in the lines. Air should not be touching the elements.

instant water heaters"Will an instantaneous water heater save me money on my utility bills?"
instant water heatersYes, in most applications you will see a savings. There are some variables that could reduce the amount you save. One example is you will not run out of hot water, so longer showers could cut into your savings. Also, the cost of electricity, propane and natural gas in your area will affect the amount of money saved. The higher the cost for the energy type used to heat your water, the quicker you will recover the higher initial cost of installing a tankless versus tank style water heater.

Positives:

    You will never run out of hot water. "You want an hour long shower? No problem!"
    Electric units can be installed at the point of use.
    You're not paying energy costs to heat water 24 hours a day.
    They're easy to install.
    Our electric units don't require a T&P valve. (No tank!)
    Installing a tankless water heater will indeed be a bonus to the environment (why should we choose wastefulness when we're talking about finite natural resources)?

Negatives:

    They all need a minimum flow rate & pressure to turn on.
    The faster water flows through them, the lower the temperature rise. So,if you expect to take a shower while the clothes washer is running, you will need to select a unit sized to your hot water flow requirements. (Gas units handle this a little better than electric models)
    Electric units need heavy gauge wire. Example: the 9.5kw must have 8ga wire and a 50amp breaker.
    Gas units need a much larger, special flue pipe and larger gas supply than a conventional water heater.
    At times they can produce very hot water. It's easier to get scalded.
    Gas units are more complicated than a conventional water heater.
    With some brands, parts are hard to find (not a negative if you originally purchase from us, as we like to carry parts for the units that we sell).

Summary:
Tankless water heaters have their place. They're not "the answer" to every hot water need, but if they're used correctly they can be the solution to many of them.

"The Eemax tankless water heaters info specify the 'temp. rise' based on the GPM flow; what do you mean by this?"
Temperature rise is the amount the heater raises the temperature of the incoming water, based on the flow rate shown of that water.

question about hot water heater scale inhibitor system"Will the Hot Water Heater Scale Inhibitor System change the taste or odor of water?"
system extends life No. The active ingredient is colorless, tasteless, and odorless when used as recommended.

question about hot water heater scale inhibitor system"Is the Hot Water Heater Scale Inhibitor System's active ingredient safe?"
system extends life Yes! All ingredients used are 100% pure food grade materials. They are approved by the USDA and meet purity requirements as a food additive by the World Health Organization.

question about hot water heater scale inhibitor system"What are the best reasons to install a Scale Inhibitor System?"
system extends life The system inhibits scale build-up and protects the piping from corrosion, which helps maintain efficiency and extends the life of the system.

question about hot water heater scale inhibitor system"How does the Hot Water Heater Scale Inhibitor System prevent corrosion?"
system extends life It forms a thin protective layer on the inside of pipes and metal parts. This film or layer is microscopic in thickness and will not build up over time.

question about hot water heater scale inhibitor system"What happens if you don't change cartridges often enough on the Scale Inhibitor System?"
system extends life The original water condition and problem will reappear. Hardness will begin to build up again, which you want to avoid.

We hope that we have helped you on this page with Eemax tankless water heaters,
