High Water Alarms

by Zoeller

Would you like to be warned before water damage can occur? Then these quality High Water Alarms from Zoeller are for you! Water damage can be very costly, not to mention the hassle and expense of repair and replacement you could encounter by not having one of these dependable alarms. These alarms are normally used for sump pumps or sewage ejectors but can be used anywhere a high water level can cause concern. Zoeller is a premier manufacturer of dependable products, and PlumbingSupply.com^® is pleased to offer a huge selection of Zoeller items.

Float switches mentioned on this page are mechanically activated and do not contain mercury.
They are not for use in gasoline, volatile substances, or any other combustible liquids.

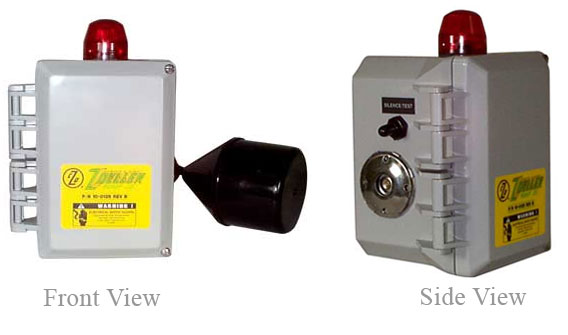

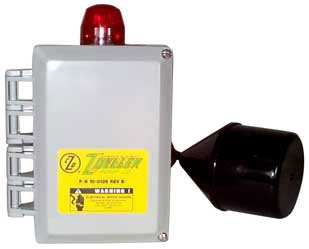

Zoeller Indoor/Outdoor Float Switch Model #10-0126
Zoeller "A-PAK II" Ideal for indoor & outdoor use. Horn and light warn of high water conditions. This alarm includes a mechanical float switch with a 15 ft. cable. The manufacturer recommends operation on a separate 115 volt AC circuit from the pump. The horn is rated at 88 decibels at a distance of 10 feet.
	NEMA 4X thermoplastic alarm panel Test and silence switch Use with liquids up to 140° F (60°C) Auxiliary 115 volt dry high level alarm contact UL & cULus listed Dimensions: 6"x 4"x 4" Note: Please keep in mind the mechanical float switch needs to be tethered to swing freely for proper operation, and will not activate with water levels less than 6 inches.

Zoeller Indoor/Outdoor Float Switch A-PAK II - $191.24

- Or -

Zoeller Indoor/Outdoor Float Switch Model #10-0682
"A-PAK" This alarm can be used for indoor or outdoor use and has watertight cord connectors. Horn & light operates to warn of high water condition. The alarm operates on 115 volt AC current and comes with a 6 ft. power cord. A mechanical float switch with a 20 ft. cable is also included. The manufacturer recommends the alarm system not be plugged into the same circuit as the pump.
	NEMA 3R non-corrosive enclosure UL & CSA certified Use with liquids up to 140° F (60°C) Horn is rated at 82db at 10ft. Terminal connections for a pump and float switch Dimensions: 6.5"x 4.5"x 3" Note: Please keep in mind the mechanical float switch needs to be tethered to swing freely for proper operation, and will not activate with water levels less than 6 inches.

Zoeller Indoor/Outdoor Float Switch #10-0682 - $189.10

- Or -

Zoeller Indoor/Outdoor High Water Alarm #10-0623
"A-PAK" This alarm can also be used for indoor or outdoor use and has watertight cord connectors. Horn & light operates to warn of high water condition. The alarm operates on 115 volt AC current The only difference between this alarm and the #10-0682 above is this alarm does not come with a power cord and the mechanical float switch only has a 15 ft. cable. The manufacturer recommends the alarm system not be plugged into the same circuit as the pump.
	NEMA 3R non-corrosive enclosure UL & CSA certified Use with liquids up to 140° F (60°C) Horn is rated at 82db at 10ft. Terminal connections for a pump and float switch Dimensions: 6.5"x 4.5"x 3" Note: Please keep in mind the mechanical float switch needs to be tethered to swing freely for proper operation, and will not activate with water levels less than 6 inches

Zoeller Indoor/Outdoor Water Alarm #10-0623 - $135.38

- Or -

Zoeller Indoor Water Alarm System #10-1494
"A-PAK" This alarm is rated for indoor use and has a 9v DC battery back-up (battery not included). It features a red warning light, green "power on" light, an alarm test switch and a horn silence switch. Alarm operates on 115 volt AC current, comes with a 6 ft. power cord. You must manually shut off the alarm but then it will reset automatically. A mechanical float switch with a 15 ft. cable is included. The manufacturer recommends the alarm system not be plugged into the same circuit as the pump. You can use this alarm system to monitor liquid levels in lift pump chambers, sump pump basins, holding tanks, sewage, agricultural and any other non-potable water application. The primary voltage of the alarm is 115 VAC, 60 Hz, but only uses 2.4 watts of electrical power.
	NEMA 1 non-corrosive enclosure for indoor use Use with liquids up to 140° F (60°C) Float operates on 12 VAC Horn is rated at 86db at 10ft. UL & CSA certified Note: Please keep in mind the mechanical float switch needs to be tethered to swing freely for proper operation, and will not activate with water levels less than 6 inches

Zoeller Indoor Water Alarm System - $84.91

- Or -

Zoeller Non-Enclosed Water Alarm System #10-0015
"A-Pak" Non-enclosed 115 volt AC alarm includes 6" magnetic bell and transformer. This alarm will mount on a standard electrical utility box but the utility box, any electrical cords and float switch must be purchased separately.
	For use with a 120 volt float switch (sold separately) Bell is rated at 75db at 10ft.

Zoeller Non-Enclosed Water Alarm - $155.85

- Or -

Zoeller Non-Enclosed 230 Volt Water Alarm #10-0016
"A-Pak" Non-enclosed 230 volt AC - 6" magnetic bell includes transformer. This alarm will mount on a standard electrical utility box but the utility box, any electrical cords and float switch must be purchased separately.
	Operates on 230v 6" magnetic bell with transformer Mounts on standard utility box For use with Zoeller 230 volt float switch Model #10-0743 only Bell is rated at 75db at 10ft.

Zoeller Non-Enclosed 230 Volt Water Alarm - $180.45

Float Switch Only For 10-0016 Water Alarm - $30.27

- Or -

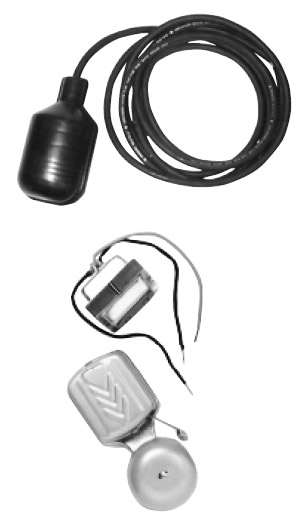

Zoeller Non-Enclosed Magnetic Bell #10-0028
"A-Pak" Non-enclosed 115 volt AC - This 3" magnetic bell includes a transformer and mounts on a standard electrical utility box. The electrical utility box is not included, but a float switch with a 15 ft. cable is included.
	Operates on 115v 3" magnetic bell with transformer Mounts on standard utility box Float switch with 15 ft. cable included Bell is rated at 75db at 10ft. Note: Please keep in mind the mechanical float switch needs to be tethered to swing freely for proper operation, and will not activate with water levels less than 6 inches.

Zoeller Non-Enclosed Magnetic Bell - $84.74

- Or -

All float switches mentioned on this page are mechanically activated and do NOT contain mercury and are
not for use in gasoline, volatile substances, or any other combustible liquids

Frequently Asked Questions

Q. "What is NEMA?"
A. NEMA stands for National Electrical Manufacturers Association which sets standards and provides a forum for standardization of electrical equipment.

Q. "We noticed most of these alarms use a float switch and are used for water depths of 6 inches or more. Do you offer anything that will detect leaking water from a water heater or washing machine and provide an alarm?"
A. Yes we do! We offer just an alarm for leaking water heaters or washing machines or any appliance for that matter. It is a low voltage alarm. We offer other alarms that will also automatically shut-off the water to the water heater or to the washing machine. And we also offer an alarm that will turn off the electricity to the washing machine (or any other 115 volt appliance) when a water leak is detected.

Q. "Is there anything else I should know about these alarms?"
A. Make sure to follow all of the manufacturer's instructions and directions by performing the proper maintenance and inspections to ensure that you are fully protected; this is ever-so-important with (man-made) safety devices as they will eventually fail. Proper maintenance and inspections can extend the lifespan of your alarm and allow it to funtion properly.
