How To Remove A Bath Tub Drain Stopper

General information to help you remove your bath tub drain stopper

we offer bathtub drains and parts here | view our universal tub drain stopper kits

Types of Tub Stoppers

There are five basic types of bath tub drain stoppers:
  • Toe Touch (Foot Actuated, Foot Lock or Toe Tap)
  • Push-Pull or Lift and Turn
  • Flip-It
  • Pop-Up: Activated by Trip Lever, Cable, Turn Style, or other
  • Trip Lever or Turn Style (internal plunger/stopper)

Already know what kind of stopper you have?
Click any image to jump directly to instructions for that type of stopper.


Identify which stopper you have:
If your tub does not have a trip lever, it is either a Toe Touch, Push Pull, Flip-It, or a Lift-and-Turn style stopper. These stoppers operate without a trip lever mechanism and are generally the easiest kind to remove or replace since they do not require the removal of the trip lever.

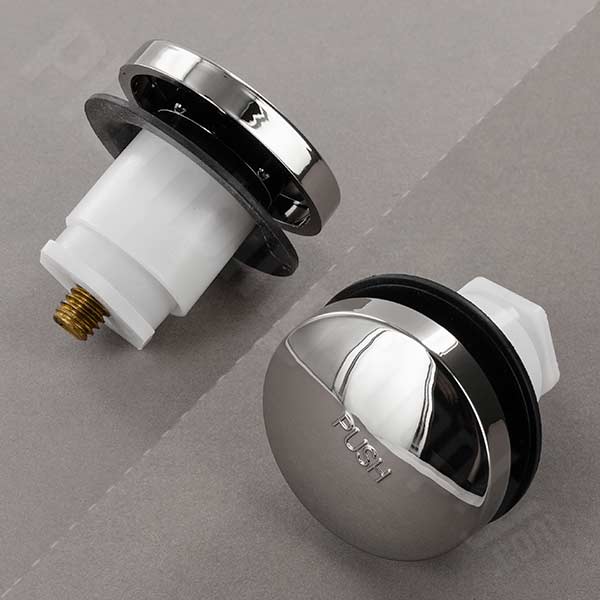

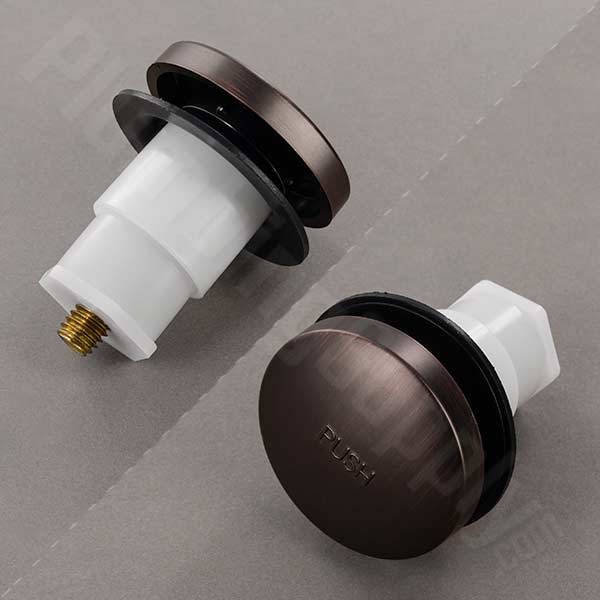

Toe Touch: The stopper opens and closes with the push of your toe.
Push-Pull: The stopper has a knob in the center and you must push it down to close and pull it up to open.
Lift and Turn: This looks very similar to the Push-Pull style, but you will need to lift and turn the stopper (in opposite directions) to open and close.
Flip-It: This stopper uses a toggle that when flipped from side to side, will open or close.
Pop-Up: This style can have a trip lever or turn style mechanism on the overflow that moves an internal push rod against a rocker arm attached to the stopper to raise or lower the stopper. Pop-Ups have a visible stopper in the tub drain, and cannot be covered by a strainer.
Plunger Style: This style also use either a trip lever or turn style mechanism to operate. An internal plunger is used to stop water flow. When the overflow plate is activated by tripping a lever or turning the plate it causes the plunger to raise or lower. Trip Lever and Turn Style assemblies normally do not have a visible stopper in the tub drain. The drains simply have a strainer of some sort covering the drain.



Use the following steps to easily remove your tub stopper:

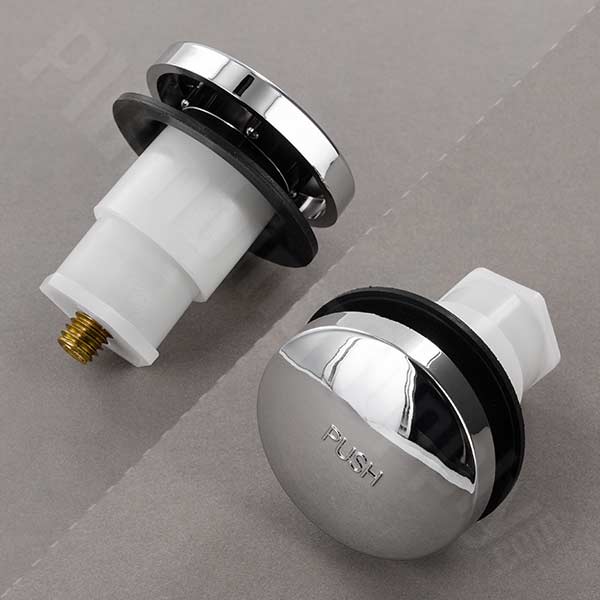

Removing a Toe Touch Tub Stopper:
Tools needed: Flathead screwdriver
Different tub drains

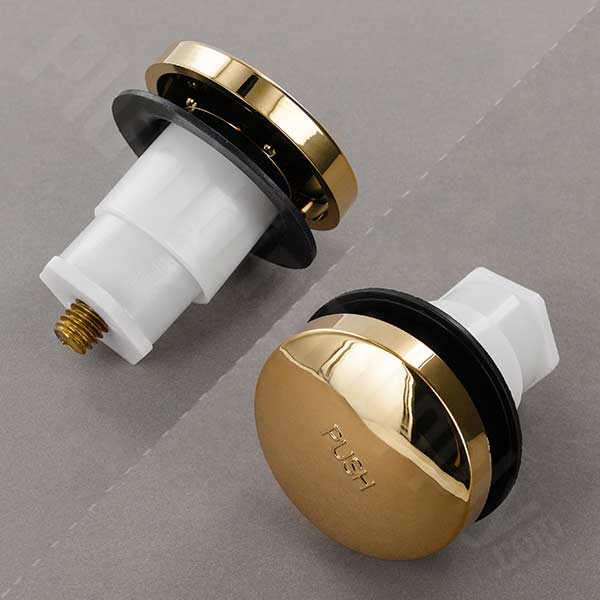

Toe Touch

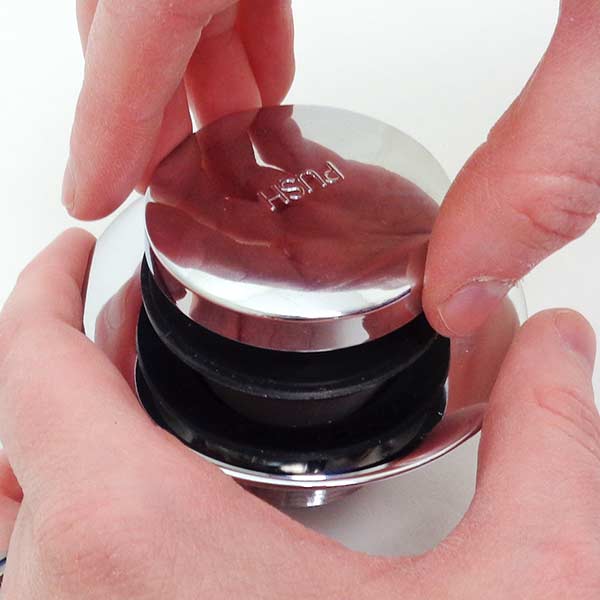

Step 1:
With the stopper in the "open" position (like you are emptying your tub), hold the shaft cylinder of the stopper and turn the top counter-clockwise. If this action causes the shaft cylinder to also want to turn, then release your hold on the shaft cylinder and continue to unscrew the stopper. The shaft cylinder is threaded into the cross bar in the strainer and once it is unthreaded, lift and remove the complete stopper.
stopper removal instruction
Click here for larger image
Step 2:
However, for some Toe Touch stoppers, holding the shaft cylinder and turning the top cap will allow you to just unscrew the top finished cap portion of the stopper. If this is the case, then unscrew the top cap all the way off.
Step 3:

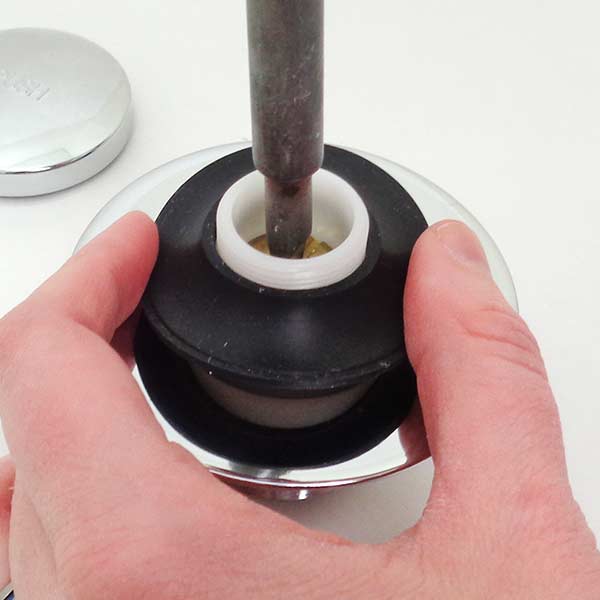

Once the top cap has been unscrewed and lifted off, unscrew the shaft cylinder counter-clockwise to remove the threaded post screwed into the cross bar in the strainer. Some shaft cylinders may have a screwdriver slot to allow you to unscrew the shaft/post with the use of a screwdriver.

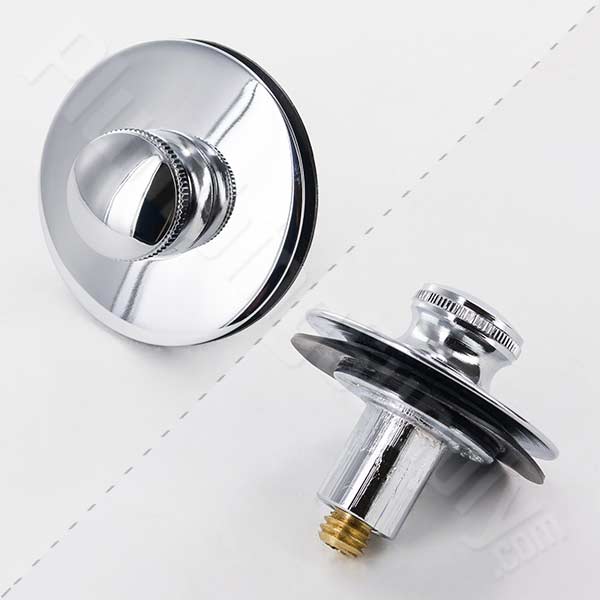

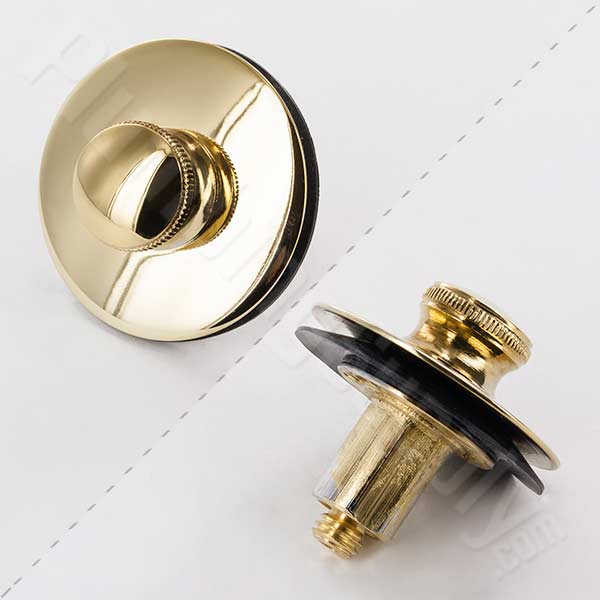

Removing a Push-Pull Tub Stopper:
Tools needed
: Flathead screwdriver, clean rag, pliers.
Different tub drains
Push-Pull
Step 1:
The stopper can be in the "open" or "closed" position.
stopper removal instruction

Step 2:
Remove the knob on the top of the stopper. Hold the body of the stopper in place with one hand and with the other hand unscrew the knob by turning it counter-clockwise.

Note: If the knob will not unscrew, then wrap the rag around the knob and use the pliers to help remove the knob.
.


Click here for larger image
Step 3:

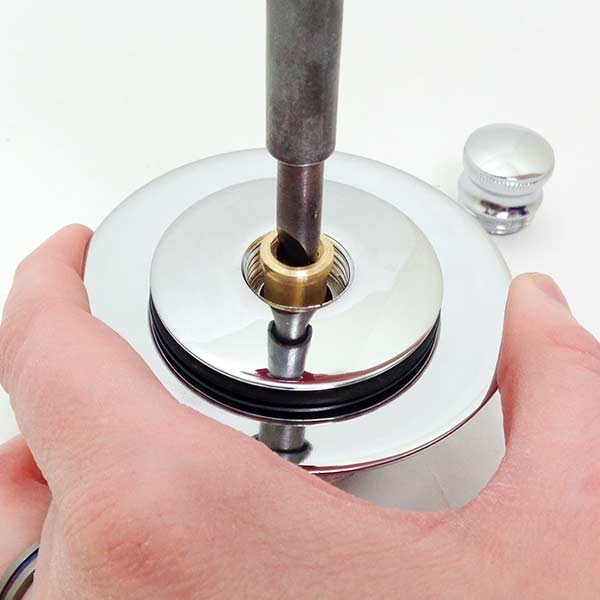

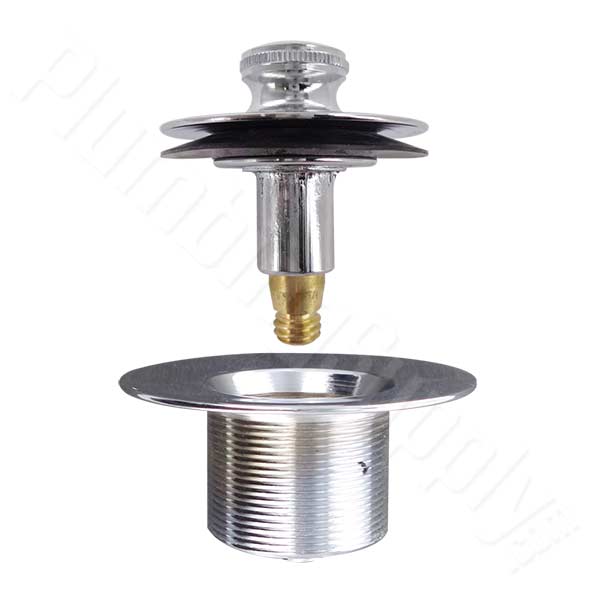

Use a flathead screwdriver to unscrew the brass insert (post) in the middle of the stopper by turning the post counter-clockwise. The post is threaded into the crossbar of the strainer
Step 4:
Lift the stopper off the strainer

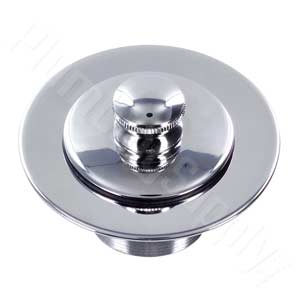

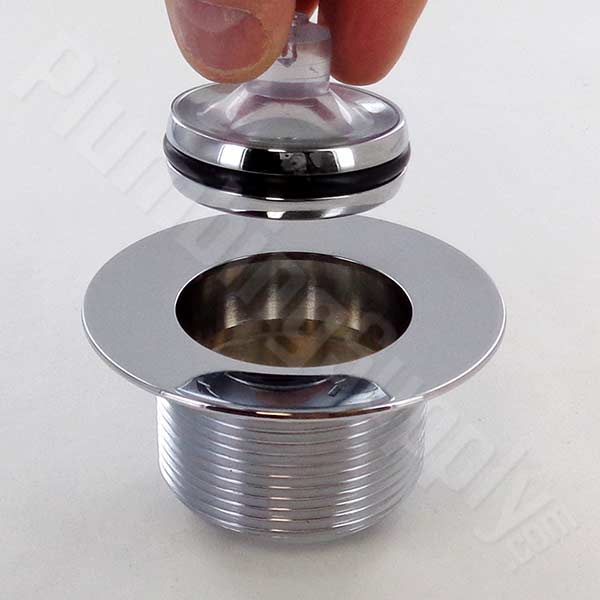

Removing a Lift & Turn Tub Stopper:
Tools needed
: Flathead screwdriver; set of Allen wrenches
Different tub drains
Lift & Turn
Step 1:
With the stopper in the "open" position (like you are emptying your tub), hold the body of the stopper and slowly turn the stopper knob and look for a visible set screw on the knob. If your stopper does not have a visible set screw on the knob then turn the stopper counter-clockwise until the stopper unthreads from the strainer and move on to Step 6.
Step 2:
If your stopper does not have a visible set screw on the stopper knob and does not unscrew then you may have one of two different styles of lift and turn stoppers. One will have a set screw beneath the stopper on the post shaft. With the stopper still in the "open" position, lift the stopper up. Turn it until you see a small screw. This will be the "set" screw and you can now proceed to Step 3.

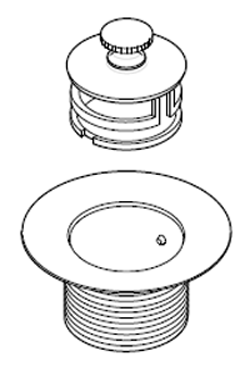

If you do not see a set screw then you may have a type of stopper that has a channel built-in around the stopper. There is a pin on the strainer that the channel rotates around to accomplish the lift and turn action. Lift the stopper and begin rotating the stopper slowly counter-clockwise until the slot at the bottom of the channel aligns with the pin on the strainer releasing the stopper to pull upwards.
Step 3:
Either a screwdriver or allen wrench is needed to loosen the set screw. Typically, you do not need to remove the screw entirely, simply loosen it enough to remove the stopper.
stopper removal instruction
Click here for larger image
Step 4:
Lift the stopper off the post. If your stopper has a set screw and will not pull off the post then try loosening the set screw a little more. If the set screw is removed and it will still not slide off the post, then there may be a calcium water build-up between the stopper and the post. You may wish to use a liquid wrench type solvent or exert more pressure since the stopper should lift off the post.
Step 5:
Once the stopper is lifted off of the post then unscrew the post from the strainer.
Step 6:
Lift off the stopper. If your stopper does not have a set screw and it does not lift off, but continues "spinning" without unscrewing, then the post threads could be stripped and you would need to exert upward pressure while unscrewing the stopper in hopes of unthreading it from the strainer. If this maneuver does not work then you will need to unscrew the bath waste flange from the drain pipe.

We recommend replacing Lift & Turn Stoppers with Push-Pull Stoppers as they are much easier to operate. All you have to do is pull up on the stopper to open it, but with lift & turn stoppers it can often be a hassle to find the right spot where the stopper will stay up or go back down.

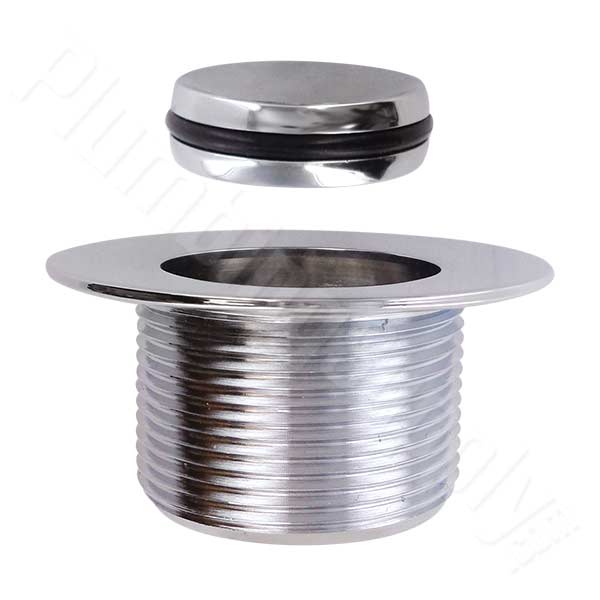

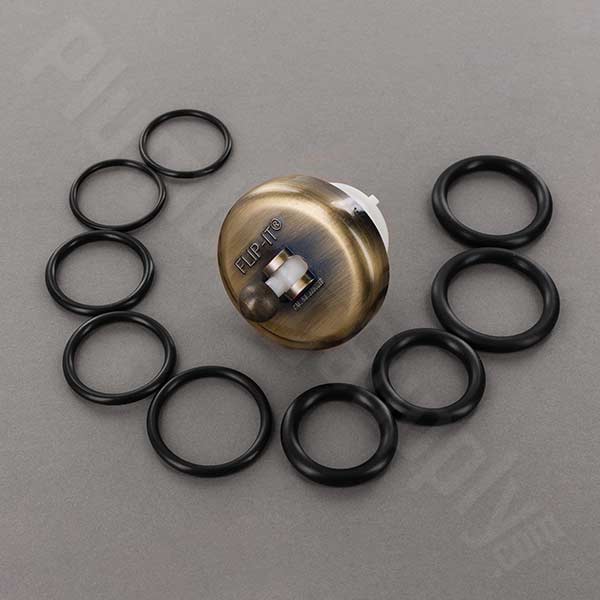

Removing a Flip-It Stopper:
Tools needed: None!

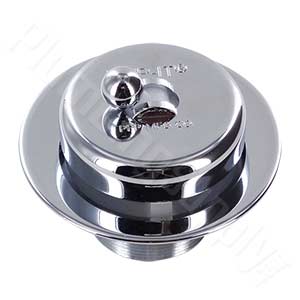

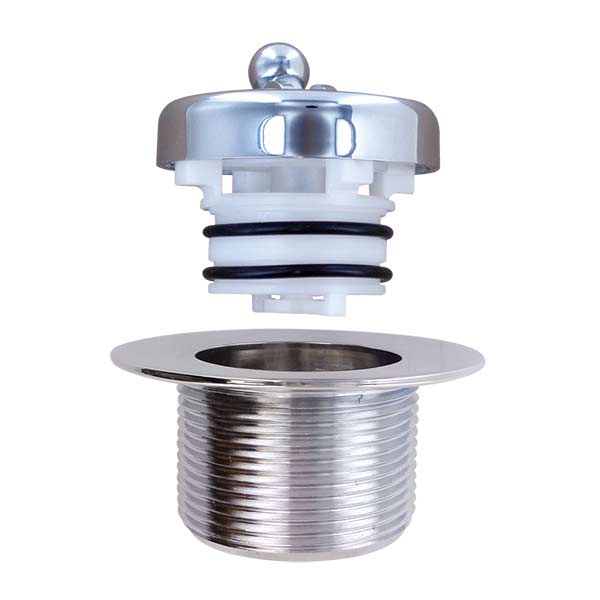

Flip-It tub drain stopper This is probably the easiest stopper to remove as all you'll need to do is pull it free from your drain!

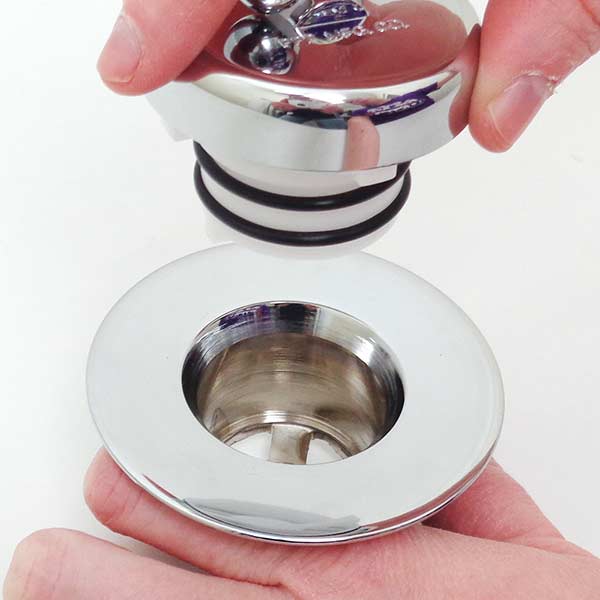

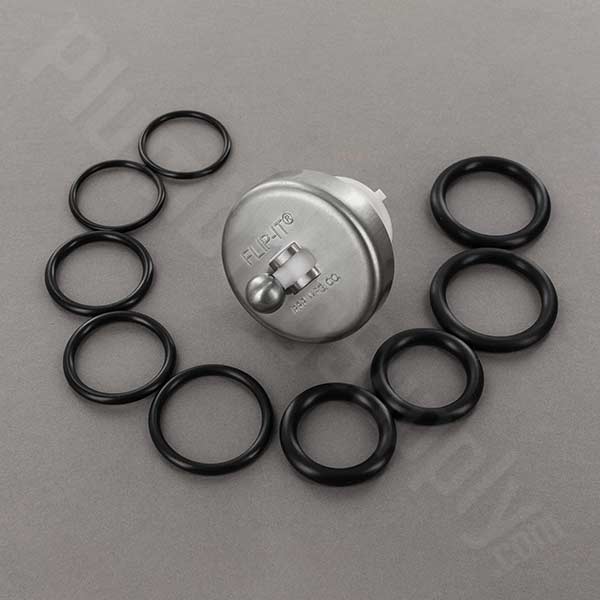

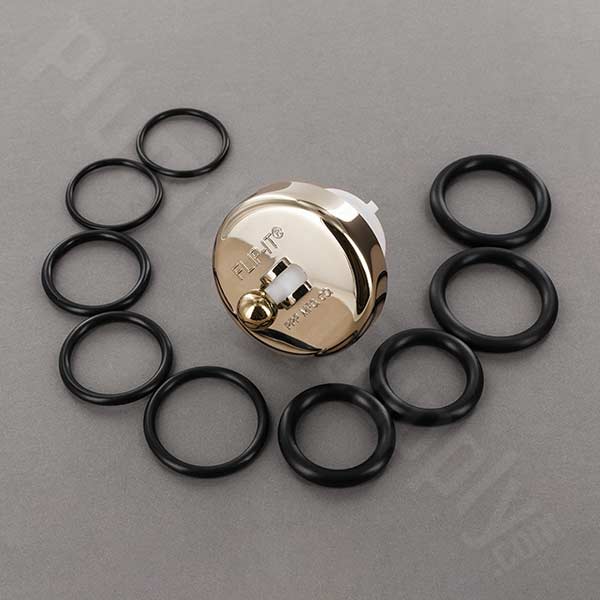

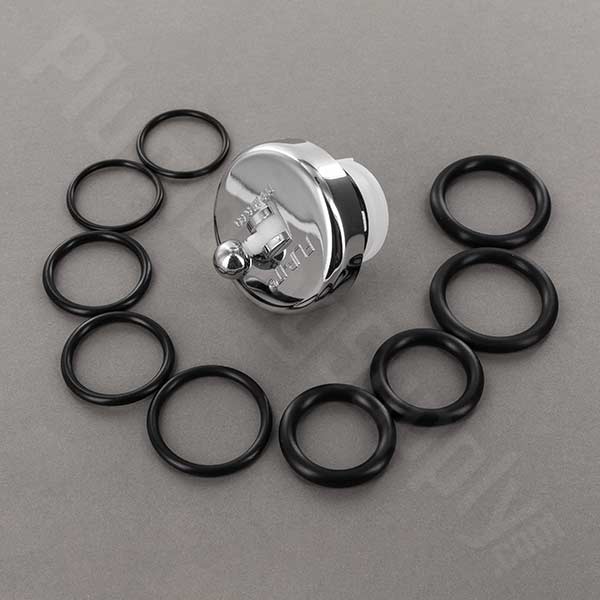

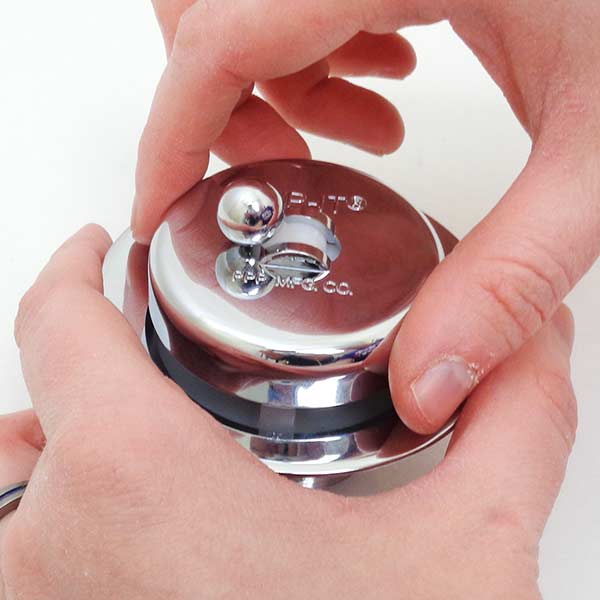

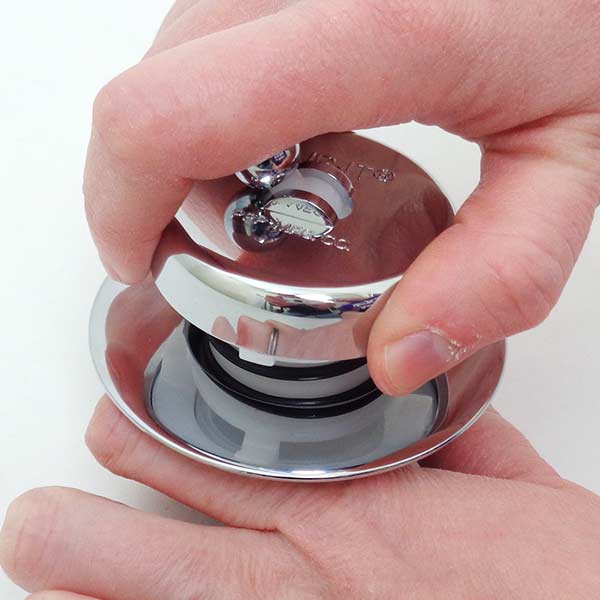

O-rings keep this Flip-It tub drain stopper in place. Gently grasp the outer chrome round body (not the toggle) and begin to rotate the stopper pulling upwards at the same time. It does not matter in which direction you rotate the stopper. Sometimes wiggling back and forth while pulling up may work as well.





Tools needed: Bucket, clean rag

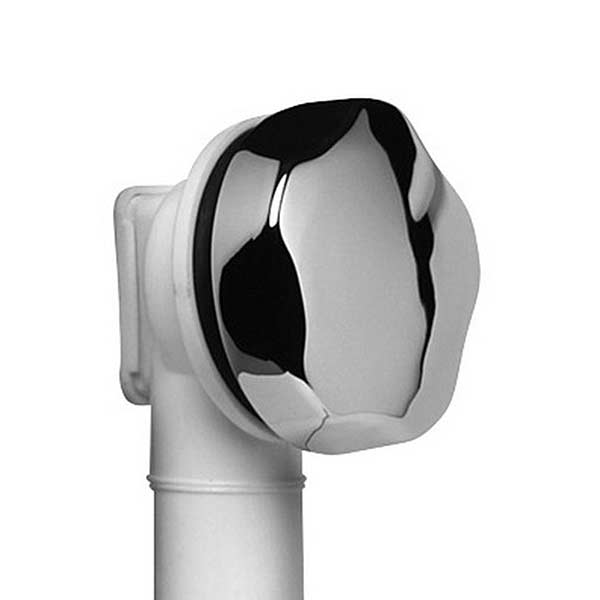

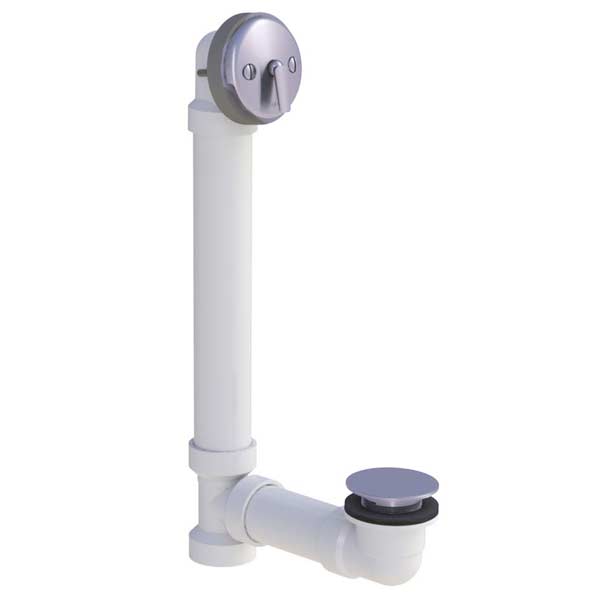

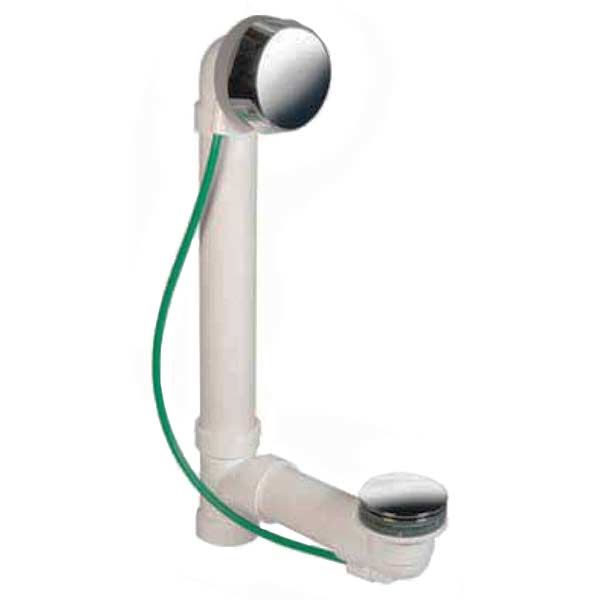

Pop-up tub drains have a stopper that is controlled by a mechanism on the overflow faceplate. Some overflow face plates have a trip lever that moves up and down. Some faceplates have a lever that rotates left or right. Many have entire faceplates that rotate like on some cable operated bath wastes.pop up tub drains
Step 1:
Flip the trip lever, or rotate the overflow faceplate, so that the stopper is in the open position.
Step 2:
Some pop-up stoppers pull straight up without much effort, and some must be wiggled back and forth when pulling up. Some stoppers have a "rocker arm" attached to the stopper requiring the stopper to be pulled up just enough to clear the drain and then immediately pulled horizontally away from the drain. If you have this type of stopper you will know it when you start to pull it up and see the attached arm underneath. You will want to put a clean rag on the bottom of the tub beginning at the drain to cover the tub and keep the rocker arm from scratching your tub.

This can often be messy as this portion of the drain usually has an accumulation of hair, soap and other debris. It's recommended you have a bucket handy to place these parts into. This helps to prevent any lost parts, damage to your tub and to keep your work area tidy.

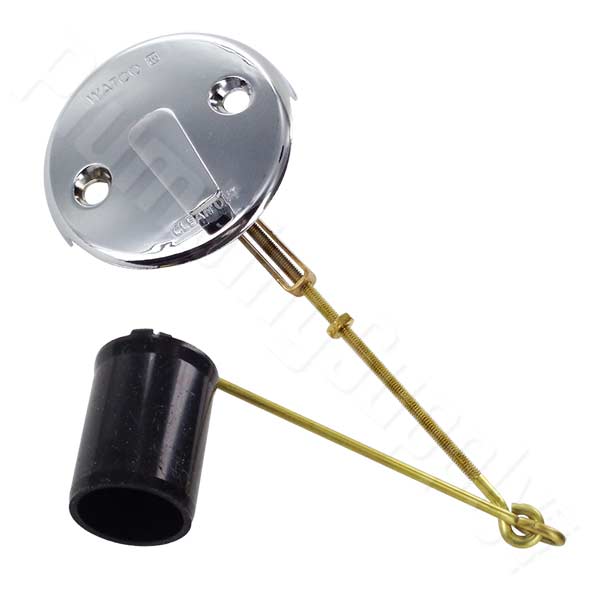

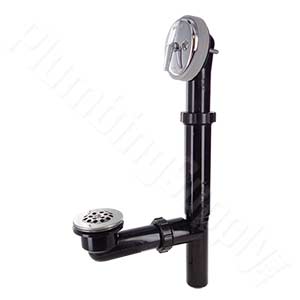

Removing the Trip Lever Plunger Style Stopper:

Tools needed: Screwdriver
watco trip lever waste and overflow assembly

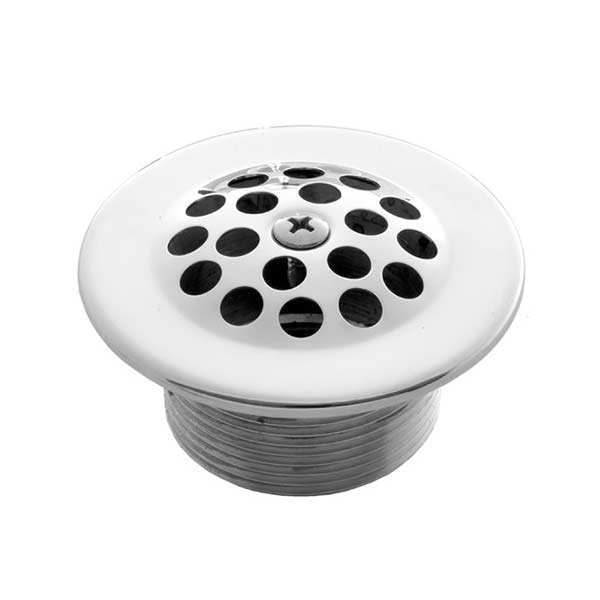

Plunger tub drains have a stopper located inside the waste and overflow pipe, and are activated using a Trip Lever or Turn Style overflow plate. Most will have a strainer plate covering the drain. This plate screws into the body of the drain, as shown in this example.

Trip Lever Plunger Style Stopper

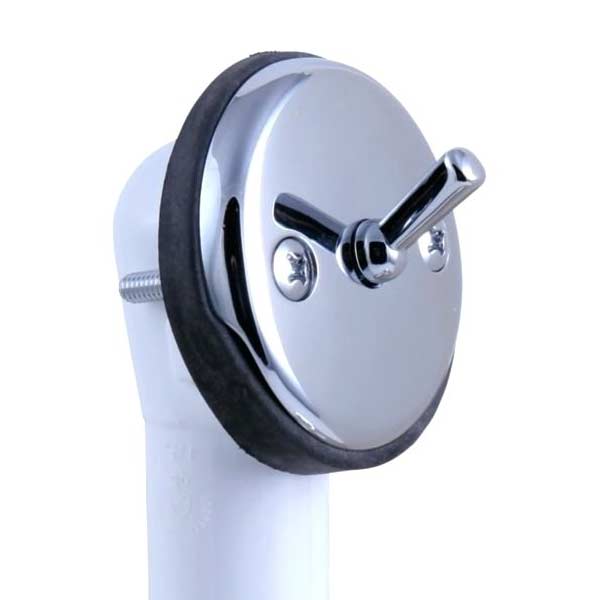

Step 1:
Locate the screws on the trip lever.

Step 2:
You will need to remove the screws from the cover plate of the trip lever, however, remove only one screw from the faceplate at first. With a screwdriver begin to slowly loosen and remove one of the screws, either one, your choice.

Step 3:
Once one of the screws is removed then hold the faceplate securely and begin to slowly remove the other screw. As the faceplate is loosened it will begin to swivel. As soon as the faceplate is loose enough to swing down and away (be careful not to scratch your tub) to reveal the opposite side screw hole, reinstall the first screw back into the now exposed overflow elbow just a few turns. This maneuver can help you in two ways. If your overflow elbow is loose it can keep the loose elbow and piping from disappearing behind the tub. It can also keep you from loosing the overflow washer that could fall down behind the tub. The overflow washer is normally installed directly behind the tub located between the overflow elbow and the tub.

Step 4:
Now remove the second screw completely while holding onto the faceplate.

Step 5:

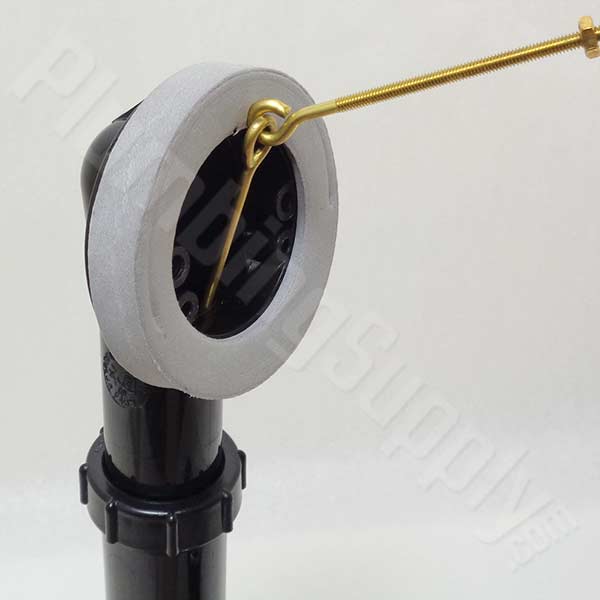

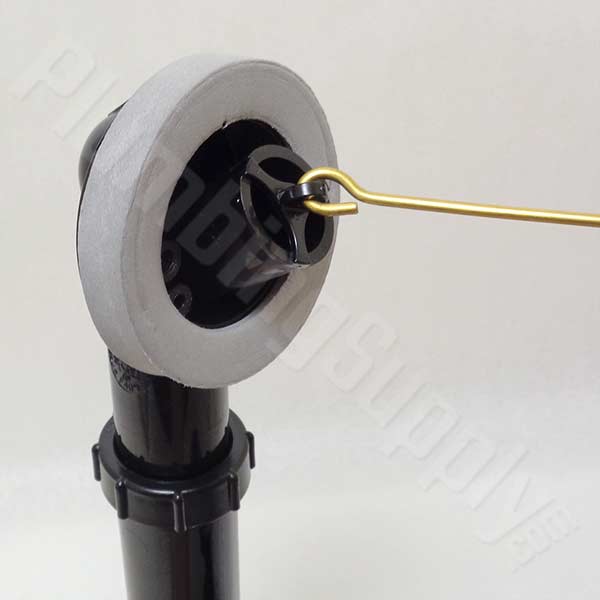

Pull the trip lever out and away from the tub wall, you may need to wiggle it a bit for it to come loose. With this type of tub drain, the stopper is actually inside the pipe, not at the drain opening.
Step 6:
The stopper, or plunger, can be adjusted by either tightening or loosening the adjustable linkage that connects the trip lever to the stopper. The stopper must be adjusted to the correct height in order for the bathtub to drain correctly.
  • If the stopper is too high, then the bathtub will not plug up completely and will allow water to slowly drain while the tub is plugged.
  • If the stopper is adjusted too low, when in the open position, the bathtub will drain very slowly as the stopper is partially blocking the drain opening. This may make it seem like there is a clog in the drain, since the tub is not draining well.
bucket rod assembly diagram
Click for larger image





Pat yourself on the back - you've successfully removed your tub stopper! Now you can easily clear clogged drains without the use of harsh chemical drain cleaners. Thank you for reading this article; we hope that you found it helpful.




Click here to view items already in your shopping cart

Click on the links below to view some items mentioned in this article
tub drain toolsTub Drain Tools
Universal Tub Drain Trim KitsUniversal Tub Drain Trim Kits
Small Drain CleanersSmall Drain Cleaners
bathtub drains and partsBathtub Drains and Parts
Tub Drain Trim KitsUnique Tub Drain Trim Kits
Stainless Steel Mesh StrainersStainless Steel Mesh Strainers



We hope that we have helped you on this page with information and education on how to remove a bath tub drain stopper.
Please note the information provided is intended to provide a basic knowledge of plumbing related repairs.
This information is general and may not suit all applications.
If you are at all unsure of your abilities to complete one of these projects, please consult a professional.
Always remember to check with local code authorities before beginning any project.
