Bathtub Drains and Tub Drain Parts

By Watco

Replacing or repairing your tub's drain/waste assembly is a snap with bathtub drain products made by Watco, offered by your source for drain products, PlumbingSupply.com. Whether you need to install a new waste and overflow, or you want to update the look of your old one, we have just what you need. From assemblies, to trim, to replacement stoppers and overflow plates, we've got it!

*Click on any of the links below to be directed to that section*
Overflow plates	Strainer bodies	Trip lever assembly kit	Push pull repair parts
Overflow plate screws	Strainer cover plates & screws	Trip lever repair parts	Overflow parts

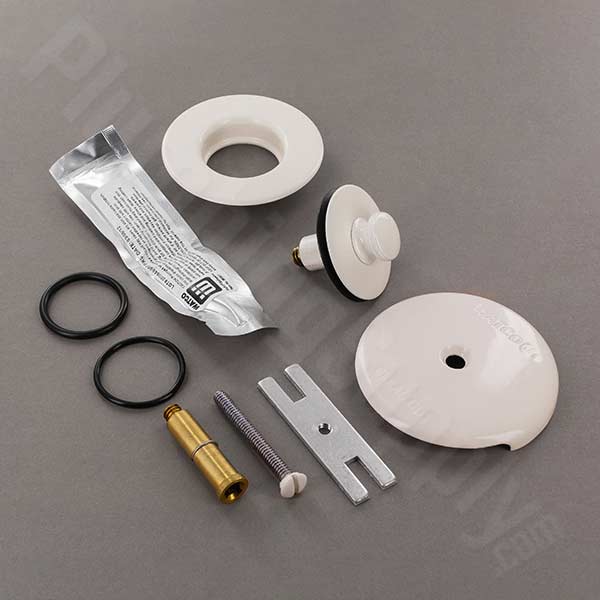

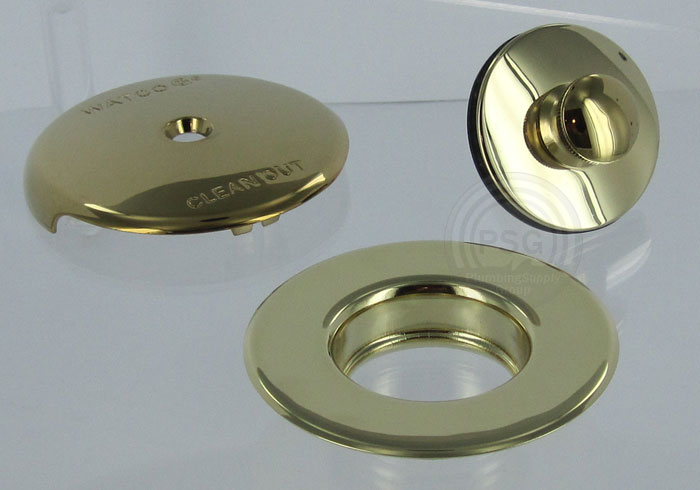

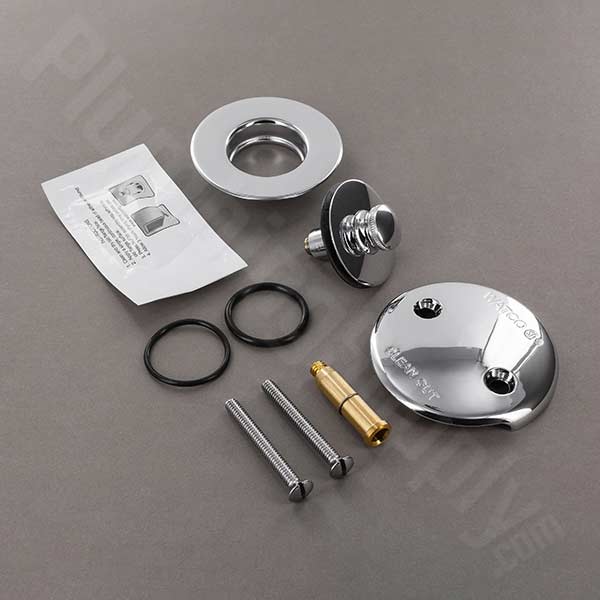

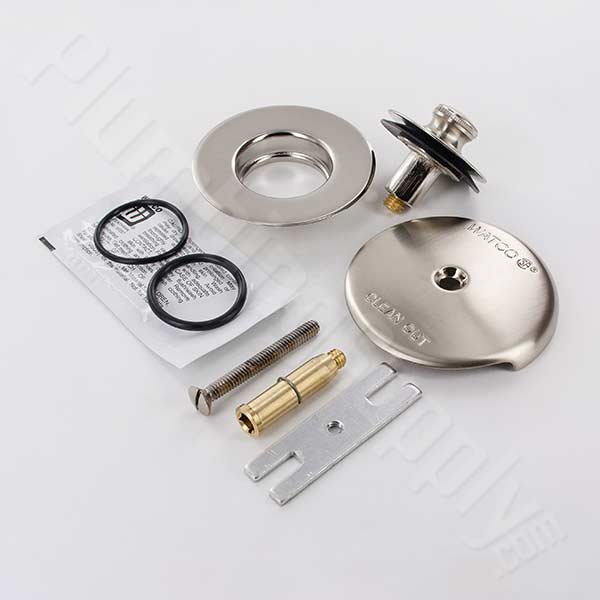

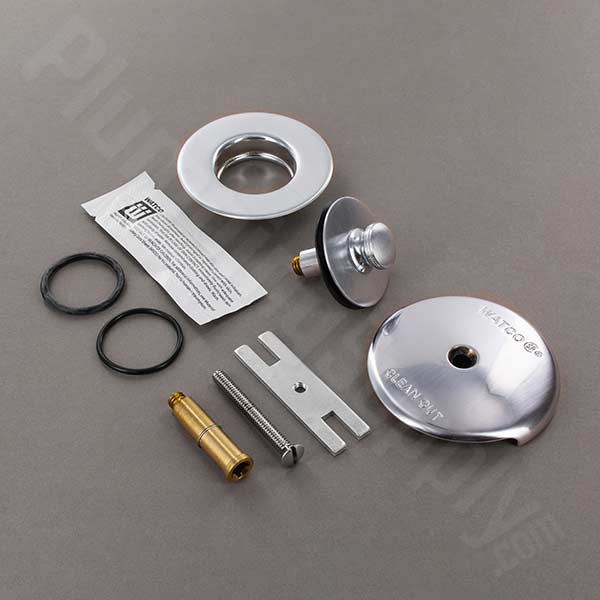

Universal Tub Drain Trim Kits
Fits most (not all) coarse-thread strainer bodies

Tub drain trim kit features & benefits:

Completely covers existing trim - no need to pull out existing strainer bodies - eliminates the labor required to remove and replace strainer body and the possibility of cross-threading
Trim kit cover is thin (.03") and will not create a water dam
Installs on the rough-in for a great look
No flow rate reduction
Includes o-ring for a snug fit
Includes silicon adhesive for strainer body
Push pull brass stopper with 3/8" & 5/16" pins - 1-1/4" length
• click here for stopper removal instructions
Available in many decorative finishes
Requires:
• 1.600" minimum I.D. opening
• 2.875" maximum O. D. flange
Click here to see how easy it is to install one of the great tub drain trim kits

Universal Tub Drain Trim Kits
Finish	Price & Quantity (Single Hole Overflow Plate)	Price & Quantity (Two Hole Overflow Plate)
Chrome	$25.29	$25.39
Bone	$50.11	$50.36
Biscuit	$50.43	$49.78
Polished Nickel	$49.86	$49.54
Polished Brass	$50.15	$49.85
White	$49.40	$49.98
Antique Brass	$52.74	$53.57
Brushed Nickel	$53.16	$53.41
Oil Rubbed Bronze	$53.59	$53.91
Brushed Chrome	$53.74	$53.27
Pearl Nickel	$53.43	$53.38
Aged Pewter	$76.13	$75.84
Wrought Iron	$75.18	$75.84
Brushed Bronze	$100.53	$100.63

Note: Please make sure this will work for your tub prior to ordering

- Or -

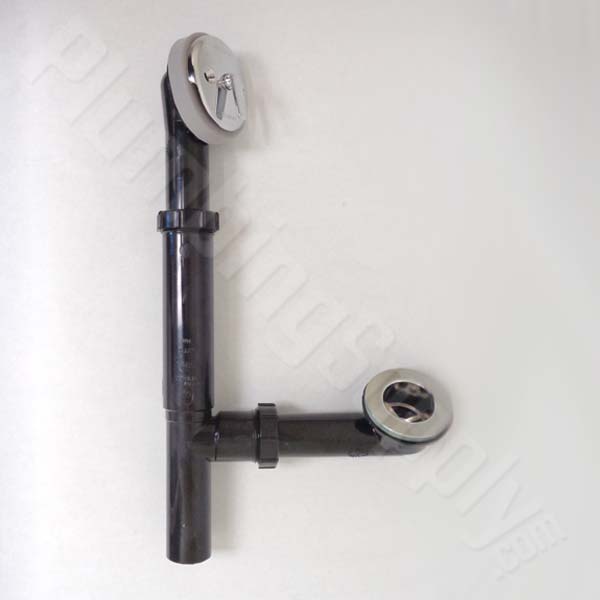

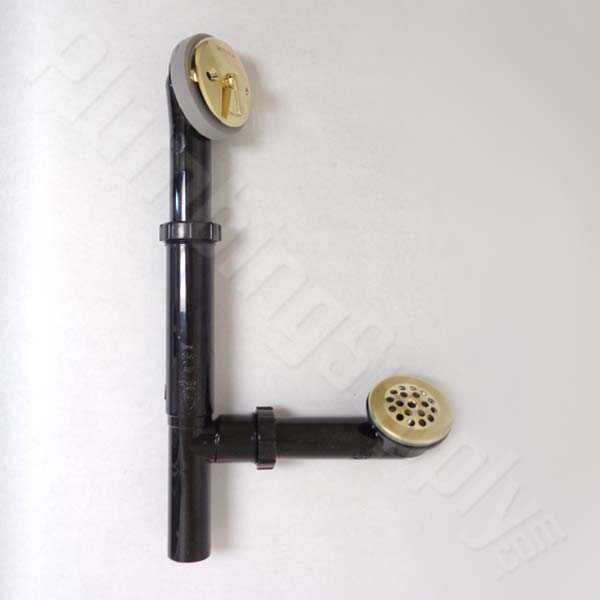

Trip Lever Waste & Overflow Assembly *Fit most tubs 14" - 16" high - 1-1/2" O. D. tubing**
	Model #	Finish	Price & Quantity
	500-TL-ABS-CP	Chrome	$21.38
	500-TL-ABS-PB	Polished Brass	$44.52
	*Measured from the bottom of the tub to the rim overflow Click here for 500-TL-ABS dimensions

- Or -

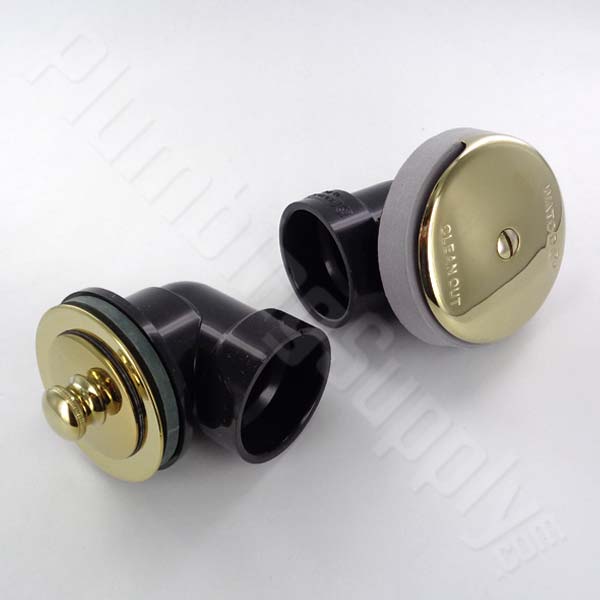

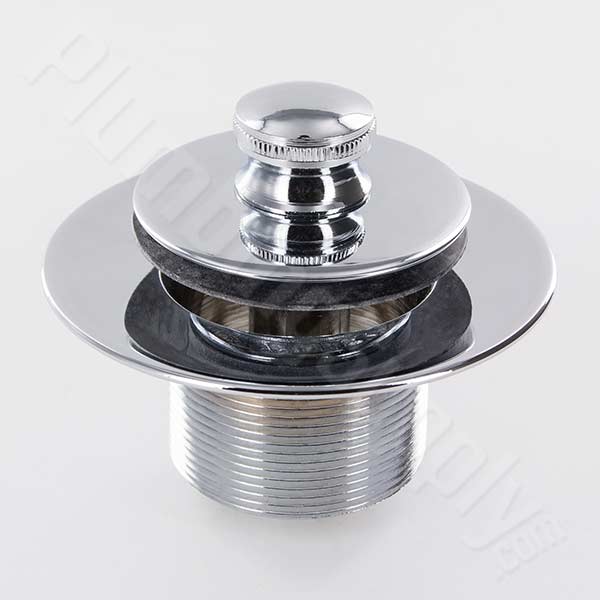

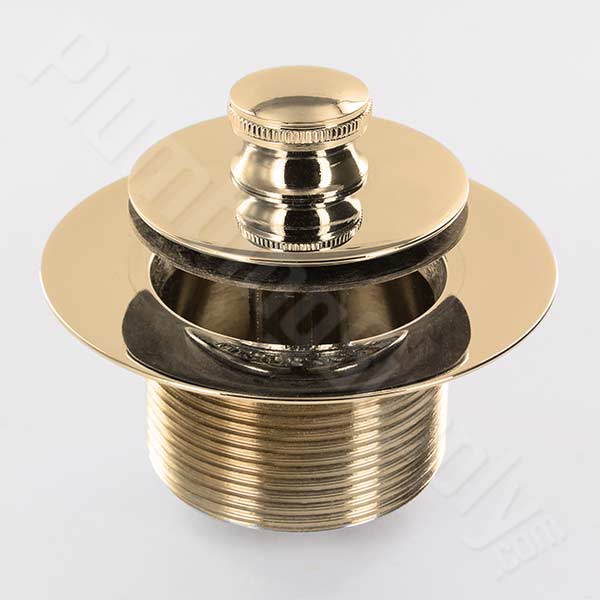

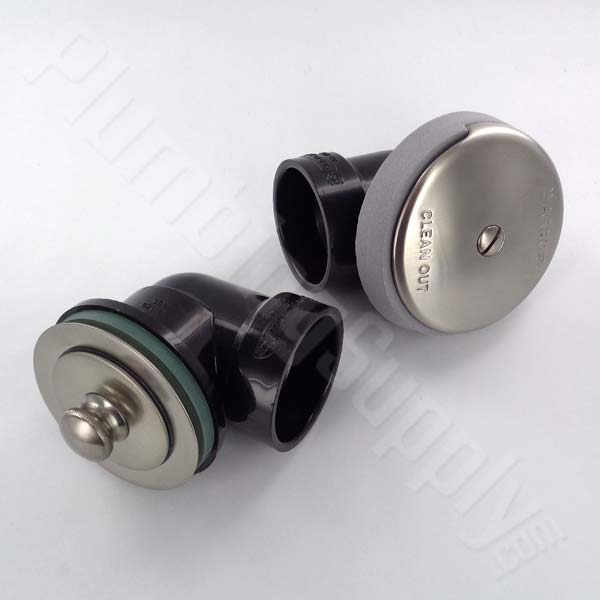

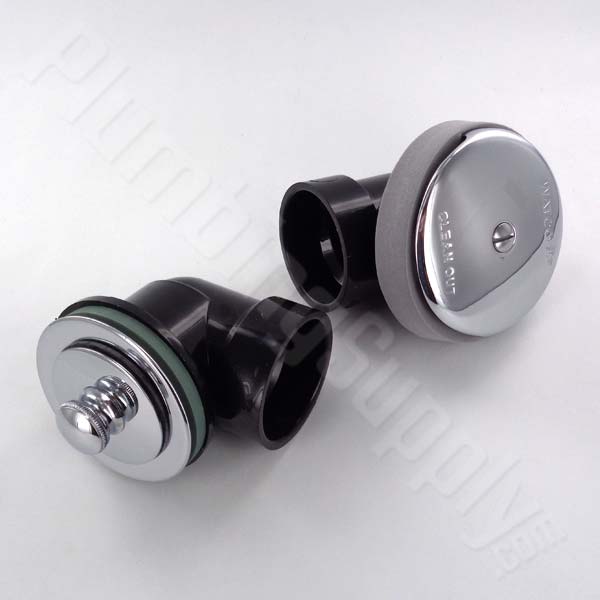

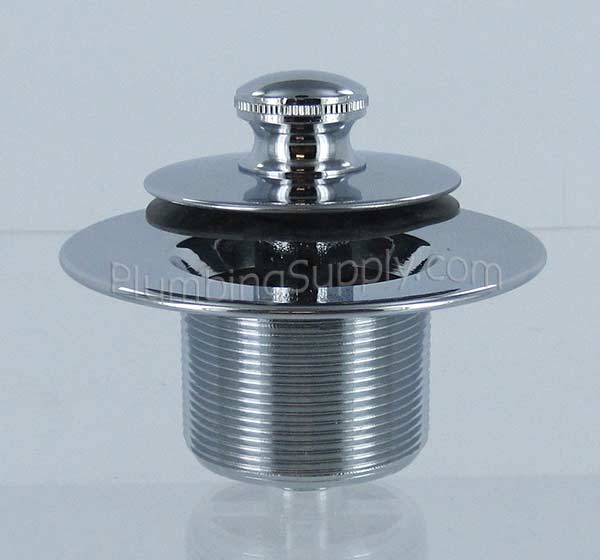

Push Pull Waste & Overflow Assembly Fit most tubs - 1-1/2" pipe/SAN tee not included single screw mount
	Model #	Finish	Price & Quantity
	601-PP-ABS-CP	Chrome	$21.36
	601-PP-ABS-PB	Polished Brass	$44.87
	601-PP-ABS-BN	Brushed Nickel	$53.70

- Or -

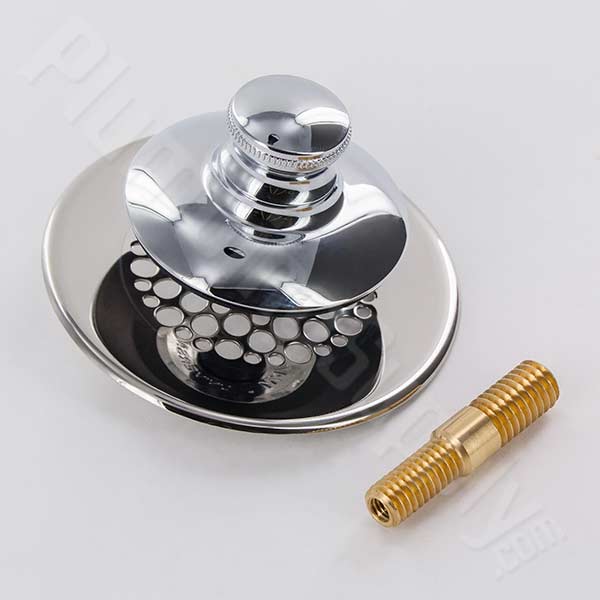

Push Pull Replacement Stoppers With 3/8" Pin
	Model #	Finish	Price & Quantity
	38610-CP	Chrome	$12.40
	38610-PB	Polished Brass	$22.06
	38610-BN	Brushed Nickel	$25.91
Click here for stopper removal instructions

- Or -

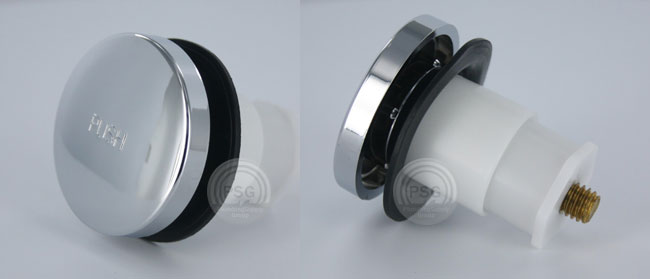

Foot Actuated Replacement Stopper with 3/8" Pin Fits Watco brand drain bodies #11491, #01016 and #01022
38412CP	Model #	Finish	Price & Quantity
	38412CP	Chrome	$7.42

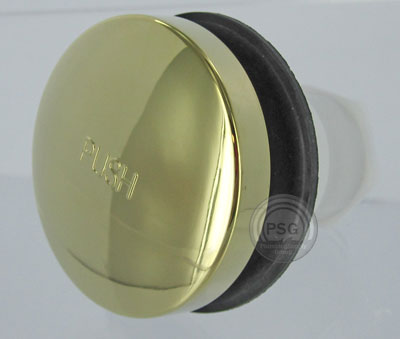

	38412PB	Polished Brass	$19.91

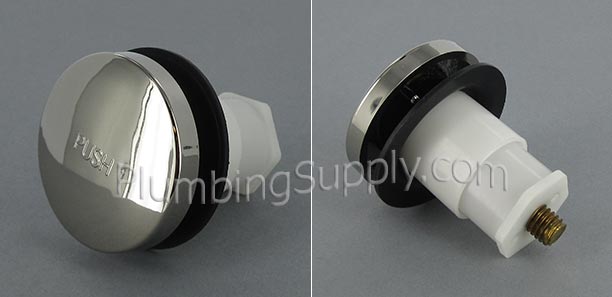

	38412NP	Polished Nickel	$20.54
	38412BN	Brushed Nickel	$20.60

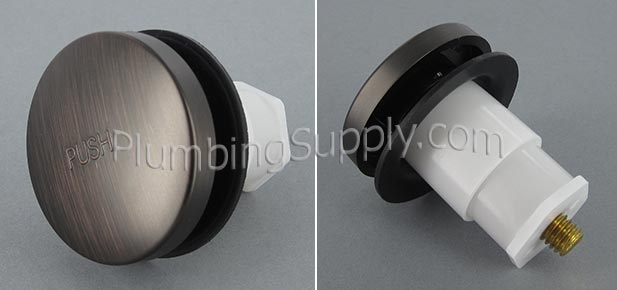

	38412BZ	Oil Rubbed Bronze	$20.48

- Or -

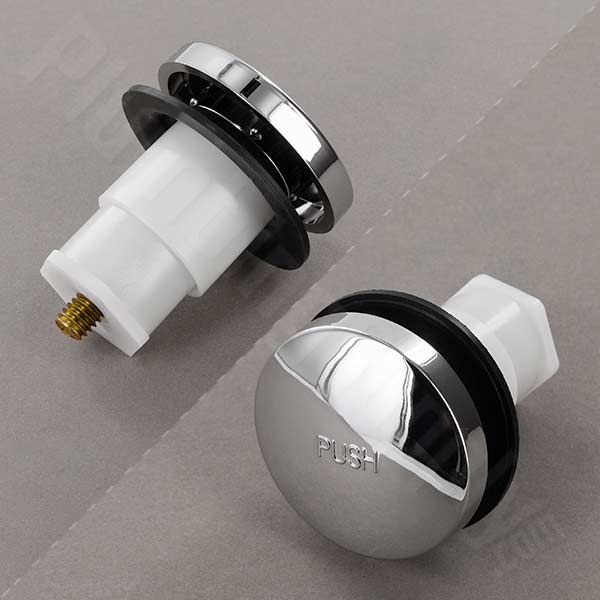

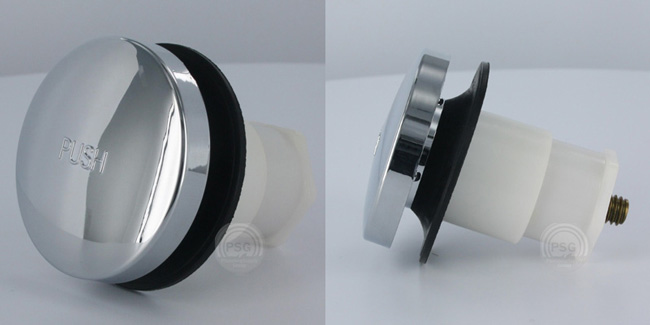

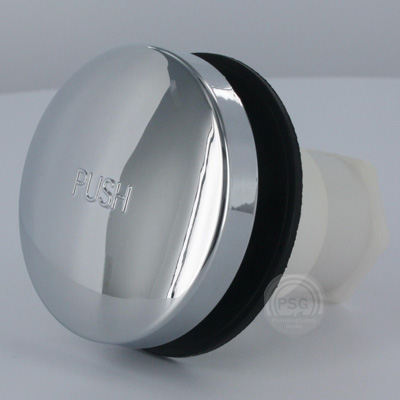

Foot Actuated Replacement Stopper with 5/16" Pin Will not fit Watco brand drain bodies
38410CP	Model #	Finish	Price & Quantity
38410CP	38410CP	Chrome	$7.40

- Or -

Parts & Accessories

Shown: 01003AB

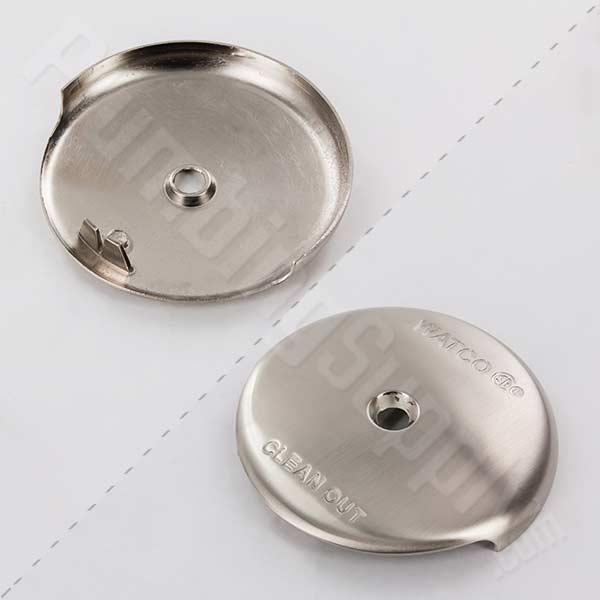

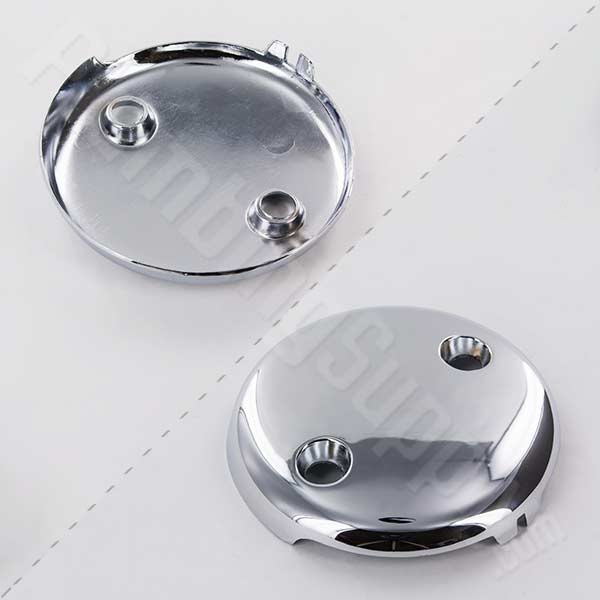

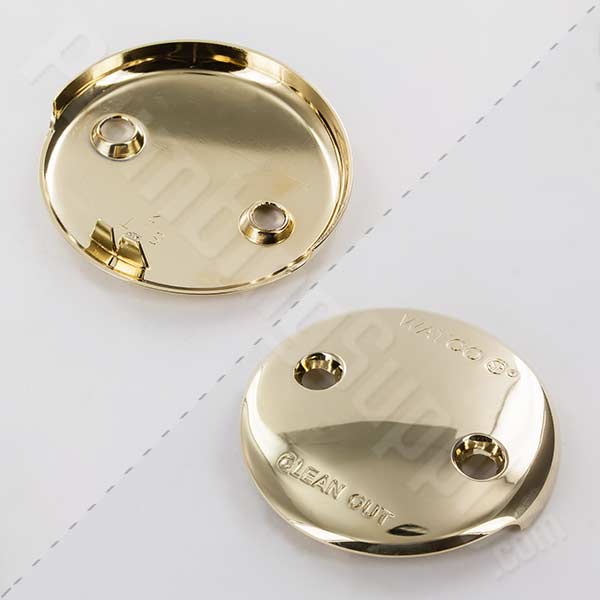

Metal Overflow Plates
Part #	Description	Finish	Price & Quantity

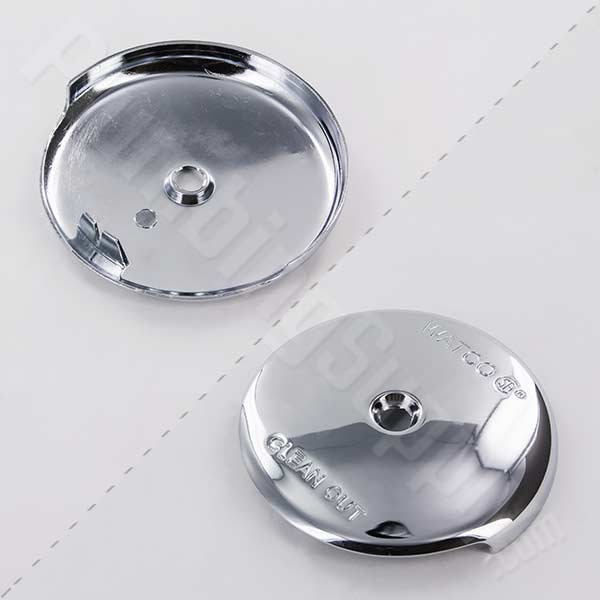

01002CP	This overflow cover plate features: 1 screw hole Uses one #01024CP screw sold seperately Brass construction	Chrome	$6.01
01002PV	This overflow cover plate features: 1 screw hole Uses one #01024PV screw sold seperately Brass construction	Polished Brass	$16.33

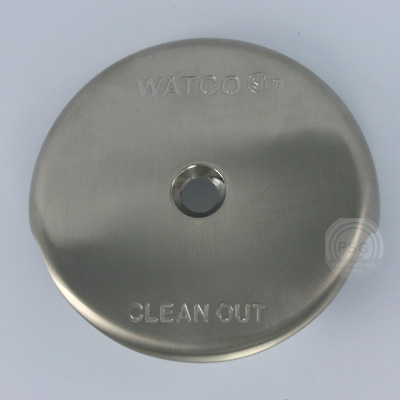

01002BN	This overflow cover plate features: 1 screw hole Uses one #01024BN screw sold seperately Brass construction	Brushed Nickel	$21.79
01002AB Image coming soon!	This overflow cover plate features: 1 screw hole Uses one #01024AB screw sold seperately Brass construction	Antique Brass	$21.90

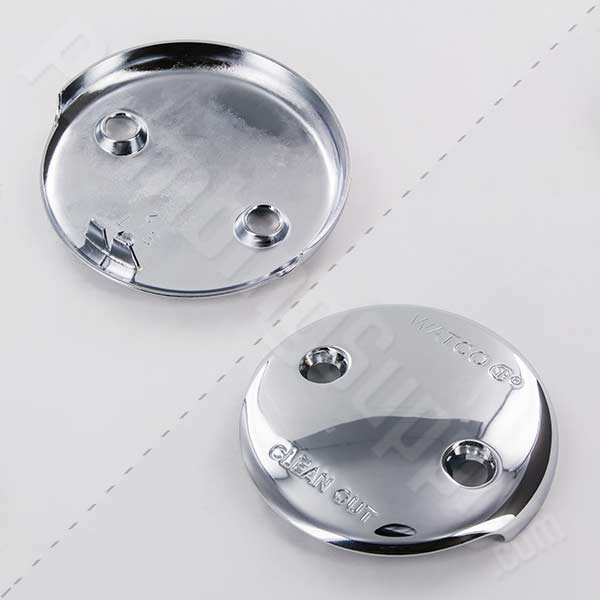

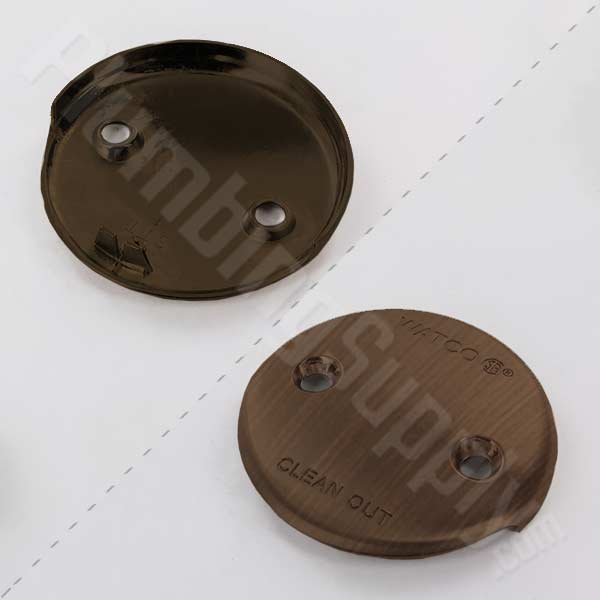

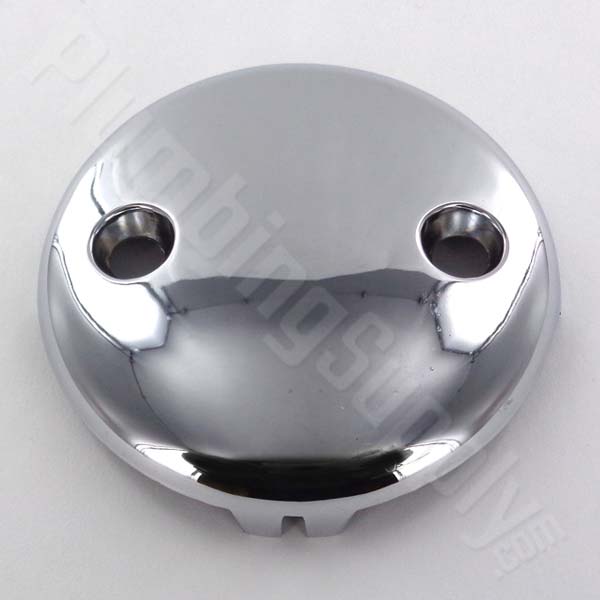

01003CP Image coming soon!	This overflow cover plate features: 2 screw holes Uses two #01024CP screws sold seperately Brass construction	Chrome	$8.03
WILL-FIT Same as 01003CP Image coming soon!	This budget overflow cover plate features: A durable brass construction "Will fit" Watco overflows No markings/imprints Uses two #01024CP screws sold seperately	Chrome	$2.65

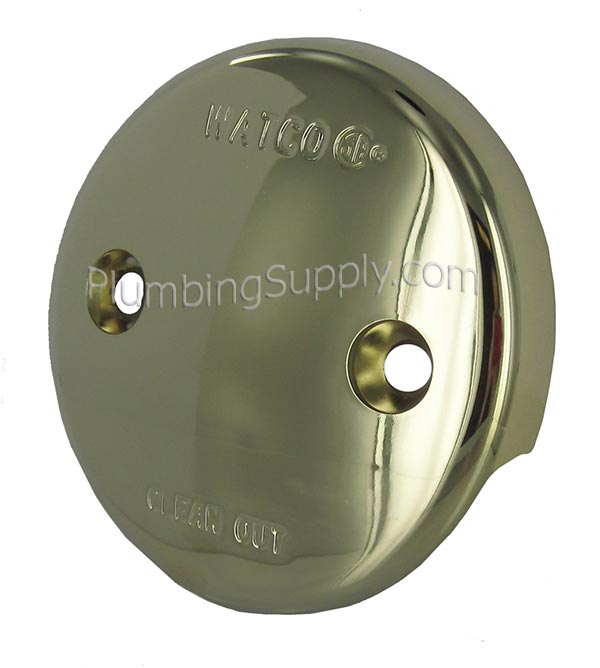

01003PV Image coming soon!	This overflow cover plate features: 2 screw holes Uses two #01024PV screws sold seperately Brass construction	Polished Brass	$19.21

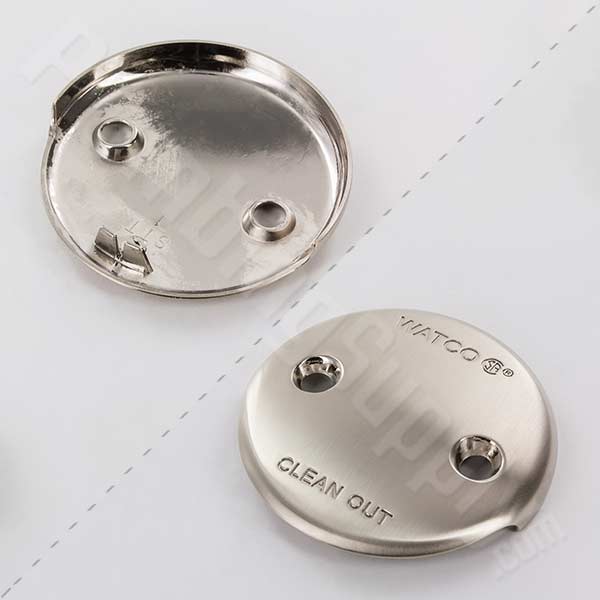

01003BN	This overflow cover plate features: 2 screw holes Uses two #01024BN screws sold seperately Brass construction	Brushed Nickel	$25.17

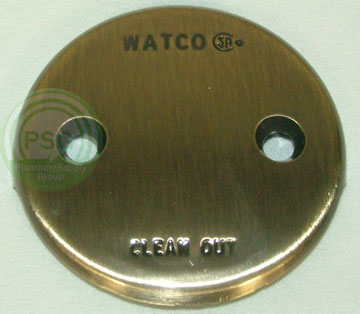

01003AB	This Overflow Cover Plate features: 2 screw holes Uses two #01024AB screws sold seperately Brass construction	Antique Brass	$24.40

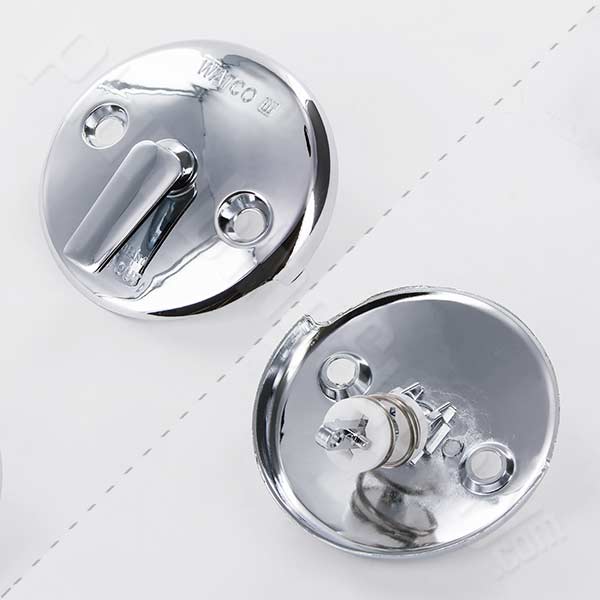

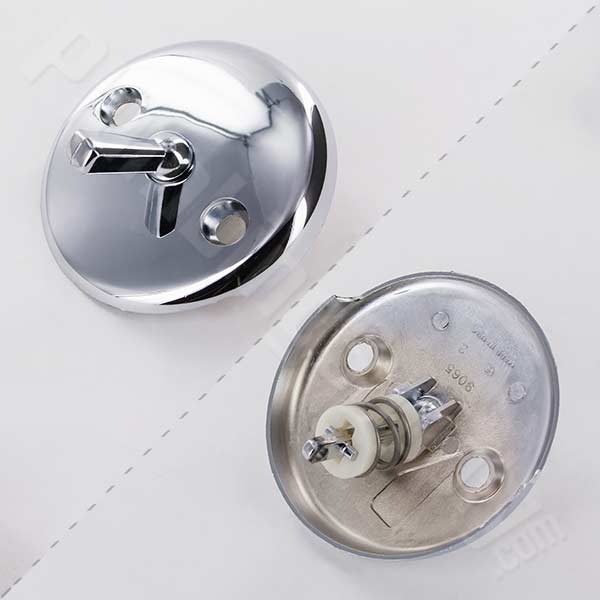

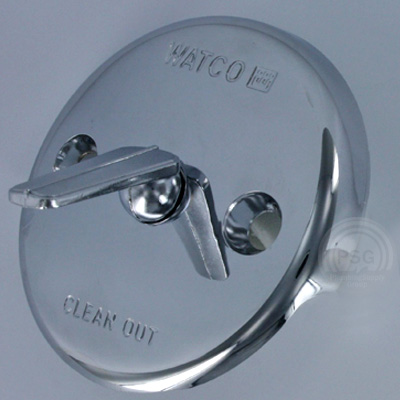

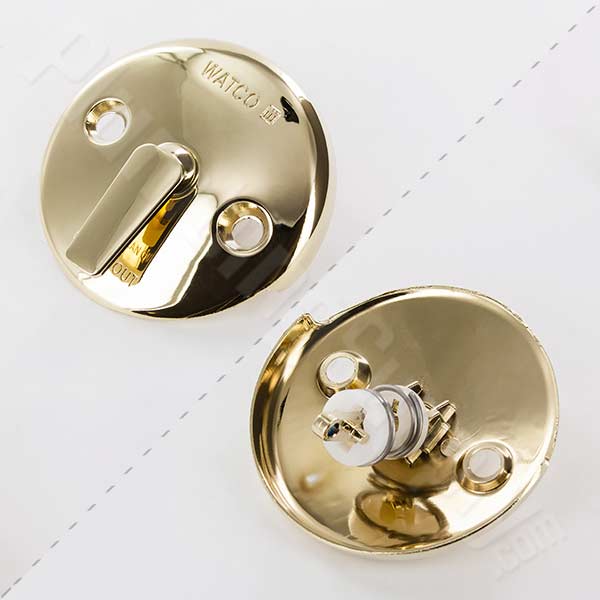

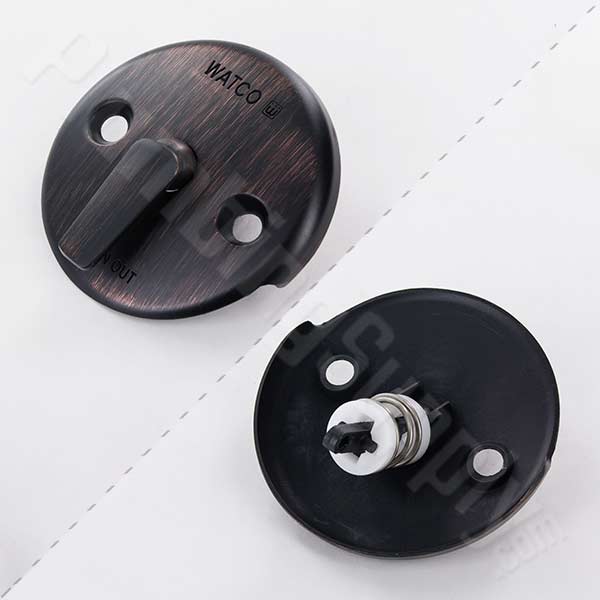

10700CP	This trip lever overflow plate features: 2 screw holes Uses two #01024CP screws sold seperately Brass construction	Chrome	$5.96

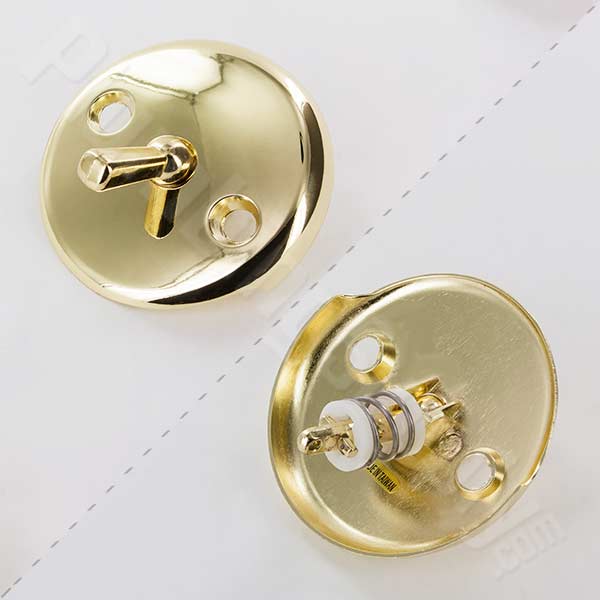

TRIPCHR	This "WILL-FIT" budget trip lever overflow plate features: A durable brass construction Uses two #01024CP screws sold seperately No markings/imprints "Will fit" Watco trip levers	Chrome	$3.98
10700PV	This trip lever overflow plate features: 2 screw holes Uses two #01024PB screws sold seperately Brass construction	Polished Brass	$21.25
TRIPPB	This "WILL-FIT" budget trip lever overflow plate features: No markings/imprints 2 screw holes Includes two screws Brass construction Not Watco brand Fits Watco trip levers	Chrome	$9.98

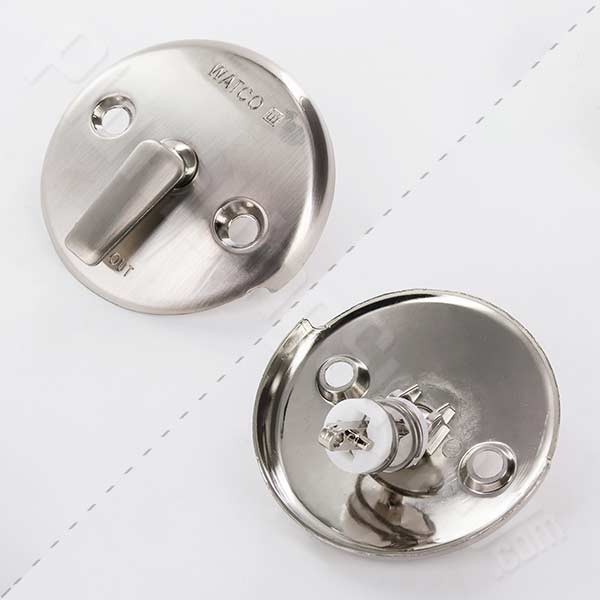

10700BN	This trip lever overflow plate features: 2 screw holes Uses two #01024PB screws sold seperately Brass construction	Brushed Nickel	$21.99

- Or -

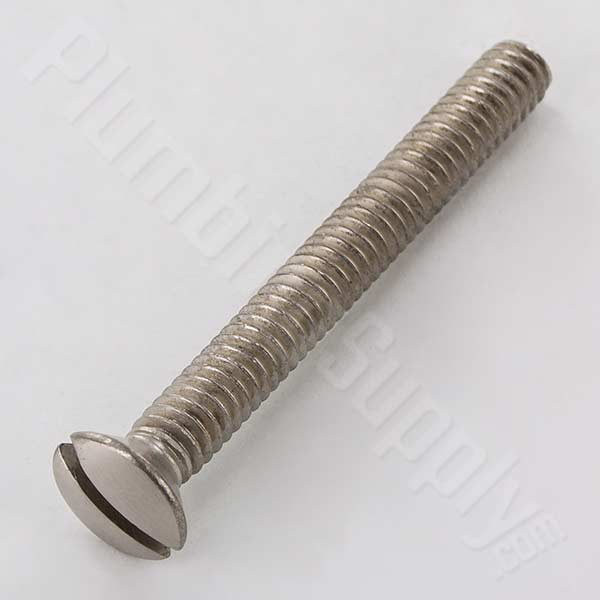

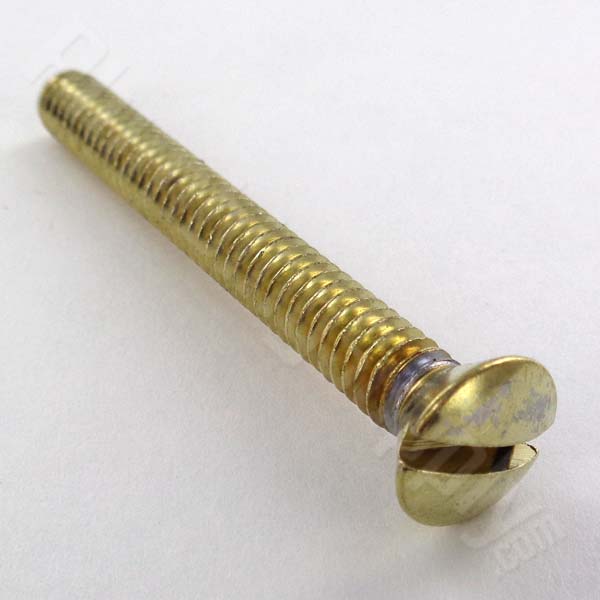

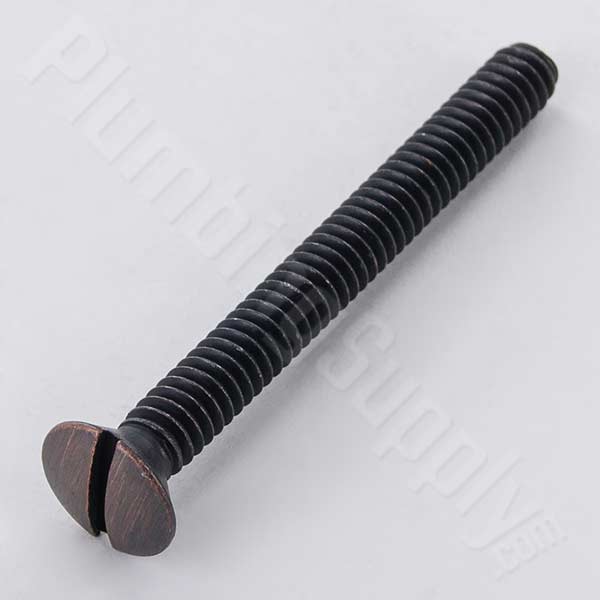

Overflow Plate Screws
Part #	Description	Finish	Price & Quantity

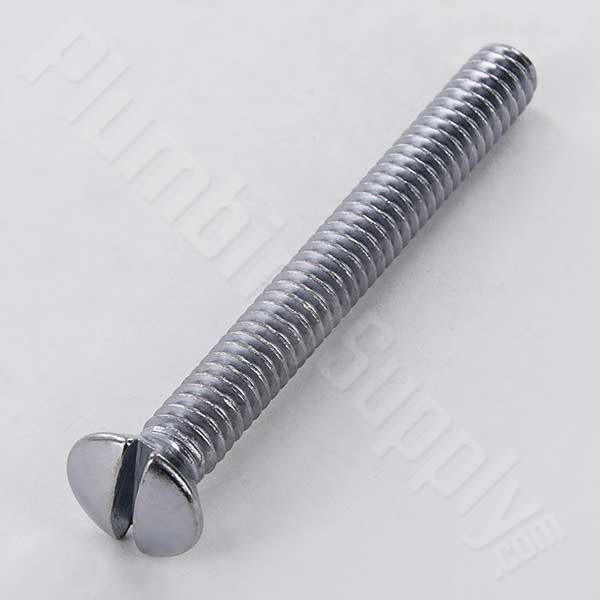

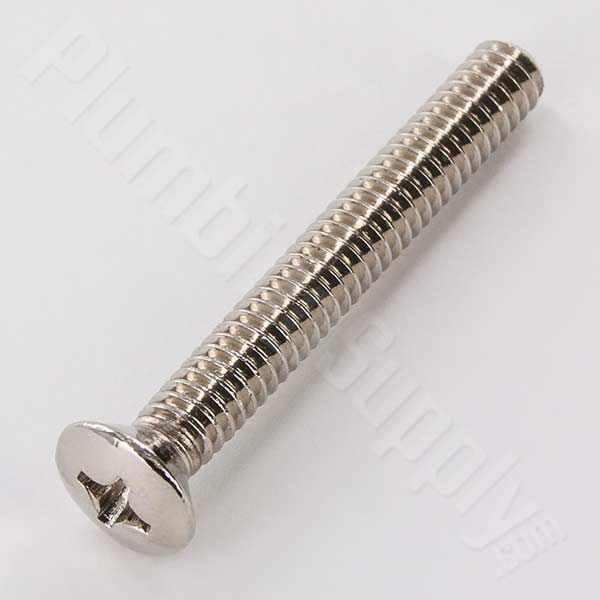

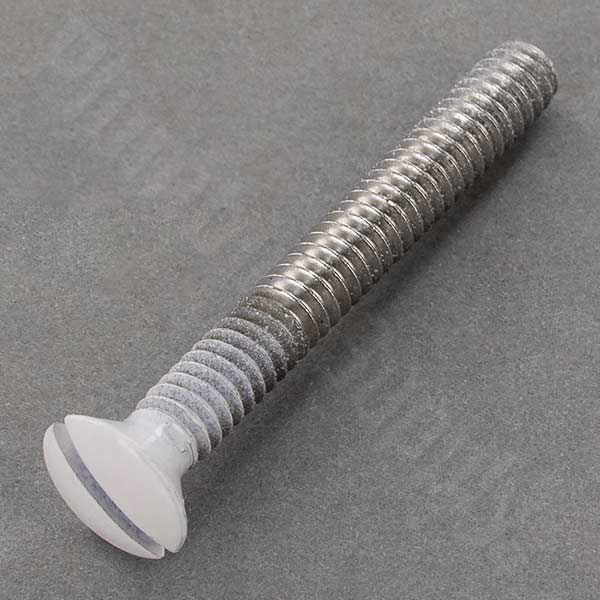

01024CP	Overflow and trip lever plate screw: Fits one and two-hole overflow plates Fits two-hole trip lever overflow plates Brass construction 2 1/4" length	Chrome	$1.80
01024PV	Overflow and trip lever plate screw: Fits one and two-hole overflow plates Fits two-hole trip lever overflow plates Brass construction 2 1/4" length	Polished Brass	$2.79
01024AB	Overflow and trip lever plate screw: Fits one and two-hole overflow plates Fits two-hole trip lever overflow plates Brass construction 2 1/4" length	Antique Brass	$2.80
01024BN	Overflow and trip lever plate screw: Fits one and two-hole overflow plates Fits two-hole trip lever overflow plates Brass construction 2 1/4" length	Brushed Nickel	$2.79

- Or -

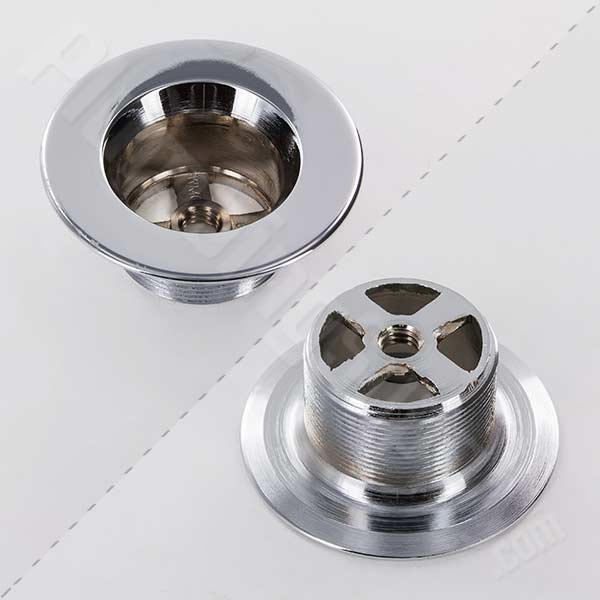

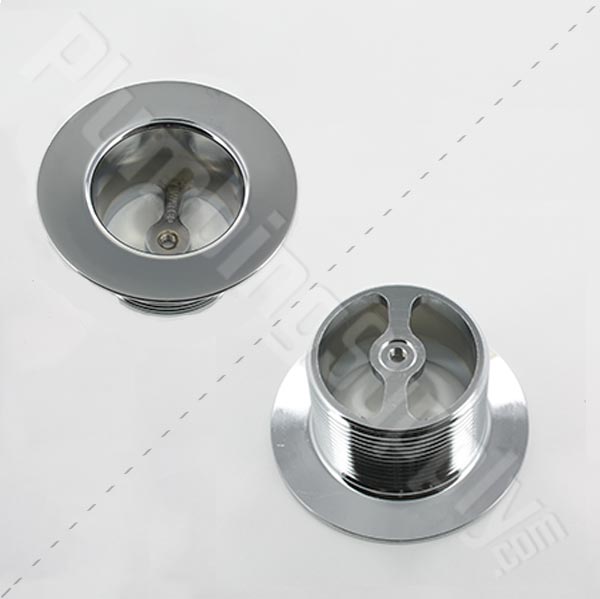

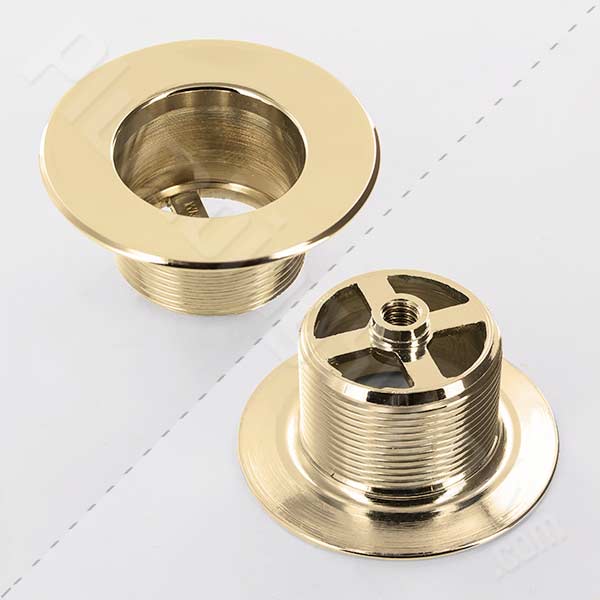

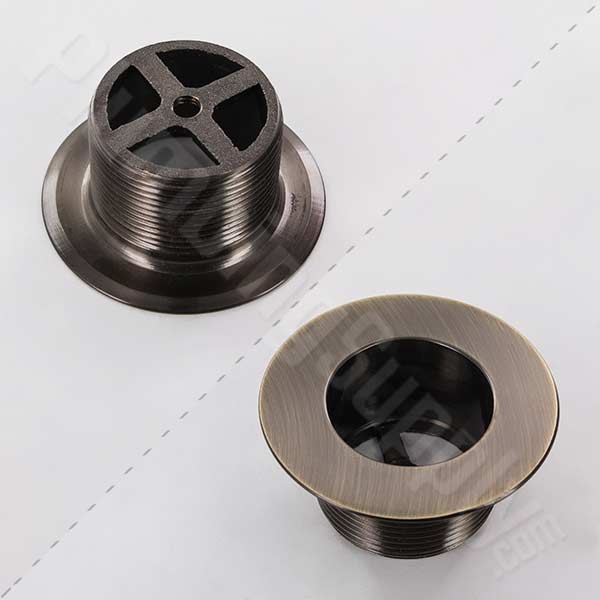

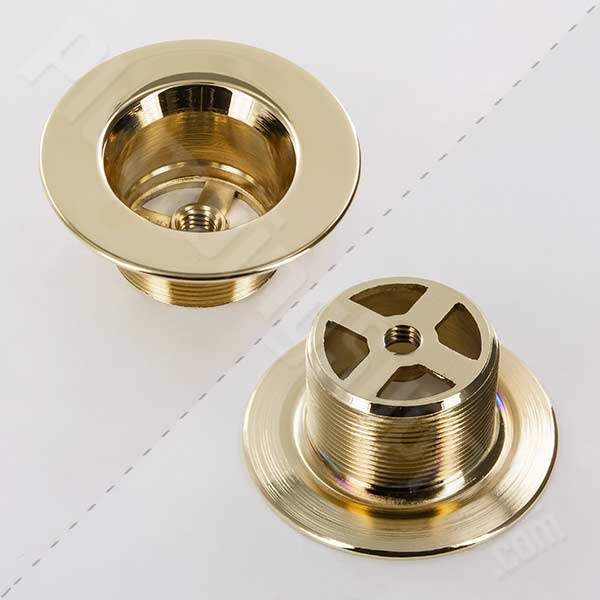

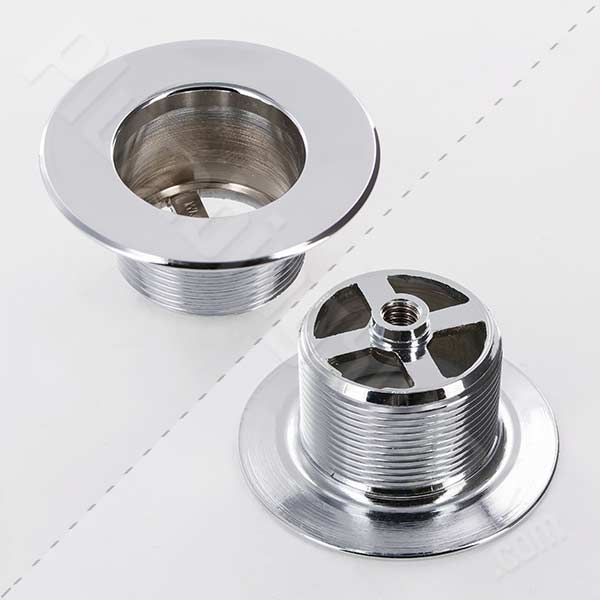

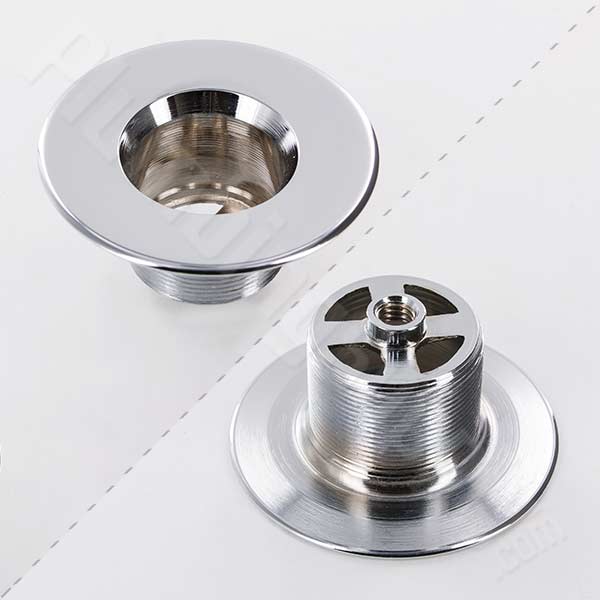

Strainer Bodies
Part #	Description	Finish	Price & Quantity

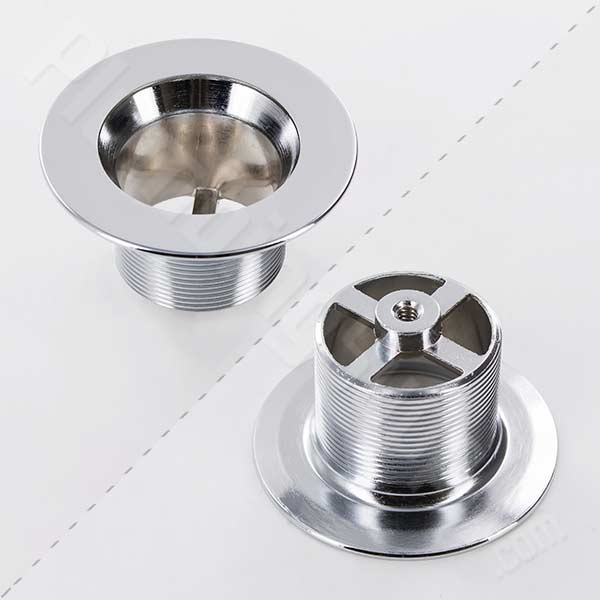

11490CP	This strainer body features: For trip lever, slip lock trip lever, quick adjust trip lever and turnstyle drain closures Accepts strainer plate #01040 and strainer screw #01006 Fine threads Thread count: 16 threads per each 1.25" Outside diameter of rim: 1.625" Brass construction	Chrome	$7.95
11495CP	This strainer body features: For trip lever, slip lock trip lever, quick adjust trip lever and turnstyle drain closures Accepts strainer plate #01040 and strainer screw #01006 Coarse threads Thread count: 11-1/2 threads per each 1.25" Outside diameter of Rim: 1.865" Brass construction	Chrome	$5.51

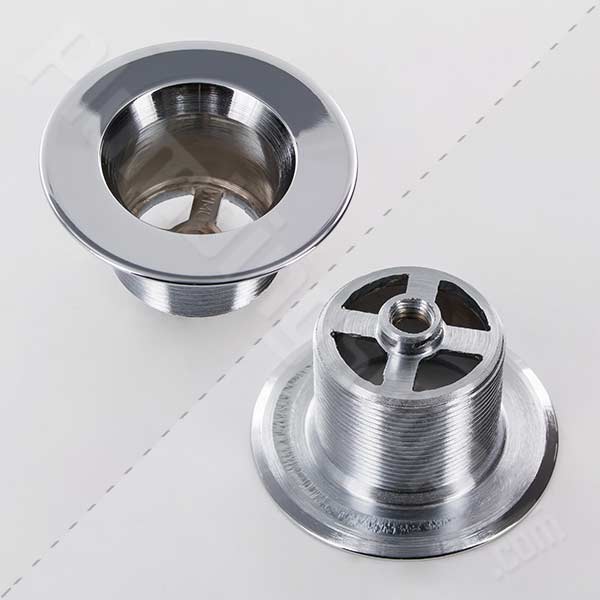

01022CP	This strainer body features: For lift and turn, push pull and foot actuated drain closures Accepts stopper #38610 Fine threads Thread count: 16 threads per each 1.25" Outside diameter of rim: 1.625" Brass construction	Chrome	$9.04

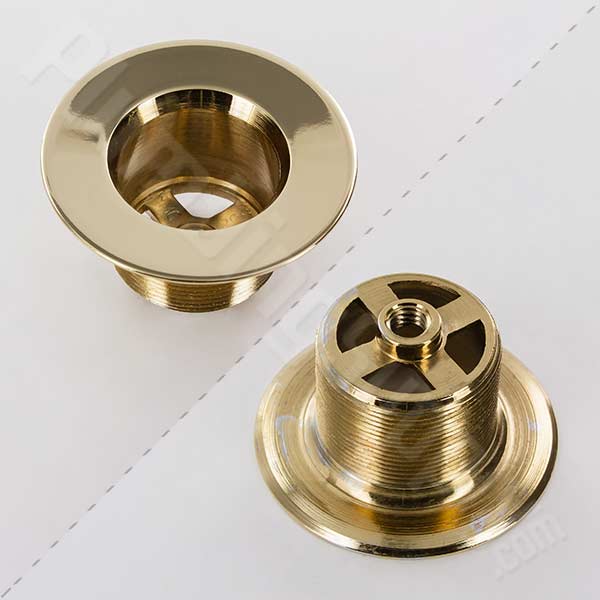

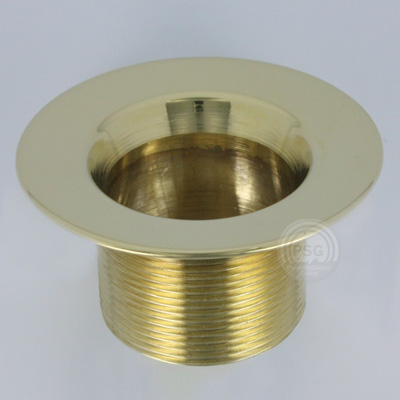

01022PV	This strainer body features: For lift and turn, push pull and foot actuated drain closures Accepts stopper #38610 Fine threads Thread count: 16 threads per each 1.25" Outside diameter of rim: 1.625" Brass construction	Polished Brass	$15.99

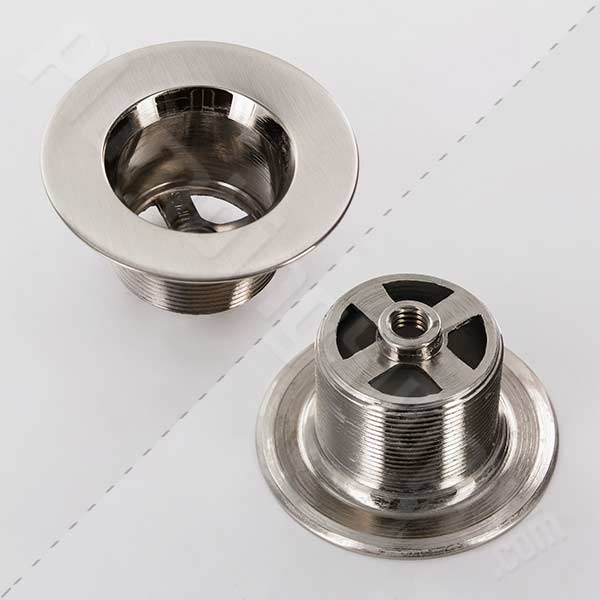

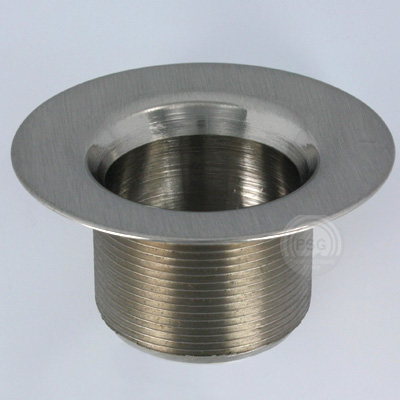

01022BN	This strainer body features: For lift and turn, push pull and foot actuated drain closures Accepts stopper #38610 Fine threads Thread count: 16 threads per each 1.25" Outside diameter of rim: 1.625" Brass construction	Brushed Nickel	$18.82

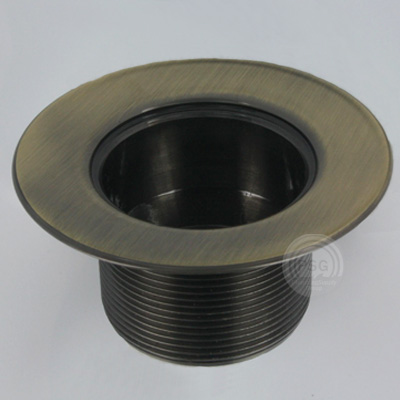

01022AB	This strainer body features: For lift and turn, push pull and foot actuated drain closures Accepts stopper #38610 Fine threads Thread count: 16 threads per each 1.25" Outside diameter of rim: 1.625" Brass construction	Antique Brass	$18.75

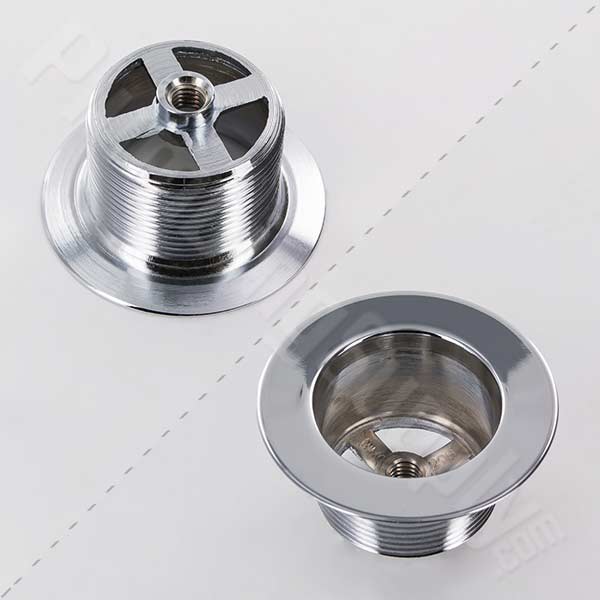

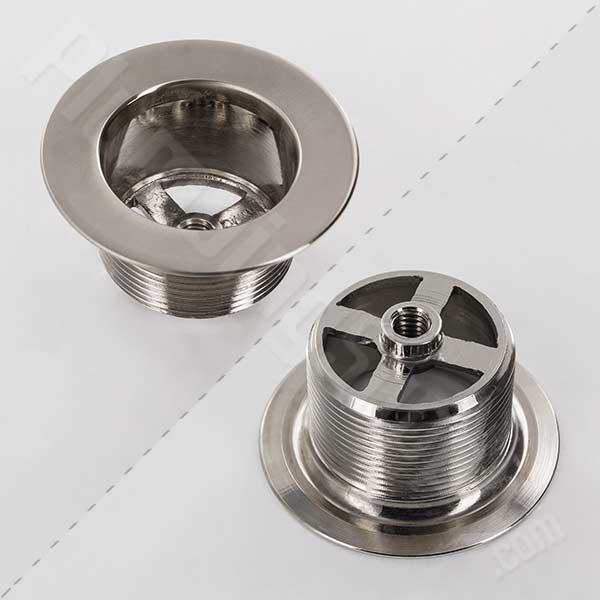

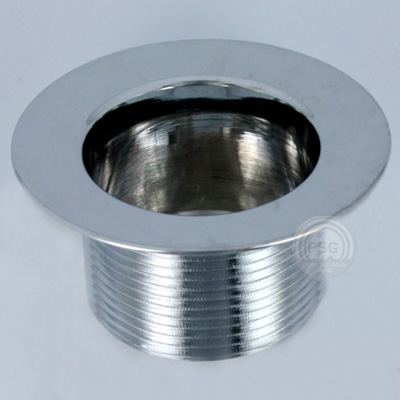

01016CP	This strainer body features: For lift and turn, push pull and foot actuated drain closures Accepts stopper #38610 Coarse threads Thread count: 11 1/2 threads per each 1.25" Outside diameter of rim: 1.865" Brass construction	Chrome	$9.03

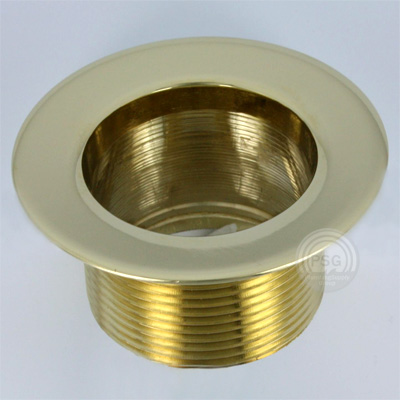

01016PV	This strainer body features: For lift and turn, push pull and foot actuated drain closures Accepts stopper #38610 Coarse threads Thread count: 11 1/2 threads per each 1.25" Outside diameter of rim: 1.865" Brass construction	Polished Brass	$15.88

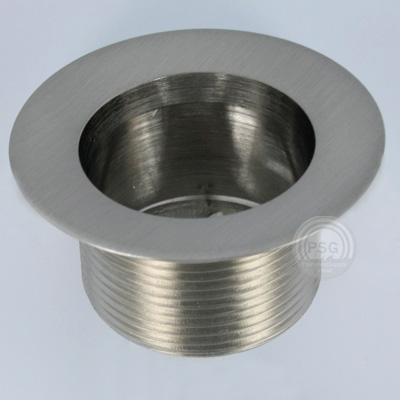

01016BN	This strainer body features: For lift and turn, push pull and foot actuated drain closures Accepts stopper #38610 Coarse threads Thread count: 11 1/2 threads per each 1.25" Outside diameter of rim: 1.865" Brass construction	Brushed Nickel	$18.75

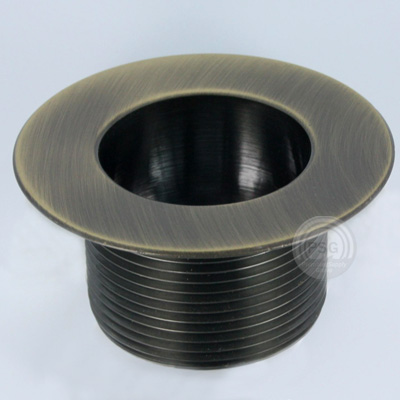

01016AB	This strainer body features: For lift and turn, push pull and foot actuated drain closures Accepts stopper #38610 Coarse threads Thread count: 11 1/2 threads per each 1.25" Outside diameter of rim: 1.865" Brass construction	Antique Brass	$18.79

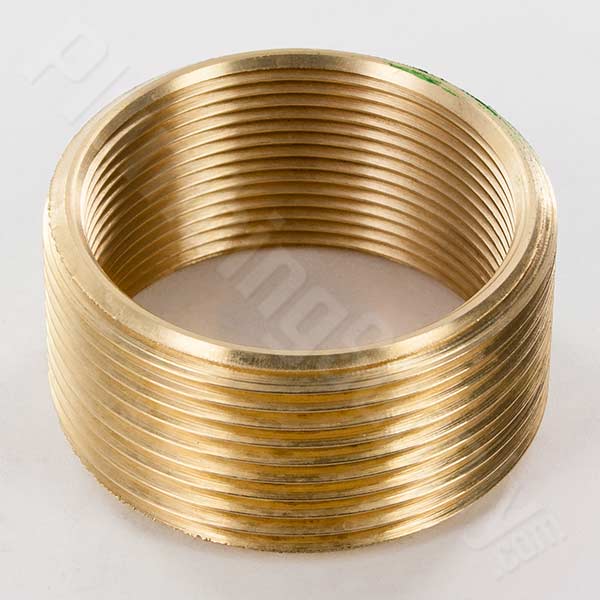

38101	Bushing Adapt drain body from: 1.625" with 16 threads per 1.25" To: 1.865" with 11 1/2 threads per 1.25" Example: adapt a 01022 drain body to a 01016 or 11495 drain body Brass construction	Green	$6.60

- Or -

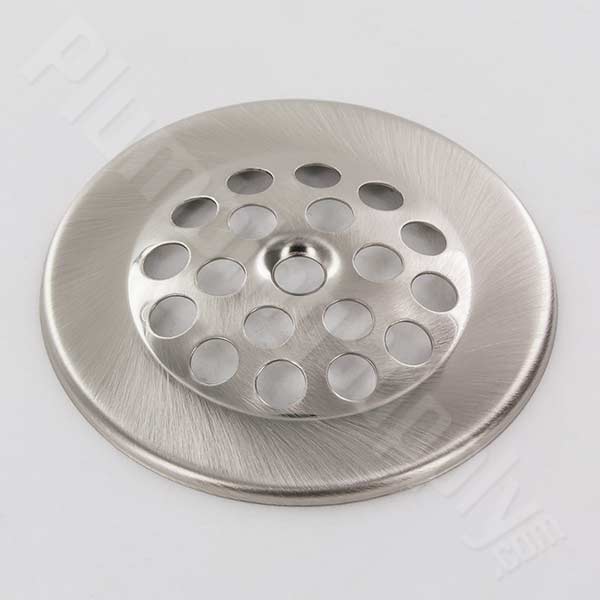

Strainer Cover Plates & Screws for Trip Lever Assembly
Part #	Description	Finish	Price & Quantity

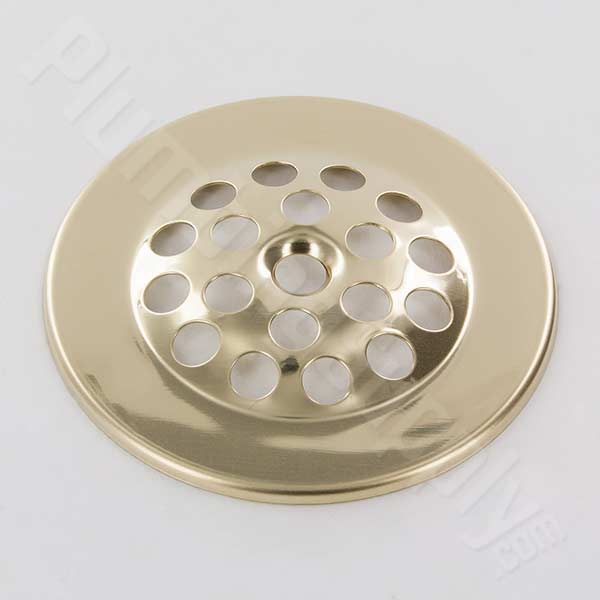

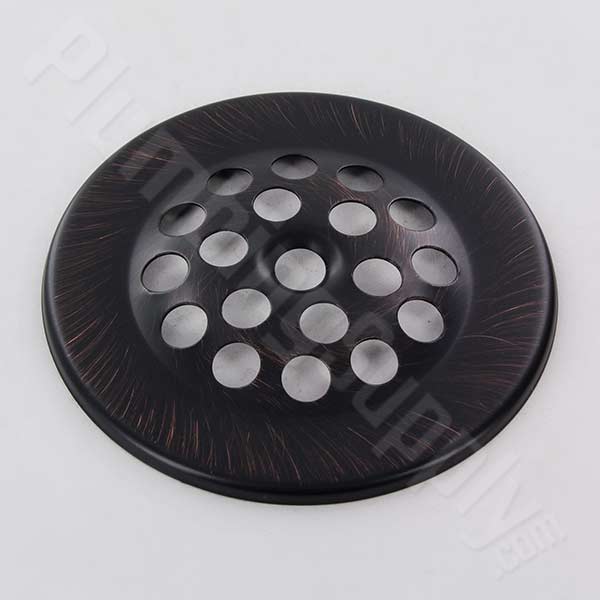

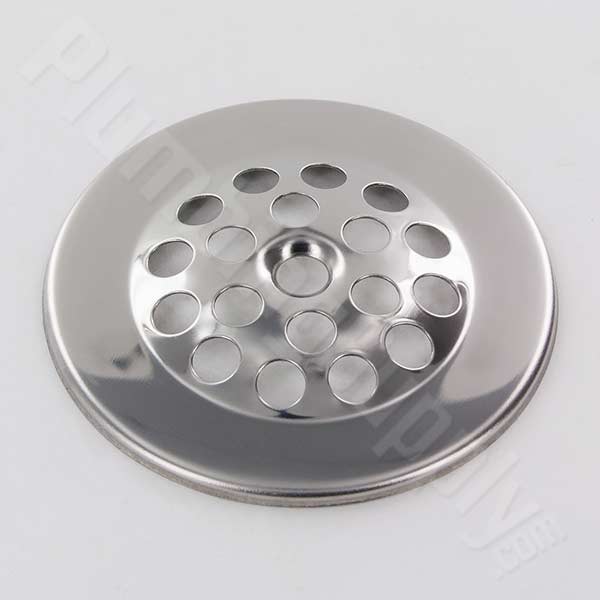

01006CP	This dome style strainer cover plate features: 2 7/8" diameter Accepts screw #01040CP (below) For trip lever, slip lock trip lever, quick adjust trip lever and turnstyle drain closures Fits #11495 and #11490 drain bodies Brass construction	Chrome	$4.53

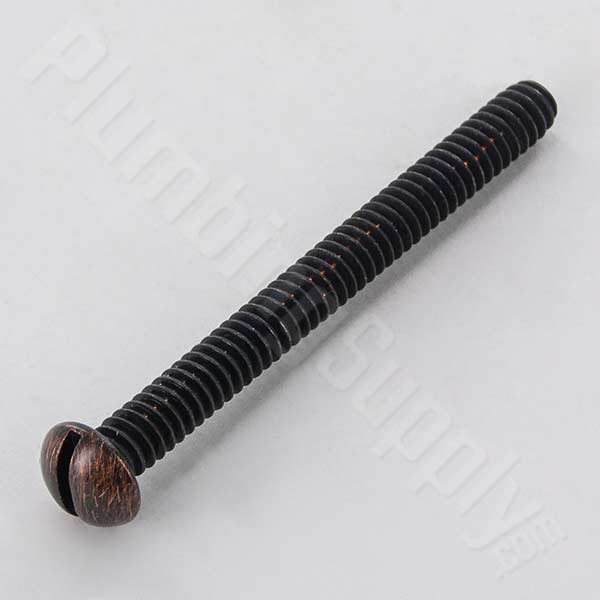

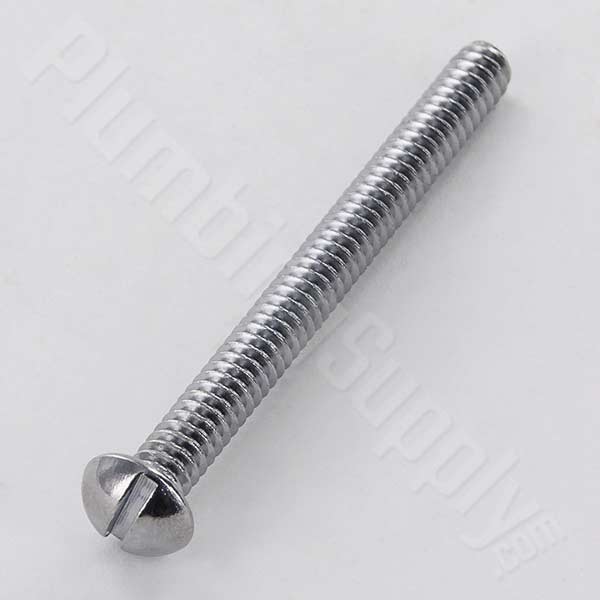

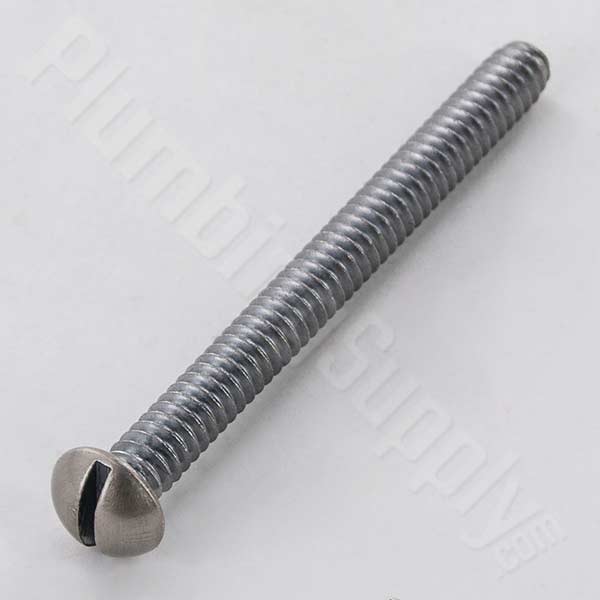

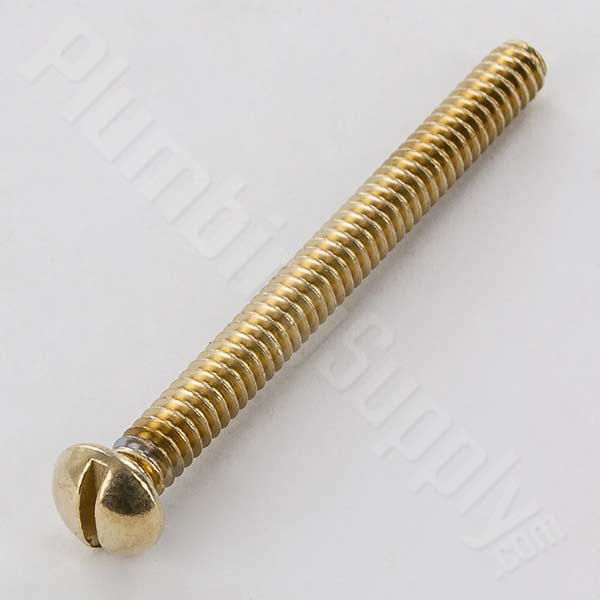

01040CP	This strainer cover plate screw features: For strainer cover plate #01006CP For trip lever, slip lock trip lever, quick adjust trip lever and turnstyle drain closures Fits #11495 and #11490 drain bodies Brass construction	Chrome	$1.19
01006PV	This dome style strainer cover plate features: 2 7/8" diameter Accepts screw #01040PV (below) For trip lever, slip lock trip lever, quick adjust trip lever and turnstyle drain closures Fits #11495 and #11490 drain bodies Brass construction	Polished Brass	$8.42
01040PV	This strainer cover plate screw features: For strainer cover plate #01006PV For trip lever, slip lock trip lever, quick adjust trip lever and turnstyle drain closures Fits #11495 and #11490 drain bodies Brass construction	Polished Brass	$4.60
01006BN	This dome style strainer cover plate features: 2 7/8" diameter Accepts screw #01040BN (below) For trip lever, slip lock trip lever, quick adjust trip lever and turnstyle drain closures Fits #11495 and #11490 drain bodies Brass construction	Brushed Nickel	$10.21
01040BN	This strainer cover plate screw features: For strainer cover plate #01006BN For trip lever, slip lock trip lever, quick adjust trip lever and turnstyle drain closures Fits #11495 and #11490 drain bodies Brass construction	Brushed Nickel	$4.35

- Or -

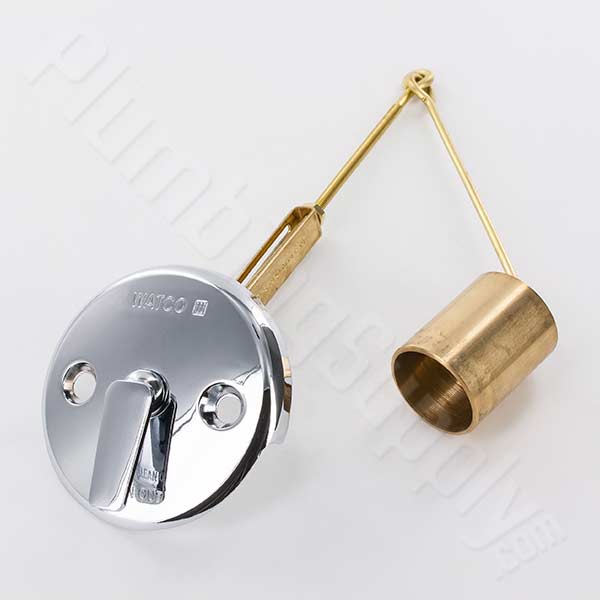

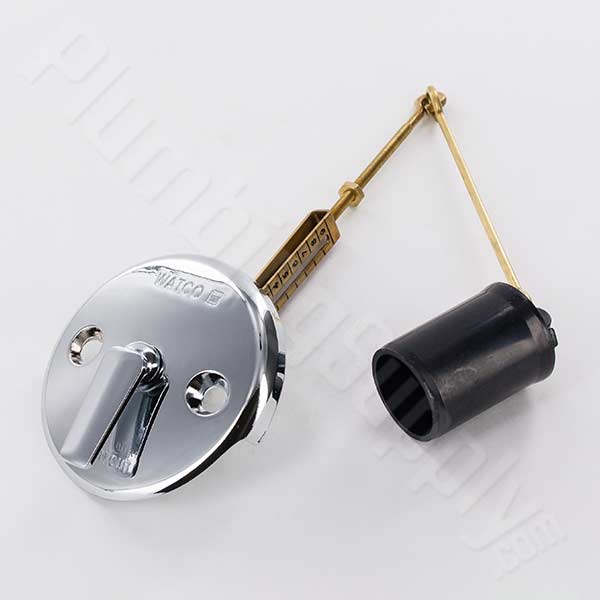

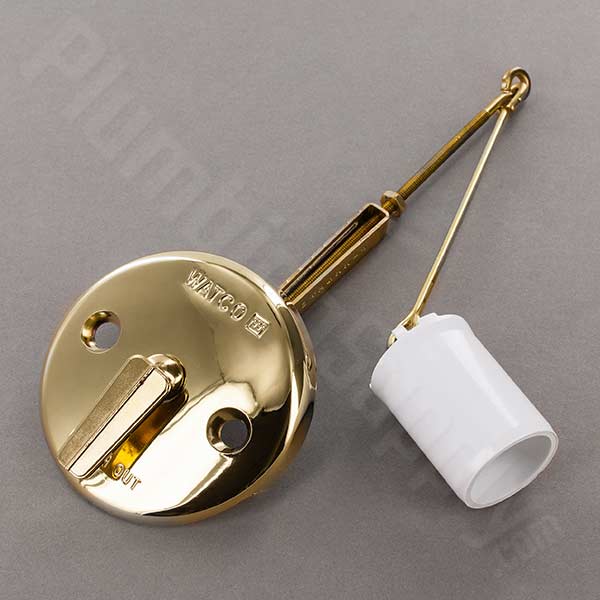

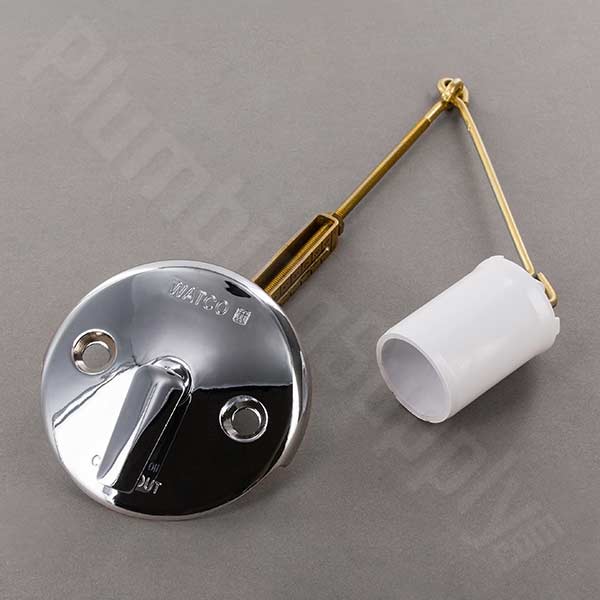

Trip Lever Assembly Kit
10770	Trip lever face plate assembly includes: #10700 Trip lever face plate #10930 Cotter pin #10950 Quick adjust clevis #10953 Top linkage eye bolt #10954 Double loop wire #10952 Linkage nut #11005 ABS Drop cylinder (for ABS units) or #14005 PVC Drop cylinder (for PVC units)

Finish	Part #	Material	Price & Quantity
Chrome	10770-PVC-CH	PVC	$14.34
Chrome	10770-ABS-CH	ABS	$15.99
Polished Brass	10770-PVC-PB	PVC	$39.30
Polished Brass	10770-ABS-PB	ABS	$33.99
Brushed Nickel	10770-PVC-BN	PVC	$49.47
Brushed Nickel	10770-ABS-BN	ABS	$46.92

- Or -

Misc. Parts for Trip Lever Assembly
Part #	Description	Price & Quantity

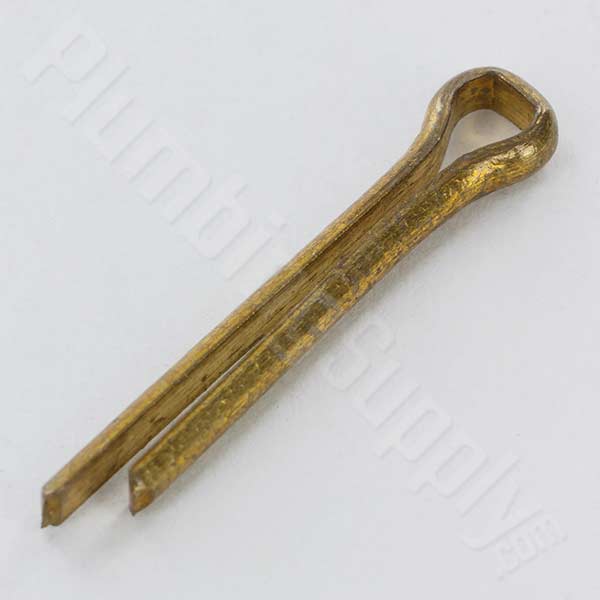

10930	Cotter pin Connects a trip lever to the clevis For trip lever drain assemblies Length: 1 1/8"	$1.29

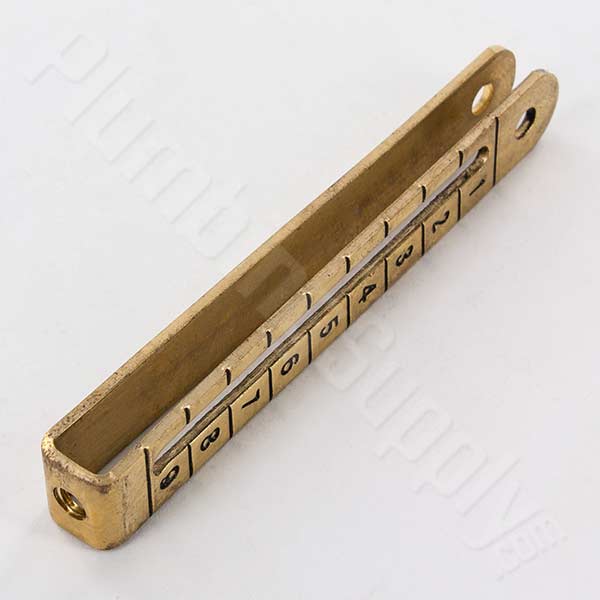

10950	Quick adjust clevis Connects a trip lever to the top linkage eye bolt For trip lever drain assemblies	$1.99

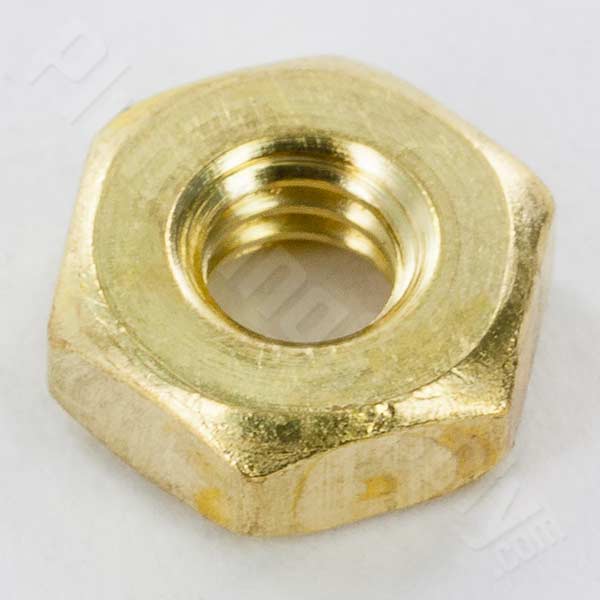

10952	Linkage nut Connects a clevis to the top linkage eye bolt For trip lever drain assemblies Width: 3/8"	$1.25

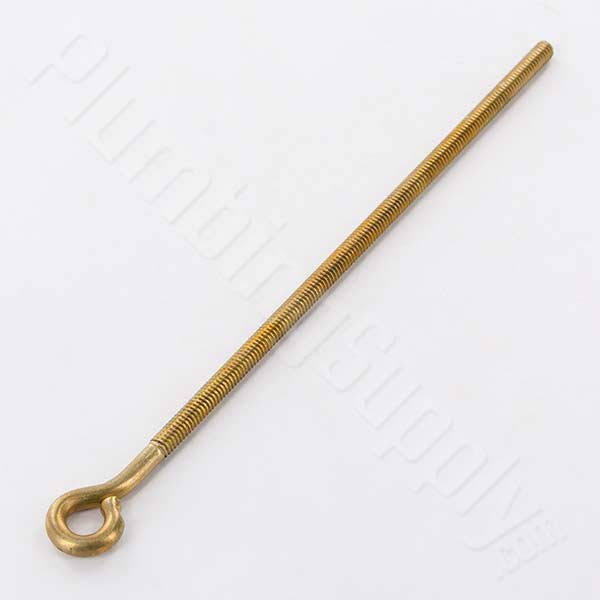

10953	Top linkage eye bolt Connects between the linkage nut and the double loop wire Length: 5 3/4"	$1.49

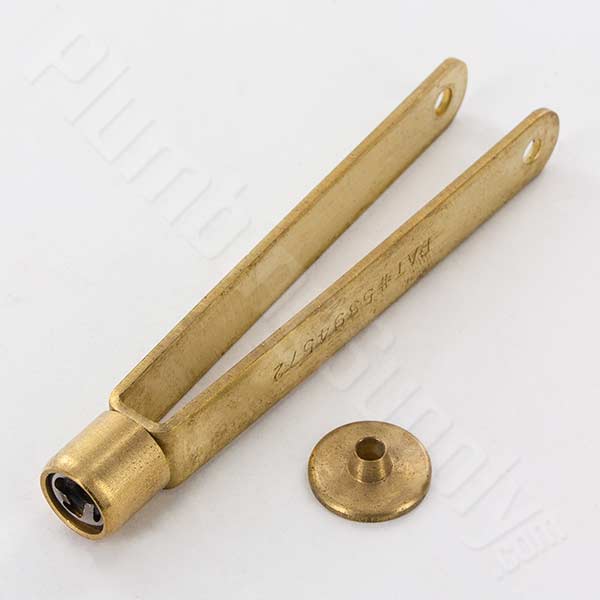

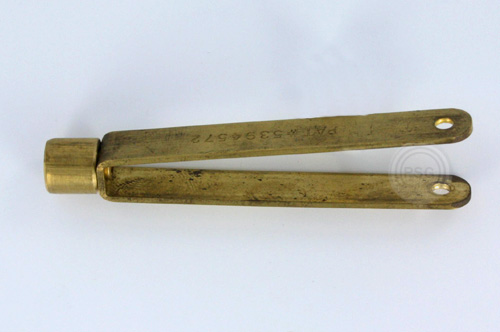

10960	Slip-lock clevis Connects between a cotter pin and the slip-lock release button For slip-lock trip lever drain assemblies Length: 3 1/4"	$5.33

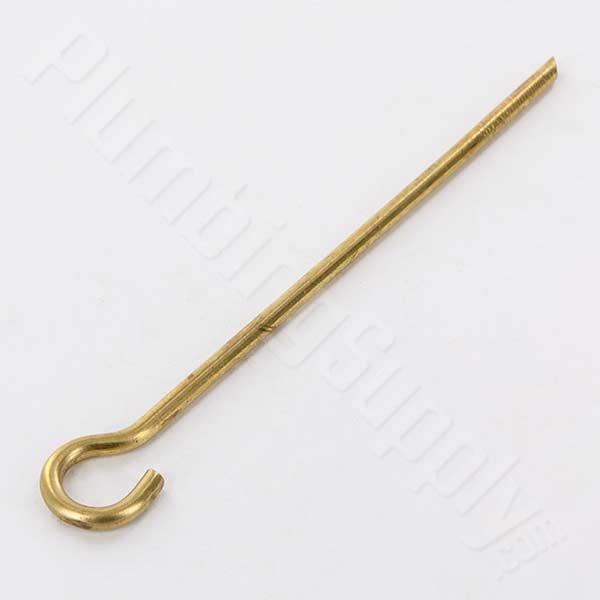

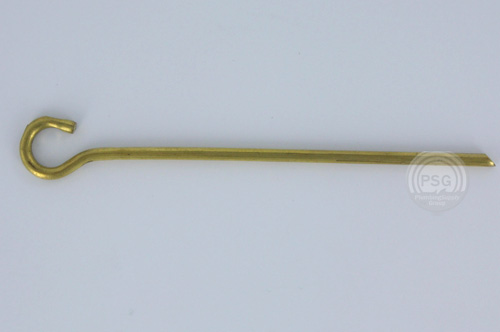

10963	Slip-lock single-loop wire Connects between the clevis and the double loop wire For trip lever drain assemblies	$1.80

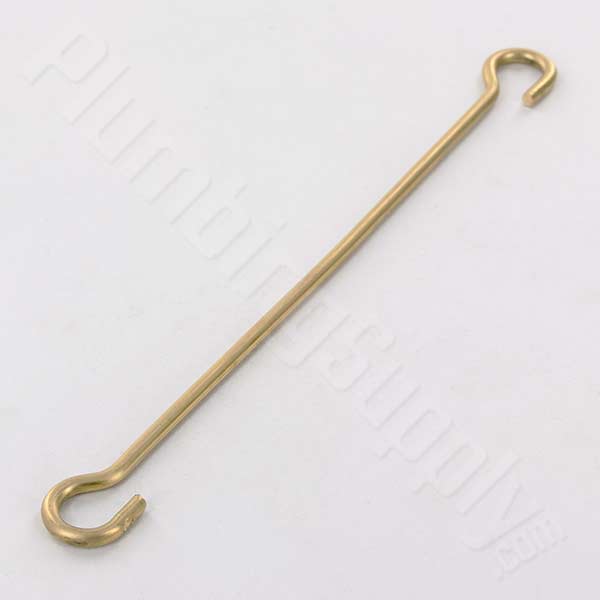

11619	Double Loop Rod Connects between the linkage nut and the double loop wire For slip-lock trip lever drain assemblies Length: 6 1/2"	$1.18

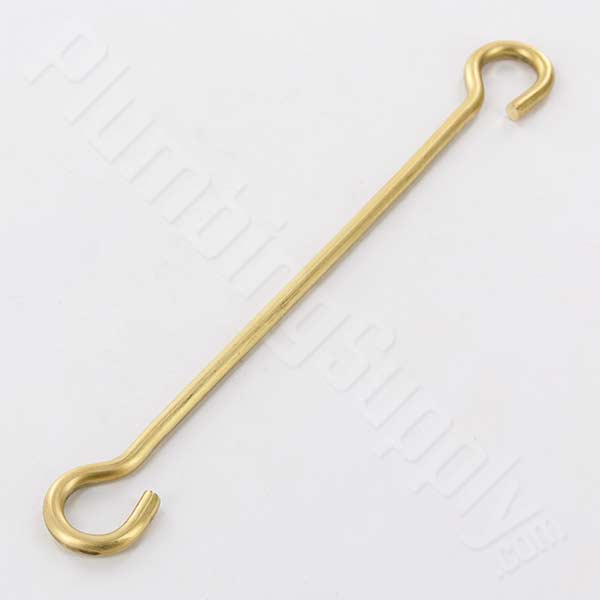

10954	Double loop wire Connects the top linkage eye bolt to the drop cylinder Length: 5 1/4"	$1.86

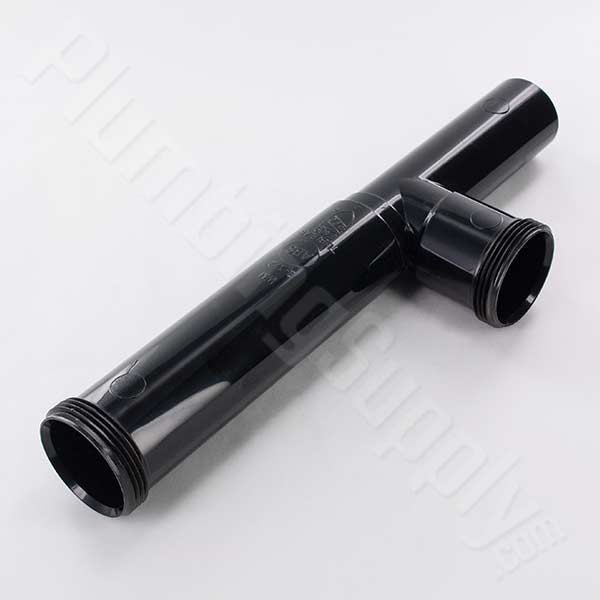

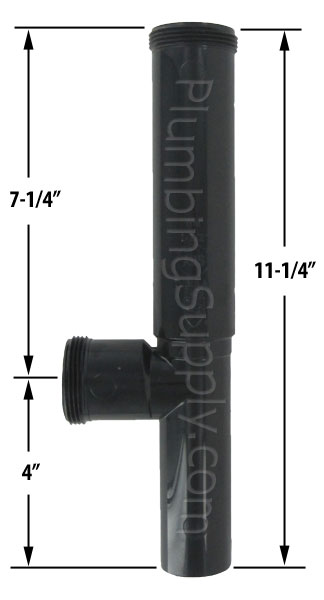

11000	Tubular tee - ABS Use with #11002 drain ell and #11003 overflow ell	$4.26

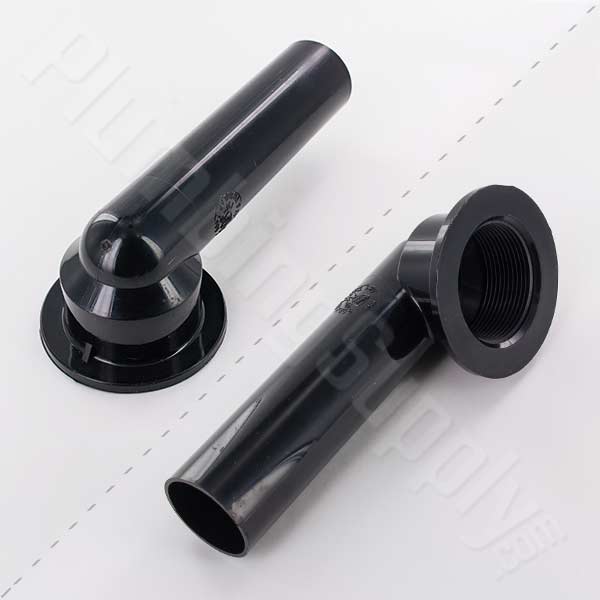

11002	Tubular drain Ell - ABS Fine thread inlet for use with 1.625" diameter drain bodies with 16 threads per each 1.25" 1-1/2" O.D. outlet Use with #11000 tubular tee Works with #01022 and #11490 drain bodies	$3.37

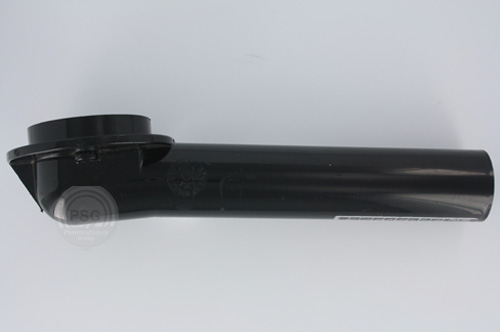

11003	Tubular overflow Ell - ABS 1-1/2" O.D. outlet Works with #11000 tubular tee	$4.68

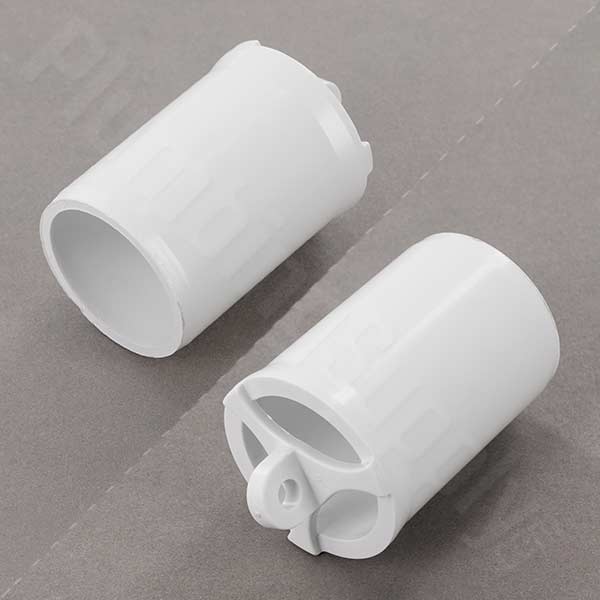

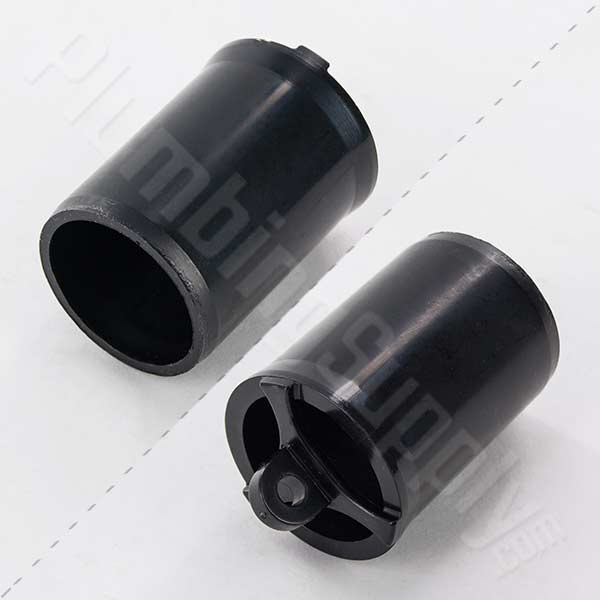

11005	Tubular drop cylinder - ABS Works with #11000 tubular tee	$2.79

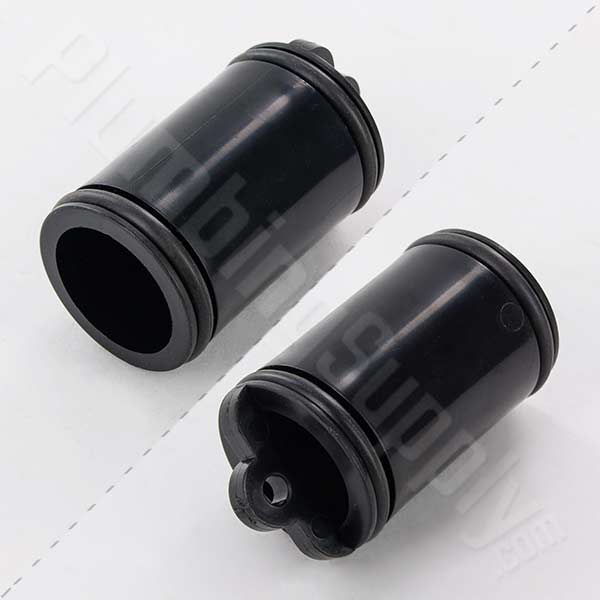

11006	Tubular drop cylinder w/ "O" ring - ABS Works with #11000 tubular tee	$3.36

- Or -

Misc. Parts for Push Pull Assembly
Part #	Description	Price & Quantity

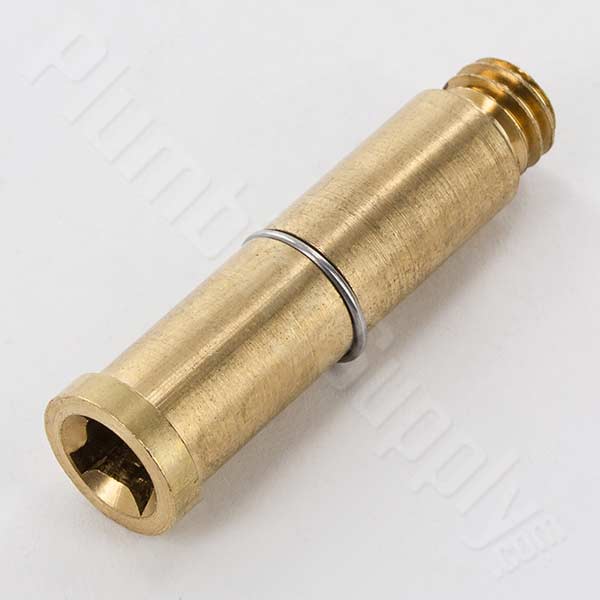

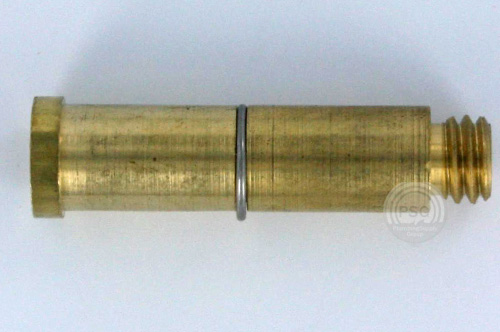

11510	Push pull post & friction ring 3/8": Fits push pull stopper #38610 Fits #01016 and #01022 drain bodies Brass construction	$2.08

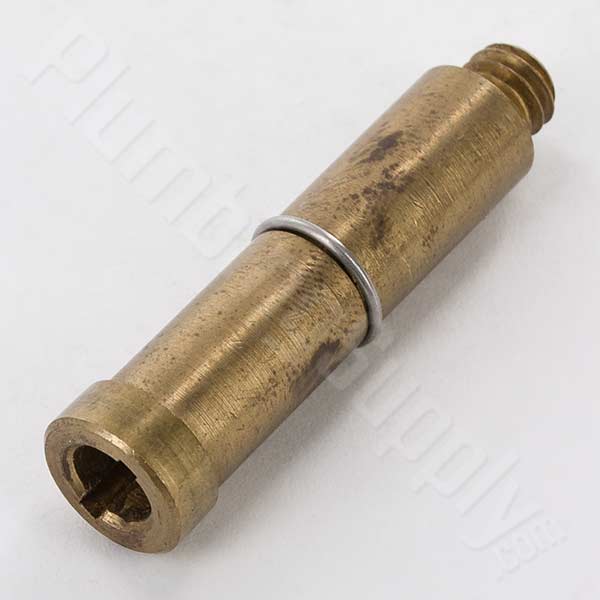

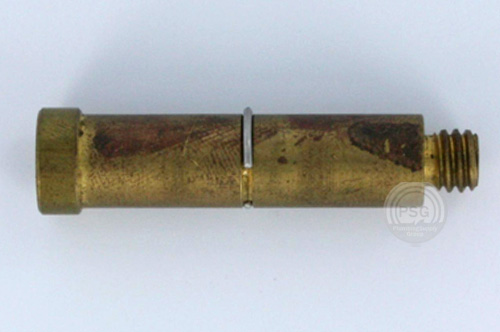

11511	Push pull post & friction ring 5/16": Fits some push pull stoppers Brass construction Will not fit Watco brand drain bodies	$2.52
11585	Test Kit for Push Pull Includes two plugs: & 3/8" plug fits into drain body 1/4" plug fits into overflow	$16.70

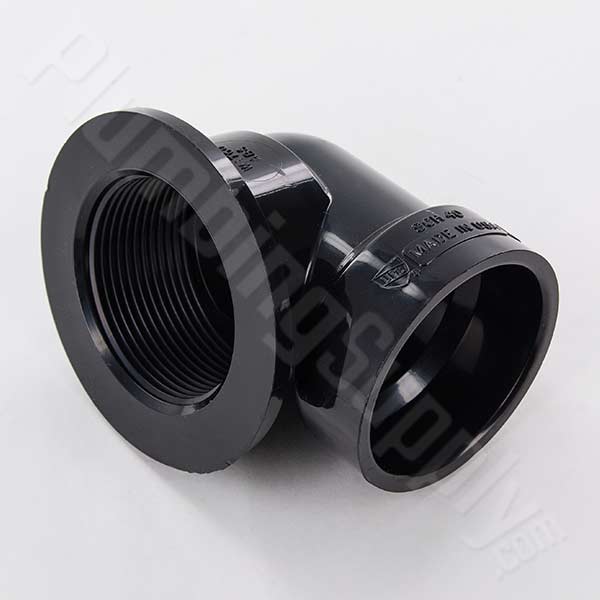

11008	Drain elbow Schedule 40 ABS Works with #11495 and 01016 drain bodies	$4.27

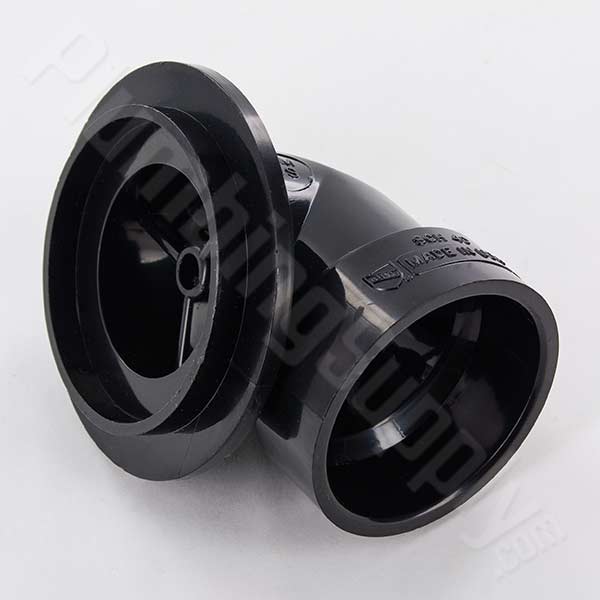

11009	Overflow Elbow Schedule 40 ABS Accepts overflow elbow gasket #10675, 1-hole overflow plate #01002 and overflow plate screw #01024	$4.26

- Or -

Misc. Bathtub Overflow Parts
Part #	Description	Price & Quantity

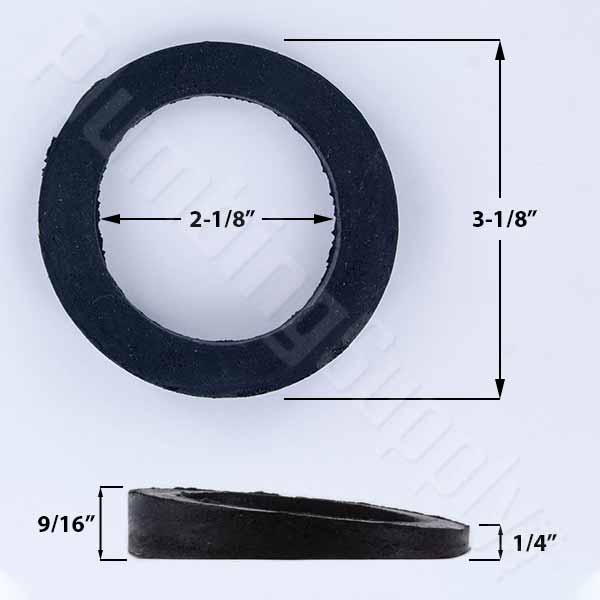

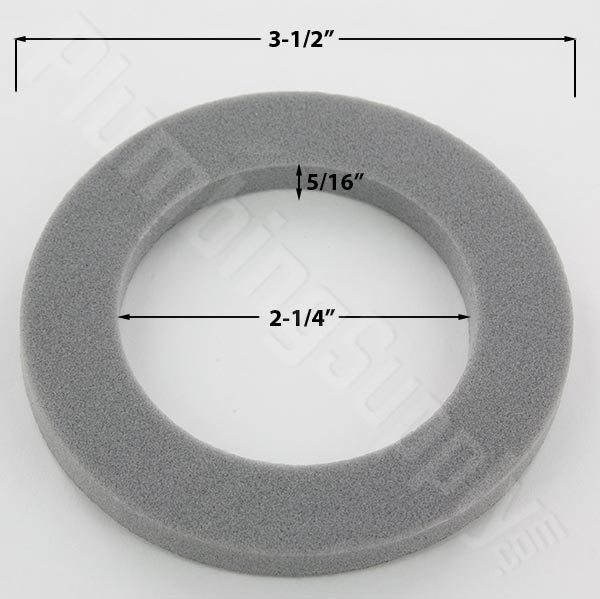

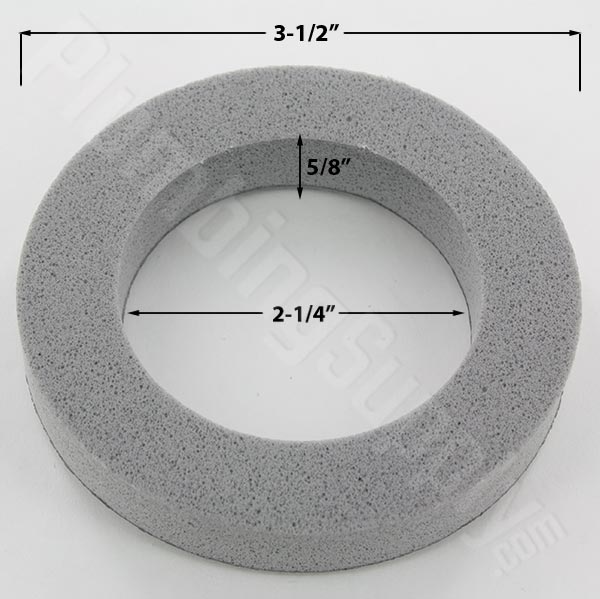

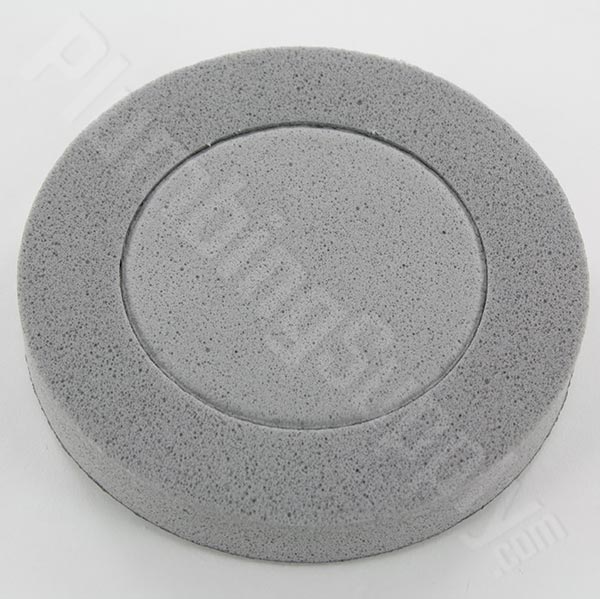

10675	Overflow Elbow Gasket Fits overflow elbow #11008 Fits many Watco brand overflow elbows	$1.47

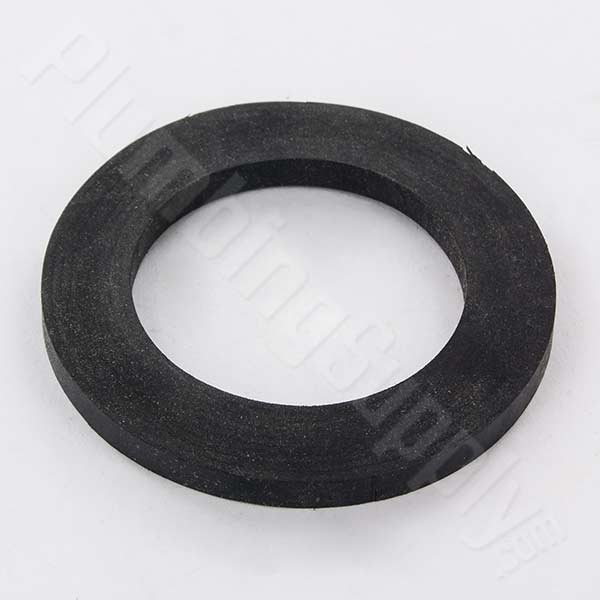

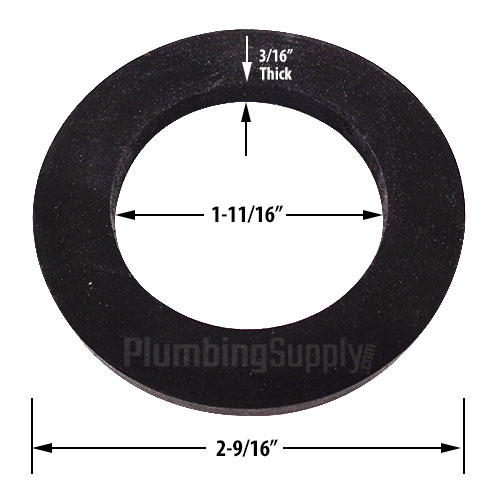

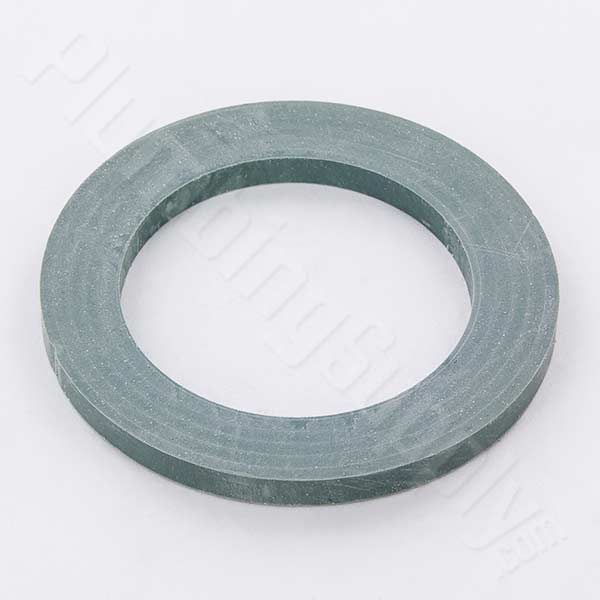

10696	Drain ell washer Fits drain elbow #11009 Fits many 1 1/2" Watco brand overflow elbows	$1.10

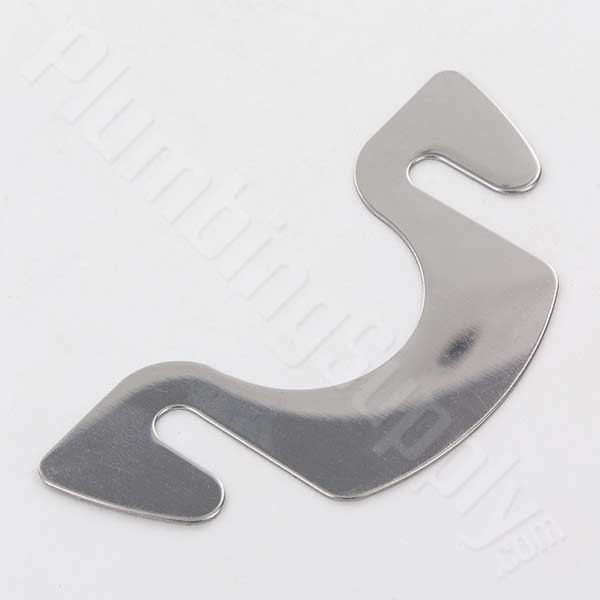

11530	Retainer plate Fits #11003 tubular overflow elbow Also fits many two-hole Watco brand overflow and trip lever assemblies Requires two each #11540 screws (below)	$1.00

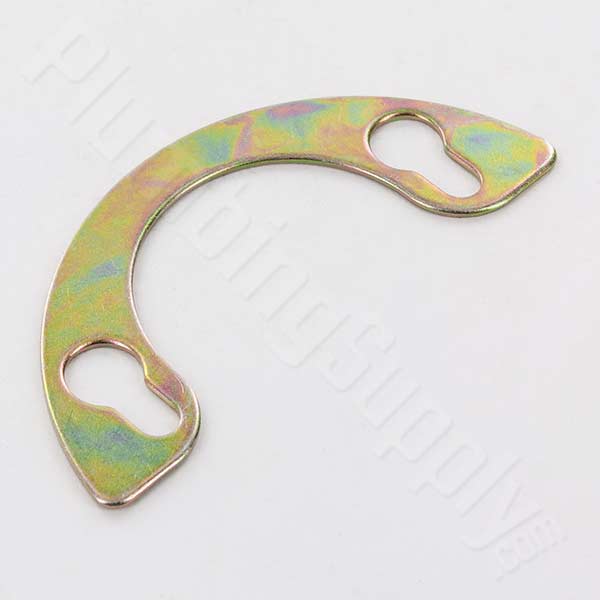

11531	Retainer plate Fits #10096/10098 tubular overflow elbow Requires two each #11540 screws (below)	$1.15

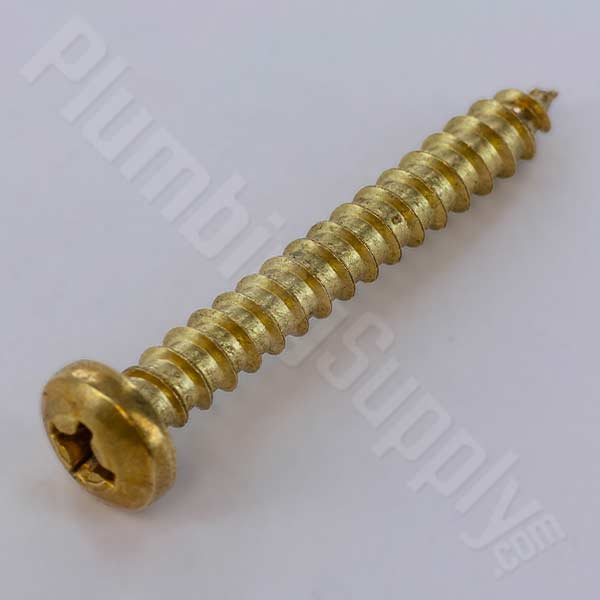

11540	Retainer plate screw Fits #11003 tubular overflow elbow with #11530 retainer plate Two screws are required	$0.72

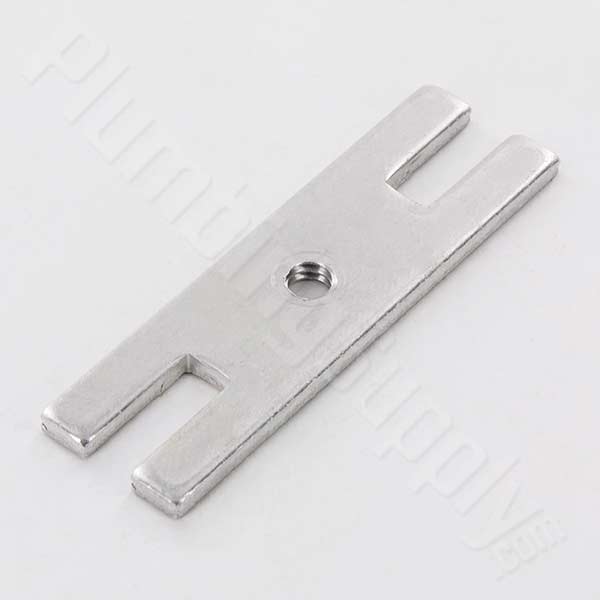

11641	Adapter bar for trim kit Converts a two-hole overflow to a one-hole overflow	$1.37

- Or -

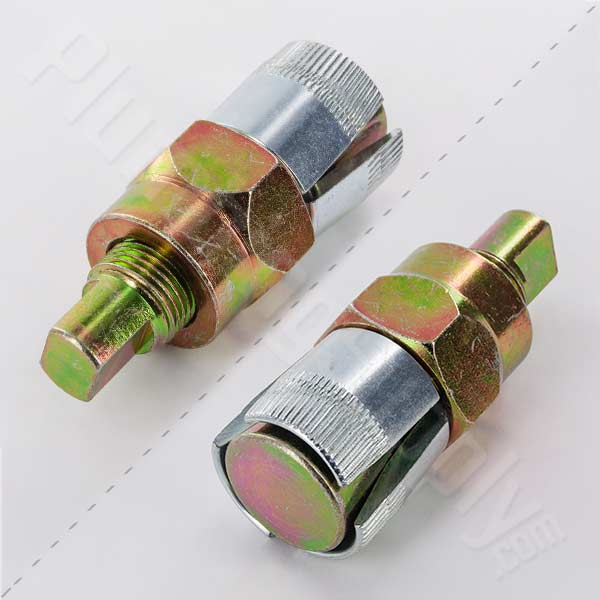

The Drain Key™ Tub Drain Removal Tool
	Expands with a crescent type wrench to unlock or install: Bathtub drains 1-1/4" or 1-1/2" closet spuds Jr. basket strainers, Jr. Duo strainers Tray plug drains and duplex strainers
	Removes 1-1/4" or 1-1/2" trap (dirty arm) nipples.
	It's unique expanding design allows The Drain Key to internally grip in a 360° pattern.

The Drain Key™ with steel shoes	$33.42

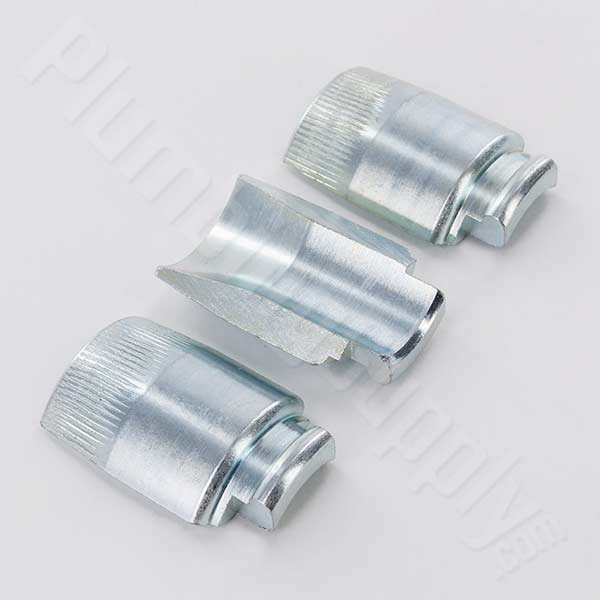

Set of replacement shoes for the Drain Key	$19.97

- Or -

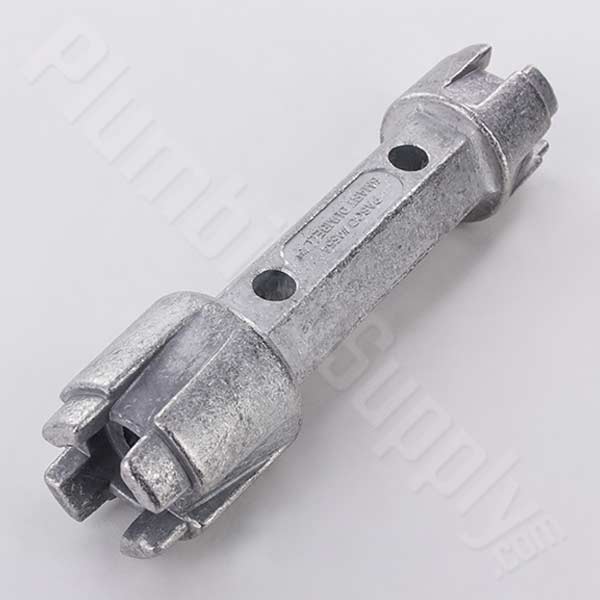

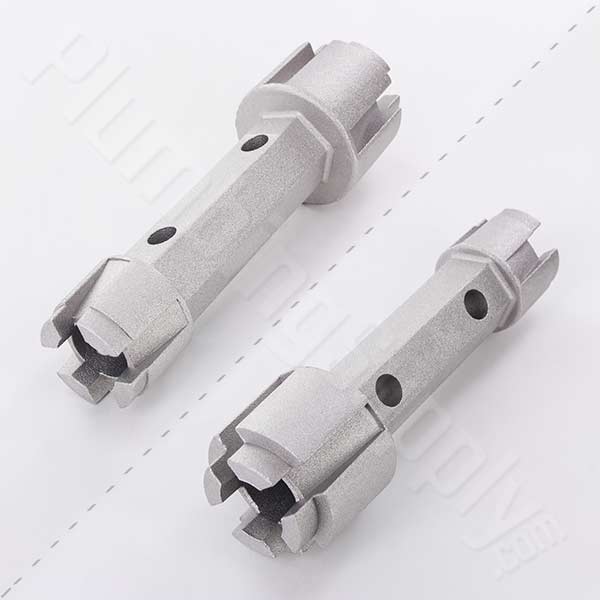

Smart Dumbell™ Tub Drain Removal Tool
Fits 95% of all tub drains Installs or removes drains with crossbars Heavy duty die-cast aluminum Prevents scratching of decorative finishes Either a crescent wrench or a large screwdriver can be used to turn the tool Saves time, money and aggravation

Smart Dumbell™ tub drain removal tool	$13.75
"Like" Smart Dumbell	$12.59
