Simple, straightforward and low shipping rates for these duplex sewage systems.


Duplex Sewage Systems


Sewage ejection systems are a terrific solution to installing a bathroom, or laundry room, or additional kitchen, in your basement or anywhere else you may find your main sewer piping or septic lines will be above the floor level of your project. These dual pump Duplex Sewage Systems from Zoeller are some of the finest, most efficient, trouble-free systems available today, and are built to last. We at PlumbingSupply.com® are pleased to offer these reliable Zoeller sewage systems.

Zoeller Dual-Pump Systems For Indoor Applications
Submersible Sewage / Effluent Or Dewatering Pump System Features:
Pump Features:
  • Pumps feature a durable cast iron construction - switch cap, motor and pump housing
  • Float operated, submersible 2-pole switch
  • Hermetically sealed, automatic reset thermal overload protection
  • Pumps will turn on when fluid levels reach 12 1/2" and shut off at 4 1/2" fluid level
  • Capable of passing 2" spherical solids
  • Engineered plastic base on model 264 & cast iron base on model 267

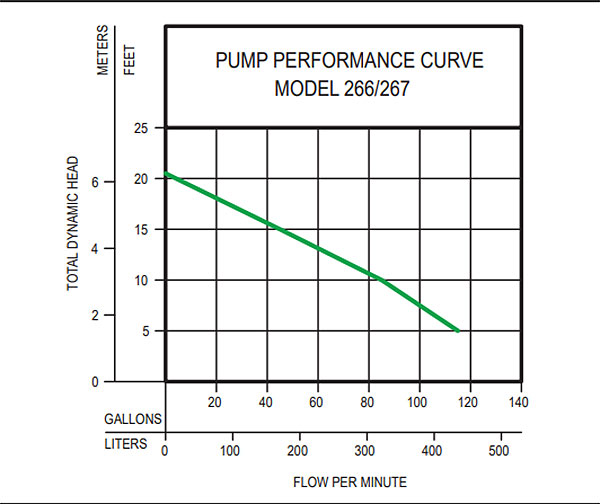

  • M264 performance curve
  • M267 performance curve

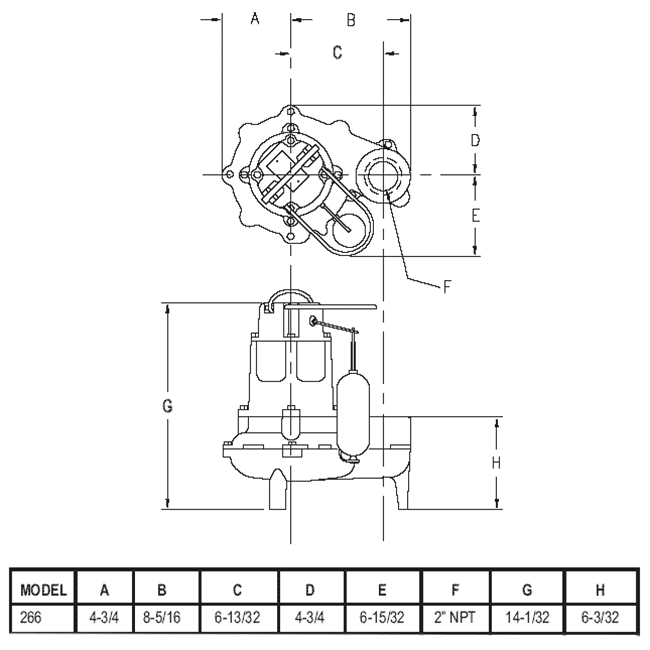

  • M264 dimensions
  • M267 dimensions
Zoeller dual pump package system
Zoeller Dual-Pump Systems For Indoor Applications
Pump Tricheck Amps HP Volts Price & Quantity
M264 2" 9.4 .4 115 $1831.42
M267 2" 10.4 .5 115 $1898.82
Due to weight and to ensure safe delivery, these tubs ship by truck and have a $175 additional shipping fee.
Please select your type of address: Commercial -or- Residential

- Or -
View Button

Please note: assembly is required for these systems

Zoeller Dual-Pump Package Systems
Dual-Pump Package System Includes:
  • Includes 1 electrical alternator with 3 floats, alarm light & horn
  • 1 duplex fiberglass basin 36" x 36"
  • 2 - 2" or 3" unicheck valves can be installed horizontally or vertically
  • 2 - .5 HP Non-automatic pumps (267 or 268 series pumps)
Pump Features:
  • Durable cast construction, switch case and pump housing
  • Engineered plastic impeller with metal inserts on models 267 & 268 (1 PH)
  • Cast iron base on models 267 and 268
  • Pumps will turn on when fluid levels reach 12" and shut off at 4" fluid levels
  • Not effected by materials normally found in drainage and sewage pumps
  • Float operated, submersible 2-pole mechanical switch
  • Stainless steel screws, bolts, handle, guard, arm and seal assembly
  • Oil-filled, hermetically sealed motor & oil lubricated bearings
  • Carbon and ceramic shaft seal
  • Passes 2" spherical solids
  • 2" female and 3" NPT male discharge
  • Model 268 contains combination 2" NPT female 3" NPT male discharge
  • Corrosion resistant powder coated epoxy finish
  • Completely submersible, watertight and dust tight
  • Click here to view pump performance curves
  • Click here to view pump specifications

Zoeller dual pump sewage package system
Zoeller Dual-Pump Package Systems
Pump Unicheck Amps HP Volts Price & Quantity
N267 (Indoor) 2" 10.4 .5 115V $2124.69
N267 (Outdoor) 2" 10.4 .5 115V $3093.65
E267 2" 5.5 .5 230V $2276.60
N268 3" 10.4 .5 115V $2207.33
E268 3" 5.5 .5 230V $2570.49
Due to weight and to ensure safe delivery, these tubs ship by truck and have a $175 additional shipping fee.
Please select your type of address: Commercial -or- Residential

- Or -
View Button

Please note: assembly is required for these systems


Frequently Asked Questions

Q. "What's the difference between simplex and duplex packaged systems?"
A.Duplex systems contain two pumps and are mainly used when high volumes are needed. The pumps will alternate while pumping low volumes and both pumps will work simultaneously to handle high volumes when needed.

Q. "What's the difference between indoor and outdoor duplex systems?"
A.Duplex systems designed for outdoor installations are very similar to indoor rated systems; typically the only differences are the control panel and the basin. Outdoor systems require a NEMA 4 rated control panel, while the indoor systems are more typically installed with a NEMA 1 rated control pane. Indoor systems typically discharge through the cover as they are often installed in basements, while outdoor systems are typically installed with discharges through the side of the basin. Please note: As the inlet depth is determined by code, the inlet and discharge locations will need to be drilled at the job site.

Q. "My automatic pump stops and starts constantly, how can I make the pump run longer?"
A.A pump short cycling is a function of the basin diameter and the "on/off" pumping range. Since the basin is in the ground it is unlikely that it can be enlarged. If you have an automatic unit which has a self contained float switch the "on/off" pumping range cannot be adjusted. But with a non automatic unit controlled with a pump switch you can have flexibility in the pumping range adjustment. Short-cycling can decrease the service life of a switch assembly. If this occurs, an automatic unit can be converted to operate with an external pump switch which will expand it's pumping range and decrease the amount of short cycling. Installing a check valve in the discharge line will help decrease short cycling.

Q. "Do I need to install a vent pipe to the tank?"
A.It really depends on how you plumb the piping to the tank and each situation is different. In many cases with any brand of sealed tank the simple answer is yes as you need air to displace the volume of discharge. An AAV may be used in many areas of the country but local codes always prevail and so best to check with your local code authorities before purchasing the enclosed tank system/s such as these shown on this page.

Q. "What is the 'Smart Pak' residential alternator?"
A. The Smart Pak residential alternator allows you to install two automatic pumps and provides extended pump life by alternating the pump use. The system also will run the other pump and sound an alarm if one of the pumps should fail.

Q. "What are 'alternating' pump systems?"
A. An Electrical Alternator is used on a Duplex pump application where automatic alternation of the pumps is desired for added protection in residential or commercial applications. With one pump operating to handle normal flow, a second pump becomes operational in the event the water level continues to rise. The built-in alarm system, a standard feature, can be connected to sound when the second pump becomes operational.
