Dimensions & Specifications
All dimensional units are in inches |
|
Suspended Unit Dimensions:
1 = Single Phase Model 3 = Three Phase Model |
| |
500 |
750-1 |
750-3 |
1000-1 |
1000-3 |
1250-1 |
1250-3 |
1500-1 |
1500-3 |
| A |
25-1/16" |
25-5/8" |
25-1/16" |
25-5/8" |
25-1/16" |
26-3/8" |
25-5/8" |
26-3/8" |
25-5/8" |
| B |
18-7/16" |
19" |
18-7/16" |
19" |
18-7/16" |
19-3/4" |
19" |
19-3/4" |
19" |
to commercial disposers ordering information
|
Standing Unit Dimensions:
1 = Single Phase Model 3 = Three Phase Model |
| |
2000-1 |
2000-3 |
3000-3 |
5000-3 |
10000-3 |
| A |
31-7/8" to 34-5/8" |
31-7/8" to 34-5/8" |
32-3/8" to 35-1/8" |
32-7/8" to 35-3/8" |
33" to 35-1/2" |
| B |
22-1/4" |
21-3/4" |
22-1/2" |
22-1/2" |
23-5/8" |
| C |
25-1/4" to 28" |
25-1/4" to 28" |
25-3/4" to 28-1/2" |
26-1/4" to 28-3/4" |
26-3/8" to 28-7/8" |
| D |
6-5/8" |
6-5/8" |
6-5/8" |
6-5/8" |
6-5/8" |
| E |
6" |
6" |
6" |
6" |
6" |
| F |
16" |
16" |
16-1/8" |
16-5/8" |
16-3/4" |
| G |
16-1/4" |
16-1/4" |
17-3/8" |
17-3/8" |
17-3/8" |
to commercial disposers ordering information
|
Motor Specifications
- all motors operate at 1725 RPM & include thermal overload protection - |
| Model |
HP |
Single Phase - Volts/Amps |
Three Phase- Volts/Amps |
| 500 |
1/2 |
110-120/220-240 Volts
9.2/4.6 Amps |
- |
| 750 |
3/4 |
110-120/220-240 Volts
10.6/5.3 Amps |
208, 220-240/440-480 Volts
2.8/1.4 Amps |
| 1000 |
1 |
110-120/220-240 Volts
12.0/6.0 Amps |
208, 220-240/440-480 Volts
3.2/1.6 Amps |
| 1250 |
1-1/4 |
110-120/220-240 Volts
12.8/6.4 Amps |
208, 220-240/440-480 Volts
4.0/2.0 Amps |
| 1500 |
1-1/2 |
110-120/220-240 Volts
14.4/7.2 Amps |
208, 220-240/440-480 Volts
4.4/2.2 Amps |
| 2000 |
2 |
110-120/220-240 Volts
17.0/8.5 Amps |
208, 220-240/440-480 Volts
5.6/2.8 Amps |
| 3000 |
3 |
- |
208-220/440 Volts
7.0/3.5 Amps |
| 5000 |
5 |
- |
208-220/440 Volts
16.0/8.0 Amps |
| 10000 |
10 |
- |
208-220/440 Volts
19.4/9.7 Amps |
to commercial disposers ordering information

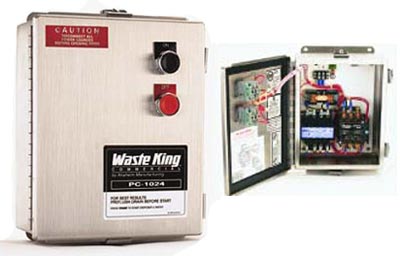

| PC 1024 Panel Control Specifications |
 |
Features:
|
| PC 2024 Panel Control Specifications |
 |
Features:
- Waterproof, extra durable 14 gauge 302 stainless steel box
- Electrical and plumbing instructions included
- Adjustable time delay from 0 to 6 minutes flushes out the drain lines after the disposer is turned off
- Front interlock prevents the disposer from turning on while the control panel is open
- Fused control circuits - no additional fuses required
- Magnetic contacts for safety and increased product life
- Start and spot push buttons for ease of operation
- Click here for recommended installation diagram
- Click here for dimensional drawing
|
