Simple, straightforward and low shipping rates for these Noritz NR66 tankless water heaters.


NR66 Series Residential Tankless Water Heaters

by Noritz


Noritz heaters are well known for their technology, efficiency, and flexible installation options. Their tankless water heaters provide an endless supply of perfectly heated, fresh water every time you use it, and save space, money, and water, making these tankless water heaters well worth the switch from a bulky, tank-style water heater. The high performing water heaters you're looking for are right here at PlumbingSupply.com®! To make these terrific tankless water heaters even better, you may qualify for a 2013 federal tax credit - click for more info.

Noritz Tankless Water Heaters
Noritz tankless water heater

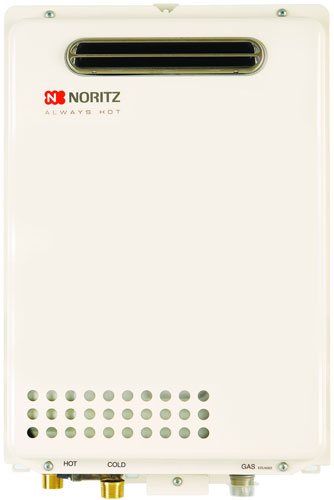

Shown: NR66-OD
    These tankless water heaters feature:
  • Perfect for apartments, condominiums and townhouses with one to two showers
  • Space and energy efficient - Wall-hung unit with fully modulating burner design precisely tracks the needs of the system
  • 140,000 max BTU's for up to 8.3 GPM flow at a 35 degree temperature rise - read more about temperature rise
  • Direct ignition means no standby pilot light to waste energy
  • Self-diagnostic onboard computer regulates the burner for more efficient fuel usage
  • Battery back-up compatible
  • Recirculation compatible
Nortiz tankless water heater
Shown: NR66-SV
    Noritz NR66 Tankless Water Heater Specifications:
  • Thermal efficiency: 83%
  • Flow rate: 0.5-6.6 GPM - click for flow rate chart
  • Outlet temperature settings: 100-160°F (12 options)
  • Gas connection: 3/4" NPT
  • Water connections: 3/4" NPT
  • Water pressure min: 15 psi, max: 150 psi
  • Gas input min: 20,000 BTU, max: 140,000 BTU
  • Weight: 36 lbs
  • Air supply/exhaust: power vented
  • Ignition: electronic (no pilot light)
  • Electrical supply: 120V (60Hz)
  • Actual electrical consumption in Watts:
      •OD Model: NG: 51W, LP: 52W, freeze protection: 141W
      •SV Model: NG: 48W, LP: 49W, freeze protection: 141W
  • Actual electrical draw in Amps: less than 2 Amps
      •Operation: 0.4 Amp
      •Standby mode: 0.04 Amp
      •Freeze prevention: 1.2 Amps
  • Dimensions: 20.5"h x 13.8"w x 6.7"d
  • Uses Category III 3" stainless steel venting
Noritz NR66 Series Residential Tankless Water Heaters
Model Number Description Natural Gas Propane
NR66-OD Outdoor Installation Tankless Water Heater ONLY
Order this if you don't want or need additional components for installation
$733.99 $742.90
NR66-SV Indoor/Outdoor Tankless Water Heater ONLY
Order this if you don't want or need additional components for installation
$740.00 $741.09

- Or -
View Button



Accessories for Noritz Tankless Water Heaters
Description Price &Quantity
Remote Controller
Recommended accessory by the manufacturer, the remote controller allows the user to access the maintenance menu, view error codes, and adjust temperature settings.
Remote Controller with 10 Foot Cord $103.55
Remote Controller with 26 Foot Cord $111.22

Pipe Cover
Durable powder coated steel pipe cover not only hides unsightly plumbing for a cleaner-looking installation, it can help protect your plumbing pipes from freezing temperatures. View dimensions
Pipe Cover for Noritz NR66 Tankless Water Heater $95.91

Pressure Relief Valves
A pressure relief valve is required for all tankless water heaters. In some areas, a temperature and pressure relief valve is required. Check your local plumbing code for more information.
Pressure Relief Valve - Brass - 3/4" - 150 PSI $13.97
Temperature and Pressure Relief Valve - up to 200,000 BTU $74.33

Gas Connectors - click here for more gas connectors
Stainless Gasflex - 1" OD (3/4" ID) x 24" - with adapter to 3/4" FIP x 3/4" MIP $63.15
Gas Ball Valve 3/4" $9.07

Lead-Free Ball Valves - click here for more lead-free ball valves
Lead-Free Ball Valve - 3/4" FIP $11.68
Lead-Free Ball Valve - 3/4" Sweat $10.29
Stainless Steel Nipple - 3/4" MIP x 1-1/2" Long $3.35

- Or -
View Button

Water Connectors - click here for more flexible water supply lines
Flexible Corrugated Stainless Steel Water Connector - 3/4" FIP x 3/4" FIP - 18" Long $6.78
Flexible Corrugated Stainless Steel Water Connector - 3/4" FIP x 3/4" FIP - 24" Long $7.53
Flexible Corrugated Copper / Stainless Steel Water Connector - 3/4" FIP x 3/4" Nom Sweat - 18" Long $6.93
Flexible Corrugated Copper / Stainless Steel Water Connector - 3/4" FIP x 3/4" Nom Sweat - 24" Long $7.55

"The Isolator" Isolation Valves - Lead Free - Includes pressure relief valve
Complete inlet/outlet valve system that provides everything you need for a secure installation including full port testing and flushing of the system with easy to install union connections. Includes pressure relief valve. Meets federal and state low lead regulations.
Isolation Valve - Set   (Hot & Cold)   3/4" FIP Union x 3/4" FIP $94.89
Isolation Valve - Set   (Hot & Cold)   3/4" FIP Union x 3/4" Sweat $94.96

Water Heater Scale Inhibitor System
Features: inhibits scale build-up, helps protect piping from corrosion, maintains efficiency & extends life of system, 3/4" NPT, 10 GPM, cold water feed line. Scale inhibitor media is siliphos, which is suitable for drinking and cooking water and all food applications, and effective on all types of hot water systems-boilers, tankless, and tank-type (gas or electric). Replacement cartridges (AP431) are available for these in-line scale inhibitor systems.
Water Heater Scale Inhibitor System
  Order 6 or more for greater savings!
$69.95
Replacement cartridge for water heater scale inhibitor system
  Order 10 or more for even greater savings!
$29.99
Note: Recommended time to change/replace filter cartridge is 6 months.
Purchase a replacement cartridge to have on hand when needed.

- Or -
View Button

Note: if you're replacing multiple water heaters (old tank style),
you may want to order a water heater drain pump to reduce labor by quickly/easily removing the water.


Common Plumbing Terms
FIP Female Iron Pipe (NPT threads)
MIP Male Iron Pipe (NPT threads)
NPT National Pipe Thread
FNPT Female National Pipe Thread
MNPT Male National Pipe Thread
Sweat Copper pipe solder fitting

Click on the links below to view related items & accessories:
roof flashingRoof flashings
Lakos sand filtersLakos sand filters
Americh whirlpool tubsAmerich whirlpool tubs
victorian style kitchen faucetVictorian style kitchen faucets

Please note: For potential safety reasons, we do not recommend using PVC to vent gas tankless water heaters.
For the best results, we recommend using Category 3 stainless steel gas vent pipe for all gas tankless water heaters.



Frequently Asked Questions

Q. "How does a tankless heater provide hot water without a storage tank?"
A. Tankless water heaters heat on demand. The water is heated as it flows through the unit. Automated valves control water and gas flow so that your water comes out at the temperature you set it to.

Q. "Your products specify the 'temp. rise' based on the GPM flow; what do you mean by this?"
A. Temperature rise is the amount the heater raises the temperature of the incoming water, based on the flow rate shown of that water.

Q. "How does the Water Heater Scale Inhibitor System prevent corrosion?"
A. It forms a thin protective layer on the inside of pipes and metal parts. This film or layer is microscopic in thickness and will not build up over time.

Q. "What are the best reasons to install a Scale Inhibitor System?"
A. A Scale Inhibitor System helps protect the system by reducing scale buildup and adding to the longevity and efficiency of the heater.

Q. "This is a water heater. Why would I need a battery backup?"
A. Since this tankless water heater has direct electronic ignition, power is needed to create a spark, as well as run the computer and remote. A battery backup is not required, but may be beneficial if you are in an area where there are frequent power outages as this would help provide power to your Nortiz tankless hot water heater for a short time. When choosing a battery backup, which can be purchased locally, please note it must produce a pure sine wave. Also, battery backups are only for indoor units that are plugged in as opposed to hardwired.

Q. "Will an instantaneous water heater save me money on my utility bills?"
A. In many applications you can see a savings. There are some variables that could reduce the amount you save. One example is you will not run out of hot water, so longer showers could cut into your savings. Also, the cost of electricity, propane and natural gas in your area will affect the amount of money saved. The higher the cost for the energy type used to heat your water, the quicker you can recover the higher initial cost of installing a tankless versus tank style water heater.

Positives:

    You will never run out of hot water. "You want an hour long shower? No problem!"
    Electric units can be installed at the point of use.
    You're not paying energy costs to heat water 24 hours a day.
    They're easy to install.
    Our electric units don't require a T&P valve (no tank!) - if code allows
    Installing a tankless water heater can indeed be a bonus to the environment (why should we choose wastefulness when we're talking about finite natural resources?)

Negatives:

    They all need a minimum flow rate & pressure to turn on.
    The faster water flows through them, the lower the temperature rise. So, if you expect to take a shower while the clothes washer is running, you will need to select a unit sized to your maximum hot water flow requirements. (Gas units generally handle this a little better than electric models)
    Electric units need heavy gauge wire. Example: the 9.5kw must have 8ga wire and a 50amp breaker.
    Gas units need a much larger, special flue pipe and larger gas supply than a conventional water heater.
    At times they can produce very hot water. It's easier to get scalded.
    Gas units are more complicated than a conventional water heater.
    With some brands, parts are hard to find (not a negative if you originally purchase from us, as we like to carry parts for the units that we sell).

Summary:
Tankless water heaters have their place. They're not "the answer" to every hot water need, but if they're used correctly they can be the solution to many of them.



return to top ↑

We hope that we have helped you on this page with Noritz NR66 tankless water heaters,
and thank you for helping to make PlumbingSupply.com® the most famous Internet plumbing supplier.
