If you are looking for a clean way to test your PVC, ABS, or Iron pipes for leaks, then the Inflow^™ Inline Pipe Testing System is the solution. These heavy duty test fittings will make short work of in-line drain pipe testing, and will save you time and money while eliminating the need to remove the test after completion - just attach the appropriate seal door and your done! Looking for more testing products? Click here.

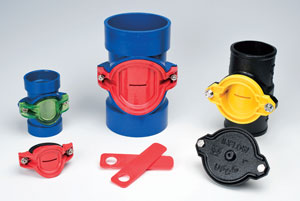

Inflow^™ Inline Drain Pipe Testing Systems
Inline testing systems are a quick and clean way to test your sewer drain pipes for leaks. These testing systems eliminate the need for inflatable test devices, providing an easy-to-use test fitting that withstands 20 psi water and/or 5 psi air pressure and allows for a controlled drain down.

Test Fitting TestFlo Assembly Seal Door

Install the test fitting between two pieces of pipe. Do not install between two different types of pipe or use as a pipeline end cap. For water testing of horizontal pipe, make sure opening is straight up. Insert the TestFlo Assembly, gasket side up into the Test Fitting and tighten evenly to 20 inch lbs. torque with a nut driver. Screwdrivers are not recommended. Apply a thick layer of waterproof plumbing grease evenly on both top and bottom surfaces of the Slide Gate. Insert Slide Gate "wet side" up. Fill the system with water or air for testing and inspect for leakage. To release test through drain line, slowly pull the Slide Gate. Do not remove the Slide Gate completely. Once the system is drained, remove the TestFlo assembly. Install the appropriate Seal Door in Test Fitting and tighten screws.

Inflow^™ Inline Testing System Features:

Valued - reduce costs and saves time on each test
Controllable - drain down after test
Clean - see through door for quick stoppage assessment
Versatile - can be used as a cleanout opening
Permanent - fitting stays in pipe after test no additional materials or labor needed
Strong - holds a water test to 20 PSI; air test to 5 PSI
Click here for dimensions

Inline Pipe Testing Systems Complete
Need all Inflow^™ Components? Simply order an Inflow^™ pipe testing kit complete below

Complete Inline Pipe Testing System For PVC/ABS Pipe
Each kit includes the following components:
Test Fitting (1 ea)	TestFlo Assembly (1 ea)	Slide Gates (2 ea)	Seal Door (1 ea)

Size	Price & Quantity PVC	Price & Quantity ABS
2"	$42.77	$42.95
3"	$53.98	$53.99
4"	$71.99	$72.80

- Or -

Complete Inline Pipe Testing System For Cast Iron Pipe
Each kit includes the following components:
Test Fitting (1 ea)	TestFlo Assembly (1 ea)	Slide Gates (2 ea)	Seal Door (1 ea)

Cast iron test fittings are a "no-hub" fitting and require the use of a no-hub coupling

Size	Price & Quantity Cast Iron
2"	$67.90
3"	$93.99
4"	$119.99

- Or -

Inline Pipe Testing Components
Need to replace an individual Inflow^™ pipe testing item? Order any component below

Test Fittings For PVC, ABS and Cast Iron Pipe
PVC/ABS	Cast Iron

Size	Price & Quantity PVC	Price & Quantity ABS	Price & Quantity Cast Iron
2"	$11.28	$11.68	$25.30
3"	$15.57	$15.57	$37.25
4"	$26.16	$26.16	$52.98

- Or -

Cast iron test fittings are a "no-hub" fitting and require the use of a no-hub coupling

Seal Door For PVC, ABS and Cast Iron
PVC/ABS	Cast Iron

See through door on PVC/ABS models for quick stoppage assessment

Size	Price & Quantity PVC / ABS	Price & Quantity Cast Iron
2"	$6.38	$15.98
3"	$8.20	$21.97
4"	$12.76	$29.36

- Or -

TestFlo Assembly - PVC, ABS and Cast Iron
PVC/ABS	Cast Iron

Comes complete with 2 stainless steel screws, 2 slide gates and lube

Size	Price & Quantity PVC / ABS	Price & Quantity Cast Iron
2"	$25.52	$28.53
3"	$32.21	$35.79
4"	$34.79	$40.66

- Or -

TestFlo Slide Gates

Replacement slide gates (4 each)

Size	Price & Quantity
2"	$7.79
3"	$7.89
4"	$7.99

- Or -

Cleanout Clips
click for larger image

Cleanout clips for use with cleanout covers
(cleanout covers sold separately below)

Size	Price & Quantity
2"	$1.99
3"	$2.29
4"	$2.49

- Or -

Cleanout Covers - Stainless Steel

Size / Description Price & Quantity
5" - stainless steel cleanout cover - for use with 2" TestFlo assembly $7.68
6" - stainless steel cleanout cover - for use with 3" TestFlo assembly $9.28
8" - stainless steel cleanout cover - for use with 4" TestFlo assembly $14.95
1/4" 20 - 4" - replacement cleanout cover screw (cut to desired length) $1.99

- Or -

click here for a huge selection of cleanout plugs

No-Hub Couplers / Couplings For Cast Iron Test Fittings

These no hub couplings are for use with cast iron test tee fittings
For many more no-hub couplings, click here

Pipe Size	Price & Quantity
2"	$2.49
3"	$4.34
4"	$4.36

- Or -

Click on the links below to view related items & accessories:
Pipe Repair Clamps
Pipe Fitting Removal Tool
Cordless Tubing Cutters Push Fit Ball Valves
Full Flow Push Connect Fittings
Push Fit Plastic Fittings

"After performing the pipe leak test, do I need to take out the fitting?"
The fitting stays in the pipe after the test and no additional materials or labor are needed. The unit also may be used as a cleanout (please check with local code authorities in your area before using as a cleanout).

"Are these inline pipe testing systems designed for testing standard water pipes?"
These systems are designed for testing drain pipes and fittings only.

"After testing has been completed and the seal door has been installed, is the tee 'full flow' or will there be any restrictions?"
Once the TestFlo assembly has been removed and the seal door has been installed, the test body allows for full flow through the line.

"Can the TestFlo assembly and TestFlo slide gates be reused?"
According to the manufacturer, the TestFlo assembly can be reused, and if you clean the slide gates really well, you can reuse them also.
