Little Giant is a leader in the pump industry, and their condensate pumps are one of the many reasons why. These pumps are economical, easy-to-install and built to be low in maintenance, saving you time and money. Choose from several models, one of which is sure to be the best condensate pump for your application. For a list of other pumps we offer, visit our
pump index page .
Featured Little Giant Condensate Pumps Click on any image & be directed to that pump
Automatic Condensate Removal Pumps - VCMA Series
Automatic condensate pumps for the removal of water dripping off air conditioner evaporative coils during the dehumidification process, or the removal of water caused by the condensing of exhaust gases from high efficiency furnaces.
Features Of These Condensation Removal Pumps:
Fully Automatic
1/2 gallon leak proof, rustproof, high impact, ABS tank with mounting tabs,
3 inlet drain holes
Removable 3/8" barbed check valve
New generation float arm for enhanced reliability
Safety switch can be wired to shut down the heating/AC circuit or to sound a low voltage alarm warning of possible tank overflow
Flame retardant ABS plastic motor & tank cover, volute and impeller
Glass filled polypropylene impeller
Stainless steel pump shaft
Snap-action pump switch
Easy installation
Intermittent liquid temp. up to 120°F
Thermal overload protection
6 ft. power cord
ULST model includes 20 ft. 3/8" id clear vinyl tubing
Click here for dimensions UL & CSA listed
ULST model includes 20 ft. 3/8" id clear vinyl tubing
Automatic Condensate Removal Pumps - VC Series
Little Giant VCC Series pumps are ideal for automatic removal of condensate from air conditioning equipment, de-humidifiers, high efficiency furnaces, condensing boilers, and other equipment where an automatic drain pump is required. Low profile housing allows for installation in those tight or limited spaces. These VCC pumps are rated for high-efficiency gas furnace applications that produce an acidic condensate.
These Condensate Pumps Feature:
LOW PROFILE for installation in limited spaces
Suitable for High-Efficiency, Gas-Furnace Condensate
Vertical type pump unit
1/30 hp motor
Leak proof, rustproof, ABS plastic tank
ABS motor cover, tank & volute
Glass filled polypropylene impeller
Stainless steel motor shaft
Snap-action switch
3/8" OD barbed discharge
Removable 3/8" barbed check valve
Safety overflow switch
Maximum liquid temperature: 120°F.
Capacity: 80gph @ 1'
Thermal overload protection
cCSAul listed
115 Volt model:
• 6' power cord with 3-pronged plug
230 Volt model:
• 6' power cord with plug
Click here for dimensions
Electronic Condensate Pumps - EC-400

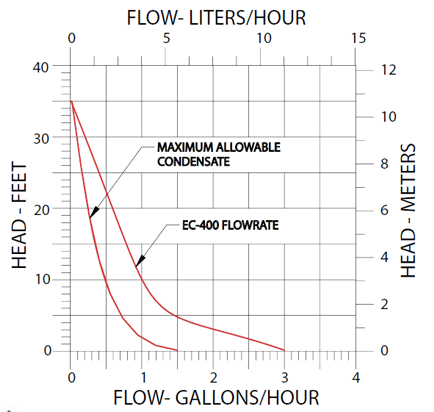

The EC-400 is designed to automatically remove condensate from wall mounted ductless mini-split air conditioners where normal gravity drainage is not possible. These are conveniently created with a compact design to allow components to be placed in most air handlers. Or, the pump can be positioned up to 3' above or adjacent to the air handler in the ceiling joist space or inside the line-set channel. A three position switch (on, off and overflow detection) is activated by a float located in the collection reservoir. The EC-400 are for intermittent use. Correct operation should be a maximum of 50% of the duty cycle. Air conditioner condensate produced must be no more than half the pump's flow rate for any given head. View the EC-400 pump flow rate chart.
These Electronic Condensation Pumps Feature:
Designed to remove condensation from most mini-split air conditioning units up to 25,000 BTU/h
Can be placed inside air handler or located up to 3' above reservoir
Two piece design for flexible installation
Maximum vertical lift (Shut-off) at 35'
Self priming
Quiet operation
Includes safety switch
Sump Pump Check Valve
This Check Valve Features:
1/4" MNPT x 3/8" ID
Vinyl tubing
For use with VCC, VCM, VCMA and VCL-14/24 units
Sump Pump Check Valve - $5.18
