Chicago Laboratory Faucets

Dependable lab components are a necessity, and having multiple styles and types to choose from ensures you are getting just the right option. Chicago lab turrets and faucets are made of solid brass construction, to reliably last through years of constant use. PlumbingSupply.com is here to provide the solution to your lab turret needs.

Turret & Valve Combinations We offer many configurations of high quality turrets
980-909-957-3KAGVCP	980-937CHAGVCP	982-909-957-3KAGVCP	997-CP

Single Turret Combinations

Model	Description	Price & Quantity
980-WS909AGVCP	Chrome finished turret with single ball valve Lever handle with air, gas, & vacuum service buttons E7T removable serrated hose nozzle 957-003K 3/8" NPT x 4-3/4" inlet shank assembled to turret 0.5 - 125 PSI maximum operating pressure Click here to view detailed dimensions	$59.20
980-WS909CAGCP	Chrome finished turret with single ball valve Lever handle with air, & gas service buttons E7TC removable serrated hose nozzle with check valve 957-003K 3/8" NPT x 4-3/4" inlet shank assembled to turret 0.5 - 125 PSI maximum operating pressure Click here to view detailed dimensions	$59.96
980-909-957-3KAGVCP	Chrome finished turret with single ball valve Lever handle with air, gas, & vacuum service buttons E7T removable serrated hose nozzle 957-003K 3/8" NPT x 4-3/4" inlet shank shipped loose 0.5 - 125 PSI maximum operating pressure Click here to view detailed dimensions	$52.93

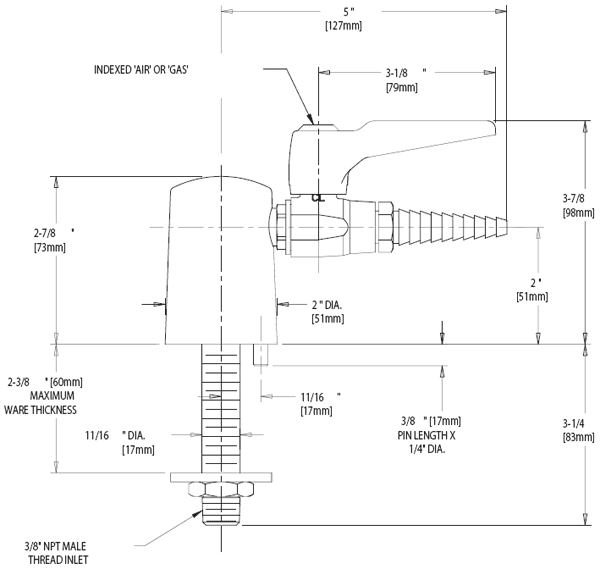

980-VR909CAGCP	Vandal resistant turret with single ball valve Lever handle with air, & gas service buttons E7TC removable serrated hose nozzle with check valve 957-003K 3/8" NPT x 4-3/4" inlet shank assembled to turret 0.5 - 125 PSI maximum operating pressure Threaded connections come permanently attached click here to view detailed dimensions	$74.16
980-WSE7TCP	Chrome finished turret with single serrated hose nozzle E7T removable serrated hose nozzle with check valve 957-003K 3/8" NPT x 4-3/4" inlet shank assembled to turret 0.5 - 125 PSI maximum operating pressure Click here to view detailed dimensions	$71.43

- Or -

Dual Valve Turret Combinations

Model	Description	Price & Quantity
981-WS909AGVCP	Chrome finished turret with two ball valves @ 180° Lever handles with air, gas, & vacuum service buttons E7T removable serrated hose nozzles 957-003K 3/8" NPT x 4-3/4" inlet shank assembled to turret 0.5 - 125 PSI maximum operating pressure Click here to view detailed dimensions	$85.57
981-WS909CAGCP	Chrome finished turret with two ball valves @ 180° Lever handles with air, & gas service buttons E7TC removable serrated hose nozzles with check valve 957-003K 3/8" NPT x 4-3/4" inlet shank assembled to turret 0.5 - 125 PSI maximum operating pressure Click here to view detailed dimensions	$99.51
981-VR909CAGCP	Vandal resistant turret with two ball valves @ 180° Lever handles with air, gas, & vacuum service buttons E7TC removable serrated hose nozzles with check valve 957-003K 3/8" NPT x 4-3/4" inlet shank assembled to turret 0.5 - 125 PSI maximum operating pressure Threaded connections come permanently attached Click here to view detailed dimensions	$115.91
982-WS909AGVCP	Chrome finished turret with two ball valves @ 90° Lever handles with air, gas, & vacuum service buttons E7T removable serrated hose nozzles 957-003K 3/8" NPT x 4-3/4" inlet shank assembled to turret 0.5 - 125 PSI maximum operating pressure Click here to view detailed dimensions	$84.40
982-WS909CAGCP	Chrome finished turret with two ball valves @ 90° Lever handles with air, & gas service buttons E7TC removable serrated hose nozzles with check valve 957-003K 3/8" NPT x 4-3/4" inlet shank assembled to turret 0.5 - 125 PSI maximum operating pressure Click here to view detailed dimensions	$100.74
982-909-957-3KAGVCP	Chrome finished turret with two ball valves @ 90° Lever handles with air, & gas service buttons E7T removable serrated hose nozzles 957-003K 3/8" NPT x 4-3/4" inlet shank shipped loose 0.5 - 125 PSI maximum operating pressure Click here to view detailed dimensions	$79.54

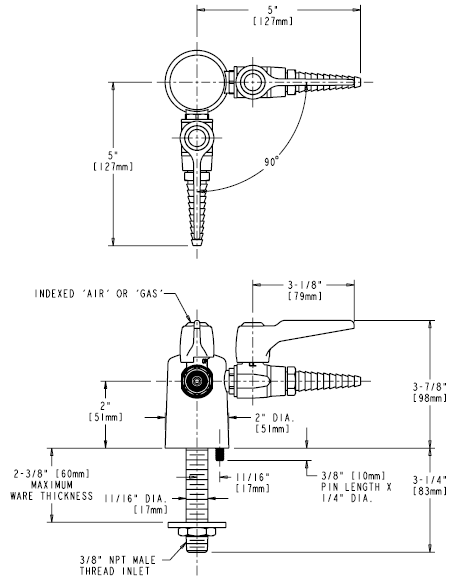

982-VR909CAGCP	Vandal resistant turret with two ball valves @ 90° Lever handles with air, & gas service buttons E7TC removable serrated hose nozzles with check valve 957-003K 3/8" NPT x 4-3/4" inlet shank assembled to turret 0.5 - 125 PSI maximum operating pressure Threaded connections come permanently attached Click here to view detailed dimensions	$116.36

- Or -

More Popular Valve & Turret Combinations

Model	Description	Price & Quantity
984-VR909CAGCP	Vandal resistant turret with four ball valves @ 90° Lever handles with air, & gas service buttons E7TC removable serrated hose nozzles with check valve 957-003K 3/8" NPT x 4-3/4" inlet shank assembled to turret 0.5 - 125 PSI maximum operating pressure Threaded connections come permanently Click here to view detailed dimensions	$151.02

- Or -

Turret & Spout Combinations

Model	Description	Price & Quantity
997-CP	Turret with three water control valves GN2B gooseneck swing spout Cross handles with cold water service buttons E7T removable serrated hose nozzle 748-003K 3/8" NPT male inlet shank assembled to body 0.5 - 125 PSI maximum operating pressure Click here to view detailed dimensions	$223.68
980-WSGN2BVBE7CP	Chrome finished turret with spout GN2BVB vacuum breaker gooseneck swing spout E7T removable serrated hose nozzle 957-003K 3/8" NPT x 4-3/4" inlet shank assembled to turret 0.5 - 125 PSI maximum operating pressure Click here to view detailed dimensions	$112.50
985-AWSGN2BVBE7CP	Chrome finished turret with spout GN2BVB vacuum breaker gooseneck swing spout Slow compression cartridge E7T removable serrated hose nozzle 957-003K 3/8" NPT x 4-3/4" inlet shank assembled to turret 0.5 - 125 PSI maximum operating pressure Click here to view detailed dimensions	$100.37
985-BCP	Chrome finished turret with spout & water control valve GN2B gooseneck swing spout Cross handle with cold water service button Slow compression cartridge E7T removable serrated hose nozzle 957-003K 3/8" NPT x 4-3/4" inlet shank assembled to turret 0.5 - 125 PSI maximum operating pressure Click here to view detailed dimensions	$115.17

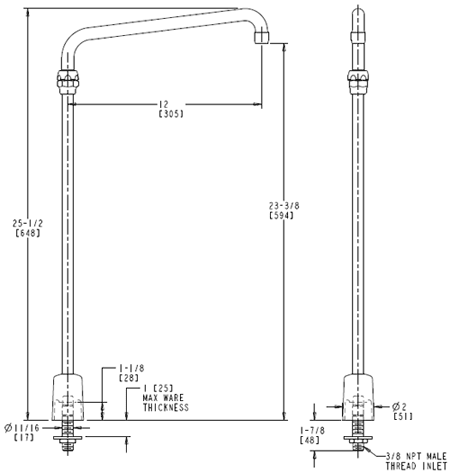

985-HRCP	Chrome finished turret with spout L12 swing spout 2.2 gpm pressure compensating aerator 982-104K 3/8" NPT male inlet shank shipped loose 18" elevated high rise spout assembly 0.5 - 125 PSI maximum operating pressure Click here to view detailed dimensions	$139.19

- Or -

Wall Mounted Single Valve Laboratory Faucets

Model	Description	Price & Quantity
986-WSV909AGVCP	Chrome finished wall flange with ball control valve Lever handle with air, gas, & vacuum service buttons E7T removable serrated hose nozzle 979-001K 3/8" NPT inlet shank assembled to flange	$75.37
986-909AGVCP	Chrome finished wall flange with ball valve Lever handle with air, gas, & vacuum service buttons E7T removable serrated hose nozzle 979-001K 3/8" NPT inlet shank shipped loose	$47.02
986-WS937CHAGVCP	Chrome finished wall flange with needle control valve Cross handle with air, gas, & vacuum service buttons E7T removable serrated hose nozzle 979-001K 3/8" NPT inlet shank assembled to flange	$122.22
986-937CHAGVCP	Chrome finished wall flange with needle valve Cross handle with air, gas, & vacuum service buttons E7T removable serrated hose nozzle 979-001K 3/8" NPT inlet shank shipped loose	$81.89

- Or -

Wall Mounted Dual Valve Laboratory Faucets

Model	Description	Price & Quantity
987-909CAGCP	Chrome "Y" pattern wall flange w/ two ball valves @ 90° Lever handles with air & gas service buttons E7TC removable serrated hose nozzles with check valve 979-001K 3/8" NPT inlet shank shipped loose	$96.01
987-909AGVCP	Chrome "Y" pattern wall flange w/ two ball valves @ 90° Lever handles with air, gas, & vacuum service buttons E7T removable serrated hose nozzles 979-001K 3/8" NPT inlet shank shipped loose	$75.35
987-937CHAGVCP	Chrome "Y" pattern wall flange w/ two needle valves @ 90° Cross handles with air, gas, & service buttons E7T removable serrated hose nozzles 979-001K 3/8" NPT inlet shank shipped loose	$180.11

- Or -

Replacement Turret Valve Combinations - Less Shank

Model	Description	Price & Quantity
980-909CAGCP	Turret with single ball valve & E7TC serrated hose nozzle w/ check valve	$54.13
980-909AGVCP	Turret with single ball valve & E7T serrated hose nozzle	$41.78
980-937CHAGVCP	Turret with single needle valve & E7T serrated hose nozzle	$82.13
981-909CAGCP	Turret with two ball valves @ 180° & E7TC serrated hose nozzles w/ check valve	$88.80
981-909AGVCP	Turret with two ball valves @ 180° & E7T serrated hose nozzles	$68.88
981-VR909AGVCP	Vandal resistant turret w/ two ball valves @ 180° & E7T serrated hose nozzles	$141.37
981-937CHAGVCP	Turret with two needle valves @ 180° & E7T serrated hose nozzles	$116.40
982-937CHAGVCP	Turret with two cross handle needle valves @ 180° & E7T serrated hose nozzles	$116.41
982-909CAGCP	Turret with two ball valves @ 90° & E7TC serrated hose nozzles w/ check valve	$77.44
982-909AGVCP	Turret with two ball valves @ 90° & E7T serrated hose nozzles	$68.95
982-DS909AGVCP	Double service turret with two ball valves @ 90° & E7T serrated hose nozzles	$135.46
982-DSVR909CAGCP	Double service vandal resistant turret w/ two ball valves @ 90° & E7TC serrated hose nozzles w/ check valve	$150.49
983-909AGVCP	Turret with three ball valves @ 90° & E7T serrated hose nozzles	$104.39

- Or -

Replacement Laboratory Turrets With Shank

Model	Description	Price & Quantity
980-WSCP	Turret with one side outlet & 957-003k 3/8" NPT inlet shank assembled to turret	$42.25
981-WSCP	Turret with two side outlets @ 180° & 957-003k 3/8" NPT inlet shank assembled to turret	$31.93
982-WSCP	Turret with two side outlets @ 90° & 957-003k 3/8" NPT inlet shank assembled to turret	$32.17
983-WSCP	Turret with three side outlets @ 90° & 957-003k 3/8" NPT inlet shank assembled to turret	$74.82
984-WSCP	Turret with 4 side outlets @ 90° & 957-003k 3/8" NPT inlet shank assembled to turret	$39.50

- Or -

Replacement Laboratory Turrets Less Shank

Model	Description	Price & Quantity
980-CP	Turret with one side outlet - 3/8" NPT female outlet threads	$19.23
981-CP	Turret with two side outlets @ 180° - 3/8" NPT female outlet threads	$22.59
982-CP	Turret with two side outlets @ 90° - 3/8" NPT female outlet threads	$22.73
982-VPCP	Vandal resistant turret with two side outlets @ 90° - 3/8" NPT female outlet threads	$36.11
984-CP	Turret with four side outlets @ 90° - 3/8" NPT female outlet threads	$24.32
Note: These are turrets only - turrets with shanks are sold directly above
