Barclay toilets offer classic style and design at an affordable price. Available in many classic, decorative, and contemporary styles, your new toilet could be right here at PlumbingSupply.com
®! If you are looking for quality plumbing fixtures, you'll find it in Barclay's fine products. Choose one- or two-piece toilets to complement any décor, and complete your new or remodeled bathroom. Looking for more Barclay products? Click
here.
All toilets shown on this page are designed for a 12 inch rough-in
| Constitution™ Water Closet |
 |
This two-piece toilet features:
- Round or elongated front, 1.6 gpf
- Syphon jet flush
- Available in white, bisque, and black finishes
- Available with white, chrome, brass or satin nickel flush handle
- 12" Rough In

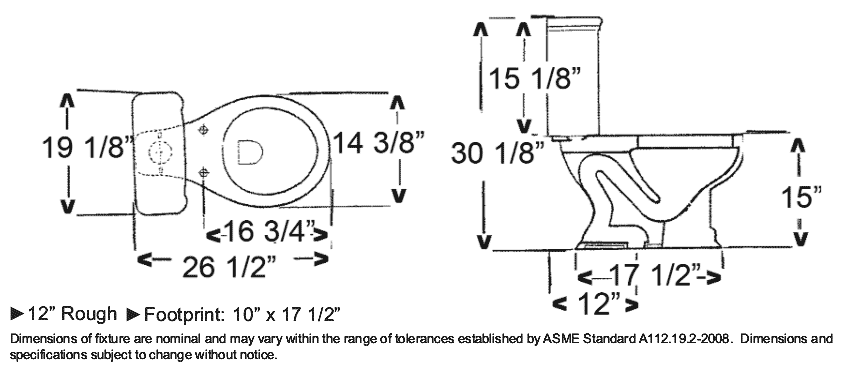

- Round overall dimensions - View dimensions
• 19-1/8" tank width • 26-1/2" front to back •30-1/8" height, 15" bowl height

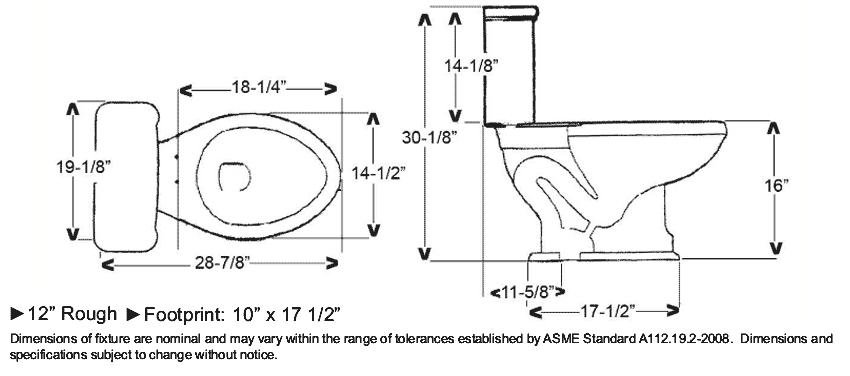

- Elongated overall dimensions - View dimensions
• 19-1/8" tank width • 28-7/8" front to back • 30-1/8" height • 16" bowl height
- Toilet seat sold separately
|
TIP: How to install a toilet onto tile:
Set the toilet in the usual manner. Then just grout around the base of the toilet (between the toilet and the floor tiles). Wash the joints and let them get hard. That grout will support the toilet and keep it from trying to rock when someone sits on it, and the grout looks much nicer and will generally last longer than standard caulking.
| Devon™ Water Closet |
 |
This two-piece toilet features:
- Round front, 1.6 gpf
- Syphon jet flush
- Available in white, bisque and black finishes
- Includes white plastic flush handle
- 12" Rough In
- Overall dimensions - View dimensions
• 17" tank width • 26-3/4" front to back • 29-7/8" height • 15-1/2" bowl height
- Toilet seat sold separately
|
| Newberry™ Compact Water Closet |
 |
This two-piece toilet features:
- Elongated front, 1.6 gpf
- Syphon "S" trap
- 3" flush mechanism
- MAP test rating of 650
- Available in white, bisque and black finishes
- Includes chrome plastic flush handle
- 12" Rough In
- Overall imensions - View dimensions
• 17-3/8" tank width • 28-1/2" front to back • 30-3/4" height • 16-3/4" bowl height"
- Toilet seat sold separately
|
| Stanford™ Water Closet |
 |
This two-piece toilet features:
- Round or elongated front, 1.6 gpf
- Syphon jet flush
- Available in white, bisque, and black finishes
- Available with white, chrome, brass or satin nickel flush handle
- 12" Rough In

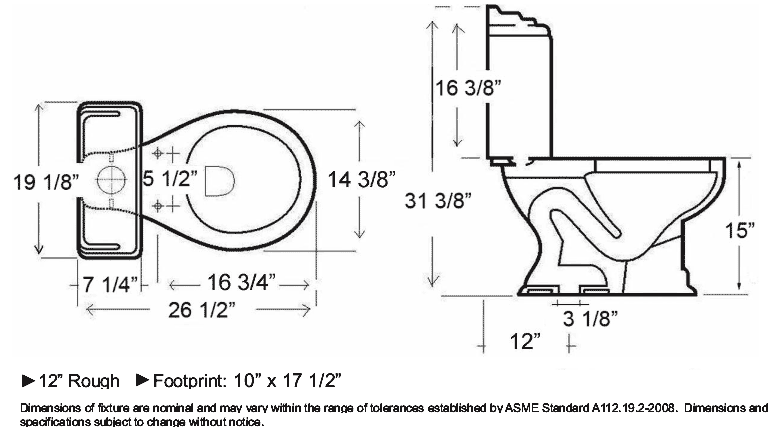

- Round overall dimensions - View dimensions
• 19-1/8" tank width • 26-1/2" front to back • 31-3/8" height • 15" bowl height
- Elongated overall dimensions - View dimensions
• 19-1/8" tank width • 28-7/8" front to back • 31-3/8" height • 16" bowl height
- Toilet seat sold separately
|
| Vicki™ Water Closet |
 |
This two-piece toilet features:
- Round or elongated front, 1.6 gpf
- Syphon jet flush
- Available in white, bisque, and black finishes
- Available with white, chrome, brass or satin nickel flush handle
- 12" Rough In
- Round overall dimensions - View dimensions
• 19-1/8" tank width • 26-3/8" front to back • 29-3/8" height • 15-1/4" bowl height
- Elongated overall dimensions - View dimensions
• 19-1/8" tank width • 28-7/8" front to back • 29-3/8" height • 15-1/2" bowl height
- Toilet seat sold separately
|
TIP: How to install a toilet onto tile:
Set the toilet in the usual manner. Then just grout around the base of the toilet (between the toilet and the floor tiles). Wash the joints and let them get hard. That grout will support the toilet and keep it from trying to rock when someone sits on it, and the grout looks much nicer and will generally last longer than standard caulking.
| Victoria™ Water Closet |
 |
This two-piece toilet features:
- Round or elongated front, 1.6 gpf
- Syphon jet flush
- Available in white, bisque, and black finishes
- Available with white, chrome, brass or satin nickel flush handle
- 12" Rough In
- Round overall dimensions - View dimensions
• 19-1/8" tank width • 26-3/8" front to back • 30-1/2" height • 15-1/4" bowl height

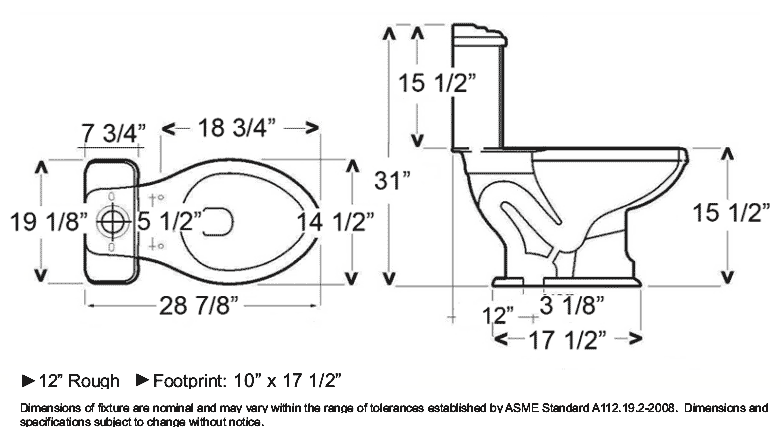

- Elongated overall dimensions - View dimensions
• 19-1/8" tank width • 28-7/8" front to back • 31" height • 15-1/2" bowl height
- Toilet seat sold separately
|
| Washington™ Water Closet |
 |
This two-piece toilet features:
- Elongated front, 1.6 gpf
- 3" wash down flush
- MaP test rating of 600
- Available in white finish with chrome handle
- 12" Rough In

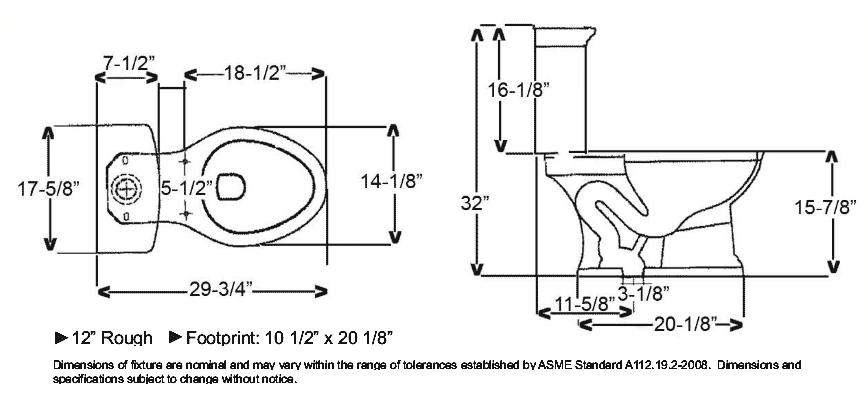

- Overall dimensions - View dimensions
• 17-5/8" tank width • 29-3/4" front to back • 32" height • 15-7/8" bowl height
- Toilet seat sold separately
|
Bemis 1200SLOWT toilet seat will fit this toilet
| Vogue™ One-Piece Water Closet |
 |
This one-piece toilet features:
- 1-piece round front, 1.6 gpf
- Syphon jet flush
- Available in white, bisque and black finishes
- Includes chrome plastic push button
- 12" Rough In

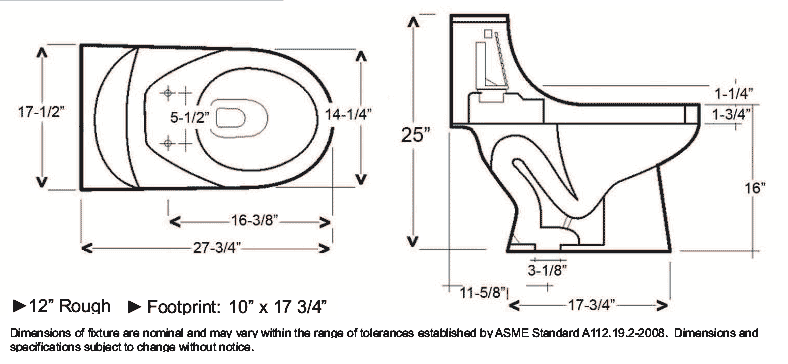

- Overall dimensions - View dimensions
• 17-1/2" tank width • 27-3/4" front to back • 25" height, 16" bowl height
- Toilet seat sold separately
|
Bemis 200SLOWT toilet seat will fit this toilet
Quick Reference for Overall Toilet Dimensions

Dimensions shown below are inches
| Toilet Name |
Bowl Shape |
Model # |
A Tank Width |
B Front to Back |
C Height |
D Bowl Height |
E Foot Print Width |
F Foot Print Length |
| Constitution |
Round |
2-410 |
19-1/8" |
26-1/2" |
30-1/8" |
15" |
10" |
17-3/8" |
| Constitution |
Elongated |
2-415 |
19-1/8" |
28-7/8" |
30-1/8" |
16" |
10" |
17-1/2" |
|
| Devon |
Round |
2-130 |
17" |
26-3/4" |
29-7/8" |
15-1/2" |
9-3/4" |
16-7/8" |
|
| Newberry |
Elongated |
2-160 |
17-3/8" |
28-1/2" |
30-3/4" |
16-3/4" |
9-3/4" |
17-1/4" |
|
| Stanford |
Round |
2-409 |
19-1/8" |
26-1/2" |
31-3/8" |
15" |
10" |
17-1/2" |
| Stanford |
Elongated |
2-420 |
19-1/8" |
28-7/8" |
31-3/8" |
16" |
10" |
17-1/2" |
|
| Vicki |
Round |
2-524 |
19-1/8" |
26-3/8" |
29-3/8" |
15-1/4" |
10" |
17-1/2" |
| Vicki |
Elongated |
2-526 |
19-1/8" |
28-7/8" |
29-3/8" |
15-1/2" |
10" |
17-1/2" |
|
| Victoria |
Round |
2-523 |
19-1/8" |
26-3/8" |
30-1/2" |
15-1/4" |
10" |
17-1/2" |
| Toilet Name |
Bowl Shape |
Model # |
A Tank Width |
B Front to Back |
C Height |
D Bowl Height |
E Foot Print Width |
F Foot Print Length |
| Victoria |
Elongated |
2-525 |
19-1/8" |
28-7/8" |
31" |
15-1/2" |
10" |
17-1/2" |
|
| Vogue |
Elongated |
2-140 |
17-1/2" |
27-3/4" |
25" |
16" |
10" |
17-3/4" |
|
| Washington |
Elongated |
2-170 |
17-5/8" |
29-3/4" |
32" |
15-7/8" |
10-1/2" |
20-1/8" |
