Myson Towel Warmers Specifications

Myson quality towel warmers add function, beauty and warmth to your bathroom or spa room. PlumbingSupply.com® is your source for quality products from Myson.

Please note: Some of the models below have been discontinued by the manufacturer and are listed here as a reference for your convenience.


Classic Series Myson Electric Towel Warmers Specifications




Classic Electric Towel Warmers
Model V/Hz Watts Amps Overall
Height (in)
Overall
Width (in)
Overall Width
Incl. Electric Box (in)
Overall
Projection (in)
Tube
Diameter (in)
WEO-100 120V/60Hz 95PL
110PA
0.86
1.00
25-3/16 23 24-5/8 4 1
WEO-140 120V/60Hz 135PL
185PA
1.23
1.68
34-1/2 23 24-5/8 4 1
ES40-1 120V/60Hz 115 1.04 6-3/4 18-1/4 22-3/4 12 1-1/4
FPRL08 120V/60Hz 150 1.36 35-1/8 24 -- -- 1-1/4 / 3/4
WPRL08 120V/60Hz 150 1.36 30 24 -- 4-3/8 1-1/4 / 3/4
WPRL10 120V/60Hz 185 1.68 36-5/8 24 -- 4-3/8 1-1/4 / 3/4
WDIA08 120V/60Hz 130 1.20 30 20 -- 5-1/4 1
WDIA12 120V/60Hz 130 1.20 45-1/8 20 -- 5-1/4 1
SEO70 120V/60Hz 70 0.63 19-7/8 22-7/8 23-1/4 3-1/2 1
PL = Plate Finish     PA = Powdercoat Finish

Contemporary Series Myson Electric Towel Warmers




Contemporary Electric Towel Warmers
Model V/Hz Watts Amps Overall
Height (in)
Overall
Width (in)
Overall Width
Incl. Electric Box (in)
Overall
Projection (in)
Tube
Diameter (in)
ECMH3-1 120V/60Hz 70PL
100PA
0.68
0.91
21-1/8 17-1/4 17-13/16 5-1/4 1-1/2" Vertical Tubes


1" Horizontal Tubes
ECMH3-2 120V/60Hz 100PL
150PA
0.91
1.36
35-1/4 17-1/4 17-13/16 5-1/4
ECMH3-3 120V/60Hz 75PL
100PA
0.68
0.91
21-5/8 19-11/16 20-7/16 3-7/8
ECMH3-7 120V/60Hz 75PL
100PA
0.68
0.91
21-3/8 17-1/4 18 3-7/8
EMR-750 120V/60Hz 190PL
225PA
1.73
2.04
29-15/16 19-11/16 22-7/8 4 1-1/4" Vertical Tubes

1" Horizontal Tubes
ERR1 120V/60Hz 230PL
330PA
2.09
3.00
30-9/16 19-1/16 20-7/16 4 1-1/4" Vertical Tubes


1" Horizontal Tubes
ERR2 120V/60Hz 240PL
355PA
2.18
3.23
30-9/16 23-5/8 24-3/8 4
ERR3 120V/60Hz 300PL
435PA
2.73
3.95
30-9/16 29-1/2 30-1/4 4
ERR4 120V/60Hz 370PL
500PA
3.63
4.54
47-1/8 19-3/4 20-1/2 4
ECM1 120V/60Hz 220PL
235PA
2.00
2.14
33-11/16 19-5/16 19-13/16 5-1/4 1-1/2"
Vertical
"D" Tubes


1" Horizontal Tubes
ECM2 120V/60Hz 230PL
235PA
2.09
2.14
33-11/16 23-1/4 23-3/4 5-1/4
ECM3 120V/60Hz 210PL
320PA
1.91
2.91
33-11/16 29-1/8 29-5/8 5-1/4
ECM4 120V/60Hz 255PL
475PA
2.32
4.32
52-3/16 19-5/16 19-13/16 5-1/4
EECOSH-85 120V/60Hz 200 1.75 38-7/8 19-11/16 20-3/16 4 1-1/2" Vertical Tubes


1" Horizontal Tubes
EECOSH-86 120V/60Hz 200 1.75 38-7/8 23-5/8 24-1/8 4
EECOSH-125 120V/60Hz 300 2.73 53-1/16 19-11/16 20-3/16 4
EECOSH-126 120V/60Hz 300PL
400PA
2.73
3.63
53-1/16 23-5/8 24-1/8 4
EINTH1 120V/60Hz 250 2.27 25-13/16 19-11/16 20 4-1/8 Square Style
EINTH2 120V/60Hz 400 3.64 40-9/16 19-11/16 20 4-1/8
EINTH3 120V/60Hz 500 4.54 70-1/8 19-11/16 20 4-1/8
PL = Plate Finish     PA = Powdercoat Finish

Traditional Series Myson Electric Towel Warmers Specifications


Towel warmer Thirlmere #EB35-1EB35-1


Traditional Electric Towel Warmers
Model V/Hz Watts Amps Overall Height (in) Overall Width
Including Flanges (in)
Overall Width
Incl. Electric Box (in)
Overall Projection (in) Tube Diameter (in)
EB24-1 120V/60Hz 100 0.91 37-5/8 27-1/4 30-3/8 5-1/2 1-1/4
EB27-1 120V/60Hz 200 1.82 37-5/8 27-1/4 30-3/8 5-1/2 1-1/4
EB29 120V/60Hz 200 1.82 41 27-1/4 30-3/8 5-1/2 1-1/4
EB31-1 120V/60Hz 200 1.82 27-1/4 27-1/4 30-3/8 5-1/2 1-1/4
EB34-1 120V/60Hz 100 0.91 27-1/4 27-1/4 30-3/8 5-1/2 1-1/4
EB35-1 120V/60Hz 150 1.36 51-1/4 21-1/4 24-3/8 5-1/2 1-1/4
EB36-1 120V/60Hz 280 2.55 51-1/4 21-1/4 24-3/8 5-1/2 1-1/4
EB49 120V/60Hz 285 2.59 73-1/2 27-1/4 30-3/8 5-1/2 1-1/4
EVR1 120V/60Hz 385 3.50 37-5/8 26-5/8 29-3/4 8-1/8 1-1/4

Contemporary Series Myson Hydronic Towel Warmers


Towel warmer Angara #RHARHA

Contemporary Hydronic Towel Warmers -- Brass Construction
Model Btu/hr
85°F
Overall
Height (in)
Overall
Width (in)
Overall & Variable
Projection (in)
Tube
Diameter (in)
COS85 1,302 34 19-5/8 4 1-1/2" Vertical "D" Tubes


1" Horizontal Tubes
COS86 1,525 34 23-5/8 4
COS125 1,804 48-1/4 19-5/8 4
COS126 2,120 48-1/4 23-5/8 4

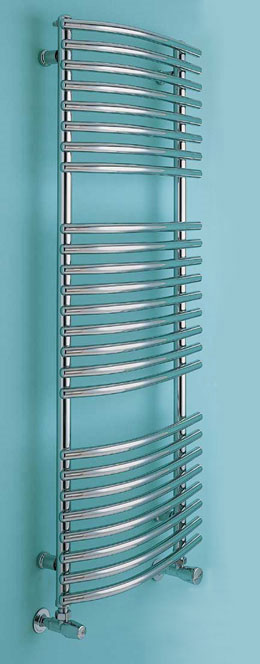

GAV1 1,376 29-3/4 19-11/16 5-3/4 - 6-1/4 1-1/2"
GAV2 1,610 29-3/4 23-5/8 6-1/8 - 6-5/8
GAV3 2,113 48 19-11/16 5-3/4 - 6-1/4
GAV4 2,468 48 23-5/8 6-1/8 - 6-5/8
INT1 1,024 20-7/8 19-11/16 4-1/4 - 4-7/8 Square Style
INT2 1,692 39-5/8 19-11/16 4-1/4 - 4-7/8
INT3 2,506 59-1/4 19-11/16 4-1/4 - 4-7/8
MAE1 1,512 31-5/16 19-5/8 3-7/8 - 4-3/8 1-1/4" Vertical Tubes


1" Horizontal Tubes
MAE2 2,208 47-1/16 19-5/8 3-7/8 - 4-3/8
MAE3 3,070 69-5/32 19-5/8 3-7/8 - 4-3/8

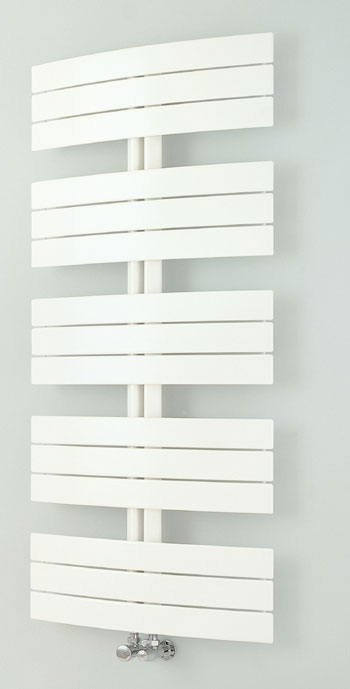

CAV1 2,528 44-1/2 25-9/16 4-1/2 - 4-7/8 Curved Style
CAV2 3,294 56-5/16 25-9/16 4-1/2 - 4-7/8
RHA1 1,674 49-1/4 22-1/2 8-7/8 - 9-3/8 1-1/4"
RHA2 2,294 63 25 9-7/8 - 10-3/8

Traditional Series Myson Hydronic Towel Warmers Specifications



image of discontinued towel warmer Thirlmere #B35-1B35-1


Traditional Hydronic Towel Warmers
Model Btu/hr
85°F
Overall
Height (in)
Overall Width
Incl. Flanges (in)
Width C/C Vertical Tubes (in) Center to Center Conn. (in) Valve Rough-in
From Wall
Floor to Center Conn. (in) Overall Projection (in) Tube Diameter (in)
B24-1 507 37-5/8 27-1/4 24 24 4-1/2 4-1/4 5-3/8 1-1/4
B27-1 1,080 37-5/8 27-1/4 24 24 -- -- 5-1/2 1-1/4
B29 1,320 41 27-1/4 24 24 -- -- 5-1/2 1-1/4
B30 1,200 40-3/8 27-1/4 24 18 4-3/8 4-1/4 8-3/4 1-1/4
B31-1 1,214 27-1/4 27-1/4 24 24 -- -- 5-1/2 1-1/4
B34-1 505 27-1/4 27-1/4 24 24 -- -- 5-1/2 1
B35-1 660 51-1/4 21-1/4 18 18 -- -- 5-1/2 1-1/4
B36-1 1,344 51-1/4 21-1/4 18 18 -- -- 5-1/2 1-1/4
B49 2,000 73-1/2 27-1/4 24 18 4-1/2 4-3/8 5-1/2 1-1/4
VR1 2,520 37-5/8 26-5/8 23-3/8 17-3/4 4-1/2 4-1/4 8-1/2 1-1/4

* Rough-in = 1/2" copper compression
