Aquanot, Basement Sentry & Pro Pak Series

by Zoeller

With over 25 years of proven performance in the field and thousands of satisfied customers, the Aquanot Series by Zoeller has the reliability and protection you are looking for. When you need a battery backup pedestal pump, or emergency backup sump pump, PlumbingSupply.com^® is pleased to offer these stellar Zoeller systems and many other Zoeller products.

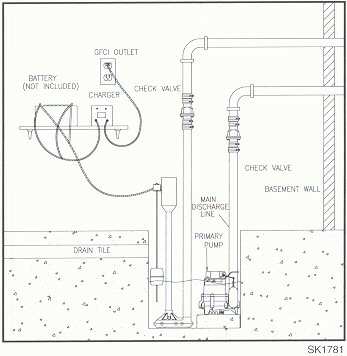

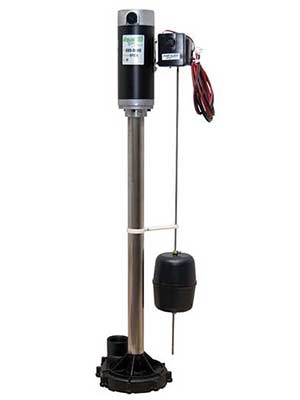

The Aquanot Series -- Emergency Battery Backup Pedestal Pump

The Aquanot Series pumps incorporate a heavy duty 12 volt motor, at the top of a stainless steel column and shaft with a non corrosive base assembly, that is able to discharge water as fast as many primary/main pumps. Both the Aquanot I and Aquanot II include a positive contact float switch, and a pump alarm. The outlets of these pumps are 1-1/2" Fipt and with the use of a male adapter easily adaptable to PVC or ABS plastic piping.

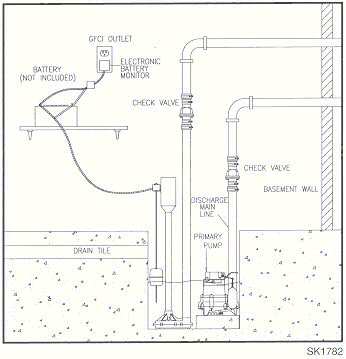

The Aquanot I is equipped with 0.5 amp battery monitor designed to maintain a fully charged battery.

The Aquanot II equipped with automatic electronic 25 amp charger to maintain and recharge battery.

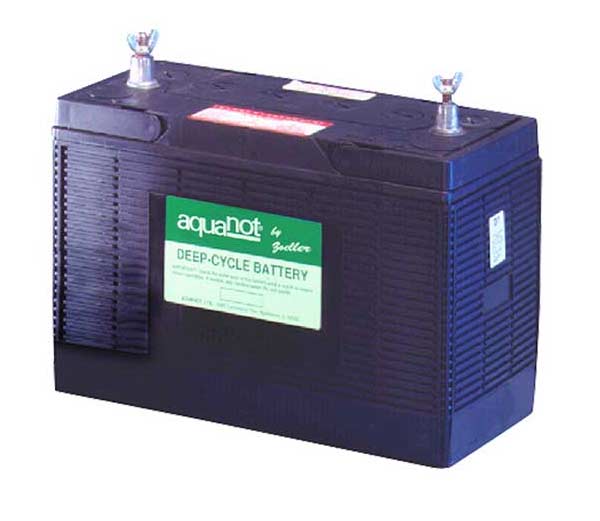

Battery not included - please purchase locally.

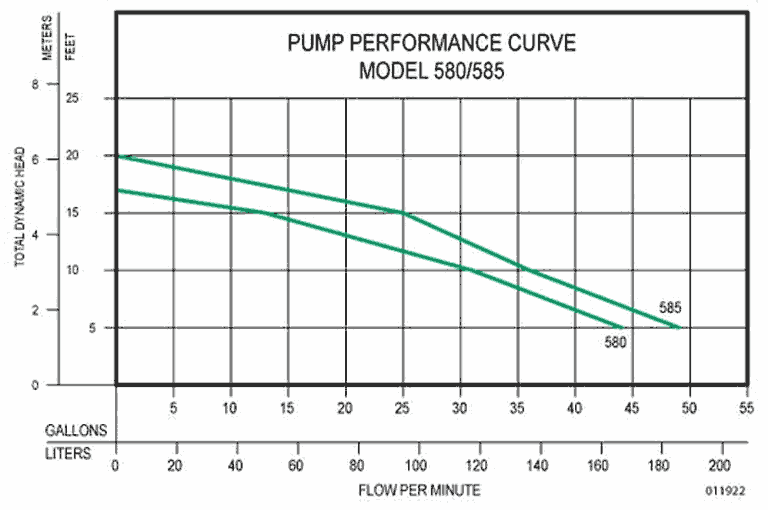

Click for Aquanot I and Aquanot II pump performance chart

Image of Zoeller Aquanot Series - backup sump pump systems

Model #	Description	Price & Quantity
580-0005	Aquanot I - comes with Battery Monitor (formerly called Aquanot model "Weatherguard")	$483.39
585-0005	Aquanot II - comes with Electronic Charger (formerly called Aquanot model "Safeguard")	$700.40
585-0006	Replacement pump for Aquanot series	$441.60

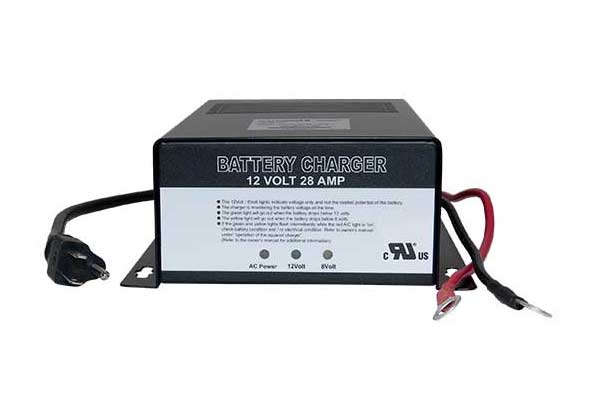

10-0772	Battery charger for Aquanot series	$260.26

- Or -

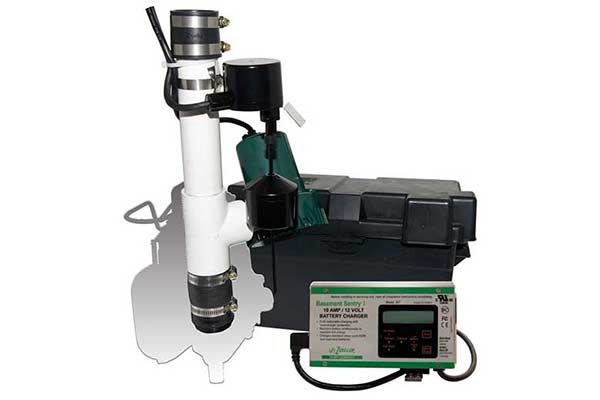

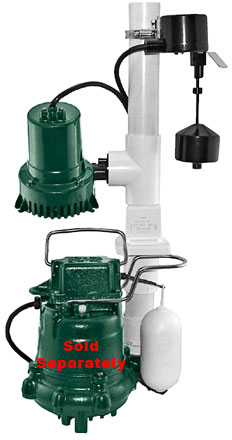

The Basement Sentry Series Emergency Backup Sump Pump

Model # 507
NOTE: the backup sump pump is included
the main sump pump is sold separately
product may not be exactly as shown

Model #	Description	Price & Quantity
507-0005	Basement Sentry I - 12 Volt Backup Sump Pump System	$290.62
510-0005	Basement Sentry II - 12 Volt Backup Sump Pump System	$734.73
007861	Multiple Battery Kit (case and hookup wire) for Model 510	$89.94

- Or -

The Basement Sentry Series 12 volt DC pumps are sold just as the back-up pump. The primary pumps are sold separately so you can add this back up pump system to your existing sump pump. The Basement Series 12 volt DC pumps are designed for emergency backup use in clear water sump pumps when the primary AC powered pump or pumps fail to turn on. Primary pumps can fail due to power outages during storms or brownouts, or because of wiring and electrical problems, mechanical malfunction or obstructions in the pit. The Basement Sentry will turn on if the primary pump fails to turn on or is unable to keep up with excessive water due to rain or other conditions that can cause your basement water removal system to overload.

Both the Basement Sentry I (model 507) and the Basement Sentry II (model 510) have the same basic functions but the Sentry II (model 510) has a few more upgraded features.

If more than 7 hours continuous run time will be required then two or more batteries should be connected in parallel to extend the run time hours. The Basement Sentry II (model 510) can be used with multiple batteries but an extra battery case with a hookup wire (P/N 007861) must be ordered separately for each additional battery to be used.

What the Basement Sentry I and the Basement Sentry II have in common:

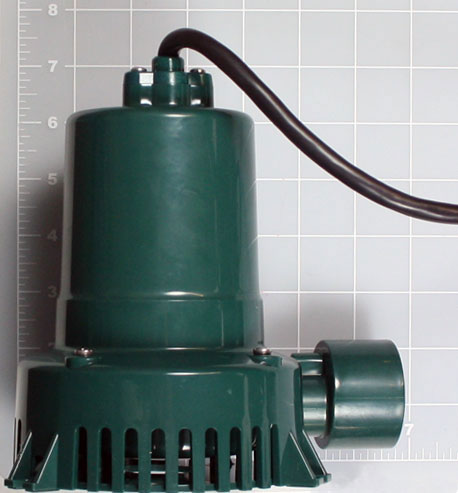

DC PUMP: 12 Volt, highly efficient, non-corrosive construction.

LED LIGHTS - Indicate:
- Power supply "on" = Red
- Battery "charging" = Yellow
- Battery "fully charged" = Green

ALARM: Continuous steady beep sounds for "low battery."

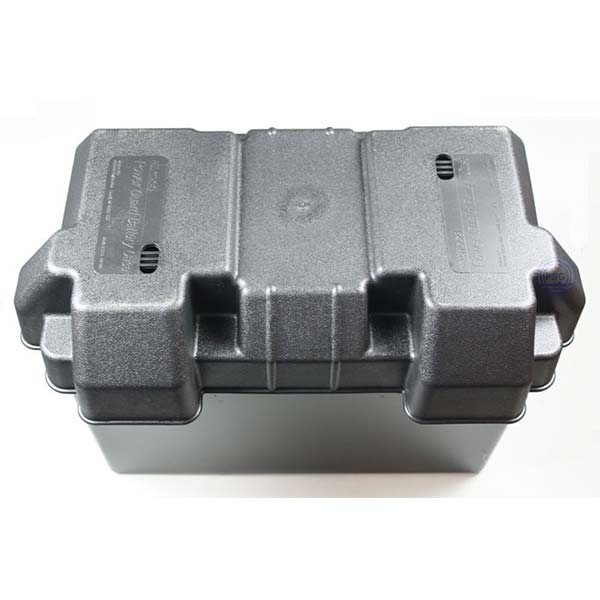

BATTERY CASE: The included battery case will accommodate maximum battery dimensions of 13"L x 7-1/2"W x 9-1/2"H and fits all group size 27 marine batteries. Made from non corrosive polyethylene. Contains lock strap.

BATTERY: Not included. However, the estimated life of a fully charged (175 minute reserve capacity) battery when the pump is operating continuously is approximately 7-1/2 hours.

FITTINGS: All parts required for installation and mounting are included for each system including brackets, wall anchors, PVC fittings, and cable ties. PVC pipe must be provided by the installer.

PIT SIZE minimum requirements: 18" diameter x 24" deep.

How the Basement Sentry I and the Basement Sentry II differ:

Control Box Difference:
The Basement Sentry I (model 507) Automatic Control Box is solid state and includes a self-contained 10 amp battery charger with battery burn out and overcharge protection. Comes with 2 LED light indicators. The first one indicates "power on" and is Red. The second one indicates the battery is "charging" and is Yellow and then changes to Green when the battery is "fully charged". The control box has an On/Off switch with alarm reset.

The Basement Sentry II (model 510) has a solid state Automatic Control Box that includes a self-contained 10 amp battery charger with battery burn out and overcharge protection. It comes with 5 LED light indicators. the first one indicates AC "power on" and is Red. The second one indicates the battery is "charging" and is Yellow and then changes to Green when the battery is "fully charged". The third one indicates "low battery voltage" and will turn Red if this occurs. The fourth light indicates the "pump is running" and will turn Yellow. The fifth light is an alarm silence indicator that will glow yellow if the alarm remains in the "off" position. The control box has a pump alarm On/Off switch that also can activate a charger reset or a pump test.

Float Switch Difference:
The Model 507 has a reliable low voltage slide bar type float switch that works well in compact sump basins.

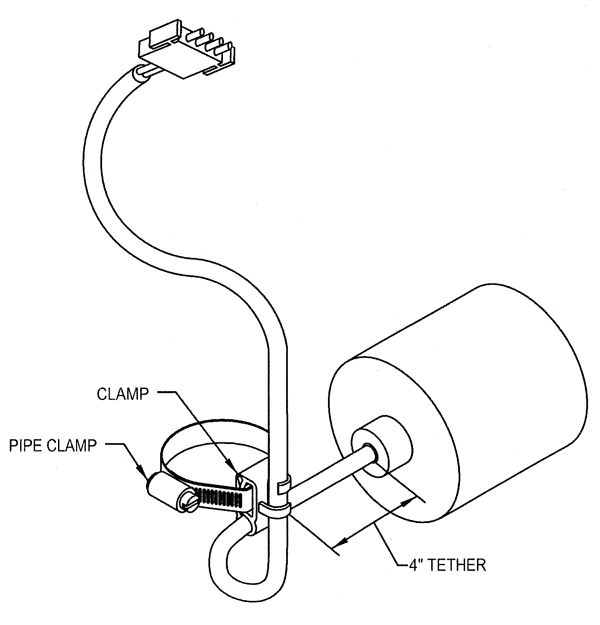

The Model 510 uses a reliable mechanical tether type low voltage float switch.

Check Valve Difference
The Model 507 has an internal check valve in the discharge and includes an additional heavy duty check valve adaptable to 1-1/4" or 1-1/2" pipe.
The Model 510 includes two heavy duty check valves to install with pedestal or column style pumps or submersible pumps.

Pump Difference:
The Model 507 will pump 900 GPH (15 GPM) at 10 ft. head. Not recommended for installations over 15 ft. total dynamic head. This pump outlet has 1-1/2" PVC spigot adapter built-in to glue directly into a 1-1/2" Tee provided by the manufacturer.

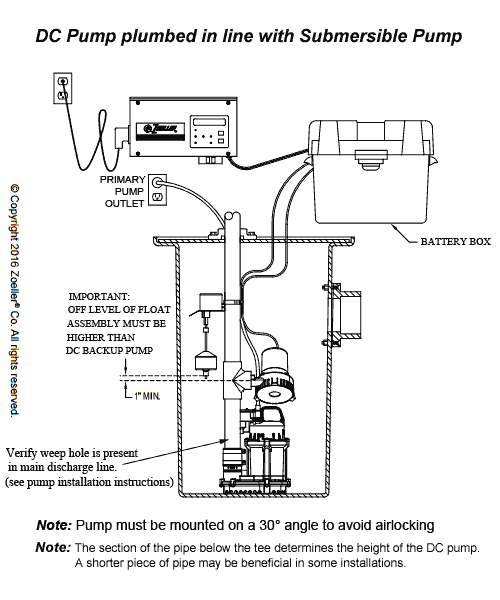

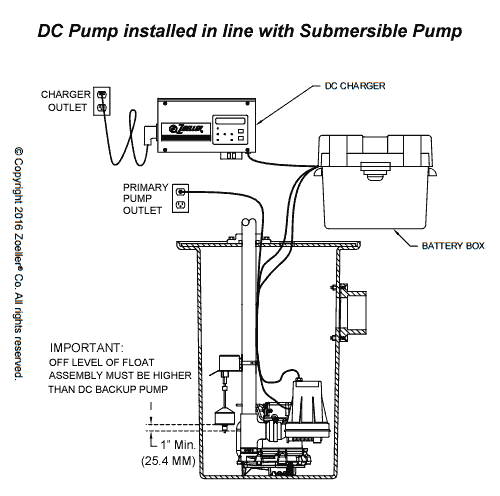

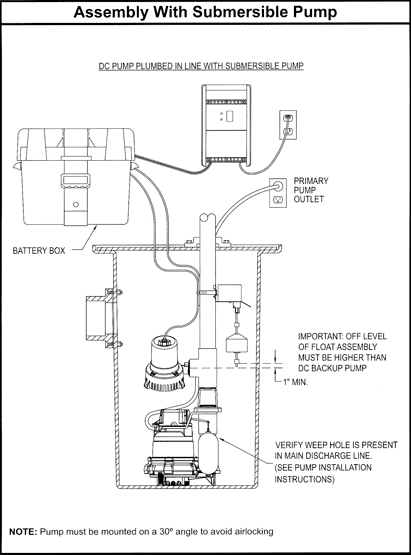

Click here for Basement Sentry I (Model 507) installation example when used with a submersible primary pump.

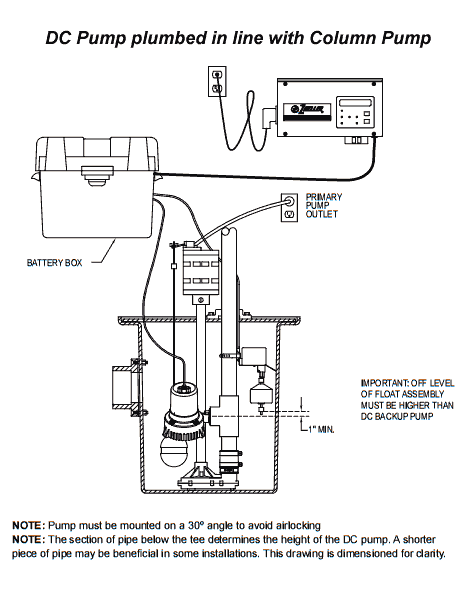

Click here for Basement Sentry I (Model 507) installation example when used with a pedestal primary pump.

The Model 510 has a slightly larger pump that will pump 1,296 GPH (21.6 GPM) at 10 ft. head. Not recommended for installations over 17 ft. total dynamic head. This pump outlet has 1-1/2" PVC slip adapter to glue directly onto 1-1/2" pipe.

Click here for Basement Sentry II (Model 510) installation example when used with a submersible primary pump.
Click here for Basement Sentry II (Model 510) installation example when used with a pedestal primary pump.

Please note: All parts required for installation and mounting are included for each system including brackets, wall anchors, PVC fittings, and cable ties. PVC pipe must be provided by the installer.

The Sentry II (model 510) Upgrade features:

The Model 510 can be used with multiple batteries but an extra battery case with hookup wire (P/N 007861) must be ordered separately for each additional battery. More LED light indicators on the control box provide more pump and battery operation information at a glance. The alarm not only emits a continuous steady beep to signal low-battery but also includes a slow interrupted beep to signal a "partially discharged battery". The Basement Sentry II model 510 provides higher capacity protection and dewatering in critical installations including residential locations, commercial locations, basement storage facilities, and in communication or computer vaults built below ground level.

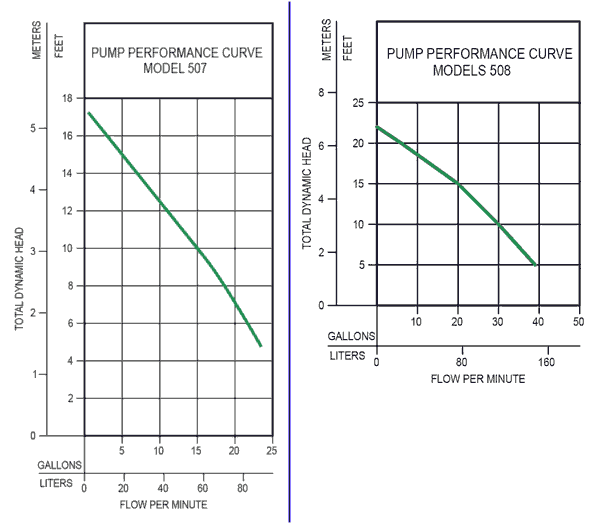

Click for Sentry I and Sentry II performance chart

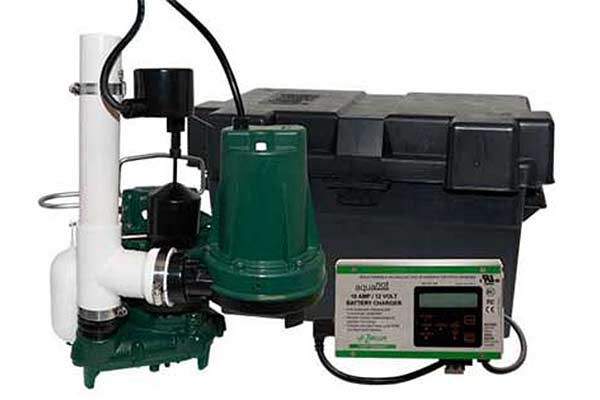

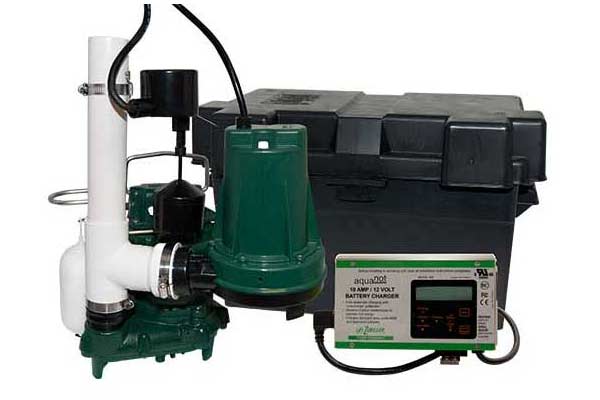

The Pro Pak Series Emergency Backup Sump Pump System
- PRE-ASSEMBLED

Model # 53
NOTE: Both the backup sump pump and main sump pump are included.
Product may not be exactly as shown.

Model #	Description	Price & Quantity
507-0009	Pro Pak 49 - 12 Volt Backup Sump Pump System with WM49 Pump	$523.27
507-0008	Pro Pak 53 - 12 Volt Backup Sump Pump System with M53 Pump	$581.85
507-0011	Pro Pak 98 - 12 Volt Backup Sump Pump System with M98 Pump	$677.82

- Or -

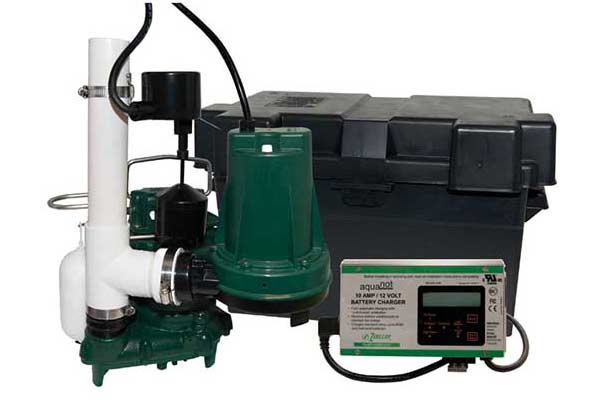

The Pro Pak line of emergency backup sump pump systems include the Basement Sentry I system (#507-0005), as well as your choice of a primary (main) sump pump. The key word here is "pre-assembled". All you need to do is put it in the sump pit, mount your control box on the wall, attach the wires to the battery, adjust the float switch height, add any additional discharge piping and plug the control box into one receptacle and the primary pump into a separate outlet. These Pro Pak systems are plumbed with 1-1/2" schedule 40 PVC pipe and are offered with three different sized Zoeller 115 Volt primary sump pumps. The only difference between these three systems is the primary pump choice that you get to make. The Pro Pak 49 comes with the Zoeller WM49 1/4 HP pump. The Pro Pak 53 comes with the Zoeller M53 .3 HP pump, and the Pro Pak 98 includes the Zoeller M98 1/2 HP pump. Click here to view the performance chart showing the different pump capacities for these primary pumps.

The included back-up pump system is the Basement Sentry I (507-0005) and includes the 12 volt DC back-up pump with internal check valve, the control box, float switch, sturdy polyethylene battery case with locking strap, and all needed mounting hardware for mounting the control box. The 12 volt back-up pump will turn on if the primary pump fails to turn on because of a power outage or if a high volume of water enters the pit and activates the back-up pump float switch. Click here for more detailed information regarding the Basement Sentry I back-up system.
Click for Pro Pak primary pump performance curve chart
Click for typical Pro Pak installation schematic

Aquanot Series

TOTAL DYNAMIC HEAD/CAPACITY PER MINUTE EFFLUENT AND DEWATERING
Vertical Height		Aquanot I MODEL 580		Aquanot II MODEL 580
FEET	METERS	GAL	LTRS	GAL	LTRS
5	1.5	44	167	49	186
10	3.0	31	117	36	136
15	4.6	13	49	25	95
Shut-off Head		17 ft. (5.2 m)		20 ft. (6.1 m)

The Basement Sentry Series **

TOTAL DYNAMIC HEAD/CAPACITY PER MINUTE EFFLUENT AND DEWATERING
MODEL		507		510
FEET	METERS	GAL	LTRS	GAL	LTRS
5	1.5	23	87	34	129
10	3.0	13	49	22	83
15	4.6	--	--	11	42
Shut-off Head		14 ft. (4.3 m)		19.9 ft. (6.1 m)

The Pro Pak Series **

TOTAL DYNAMIC HEAD/CAPACITY PER MINUTE EFFLUENT AND DEWATERING
MODEL		49		53		98
FEET	METERS	GAL	LTRS	GAL	LTRS	GAL	LTRS
5	1.5	32	121	43	163	72	273
10	3.0	25	95	34	129	61	231
15	4.6	10	38	19	72	45	170
Shut-off Head		18 ft. (5.5 m)		19.25 ft. (5.9 m)		23 ft. (7.0 m)

** NOTE: Above performance charts are based upon actual performance achieved with a 12 Volt deep-cycle battery. Some manufacturers publish performance data based upon D.C. Pump testing according to Marine Industry standards which can reflect a performance of 40-80% higher than actual battery powered performance.
