Video Pipe Inspection

By Rothenberger

Rothenberger offers the same high quality in their line of video pipe inspection systems as they do in their excellent selection of pipe threaders. Click here for the Rothenberger Collins Classic, here for the Rothenberger Rhino and here for the Panther. You are sure to find the quality threader that you need! Need replacement dies for your Rothenberger? Click here for our excellent selection!

ROCAM® Cordless Pipe & Drain Inspection Camera Systems

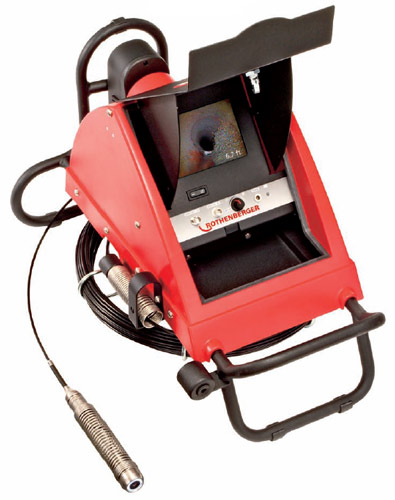

#69635NT ROCAM Camera System	This Pipe/Drain Inspection System Features: Revolutionary camera systems provide exceptional picture quality utilizing state of the art German optics Compact, self-contained, ready to use Both models include on-screen digital distance counter Monitor cover with shock absorber hinges also acts as sun visor View more product details
These cordless systems offer the best of both worlds. Sophisticated yet simple; cutting edge technology in a very easy to operate device. They can be operated for up to 2 1/2 hours with the 18 volt rechargeable battery. When not in use simply plug them into a 110 volt AC receptacle. Since these systems are designed to be cordless they should not be used while they are being charged. Each system includes a color camera head containing a transmitter, variable LED lights and two guide skids, and an 18 volt rechargeable battery. Also included is the flexible push cable, built-in 24 volt battery charger, and a 5" color monitor all contained on a convenient carrying frame with an integrated sunlight visor. But wait there's more! These systems come with a recording devise to record your cameras pipe journey so you can show the results of your search to your customer. The two 4" O.D. guide skids are attached and surround the camera heads to help stabilize them in the drain for the best possible visibility during exploration. An optional guide ball is available that can help get the camera over bumps and obstacles and keep the camera head centered in larger pipes helping to increase illumination and visibility. The transmitter not only signals the monitor information regarding the distance of cable travel but can be used in conjunction with the Sonde Locator (sold separately) to determine the exact location of blockages or other problems found during the inspection. The standard ROCAM® comes with a color camera head attached to a transmitter and 118 feet of flexible push cable. The camera head has a diameter of 1 5/16" and the push cable diameter is 3/16" allowing for easy maneuverability in hollow places or piping from 2" up to 6" in diameter. The deluxe ROCAM® Plus comes with a self leveling color camera head attached to a 512 hertz transmitter and 320 feet of flexible push cable. The self leveling camera keeps your monitor picture right side up as the camera glides through the line. The cable diameter is 5/16" and the camera head is 1 9/16" diameter, suitable for use in piping or hollow places from 2" up to 12" in diameter. A separate mini module (mini color camera) is also included for those jobs where the longer push cable may not be needed. This mini camera is 1" diameter on a very flexible 1/8" diameter coiled push cable 16 1/2" feet in length. The mini module is designed for use in smaller diameter piping (down to 1 5/8" I.D. because it is so flexible and easily pushes through traps and piping with multiple turns. For a quick reference of the differences between these two ROCAM® Camera systems see our comparison chart below.

Video Pipe / Drain Inspection Systems: Camera Package Options

Model #	Description	Price & Quantity
69635NT	ROCAM® Cordless Color Camera System with On-Screen Distance Counter - 118 Foot Push Cable Length - standard	$4910.36
69825NT	ROCAM® PLUS Color Camera System with On-Screen Distance Counter and Locating System - 320 Foot. Push Cable Length - deluxe	$9695.76

- Or -

Drain Inspection Camera Accessories & Replacement Parts

Model #	Description	Price & Quantity
#74628	Guide Ball - 12" Max. Pipe Diameter	$125.41
#H82306	Guide Skids (Star Type) - 6" Max. Pipe Diameter	$9.98
#69480	Replacement Cable only (for ROCAM #69635NT)	$861.71
#H82460	Replacement Cable only for ROCAM PLUS #69825NT	$2088.96

- Or -

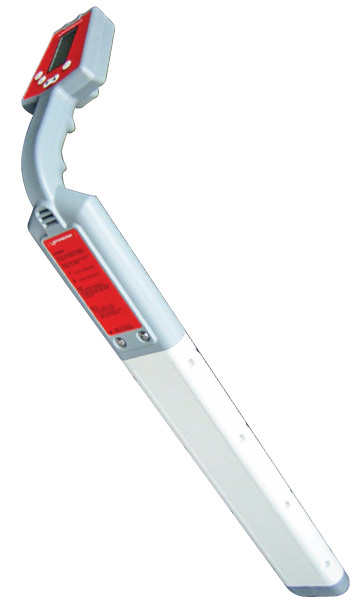

ROCAM® Camera Cordless Sonde Locator
ROCAM® Camera Sonde Locator	*This ROCAM® Camera Cordless Sonde Locator* Features:** High-tech problem solving at its finest This exceptional tool can help you locate problems underground before digging an inch of dirt! Locate water lines, sewer lines, live power lines, inspection camera transmitters, or other various devices used for tracking underground piping
You've heard it said a picture is worth a thousand words, but in this case a picture could be worth a thousand dollars! It's best to know where pipes and electrical power lines are before you trench rather than find them while your trenching. This cordless Sonde Locator is multi-functional allowing the user to locate live power lines without the use of a transmitter. The ROCAM® Camera Sonde Locator can be used with the The ROCAM® camera systems or other brand cameras with transmitters or it can be used by itself to find underground electrical lines as long as the electrical lines have power to them. If you need to locate water or sewer lines then some type of transmitter must be present in order for the sonde locator to find the signal.

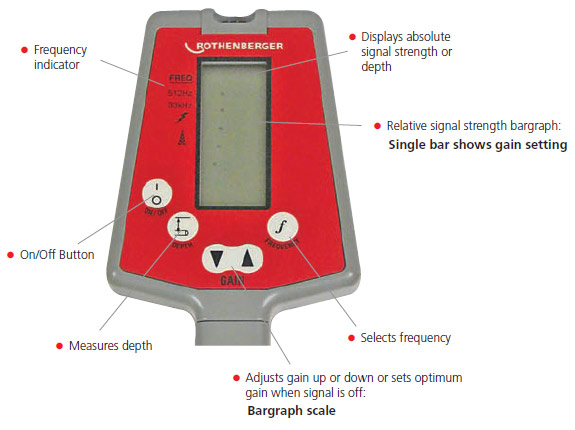

The Sonde Locator head has weather proof membrane push buttons, including an on/off button, a frequency selector, a depth measurement button, and adjustable gain control buttons providing quick and easy display information as you need it. The gain control buttons regulate the strength of the receiving power. As the underground camera/transmitter is lowered further underground the gain will need to be increased in order to read the signal. This ROCAM® Sonde Locator powered by 6 "C" sized batteries (included) is able to locate signals from transmitters down to 10 feet underground in cast iron pipe. Normal battery life expectancy is 40 hours continuous use and 82 hours of intermittent use. Display indicators indicate low battery, signal strength, mode and function, frequency setting, and an LCD bar graph scale to show the gain level. Very lightweight and easy to use this Sonde Locator is 30.3" x 9.4" (77 cm x 24 cm) in size. The frequency input can be set for 512 Hz, or 33 kHz for the accurate tracing of pipe cameras with transmitters. or other sonde devices. The 50/60 Hz frequency locates live utilities without the use of transmitters. There is also a Radio Frequency range of 14 kHz to 30 kHz that can detect low voltage like cable TV lines. An audio indication sounds when the locator hones in on the transmitter or sonde and the variable pitch becomes faster the closer the locator gets to the correct location.

Model #	Description	Price & Quantity
#69001	ROCAM®Cordless Sonde Locator	$1088.74

- Or -

ROCAM® Pipe Inspection System Comparison

Component Comparison Details	Deluxe ROCAM® Plus	Standard ROCAM®
Cordless	Yes	Yes
Color Camera	Yes	Yes
Self Leveling Camera Head	Yes	No
Camera Head Diameter	1 9/16" (40 mm)	1 5/16" (33 mm)
Push Cable Length	320 ft.	118 ft.
Push Cable Diameter	5/16"	3/16"
Pipe Diameter Capacity	2" to 12"	2" to 6"
Transmitter	Yes	Yes
Distance Counter	Yes	Yes
Color Monitor	Yes	Yes
ABS Housing	Yes	Yes
Digital Metering Readout	Yes	Yes
Battery Voltage	18 volt	18 volt
Battery Charger Included	Yes	Yes
Mini Camera Included	Yes	No
Video In / Video Out Ports	Yes	Yes
