Snap Cutters

by Reed

Reed offers some of the finest, most effective value-priced snap and ratcheting cutters and wrenches in the industry. Stock your tool box with the right tool for the job with these and the many other helpful plumbing tools and products we offer. PlumbingSupply.com is your source for Reed products and many other plumbing-related tools.

Single Stroke Snap Cutters

The fastest way to cut cast iron soil pipe, and small diameter concrete pipe is with a chain pipe cutter (aka: "snap cutters"). Reed has improved the original manufacturer's design by providing stronger jaws and more durable adjusting screws which are interchangeable with the original tools. Reed soil pipe cutters are available in a single stroke model and a ratcheting model for close quarter work.

SC59 Single Stroke

Product #	Pipe Capacity - Nom.*	Length	Weight	Price & Quantity
SC59-6	2" - 6"	43"	26 lbs	$459.29
SC59-8	2" - 8"	43"	28 lbs	$514.36
SC59-10	2" - 10"	43"	29 lbs	$565.27
SC59-12	2" - 12"	43"	32 lbs	$616.16
SC59-15	2" - 15"	43"	33 lbs	$681.75

- Or -

Ratcheting Snap Cutters
SC49 Ratcheting	The close quarter pipe cutters are the easiest to use because the screw is captured, does not have to be manipulated into place, and takes less effort than those of the competition. American made, multiple use ratchet wrench ships with SC49 models.

Product #	Pipe Capacity - Nom.*	Length	Weight	Price & Quantity
SC49-6	2" - 6"	26"	17 lbs	$466.73
SC49-8	2" - 8"	26"	19 lbs	$519.78
SC49-10	2" - 10"	26"	21 lbs	$574.38
SC49-12	2" - 12"	26"	22 lbs	$632.69
SC49-15	2" - 15"	26"	24 lbs	$697.95
SC49 models include a free ratchet wrench.

- Or -

* Maximum Pipe Capacities
Extra heavy soil pipe	2" - 4"
Service weight cast iron pipe	2" - 8"
Concrete pipe	4" - 6"
No-Hub pipe	1-1/2" - 8"
Clay pipe	2" - 15"

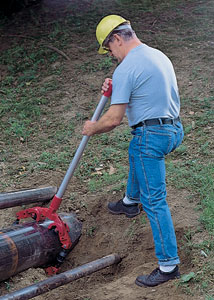

LCRC Low Profile Rotary™ Cutters


	Rotary™ cutters cold cut large diameter steel, most stainless steel, ductile, and cast iron pipe in close quarters. The heavy duty frame and low profile design of the LCRC models need only 4" clearance. Each cutter includes a slip-on handle that is used to turn the cutter around the pipe in one direction. The handle is also used to tighten the cutter every 1/2 revolution. Rotary cutters are the best manual cutters for ductile iron. All sizes use the same cutter wheels.

Product #	Pipe Capacity Steel Inches- Nom.	Pipe Capacity Cast Iron & Ductile Inches- Nom.	Length	Weight	Price Quantity
LCRC8I	--	6" - 8"	58"	41 lbs	$1674.53
LCRC8S	6" - 8"	--	58"	41 lbs	$1671.62
LCRC8X	6" - 8" Heavy Wall Steel, Stainless Steel	--	58"	41 lbs	$1684.59
LCRC12I	--	10" - 12"	61"	50 lbs	$2047.99
LCRC12S	10" - 14"	--	61"	50 lbs	$2062.89
LCRC12X	10" - 12" Heavy Wall Steel, Stainless Steel	--	61"	50 lbs	$2077.82
LCRC16I	--	14" - 16"	66"	60 lbs	$2516.91
LCRC16S	16" - 18"	--	66"	60 lbs	$2531.35
LCRC16X	16" - 18" Heavy Wall Steel, Stainless Steel	--	66"	60 lbs	$2545.01
↓ Replacement Cutter Wheels ↓
RCS8-36	4 pack cutter wheels for steel and stainless steel				$198.49
RCI8-30	4 pack cutter wheels for cast iron and ductile iron				$182.37
RCSDX	4 pack cutter wheels for heavy cast iron and ductile iron				$182.17
RCX	4 pack cutter wheels for heavy wall steel and stainless steel Requires 2 rollers, offered separately				$212.99
RC8-30XR	Outboard roller for RCX cutter wheel (2 each required per wheel)				$9.72

Residential delivery with liftgate (if shipping to a residence, please select this option for items over 70 lbs) Please note: only one liftgate option is needed per order.					$65.00

- Or -

RC Rotary™ Cutters

Rotary™ cutters are a must have when you work with large diameter pipes. Designed to cold cut large diameter steel, most stainless steel, and cast iron pipe, these cutters are especially ideal for ductile iron. Intended for use in close quarters, only 8" clearance is required for the RC20 and RC24 and just 11.8" clearance for the RC30 and RC36 cutters. Each cutter is supplied with a slip-on handle that is used to turn the cutter around the pipe in one direction. The handle is also used to tighten the cutter every 1/2 revolution. These cutters also feature heavy-duty frames and all sizes use the same cutter wheels:

Product #	Pipe Capacity Steel Inches- Nom.	Pipe Capacity Cast Iron & Ductile Inches- Nom.	Length	Weight	Price Quantity
RC20I	--	18" - 20"	106"	89 lbs	$3202.69
RC20S	20" - 22"	--	106"	89 lbs	$3208.41
RC24I	--	22" - 24"	111"	107 lbs	$3903.65
RC24S	24" - 26"	--	111"	107 lbs	$3904.07
RC30I	--	30"	96"	283 lbs	$5990.59
RC30S	28" - 34"	--	96"	283 lbs	$5994.69
RC36S	32" - 36"	--	96"	295 lbs	$6944.89
↓ Replacement Cutter Wheels ↓
RCS8-36	4 pack cutter wheels for steel and stainless steel				$198.49
RCI8-30	4 pack cutter wheels for cast iron and ductile iron				$182.37
RCSDX	4 pack cutter wheels for heavy cast iron and ductile iron				$182.17
RCX	4 pack cutter wheels for heavy wall steel and stainless steel Requires 2 rollers, offered separately				$212.99
RC8-30XR	Outboard roller for RCX cutter wheel (2 each required per wheel)				$9.72

Residential delivery with liftgate (if shipping to a residence, please select this option for items over 70 lbs) Please note: only one liftgate option is needed per order.					$65.00

- Or -

PLAS In-Line Rotary™ Cutters

PLAS In-Line Rotary™ Cutters are excellent for cutting 4" to 28" diameter PVC or PE pipe in-trench or above ground. Each PLAS rotary cutter needs just 6" to 8" clearance around the pipe. Outboard rollers keep the cutter aligned on pipe, ensuring a square cut every time. The tool's carbide-tipped blades for PVC are long-lasting and penetrate up to a 2" wall thickness. Each PVC cutter also can produce, in-line with the cut, a 15° bevel on both sides of the cut. In addition, Reed has developed a hardened, tool steel blade to cut PE pipe. The curved blade drives chips out of the way, making PE cuts much easier. Regular PLAS in-line rotary cutters can be retrofitted for PE by purchasing the new blade. PLASOH and PLASOHPE models feature smaller outside diameter and attached handles which permit fast hand-turning. The "OH" models require 11" clearance around the pipe.
See an example of a PLAS series cutter in use.

Product #	Inches - Nominal	Weight	Price Quantity
PLASOH	4" - 8" 4.2" actual O.D. min.	21 lbs	$959.37
PLASOHPE	4" - 8" 4.2" actual O.D. min.	21 lbs	$956.82
PLASO	4" - 8" 4.5" actual O.D. min.	39 lbs	$958.29
PLASOPE	4" - 8" 4.5" actual O.D. min.	39 lbs	$959.76
PLAS1	6" - 12"	52 lbs	$1043.82
PLAS1PE	6" - 12"	52 lbs	$1040.10
PLAS2	14" - 18"	57 lbs	$1465.80
PLAS2PE	14" - 18"	57 lbs	$1465.35
PLAS3	14" - 24"	62 lbs	$1640.74
PLAS3PE	14" - 24"	62 lbs	$1627.58
PLAS4	14" - 28"	68 lbs	$1768.41
PLAS4PE	14" - 28"	68 lbs	$1768.77
↓ Replacement Blades ↓
PLASPVCB	PVC Cutoff Blade		$47.11
PLASPEB	PE Cutoff Blade		$47.04

- Or -

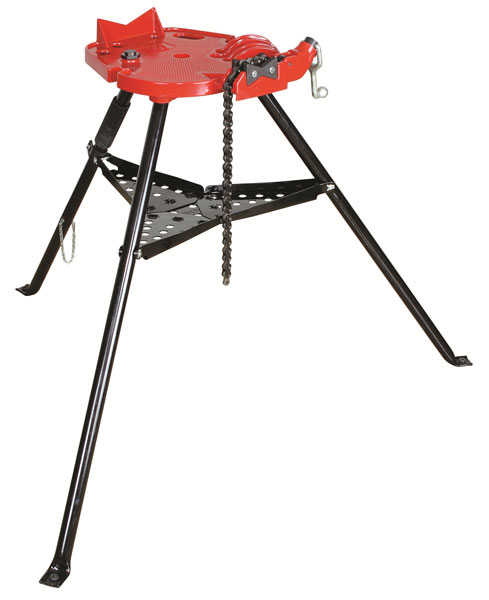

Reed Tripod Vise

Reed Tripod Vises are among the strongest pipe vises available. Tripods are manufactured with heavy gauge steel, overlapping hinges, and the best adjustable tray clamp, not a set screw, to keep the lower tray assembly and entire portable workbench tight - even after many hours of use! The heavy-duty design permits use with pipe up to 6" diameter. Exclusive double-faced jaws provide a second set of jaws with options available for both metal and plastic pipe and a 45° cranking handle. For comfortable stability, these vises have a padded handle grip at the balance point and are light weight for the easiest portability. For convenient transportation and storage, the tripod is able to fold down into a compact shape.

R470P Tripod Vise = $505.85

- Or -

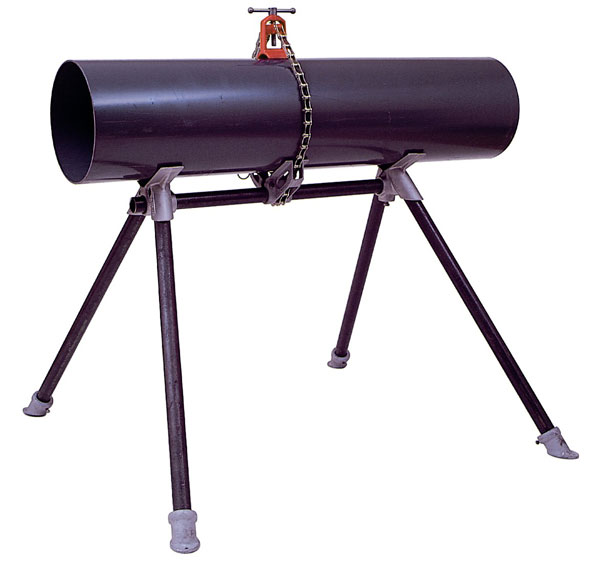

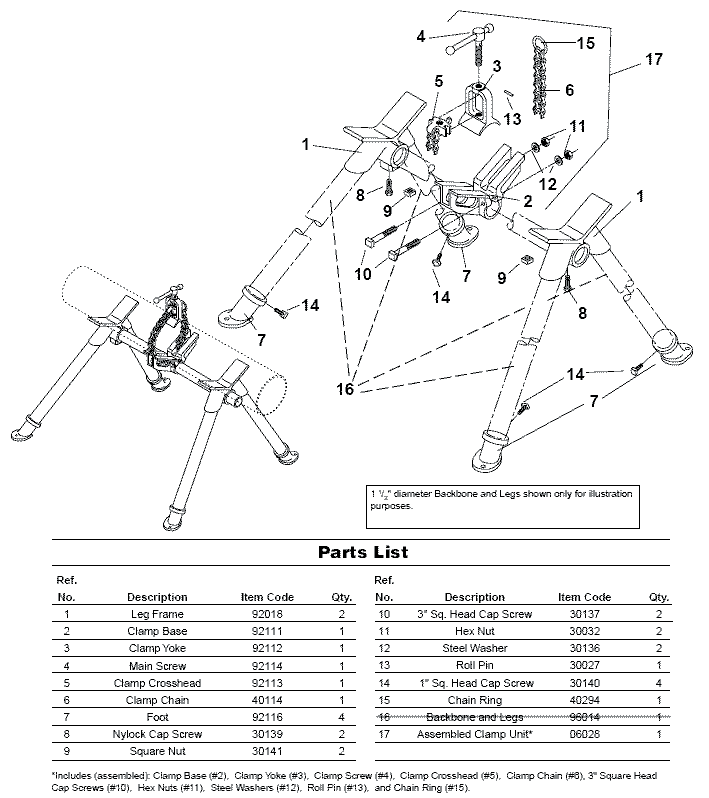

Reed Field Pipe Vise

Shown with backbone and legs (not included)
Click for more information

Field Pipe Vise holds pipe up to 20" diameter. 2,000 lb vise capacity yet weighs only 22 lbs without legs and backbone. Super choice for pre-trench work and above ground cuts. Excellent flexibility achieved in height and length of vise. Leg and backbone pipes are not included and therefore can be customized appropriately to application and user comfort.

FPV20 Field Pipe Vise = $583.08
